🔧 Intel Wireless WiFi 5300 PCIe WiFi Module for Lenovo ThinkPad X200 X200s X301 T400 W500 🔧

🖥️ Intel Wireless WiFi Link 5300 | Wireless Connectivity | Original Part | FRU 43Y6493

⚙️ PRODUCT CHARACTERISTICS

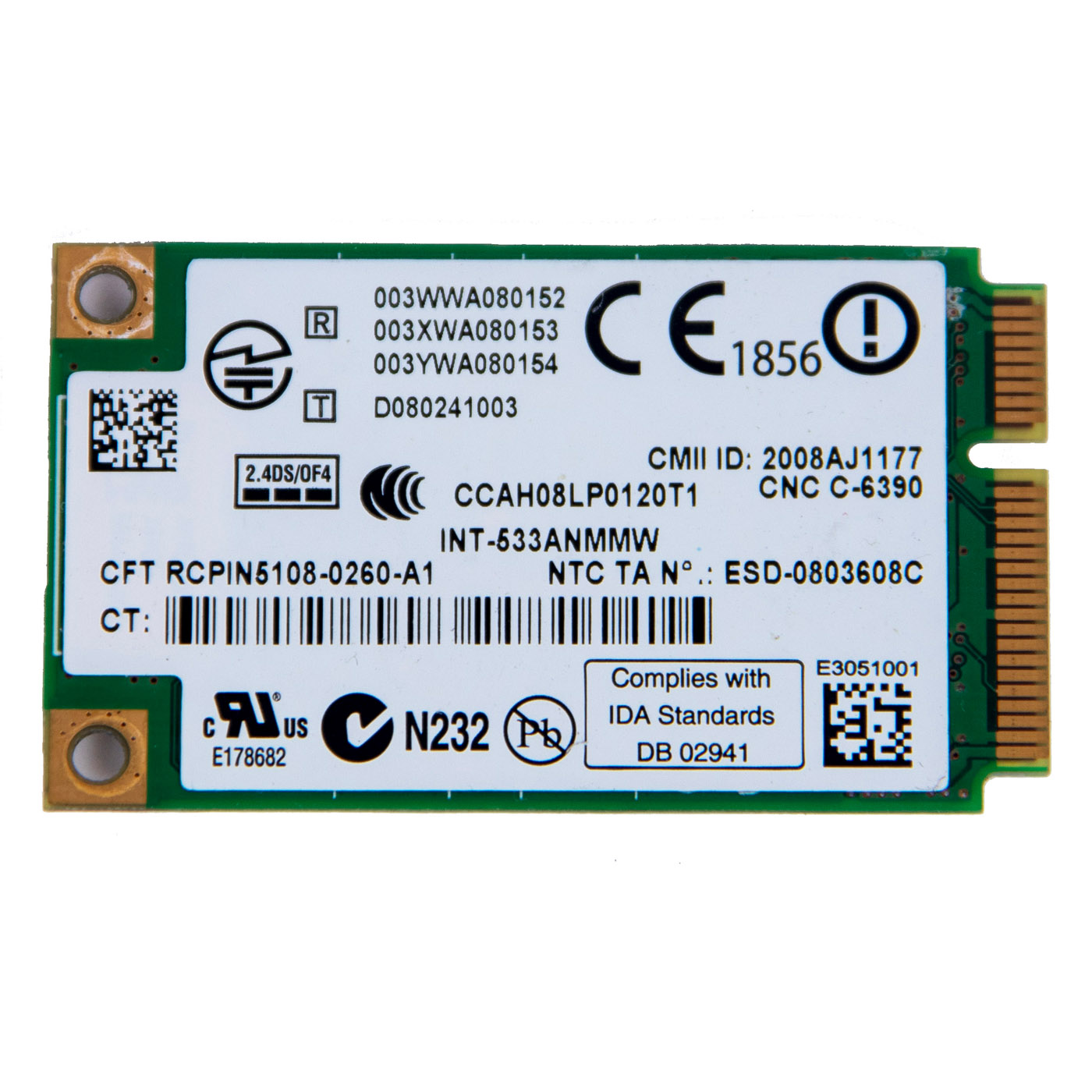

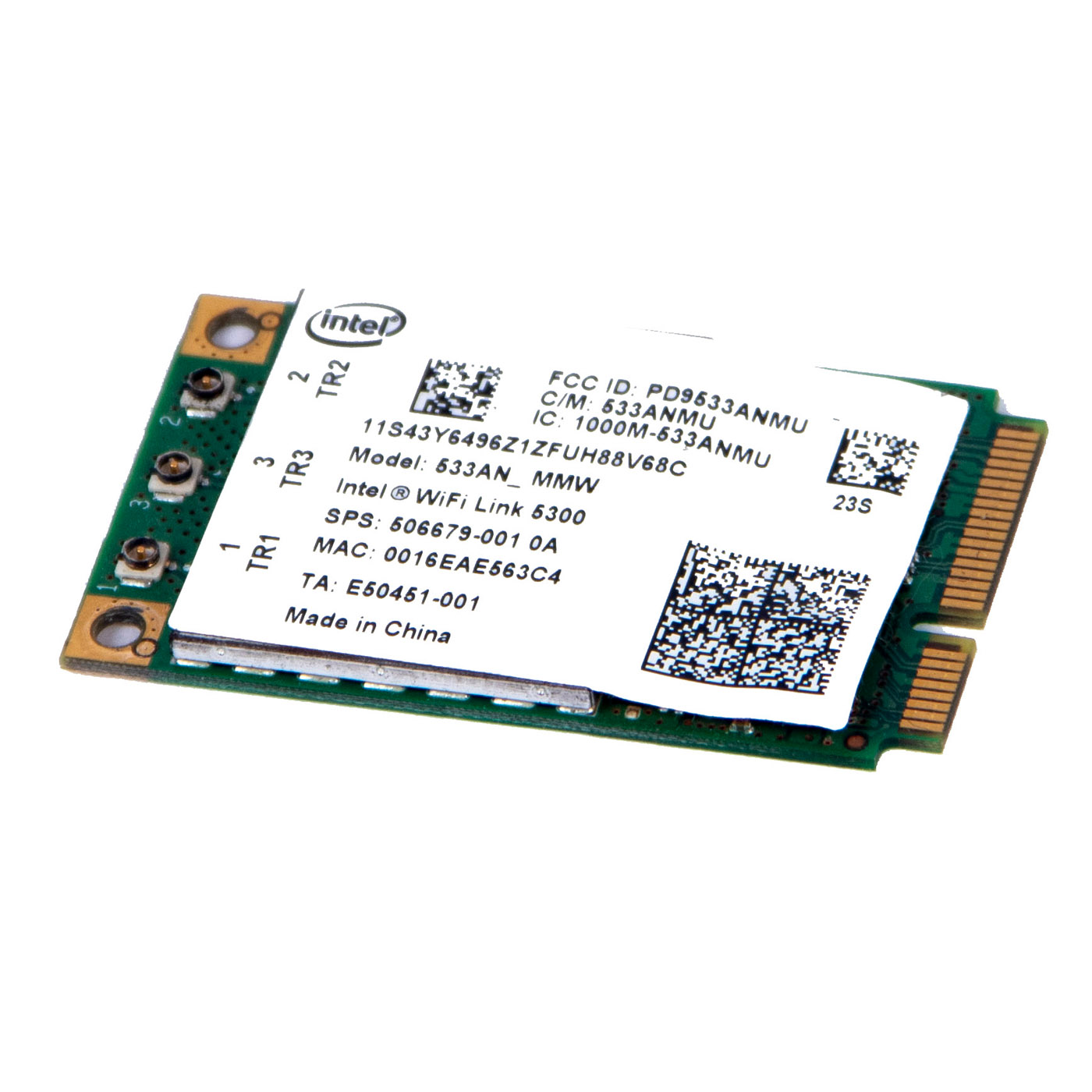

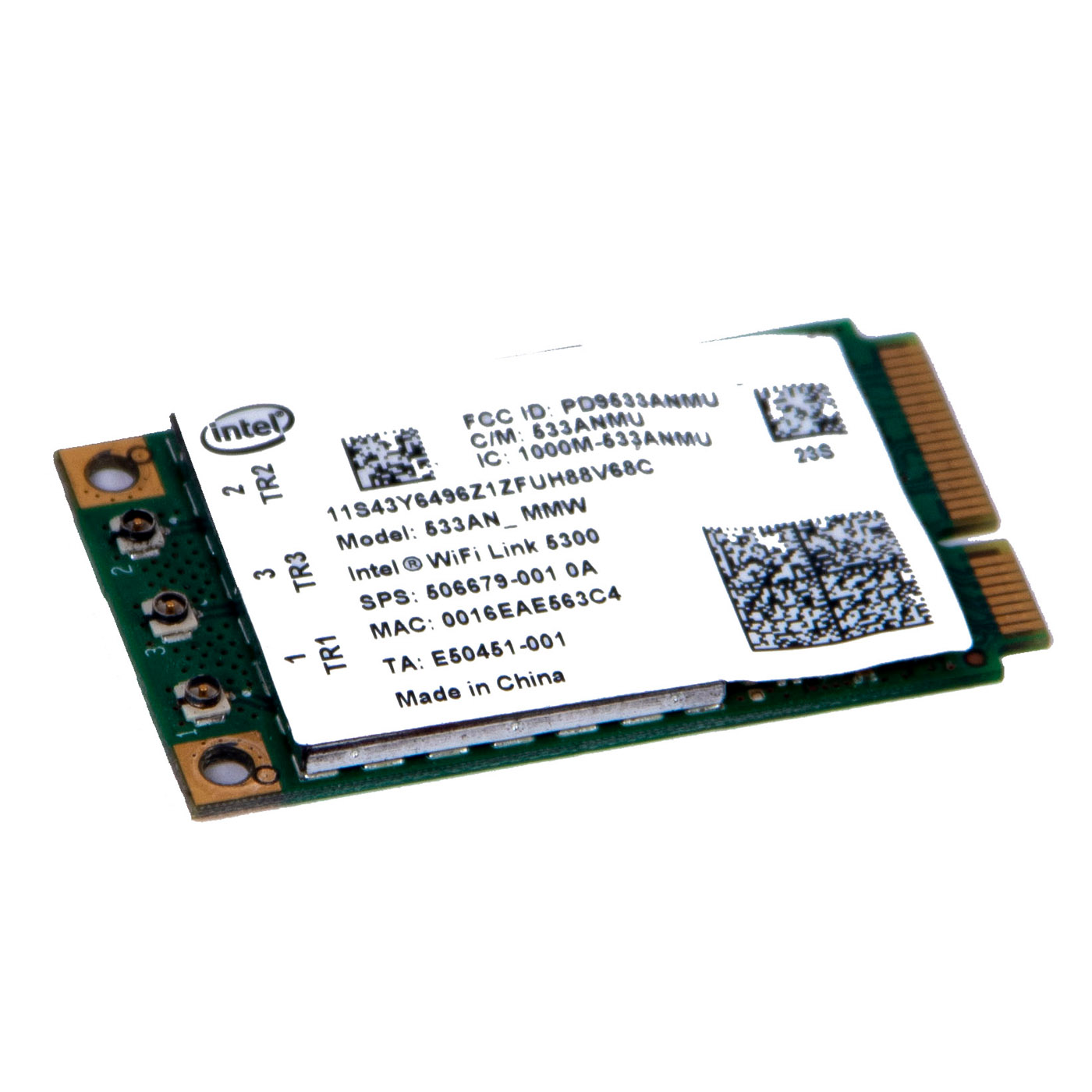

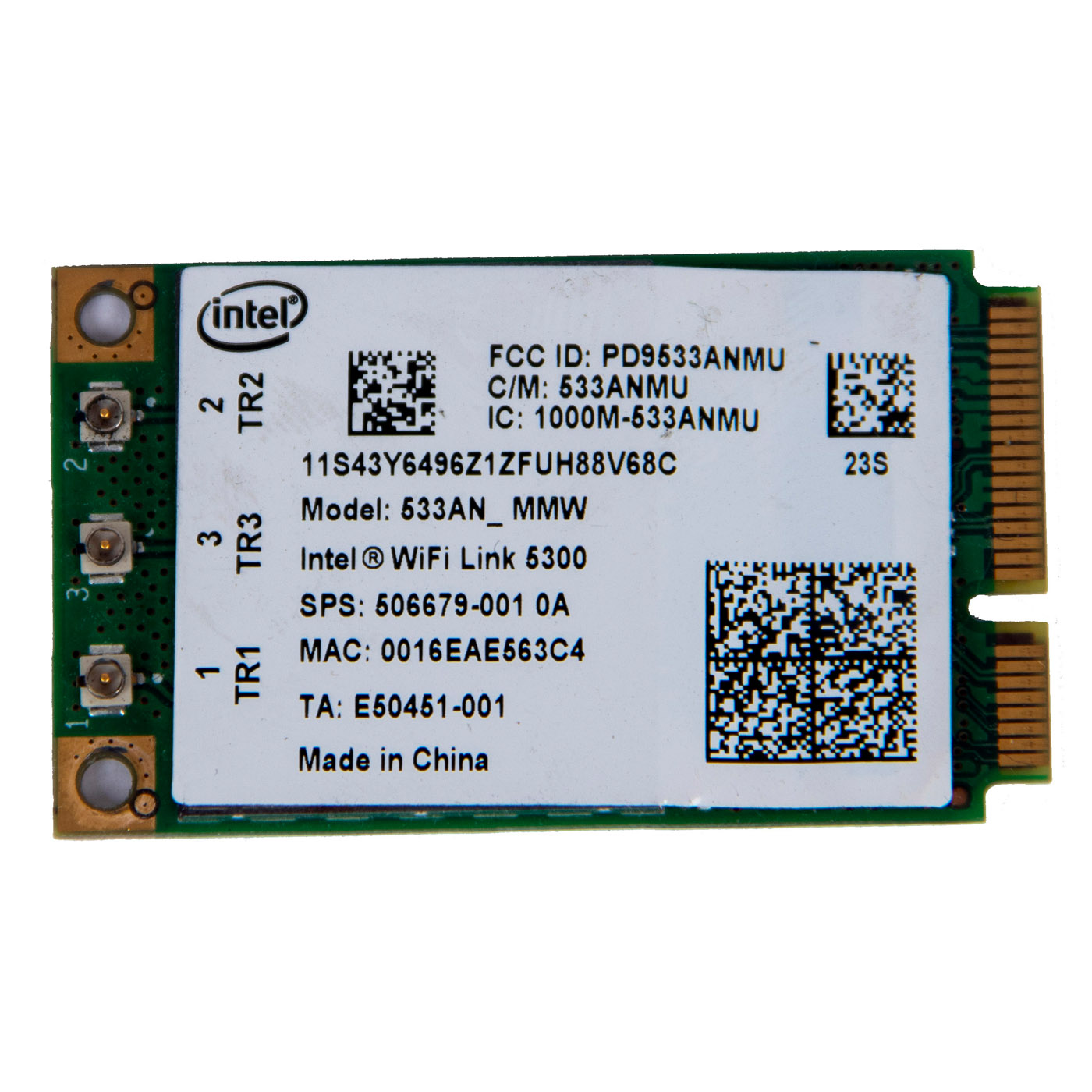

We present the original Intel Wireless WiFi 5300 PCIe WiFi module designed for Lenovo ThinkPad laptops of the X200, X200s, X301, T400, and W500 series. This is an original Lenovo part marked with FRU number 43Y6493, which provides reliable wireless connectivity in the 802.11a/b/g/n standard. The module has been carefully tested for functionality, ensuring seamless wireless communication after installation in a compatible ThinkPad laptop.

📋 TECHNICAL DATA

Manufacturer: Intel
Model: Wireless WiFi Link 5300
Interface: PCIe Mini Card
Compatibility: Lenovo ThinkPad X200, X200s, X301, T400, W500
WiFi Standard: 802.11a/b/g/n
Frequency: 2.4GHz and 5GHz
Technology: MIMO (Multiple Input Multiple Output)
Number of Antennas: 3 (Triple Stream)
Condition: Used
FRU Number: 43Y6493

🌟 KEY ADVANTAGES

🔹 Original Lenovo part – guarantees perfect compatibility with ThinkPad laptops
🔹 Triple Stream technology – supports three data streams for increased bandwidth
🔹 Dual-band connectivity – operates in both 2.4GHz and 5GHz bands
🔹 High bandwidth – supports the 802.11n standard for fast data transfer
🔹 Proven reliability – each module undergoes functional testing before shipping
🔹 Easy installation – simple installation in the PCIe Mini Card slot

🔢 CATALOG NUMBERS

FRU: 43Y6493
Module designation: 533AN_MMW
Compatible models: X200, X200s, X301, T400, W500

❓ WHEN TO REPLACE THE WIFI MODULE?

• Connection issues – the laptop does not detect wireless networks or frequently loses connection
• Unstable operation – frequent disconnections or significant slowdowns in transfer
• Limited range – the device only connects to very close access points
• Error messages – the system displays information about network card issues
• No response when turning on WiFi – the switch or keyboard shortcut does not activate the module
• Overheating of the laptop – a damaged module may generate excessive heat

🔧 INSTALLATION PROCESS

Replacing the WiFi module in ThinkPad laptops is a relatively simple process. Start by turning off the device, disconnecting the power supply, and removing the battery. Next, remove the appropriate service cover on the bottom of the case, which provides access to the PCIe Mini Card slot. After locating the old WiFi module, carefully disconnect the antenna wires, unscrew the securing screw, and slide the module out of the slot. Install the new Intel Wireless WiFi 5300 module in reverse order, paying special attention to correctly connecting the antenna wires to the appropriate connectors on the card.

🎯 PURPOSE

The original Intel Wireless WiFi 5300 PCIe WiFi module is dedicated to Lenovo ThinkPad laptops of the X200, X200s, X301, T400, and W500 series. It provides fast and stable wireless connectivity in the 802.11a/b/g/n standard, which is essential for comfortable work, internet browsing, multimedia streaming, or video conferencing. This is an ideal solution for users who need to replace a damaged WiFi module or want to upgrade their equipment to a newer wireless connectivity standard. This module is particularly recommended for professionals who require reliable connectivity during mobile work.

✅ COMPATIBILITY GUARANTEE

The offered part has been thoroughly checked and matched to Lenovo ThinkPad X200, X200s, X301, T400, and W500 models.We guarantee full compatibility with the mentioned models regarding FRU number 43Y6493.The exact appearance and condition of the offered item are shown in the photos in the listing.We provide a 3-month warranty for the used WiFi module. In case of any compatibility issues, a return is possible within 14 days of receiving the shipment.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the Intel Wireless WiFi 5300 PCIe module or are you unsure if it will be compatible with your ThinkPad laptop? Our experts are at your disposal! We have many years of experience in the laptop parts industry and are happy to help you choose the right component. Contact us for professional advice and technical support.

📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.eu

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

ABCDEAL is a company with many years of experience in providing high-quality parts for Lenovo laptops. We specialize in original components that ensure the reliable operation of your equipment. Our team of experts takes care to carefully select, test, and safely package each product. With our experience, you can be sure that you are receiving verified parts that will restore your laptop to full functionality. Trust the professionals and choose ABCDEAL as your supplier of Lenovo laptop parts.

🎯 Choose professionals – invest in high quality!

By choosing the original Intel Wireless WiFi 5300 PCIe module from ABCDEAL, you are investing in proven quality and reliability. Our parts are carefully selected and tested to ensure the smooth operation of your ThinkPad laptop. Remember that high-quality components are the key to stable operation and a long life for your laptop!
