🔧 Lenovo ThinkPad OneLink Pro Dock Docking Station 🔧

🖥️ ThinkPad OneLink Pro Dock | OneLink | DP + DVI | Black | FRU: 03X6819

⚙️ PRODUCT CHARACTERISTICS

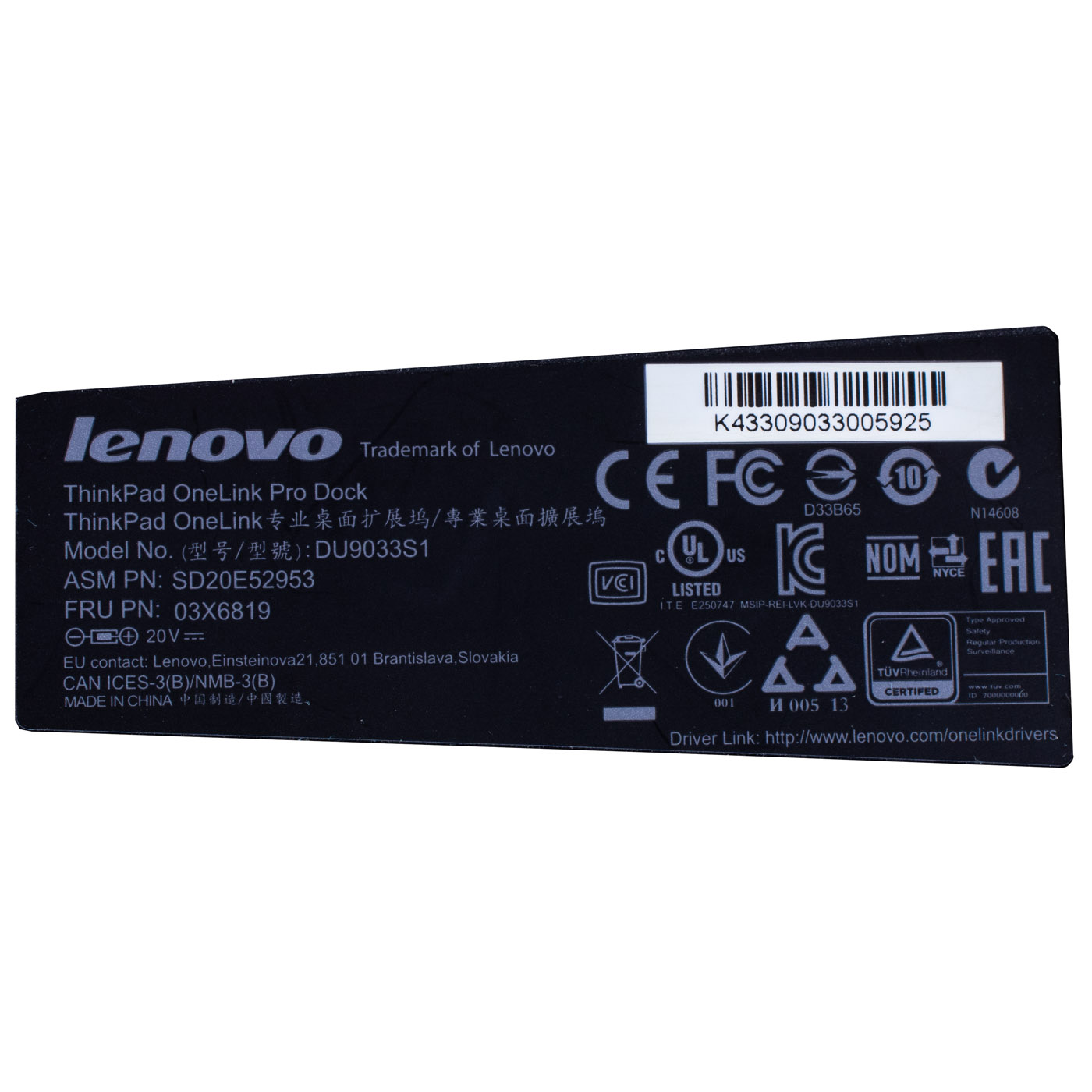

Lenovo ThinkPad OneLink Pro Dock — FRU: 03X6819

Transform your laptop into a convenient workstation with a single cable. The Lenovo ThinkPad OneLink Pro Dock DU9033S1 is a professional docking station that provides quick connection of peripherals, network, and monitors through one OneLink connector with driver-free technology. Perfect for office and home use — saves time, organizes your desk, and increases productivity without the need to reconnect cables every time. The dosk is used, in good condition.

Key Features:

🔌 Single OneLink connector for everything: monitors, network, USB devices, audio + power
🖥️ Dual video output support: DisplayPort + DVI-I without compression and without drivers
🌐 Gigabit Ethernet for fast and stable internet connection
⚡ Up to 6 USB ports (4× USB 3.0, 2× USB 2.0) with Always-On function for charging mobile devices
📏 Compact dimensions and power button on top of the housing
✅ Dedicated compatibility with ThinkPad laptops featuring OneLink connector

Ports and Connectors:

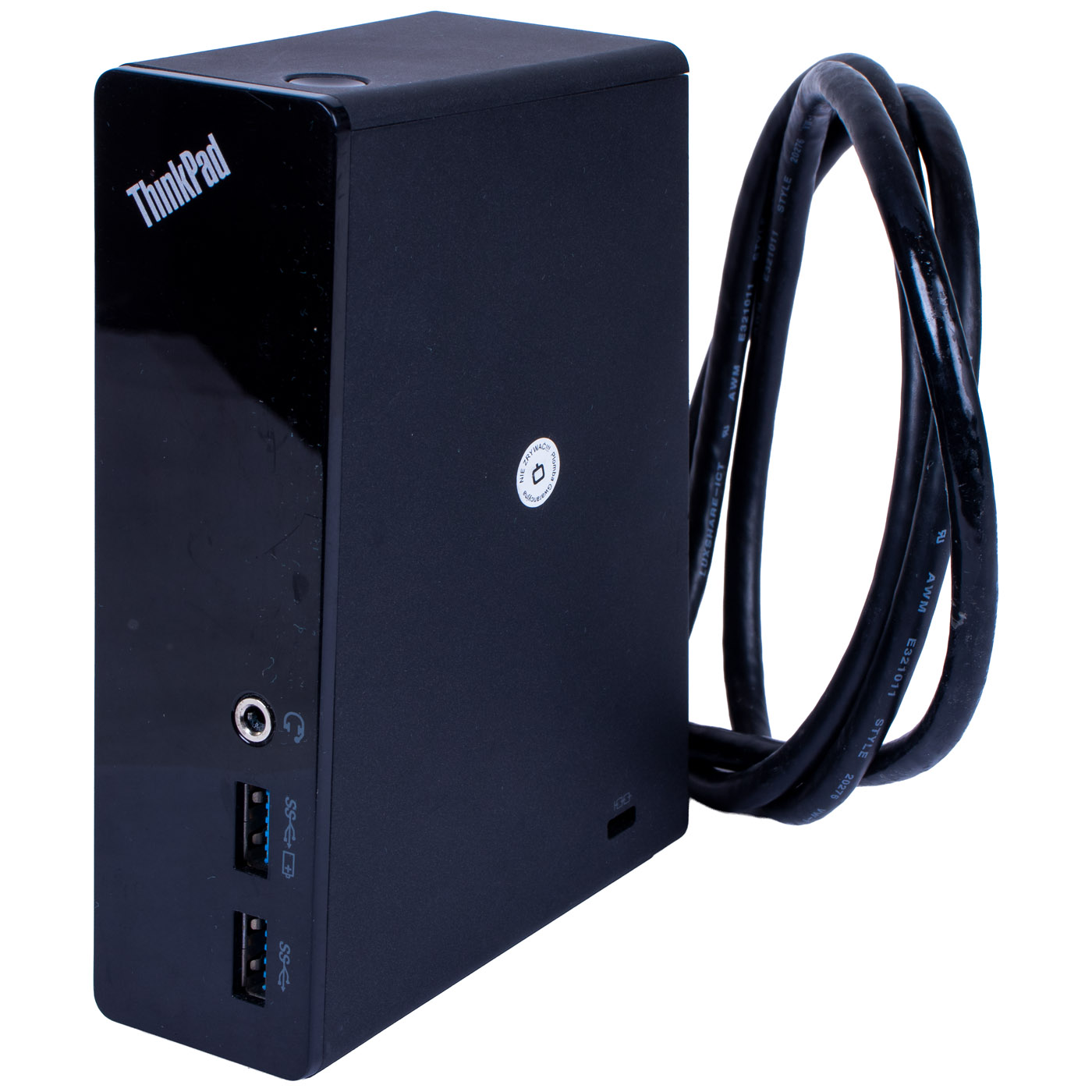

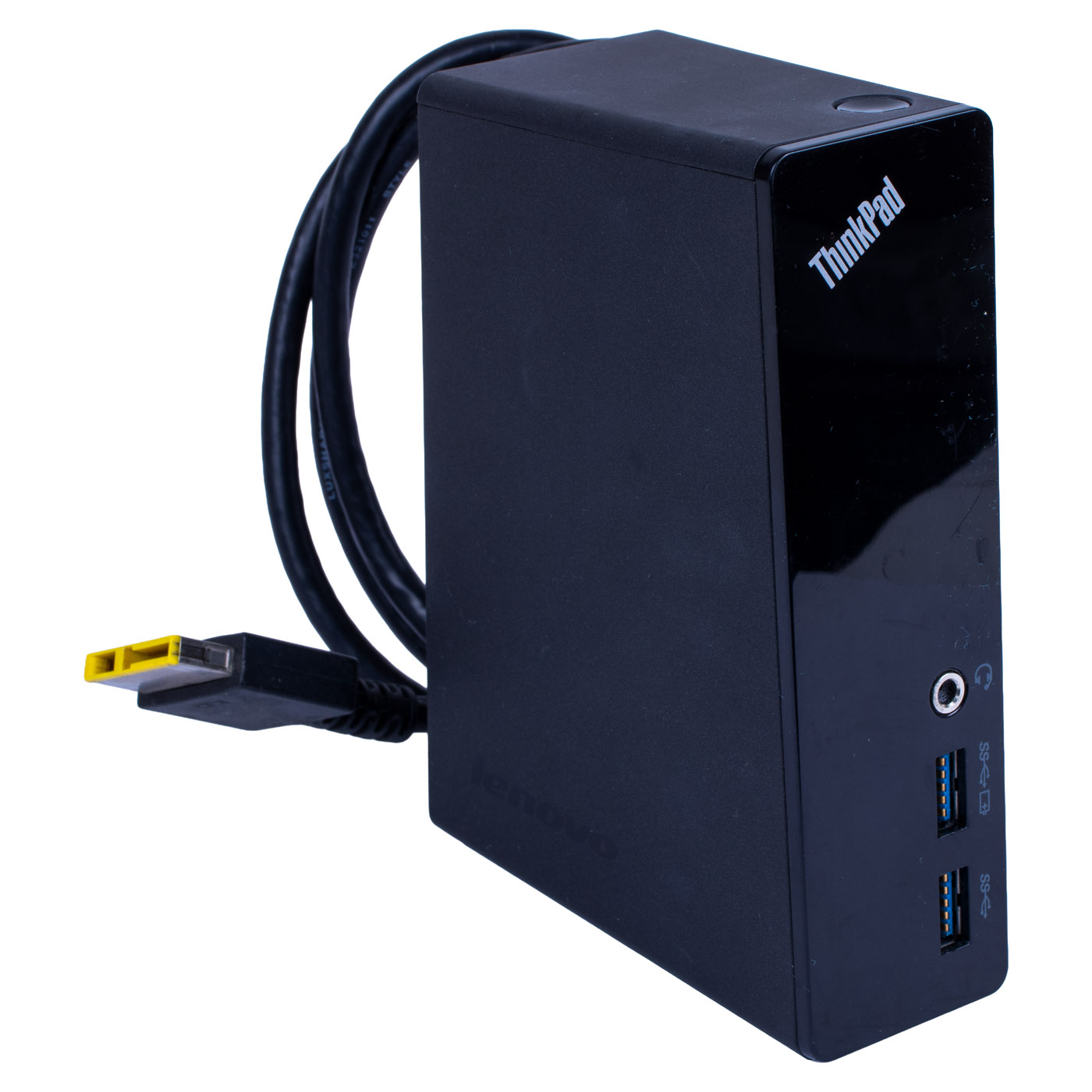

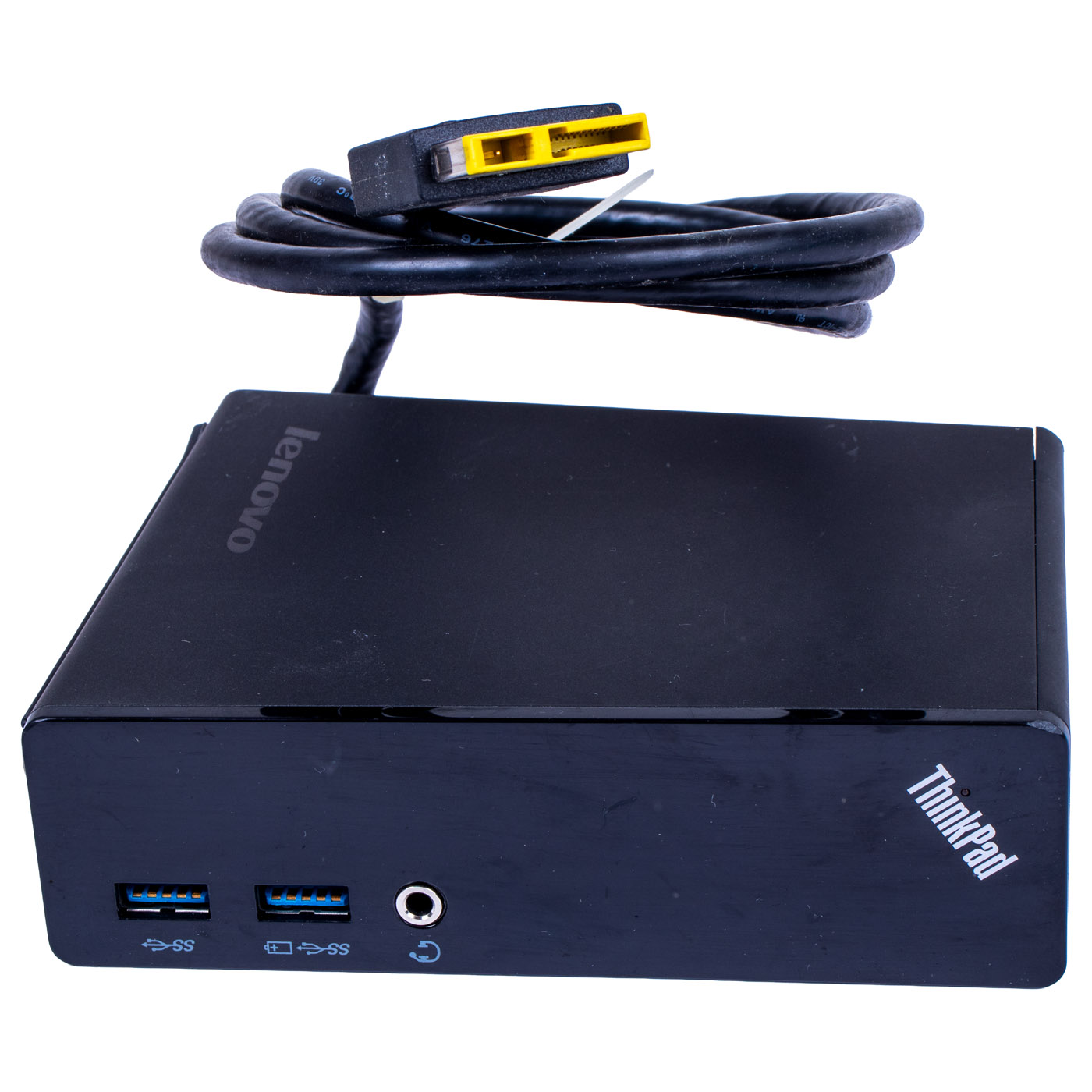

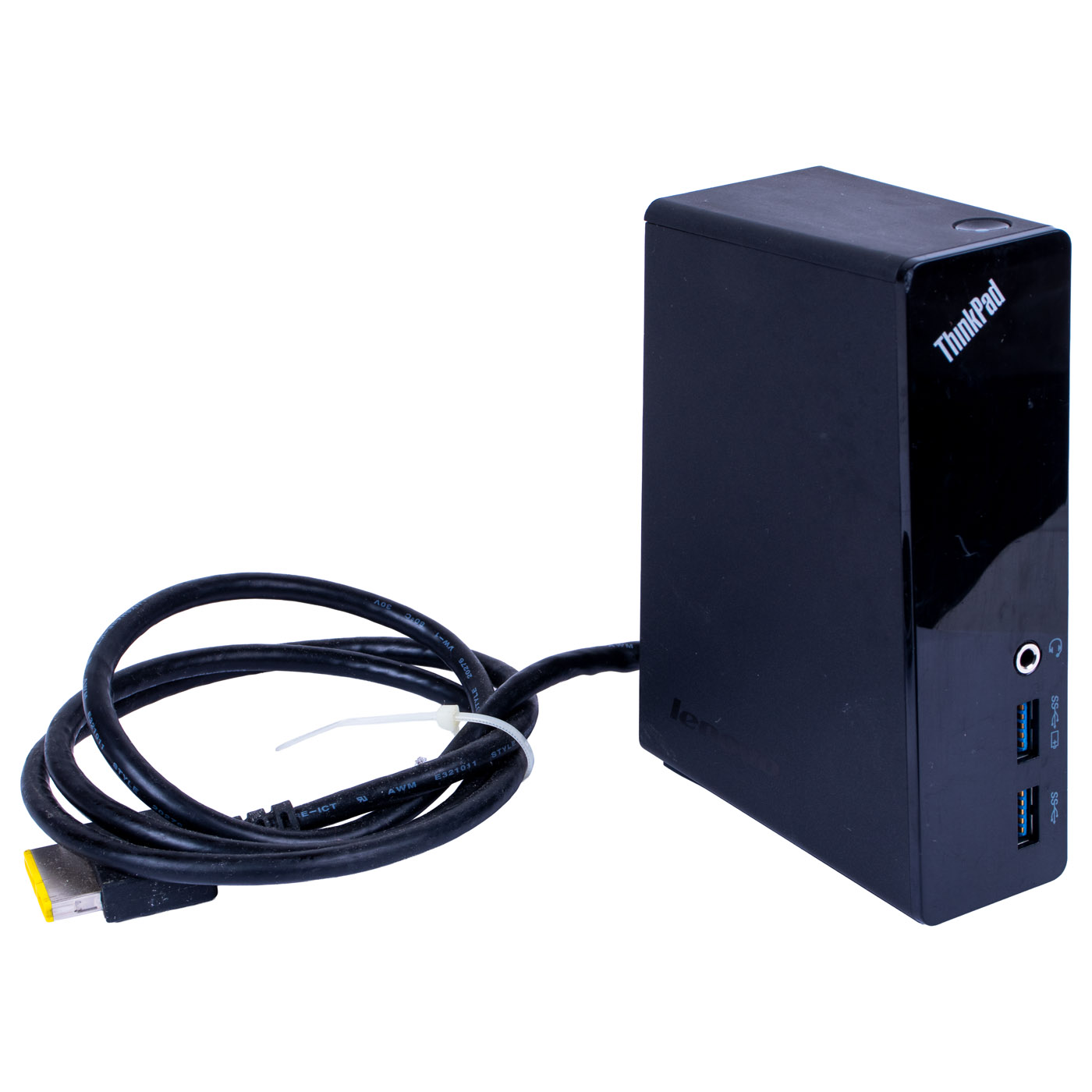

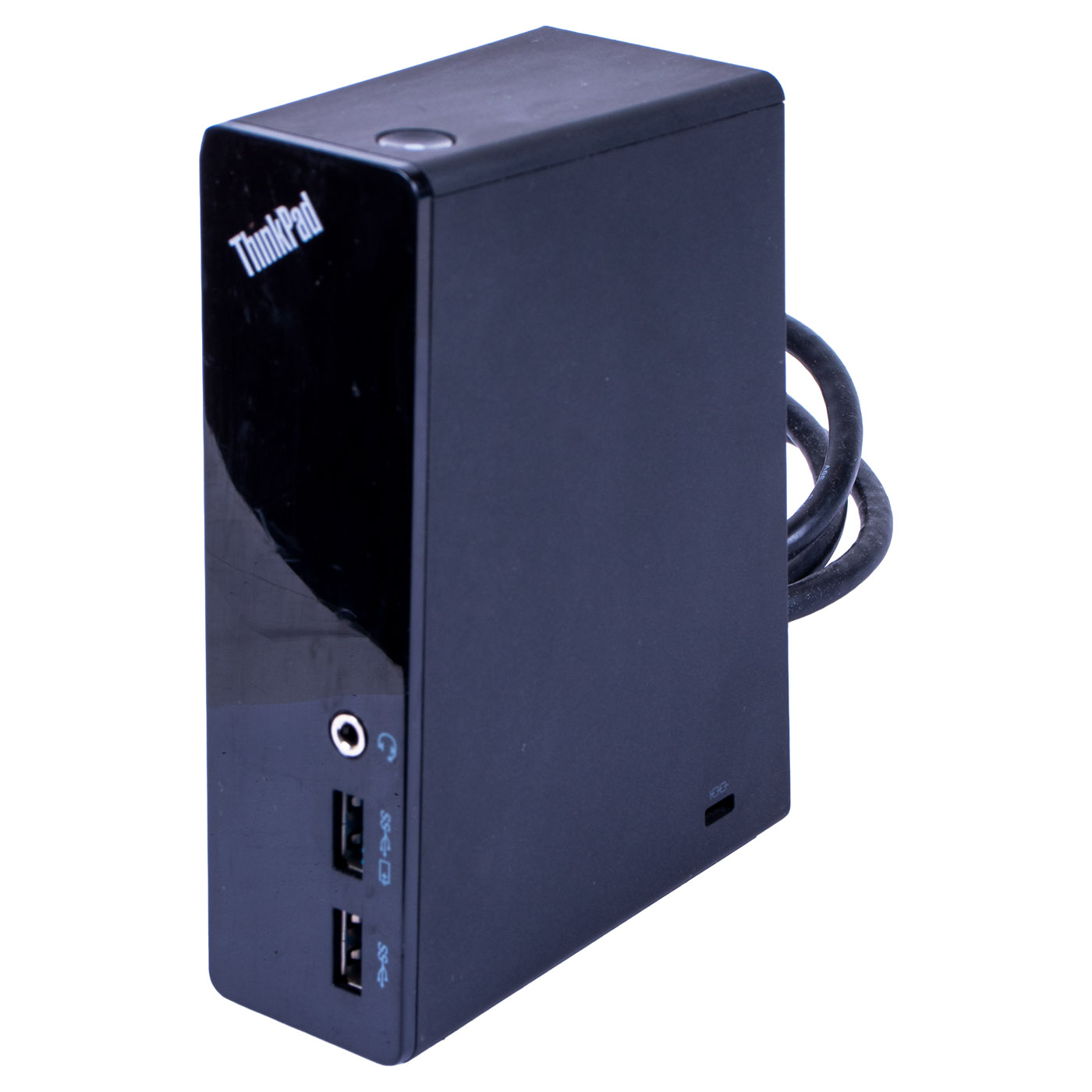

Front:

• 🔌 2× USB 3.0 (1× Always-On/Charging)
• 🎧 1× combo audio jack (headphones/microphone)
• 🔘 Power button (on top)

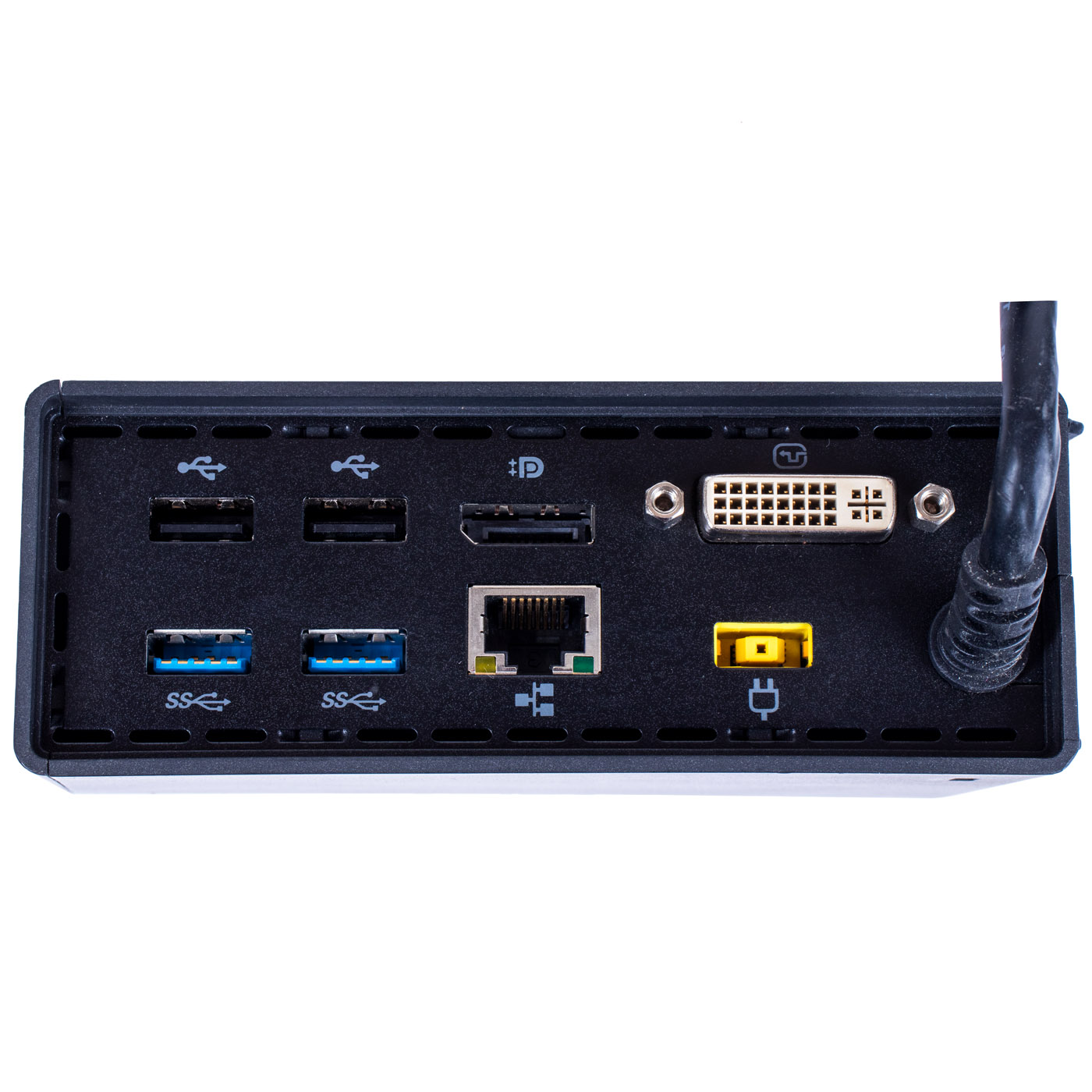

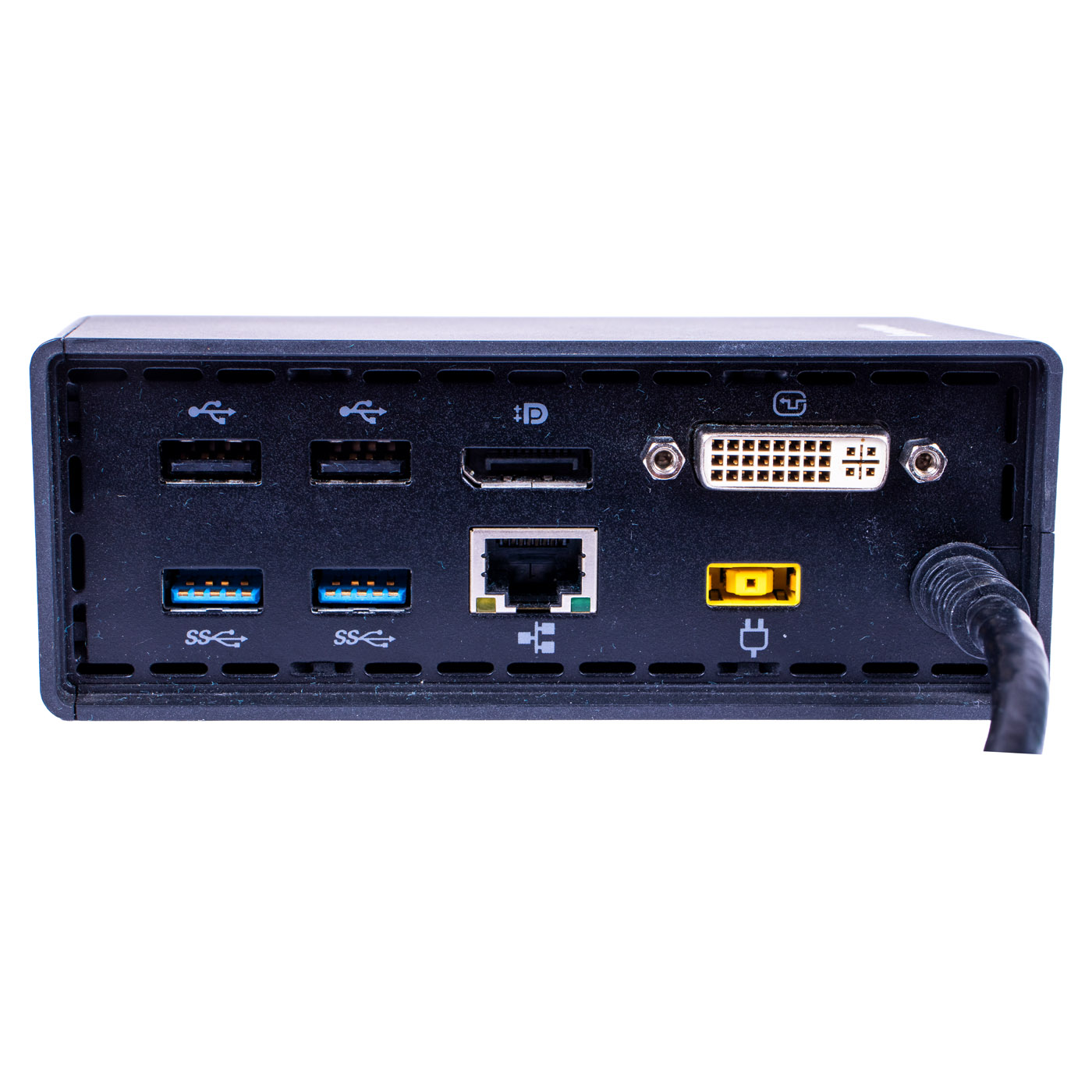

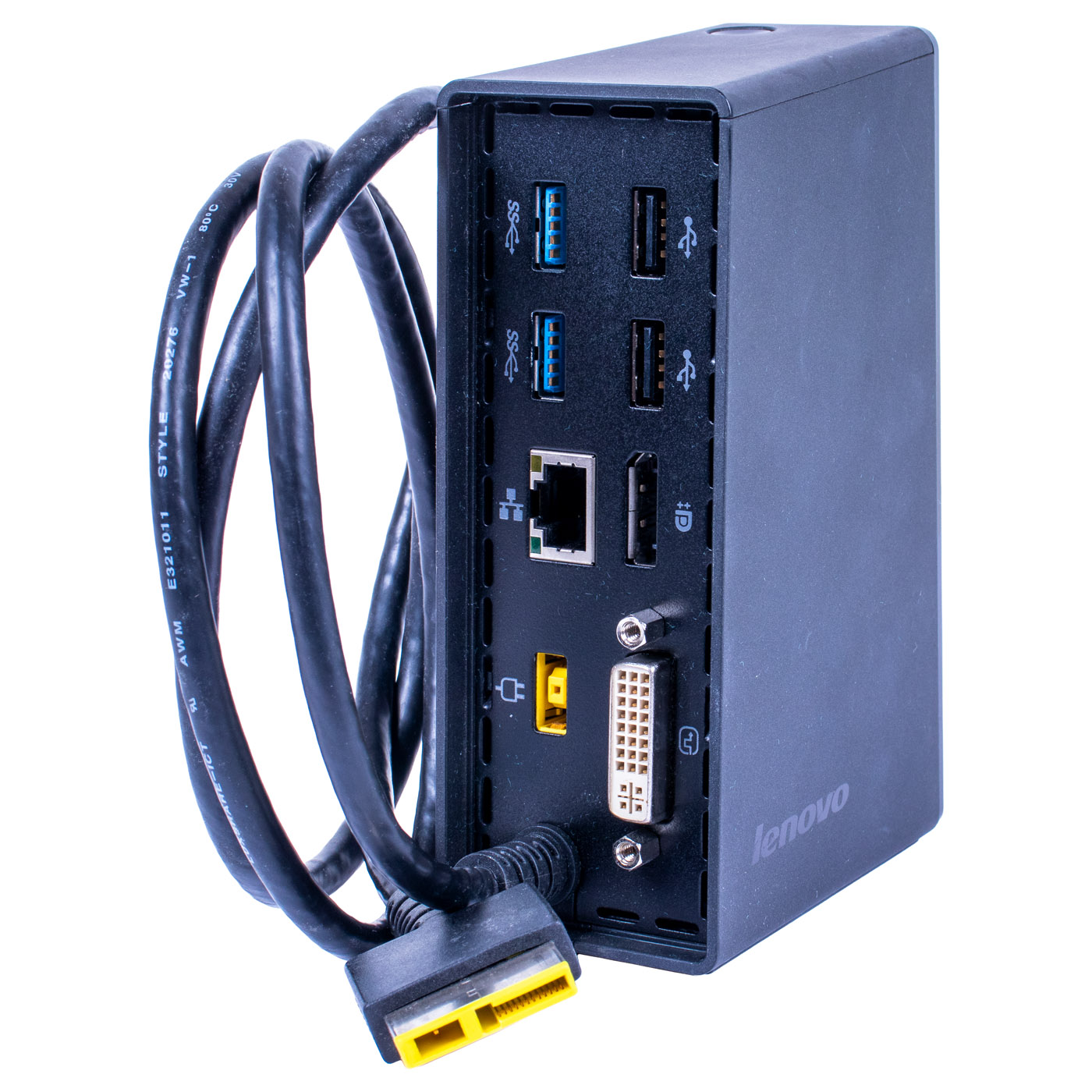

Rear:

• 🖥️ 1× DisplayPort (up to 2560×1600)
• 🖥️ 1× DVI-I (up to 1920×1200)
• 🔌 2× USB 3.0
• 🔌 2× USB 2.0
• 🌐 1× RJ-45 Gigabit Ethernet (10/100/1000)
• ⚡ DC power adapter socket
• 🔒 Security: Kensington lock slot (on the side)

Note: The dock charges the laptop through the OneLink connector (unlike USB docks). Requires compatible power adapter (65W or 90W).

Technical Specifications:

• Model: ThinkPad OneLink Pro Dock DU9033S1

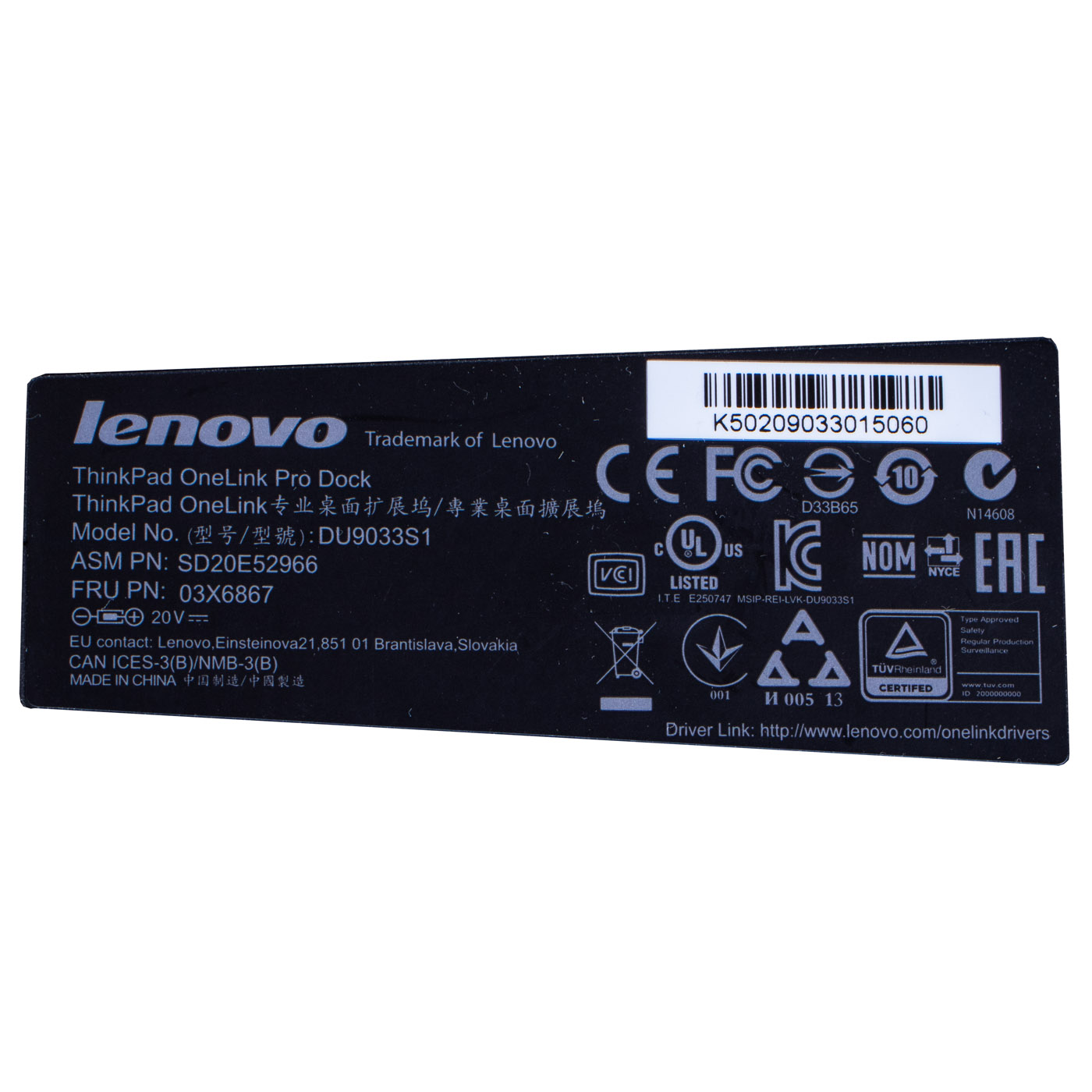

• FRU: 03X6819, 03X6867, 03X7011
• Connector: OneLink (proprietary connector)
• Max. video resolution: up to 2560×1600@60 Hz via DisplayPort, up to 1920×1200 via DVI-I
• USB: 2× USB 3.0 (front), 2× USB 3.0 (rear), 2× USB 2.0 (rear)
• Network: Gigabit Ethernet 10/100/1000
• Audio: 3.5 mm combo jack (headphones/microphone)
• Power: via OneLink + external power adapter 65W/90W
• Dimensions: approx. 135 × 48 × 91 mm
• Weight: approx. 480 g
• OneLink cable length: ~175 cm
• Operating temperature: 5–40°C; humidity 5–95%
• Drivers: Not required (driver-free video)

OneLink Pro Dock is compatible exclusively with ThinkPad laptops equipped with OneLink connector. Below is the list of confirmed models:

• 🔸 X1 Carbon Series: X1 Carbon 2nd Gen (2014), X1 Carbon 3rd Gen (2015)
• 🔸 Yoga Series: ThinkPad Yoga 12, ThinkPad Yoga 14, ThinkPad Yoga 460
• 🔸 E Series: E440, E450, E455, E540, E550, E550c, E555
• 🔸 S Series: S440, S431, S540, S531
• 🔸 T Series: T440, T440s, T440p, T450, T450s, T540p, T550 (selected configurations with OneLink)
• 🔸 L Series: L440, L450, L540 (selected configurations with OneLink)
• 🔸 X Series: X240, X240s, X250 (selected configurations with OneLink)
• 🔸 Workstation: W540 (selected configurations with OneLink)
• 🔸 Other: Helix 1st Gen, Helix 2nd Gen

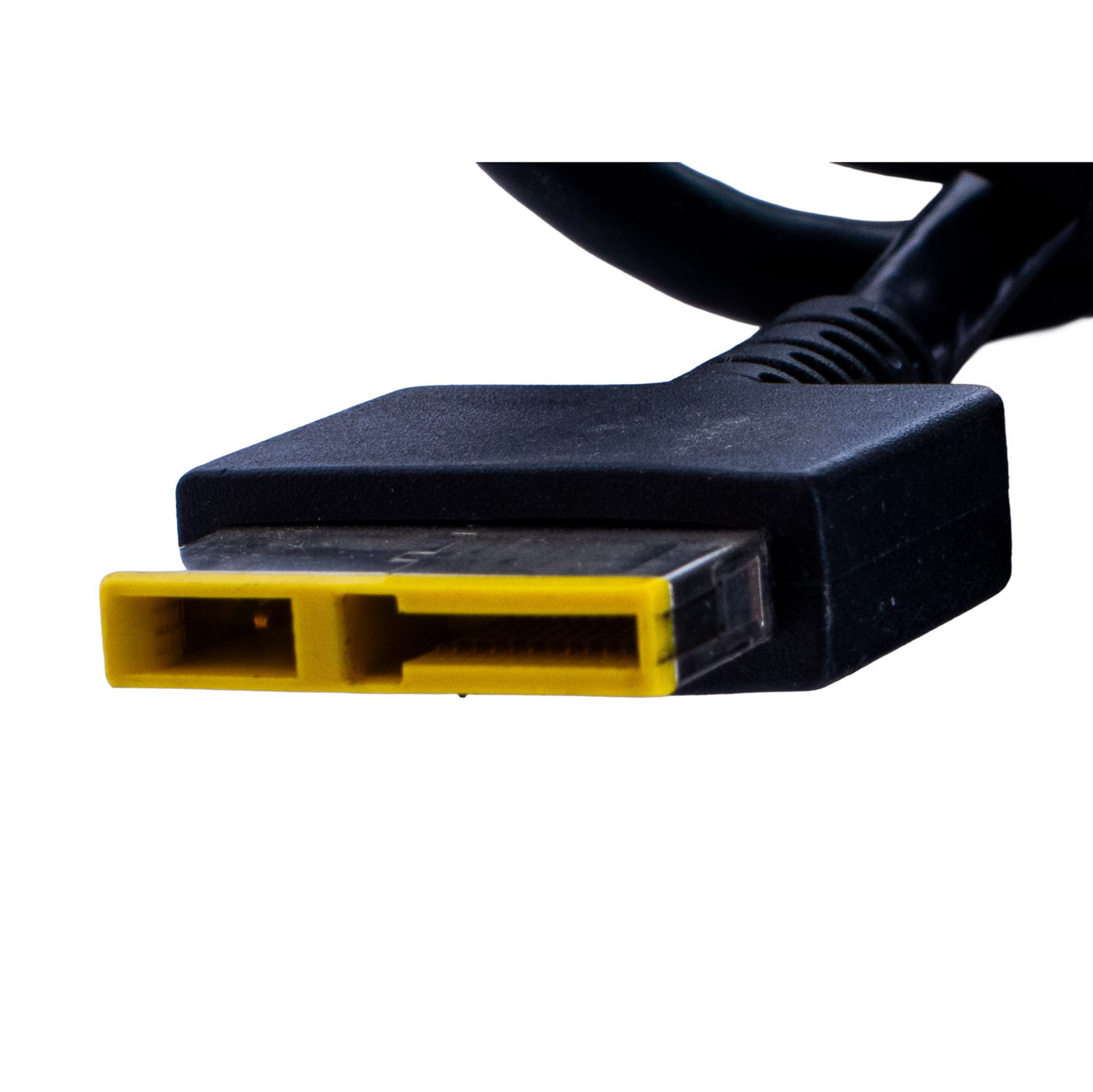

⚠️ IMPORTANT: Not all variants of the mentioned models have OneLink connector. Before purchase, check if your laptop has the yellow OneLink connector (visible in the photo).

If you're unsure about compatibility — provide the exact laptop model, we'll check and recommend the best docking station.

Requirements and Notes:

✅ OneLink connector required in laptop
✅ Driver-free video - no additional software installation required
✅ Dual-monitor support without image compression
✅ Laptop charging through dock (unlike USB docks)

Ideal Applications:

💼 Quick workstation setup with single cable
📱 Port expansion for ultrabooks
🌐 Stable Gigabit network connection
🖥️ Dual monitor support via DisplayPort/DVI without drivers
⚡ Laptop charging through dock

✅ COMPATIBILITY GUARANTEE

The offered docking station is an original Lenovo part with FRU number 03X6819, which guarantees perfect compatibility with your ThinkPad laptop featuring OneLink connector. Before purchase, we recommend checking compatibility based on laptop model number or visual verification of the yellow OneLink connector presence. In case of doubts, our experts will gladly help verify compatibility with your device. We provide a 6-month warranty on the product, ensuring peace of mind and reliable operation.
