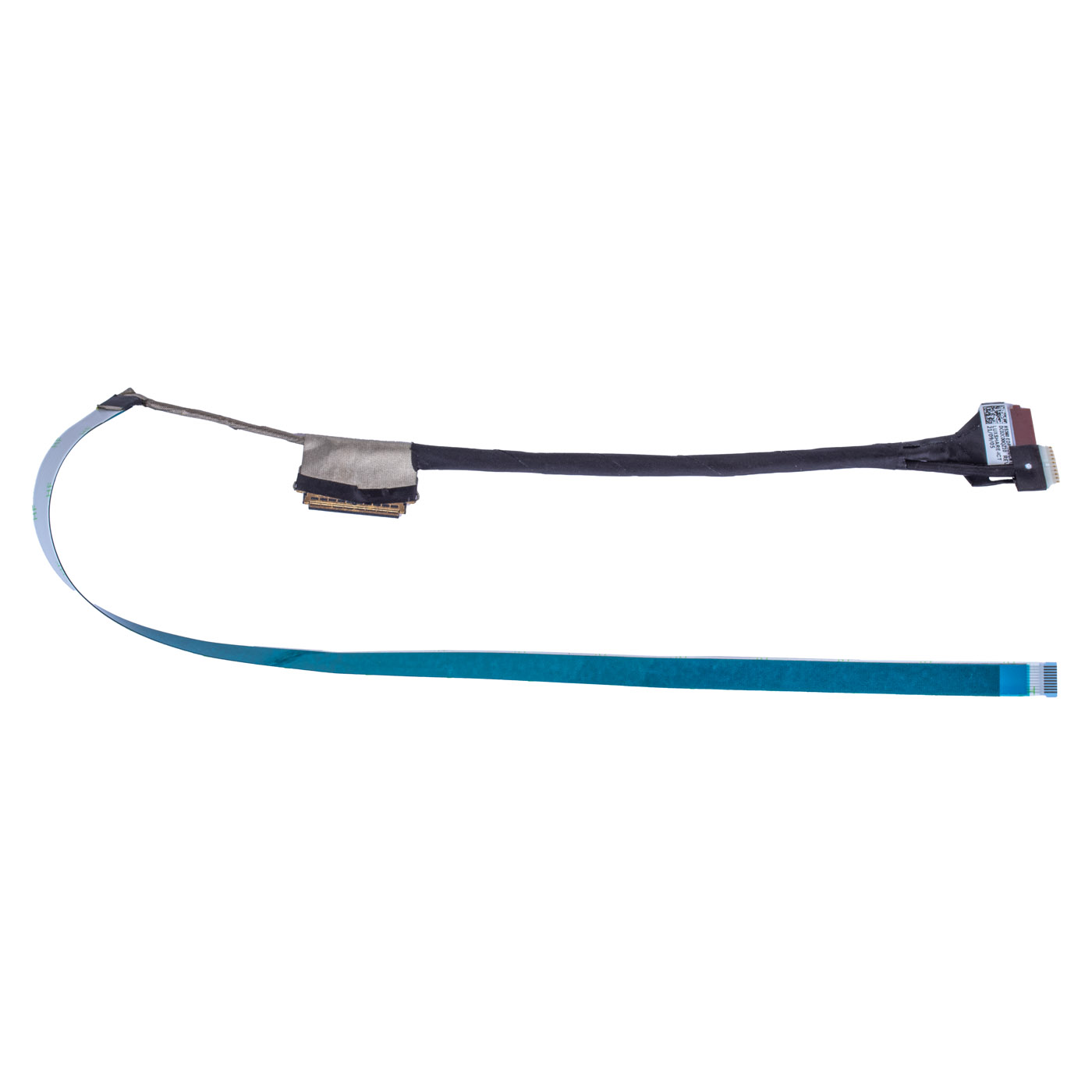

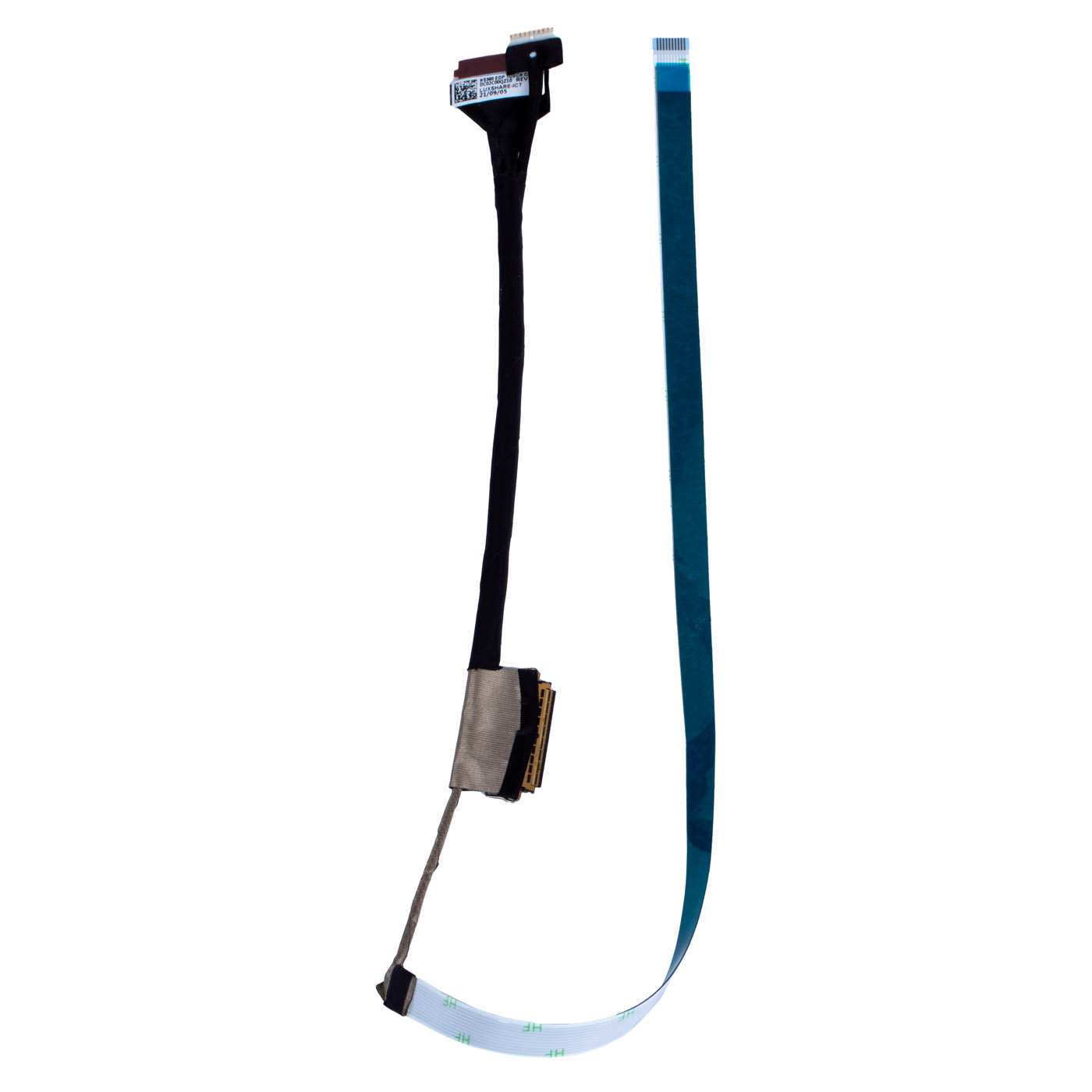

🔧 LCD eDP Display Cable for Lenovo IdeaPad 3 15 🔧

🖥️ Lenovo IdeaPad 3 15 | Touch Screens | 15" | Original Part

⚙️ PRODUCT CHARACTERISTICS

Original LCD eDP display cable for Lenovo IdeaPad laptops from the 3 15 series is a key component ensuring the proper functioning of the touch screen. Designed for models with a 15-inch display, it guarantees a reliable connection between the motherboard and the display. The cable is specifically designed for models with TOUCH functionality, ensuring proper signal transmission for both image and touch functions of the screen.

📋 TECHNICAL DATA

Part Name: LCD eDP Display Cable
Brand: Lenovo
Series: IdeaPad
Compatible Models: 3 15 ACL6, ITL6, IAU7, ABA7
Screen Type: Touch (TOUCH)
Screen Diagonal: 15 inches
Condition: New
Connector Type: eDP (embedded DisplayPort)
Warranty: 12 months

🌟 KEY ADVANTAGES

🔹 Original part – guarantees full compatibility with dedicated Lenovo models
🔹 Brand new – assurance of reliable operation and long lifespan
🔹 Designed for touch screens – supports both image transmission and touch functions
🔹 Precise execution – ensures a stable connection between the motherboard and the display
🔹 Easy installation – design facilitates the replacement of a damaged cable
🔹 Proven quality – part tested for durability and reliability

🔢 CATALOG NUMBERS

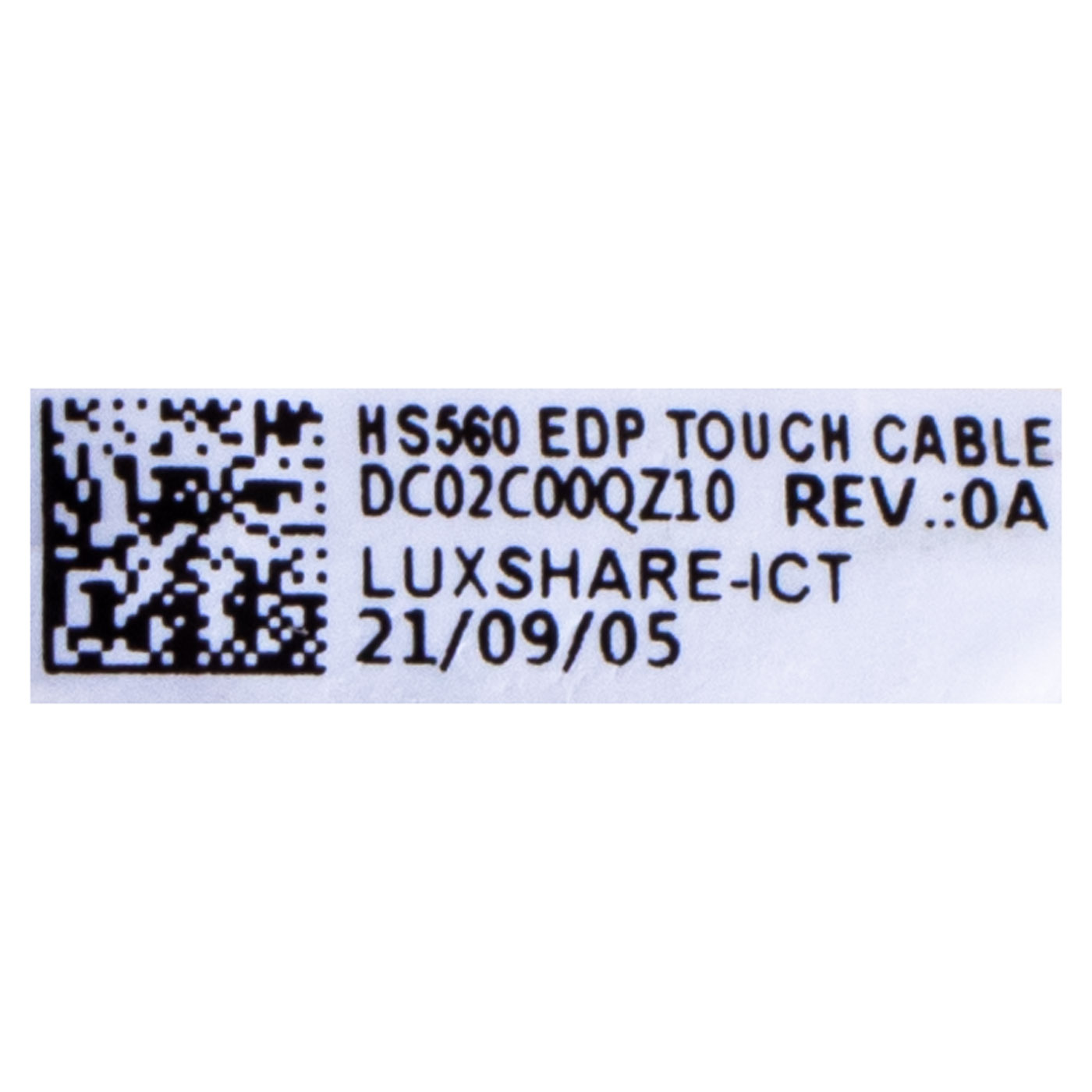

FRU: 5C10S30208
Interchangeable: DC02C00QZ10
Compatible Models: Lenovo IdeaPad 3 15 ACL6, ITL6, IAU7, ABA7 with touch screen

❓ WHEN TO REPLACE THE DISPLAY CABLE?

• The screen displays distorted colors or vertical/horizontal lines
• The image on the screen flickers or disappears when moving the laptop lid
• The screen only works in certain positions of the laptop lid
• The touch function has stopped working, even though the image is displayed
• The image on the screen completely disappears, although the display is not damaged
• Diagnosis ruled out damage to the display and motherboard
• Physical damage to the cable was noticed at the laptop hinges

🔧 INSTALLATION PROCESS

1. Turn off the laptop, disconnect the power, and remove the battery (if possible)
2. Dismantle the screen frame by unscrewing the mounting screws and gently prying the plastic clips
3. Disconnect the old display cable from the connector on the motherboard and from the connector at the display
4. Pay attention to the routing of the cable, especially at the hinges
5. Install the new cable by connecting it to the connector at the display and the motherboard
6. Ensure that the cable is properly positioned and not bent or strained
7. Reassemble the screen frame and check the display operation

🎯 PURPOSE

This original LCD display cable is dedicated to Lenovo IdeaPad 3 15 laptops with touch screens. Compatible with models ACL6, ITL6, IAU7, ABA7 equipped with a 15-inch display. This part is essential for the proper transmission of video signals and touch data between the motherboard and the screen. Using the original cable guarantees seamless operation of both image display and touch functionality, restoring full laptop functionality.

✅ COMPATIBILITY WARRANTY

The offered LCD eDP display cable is 100% compatible with the listed Lenovo IdeaPad 3 15 models. The part has identical dimensions, connectors, and technical parameters as the component originally installed by the manufacturer. This ensures that the installation will proceed smoothly and that all screen functions, including touch support, will work correctly. If you have any doubts about compatibility with your specific model, we encourage you to contact our experts who will help verify the part's compatibility.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of the display cable with your Lenovo model? Need advice on installation or diagnosing a display issue? Our specialists with years of experience in servicing Lenovo laptops are happy to help! We offer professional technical advice and support in selecting the right spare parts.

📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

For years, we have specialized in providing original parts for Lenovo laptops. Our knowledge and experience allow us to offer the highest quality products that meet the manufacturer's rigorous standards. All parts we offer are thoroughly verified for quality and compatibility, ensuring that you receive a product that will restore your laptop to full functionality.

🎯 Choose professionals – invest in high quality!

By choosing the original LCD eDP display cable for Lenovo IdeaPad 3 15, you invest in the seamless operation of your laptop for many years. Our parts come with a 12-month warranty, confirming their highest quality. Remember that using original parts guarantees reliability, safety, and a long life for your laptop!
