🔧 65W AC Adapter for Lenovo Laptops/Tablets 🔧
🖥️ Genuine 65W | 3.25A | 20V | Lenovo (ADL65WGC)

⚙️ PRODUCT OVERVIEW

Genuine Lenovo AC adapter rated at 65W for selected Lenovo laptops and tablets. Model ADL65WGC (LC P/N 5A10J40303) delivers stable power at 20V 3.25A (65W) plus an additional 5.2V 2A rail. The wide input range of 100–240V~ allows safe worldwide use (use a plug adapter if required).

The adapter features a compact “wall charger” housing with a Lenovo 8‑pin DC output (not Slim Tip, not USB‑C). It works perfectly as a spare or primary power source, especially in scenarios that require more power than 40W.

📋 TECHNICAL DATA

• Product name: Genuine Lenovo 65W AC Adapter
• Model: ADL65WGC
• LC P/N: 5A10J40303
• DC connector type: rectangular Lenovo 8‑pin (output built into the adapter body)
• Condition: Used, tested
• Functionality: 100% working
• Warranty: 6 months

⚡ ELECTRICAL SPECIFICATIONS

• Output voltage/power: 20V ⎓ 3.25A = 65W
• Additional rail: 5.2V ⎓ 2.0A
• Input voltage: 100–240V~ ⎓ 1.8A, 50–60Hz
• Protection class: II (double insulation)
• Protections: OVP / OCP / OTP / SCP
• Compliance marks on housing: GS, EAC, Nemko and other safety marks

🔌 DC CONNECTOR SPECIFICATION

• DC output: rectangular Lenovo 8‑pin
• AC input (mains plug): EU CEE 7/16 “europlug”

📐 DIMENSIONS AND WEIGHT

• Body dimensions: approx. 70 × 45 × 30 mm (L × W × H) — typical for this series
• Weight: approx. 140–180 g
• Color: matte black
• Housing material: ABS+PC (flame‑retardant)

🔢 PART NUMBERS

• Main FRU: 5A10J40303 (ADL65WGC)
• Possible equivalents of the same power class: 65W 20V⎓3.25A with Lenovo 8‑pin output (OEM markings may vary)

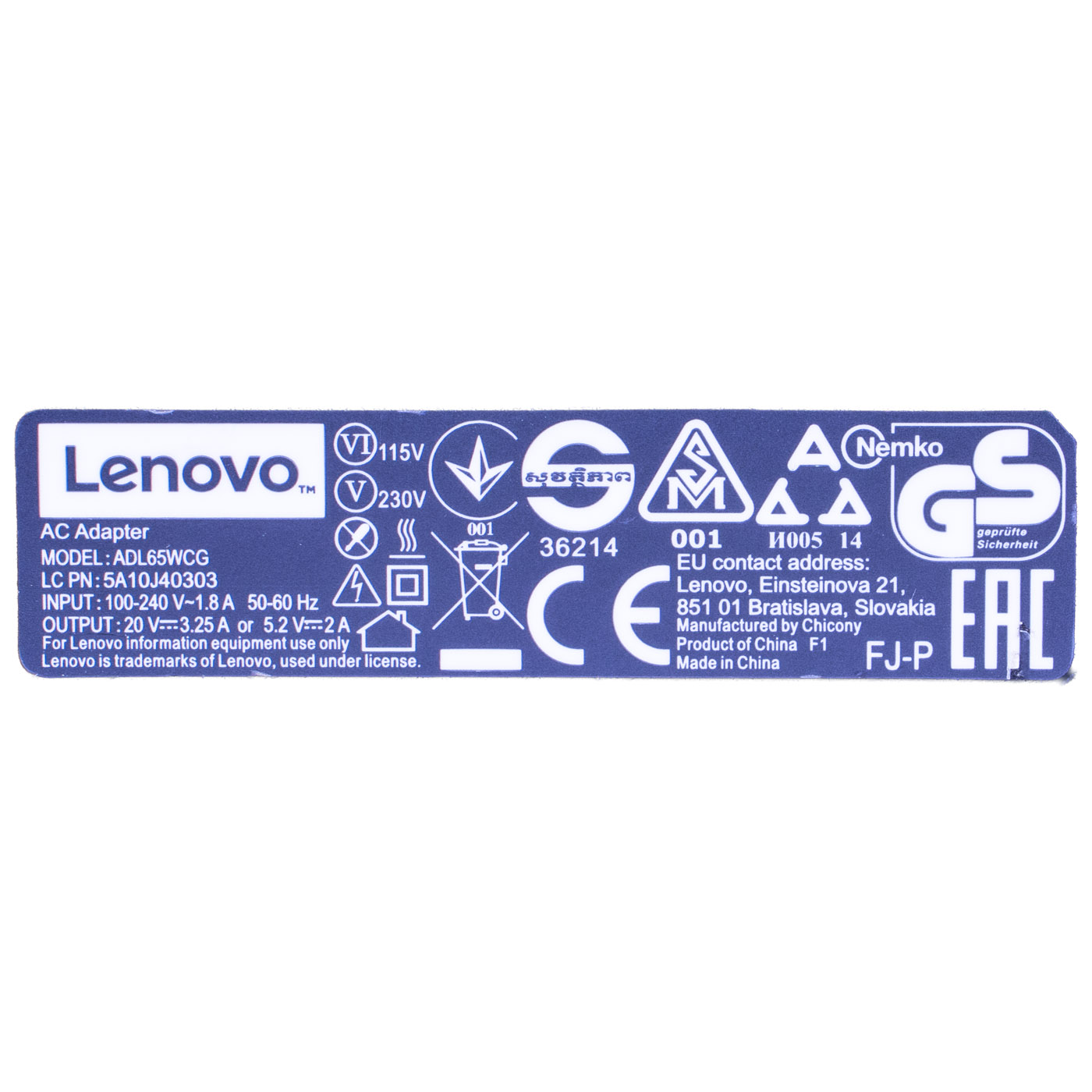

• Label identification: Lenovo ADL65WGC 20V=3.25A or 5.2V=2A

💻 COMPATIBILITY AND REPLACEMENT

• Replaces lower‑power versions: safely replaces 40W adapters (20V⎓2A) provided the device uses the same Lenovo 8‑pin connector and requires 20V.
• Note: this is not Slim Tip and not USB‑C. It requires a dedicated Lenovo 8‑pin cable/adapter suitable for your model.

📋 SAMPLE LIST OF SUPPORTED LENOVO DEVICES

• Selected Yoga and Miix series that use 8‑pin adapters (including higher‑power configurations). The exact variants depend on the cable/adapter PN.
• Lenovo Yoga 3 Pro-1370
• Lenovo Yoga 900S-12ISK
• Lenovo Yoga 700-14ISK
• Lenovo Yoga 700-11ISK
• Lenovo Miix 700-12ISK Tablet
• Lenovo Miix 710-12IKB Tablet

To confirm, compare the marking on your current adapter or in the service documentation (20V, Lenovo 8‑pin). If in doubt, contact us and we will verify using your device number.

❓ WHEN SHOULD YOU REPLACE THE ADAPTER?

• Mechanical damage or frayed cables
• Unstable charging or intermittent power
• Excessive heating during operation
• Noticeable battery performance drop while plugged in
• Need for a second adapter (work/home/travel)
• Unusual noises or smells coming from the adapter

🎯 PURPOSE

Adapter for Lenovo laptops/tablets with a Lenovo 8‑pin power port. Ensures stable power delivery and safe charging even under higher loads. Ideal as a replacement or spare power supply.

✅ COMPLIANCE GUARANTEE

This adapter is 100% compatible with the listed Lenovo laptop models. It has been tested for performance and user safety. As a genuine Lenovo product, it provides optimal operating parameters while protecting your laptop battery from damage. If you are unsure about compatibility with your model, please contact our experts for verification.
