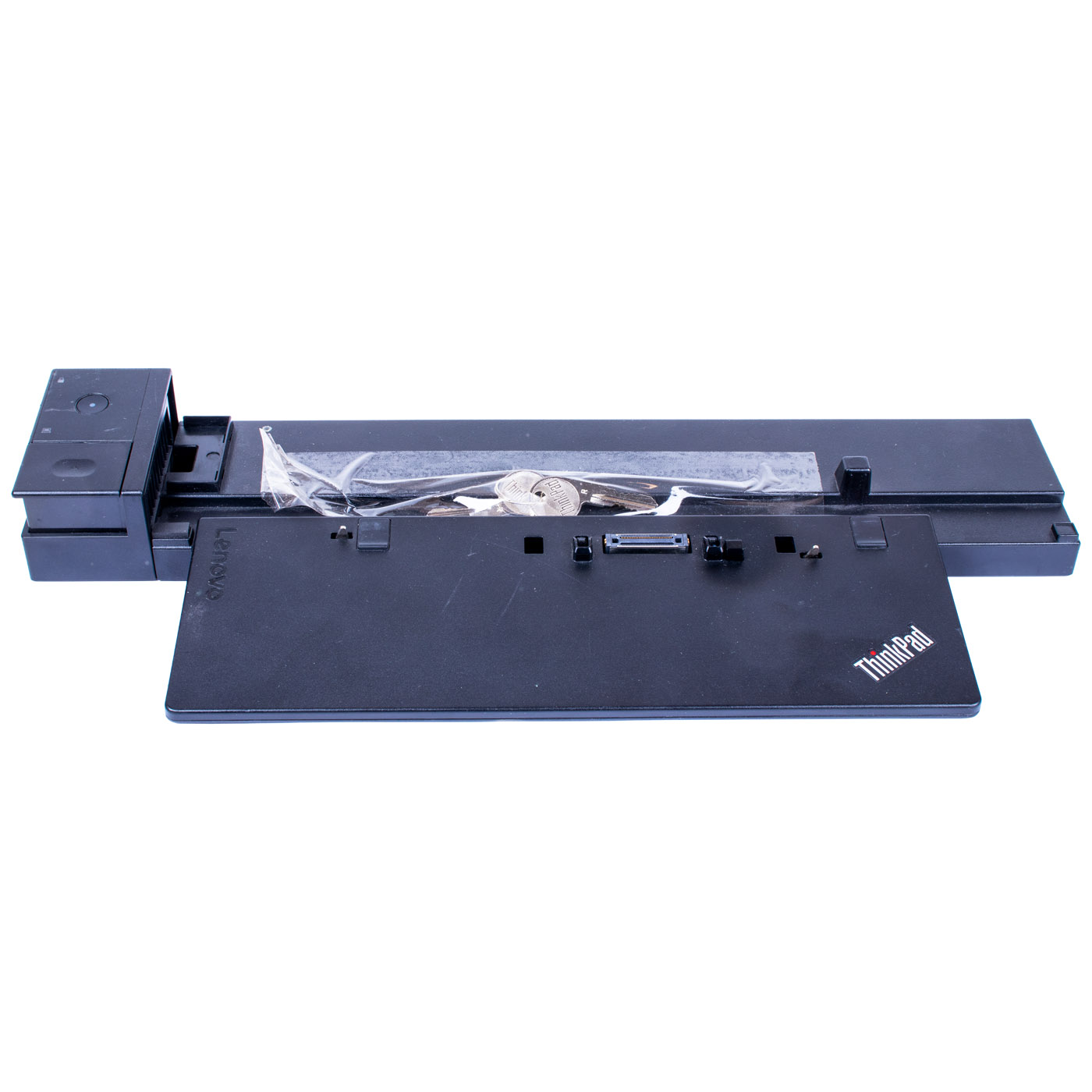

🔧 Lenovo ThinkPad Workstation Dock 40A5 Docking Station 🔧

🖥️ ThinkPad Workstation Dock | Slim Tip | 6× USB 3.0 | Black

⚙️ PRODUCT CHARACTERISTICS

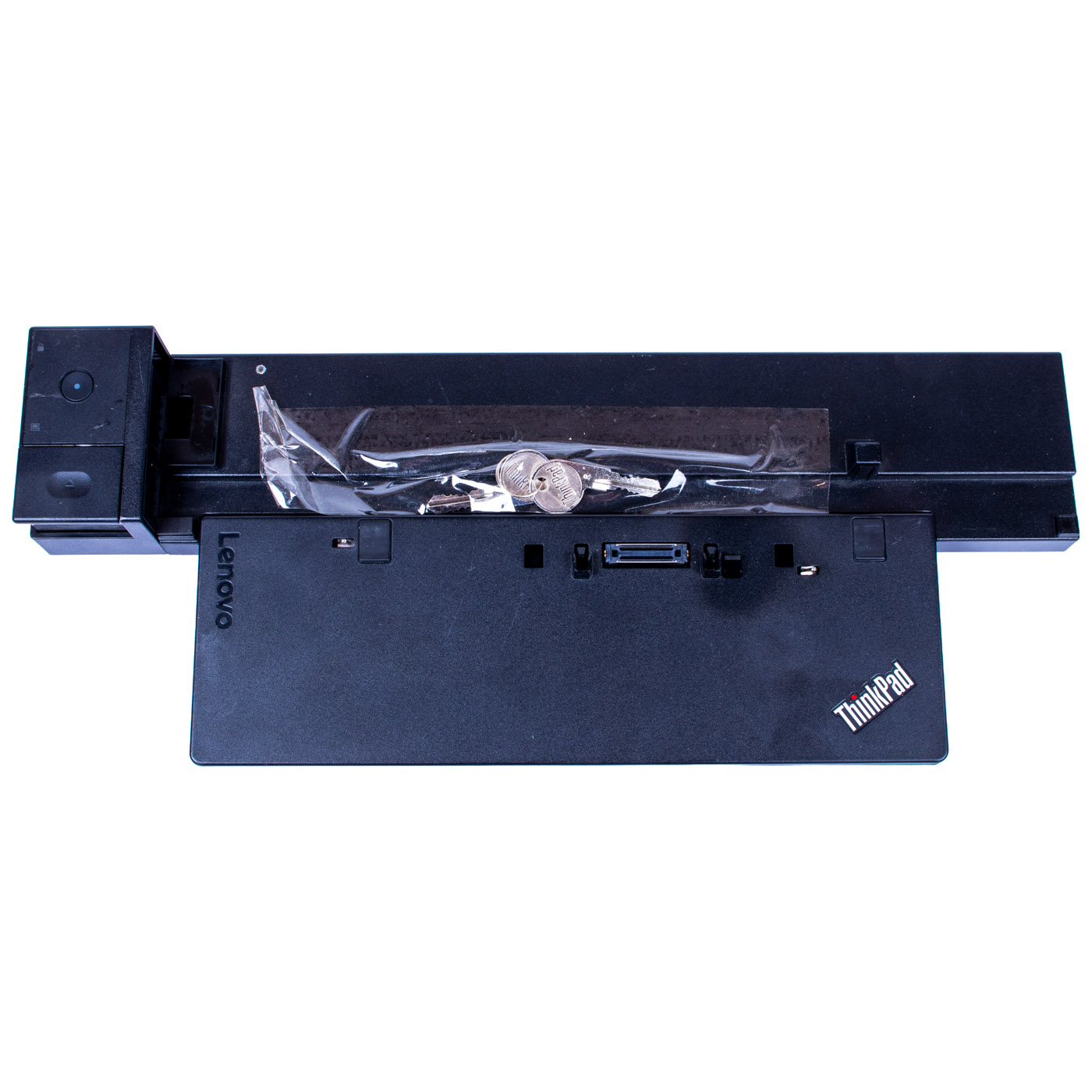

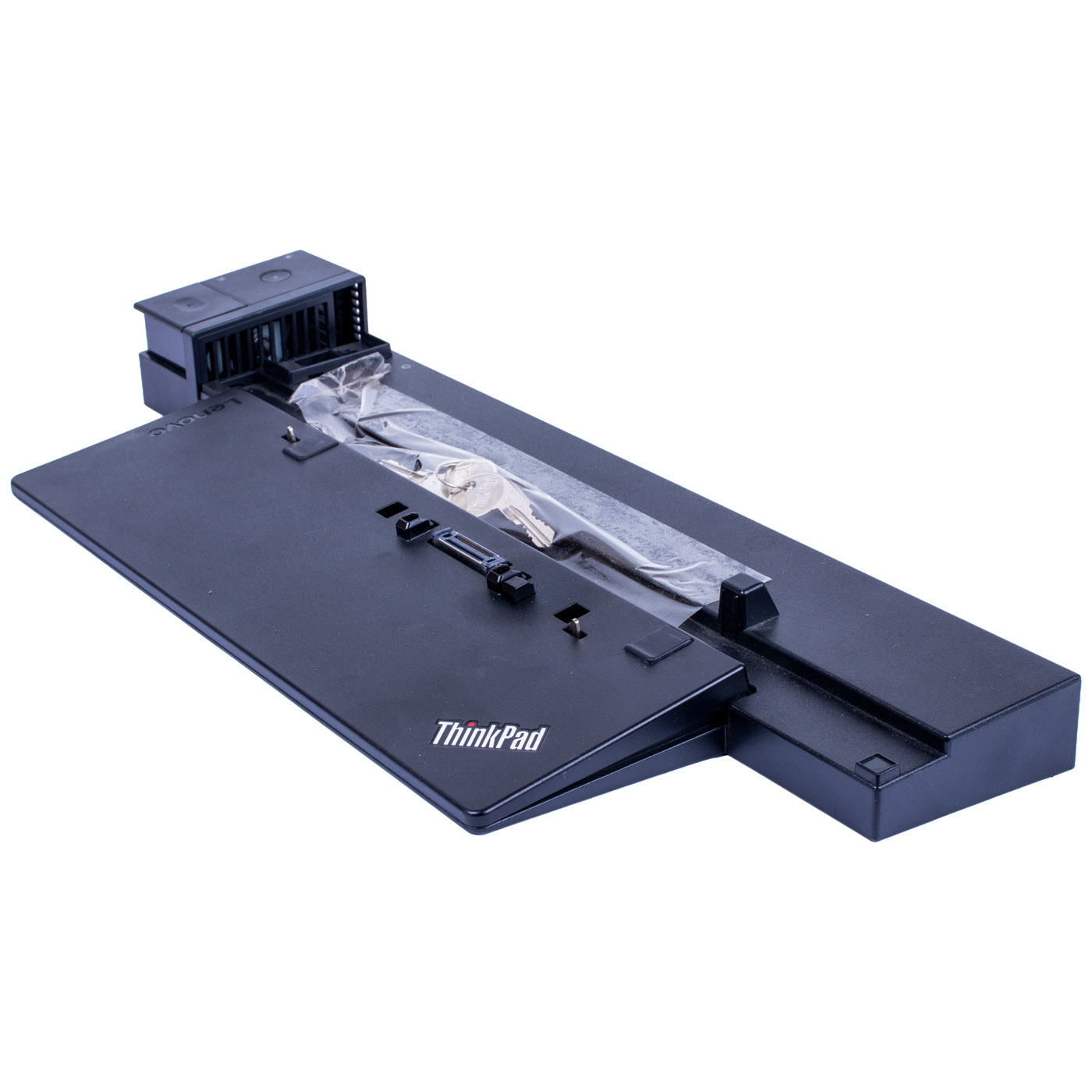

Professional Lenovo ThinkPad Workstation Dock 40A5 docking station with Slim Tip power connector (rectangular plug) providing full connectivity and support for multiple monitors. Equipped with a mechanical lock with a key and a release button, allowing for quick docking and undocking of the laptop. Compatible with ThinkPad laptops from the P, T, L, W, and X series with Slim Tip generation, offering a comprehensive solution for demanding business users.

📋 TECHNICAL DATA

Model: ThinkPad Workstation Dock, type 40A5

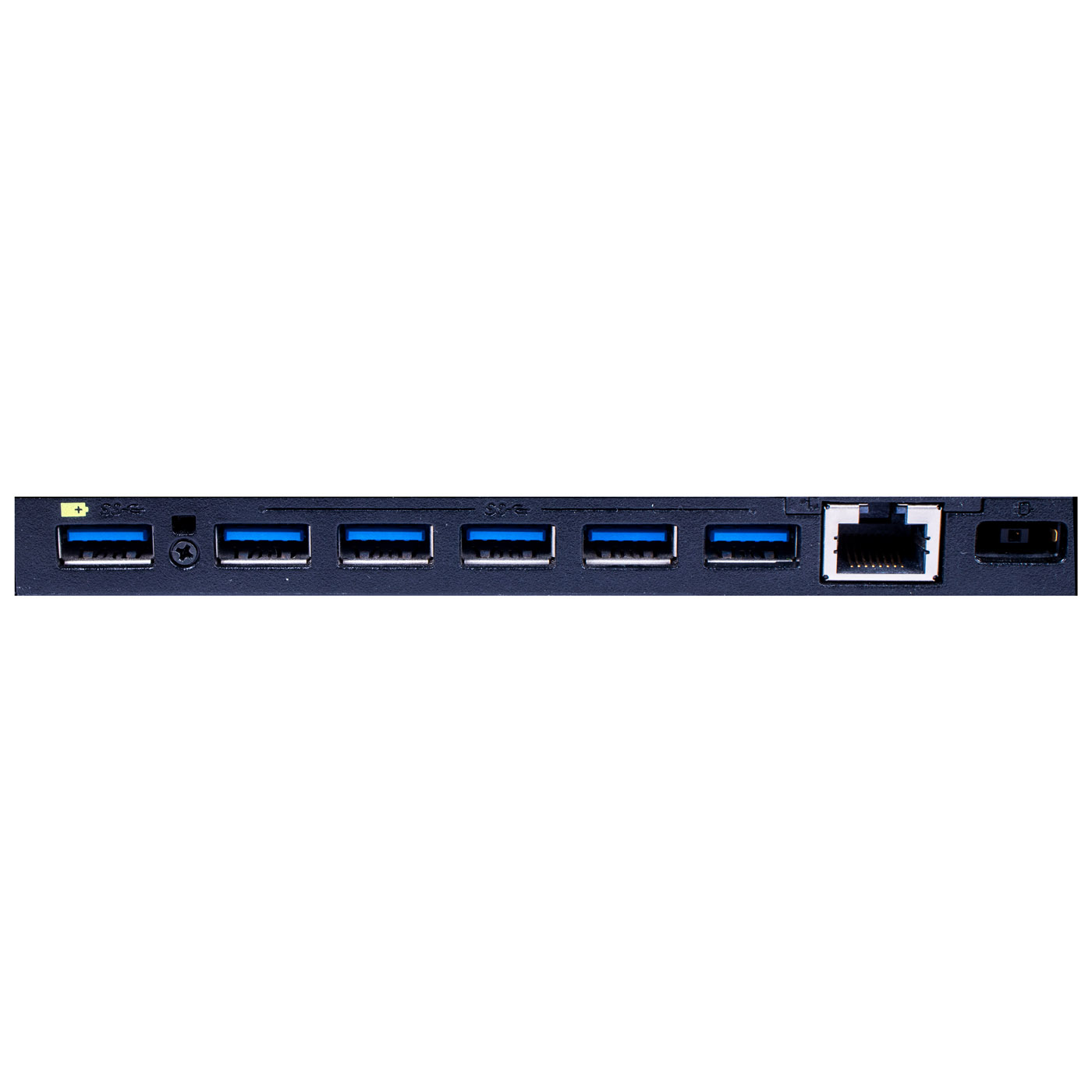

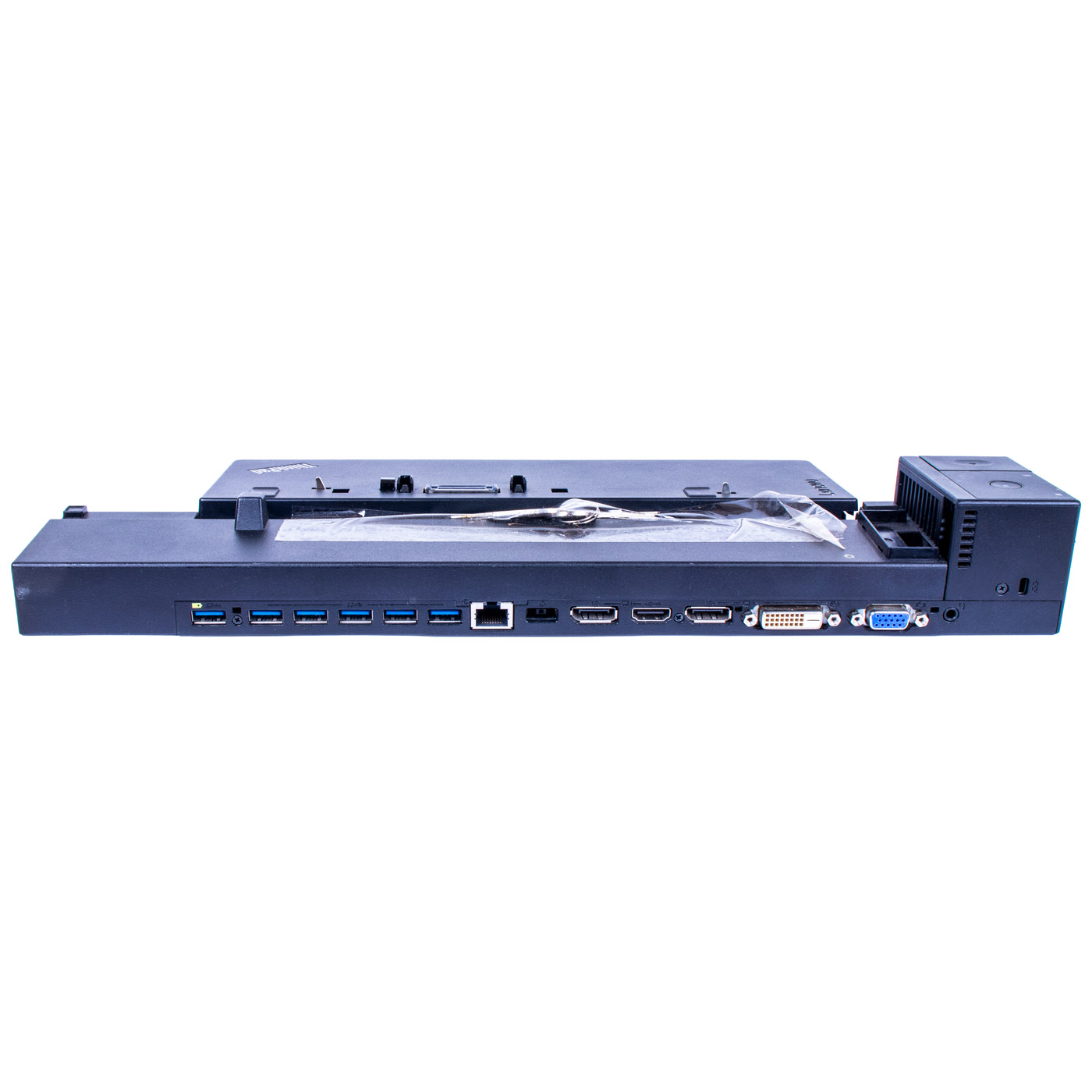

USB Ports: 6× USB 3.0 Type A (rear), 1× USB 2.0 Type A with Always On

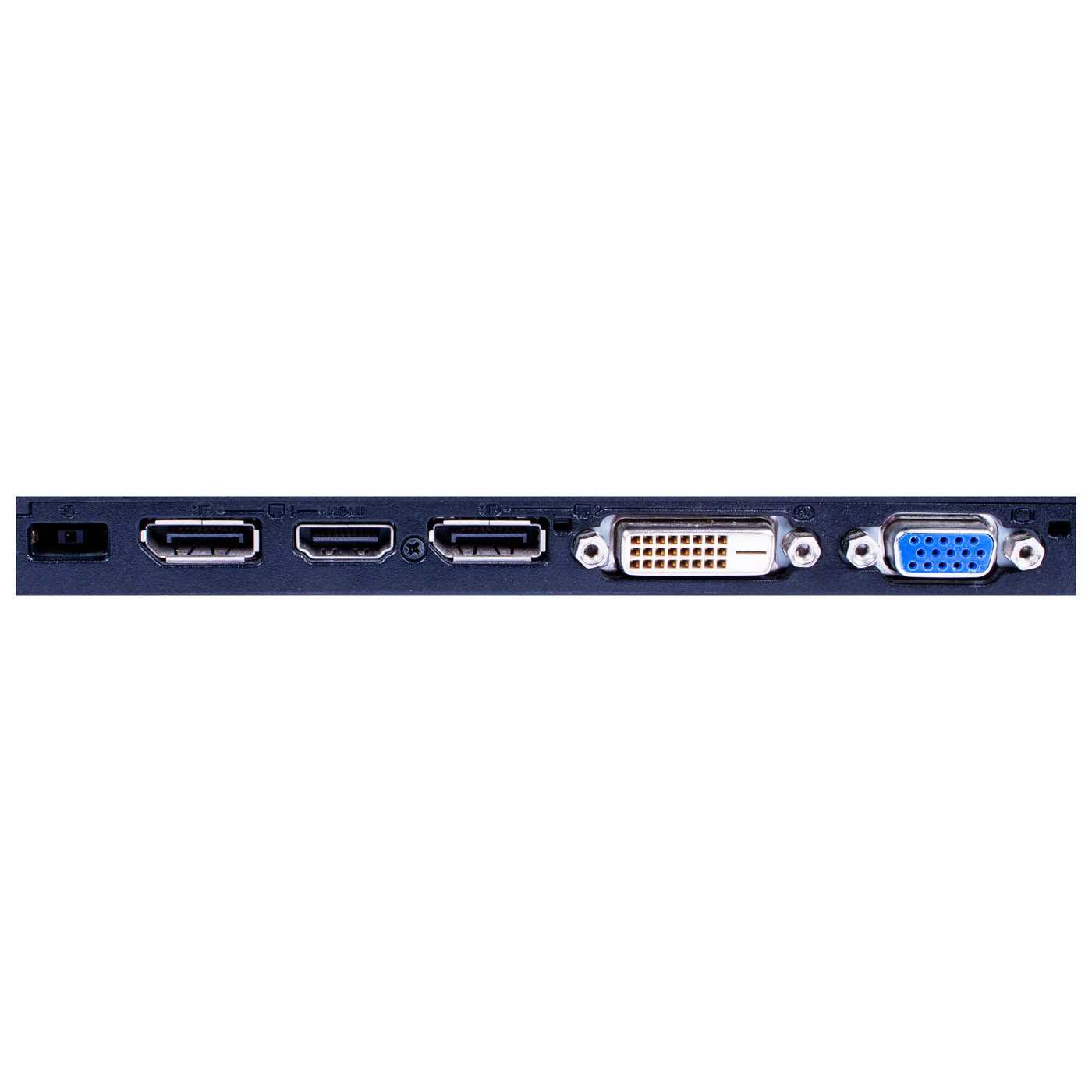

Video Ports: 2× DisplayPort, 1× DVI-D, 1× VGA
Network Connectors: 1× RJ-45 Gigabit Ethernet
Audio Connectors: 1× 3.5 mm audio output
Power: Slim Tip 20 V (rectangular plug), max. current 11.5 A
Monitor Support: Up to 3 displays (depending on GPU/notebook)

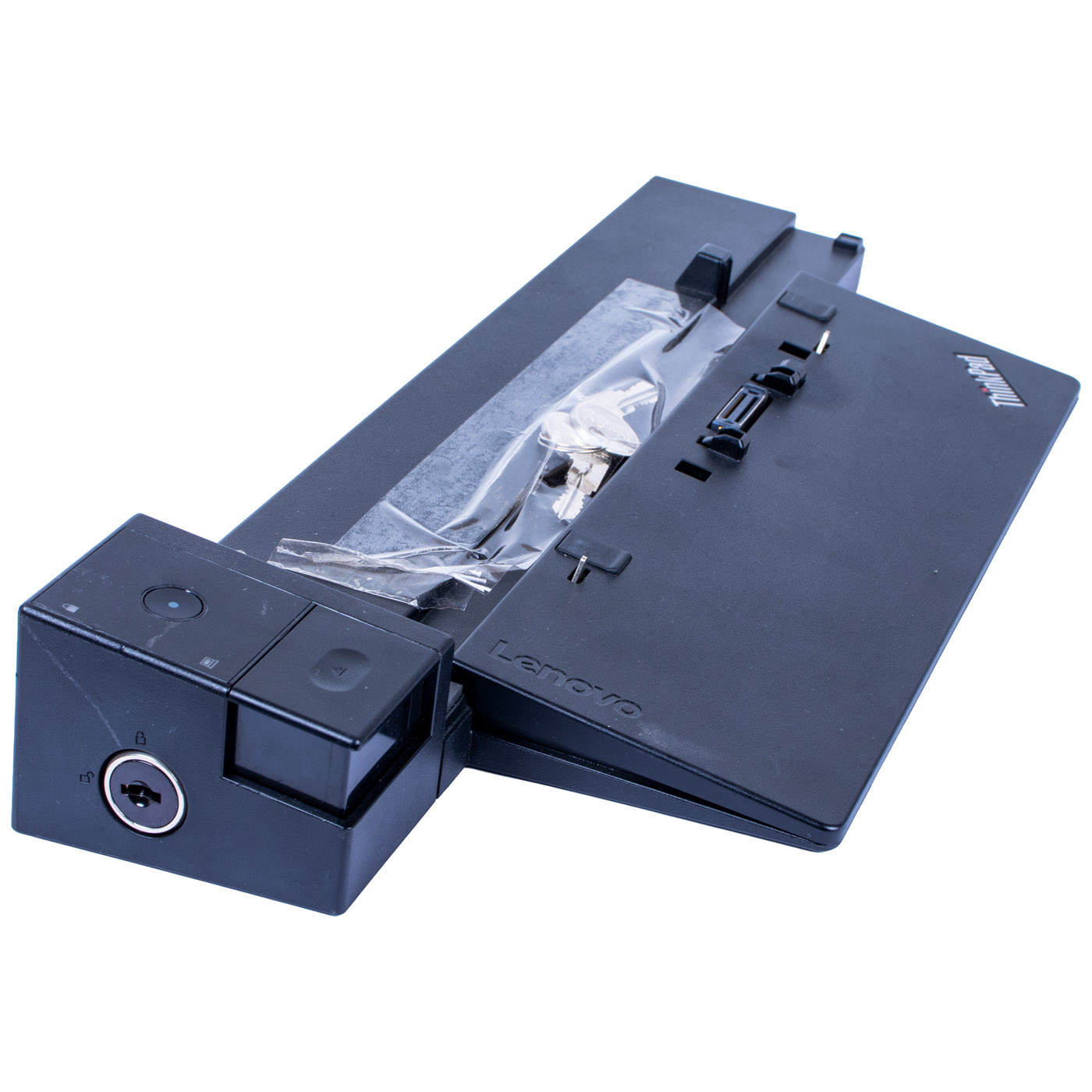

Security: Mechanical lock with key, Kensington slot

🌟 KEY ADVANTAGES

🔹 Quick docking – express port expansion without the need to replug cables
🔹 Multi-monitor setup – supports up to 3 monitors via DisplayPort, DVI-D, and VGA connectors
🔹 Stable network connection – Gigabit Ethernet port ensures reliable wired connectivity
🔹 Secure docking – mechanical lock with key protects equipment from unauthorized disconnection
🔹 Rich USB expansion – 6 USB 3.0 ports and an additional USB 2.0 port with Always On function for charging devices
🔹 Desk organization – powers the laptop and connects all peripherals to one device

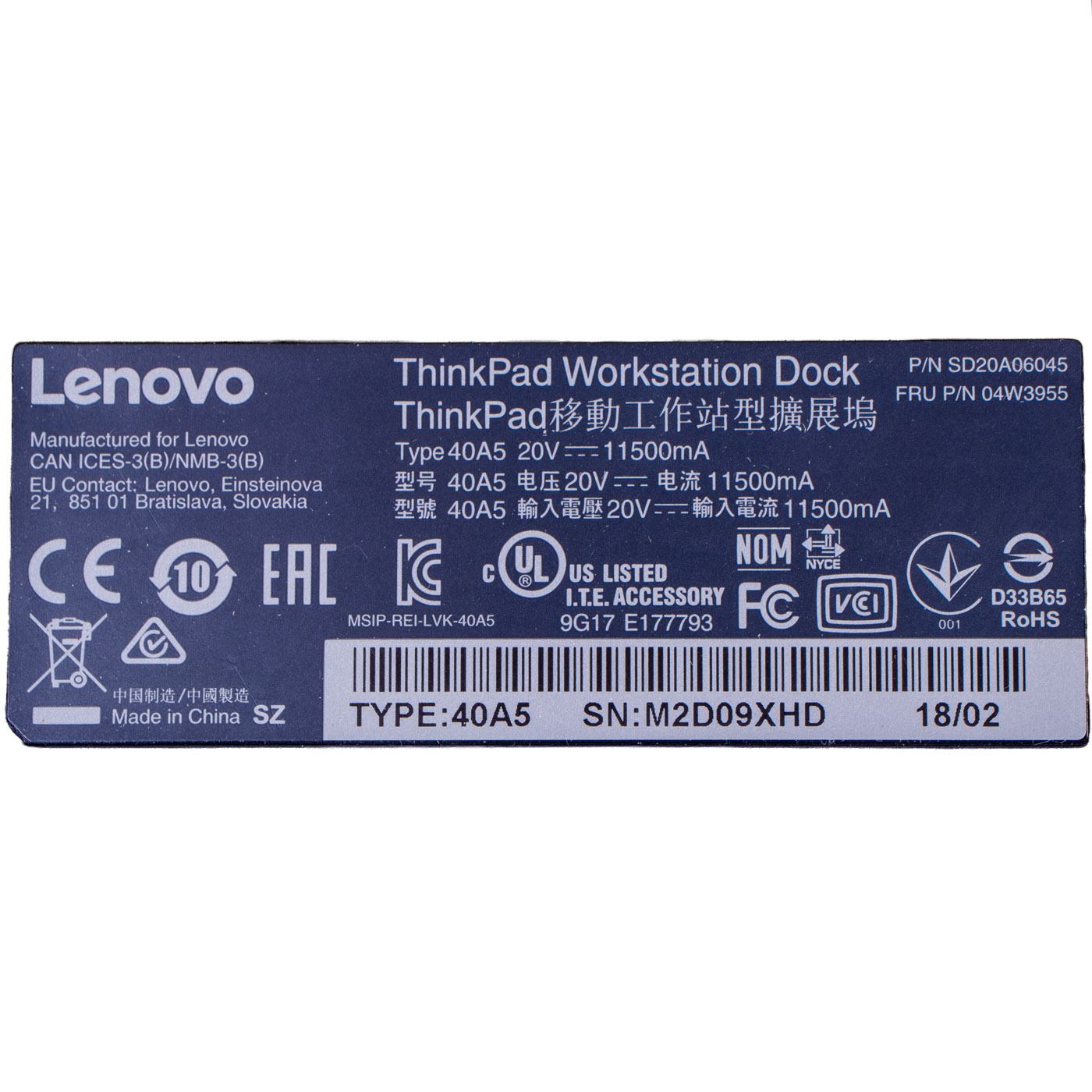

🔢 CATALOG NUMBERS

FRU: 04W3955
P/N: SD20A06045
Type: 40A5

❓ WHEN SHOULD YOU INVEST IN A DOCKING STATION?

• You work with multiple monitors – the dock allows connecting up to 3 displays simultaneously
• You need more USB ports – 7 additional USB ports expand your laptop's capabilities
• You care about a stable network connection – the Gigabit Ethernet port ensures reliable connectivity
• You want to organize your workspace – all cables connected to one device
• You value equipment security – mechanical lock with key protects against theft

🔧 MOUNTING PROCESS

Connect the power supply to the docking station via the Slim Tip connector (power supply not included). Then connect all peripherals to the appropriate ports on the dock. To dock the laptop, position it above the dock according to the positioning guides and gently press down until you hear a distinctive click. To secure the laptop, turn the key to the lock position. Undocking occurs after unlocking and pressing the release button.

🎯 PURPOSE

The Lenovo ThinkPad Workstation Dock 40A5 docking station is dedicated to users of ThinkPad laptops from the Slim Tip generation, including models: T440, T440p, T440s, T450, T450s, T460, T460p, T460s, T470, T470p, T540p, L440, L450, L460, L470, W540, W541, W550s, X240, X250, X260, P50, P51, P70, P71. Especially recommended for professionals working with multiple monitors, needing a stable network connection and USB port expansion.

✅ COMPATIBILITY WARRANTY

The offered part has been thoroughly checked and matched to ThinkPad models from the Slim Tip generation.We guarantee full compatibility with laptops T440, T440p, T440s, T450, T450s, T460, T460p, T460s, T470, T470p, T540p, L440, L450, L460, L470, W540, W541, W550s, X240, X250, X260, P50, P51, P70, P71 regarding FRU number 04W3955.The exact appearance and condition of the offered item are shown in the photos in the listing.We provide a 3-month warranty on the used docking station with a return option within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the docking station's compatibility with your laptop? Need help choosing the right power supply? Our experts are happy to help! Provide the model/MTM of your ThinkPad – we will select the appropriate power supply and verify monitor support.
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

For years, we have specialized in providing high-quality parts for Lenovo ThinkPad laptops. Our technical knowledge and experience allow us to offer products perfectly tailored to your needs. Each part undergoes thorough verification before shipping, ensuring its reliable operation. By choosing ABCDEAL, you choose certainty and professionalism.

🎯 Choose professionals – invest in high quality!

The Lenovo ThinkPad Workstation Dock 40A5 is a professional solution for demanding business users. With a rich set of ports, multi-monitor support, and mechanical security, it significantly enhances your laptop's functionality. By investing in proven equipment from ABCDEAL, you ensure comfort at work and contribute to the long life of your laptop!
