Lenovo ThinkPad OneLink 03X6894 docking station
Brand new product.
🔧 Lenovo ThinkPad OneLink Dock Docking Station 🔧
⚙️ PRODUCT CHARACTERISTICS

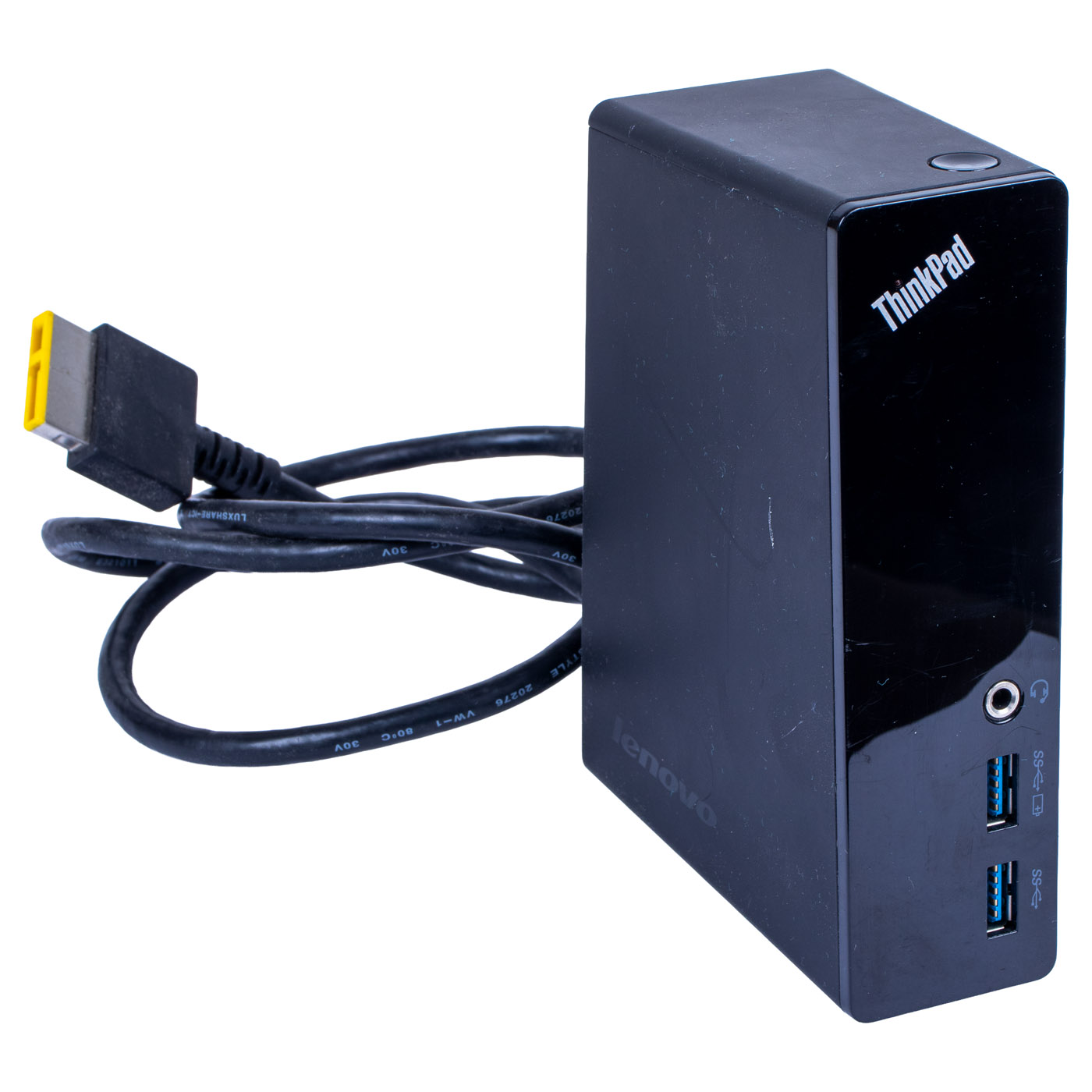

Lenovo ThinkPad OneLink Dock — FRU: 03X6894
Transform your laptop into a complete workstation with a single cable. Lenovo ThinkPad OneLink Dock DU9026S1 is an essential docking station that provides quick connection of peripherals, network, and monitor through one OneLink connector with driverless technology. Perfect for office and home use — saves time, organizes your desk, and boosts productivity without the need to reconnect cables every time. The station is used, tested, and fully functional.
Key Features:
- 🔌 Single OneLink connector to connect everything: monitor, network, USB devices, audio + power
- 🖥️ HDMI video output up to Full HD resolution without compression and without drivers
- 🌐 Gigabit Ethernet for fast and stable internet connection
- ⚡ 2 USB 3.0 ports with Always-On function for charging mobile devices
- 📏 Compact dimensions and solid construction in Midnight Black color
- ✅ Dedicated compatibility with ThinkPad laptops featuring OneLink connector
Ports and Connectors:

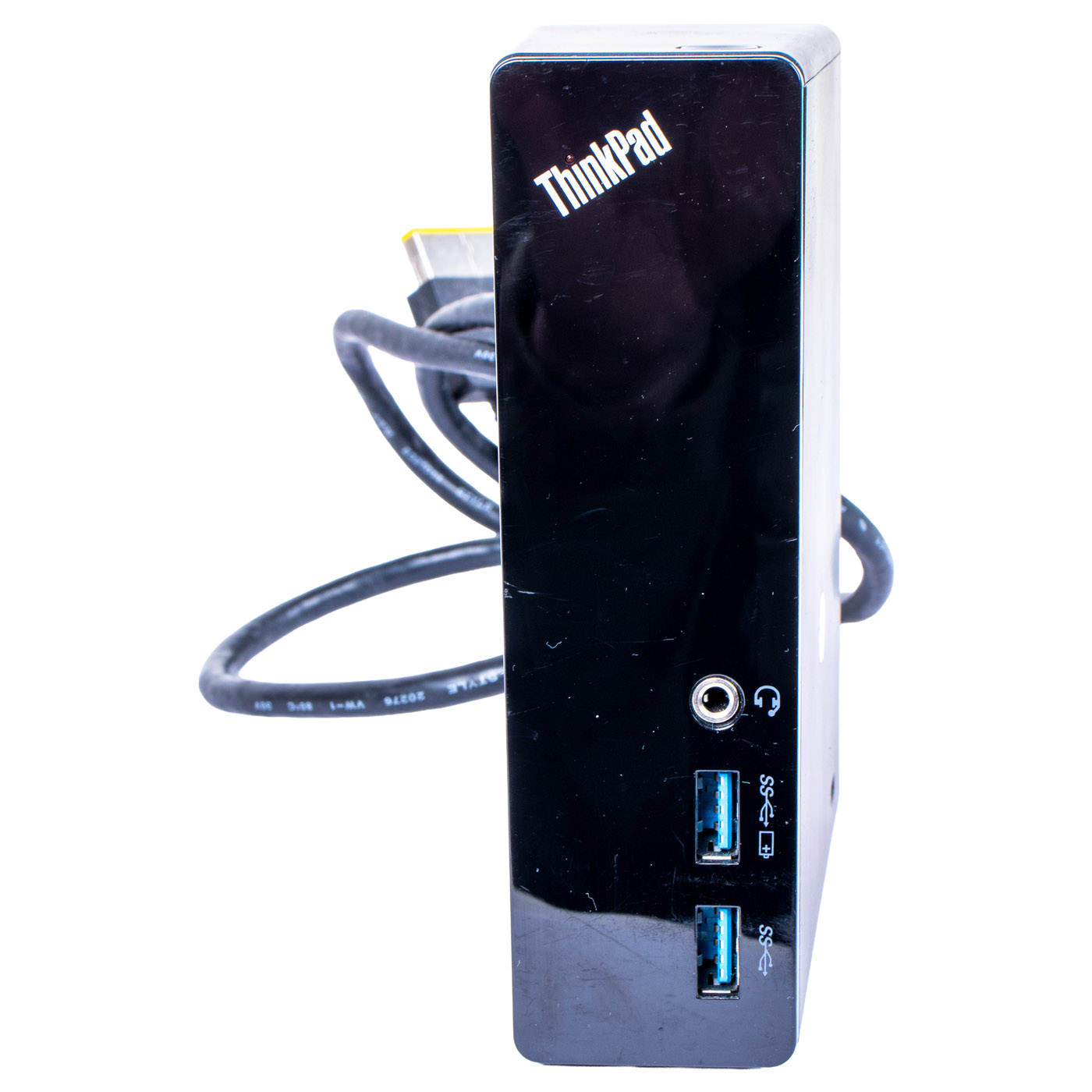

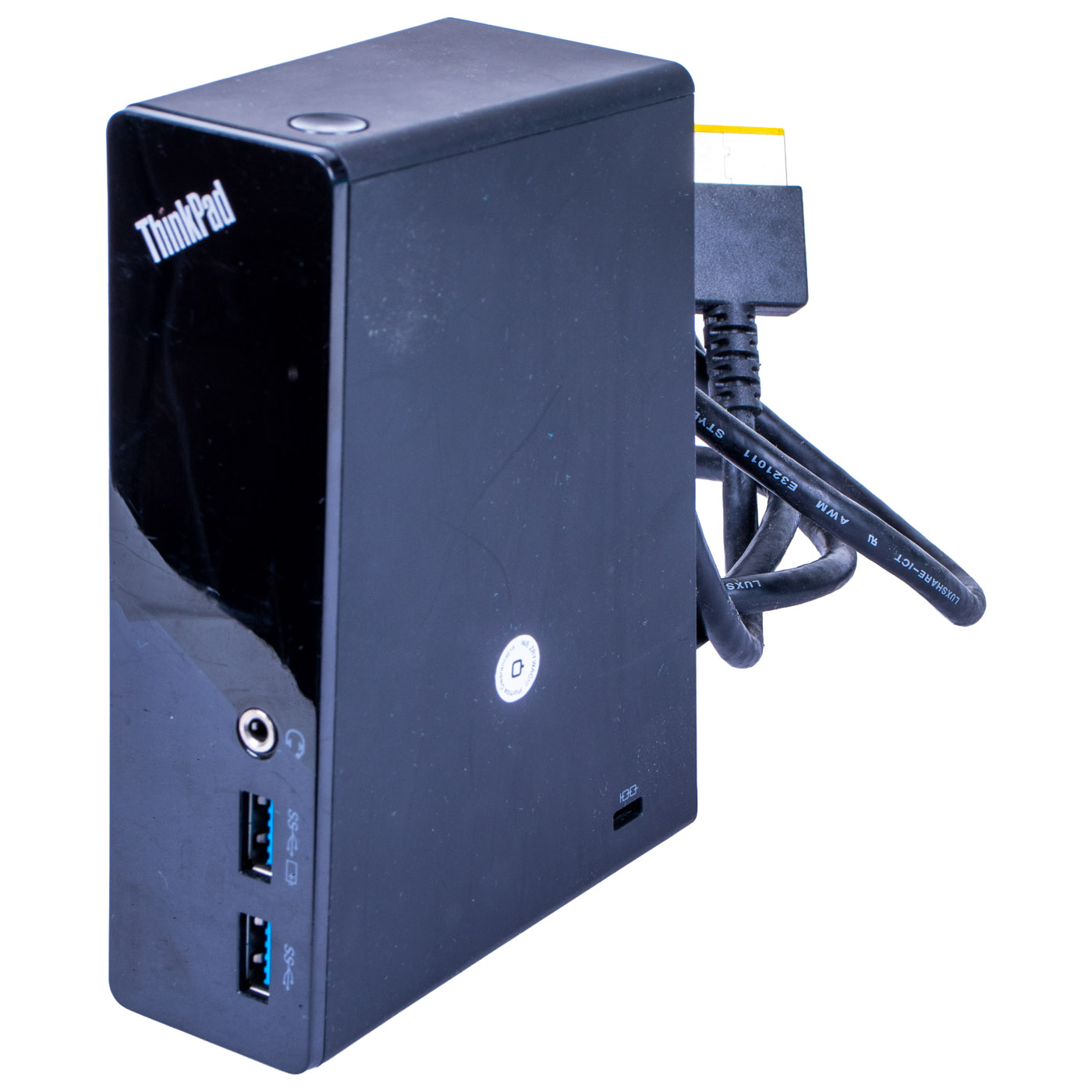

Front:
- 🔌 2× USB 3.0 (1× Always-On/Charging)
- 🎧 1× combo audio jack (headphones/microphone)

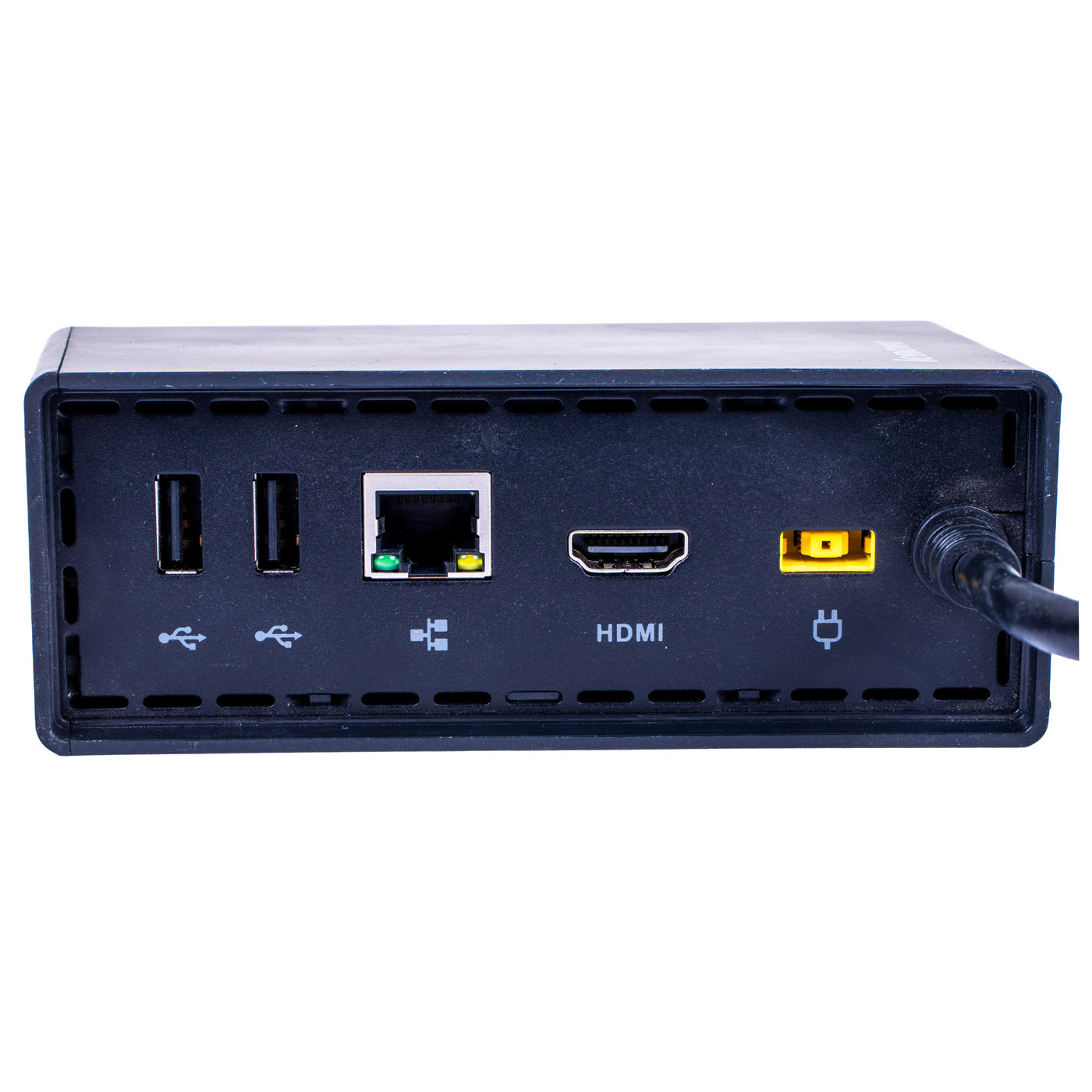

Rear:
- 🖥️ 1× HDMI (up to 1920×1080@60Hz)
- 🌐 1× RJ-45 Gigabit Ethernet (10/100/1000) with LED indicators
- ⚡ DC power jack
- 🔗 OneLink connector (yellow connector)
Technical Specifications:

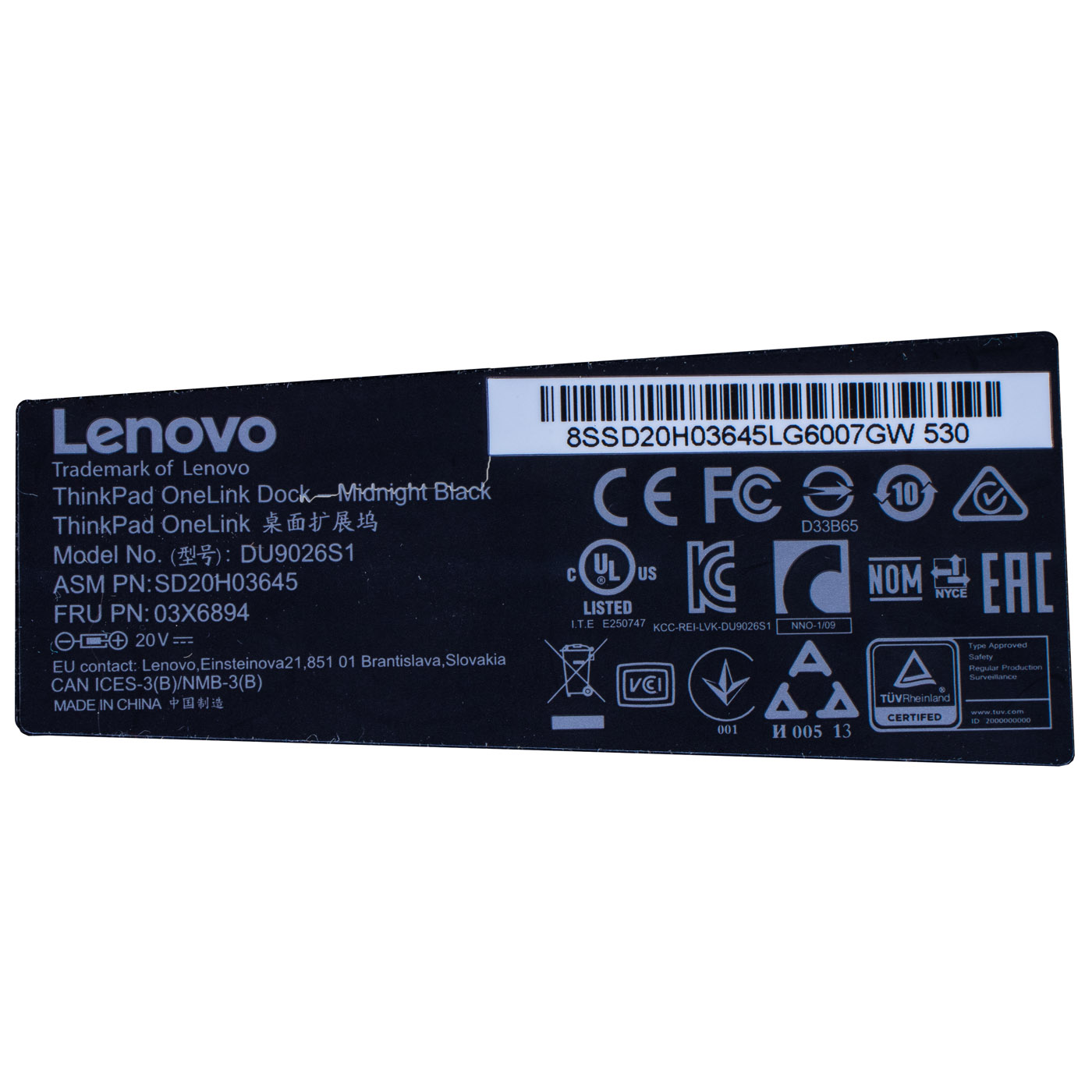

- • Model: ThinkPad OneLink Dock DU9026S1
- • FRU:03X6894
- • ASM P/N: SD20M70139
- • Connector: OneLink (proprietary connector)
- • Max video resolution: up to 1920×1080@60 Hz via HDMI
- • USB: 2× USB 3.0 (front)
- • Network: Gigabit Ethernet 10/100/1000 with LED indicators
- • Audio: combo jack 3.5 mm (headphones/microphone)
- • Power: via OneLink + external 65W power adapter (20V)
- • Color: Midnight Black
- • OneLink cable length: ~175 cm
- • Operating temperature: 5–40°C; humidity 5–95%
- • Drivers: Not required (driverless video)
OneLink Dock is compatible exclusively with ThinkPad laptops equipped with OneLink connector. Below is a list of confirmed models:
X1 Carbon 1st Gen (2013), X1 Carbon 2nd Gen (2014)
ThinkPad Yoga 12, ThinkPad Yoga 14
E440, E450, E455, E540, E550, E550c, E555, E531
S440, S431, S540, S531, S430
T440, T440s, T440p, T450, T450s, T540p, T550 (selected configurations with OneLink)
L440, L450, L540 (selected configurations with OneLink)
X240, X240s, X250 (selected configurations with OneLink)
W540 (selected configurations with OneLink)
Helix 1st Gen
System Requirements:
- • Operating System: Windows 7/8/8.1/10 (32/64-bit), Linux (selected distributions)
- • Laptop: ThinkPad with OneLink connector
- • Power Adapter: 65W or higher (20V) - included with laptop
- • Drivers: Not required for basic functions
Package Contents:
- 📦 1× Lenovo ThinkPad OneLink Dock DU9026S1
- 📦 1× OneLink Cable (~175 cm)
- 📦 1× User Manual (multilingual)
- 📦 1× Warranty Card
Ideal Applications:
- 🏢 Office - quick connection of monitor, keyboard, mouse with single cable
- 🏠 Remote work - transform laptop into complete home workstation
- 🎯 Presentations - instant connection to projector via HDMI
- ⚡ Device charging - USB Always-On ports work even when laptop sleeps
- 🌐 Stable internet - wired Gigabit Ethernet connection
- 🎧 Audio - connect speakers or headphones without occupying laptop ports
OneLink vs USB Dock Advantages:
- ✅ Laptop charging through dock (no need to connect power adapter separately)
- ✅ Single cable for everything (power + data + video + audio)
- ✅ Driverless video - instant operation
- ✅ Stable connection - no USB bandwidth issues
- ✅ Compact design - less desk space required
Limitations:
- ❌ ThinkPad laptops only with OneLink connector (not universal)
- ❌ Single video output - HDMI (no dual monitor capability)
- ❌ Resolution up to Full HD - no 4K support
- ❌ Only 2 USB ports - may be insufficient for some users
📞 NEED HELP? CONTACT OUR EXPERTS!
Have questions about compatibility, installation, or other technical aspects? Our experienced specialists are ready to provide professional support. We have years of experience in the Lenovo laptop parts industry and are happy to help you select the right components for your equipment.
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl
🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist
For years, we have specialized in delivering the highest quality parts for Lenovo laptops. Our experience allows us to offer products that meet the highest standards of quality and reliability. We focus on professionalism, reliability, and customer satisfaction. Every product in our range undergoes thorough verification to ensure full functionality and compliance with declared specifications.
🎯 Choose professionals – invest in high quality!
By choosing to purchase a docking station from our store, you select a product tested and verified by specialists. Original Lenovo docking station guarantees perfect fit, reliability, and long lifespan. Don't risk with cheap substitutes of questionable quality – choose proven solutions that ensure work comfort and contribute to your laptop's longevity!
Useful Information:
📞 Need to confirm compatibility?
Share your ThinkPad model/MTM – we’ll match the proper AC adapter and verify display support.📱 +48‑601‑415357 • 📧 sklep@abcdeal.pl
| Part Name | Docking station |
|---|---|
| Brand | Lenovo ThinkPad |
| Model | OneLink Dock |
| Condition | Used |
