🔧 Fan with Heatsink for Lenovo ThinkPad T490s 🔧

🖥️ ThinkPad T490s | CPU Heatsink with Fan | UMA Version (Integrated Graphics) | FRU 5H40X63204

Used, 100% functional cooling assembly dedicated to the Lenovo ThinkPad T490s in the UMA configuration, meaning integrated graphics. Part sourced from disassembly and tested - the fan spins smoothly and quietly, with no ticking or sticking. FRU number 5H40X63204 guarantees full compatibility with the T490s model.

⚙️ PRODUCT CHARACTERISTICS

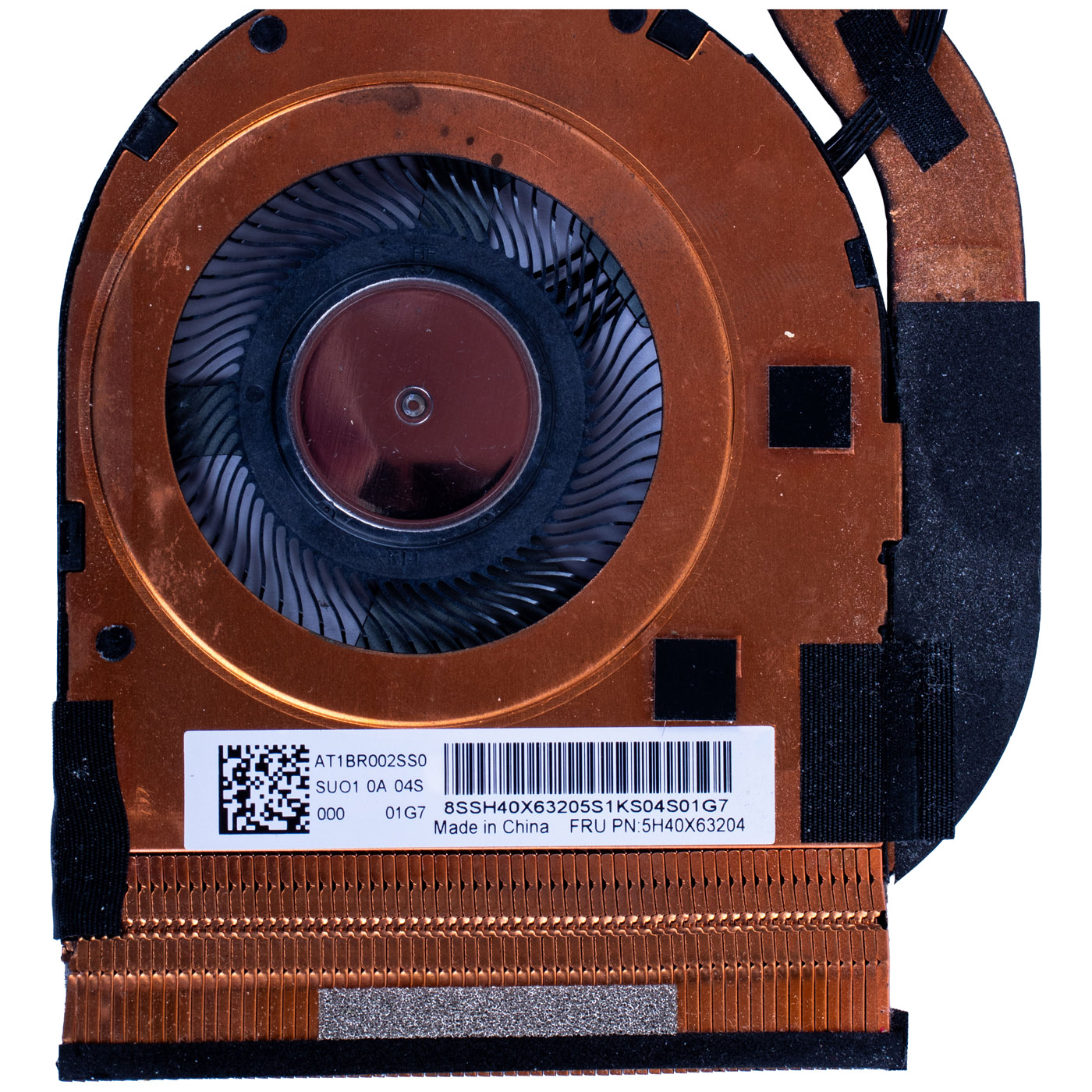

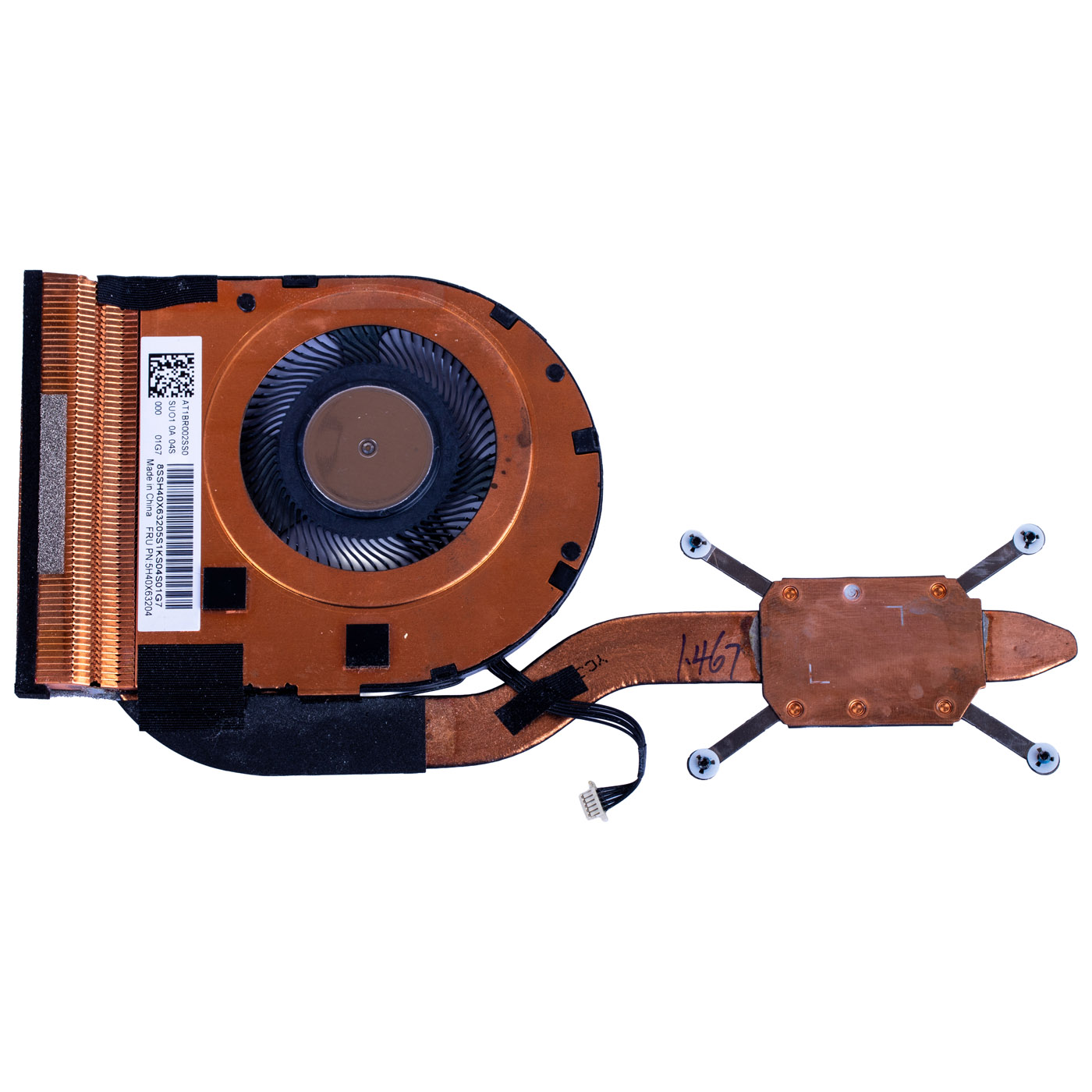

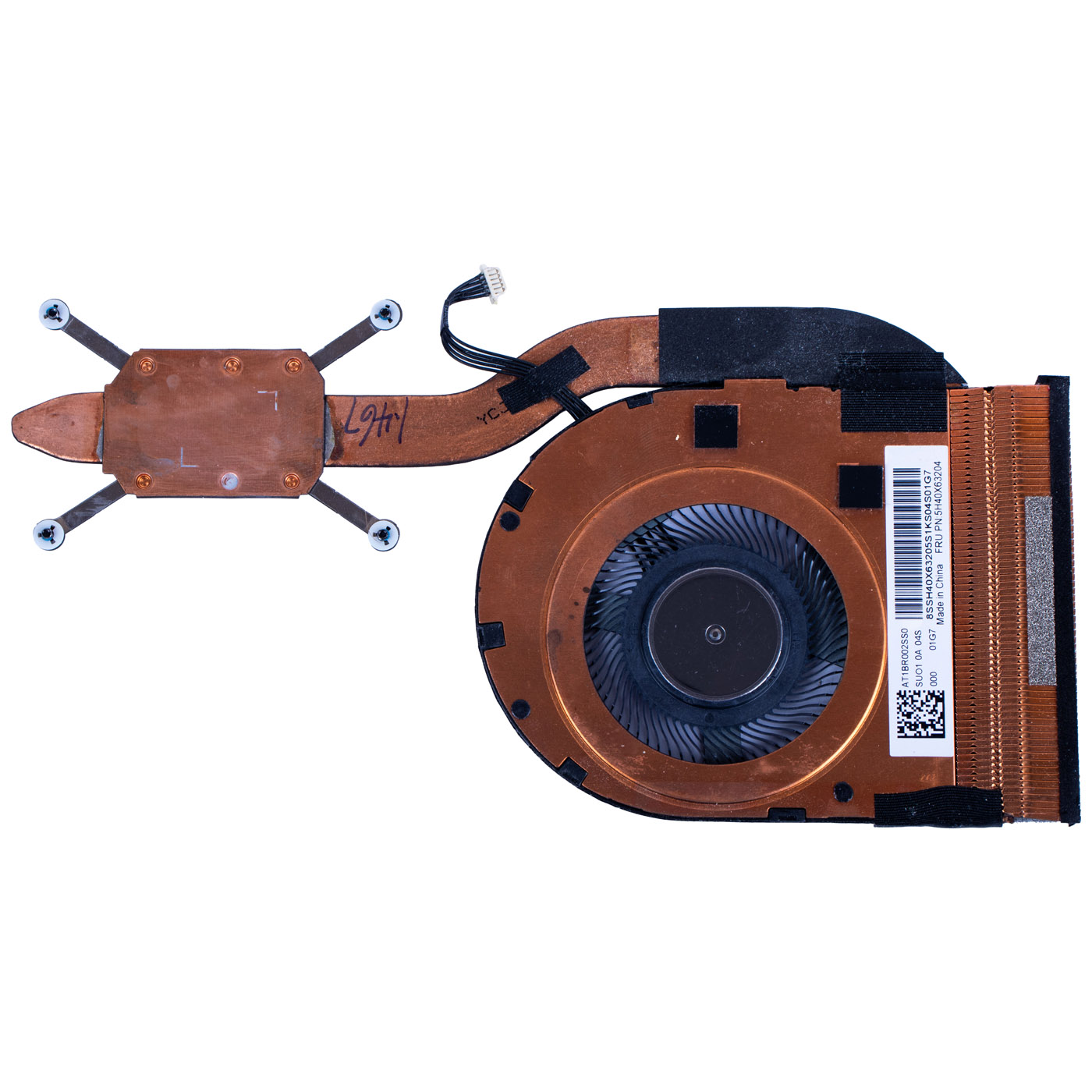

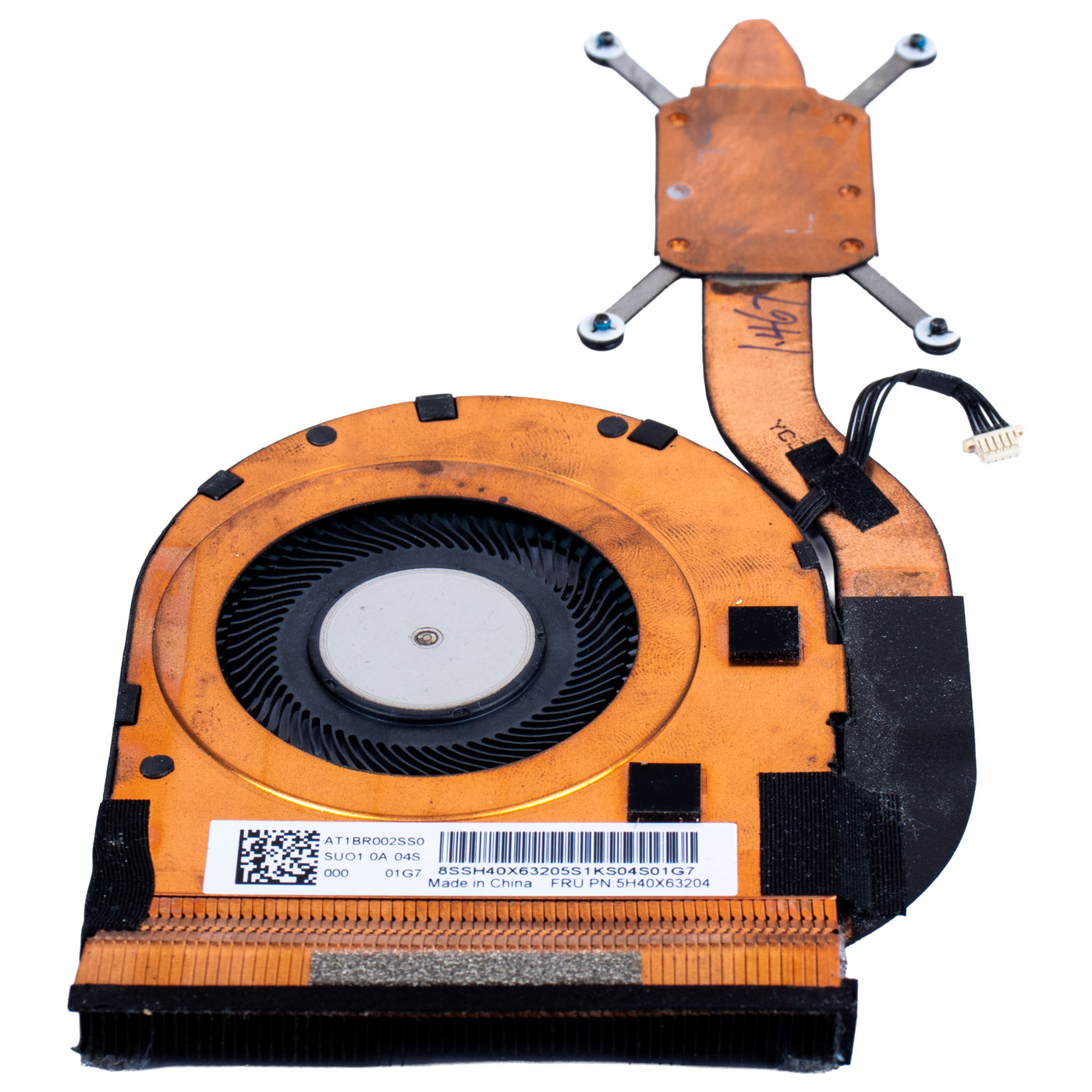

Copper heatsink with a heat pipe and an integrated fan, designed exclusively for cooling the CPU in the integrated graphics configuration. The original Lenovo label with FRU number 5H40X63204 is visible. Fan operation has been tested - it starts up without resistance and runs smoothly across all speeds.

📋 TECHNICAL DATA

Part name: CPU heatsink with fan (cooling assembly)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad T490s (UMA version - integrated graphics)
Condition: Used, 100% functional
FRU: 5H40X63204
Alternative part numbers: 01AY994, 01AY995 (equivalent variants of the same cooling assembly)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed mechanical fit with the T490s chassis
🔹 100% tested - smooth, quiet fan operation with no ticking, ensuring stable cooling right after installation
🔹 Complete assembly - heatsink and fan as a single unified component, no need to combine separate parts
🔹 Full compatibility - matches the T490s UMA under FRU 5H40X63204

🔢 PART NUMBERS

FRU: 5H40X63204
Alternative part numbers: 01AY994, 01AY995
Laptop model: Lenovo ThinkPad T490s (UMA - integrated graphics)

❓ WHEN SHOULD YOU REPLACE THE COOLING ASSEMBLY?

• The laptop overheats and the fan runs loudly even after cleaning out dust
• The fan does not spin at all, or spins with noticeable ticking or grinding
• The laptop shuts down unexpectedly under load due to CPU overheating
• The heatsink is damaged or bent following a previous unsuccessful repair

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws holding the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the fan connector from the motherboard
5. Remove the screws holding the heatsink in reverse order to the tightening sequence, following the numbering on the heatsink
6. Lift off the old cooling assembly and clean off the old thermal paste residue from the CPU
7. Apply new thermal paste, install the new heatsink and tighten the screws crosswise in ascending order
8. Connect the fan, reassemble the laptop and verify it powers on correctly and the fan operates
Replacement is recommended by a technical service or a person experienced in laptop repairs.

🎯 PURPOSE

This cooling assembly is intended for ThinkPad T490s (integrated graphics/UMA) users whose original heatsink or fan has failed. A working fan and clear heat pipe restore proper CPU cooling and eliminate overheating. "Photos in the listing show the exact item offered."

✅ COMPATIBILITY GUARANTEE

The offered cooling assembly has been thoroughly tested and matched to the Lenovo ThinkPad T490s UMA model. We guarantee full compatibility under FRU number 5H40X63204 and 100% fan functionality. As a used, tested part, it comes with a 6-month warranty. In case of any compatibility issues, we provide a hassle-free return within 14 days.
