Fan Cooling Heatsink Lenovo Legion 5 17 ACH6 | 5H40S20306

🔧 Fan & Heatsink Cooling Assembly for Lenovo Legion 5 17 ACH6 🔧

🖥️ Legion 5 17ACH6 / 17ACH6H (type 82JY) | CPU + GPU cooling assembly | DC 10V | FRU 5H40S20306

⚙️ PRODUCT OVERVIEW

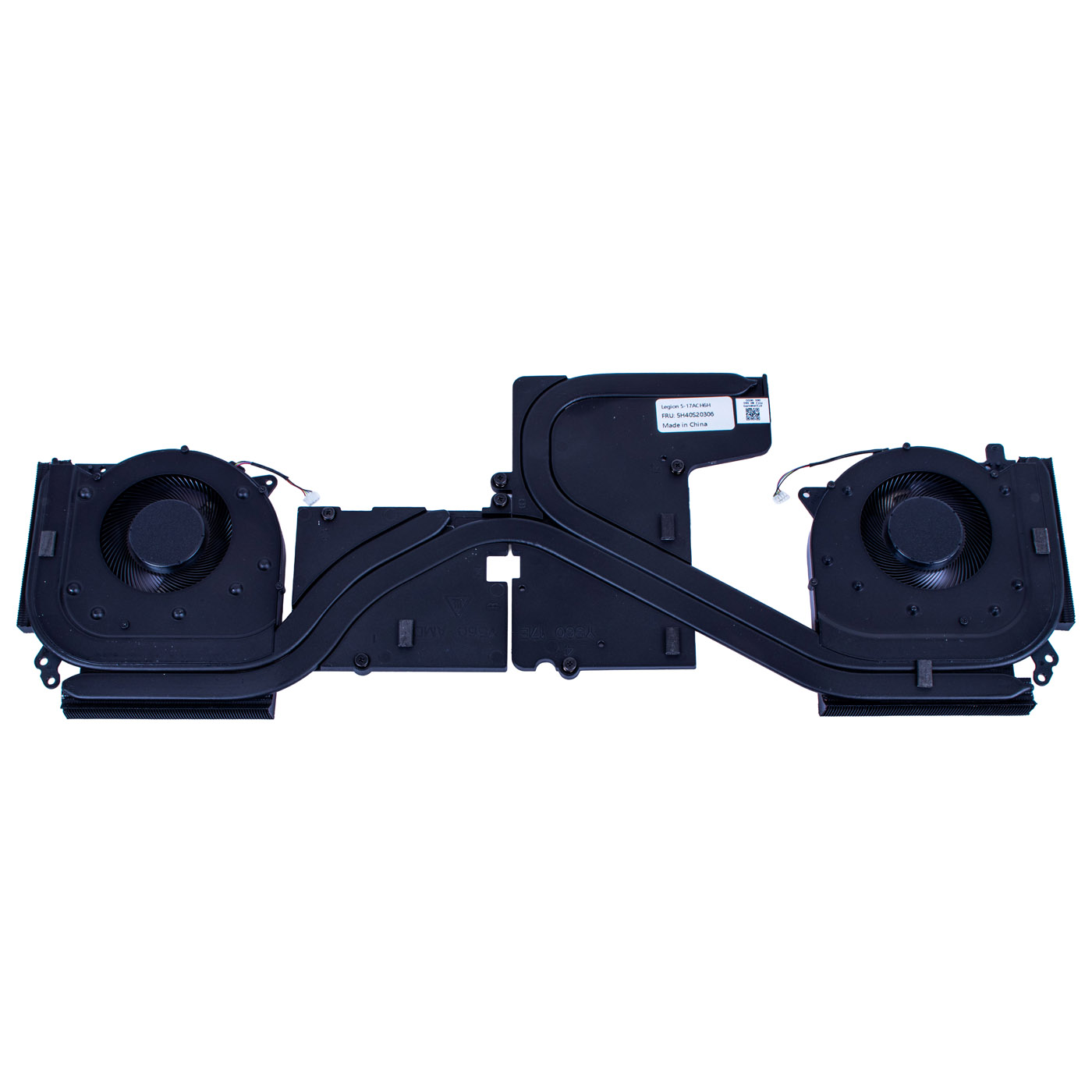

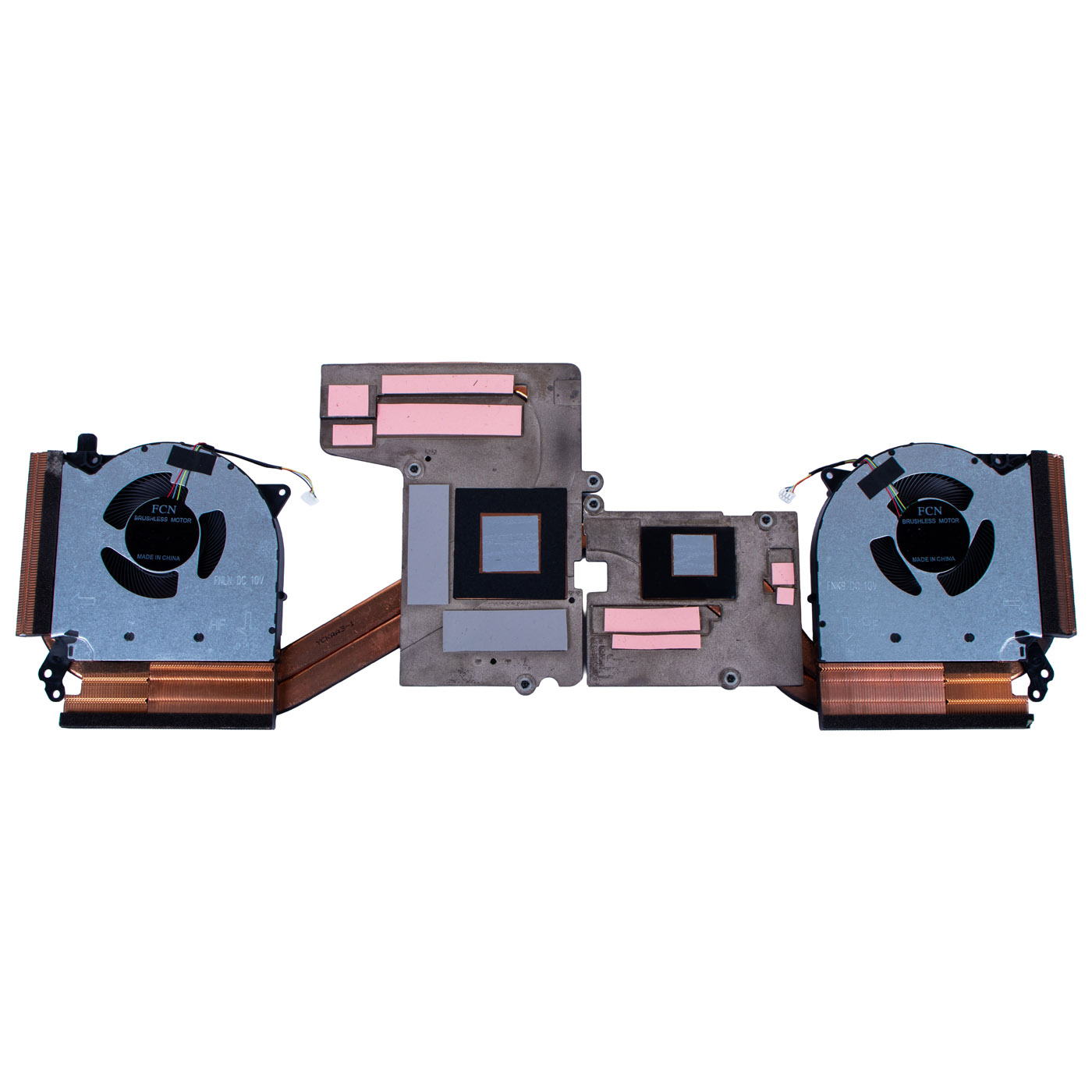

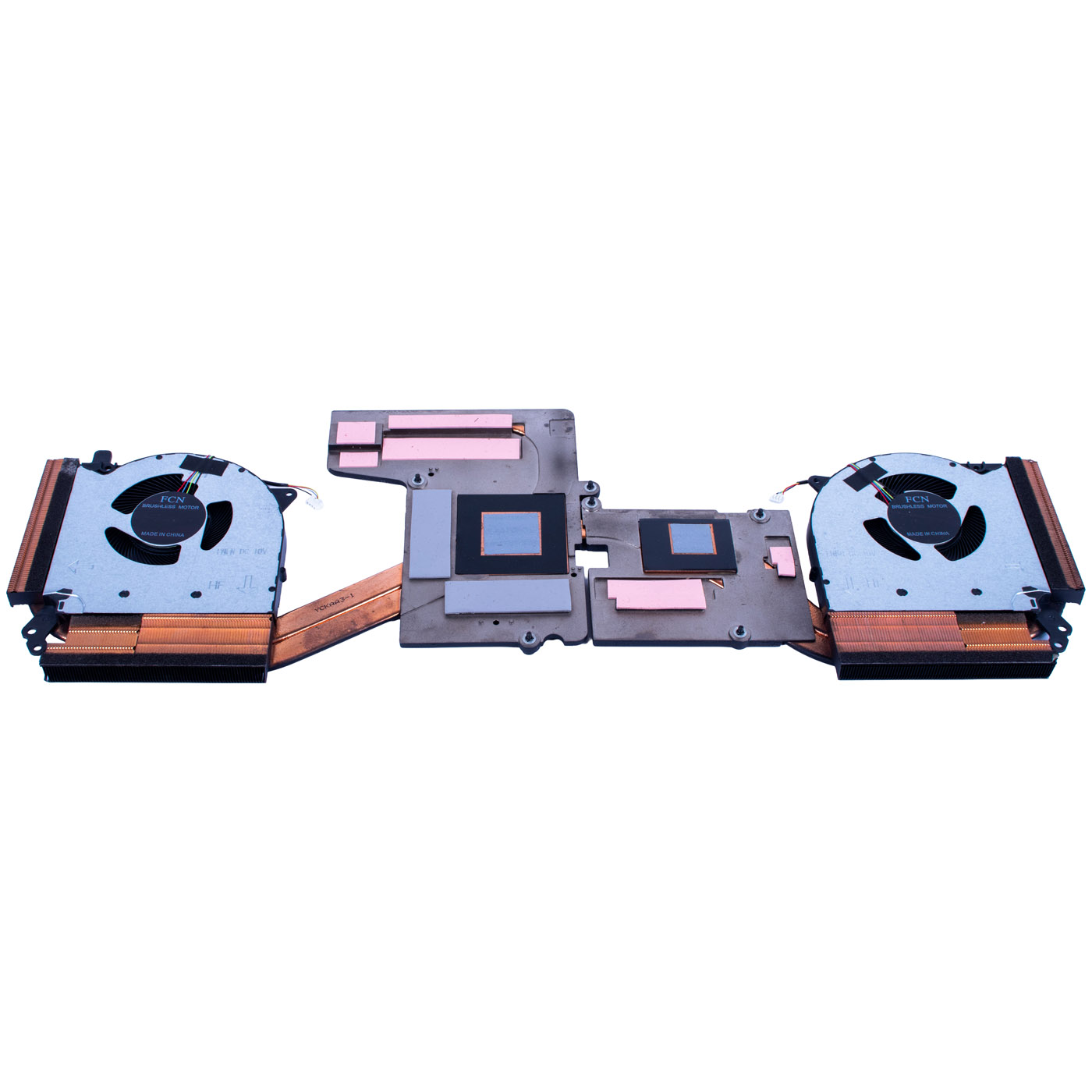

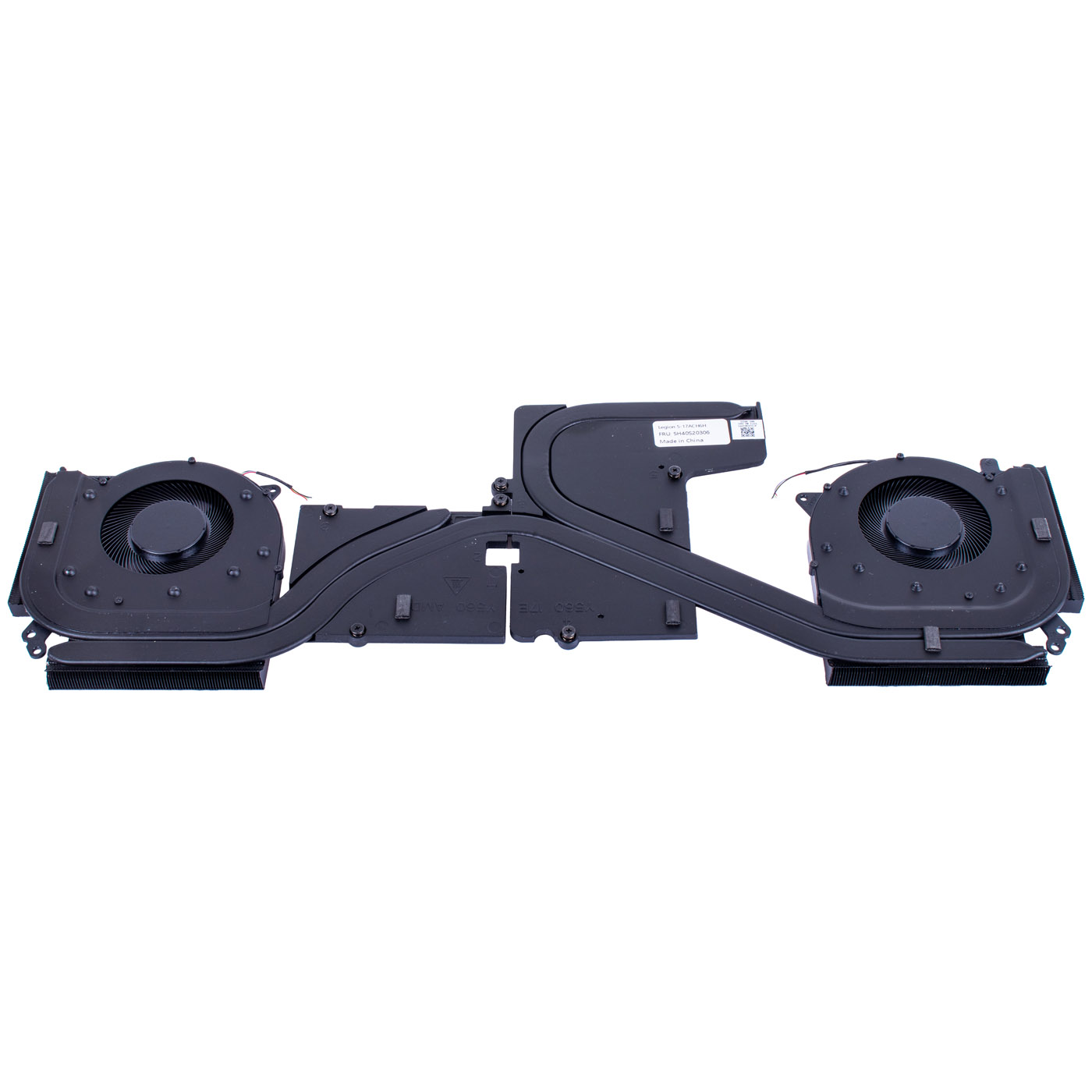

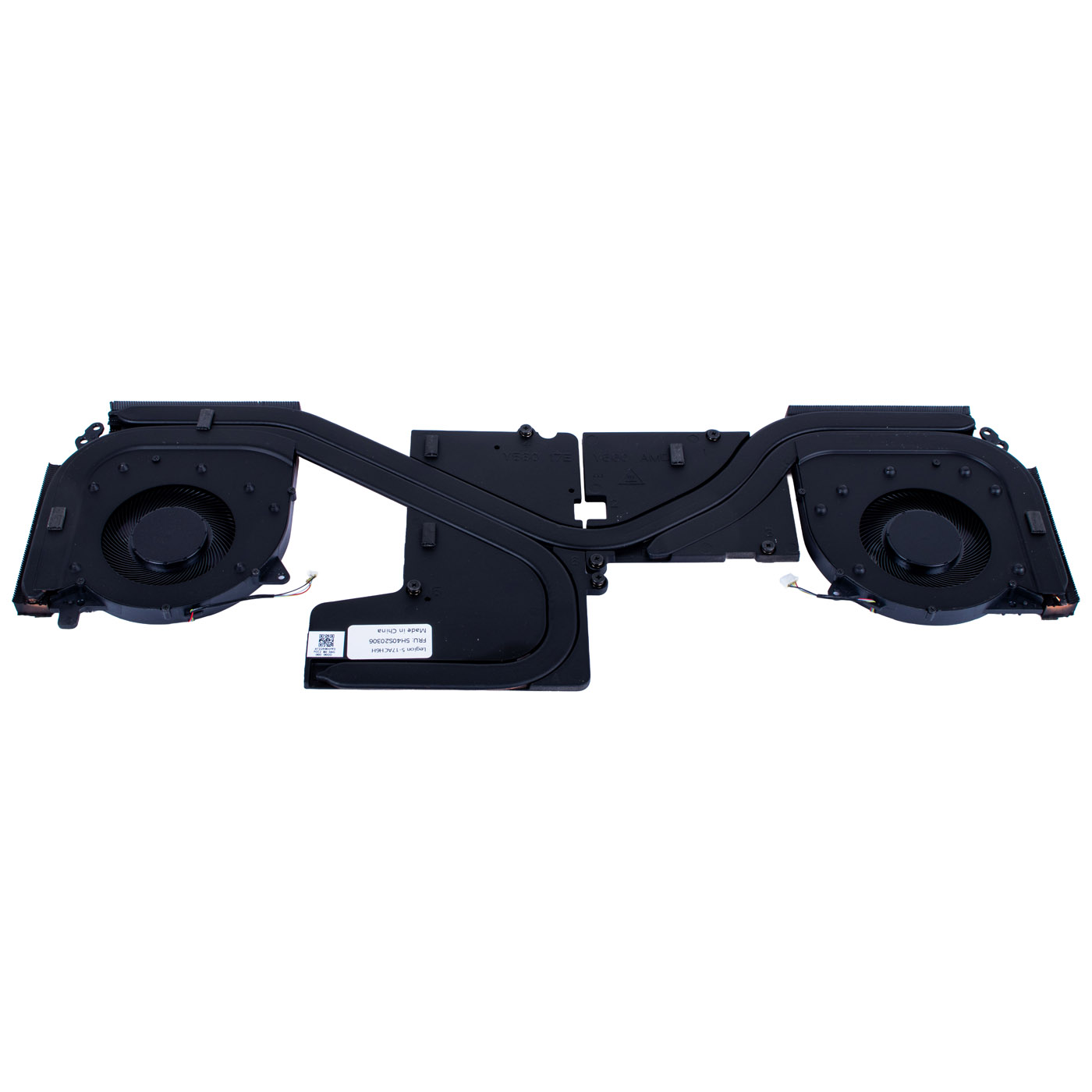

A pair of brand-new, original fans together with a heatsink for Lenovo Legion 5 17ACH6 / 17ACH6H (AMD platform, type 82JY) gaming laptops. A complete cooling assembly: two FCN (DC Brushless) fans connected by a copper heatpipe radiator, dissipating heat simultaneously from the CPU and GPU. The fans are powered at DC 10V. FRU 5H40S20306 guarantees top build quality and a proper fit.

📋 TECHNICAL SPECIFICATIONS

Product type: Fan & heatsink assembly (CPU + GPU cooling)
Brand: Lenovo
Series: Legion
Compatible model: Legion 5 17ACH6 / 17ACH6H (type 82JY, AMD)
Laptop size: 17.3 inch
FRU number: 5H40S20306

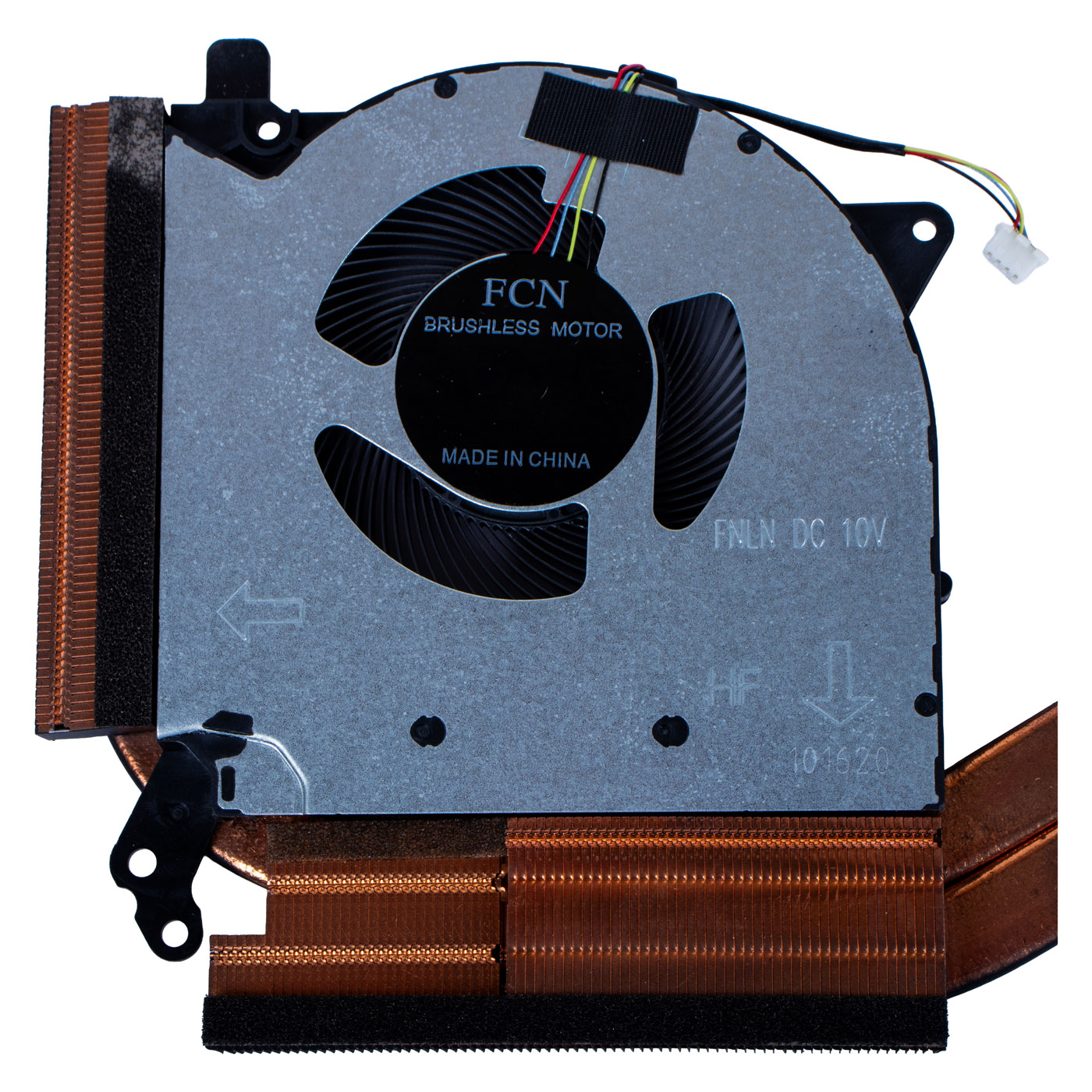

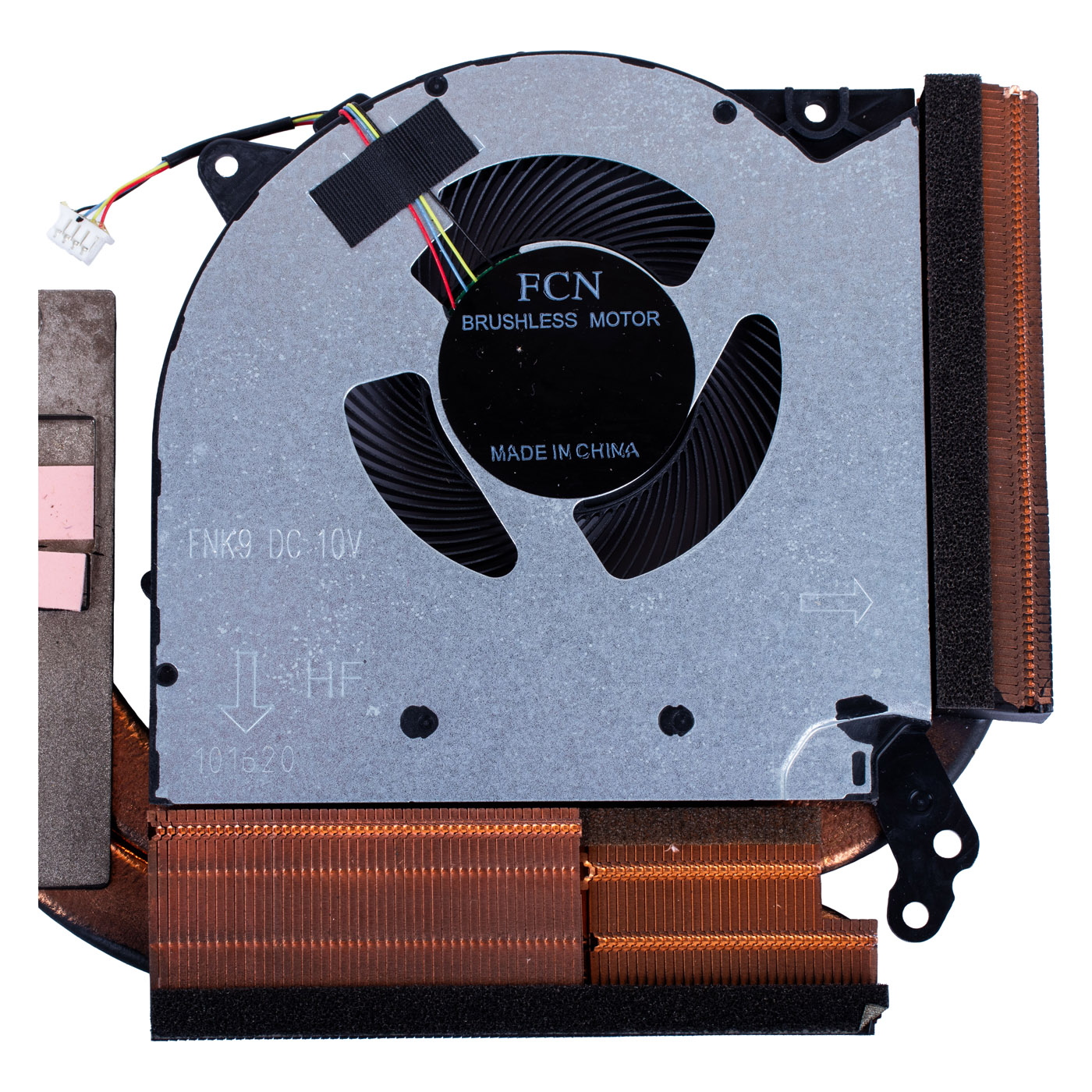

Fan manufacturer: FCN
Power: DC 10V
Motor type: Brushless (DC Brushless)
Connector: 4-pin
Number of fans: 2 pcs
Heatsink: Copper, with heatpipes (shared CPU + GPU)
Construction code: AT22E001FF0
Condition: New
Warranty: 12 months

🌟 KEY ADVANTAGES

🔹 Original Lenovo components – guarantee a fit and compatibility with your laptop
🔹 Complete cooling assembly – two fans + copper heatpipe radiator (CPU and GPU)
🔹 FCN DC brushless fans – efficient and durable
🔹 Optimal cooling – dissipates heat from gaming components under heavy load
🔹 Quiet operation – original Lenovo fans with optimized noise level
🔹 Easy installation – fits the dedicated model, making replacement easier

🔢 PART NUMBERS

Main FRU: 5H40S20306
Substitute: 5H40S20307

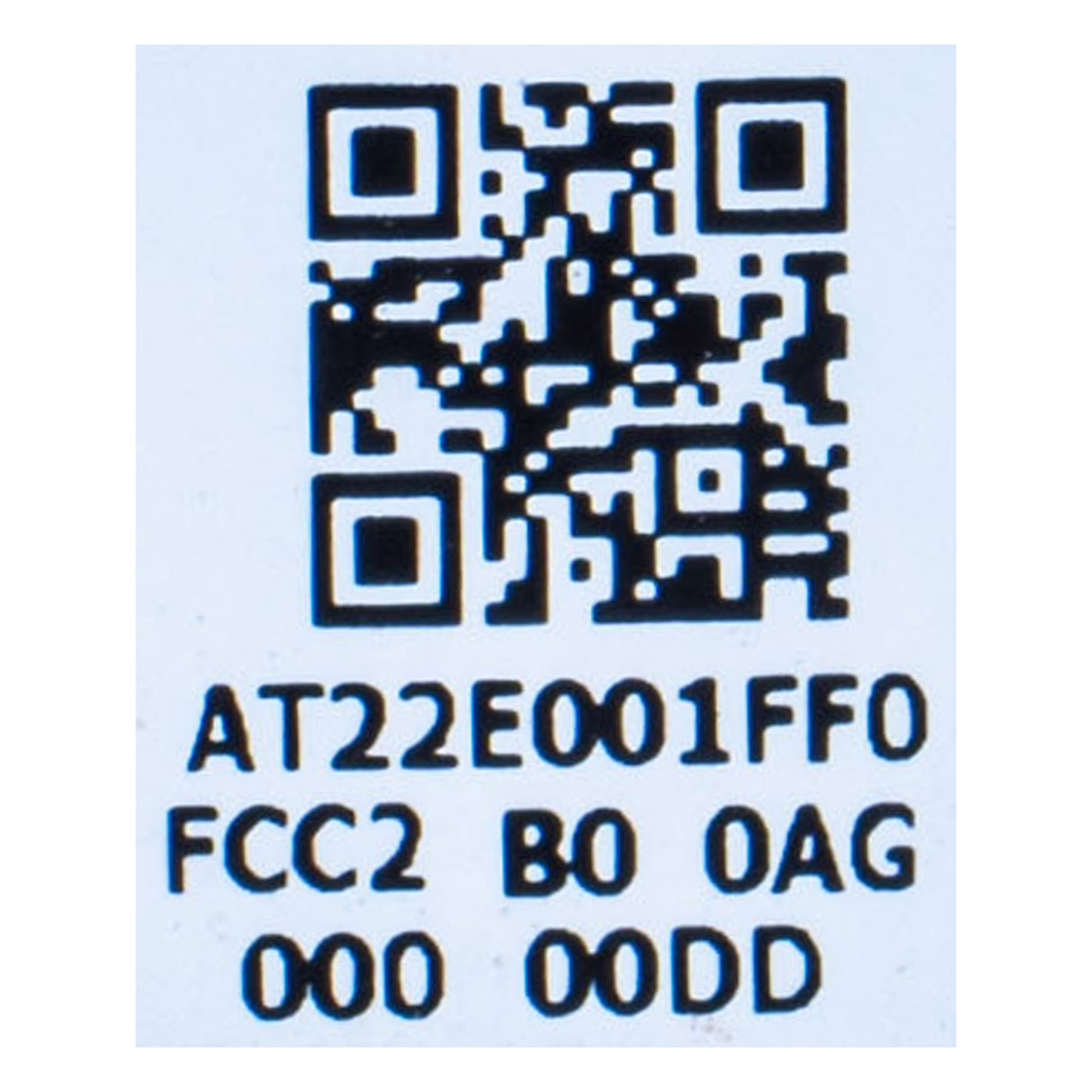

Construction code: AT22E001FF0
Note: the Legion 5 17 comes in Intel and AMD variants and several cooling configurations (different FRUs). This module is the AMD variant (ACH6, type 82JY) — before purchase compare the FRU of your module (5H40S20306 / 5H40S20307).

❓ WHEN SHOULD YOU REPLACE THE FAN & HEATSINK ASSEMBLY?

• The laptop heats up much faster than before
• The fans run louder than usual or make unusual noises
• The system reduces performance (throttling) due to high temperature
• The computer shuts down unexpectedly during intensive use
• The fans do not start or run unevenly
• You notice performance drops in games or demanding applications
• The heatsink is dusty and standard cleaning does not help

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect all power sources
2. Remove the bottom cover by unscrewing all mounting screws
3. Locate the cooling system (fans and heatsink)
4. Carefully disconnect the fan power connectors from the motherboard
5. Unscrew the screws securing the heatsink and fans in the correct order
6. Gently lift and remove the old cooling assembly
7. Clean the CPU and GPU surfaces of old thermal paste
8. Apply new thermal paste to the CPU and GPU
9. Position the new fan & heatsink assembly correctly
10. Tighten the mounting screws in the manufacturer's order
11. Connect the fan power connectors to the motherboard
12. Refit the bottom cover and tighten all screws

🎯 INTENDED USE

This fan & heatsink assembly is dedicated to Lenovo Legion 5 17ACH6 / 17ACH6H (type 82JY, AMD) gaming laptops. The components are designed for efficient dissipation of heat from powerful processors and graphics cards during intensive gaming or demanding applications. Original parts ensure optimal thermal performance and long-term stability.

✅ COMPATIBILITY GUARANTEE

We offer compatibility with the Lenovo Legion 5 17ACH6 / 17ACH6H (type 82JY) in terms of FRU 5H40S20306 and substitute 5H40S20307. As the Legion 5 17 comes in different variants (Intel/AMD, several cooling configurations), if in doubt please check the FRU of your original module or contact our experts.
