🔧 GPU (Graphics Card) Fan for Lenovo ThinkPad P17 Gen 1 🔧

🖥️ ThinkPad P17 Gen 1 | GPU (Graphics Card) Cooling Fan | ND65C26-19K11

Genuine GPU cooling fan, i.e. graphics card cooling fan, dedicated to the Lenovo ThinkPad P17 Gen 1 laptop (type 20SN, 20SQ). Brand new part marked on the label as ND65C26-19K11. The marking guarantees full compatibility with the ThinkPad P17 Gen 1 model.

⚙️ PRODUCT CHARACTERISTICS

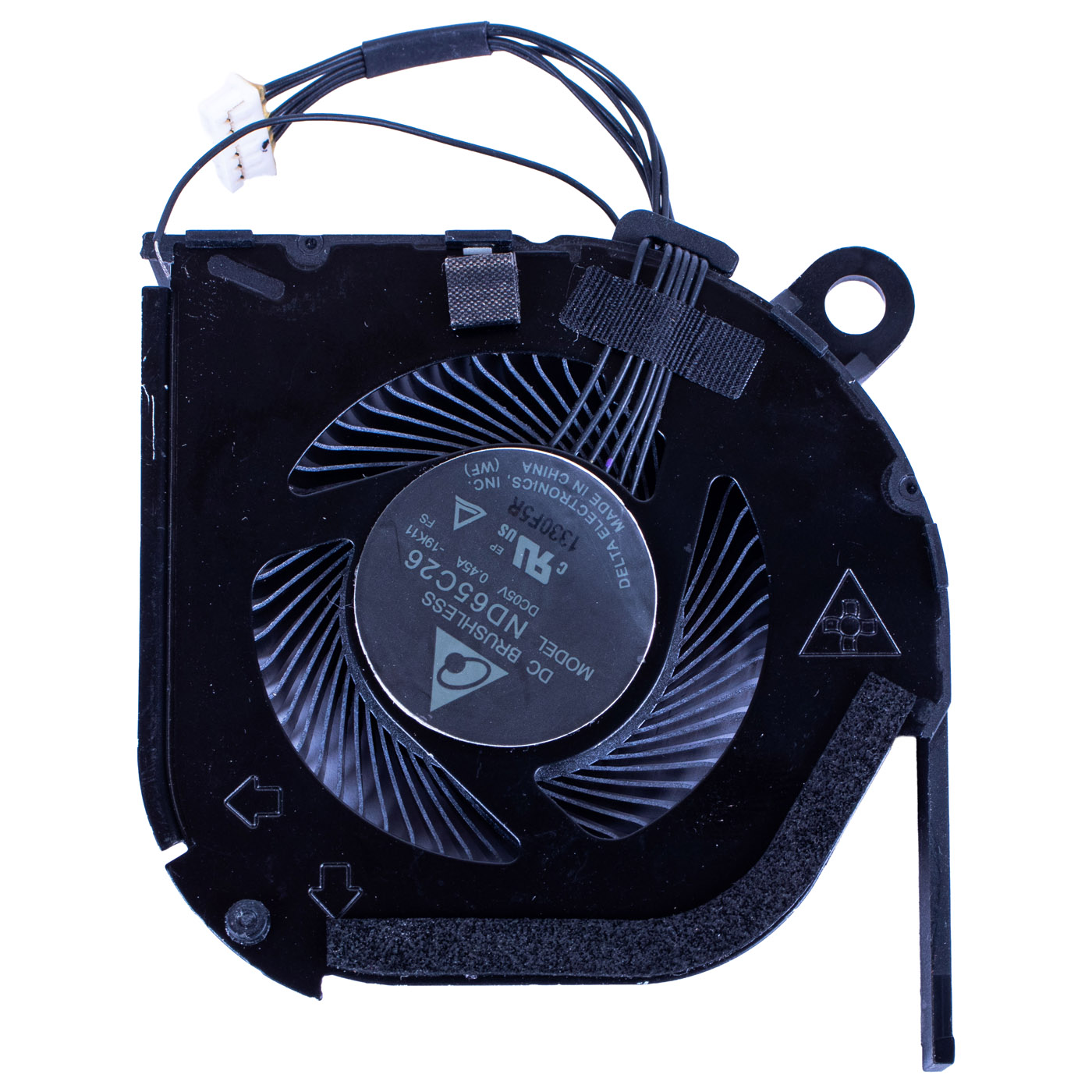

This fan is a single GPU (graphics card) cooling module, forming the second fan of the pair installed at the factory in the ThinkPad P17 Gen 1 laptop (platform with N19E/N19P cooling module). A DC Brushless fan made by Delta Electronics, factory marked on the label as MODEL ND65C26-19K11, rated at 5V 0.45A. Certified by UL and CE, confirming compliance with safety and manufacturing quality standards. Note: although the shape physically fits the ThinkPad P15 Gen 1 chassis, the mounting hole spacing differs from the P15 - this fan is dedicated exclusively to the ThinkPad P17 Gen 1.

📋 TECHNICAL DATA

Part name: GPU (Graphics Card) Fan
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P17 Gen 1 (20SN, 20SQ)
Voltage / current: 5V / 0.45A
Label marking: ND65C26-19K11
Condition: New
P17 Gen 1 cooling module FRU (for reference): 5H40X89385, 5H40X89386, 5H40X89387, 5H40X89388

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guarantee of perfect fit and reliability
🔹 UL and CE certified - proven build quality, the graphics card cooling fan runs stably even under sustained load in professional applications
🔹 Precise mechanical fit - the fan housing matches the original, no modification needed for the P17 Gen 1 mounting location
🔹 Full compatibility - matches ThinkPad P17 Gen 1 under marking ND65C26-19K11

🔢 PART NUMBERS

Fan label marking: ND65C26-19K11
CPU+GPU cooling module FRU for P17 Gen 1 (for reference): 5H40X89385, 5H40X89386, 5H40X89387, 5H40X89388
Laptop model: Lenovo ThinkPad P17 Gen 1

❓ WHEN SHOULD YOU REPLACE THE GPU (GRAPHICS CARD) FAN?

• The laptop is loud, the graphics card cooling fan visibly vibrates or makes unusual noises during operation
• The GPU (graphics card) overheats and the laptop throttles performance in graphics applications despite light load
• The laptop suddenly shuts down during rendering, CAD work or other GPU-intensive tasks
• The fan does not spin at all despite high graphics card temperature
• The laptop chassis gets very hot during 3D graphics work

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the fan connector from the motherboard and remove the screw securing the fan
5. Remove the old GPU fan, clean the heatsink from dust and apply fresh thermal paste to the graphics card
6. Install the new fan, reconnect the connector and tighten the screw
7. Reassemble the laptop and power it on, checking correct fan operation and GPU temperatures
Replacement is recommended to be performed by a technical service or a person experienced in laptop repairs.

🎯 APPLICATION

The GPU (graphics card) fan is intended for the Lenovo ThinkPad P17 Gen 1 laptop, where it is responsible for dissipating heat from the graphics card under load, including professional CAD applications, rendering and 3D graphics work. A properly working GPU fan protects the components from overheating and maintains stable laptop performance. The exact appearance and condition of the offered item is shown in the listing photos.

✅ COMPATIBILITY GUARANTEE

The offered GPU (graphics card) fan has been carefully checked and matched to the Lenovo ThinkPad P17 Gen 1 model. We guarantee full compatibility in terms of marking ND65C26-19K11 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free 14-day return.
