🔧 17.3" FHD IPS LCD Panel for Lenovo IdeaPad L340-17IRH Gaming and other models 🔧

🖥️ Lenovo L340-17IRH | Legion Y730-17ICH | Z70-80 | 330-17 | 17.3" FHD IPS | FRU 5D10Q59856

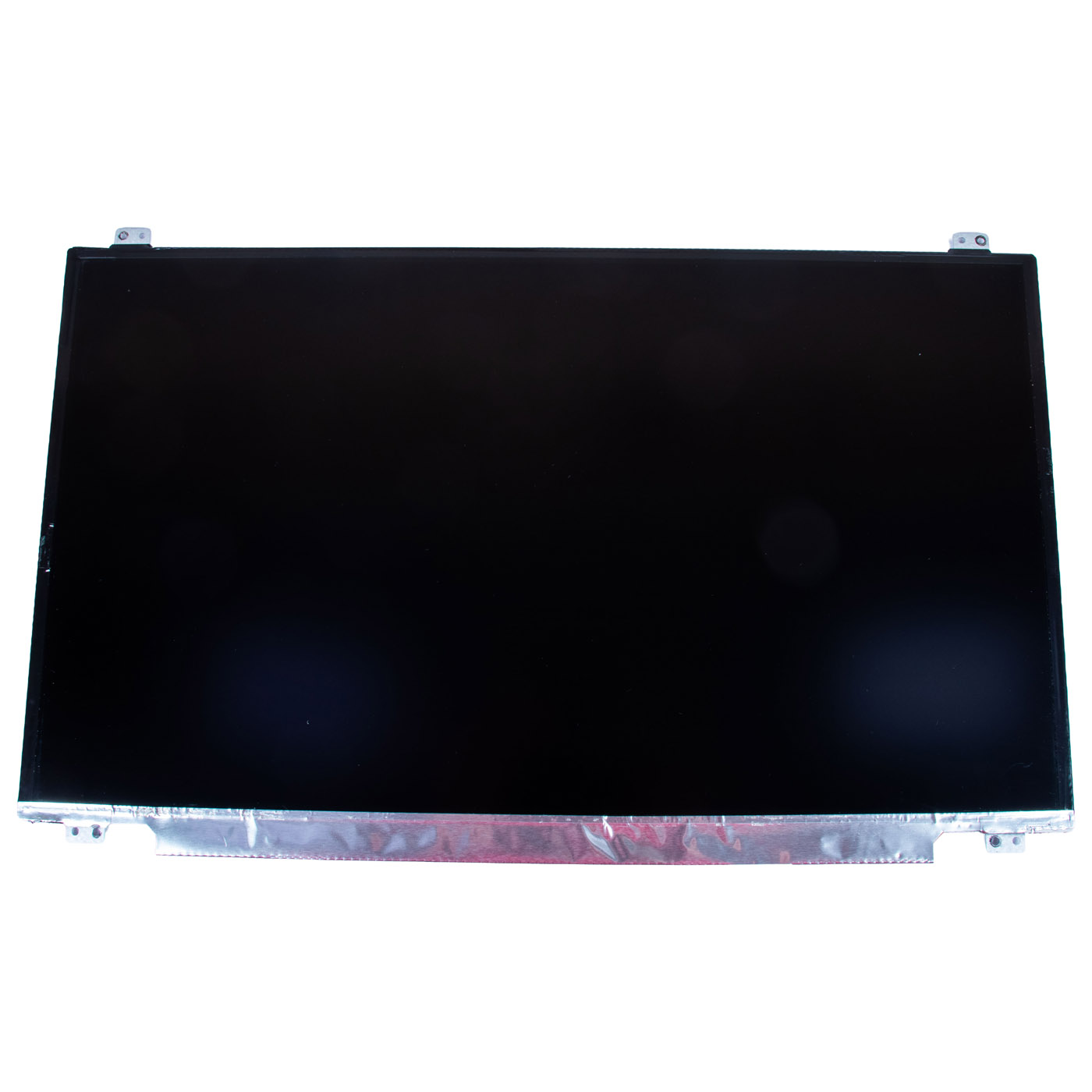

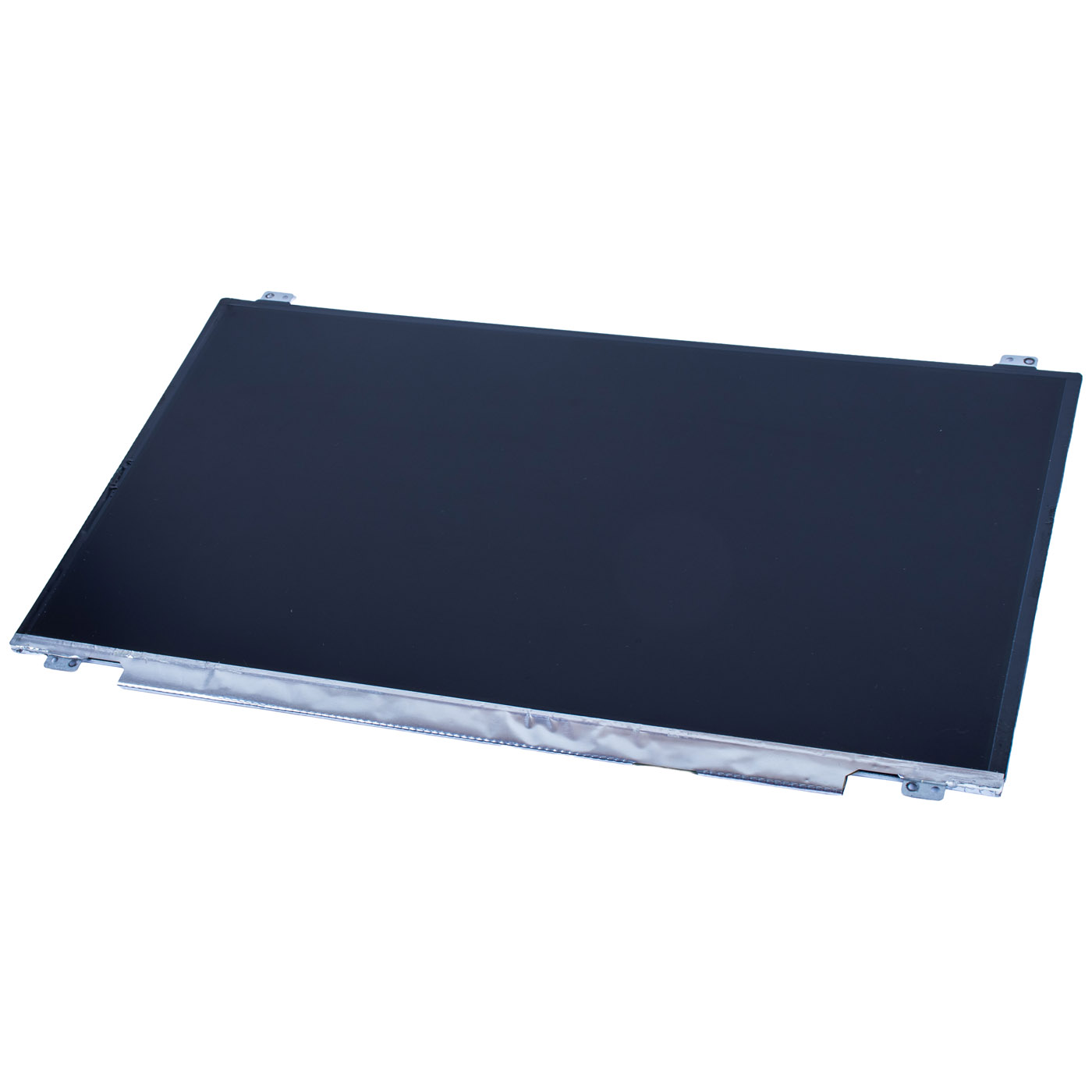

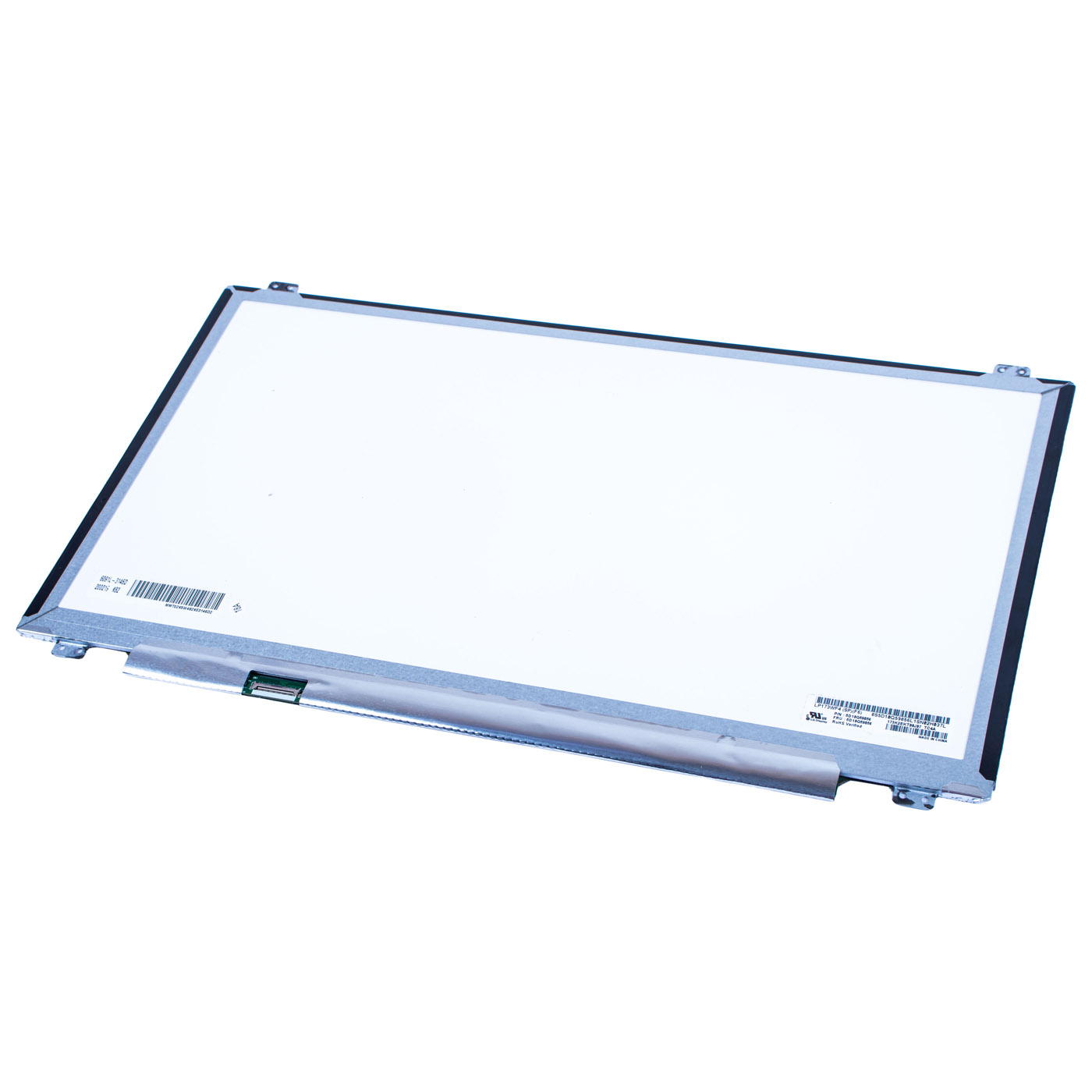

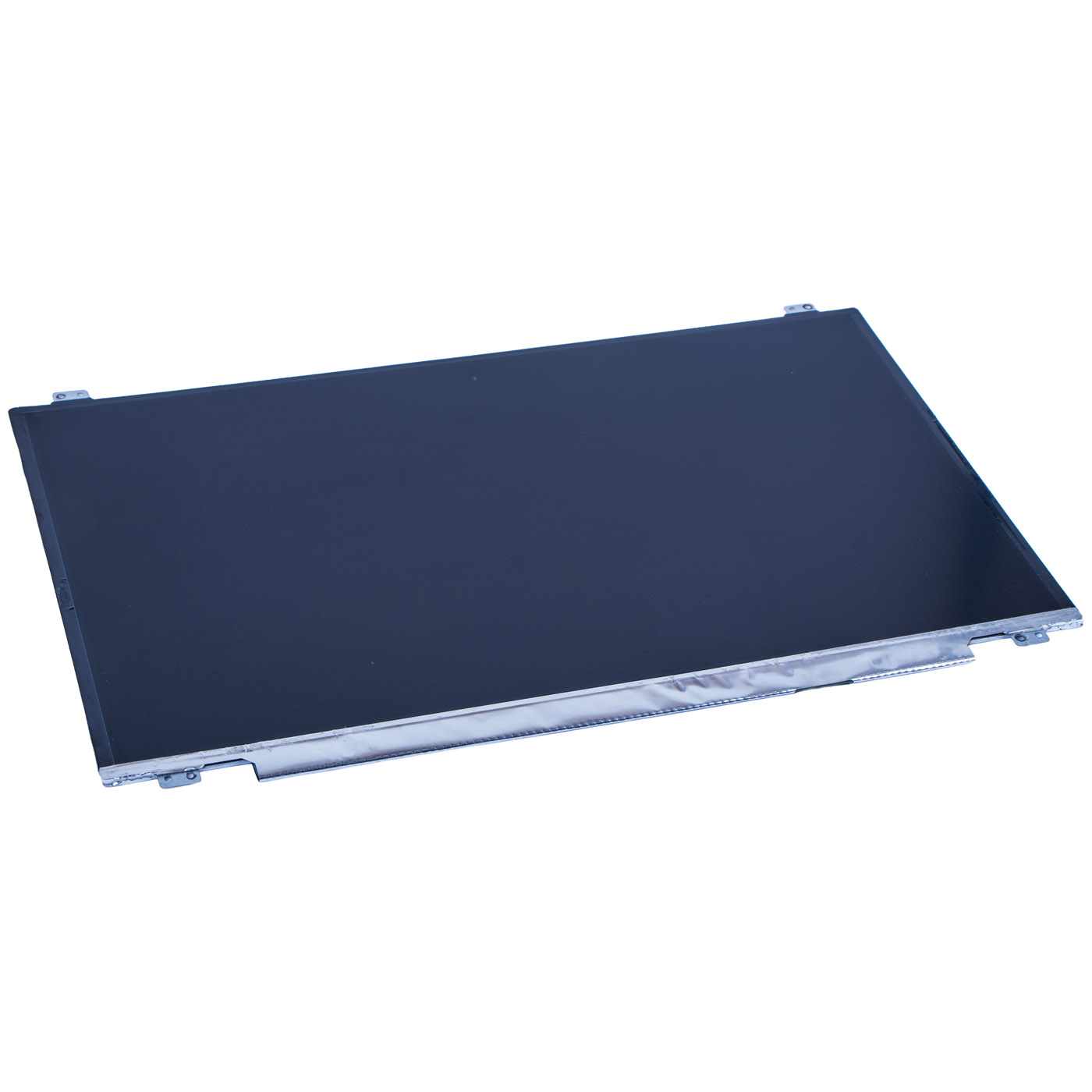

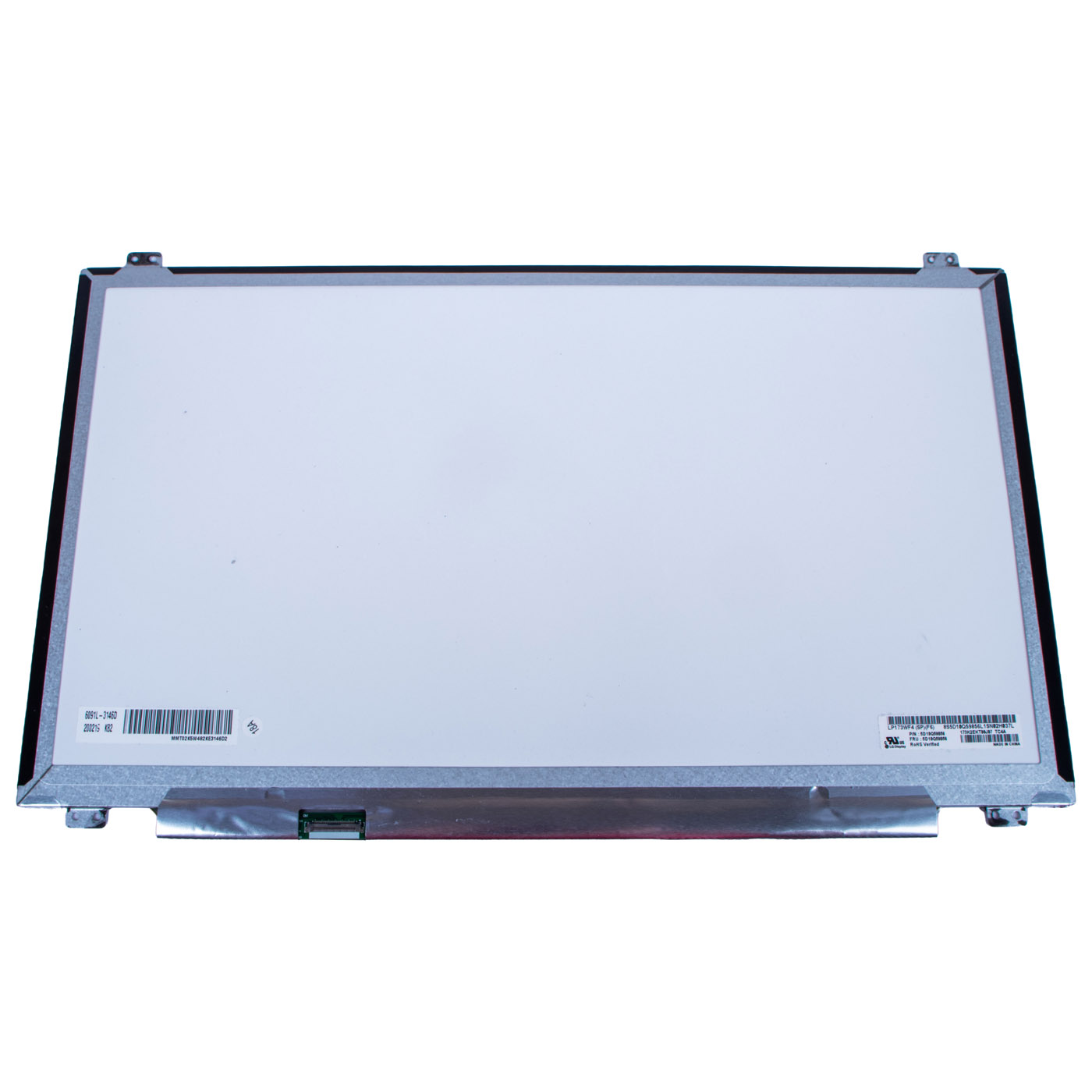

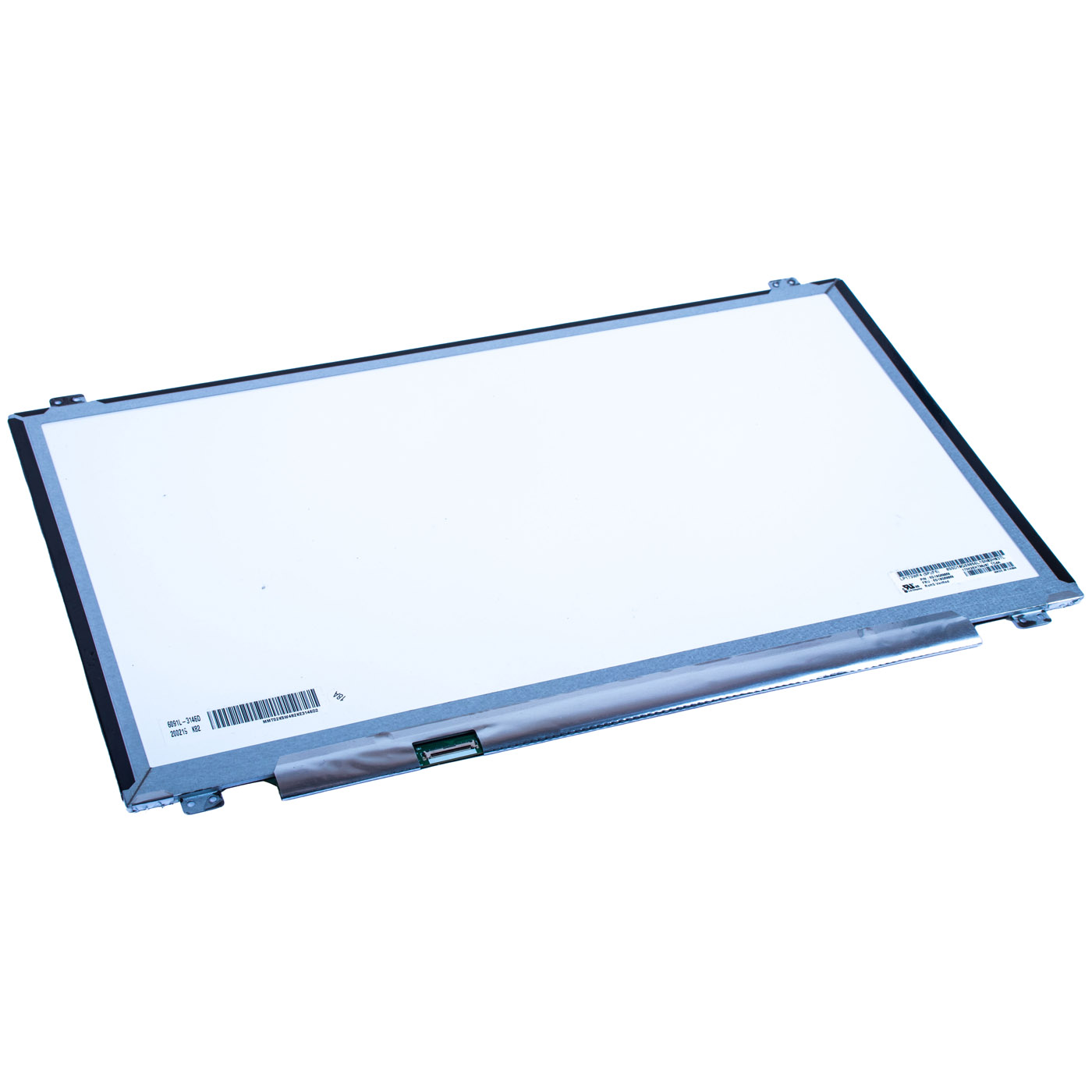

We offer a tested LG LP173WF4-SPF6 LCD panel (17.3", FHD 1920x1080, IPS, matte), sourced from a working, disassembled Lenovo IdeaPad L340-17IRH Gaming laptop. The panel has a 30-pin eDP connector and FRU number 5D10Q59856, guaranteeing compatibility not only with the L340-17IRH Gaming, but also with a whole family of Lenovo laptops using the same display socket.

⚙️ PRODUCT CHARACTERISTICS

The IPS panel technology provides wide viewing angles and accurate color reproduction - noticeably better than cheaper TN panels. Full HD resolution (1920x1080) at 17.3" with a 60Hz refresh rate. Matte (anti-glare) finish, 30-pin eDP connector. The part comes from a working, functioning laptop and was tested before listing - good technical condition.

📋 TECHNICAL DATA

Product name: 17.3" FHD IPS LCD panel
Brand: Lenovo / LG Display
Panel model: LP173WF4-SPF6
Resolution: 1920x1080 (Full HD)
Screen size: 17.3"
Panel type: IPS, Anti-Glare

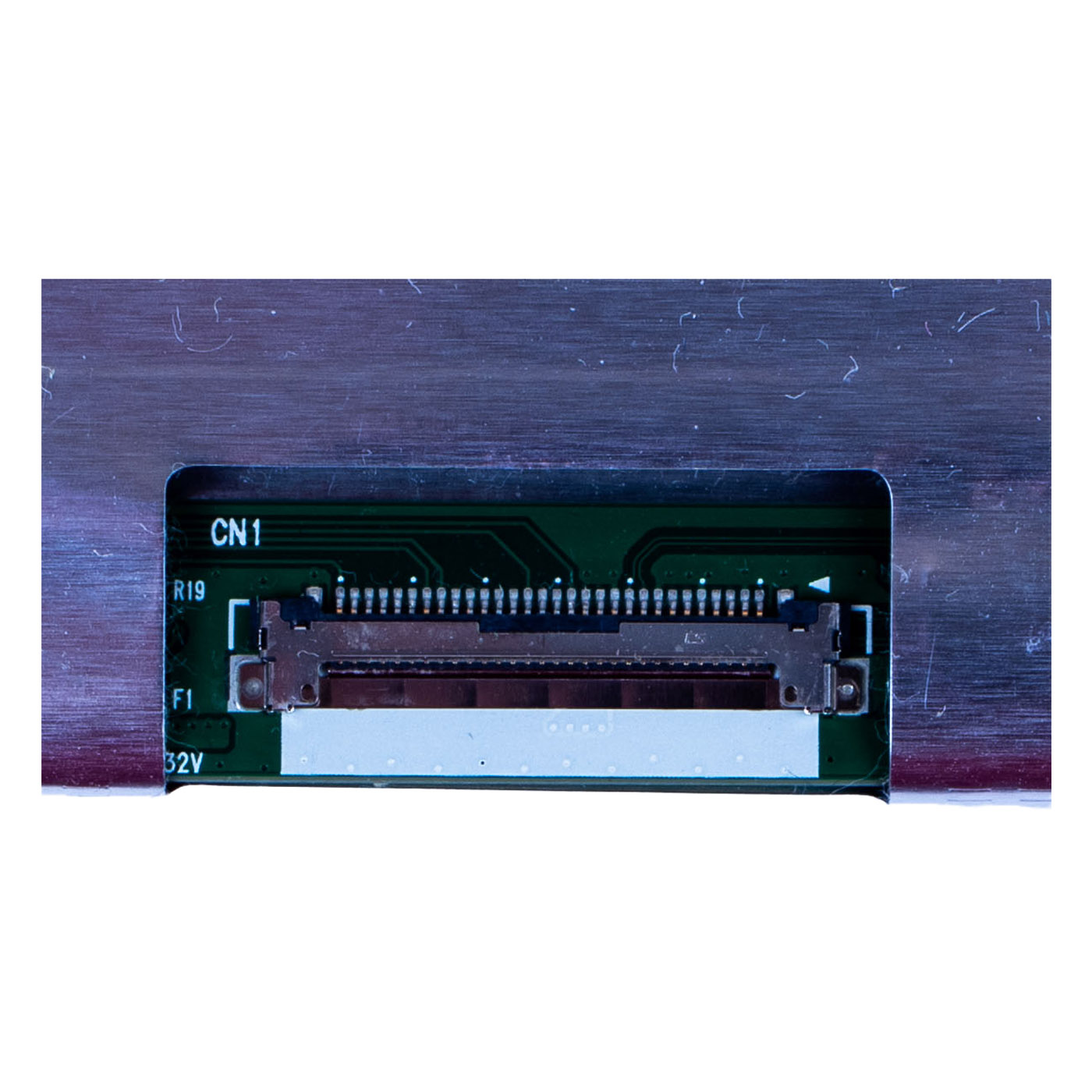

Connector: 30-pin eDP
Refresh rate: 60Hz
Condition: Used (pulled, tested)

🌟 KEY ADVANTAGES

🔹 IPS panel - wide viewing angles and accurate colors, image doesn't wash out from the side, unlike cheaper TN panels
🔹 Tested before shipping - sourced from a working, functioning laptop, no discoloration or dead pixels
🔹 Wide compatibility - fits not only the L340-17IRH Gaming but several other 17.3" models using the same display socket (full list below)
🔹 Significantly cheaper alternative to a new panel, same result

🔢 PART NUMBERS AND COMPATIBILITY

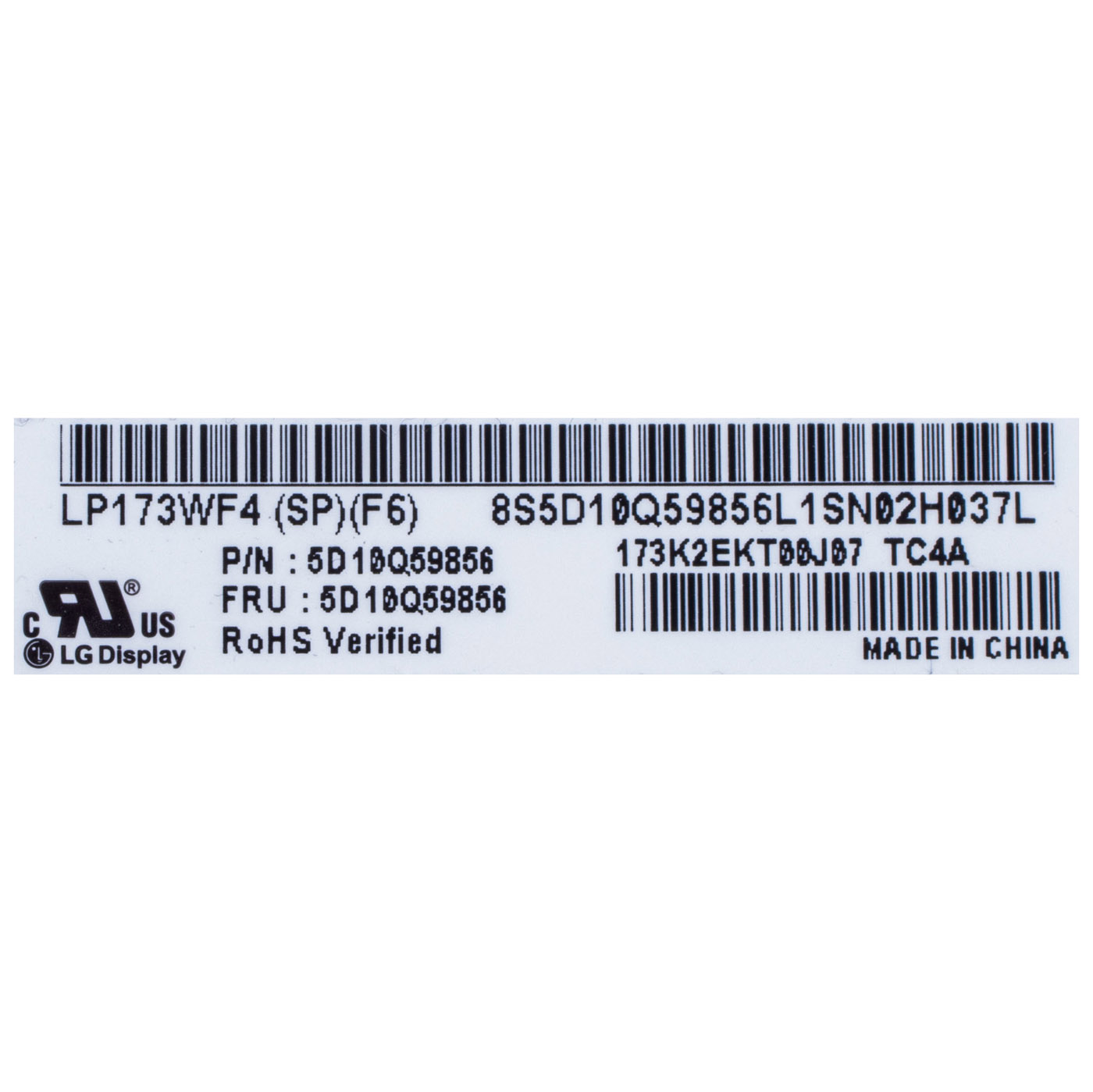

Main FRU: 5D10Q59856 (LG LP173WF4-SPF6)
Equivalent part numbers (official Lenovo replacements, same socket type): 18201682, 5D10R65304, 5D10F76132, 5D10H45206, 5D10H45210, 5D10K84476, 5D10M56006, 5D10Q16070, 5D10Q16071

Compatible models:
• Lenovo IdeaPad L340-17IRH / L340-17IRH Gaming
• Lenovo IdeaPad L340-17API
• Lenovo IdeaPad L340-17IWL
• Lenovo IdeaPad 700-17ISK
• Lenovo IdeaPad 330-17AST (81D7)
• Lenovo IdeaPad 330-17IKB (81DK, 81DM)
• Lenovo Z70-80 (80FG)
• Lenovo Legion Y730-17ICH

Before purchasing, we recommend comparing the FRU number on your laptop's display housing sticker with the list above.

❓ WHEN SHOULD YOU REPLACE THE DISPLAY PANEL?

• Problem with a cracked or scratched screen surface
• Problem with dead or stuck pixels (black or colored dots on screen)
• Problem with discoloration or uneven backlighting
• Problem with a flickering image or vertical/horizontal lines
• Problem with no image despite working backlight

🔧 INSTALLATION PROCESS

1. Power off the laptop and disconnect the power supply and battery
2. Remove the display front bezel
3. Unscrew the screws securing the panel to the lid housing
4. Disconnect the eDP cable from the connector on the back of the panel
5. Install the new panel, connect the cable, and secure with screws
6. Reattach the bezel and power on the laptop to verify correct display output
A technical service or a person experienced in laptop repairs is recommended.

🎯 INTENDED USE

The 17.3" FHD IPS panel is dedicated to the Lenovo laptop models listed in the compatibility section above. It provides a sharp Full HD image along with wide viewing angles thanks to IPS technology. It's a great replacement for a damaged panel, eliminating issues like a cracked screen, dead pixels, or flickering. The exact appearance and condition of the offered item are shown in the listing photos.

✅ COMPATIBILITY GUARANTEE

The offered panel was removed from a working Lenovo IdeaPad L340-17IRH Gaming and tested before listing - confirmed no dead pixels and correct image output. We guarantee full compatibility with FRU number 5D10Q59856 and the equivalent part numbers listed above. The part comes with a 6-month warranty. If you have any compatibility concerns with your model, please contact us before purchasing.
