🔧 512 GB NVMe SSD for Lenovo ThinkPad X1 Carbon Gen 10 🔧

🖥️ Samsung PM9A1 (OEM) | 512 GB | NVMe PCIe 4.0 x4 | M.2 2280 | FRU 5SS0W79492

⚙️ PRODUCT OVERVIEW

Samsung PM9A1 (OEM) NVMe SSD with a capacity of 512 GB in the standard M.2 2280 form factor. The drive was removed from a Lenovo ThinkPad X1 Carbon Gen 10 laptop, where it served as the system boot drive. With a PCIe Gen4 x4 interface it delivers top-tier transfer speeds, ideal for business ultrabooks that need fast data access. The drive is in very good technical condition, confirmed by diagnostic testing.

📋 TECHNICAL SPECIFICATIONS

Manufacturer: Samsung
Series / model: PM9A1 (OEM) / MZVL2512HCJQ-00BL7
Capacity: 512 GB
Interface: NVM Express 1.3 / PCIe Gen4 x4
Form factor: M.2 2280 (80 mm)
Encryption: TCG Opal
Firmware version: EL2QGXA7
Lenovo FRU: 5SS0W79492
LEN P/N: SSS0L25196
Condition: Used (removed from a working device, tested)
Health status: 98% - Good (CrystalDiskInfo)
Power-on hours: 756
Power-on count: 618
Operating temperature: 41°C
Total host reads / writes: approx. 11969 GB read / 9461 GB written

🌟 KEY ADVANTAGES

🔹 PCIe Gen4 x4 interface - high data transfer speed, noticeably faster boot times and file loading than older SATA drives.
🔹 98% health status - drive with minimal wear, confirmed by SMART diagnostics.
🔹 Standard M.2 2280 form factor - the most common NVMe slot size, fitting the vast majority of laptops and desktop computers.
🔹 Genuine Lenovo component (FRU 5SS0W79492) - full compatibility and stable operation in Lenovo laptops, workstations and desktops.
🔹 Opal encryption support - hardware-based data protection at the drive controller level.

🔢 COMPATIBILITY WITH LENOVO LAPTOPS AND DESKTOPS

This drive was removed directly from a Lenovo ThinkPad X1 Carbon Gen 10 laptop, where it served as the system drive. According to official Lenovo documentation (FRU 5SS0W79492), it is compatible with the following models:
ThinkPad:
• X1 Carbon 10th Gen (Type 21CB, 21CC)
• X1 Yoga 6th Gen (Type 20XY, 20Y0)
• T14 Gen 3 (Type 21AH, 21AJ)
ThinkStation:
• P620 (Type 30E1)
• P360 (Type 30FN)
• PX Workstation (Type 30EU, 30EY)
ThinkCentre:
• M90a Gen 3 Pro Desktop (Type 11VB)
Legion (desktop):
• T7-34IMZ5 (Type 90Q8, 90Q9)
• T5-26AMR5 (Type 90RB, 90RC)
• T5-26IOB6 (Type 90RS, 90RT)
• T7-34IAZ7 (Type 90S1, 90S2)
• T5 26IAB7 (Type 90SU, 90SV)
• T5 26IRB8 (Type 90UT, 90UU)
• T7 34IRZ8 (Type 90V6, 90V7)
IdeaCentre:
• Mini 5 01IAQ7 (Type 90UB)
The drive can also be used in other devices equipped with an M.2 2280 NVMe PCIe Gen4 x4 slot, provided the manufacturer supports such drives.

📊 TECHNICAL CONDITION

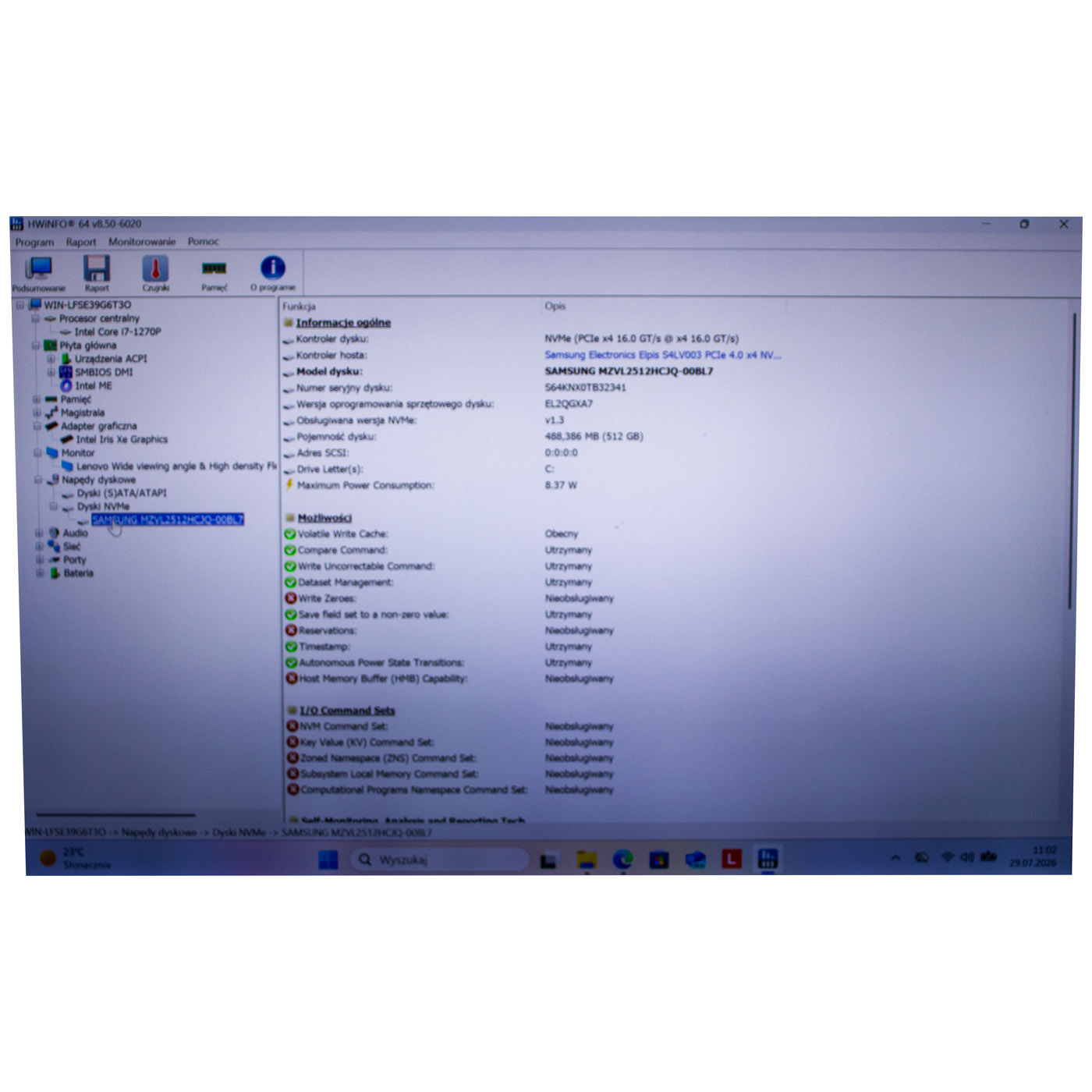

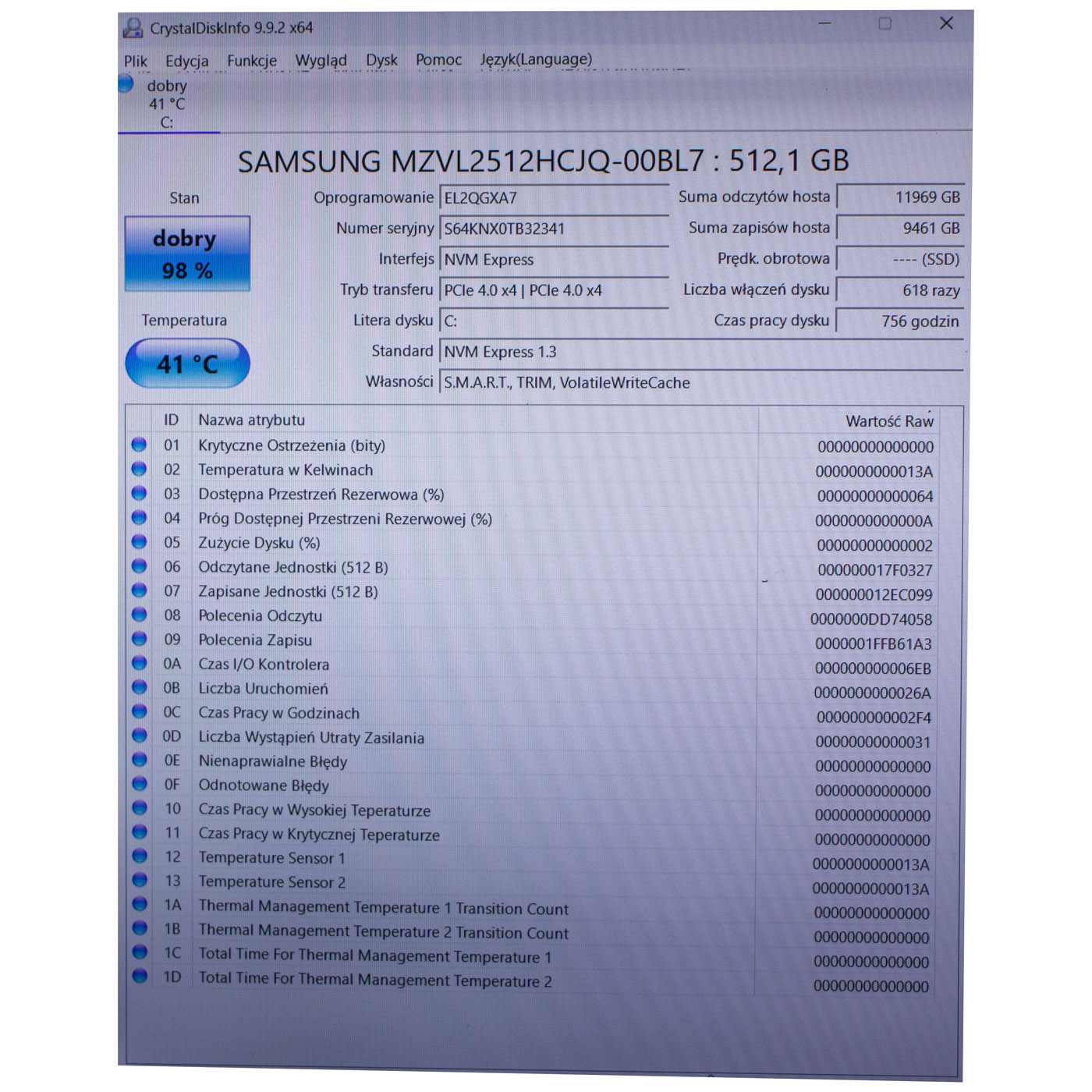

The drive was tested with HWiNFO and CrystalDiskInfo:
• health status: 98% (Good)
• operating time: 756 hours, 618 power cycles
• no critical errors and no unrecoverable sectors
• operating temperature: 41°C
The low number of power-on hours and cycles confirms moderate use and good technical condition of the drive.

🔧 INSTALLATION

1. Turn off the laptop and disconnect the power supply and all external devices.
2. Remove the screws securing the bottom cover and carefully take it off.
3. Locate the M.2 NVMe slot sized for a 2280 (80 mm) drive.
4. Unscrew the mounting screw of the old drive and slide it out at approx. 20 degrees.
5. Insert the new drive at the same angle, aligning the notch with the connector, and press it into the slot.
6. Fasten the mounting screw and close the cover.
7. Boot the laptop and initialize / format the drive, or clone your existing system onto it.
Installation by a qualified technician or an experienced user is recommended.

🎯 INTENDED USE

The Samsung PM9A1 512 GB drive is a good choice for users who:
• need a working, tested system drive for a ThinkPad X1 Carbon Gen 10 or any other device with an M.2 2280 NVMe slot,
• want to save money compared to a new drive without giving up PCIe Gen4 performance,
• need a quick replacement drive or an additional drive for backups / system cloning.

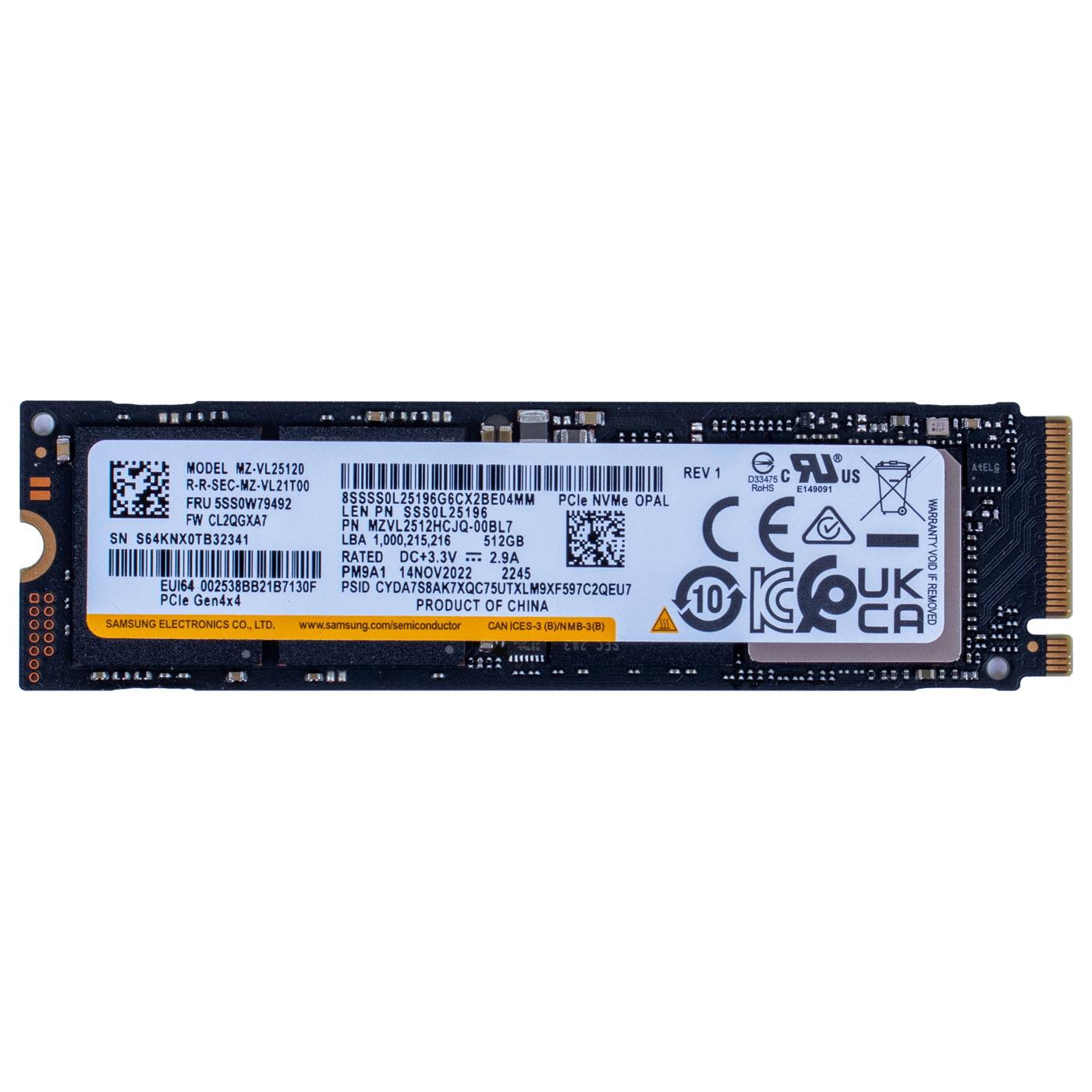

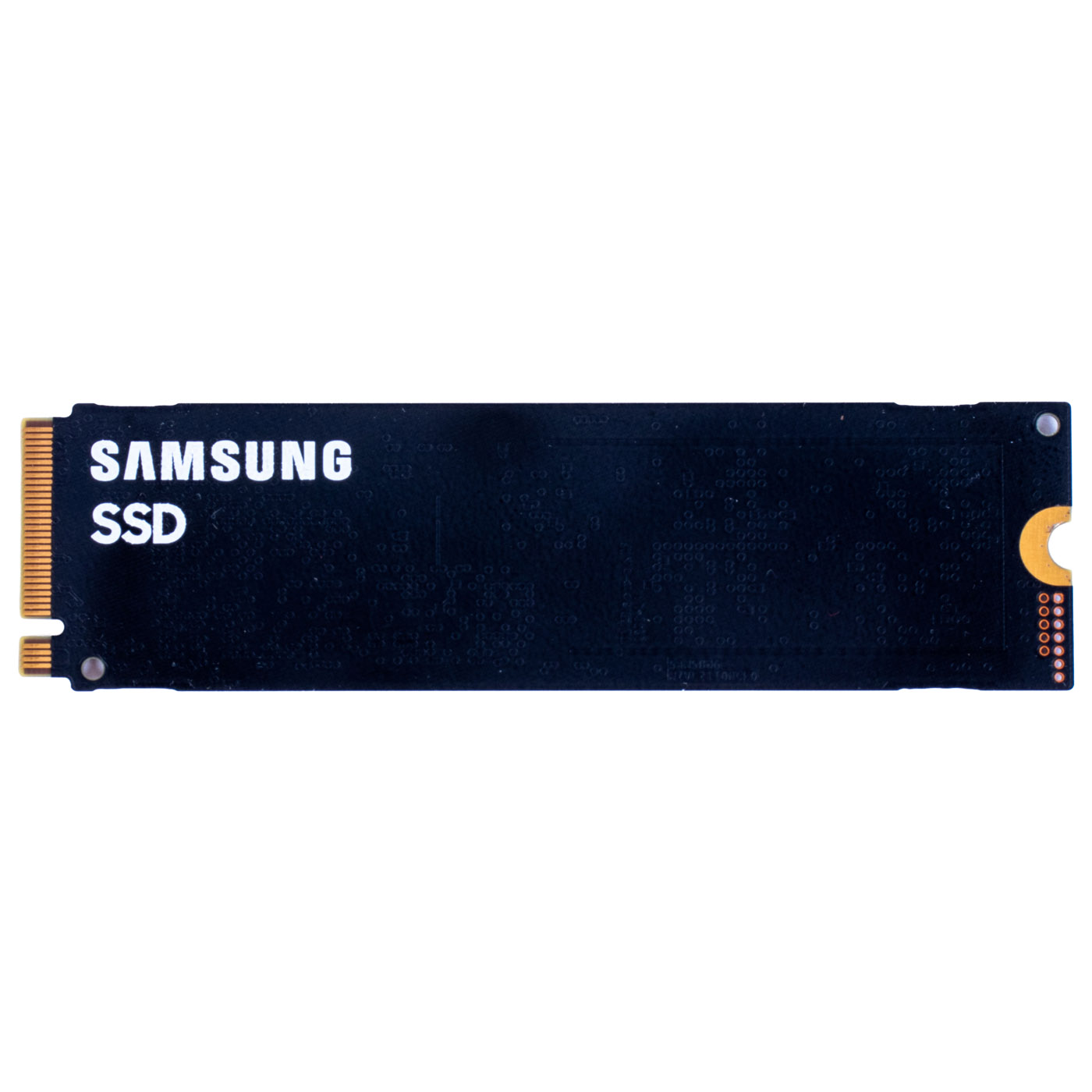

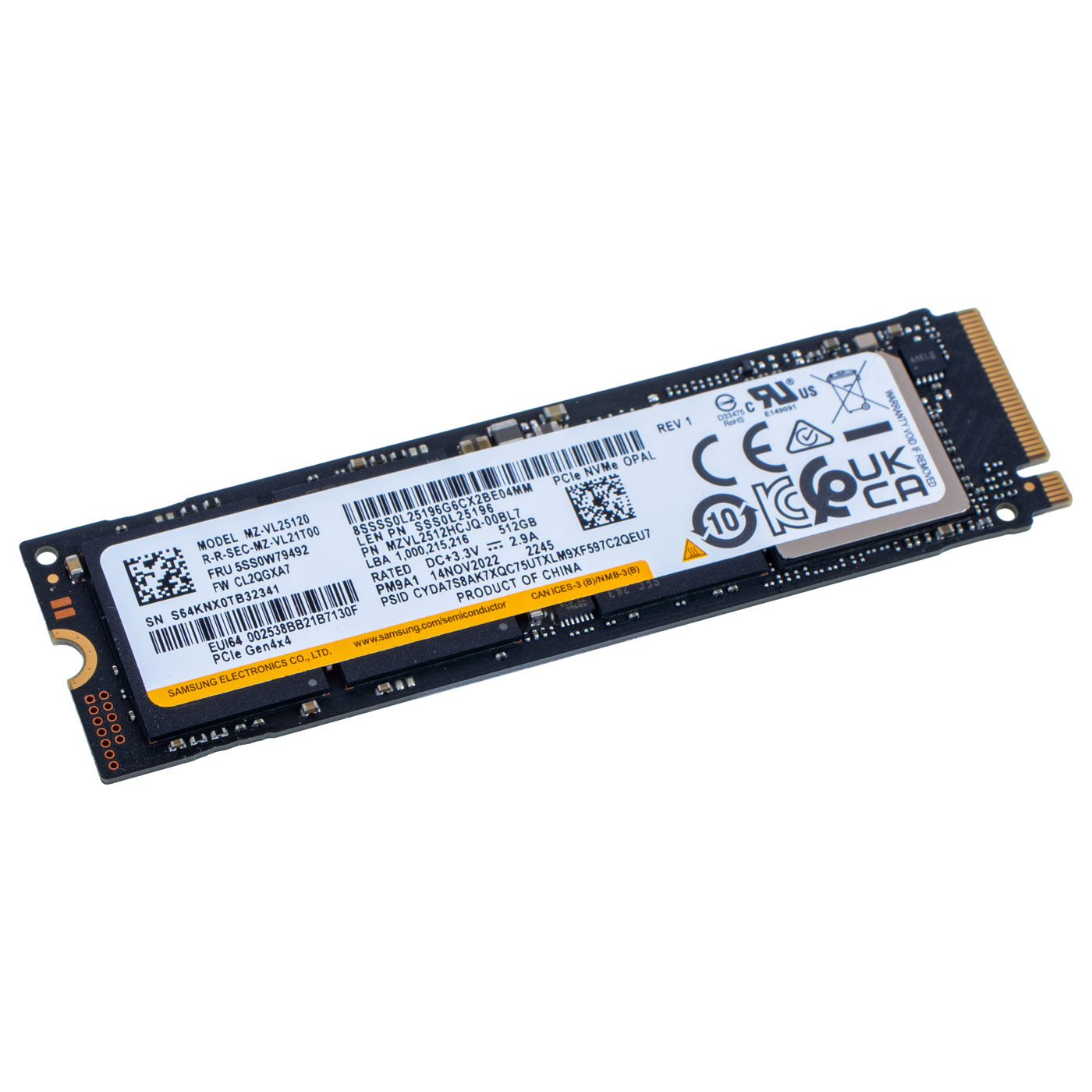

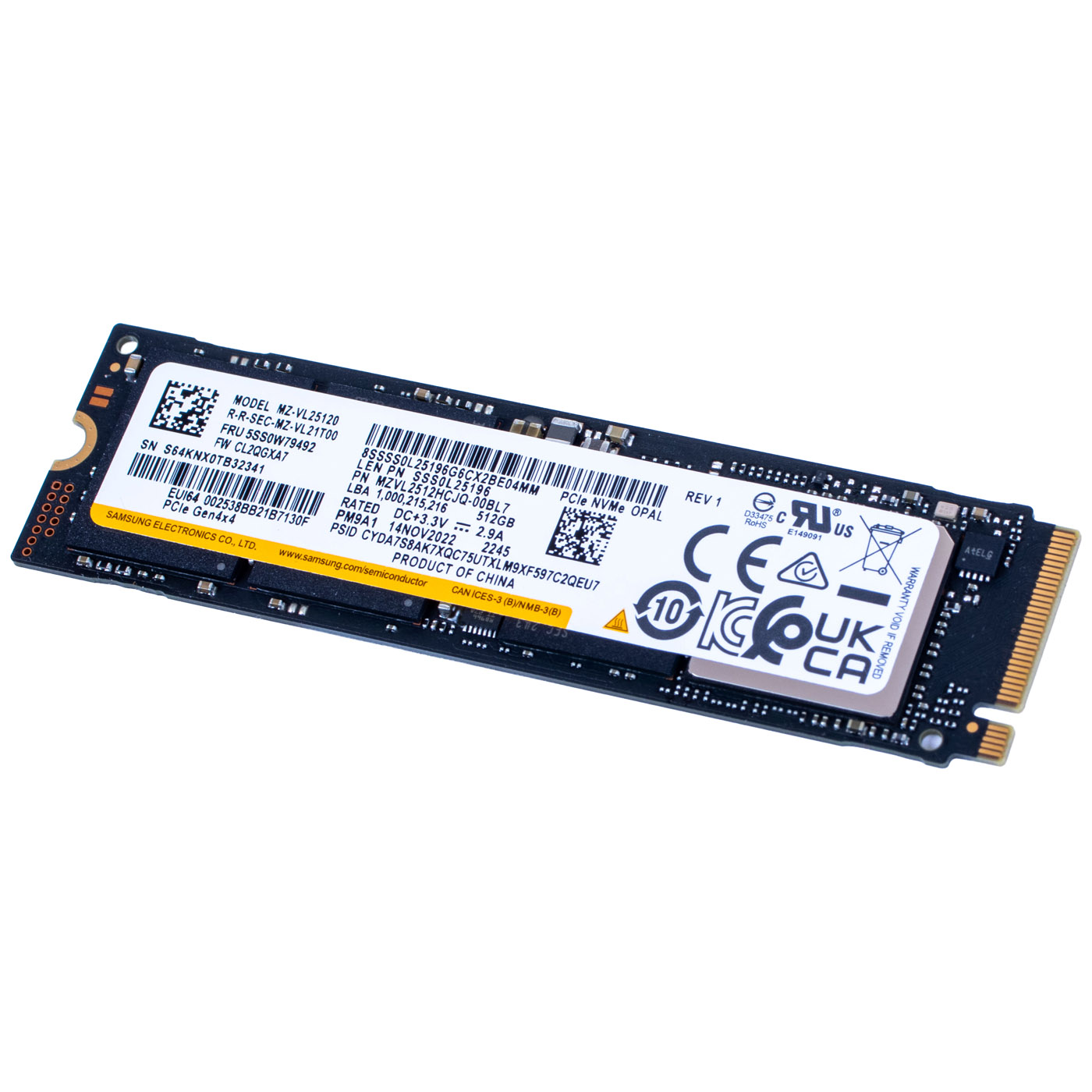

The exact appearance and condition of the offered item are shown in the listing photos.

✅ COMPATIBILITY GUARANTEE

This drive was removed from a working Lenovo ThinkPad X1 Carbon Gen 10 laptop and thoroughly tested before listing. We guarantee accordance with the description and 100% functionality of the item. In case of any compatibility issues, we offer a hassle-free return within 14 days.
