🔧 LCD Wing Assembly WUXGA Touch with IR/RGB Camera for Lenovo ThinkPad X1 Carbon Gen 10 / Gen 11 (Woven) 🔧

🖥️ X1 Carbon Gen 10 / Gen 11 | 14" WUXGA Touch IPS ePrivacy | Woven Cover | IR/RGB Camera | 5M11H44061

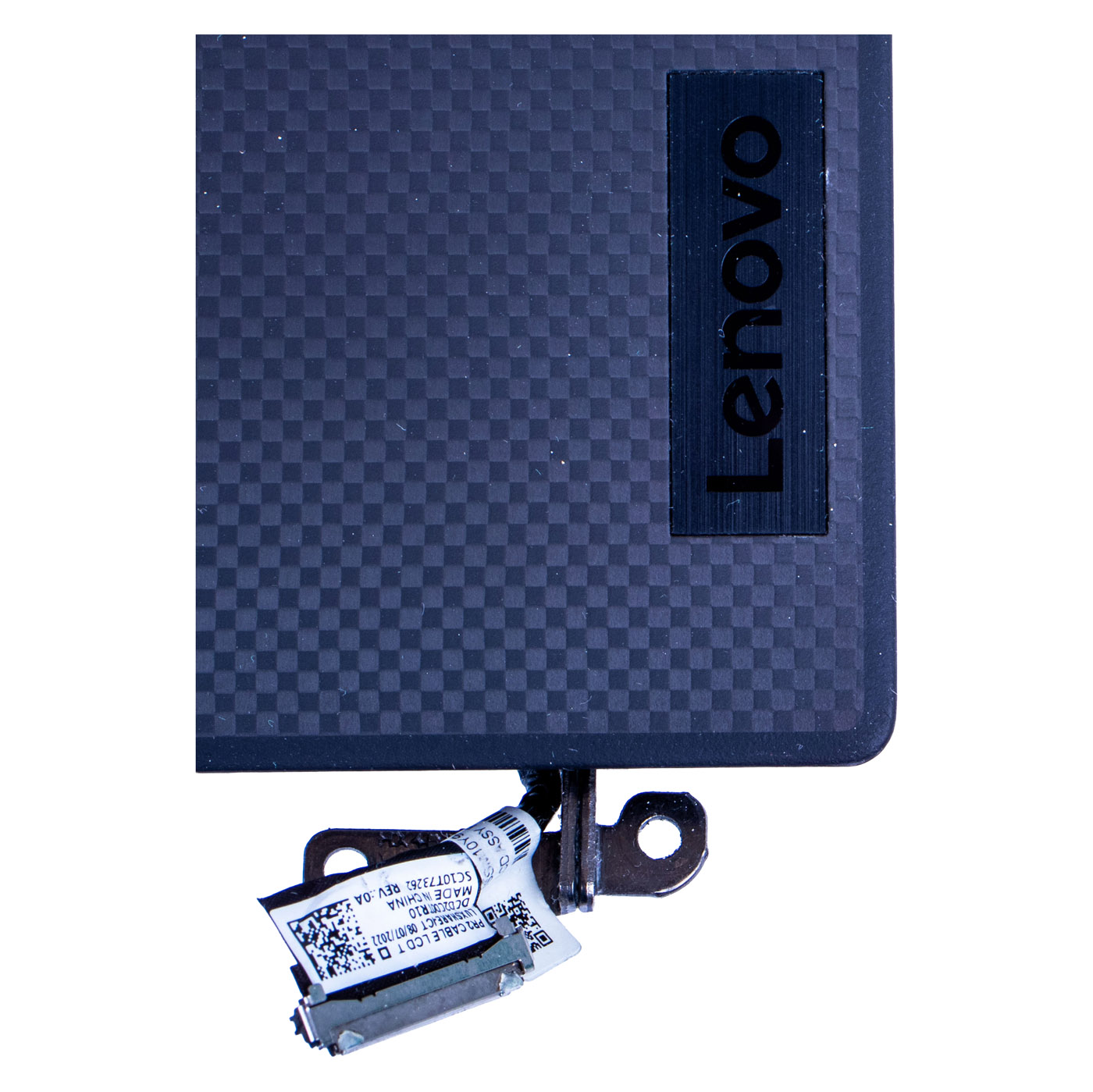

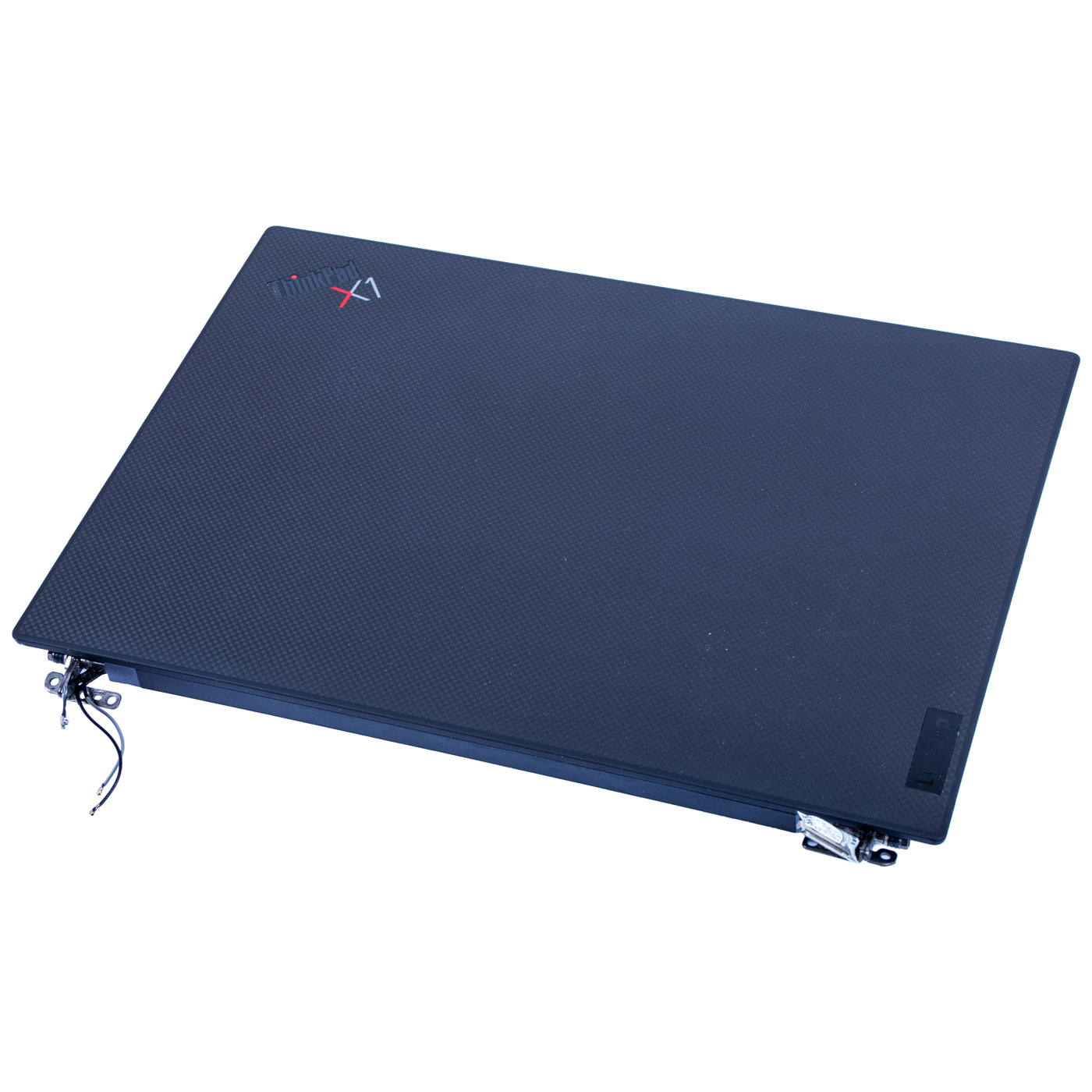

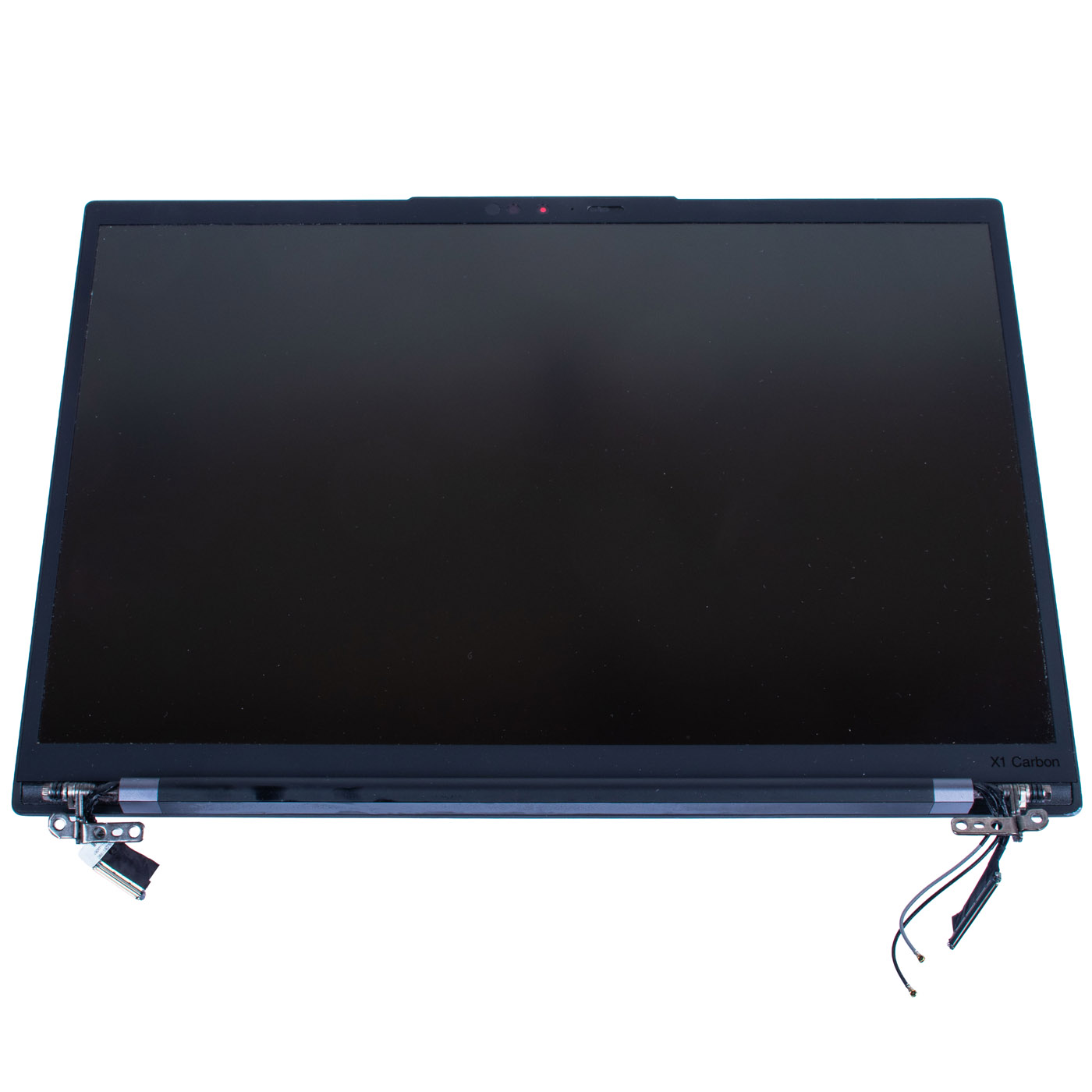

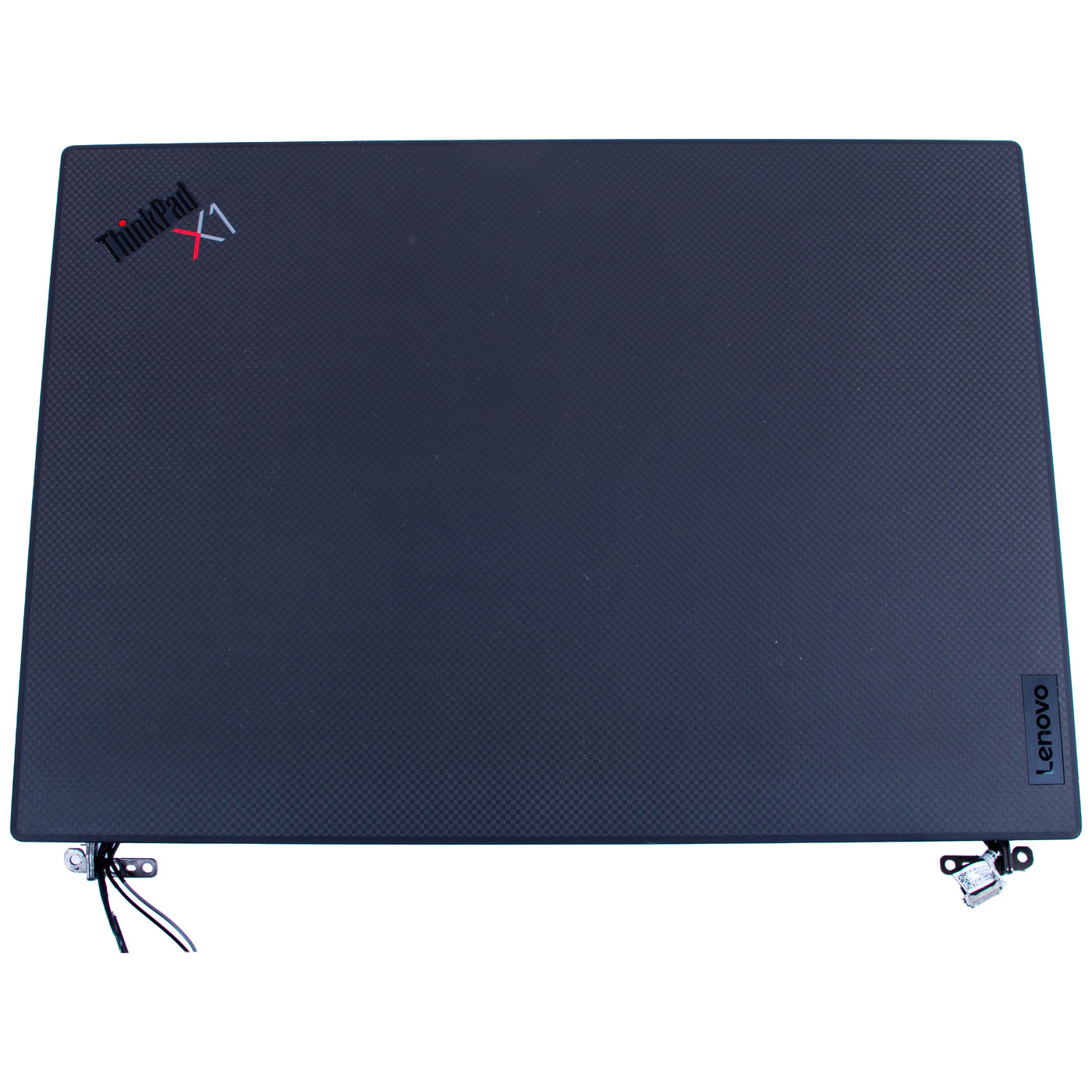

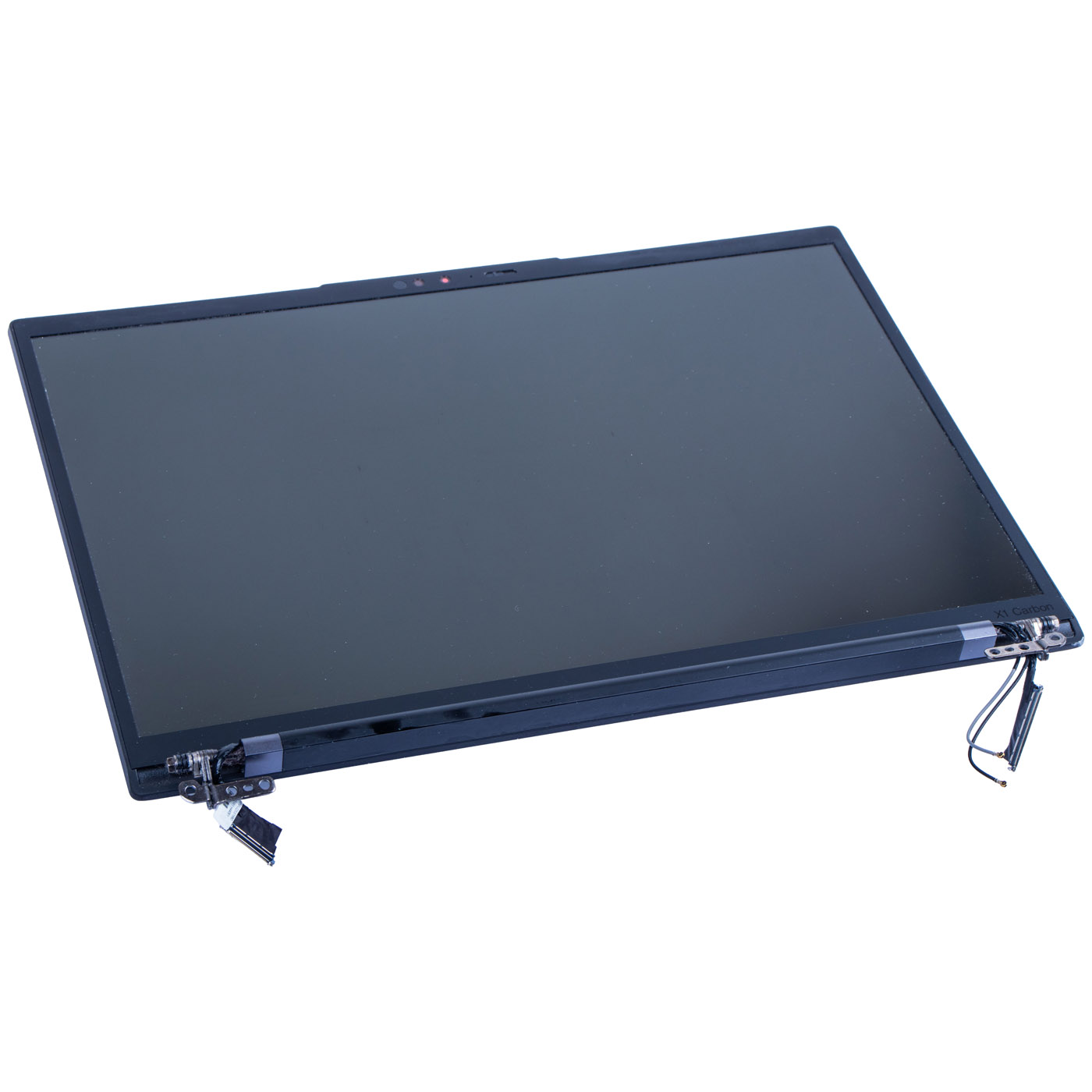

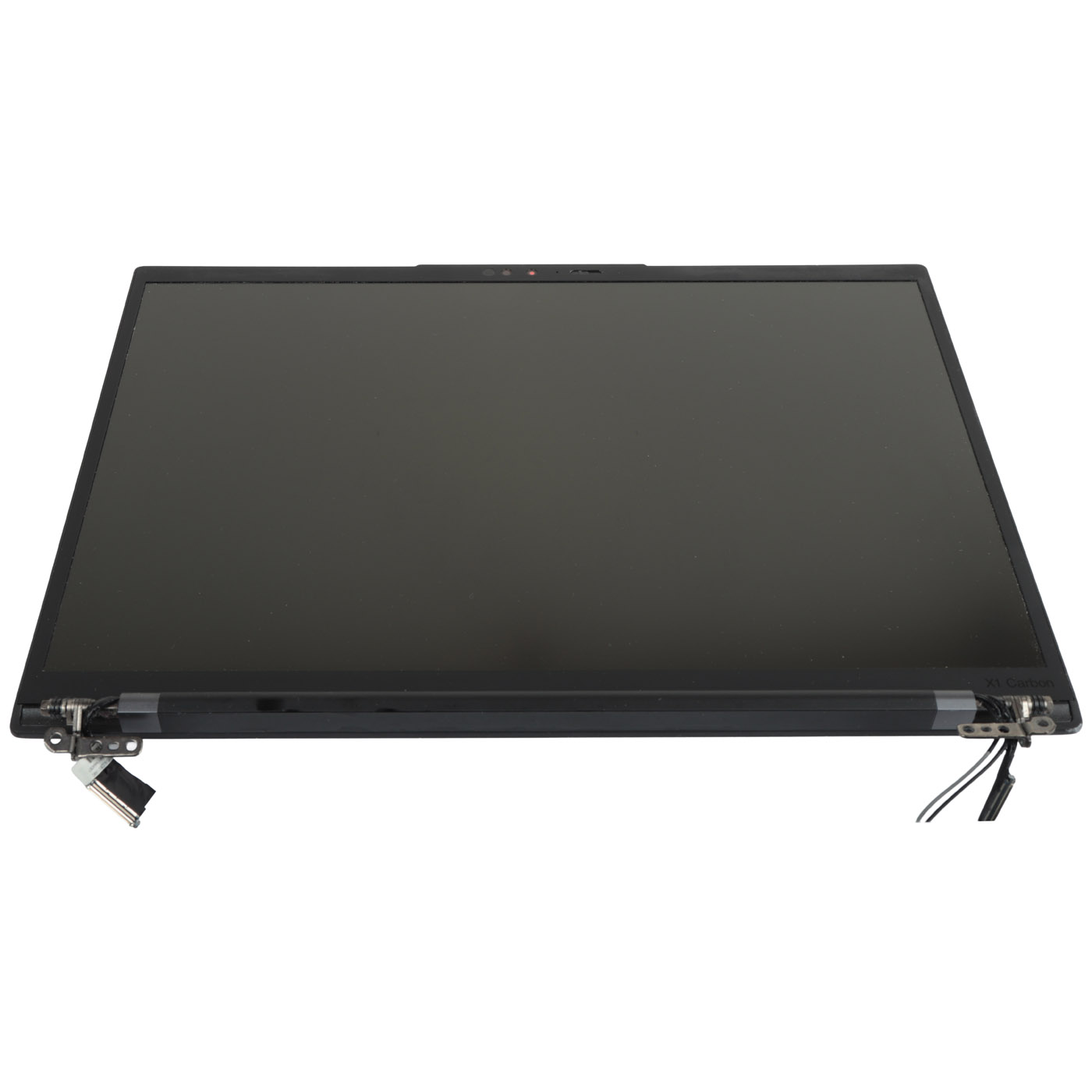

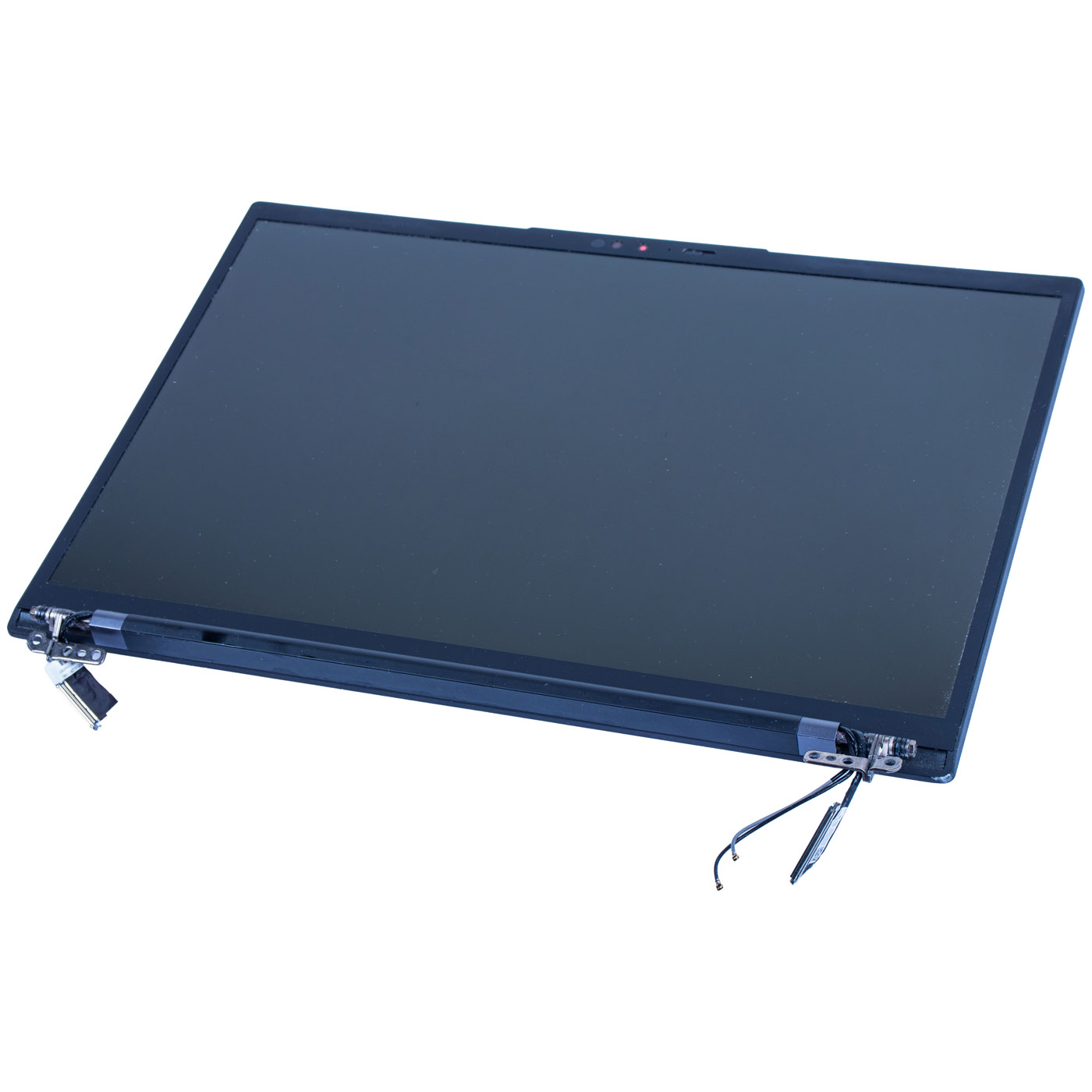

Complete LCD wing assembly - Woven rear cover, front bezel, WUXGA touch IPS panel with ePrivacy filter, hinges, cables and camera module with IR and FHD RGB - dedicated to the Lenovo ThinkPad X1 Carbon Gen 10 and Gen 11 laptops. Part sourced from a working device and tested - we guarantee 100% functionality of the panel. FRU number 5M11H44061 guarantees full compatibility with both generations.

⚙️ PRODUCT CHARACTERISTICS

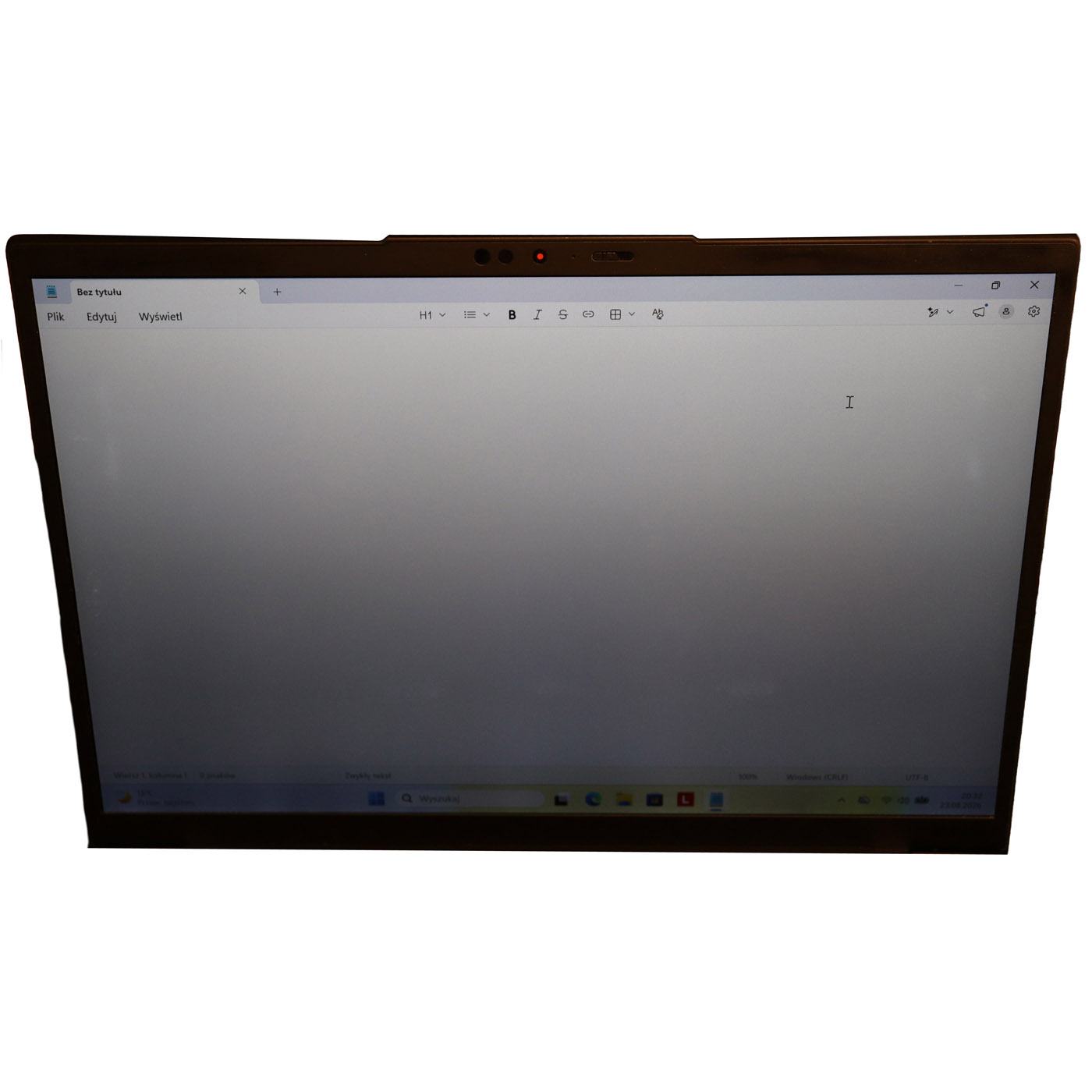

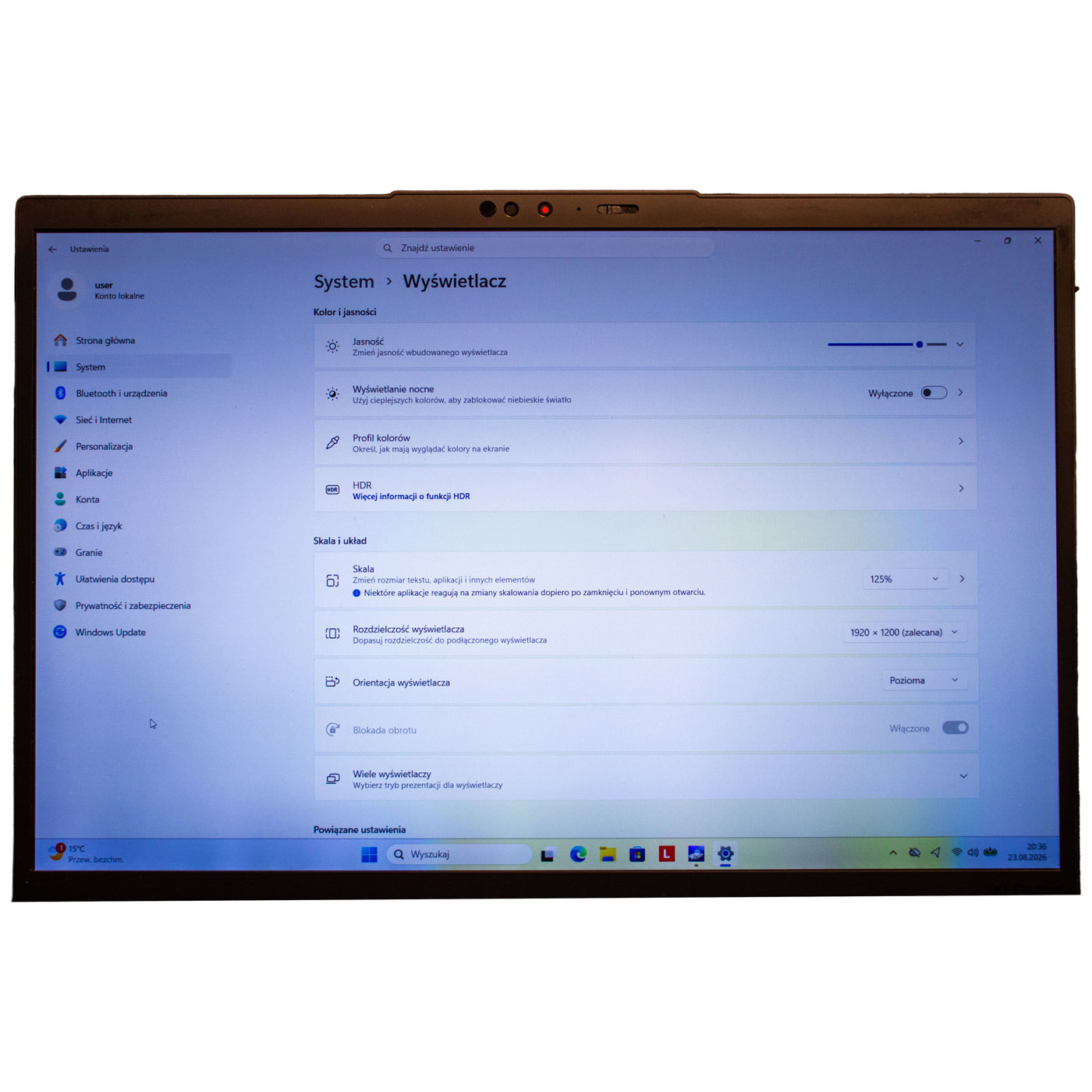

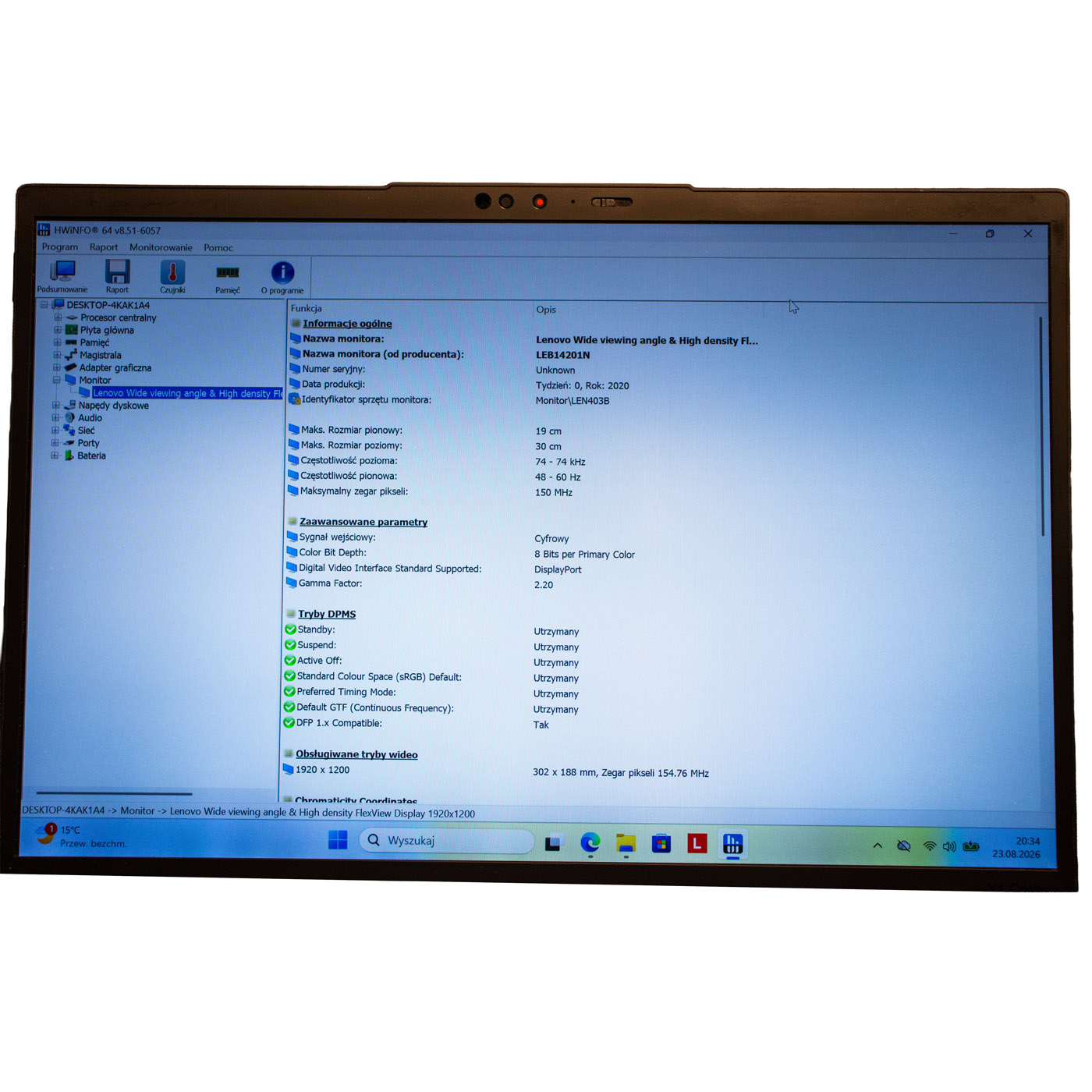

LCD wing assembly equipped with a 14 inch WUXGA (1920x1200) touch IPS panel, Anti-Glare, 500 nit brightness, with a built in ePrivacy filter and a camera module with IR (Windows Hello face login) and FHD RGB. Woven cover version - overall condition is very good. The panel itself is fully functional, with only minor localised white discolorations visible in a few spots - noticeable only against a bright background and at a certain viewing angle, practically unnoticeable during normal use.

📋 TECHNICAL DATA

Part name: LCD wing assembly (complete)
Brand: Lenovo ThinkPad
Compatible model: X1 Carbon Gen 10 (21CB/21CC) / Gen 11 (21HM/21HN)
Screen diagonal: 14"
Resolution: WUXGA (1920x1200), IPS, Anti-Glare, 500 nit
Touch: Yes (touch panel)
Privacy filter: ePrivacy

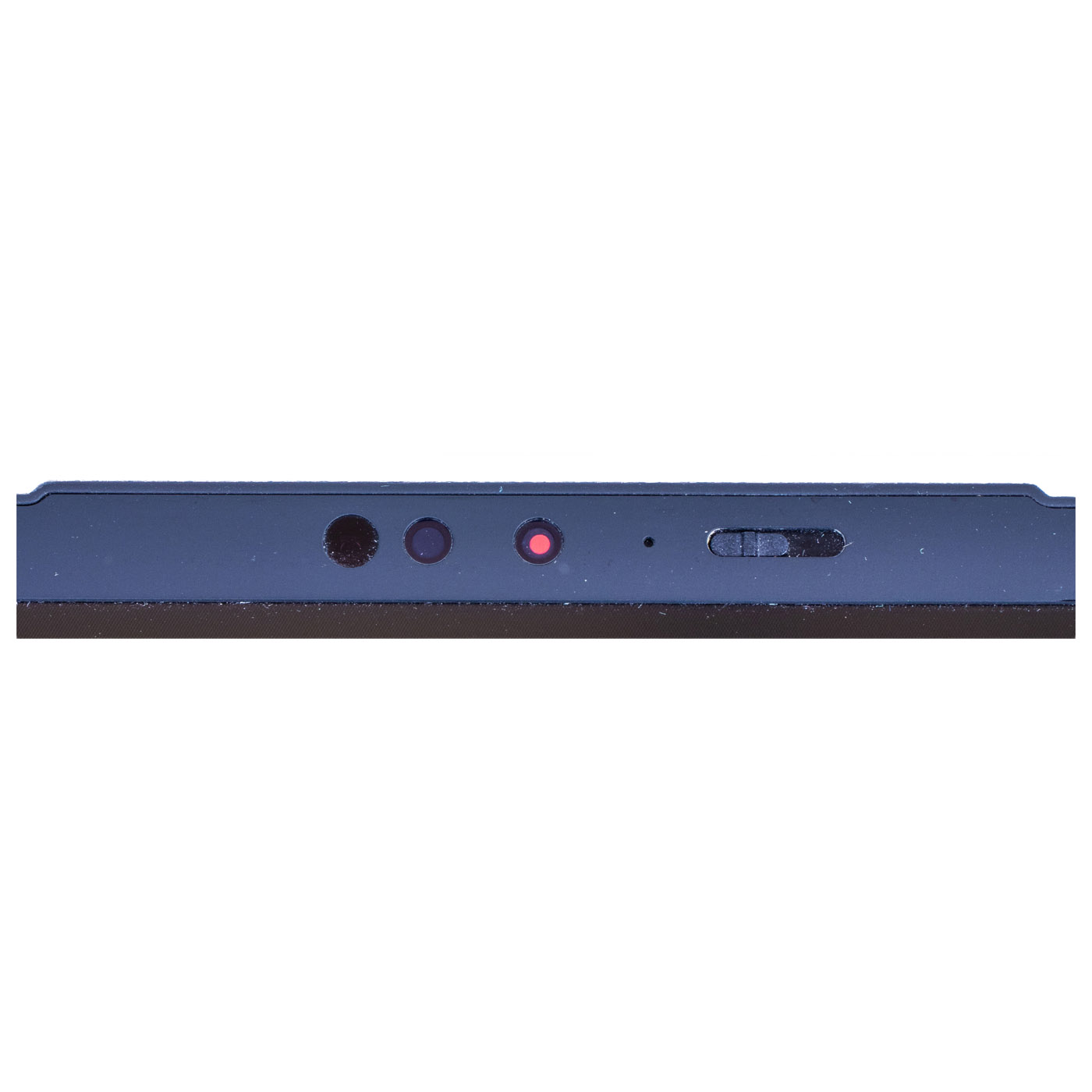

Camera: RGB FHD + IR (Windows Hello)

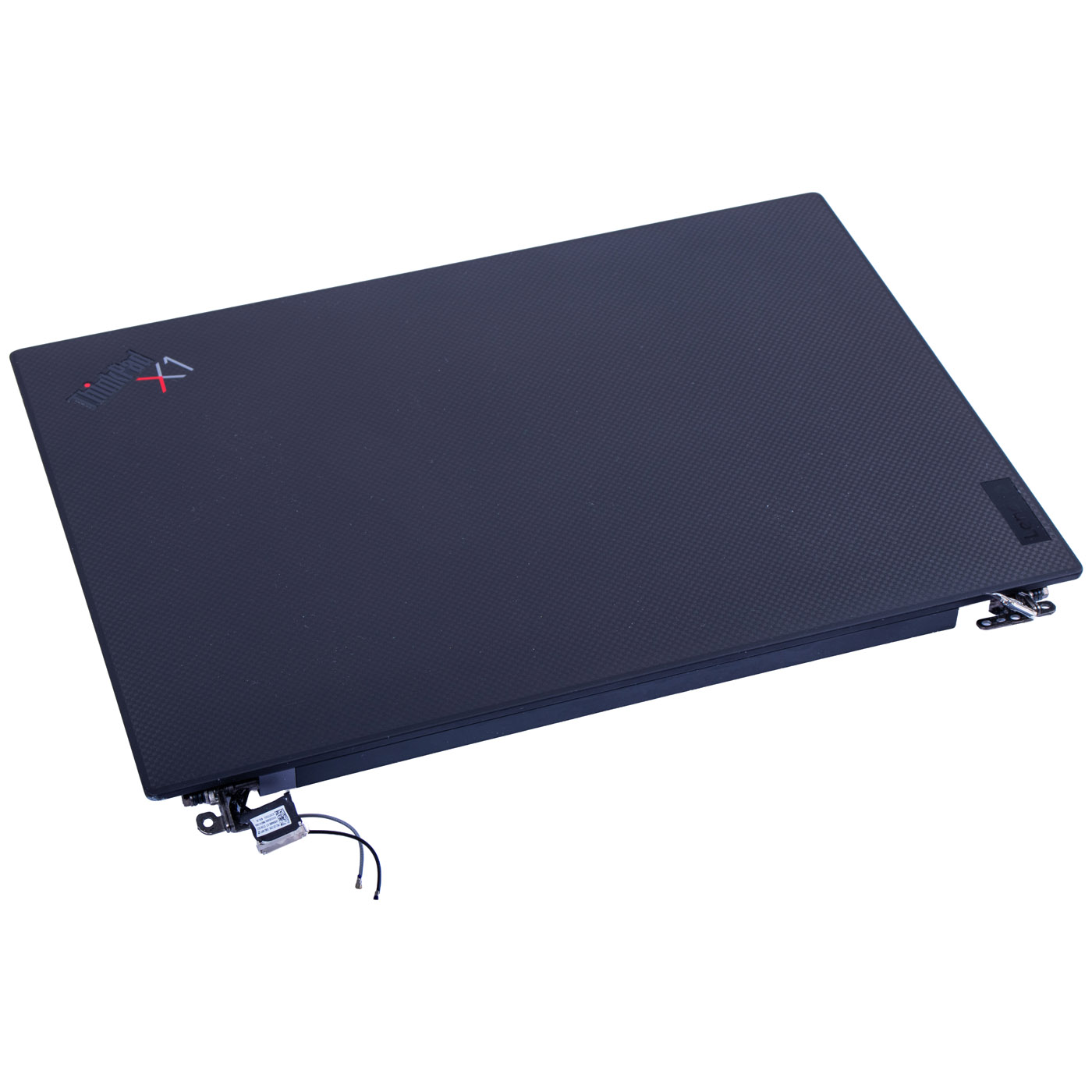

Cover version: Woven

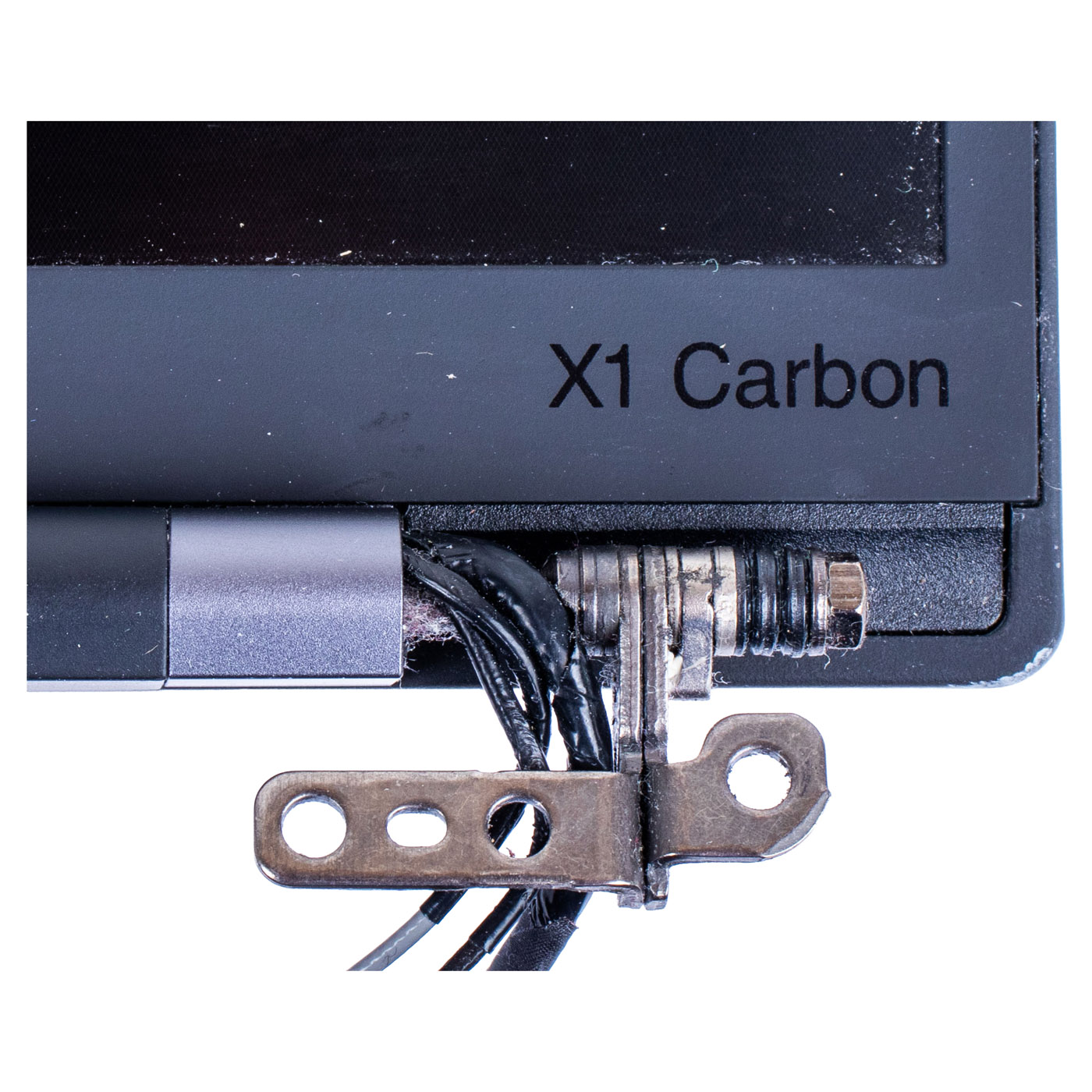

Set contents: rear cover, front LCD bezel, touch panel, hinges, cables, camera
Condition: Used (removed from a working device, tested)
FRU: 5M11H44061
Alternative part numbers: SBB1B94431, SM10Y98875

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed perfect fit and reliability
🔹 Fits Gen 10 and Gen 11 - one FRU number covers both X1 Carbon generations
🔹 IR camera with Windows Hello support - log in to your system with a single glance, no need to type a password every time you power on
🔹 ePrivacy filter - the screen darkens when viewed from the side, useful when working in an open space or travelling on a train or plane
🔹 WUXGA touch panel at 500 nit - good readability even in brightly lit rooms, comfortable touch operation

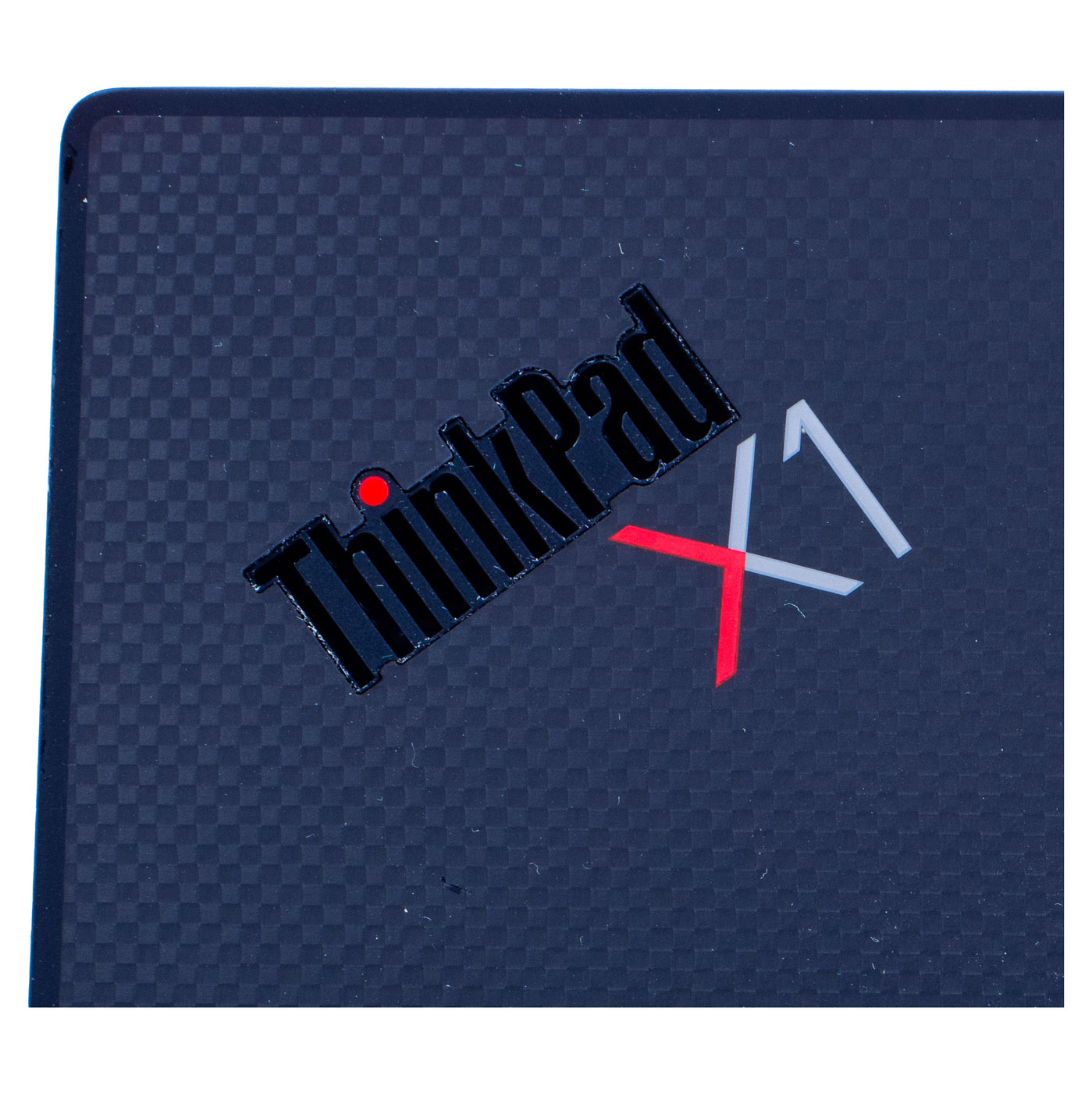

🔹 Woven cover in very good condition - elegant look with no significant signs of use
🔹 Complete set - cover, bezel, hinges, cables and camera in one ready to install part

🔢 PART NUMBERS

FRU: 5M11H44061
Alternative part numbers: SBB1B94431, SM10Y98875
Laptop model: Lenovo ThinkPad X1 Carbon Gen 10 (21CB/21CC) / Gen 11 (21HM/21HN)

❓ WHEN SHOULD YOU REPLACE THE LCD ASSEMBLY?

• Problem with a cracked or scratched screen after the laptop was dropped
• Problem with the touch panel not responding
• Problem with a damaged cover or hinges
• Problem with the camera or IR sensor not working for face login
• Want to upgrade from a lower resolution to WUXGA with a privacy filter

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply
2. Remove the bottom cover and disconnect the battery
3. Disconnect the LCD cable and WiFi antenna cables from the motherboard
4. Unscrew the hinge screws securing the cover to the base
5. Remove the old cover and install the new LCD wing assembly in the same order
6. Reconnect the cable and antennas, power on the laptop and verify correct display, touch and camera operation
Replacement recommended by a technical service or a person experienced in laptop repairs.

🎯 APPLICATION

The LCD wing assembly is intended for the Lenovo ThinkPad X1 Carbon Gen 10 and Gen 11 (14"), offered as a tested, fully functional part removed from a working device, in the Woven cover version. Ideal for repairing a cracked or damaged screen, replacing a non working camera, or as a complete set with hinges and cover. The exact look and condition of the offered item is shown in the listing photos.

✅ COMPATIBILITY GUARANTEE

The offered LCD wing assembly has been carefully checked and matched to the Lenovo ThinkPad X1 Carbon Gen 10 and Gen 11 models. We guarantee full compatibility for FRU number 5M11H44061 as well as full functionality of the panel, touch and camera. In case of any compatibility issues, we offer a hassle free return within 14 days.
