🔋 RTC/BIOS (CMOS) Battery for Lenovo ThinkPad X1 Carbon 10/11 and X1 Yoga 7/8 🔋

🖥️ ThinkPad X1 Carbon Gen 10/11 | X1 Yoga Gen 7/8 | CR2016 Clock Battery | 5B11J02394

Genuine RTC/BIOS (CMOS) battery dedicated to Lenovo ThinkPad X1 Carbon 10th Gen (21CB/21CC), 11th Gen (21HM/21HN), and X1 Yoga 7th Gen (21CD/21CE) and 8th Gen (21HQ/21HR) laptops. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5B11J02394 guarantees full compatibility with the listed models.

⚙️ PRODUCT CHARACTERISTICS

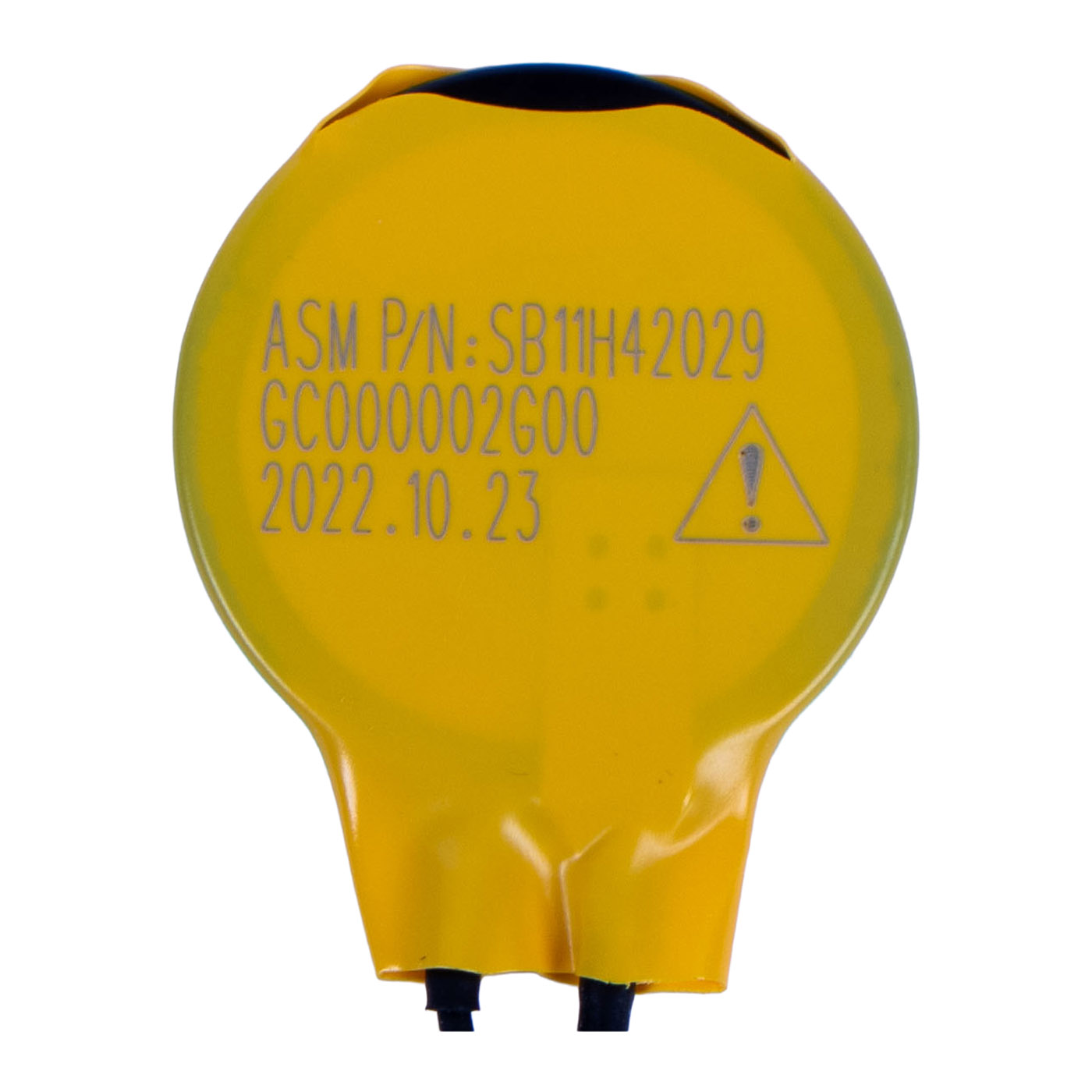

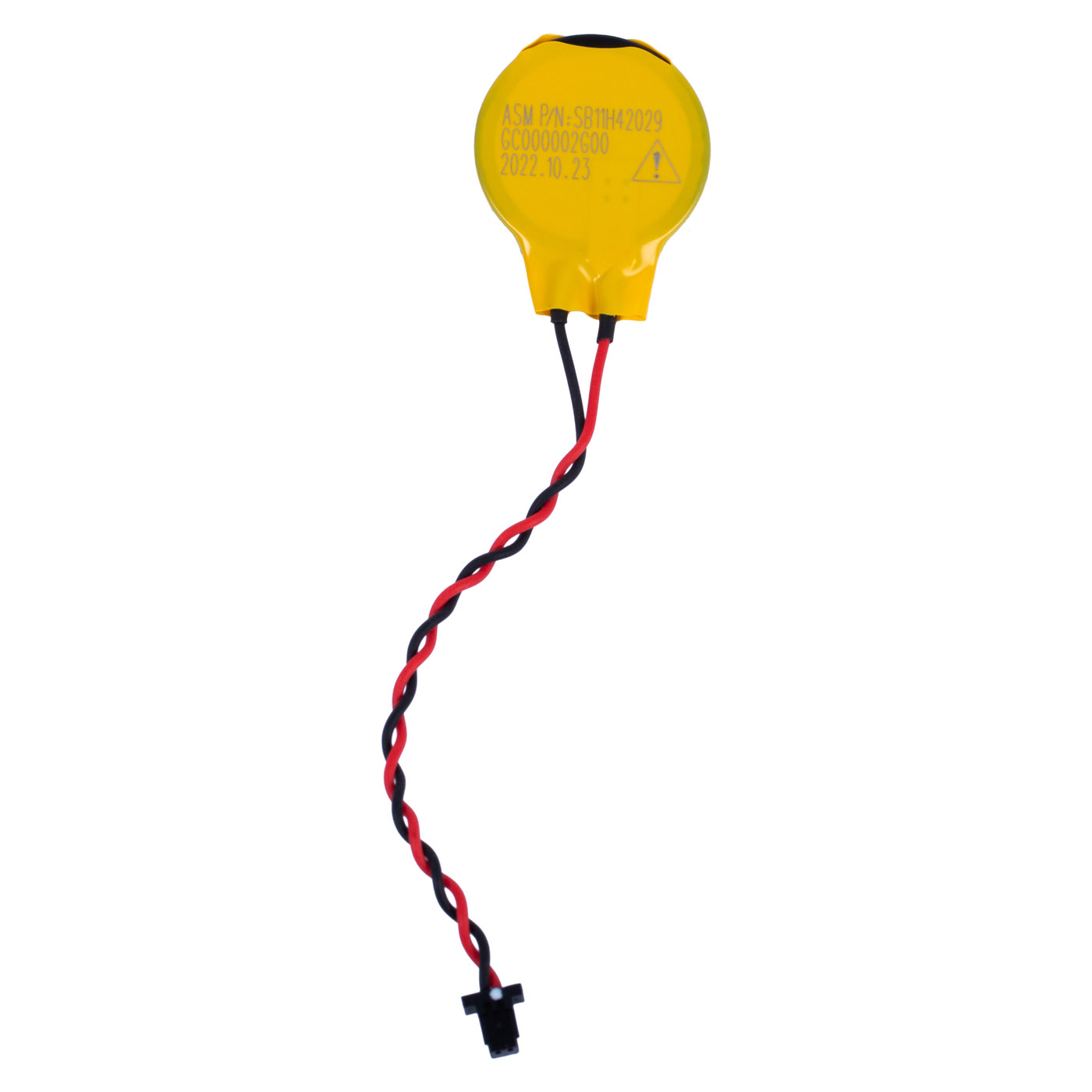

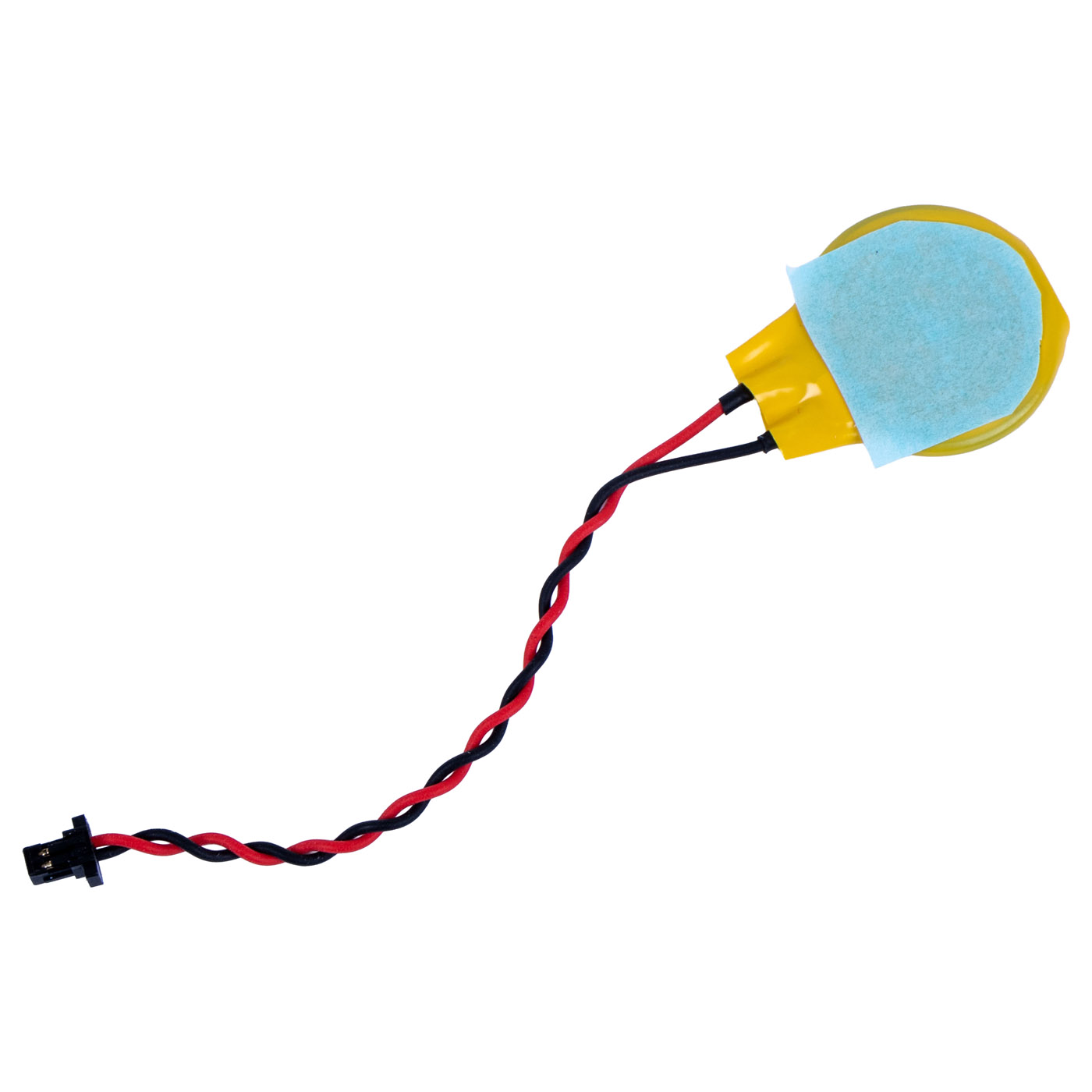

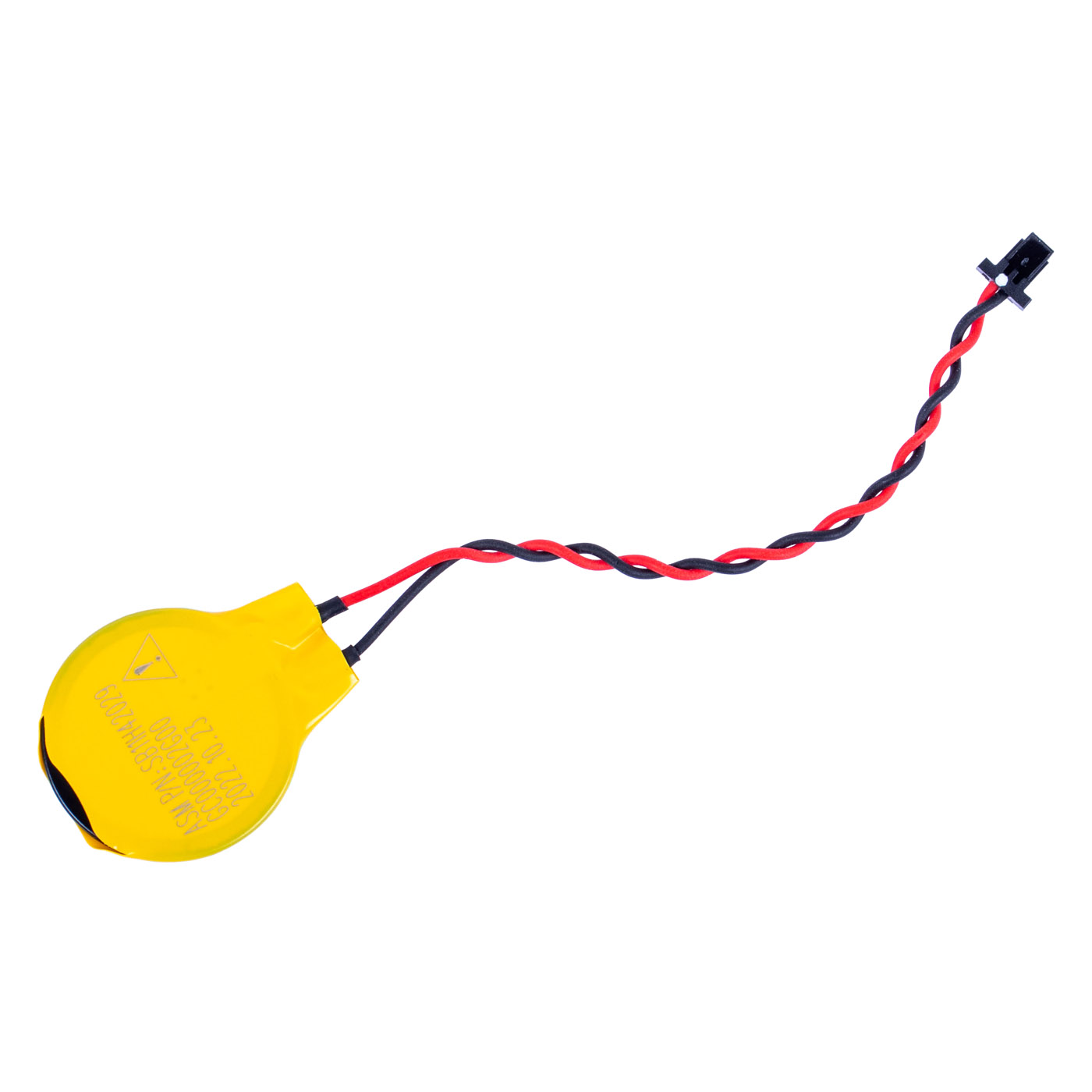

CR2016 coin cell battery wrapped in yellow heat-shrink insulation, with a two-wire cable terminated in a 2-pin connector for the motherboard. It maintains real-time clock (RTC) and BIOS/UEFI settings when the main power is disconnected. Module manufacturer: GP (GC000002G00 printed on the battery casing).

📋 TECHNICAL DATA

Part name: RTC/BIOS (CMOS) Battery, CR2016
Brand: Lenovo ThinkPad
Compatible model: ThinkPad X1 Carbon Gen 10 (21CB/21CC), Gen 11 (21HM/21HN), X1 Yoga Gen 7 (21CD/21CE), Gen 8 (21HQ/21HR)
Battery type: CR2016
Connector: 2-pin
Condition: Used (removed from a working device, tested)
FRU: 5B11J02394
Equivalent numbers: 5B11J02395
Assembly number (ASM P/N): SB11H42029

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - full compatibility under FRU 5B11J02394 with four models in the X1 family
🔹 Ready 2-pin connector - direct connection to the motherboard, no soldering required
🔹 100% tested functionality - voltage and BIOS setting retention verified before listing
🔹 Compact size - easy installation without affecting other components

🔢 PART NUMBERS

FRU: 5B11J02394
Equivalent numbers: 5B11J02395
Assembly number (ASM P/N): SB11H42029
Laptop model: Lenovo ThinkPad X1 Carbon Gen 10/11, X1 Yoga Gen 7/8

❓ WHEN SHOULD YOU REPLACE THE RTC/BIOS BATTERY?

• Laptop resets the date and time after every power disconnection
• BIOS/UEFI settings revert to default after a restart
• The system asks you to re-enter the date/time at startup
• Laptop won't pass POST without the charger connected
• Battery is visibly swollen or mechanically damaged

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power
2. Remove the bottom cover screws and take off the bottom cover
3. Disconnect the main battery from the motherboard
4. Disconnect the old RTC battery connector from the motherboard
5. Peel off the old battery from its mounting spot
6. Attach the new battery and connect it to the motherboard
7. Reconnect the main battery and reattach the bottom cover
8. Turn on the laptop and set the correct date/time in BIOS
Replacement recommended by a technical service or someone experienced in laptop repairs.

🎯 APPLICATION

This RTC/BIOS battery is intended for repairing Lenovo ThinkPad X1 Carbon Gen 10/11 and X1 Yoga Gen 7/8 laptops with a resetting system clock or BIOS settings. Suitable for individual users as well as repair services working on ThinkPads. The photos in the listing show the actual item offered.

✅ COMPATIBILITY GUARANTEE

The offered RTC/BIOS battery has been carefully checked and matched to Lenovo ThinkPad X1 Carbon Gen 10/11 and X1 Yoga Gen 7/8 models. We guarantee full compatibility under FRU number 5B11J02394 and 100% functionality of the part. The part comes with a 6-month warranty. In case of any compatibility issues, we offer a hassle-free 14-day return.
