🔧 Palmrest with Keyboard for Lenovo ThinkPad X1 Carbon Gen 10/11 🔧

🖥️ ThinkPad X1 Carbon Gen 10/11 | Backlit Nordic Keyboard | Deep Black | WWAN | 5M11H44247

Genuine palmrest with a backlit Nordic-layout keyboard for Lenovo ThinkPad X1 Carbon Gen 10 (21CB/21CC) and Gen 11 (21HM/21HN) laptops, WWAN version. Removed from a working unit (Intel vPro i7 configuration) and in very good technical condition - no cracks, worn spots or loose parts. Tested - we guarantee 100% functionality. FRU 5M11H44247 guarantees full compatibility with both X1 Carbon generations.

⚙️ PRODUCT OVERVIEW

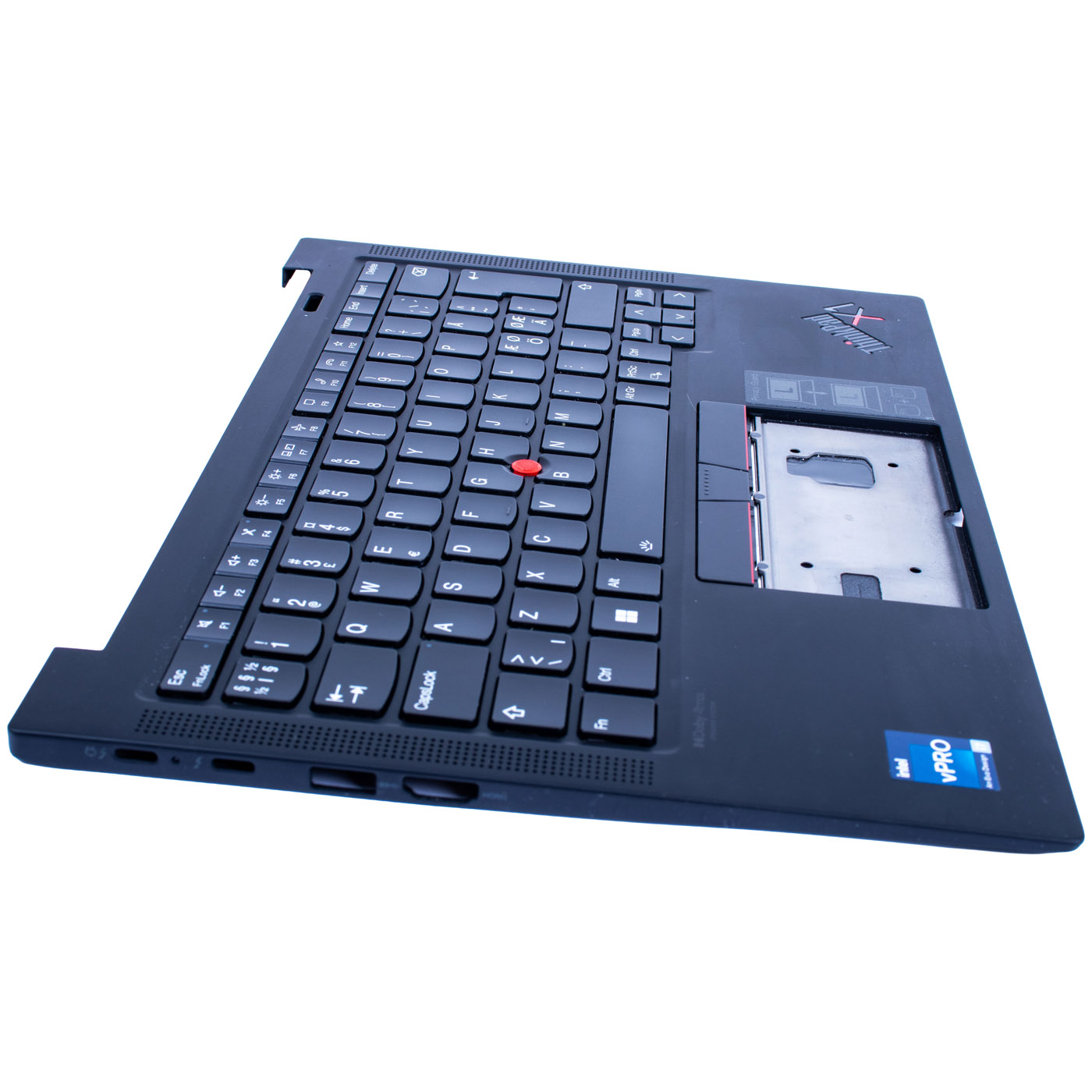

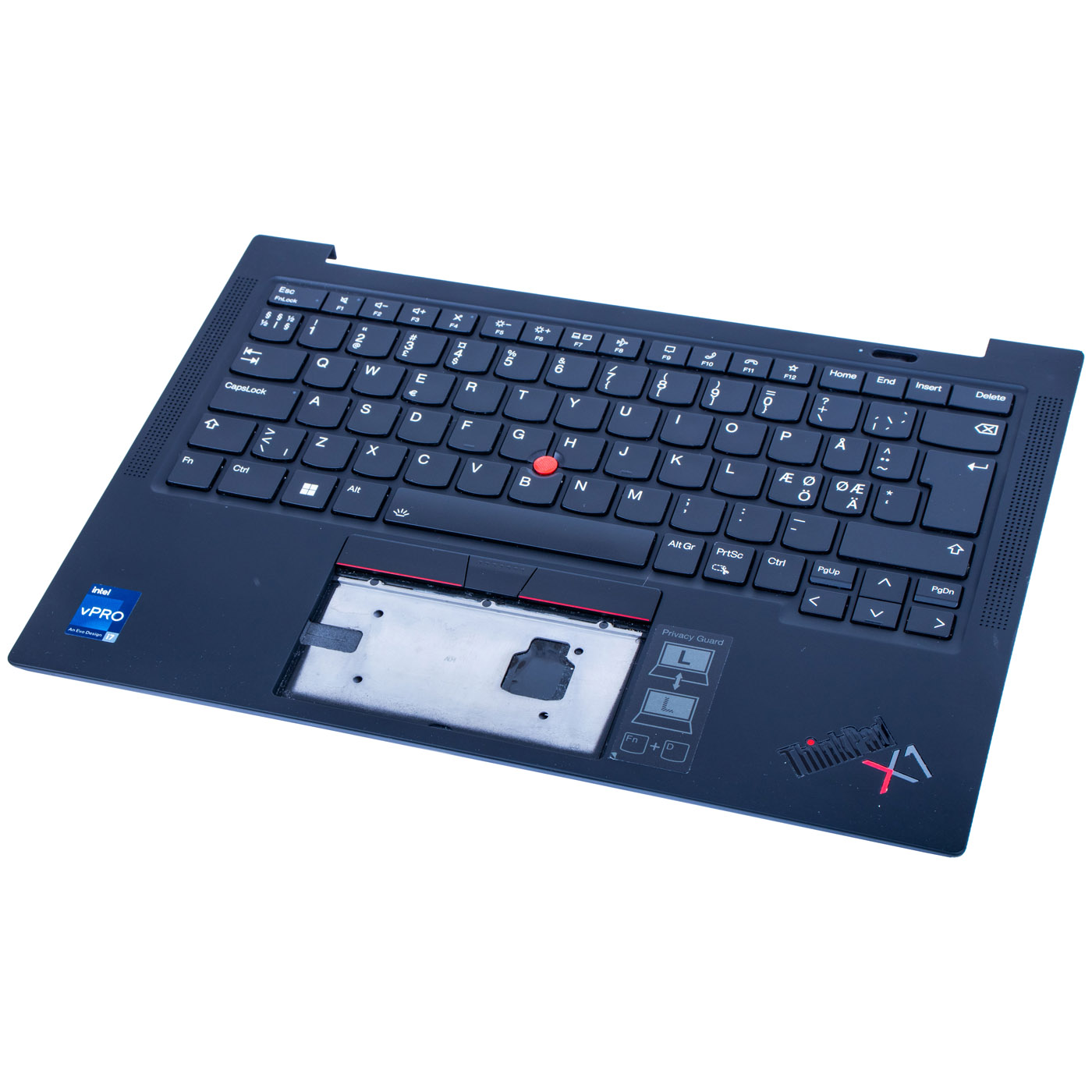

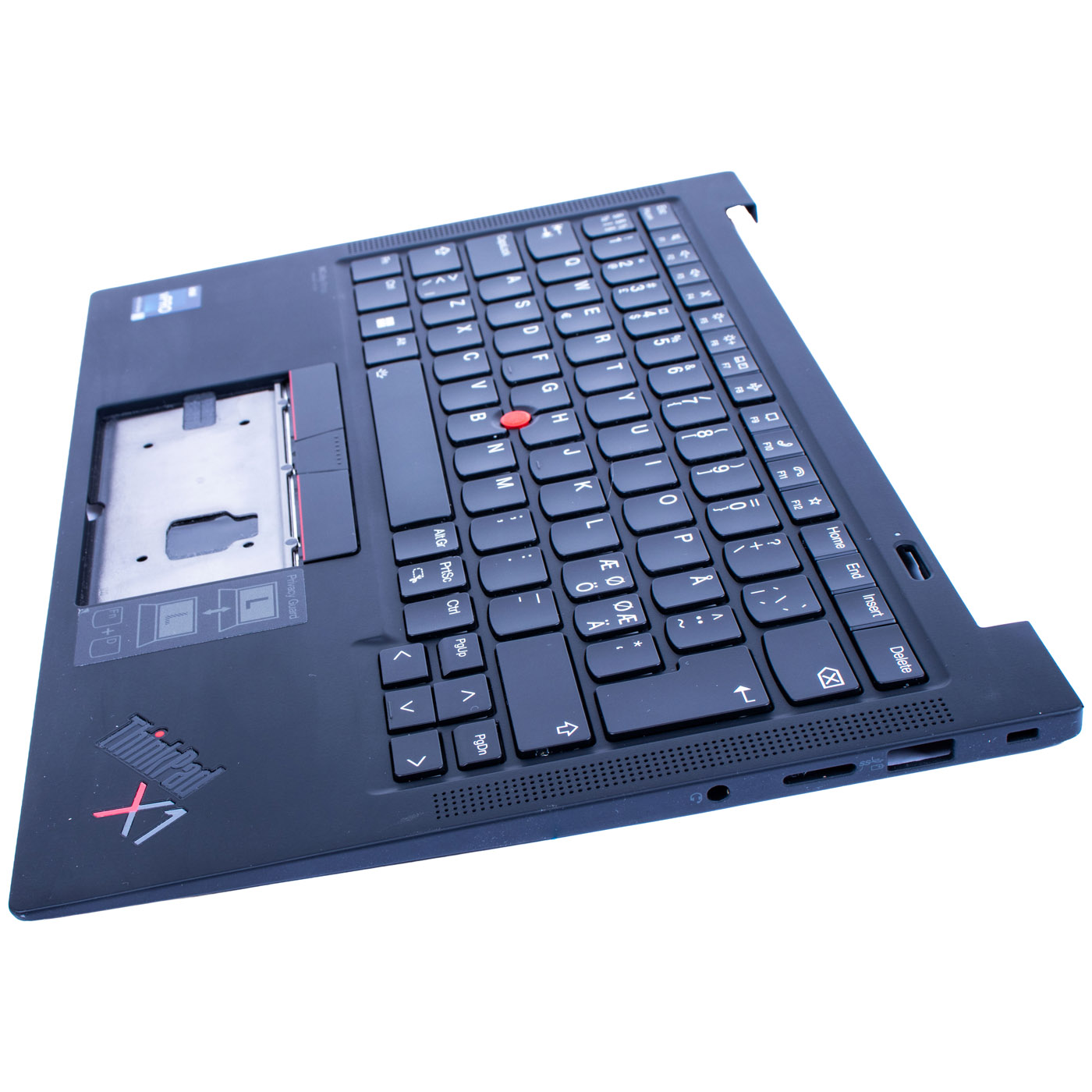

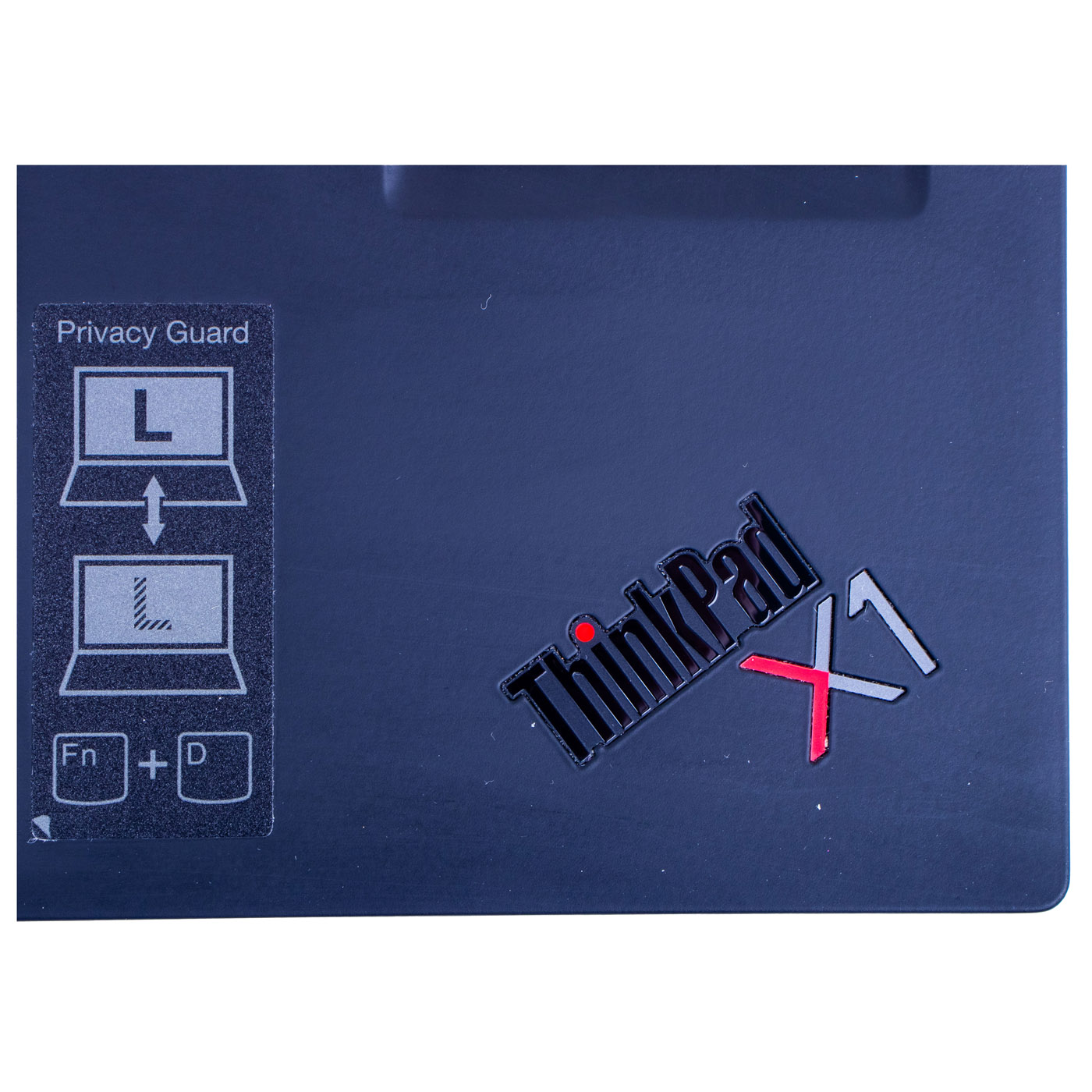

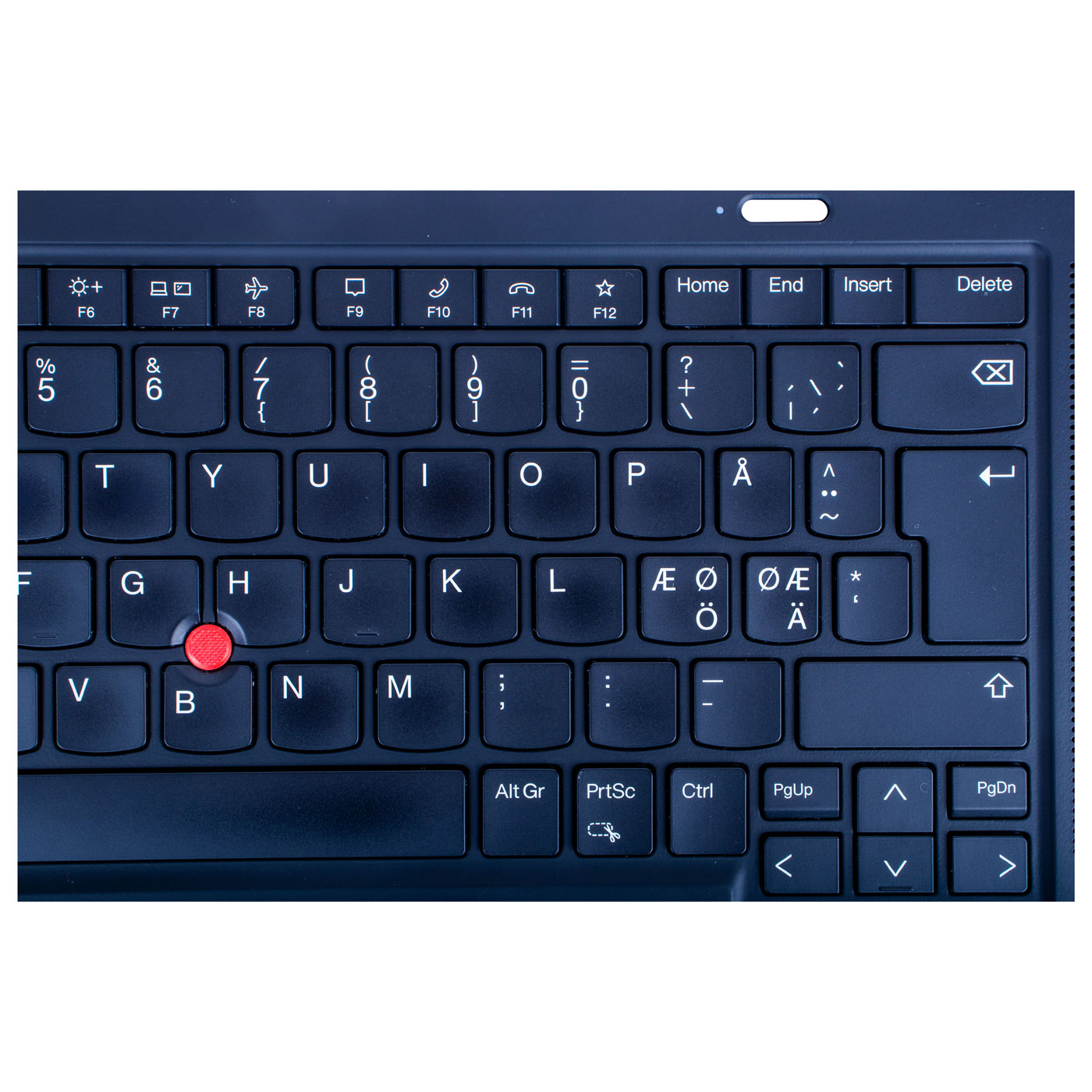

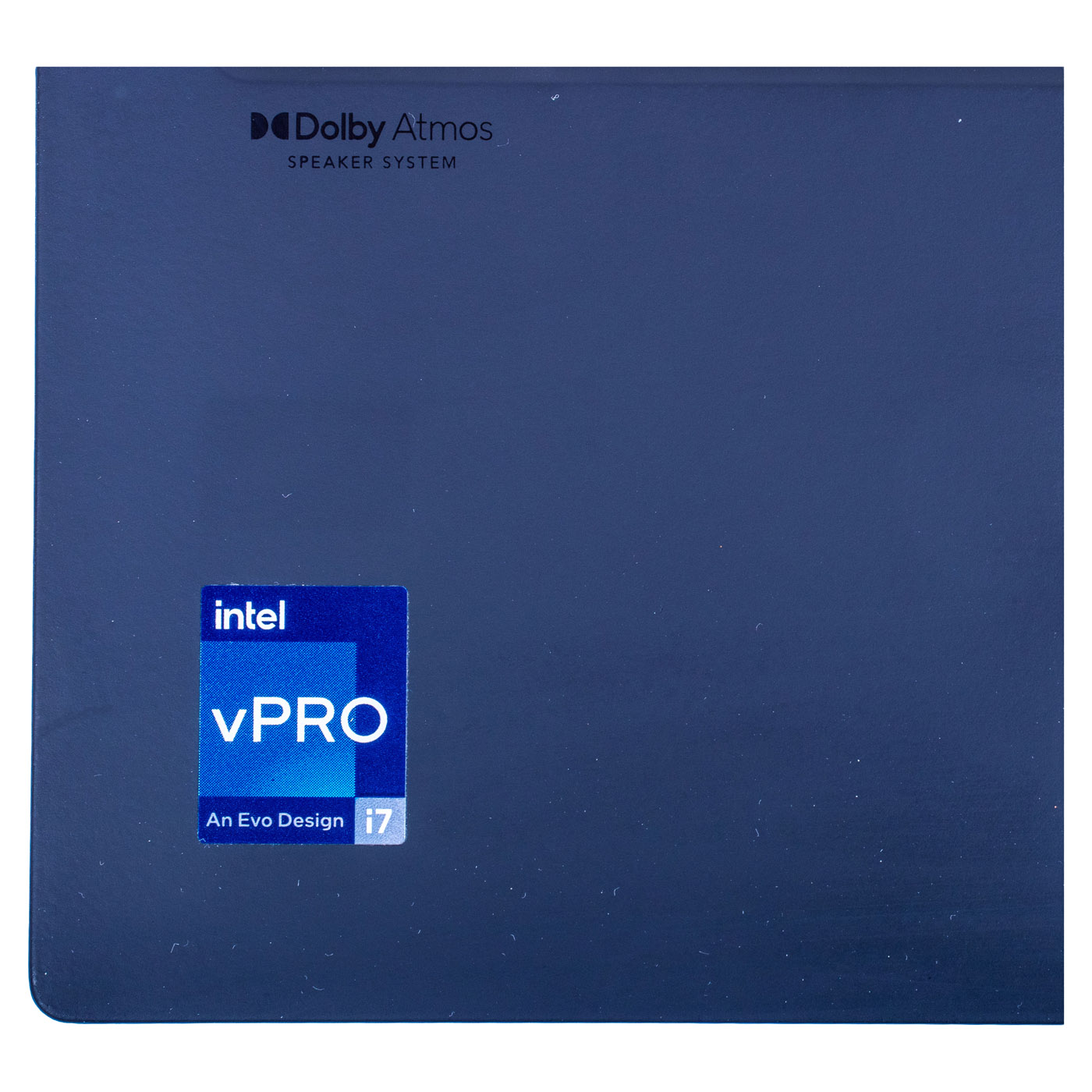

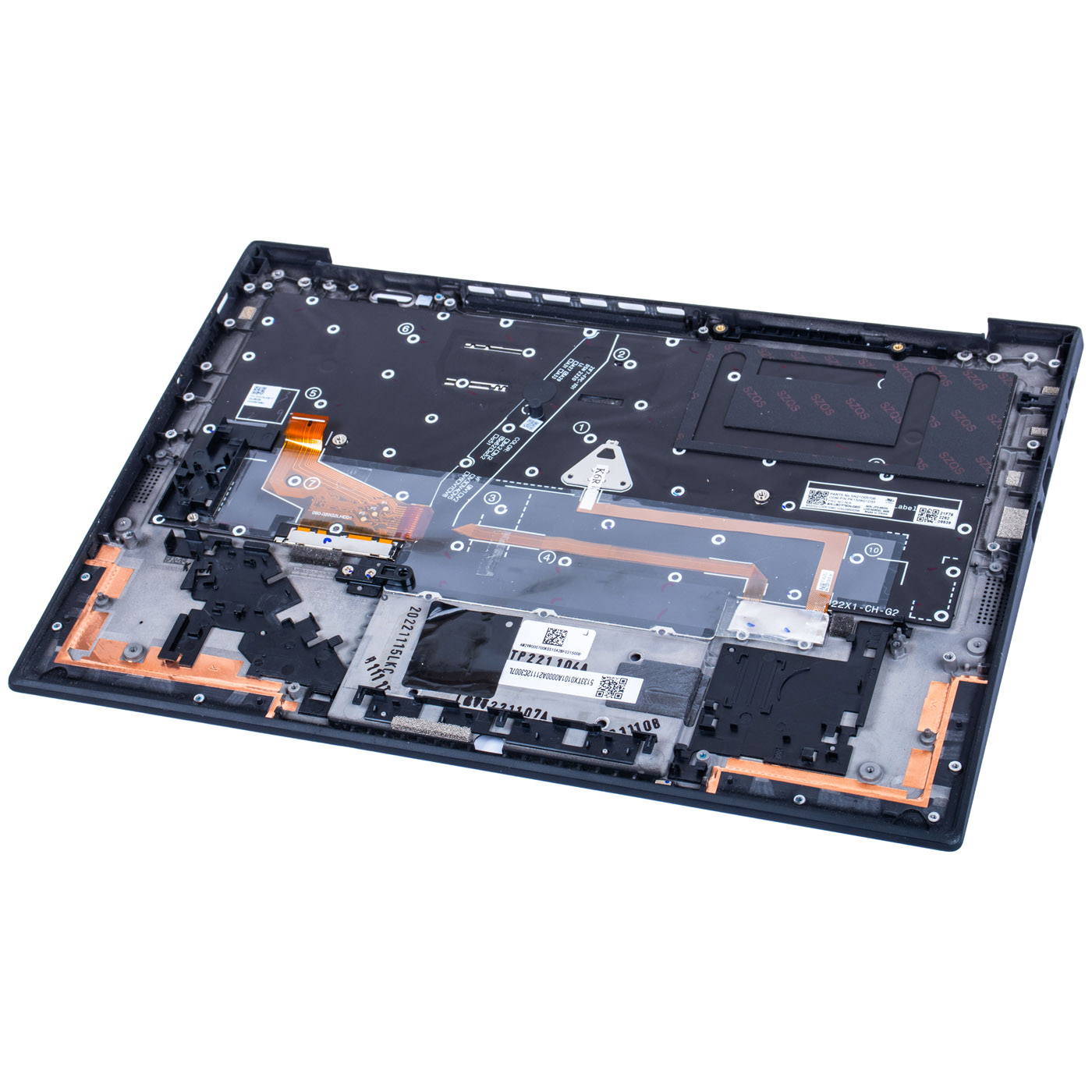

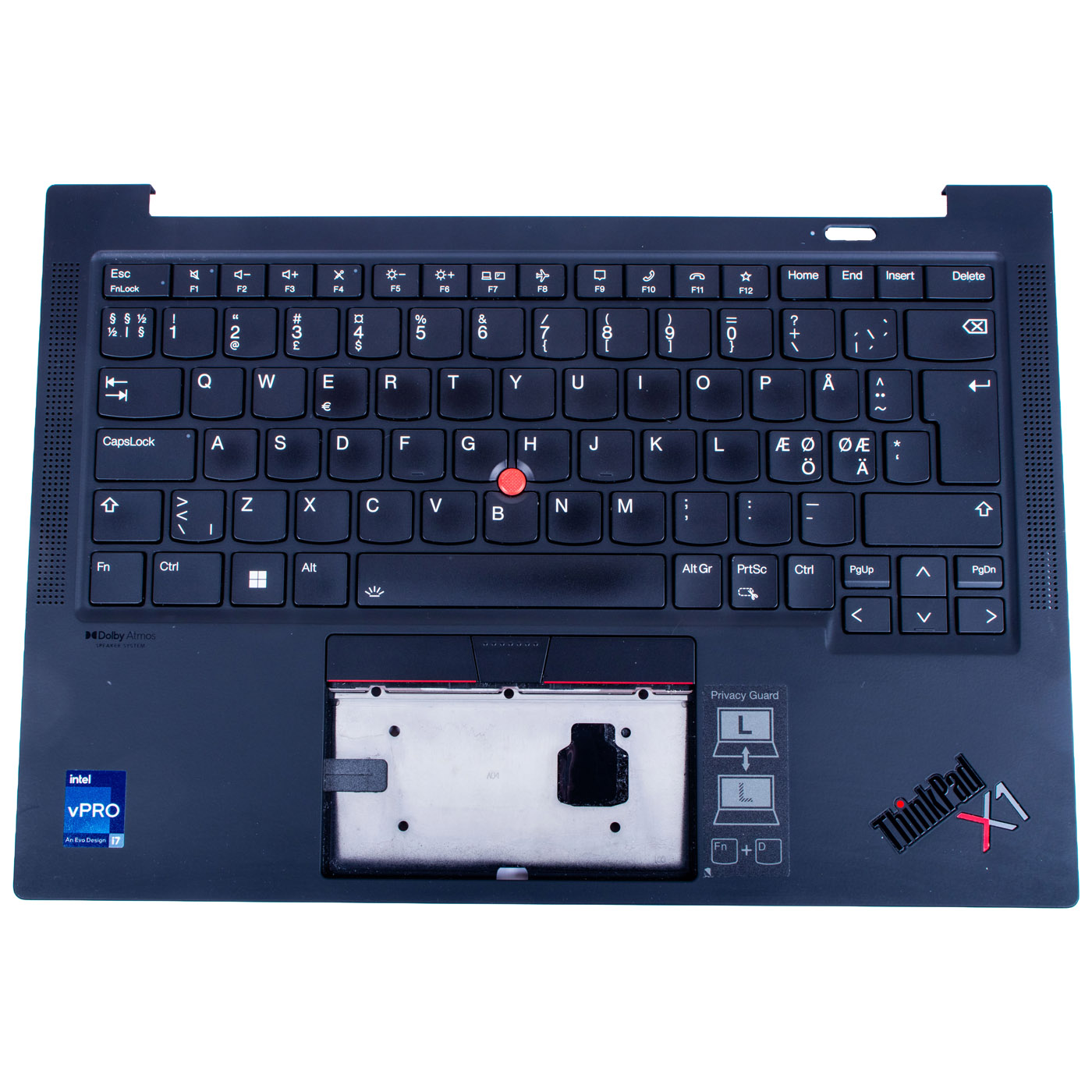

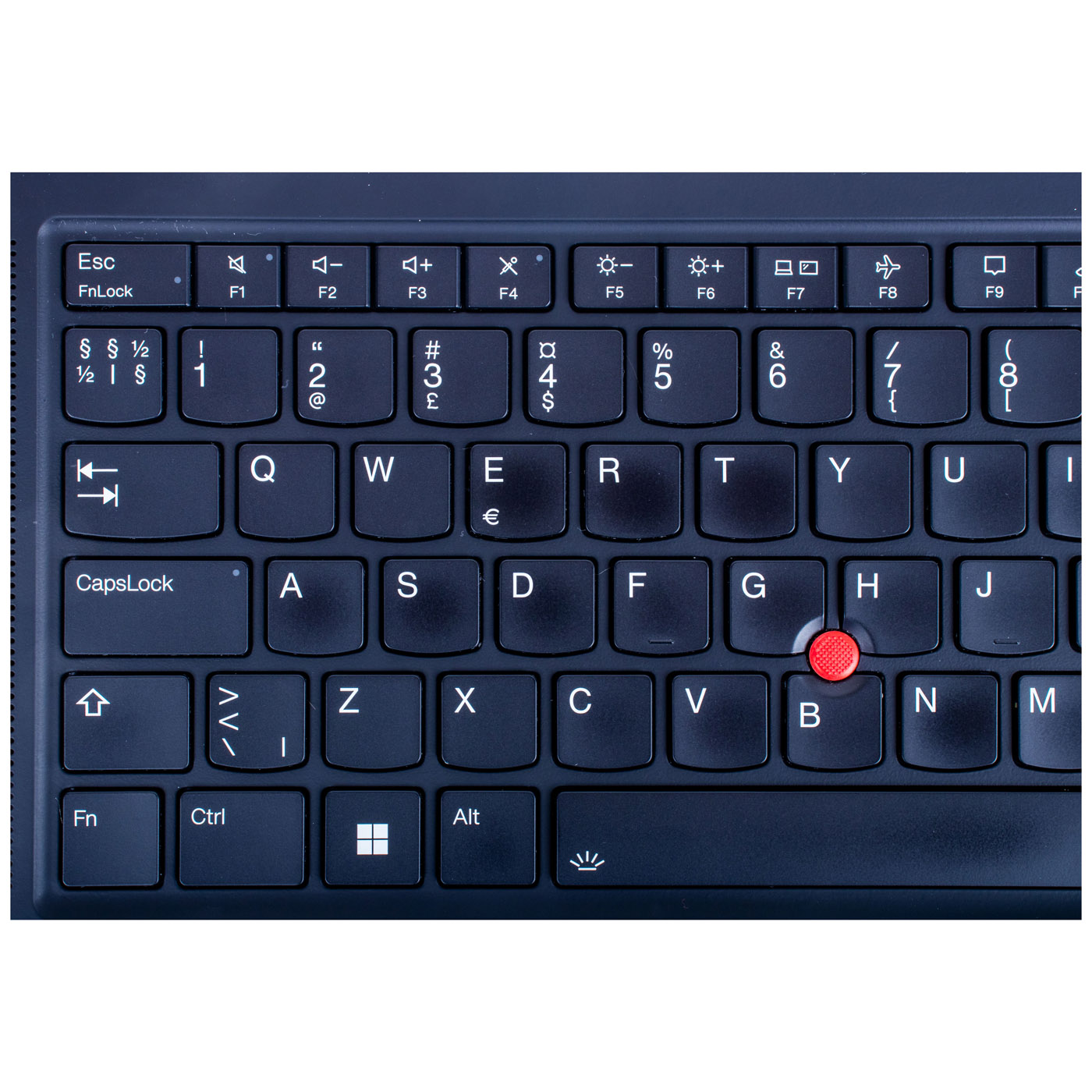

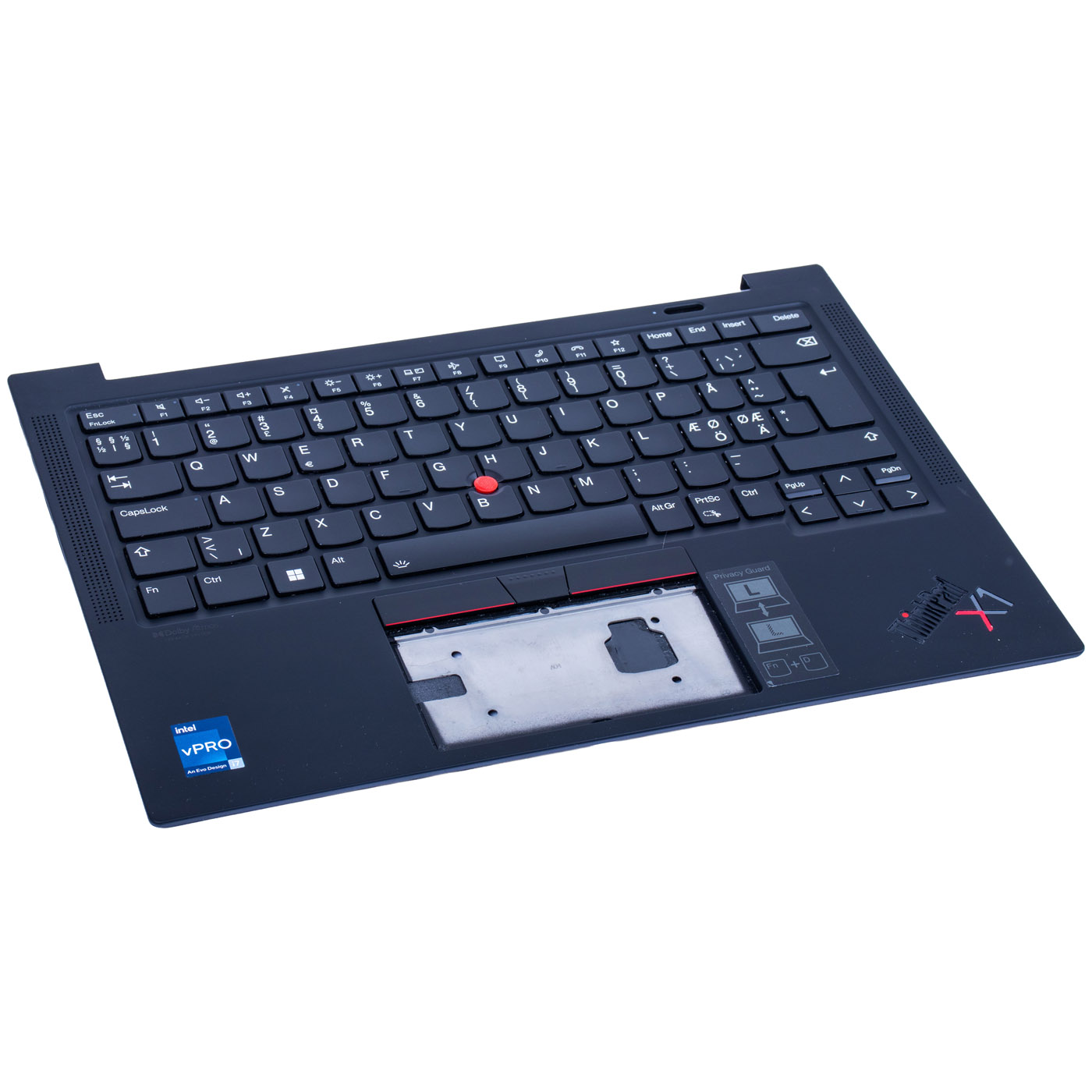

A complete carbon-fiber palmrest (C-Cover) with a factory-fitted backlit keyboard in the Nordic layout (Æ Ø Å / Ö Ä characters), touchpad, and trackpoint. Deep Black color, for models with a WWAN module. The cover features the Dolby Atmos speaker system, an Intel vPro (An Evo Design, i7) badge, and the Privacy Guard function (Fn+D). The edge has cutouts for the side ports: Thunderbolt/USB-C, HDMI, and the headphone jack.

📋 TECHNICAL DATA

Part name: Palmrest with keyboard (C-Cover with keyboard)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad X1 Carbon Gen 10 (21CB/21CC) and Gen 11 (21HM/21HN)
Keyboard layout: Nordic
Backlight: Yes
Color: Deep Black
Version: WWAN
Material: Carbon fiber
Condition: Used, very good (pulled, tested)
FRU: 5M11H44247
Replacement part numbers: 5M11K07694

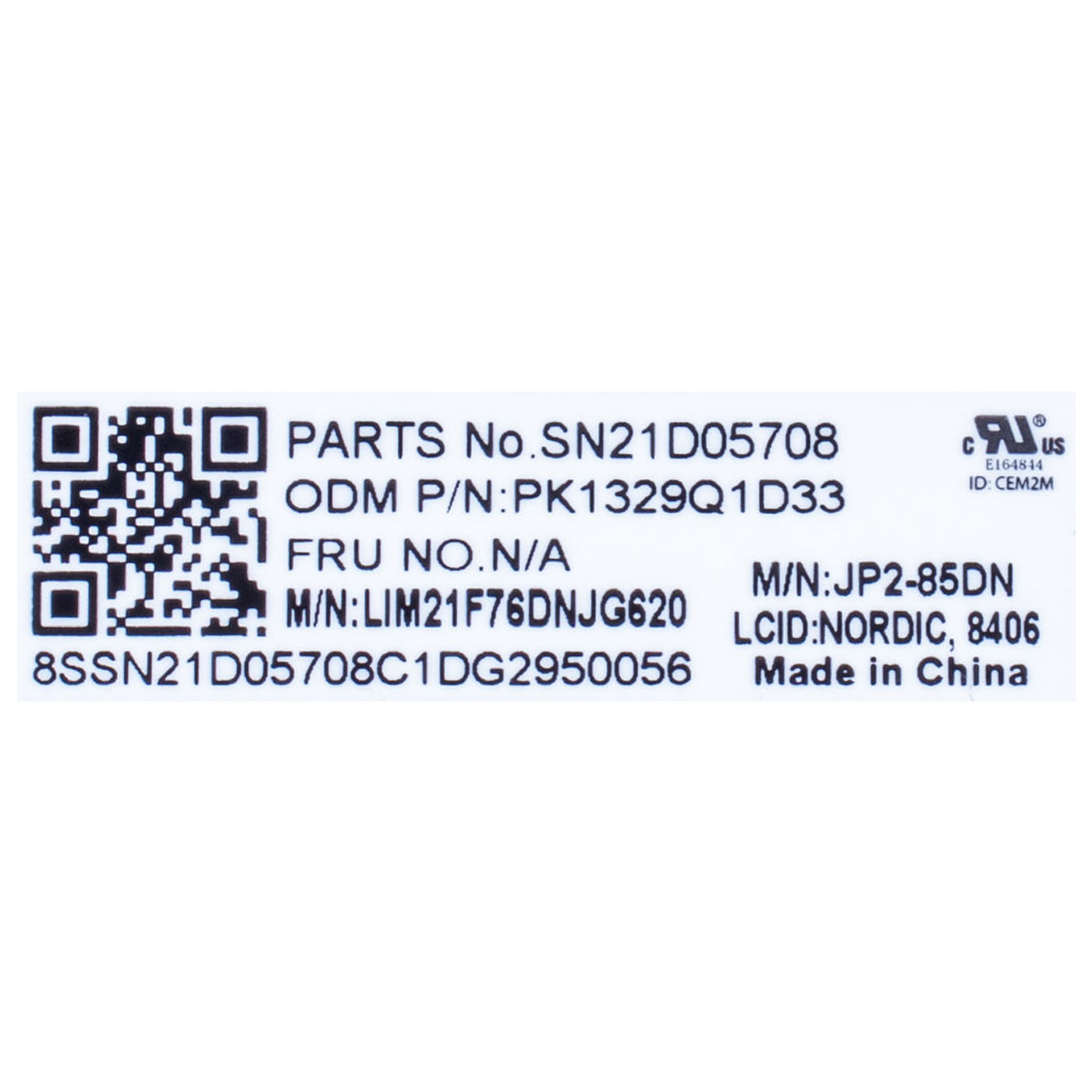

Additional markings (from this unit's label): Parts No. SN21D05708, ODM P/N PK1329Q1D33, M/N LIM21F76DNJG620

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - full compatibility under FRU 5M11H44247 with Gen 10 and Gen 11, plug-and-play installation with no modifications
🔹 Very good visual condition - no cracks or deep wear on the housing, clean keyboard
🔹 Backlit Nordic keyboard - comfortable typing in low light, no mistakes when entering Scandinavian characters
🔹 Trackpoint and touchpad included - ready to use right after installation, no separate parts to buy
🔹 Carbon-fiber construction - rigid, solid build, lower risk of damage during installation
🔹 Verified 100% functionality - keyboard, backlight, touchpad and trackpoint tested before listing
🔹 Easy to re-label for another layout - the Nordic layout can easily be adapted to another language with key stickers; on request we can include a set with the shipment

🔢 PART NUMBERS

FRU: 5M11H44247
Replacement part numbers: 5M11K07694
Additional markings: Parts No. SN21D05708, ODM P/N PK1329Q1D33, M/N LIM21F76DNJG620
Laptop model: Lenovo ThinkPad X1 Carbon Gen 10 (21CB/21CC) and Gen 11 (21HM/21HN)

❓ WHEN SHOULD YOU REPLACE THE PALMREST WITH KEYBOARD?

• Keys don't respond on the first press or don't work at all
• Keyboard backlight doesn't turn on despite being enabled
• Touchpad cursor jumps around or doesn't respond to touch at all
• The trackpoint (red nub) sticks or the cursor drifts on its own
• The palmrest housing is cracked, worn through, or heavily scratched
• The laptop had liquid contact and the keyboard stopped working

🔧 INSTALLATION PROCESS

1. Power off the laptop and disconnect the charger
2. Remove the bottom cover screws and lift off the bottom cover
3. Disconnect the battery from the motherboard
4. Disconnect the keyboard and touchpad FPC cables from the motherboard
5. Remove the screws securing the palmrest to the bottom chassis
6. Remove the old palmrest and place the new one in the same position
7. Reconnect the keyboard and touchpad FPC cables
8. Secure the mounting screws
9. Reconnect the battery and refit the bottom cover
10. Power on the laptop and check the keyboard, touchpad, trackpoint and backlight function correctly
Installation by a qualified technician or someone experienced with laptop repairs is recommended.

🎯 INTENDED USE

This Nordic-layout palmrest with keyboard is intended for repairing Lenovo ThinkPad X1 Carbon Gen 10 and Gen 11 laptops with a damaged, liquid-affected or non-working keyboard, touchpad, or top cover. Suitable both for individual users and repair shops working on ThinkPads. The exact appearance and condition of the item offered are shown in the listing photos.

✅ COMPATIBILITY GUARANTEE

This palmrest with keyboard was thoroughly checked and matched to Lenovo ThinkPad X1 Carbon Gen 10 and Gen 11 models. We guarantee full compatibility under FRU 5M11H44247 and 100% functionality. This part comes with a 6-month warranty. In case of any compatibility issues, we offer a hassle-free 14-day return.
