🔧 Display Hinge Set (Left+Right) for Lenovo ThinkPad X1 Carbon Gen 10/11 🔧

🖥️ X1 Carbon Gen 10/11 | Left Hinge AM1U8000110 + Right AM1U8000210 | 14"

Genuine display hinge set (left + right) for Lenovo ThinkPad X1 Carbon Gen 10 (21CB/21CC) and Gen 11 (21HM/21HN) laptops. Removed from a working laptop - used, in perfect condition, no play, cracks, or corrosion. The hinge mechanism moves smoothly across the full opening range. FRU numbers AM1U8000110 (left) and AM1U8000210 (right) guarantee full compatibility with both X1 Carbon generations.

⚙️ PRODUCT OVERVIEW

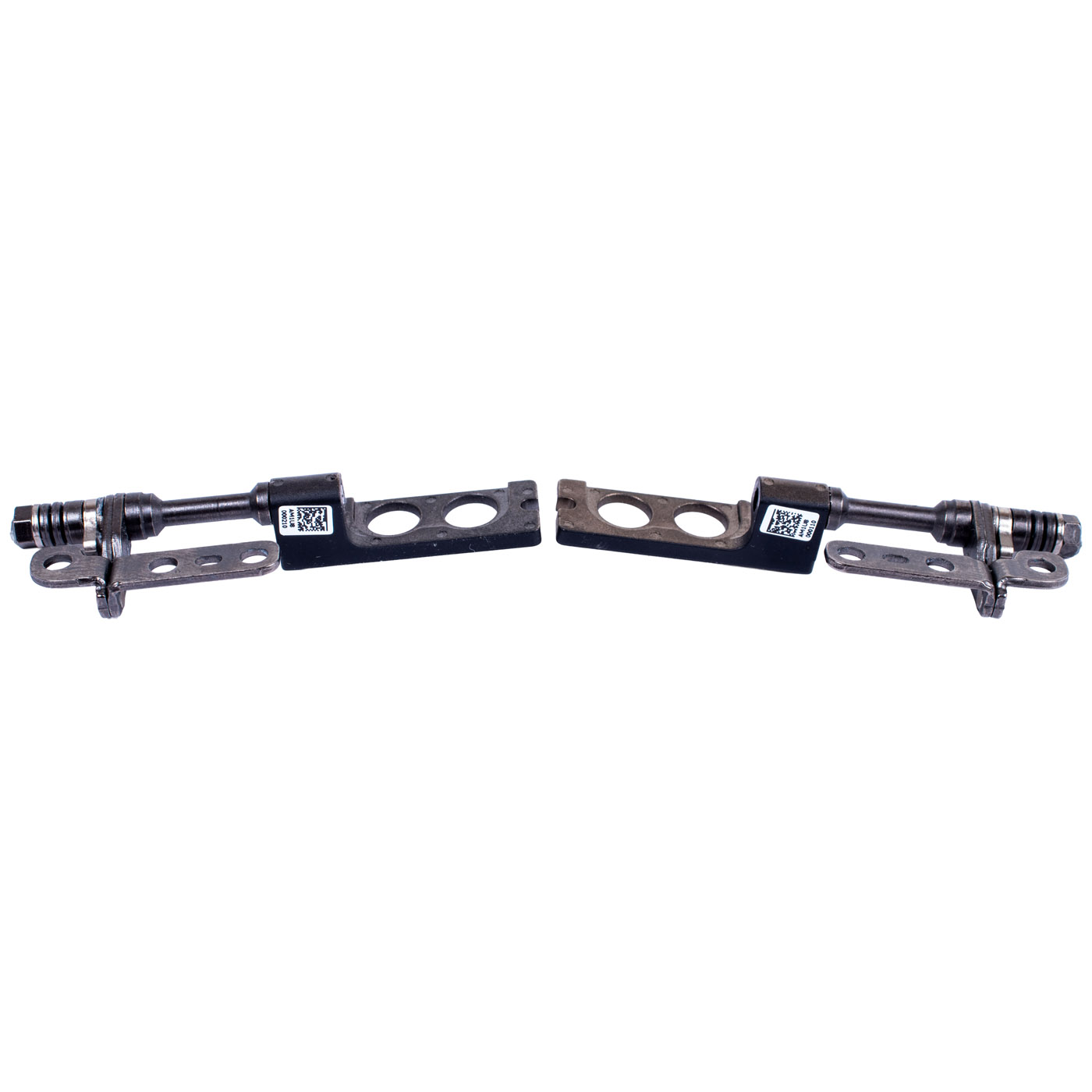

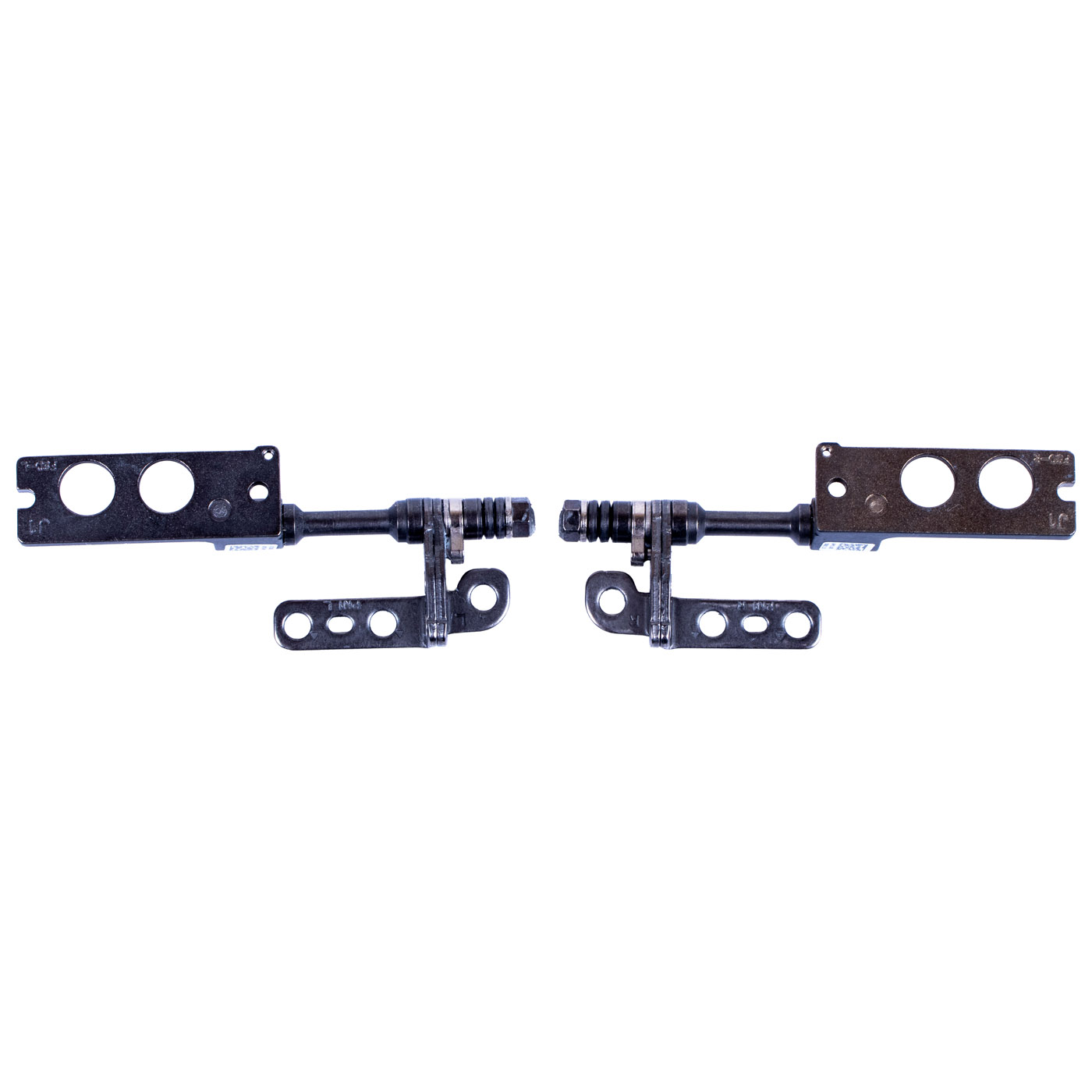

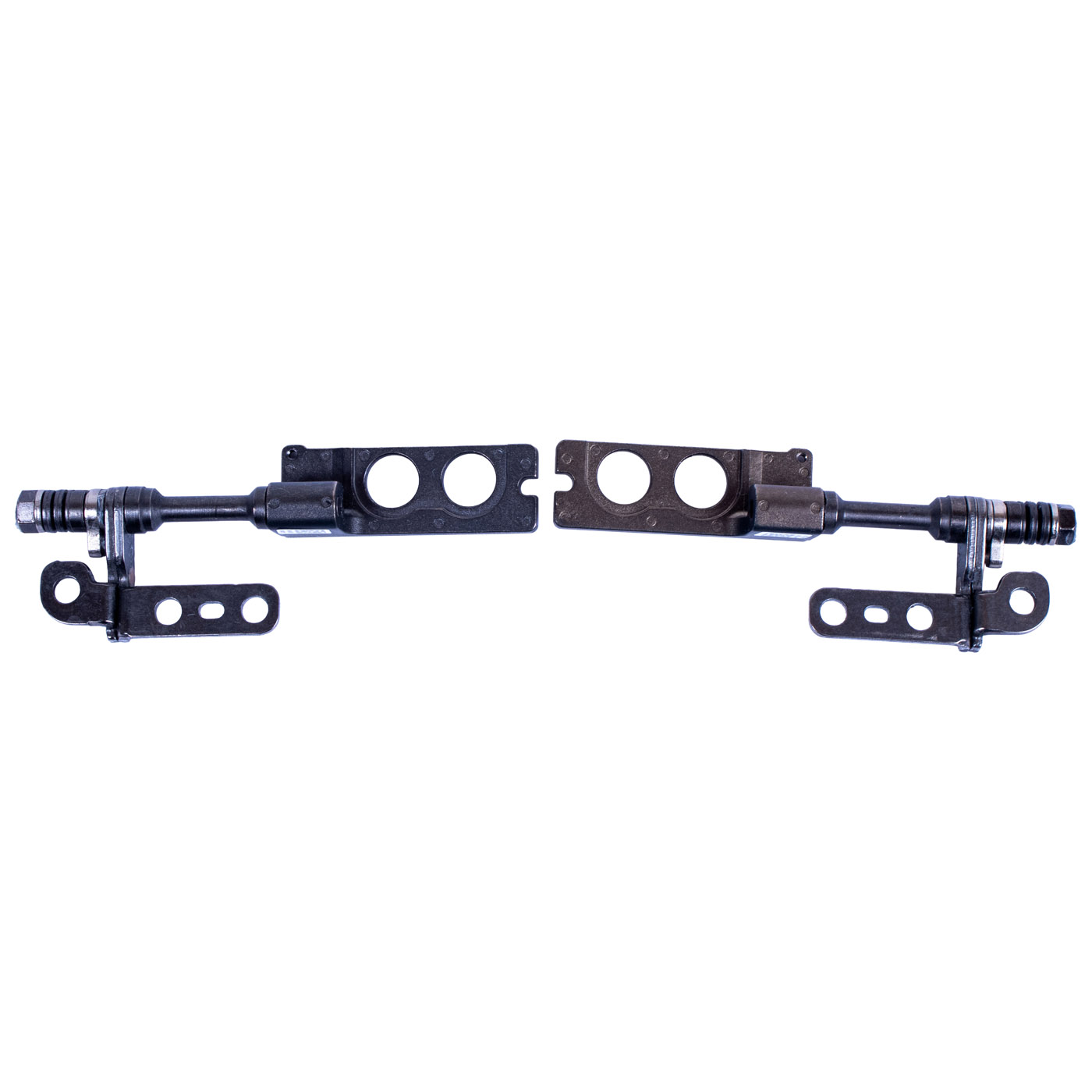

A metal left+right hinge set responsible for smooth, stable opening/closing of the 14" laptop screen. Each hinge includes a mounting bracket for the display lid (with mounting holes) and for the bottom chassis, along with a spring mechanism controlling resistance. The hinges are in perfect technical condition - ready to install with no repairs needed.

📋 TECHNICAL DATA

Part name: Display hinge set, left + right
Brand: Lenovo ThinkPad
Compatible model: X1 Carbon Gen 10 (21CB/21CC) and Gen 11 (21HM/21HN)
Laptop size: 14"
Material: Metal
Condition: Used, perfect condition (pulled)
Left FRU: AM1U8000110
Right FRU: AM1U8000210

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - full compatibility with Gen 10 and Gen 11, no modifications needed
🔹 Perfect technical condition - no play, cracks, or corrosion, smooth movement across the full range
🔹 Left+right set - both hinges in one listing, ready to swap both at once
🔹 Verified functionality - the spring mechanism works correctly, no jumping or catching
🔹 Cost-effective alternative - significantly cheaper than a new set, with the same functionality

🔢 PART NUMBERS

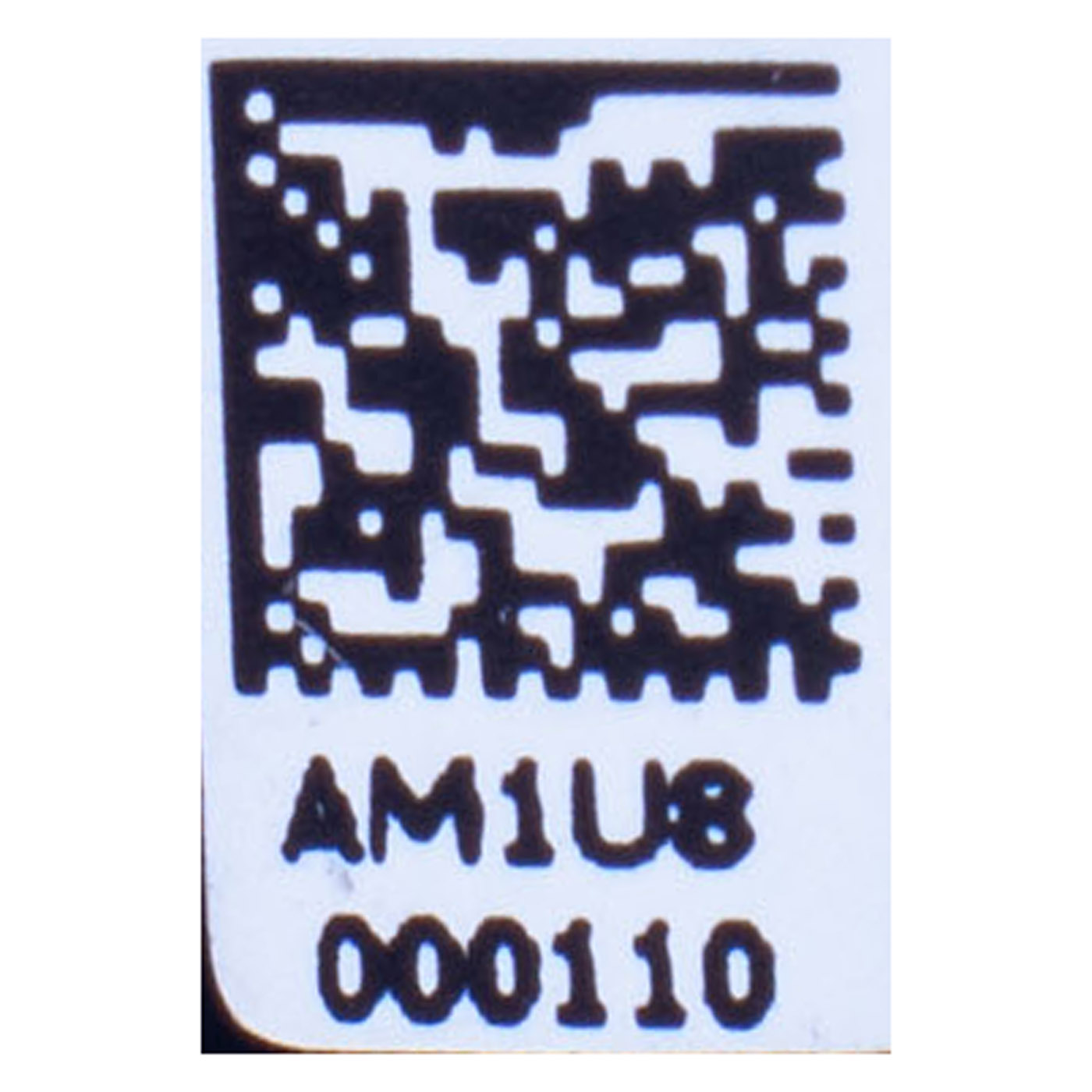

Left FRU: AM1U8000110

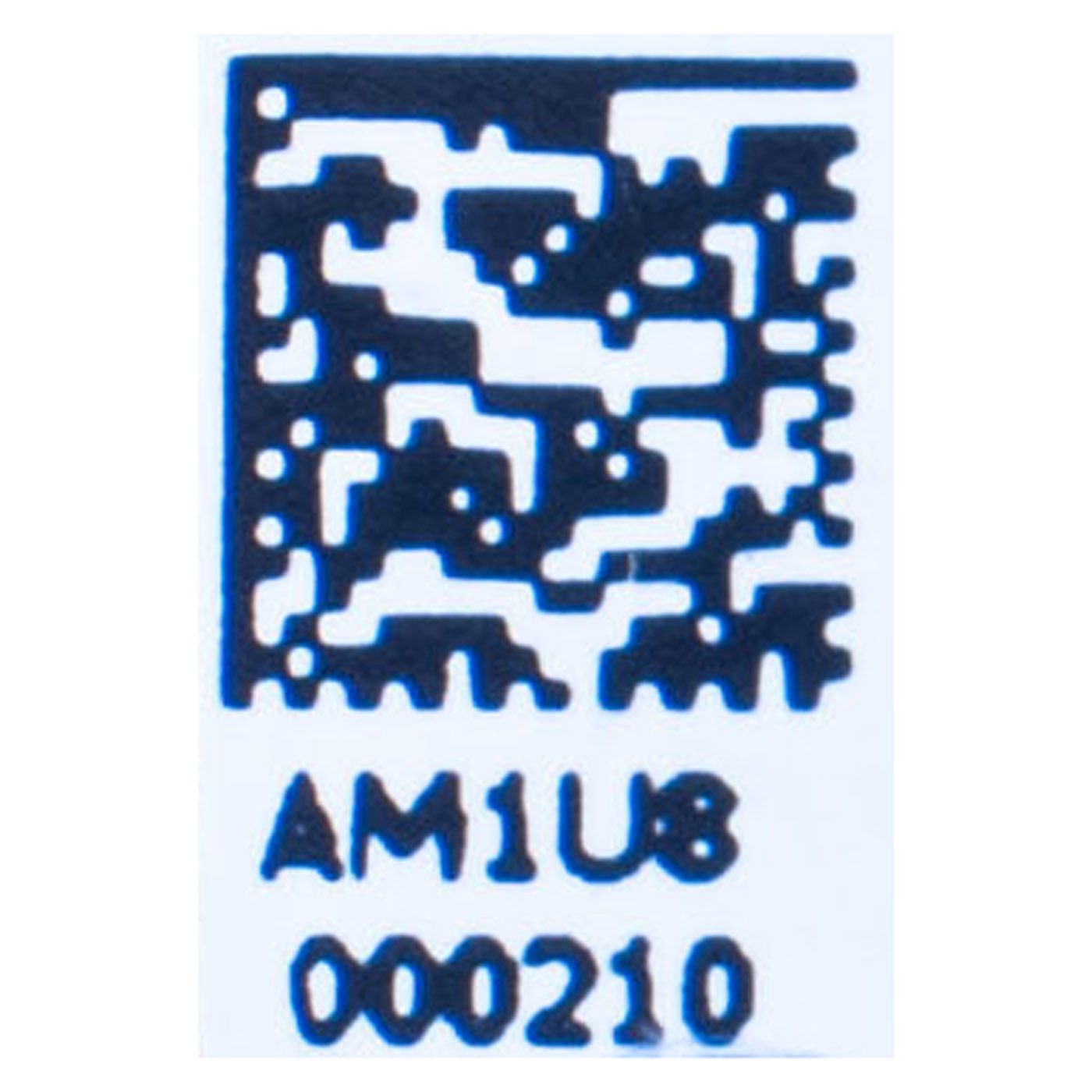

Right FRU: AM1U8000210
Laptop model: Lenovo ThinkPad X1 Carbon Gen 10 (21CB/21CC) and Gen 11 (21HM/21HN)

❓ WHEN SHOULD YOU REPLACE THE DISPLAY HINGES?

• The screen drops or rises on its own without being held
• Noticeable play or a rattling sound when opening/closing the lid
• A hinge binds or has uneven resistance at different angles
• Visible cracks in the housing around the hinges caused by hinge failure
• The screen doesn't hold the angle it's set to

🔧 INSTALLATION PROCESS

1. Power off the laptop and disconnect the charger and battery
2. Remove the bottom cover to access the hinges
3. Disconnect the display cable and WiFi antenna cables from the motherboard
4. Remove the screws securing the hinges to the display lid and to the laptop base
5. Remove the old hinges, keeping track of the left and right side
6. Install the new hinges in the same order, tightening the screws with appropriate force
7. Reconnect the cable and antennas, power on the laptop and check the screen opens/closes smoothly
Installation by a qualified technician or someone experienced with laptop repairs is recommended.

🎯 INTENDED USE

This hinge set is intended for Lenovo ThinkPad X1 Carbon Gen 10 and Gen 11 laptops with loose, binding, or damaged screen-opening mechanisms. A good solution for restoring stable, smooth display movement without replacing the entire display assembly. The exact appearance and condition of the item offered are shown in the listing photos.

✅ COMPATIBILITY GUARANTEE

This hinge set was thoroughly checked and matched to Lenovo ThinkPad X1 Carbon Gen 10 and Gen 11 models. We guarantee full compatibility under FRU AM1U8000110 and AM1U8000210, and full mechanical functionality. In case of any compatibility issues, we offer a hassle-free 14-day return.

📞 NEED HELP? CONTACT OUR EXPERTS!

Not sure these hinges are compatible with your X1 Carbon? Get in touch and our specialists will help you choose the right part.
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We've specialized in genuine Lenovo laptop parts for years. Our experience lets us offer top-quality products that meet the expectations of even the most demanding customers. Trust the experts and get your X1 Carbon back to full working order.

🎯 Choose professionals - invest in quality!

By choosing a genuine hinge set for your Lenovo X1 Carbon from our offer, you're investing in stable, smooth screen movement for years to come. Rely on ABCDEAL's expertise and restore your laptop's full performance.
