🔧 512GB M.2 NVMe SSD Samsung PM9A1 for Lenovo ThinkPad X1 Carbon Gen 10 🔧

💻 ThinkPad X1 Carbon Gen 10 | Samsung PM9A1 | M.2 2280 PCIe Gen4x4 NVMe | 512GB | FRU 5SS0W79492

Used 512GB M.2 NVMe SSD Samsung PM9A1 sourced from a Lenovo ThinkPad X1 Carbon Gen 10, marked with FRU number 5SS0W79492 (LEN PN SSS0L25196). Part sourced from a working device and tested - we guarantee 100% functionality. The standard M.2 2280 PCIe Gen4x4 form factor means the drive also fits other laptops and PCs with the same slot type.

⚙️ PRODUCT CHARACTERISTICS

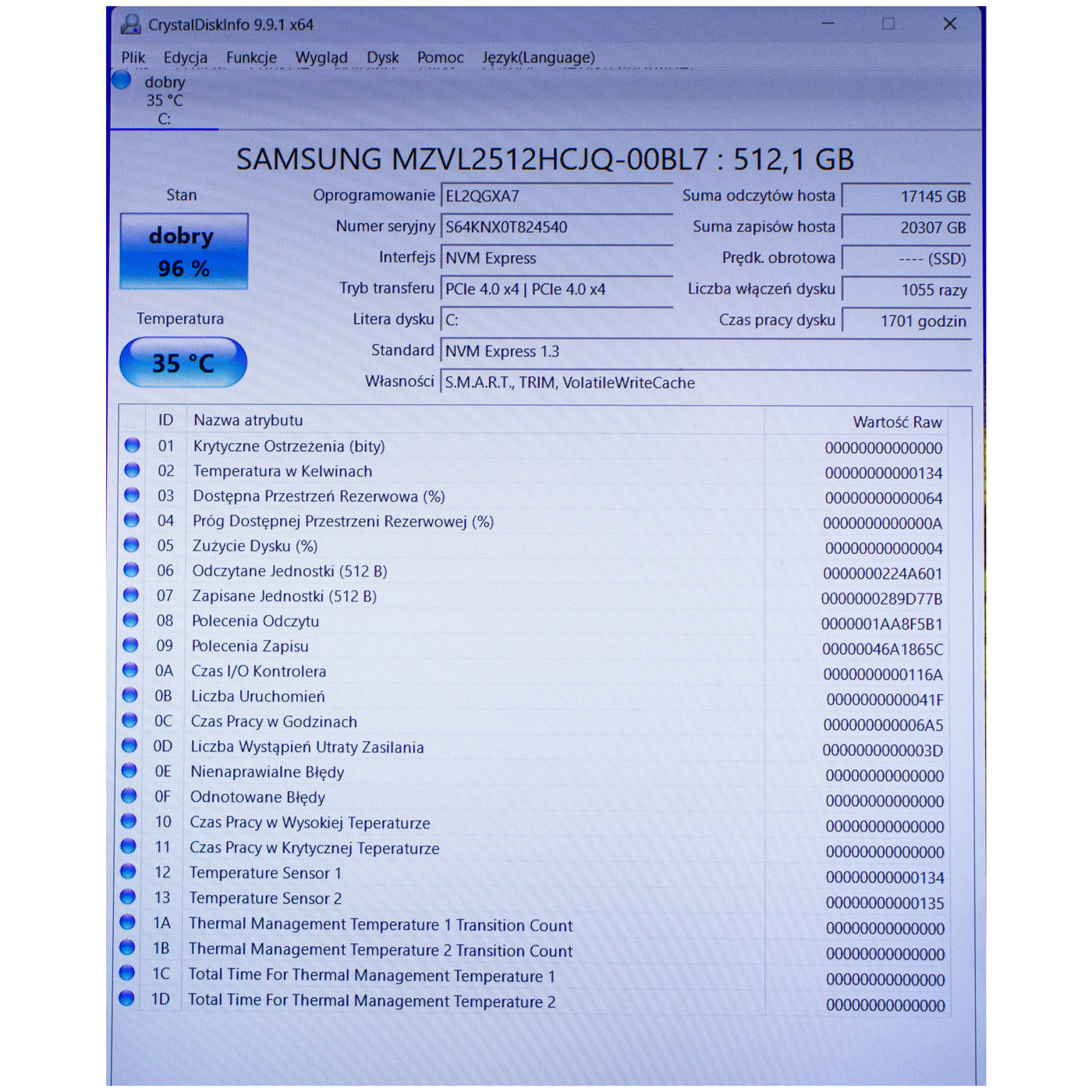

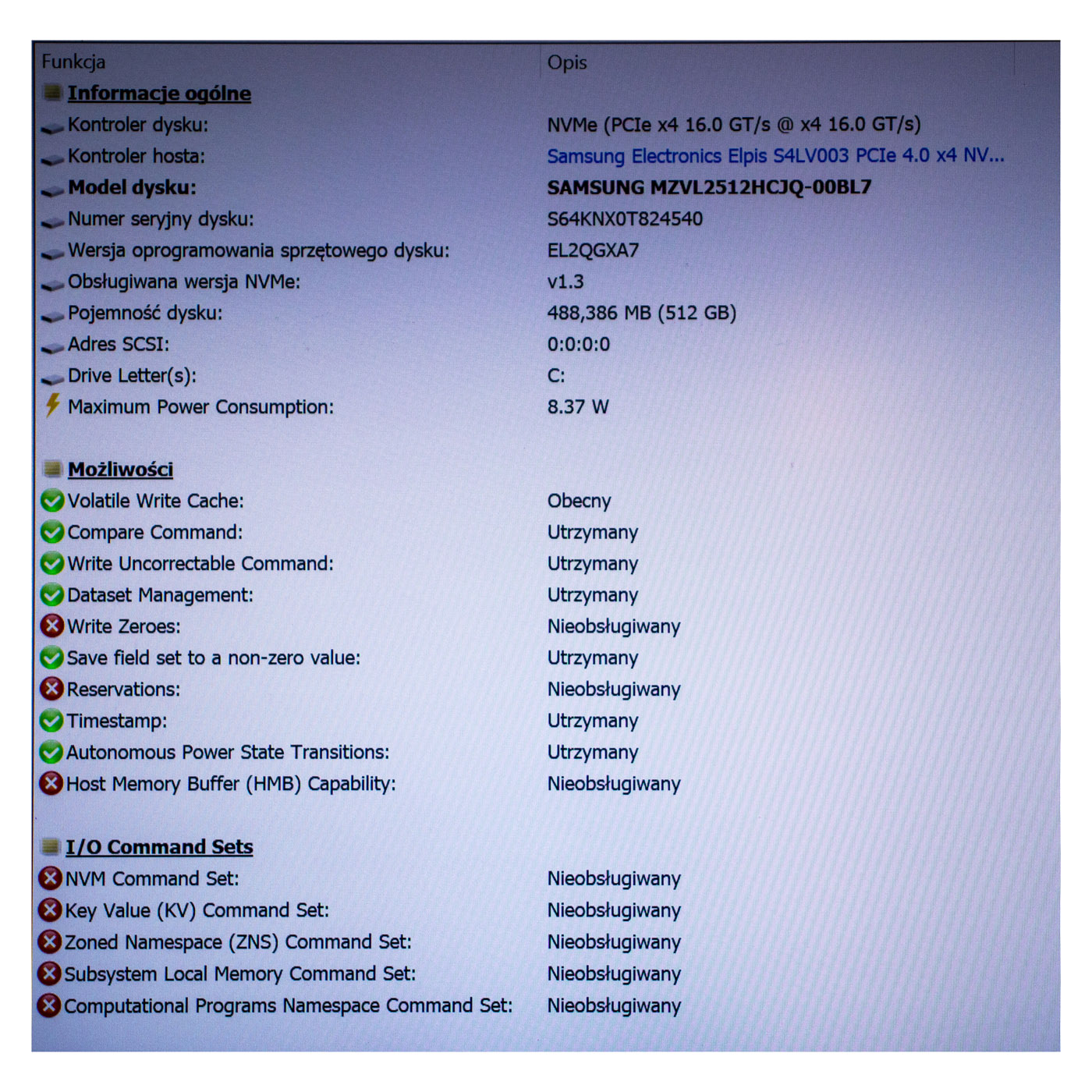

The Samsung PM9A1 is an OEM drive series factory-installed in Lenovo ThinkPad laptops, built on the Samsung Elpis (S4LV003) controller with TLC NAND memory. Model MZVL2512HCJQ-00BL7 offers 512GB capacity, supports OPAL 2.0 hardware encryption and the NVMe 1.3 standard. Drive condition confirmed with diagnostic software: 96% health, 1701 power-on hours, 1055 power cycles, no critical or unrecoverable errors.

📋 TECHNICAL DATA

Part name: M.2 NVMe SSD
Brand: Lenovo ThinkPad (Samsung PM9A1 OEM)
Compatible model: ThinkPad X1 Carbon Gen 10 (and other devices with an M.2 2280 PCIe Gen4x4 slot)
Drive model: Samsung MZVL2512HCJQ-00BL7 (MZ-VL25120)
Capacity: 512GB
Interface: PCIe Gen4x4 NVMe 1.3
Form factor: M.2 2280
Encryption: OPAL 2.0
Health status (S.M.A.R.T.): 96% (good), 1701 power-on hours, 1055 power cycles, operating temp. 35°C
Condition: Used (removed from a working device, tested)
FRU: 5SS0W79492
Alternative part numbers: SSS0L25196, MZVL2512HCJQ-00BL7

🌟 KEY ADVANTAGES

🔹 Genuine Samsung drive, factory-installed in the ThinkPad X1 Carbon Gen 10 - proven compatibility, no surprises during installation
🔹 PCIe Gen4x4 - significantly higher throughput than older SATA drives, noticeably faster system and app load times
🔹 Health confirmed by S.M.A.R.T. diagnostics (96%) - you know exactly how much wear the drive has, no guesswork
🔹 OPAL 2.0 hardware encryption - drive-level data security without extra CPU load
🔹 Compact M.2 2280 form factor - easy to install in the original model or in other ultrabooks and PCs with a matching slot

🔢 PART NUMBERS

FRU: 5SS0W79492
Alternative part numbers: SSS0L25196, MZVL2512HCJQ-00BL7
Laptop model: Lenovo ThinkPad X1 Carbon Gen 10

❓ WHEN SHOULD YOU REPLACE THE SSD?

• Your laptop runs slower than before, apps and Windows take longer to load
• You see read/write error messages or the system no longer detects the drive
• You want to upgrade storage capacity with a standard M.2 2280 drive
• You are planning an upgrade to a faster or higher-capacity drive
• The original drive has failed and you need an identical replacement

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully lift it off
3. Disconnect the battery from the motherboard
4. Remove the screw securing the current M.2 drive and lift it out at an angle
5. Insert the new drive at the same angle and secure it with the screw
6. Reconnect the battery and reattach the bottom cover
7. Power on the laptop and confirm the drive is detected in BIOS/the operating system
We recommend having the replacement performed by a technical service or someone experienced in laptop repairs.

🎯 APPLICATION

The Samsung PM9A1 512GB M.2 NVMe SSD is a proven replacement for the ThinkPad X1 Carbon Gen 10, and a budget-friendly alternative for anyone looking for a fast PCIe Gen4 drive at a lower price than a new one. It works equally well as a fix for a failed drive or as an affordable capacity upgrade for any laptop or PC with an M.2 2280 slot.

✅ COMPATIBILITY GUARANTEE

The offered SSD has been thoroughly checked and comes from a working Lenovo ThinkPad X1 Carbon Gen 10 laptop. We guarantee full compatibility for FRU number 5SS0W79492 and 100% functionality, confirmed by S.M.A.R.T. readout. In case of any compatibility issues, we offer a hassle-free 14-day return.
