Original battery Lenovo X1 Carbon 10 11 X1 Yoga 7 8

🔧 Battery Lenovo ThinkPad X1 Carbon Gen 10 / Gen 11 / X1 Yoga Gen 7 / Gen 8 🔧

🖥️ Model L20D4P71 | 57 Wh | FRU 5B10W13975 | Li-ion 4-cell

⚙️ PRODUCT CHARACTERISTICS

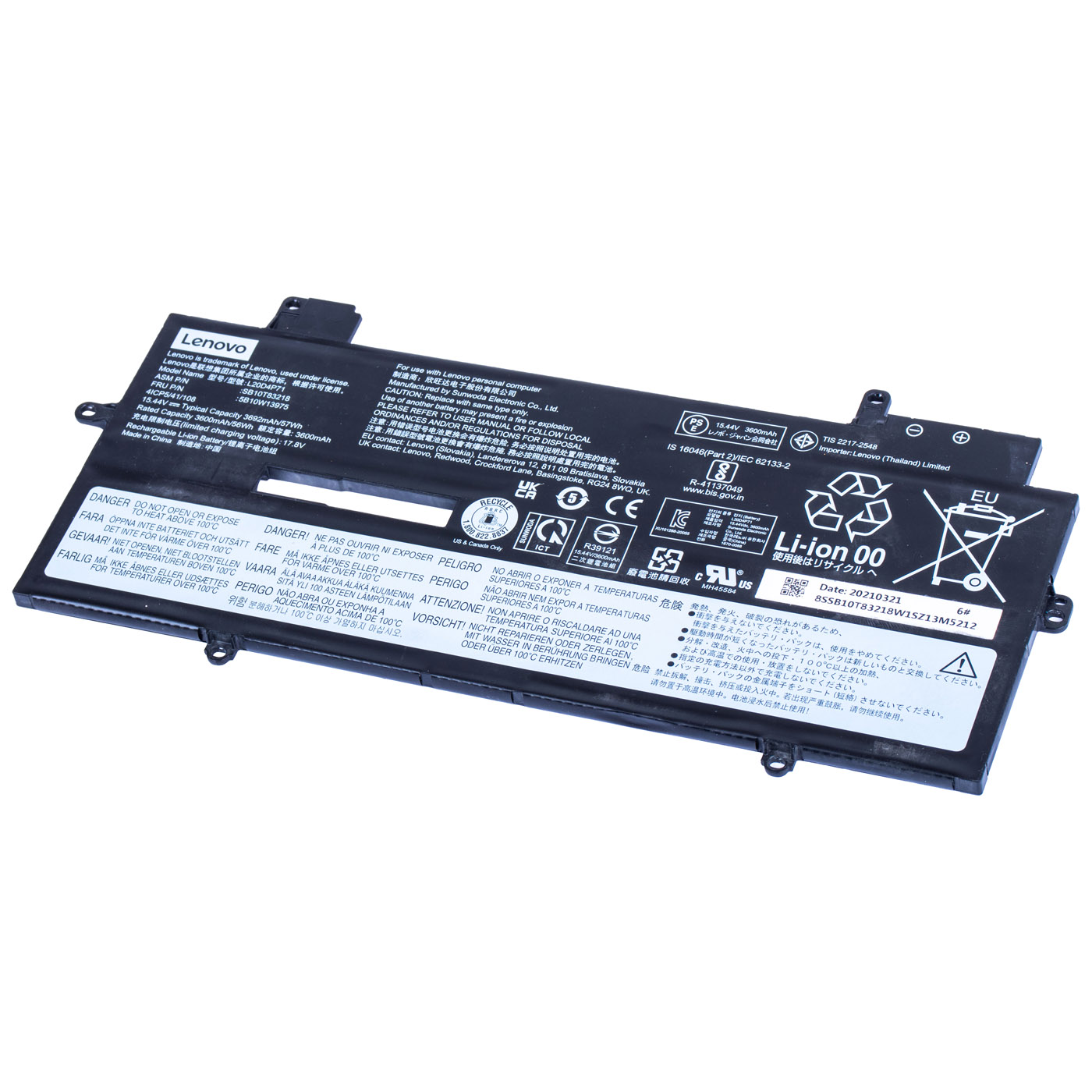

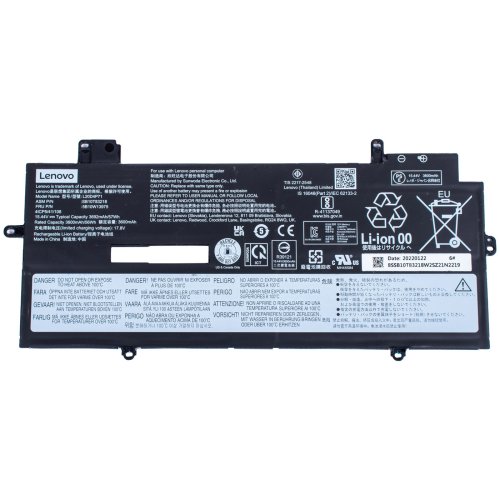

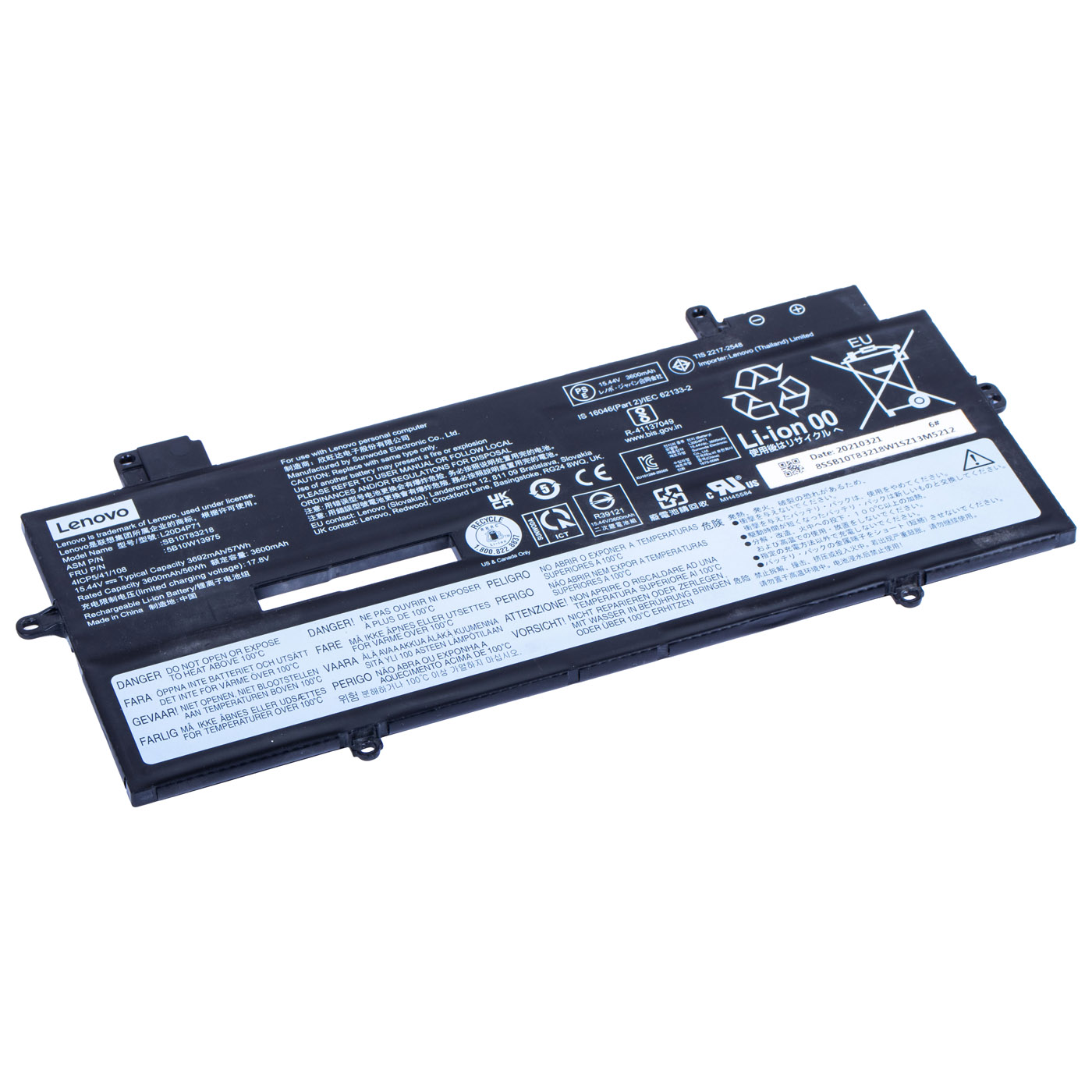

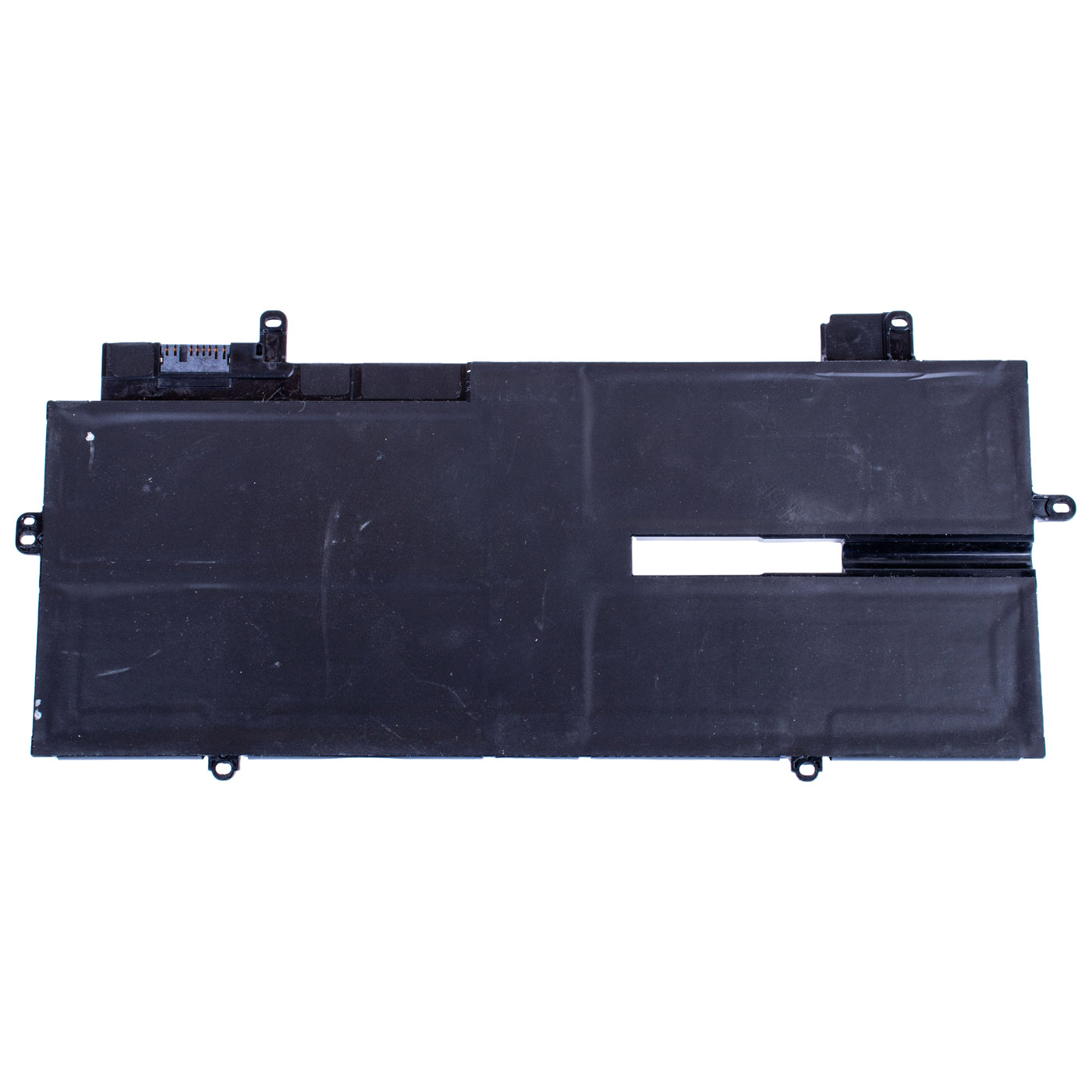

Genuine Lenovo internal battery (model L20D4P71) compatible with ThinkPad X1 Carbon Gen 10, X1 Carbon Gen 11, X1 Yoga Gen 7 and X1 Yoga Gen 8 laptops. This particular unit was removed from an X1 Carbon Gen 10. Lithium-ion cell in a 4-cell configuration (4ICP5/41/108), manufactured by Sunwoda Electronic for Lenovo. The battery is fully functional, with its health confirmed by HWiNFO readouts and the Lenovo Vantage app.

📋 TECHNICAL DATA

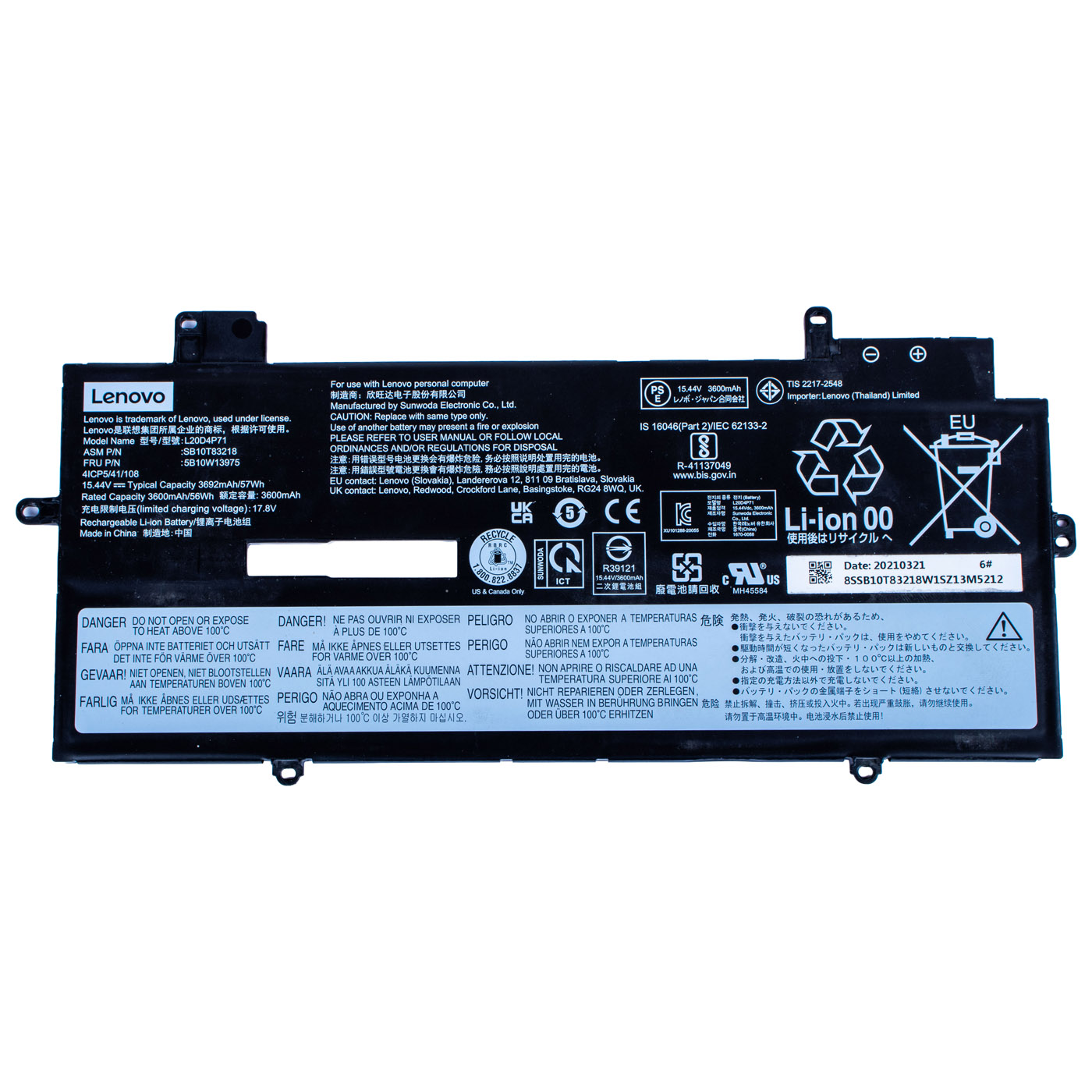

Part name: Internal Battery
Brand: Lenovo ThinkPad
Compatible models: X1 Carbon Gen 10, X1 Carbon Gen 11, X1 Yoga Gen 7, X1 Yoga Gen 8
This unit was removed from: X1 Carbon Gen 10
Cell manufacturer: Sunwoda Electronic Co., Ltd.

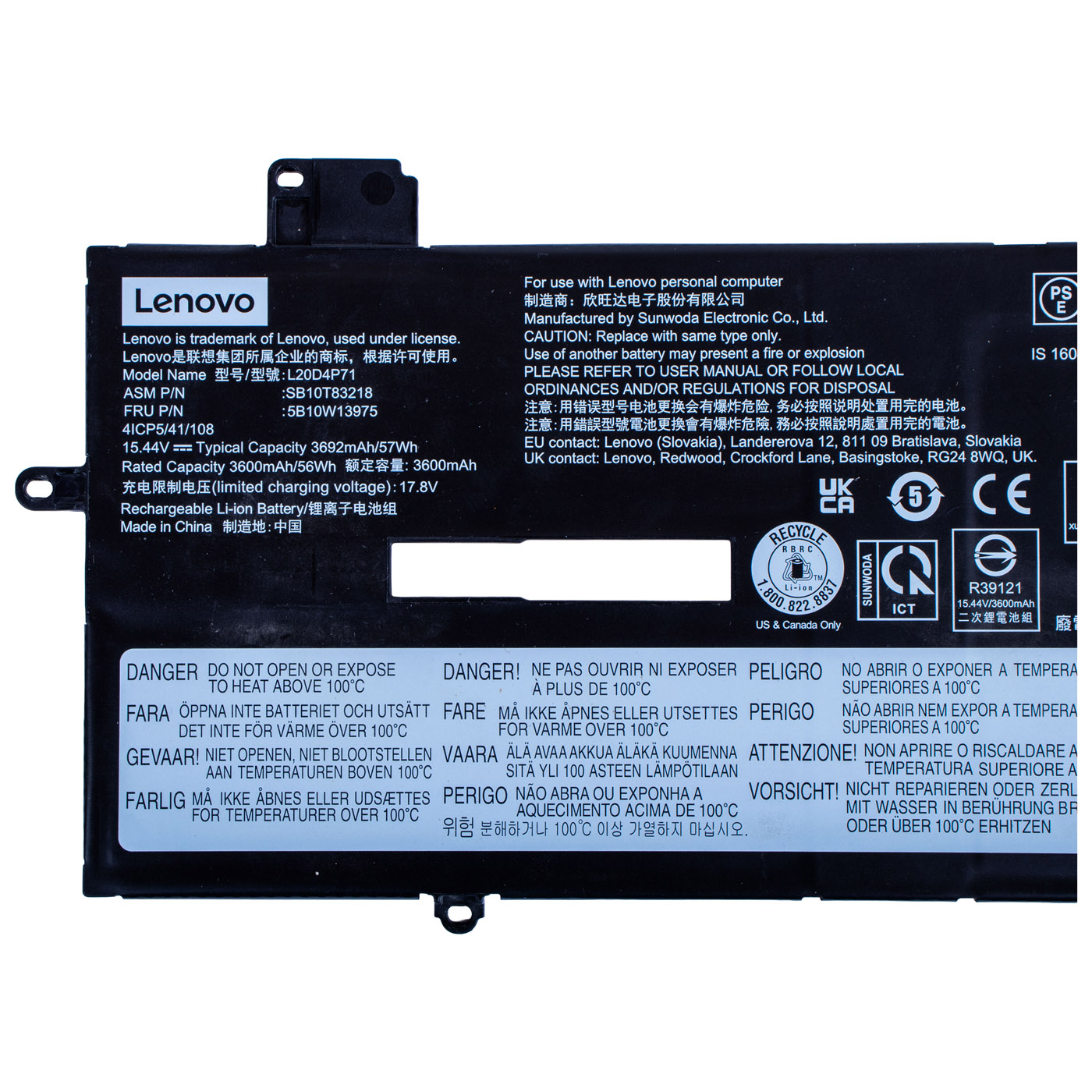

Battery model: L20D4P71
Voltage: 15.44 V
Design capacity: 57 Wh / 3692 mAh
Rated capacity: 56 Wh / 3600 mAh
Charging voltage limit: 17.8 V
Cell chemistry: Li-ion, 4-cell

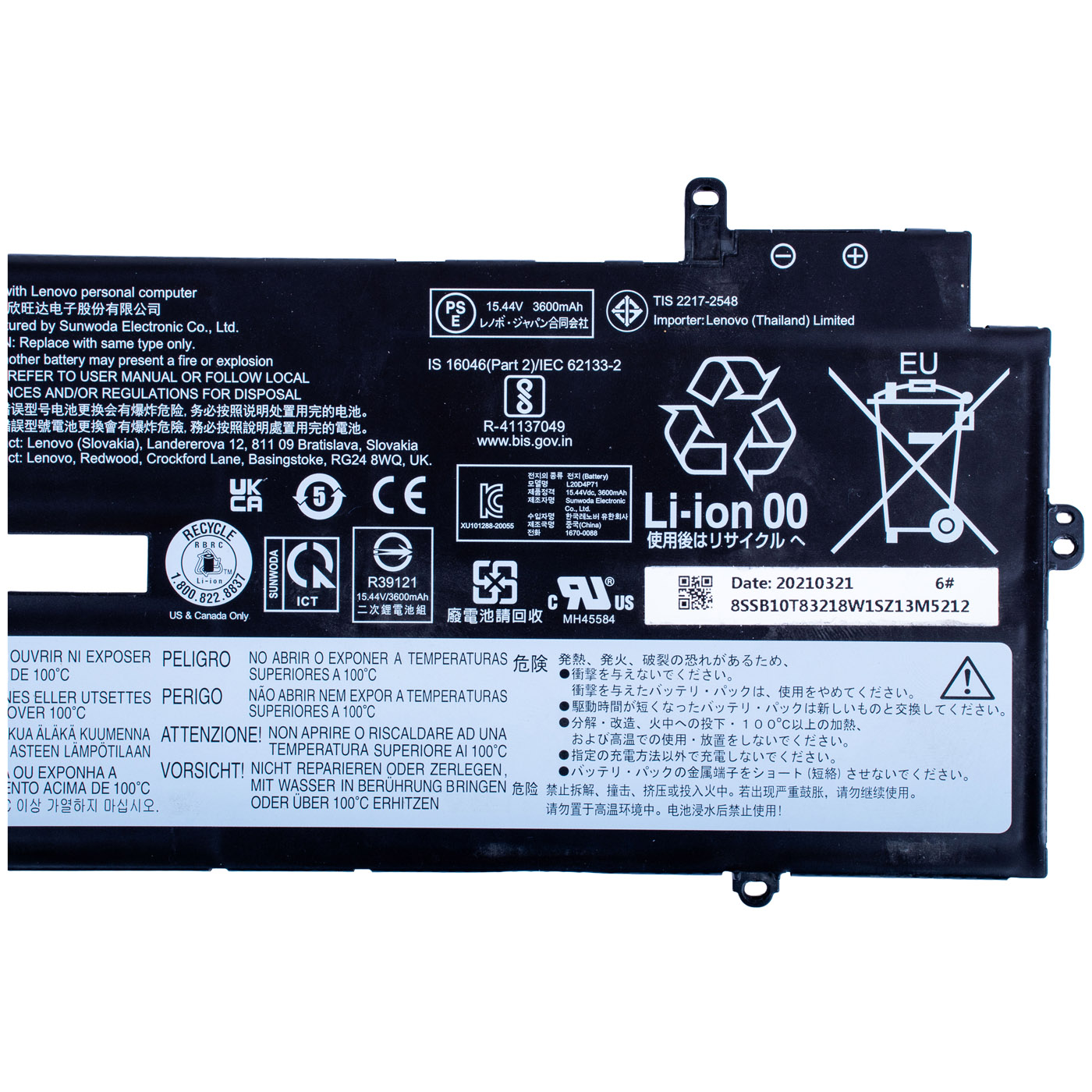

Manufacture date: 21 March 2021
Cell serial number: 21010
Condition: Used (removed from a working device, tested)
FRU: 5B10W13975
ASM P/N: SB10T83218
Alternative part number: 5B11M90058

📊 TECHNICAL CONDITION

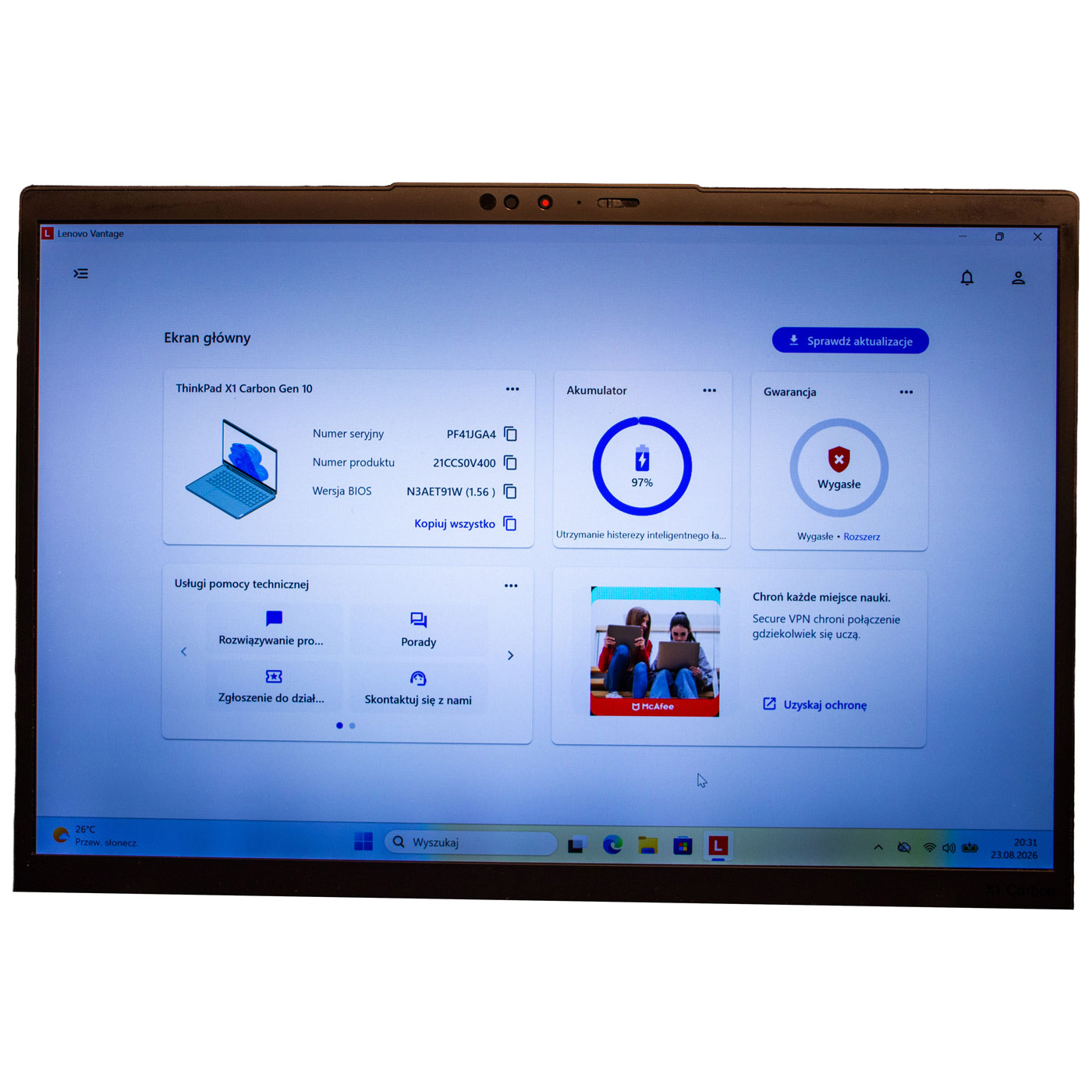

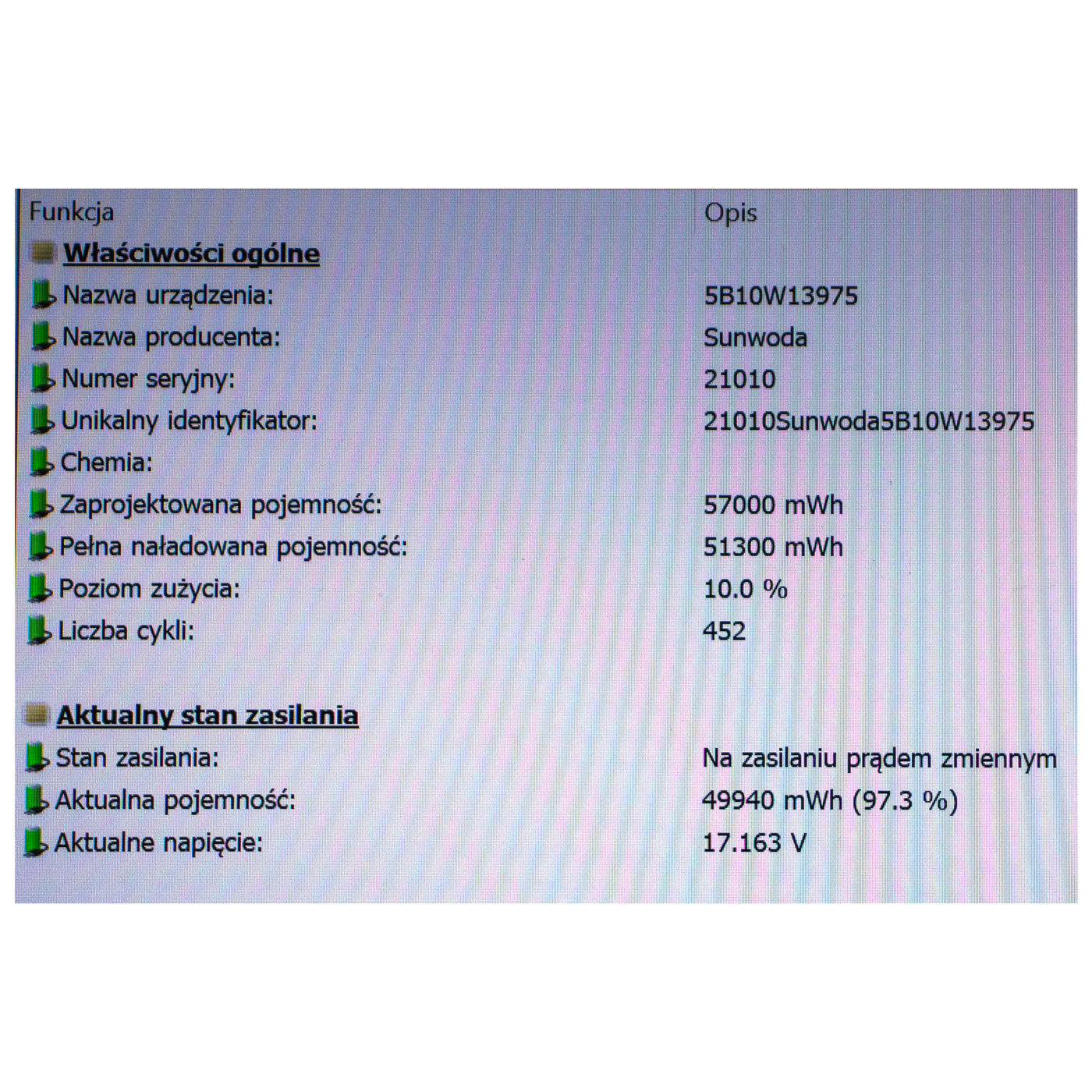

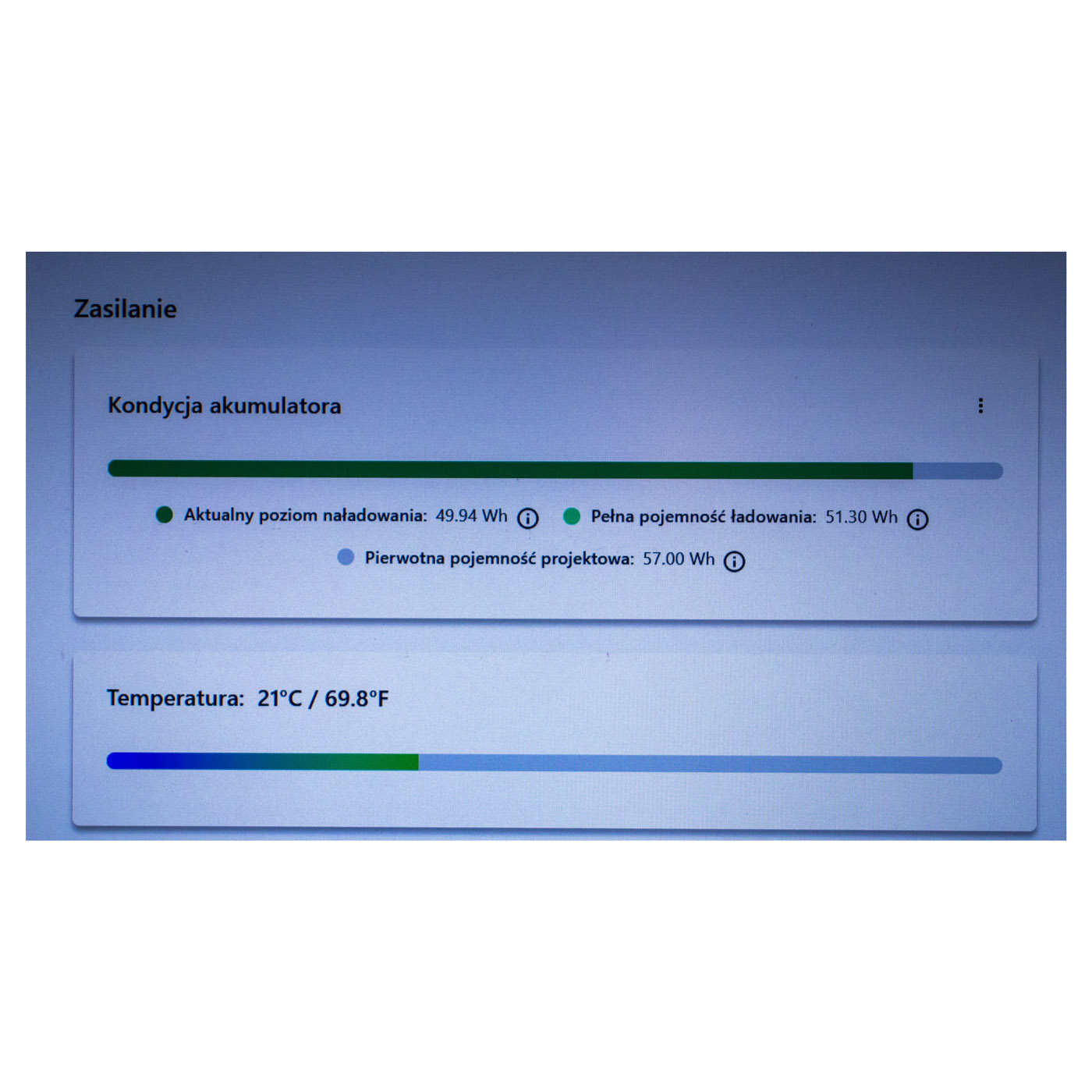

The battery was checked with HWiNFO and the Lenovo Vantage app:
• full charge capacity: 51.30 Wh (51300 mWh)
• design capacity: 57.00 Wh (57000 mWh)
• wear level: 10.0%
• charge cycle count: 452
• operating temperature: 21°C
Despite a relatively high cycle count (452), the battery retained as much as 90% of its original capacity, showing very good cell quality with no significant degradation despite heavy use. These parameters are identical regardless of which compatible model (X1 Carbon Gen 10/11, X1 Yoga Gen 7/8) the battery is installed in.

🌟 KEY ADVANTAGES

🔹 One battery, four compatible models - fits ThinkPad X1 Carbon Gen 10, X1 Carbon Gen 11, X1 Yoga Gen 7 and X1 Yoga Gen 8, so it works whichever of these laptops you're repairing.
🔹 90% retained capacity - real-world battery life very close to a fresh unit, regardless of which of the four compatible models it goes into.
🔹 Good condition despite heavy use - 452 cycles with only 10% capacity loss is a much better result than average for a battery this age.
🔹 Tested before shipping - HWiNFO and Lenovo Vantage data confirm the real cell condition, not just the seller's claim.
🔹 Budget-friendly alternative - significantly cheaper than a new battery for X1 Carbon Gen 10, X1 Carbon Gen 11, X1 Yoga Gen 7 or X1 Yoga Gen 8, with retained performance.

🔢 COMPATIBILITY WITH LENOVO LAPTOPS

According to official Lenovo documentation, this battery (FRU 5B10W13975, alternative part number 5B11M90058) is compatible with the following ThinkPad models:
• X1 Carbon 10th generation (Type 21CB, 21CC) - this unit was removed from this model
• X1 Yoga 7th generation (Type 21CD, 21CE)
• X1 Carbon 11th generation (Type 21HM, 21HN)
• X1 Yoga 8th generation (Type 21HQ, 21HR)
The same battery works identically in all four models - the differences relate only to the laptop chassis, not the cell itself.

❓ WHEN SHOULD YOU REPLACE THE BATTERY?

• Short battery runtime on X1 Carbon Gen 10/11 or X1 Yoga Gen 7/8 compared to factory performance
• The laptop suddenly shuts down despite showing remaining charge
• A swollen battery causing visible deformation of the laptop's bottom cover
• A system message about needing to replace the battery (e.g. "Replace battery")

🔧 INSTALLATION PROCESS

1. Turn off the laptop (X1 Carbon Gen 10, X1 Carbon Gen 11, X1 Yoga Gen 7 or X1 Yoga Gen 8) and disconnect the power supply and all external devices.
2. Remove the screws securing the bottom cover and carefully lift it off.
3. Disconnect the battery connector from the motherboard.
4. Remove the screws securing the battery to the chassis.
5. Remove the old battery and insert the new one in the same position.
6. Secure the screws and reconnect the connector to the motherboard.
7. Close the chassis, power on the laptop and confirm the battery is detected correctly.
We recommend having the replacement performed by a technical service or someone experienced in laptop repairs.

🎯 APPLICATION

This battery is designed for Lenovo ThinkPad X1 Carbon Gen 10, X1 Carbon Gen 11, X1 Yoga Gen 7 and X1 Yoga Gen 8 laptops. It's a good choice for anyone whose original battery in any of these four models has lost capacity or failed, and who is looking for a working, tested replacement without buying a new unit.

✅ COMPATIBILITY GUARANTEE

The offered battery was removed from a working Lenovo ThinkPad X1 Carbon Gen 10 and thoroughly tested before listing. We guarantee full compatibility for FRU 5B10W13975 with the X1 Carbon Gen 10, X1 Carbon Gen 11, X1 Yoga Gen 7 and X1 Yoga Gen 8 models, and functionality matching the stated parameters. In case of any compatibility issues, we offer a hassle-free 14-day return.
