🔧 LCD Rear Cover for Lenovo ThinkPad T480s - with Camera Cable and Antennas 🔧

🖥️ T480s | LCD Cover + Camera/LED Cable + WLAN/WWAN Antenna | FRU 01YT300

A complete LCD rear cover for the Lenovo ThinkPad T480s laptop, supplied with the camera and LED indicator cable plus WLAN and WWAN antennas. RGB camera version (not IR/hybrid). Part sourced from a working device. FRU 01YT300 (COVER, A-Cover, FHD, HD CAM, BLK) confirms compatibility with the T480s.

⚙️ PRODUCT CHARACTERISTICS

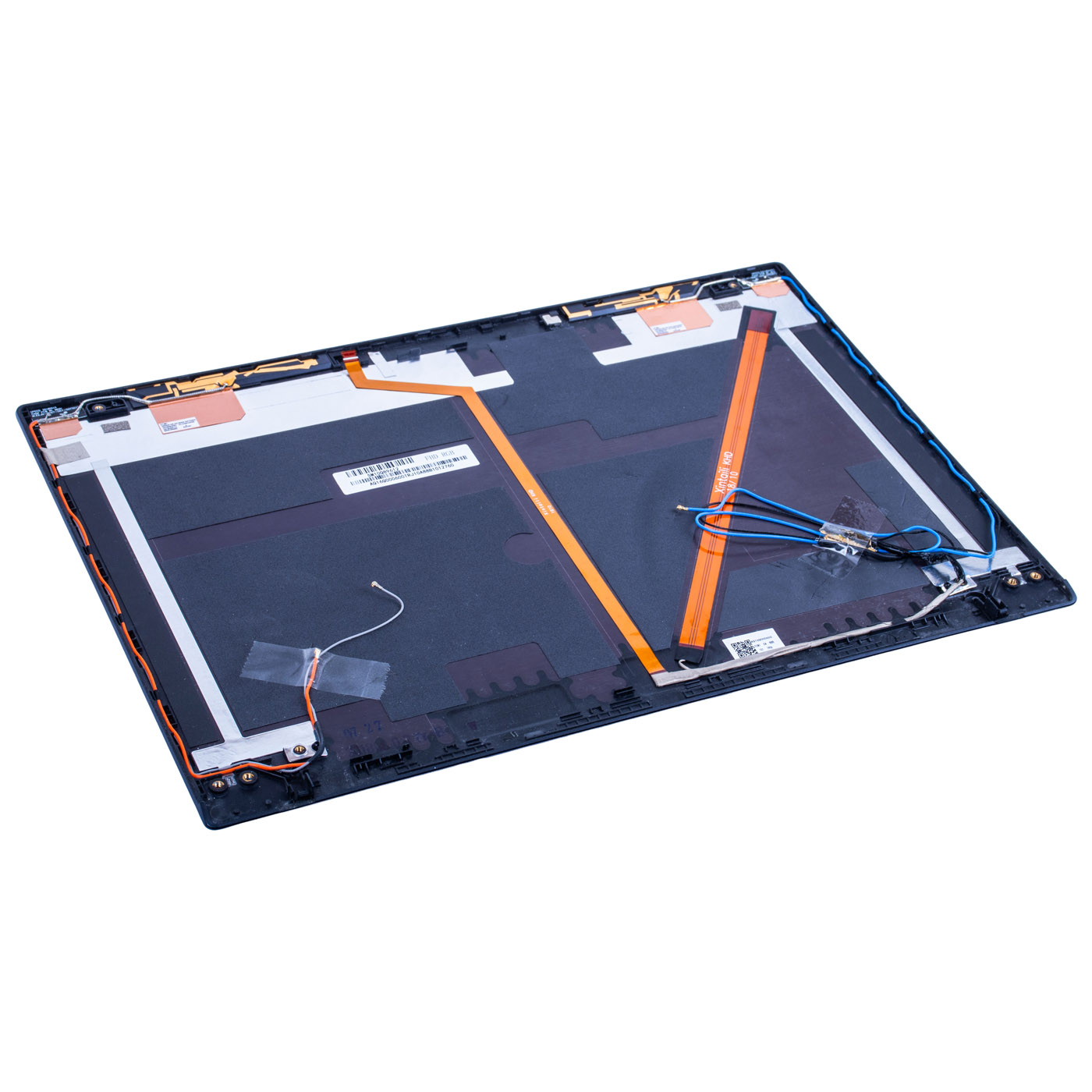

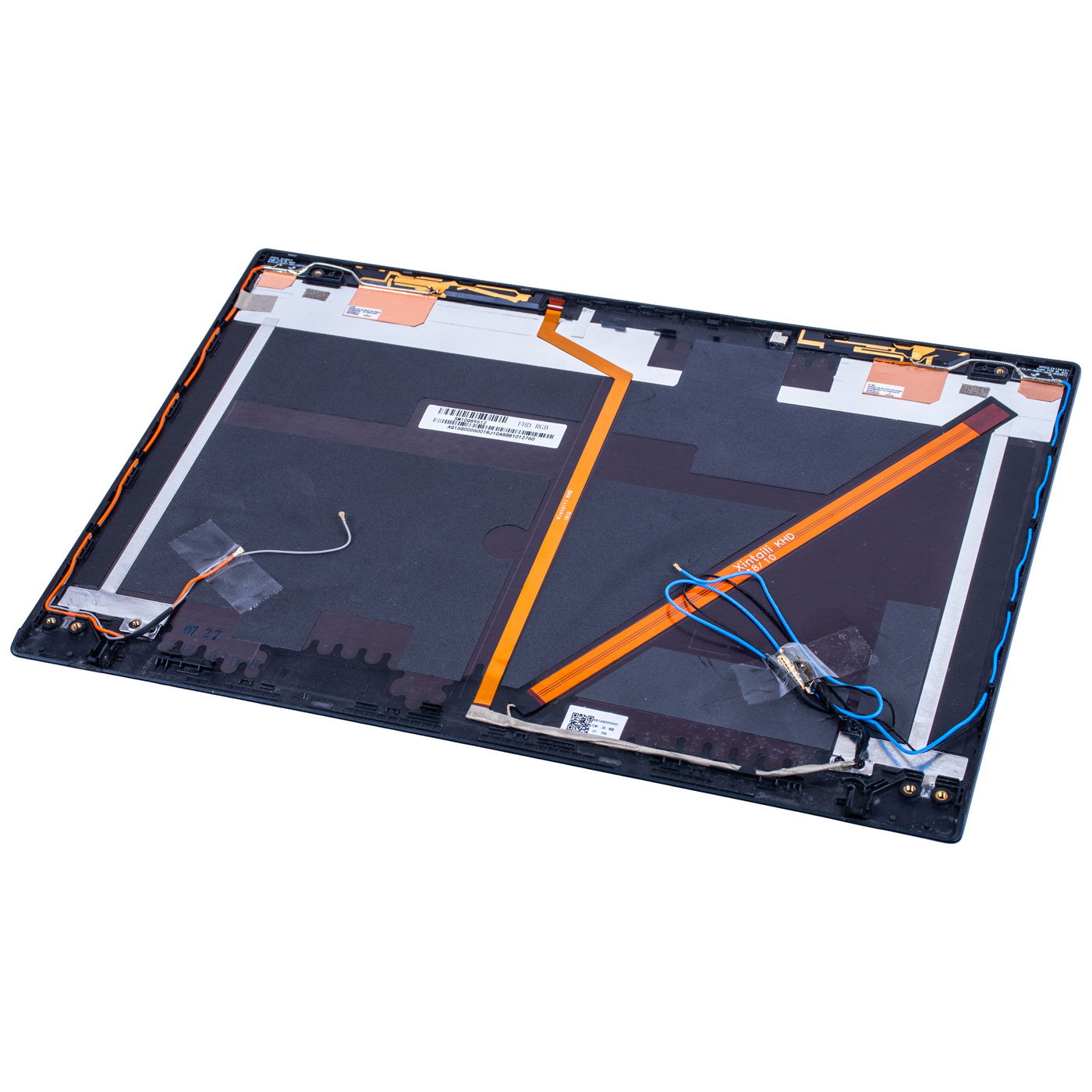

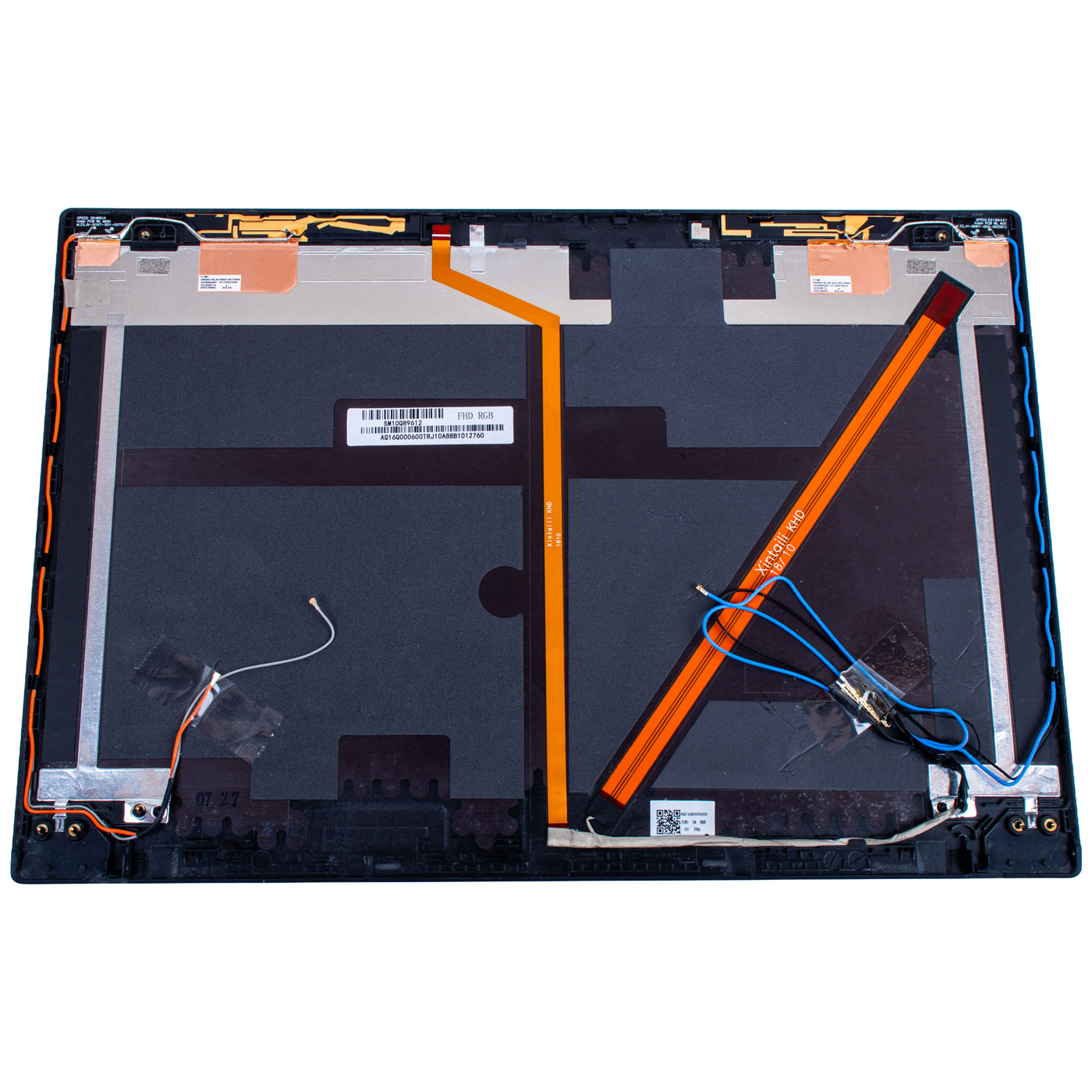

This LCD cover is the back lid housing itself (FRU 01YT300, FHD, non-touch, plastic version, black colour) together with the factory-installed wiring: the camera and LED indicator cable (the red dot lighting up the ThinkPad logo) and WLAN and WWAN antennas. The set does not include the LCD panel or its eDP signal cable - it is a ready housing for mounting your own or a matching panel together with its own eDP cable.

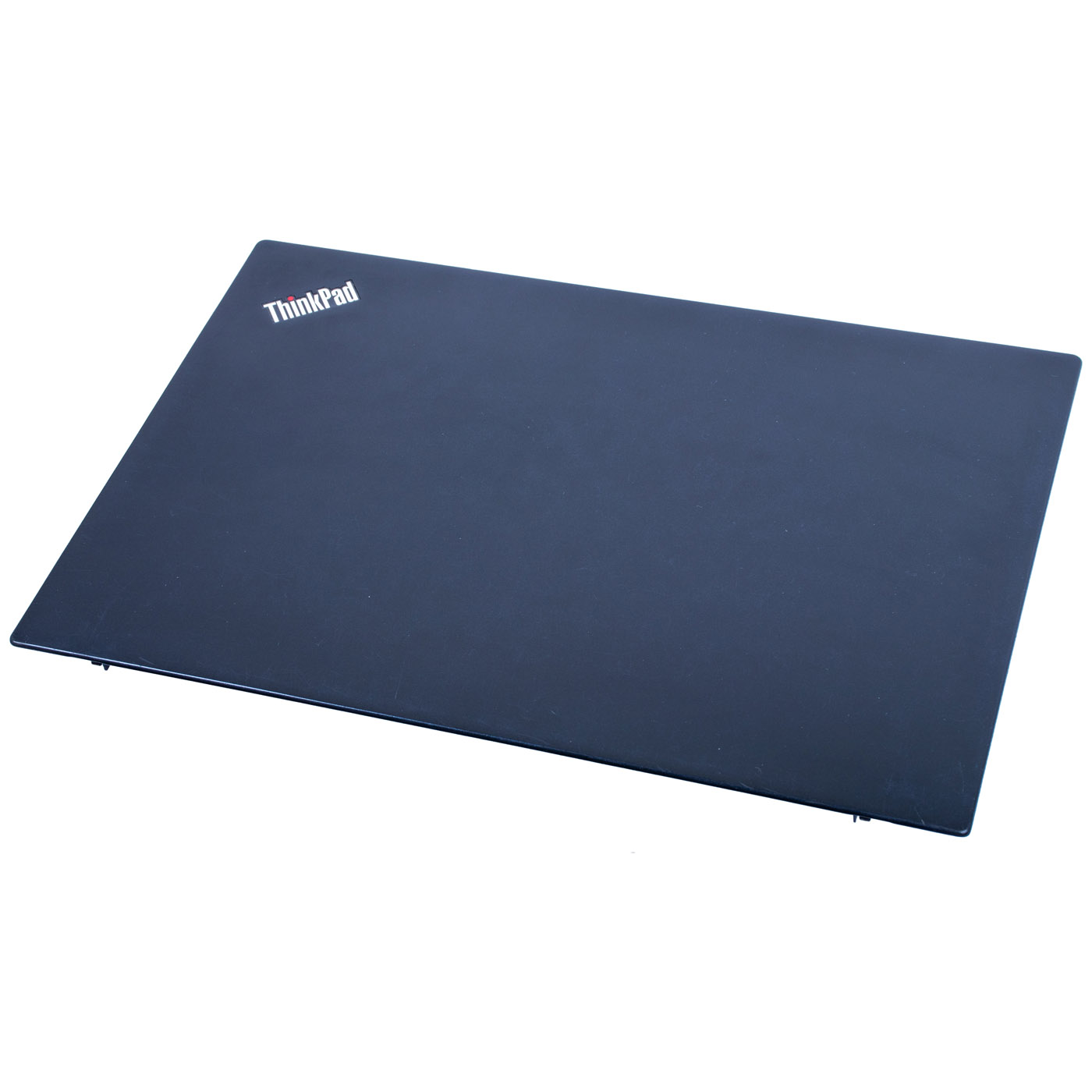

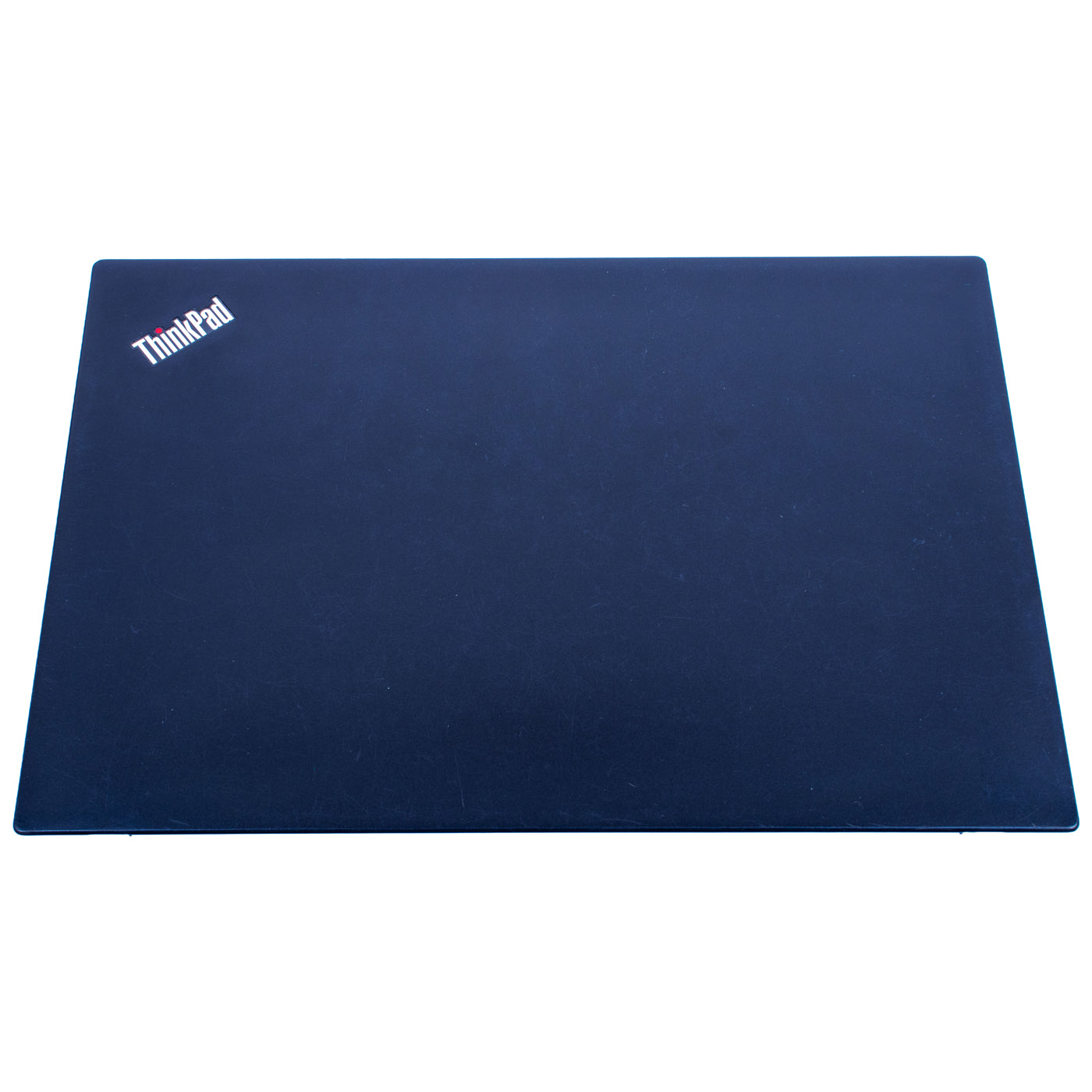

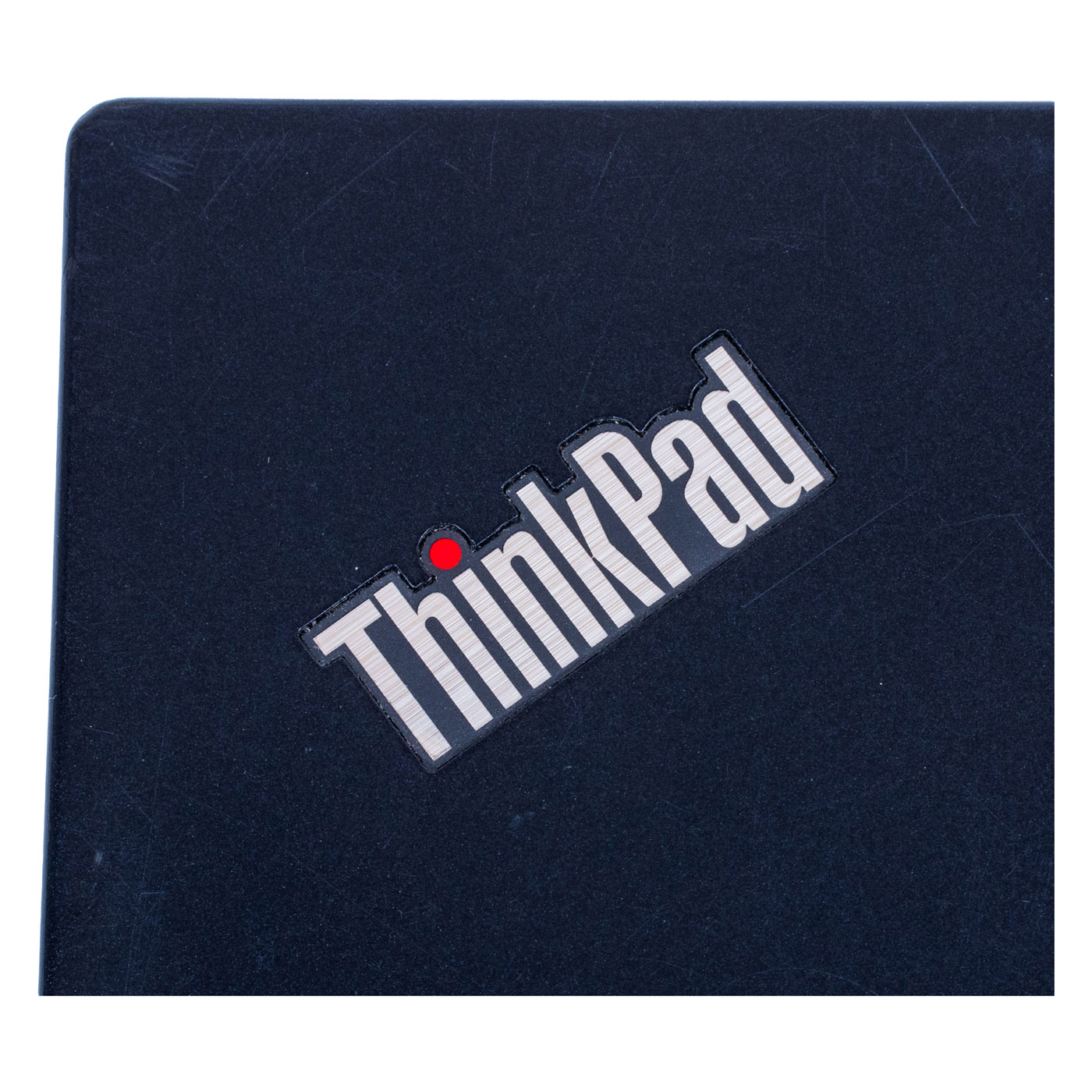

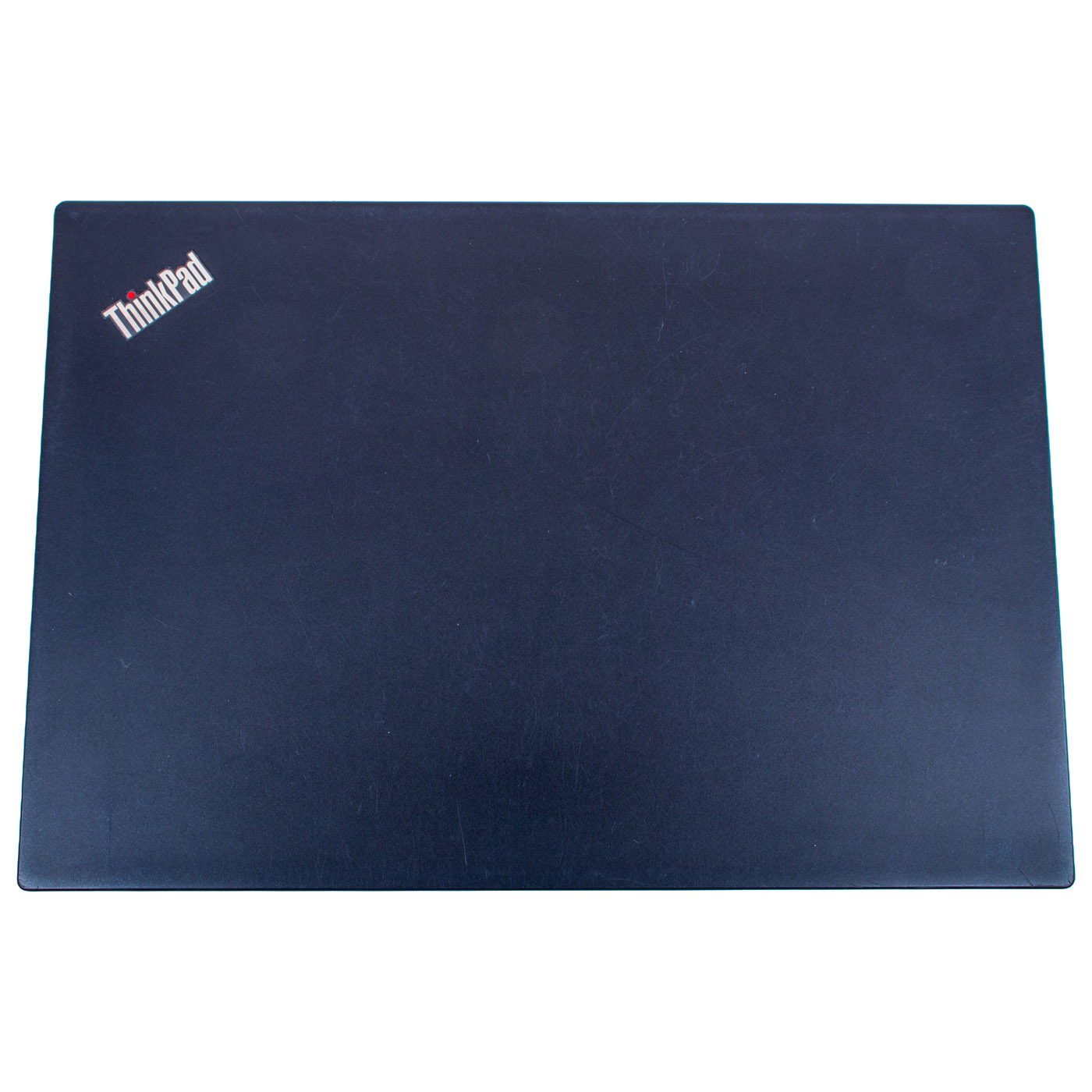

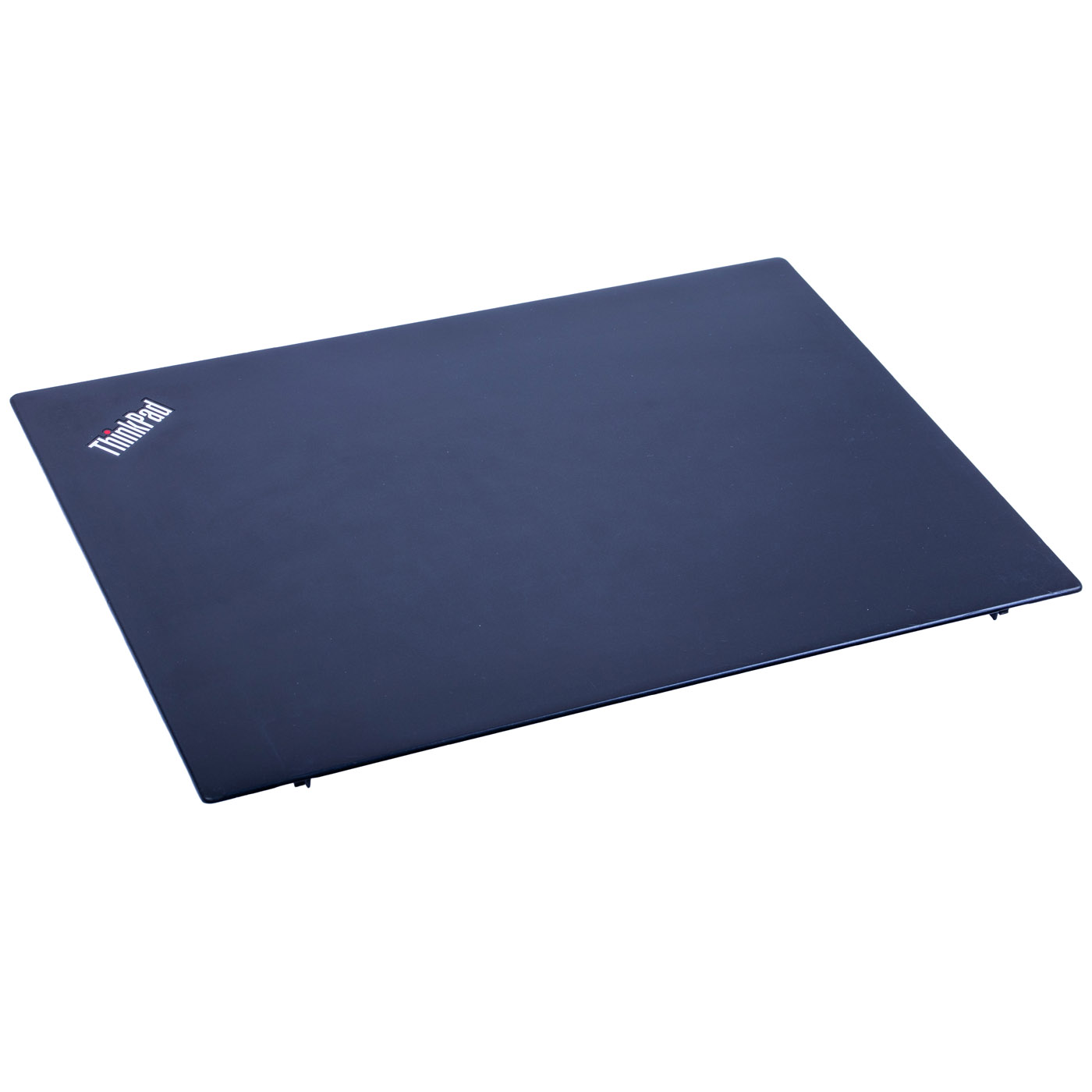

Visual condition: the part is in good condition with normal signs of use - minor scratches and scuffs on the surface, no significant damage. The ThinkPad badge is present and undamaged.

📋 TECHNICAL DATA

Part name: LCD rear cover with camera cable and antennas
Brand: Lenovo ThinkPad
Compatible model: ThinkPad T480s
Colour: Black
Camera version: RGB (standard, not IR/hybrid)
Compatible panel: FHD 1920x1080, non-touch (panel and its eDP cable NOT included)
Set contents: LCD cover, camera cable, LED indicator cable (ThinkPad logo), WLAN antenna, WWAN antenna
Condition: Used (pulled from a working unit, tested)
FRU (cover): 01YT300 (COVER, A-Cover, FHD, HD CAM, BLK)
Alternative part numbers (cover): 5CB0W21694, 5M10Z35210

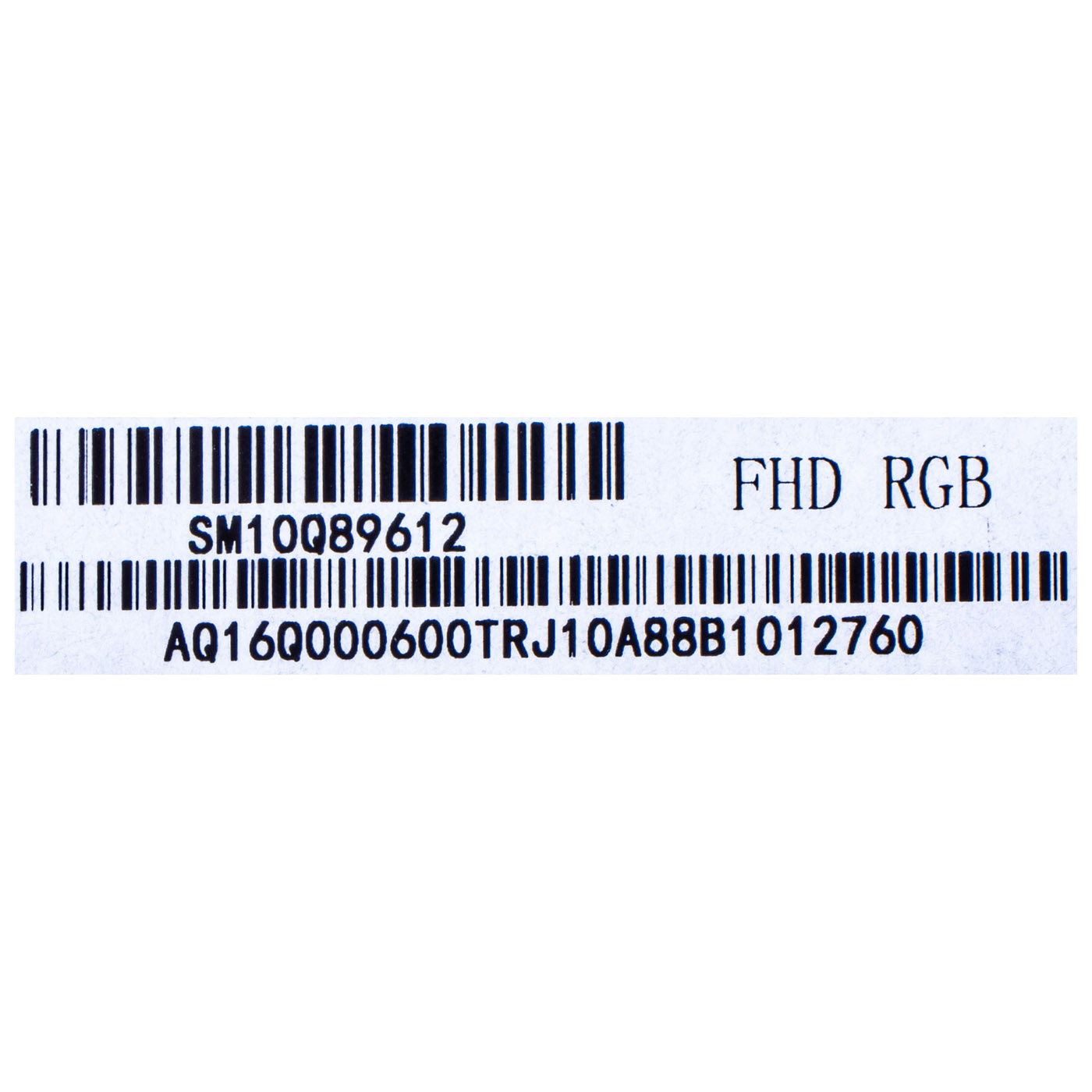

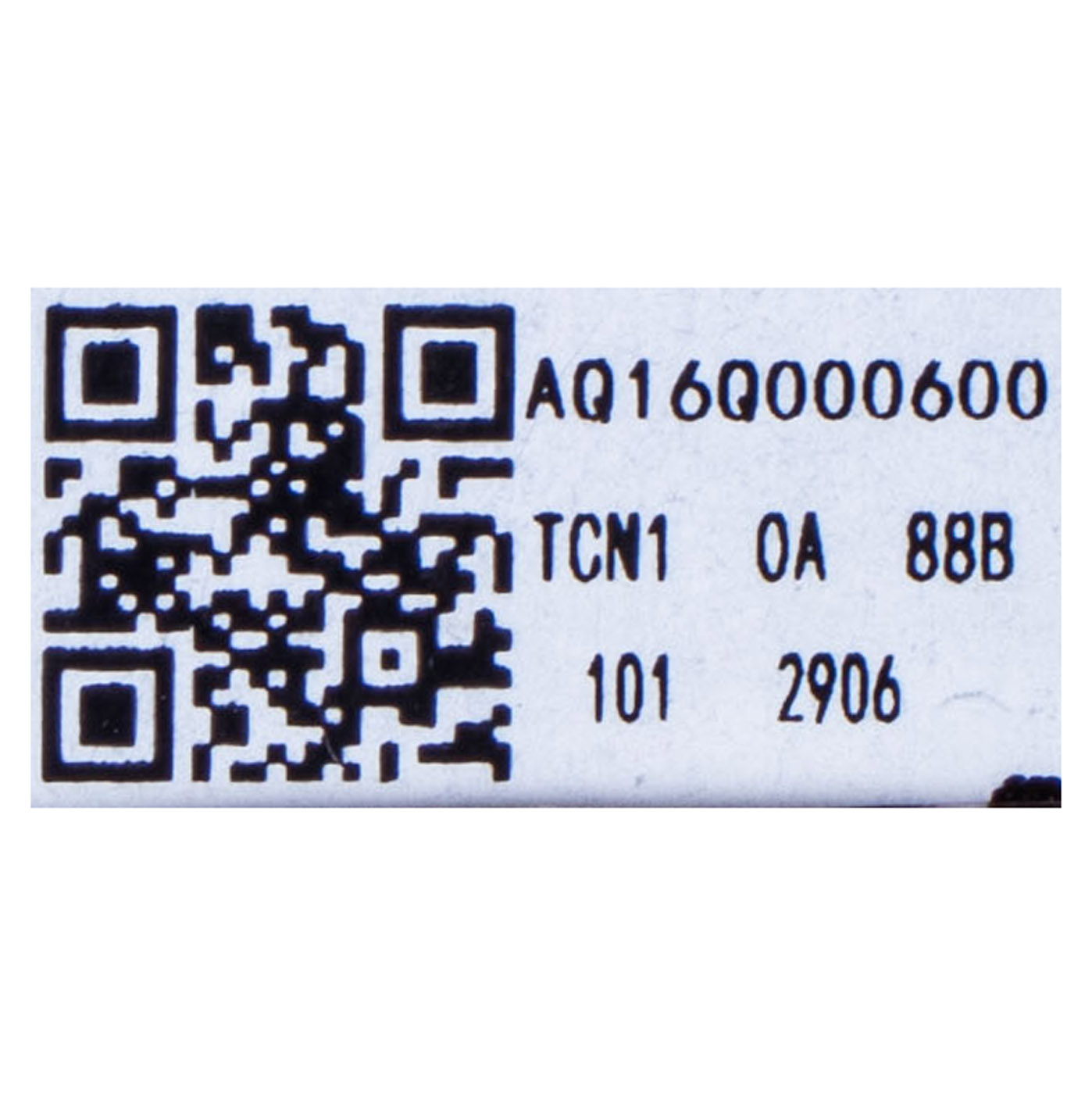

Set part number: AQ16Q000600
Cable number (camera/LED): SM10Q89612

🌟 KEY ADVANTAGES

🔹 Complete set with wiring - cover, camera cable, LED cable and antennas together, no need to source and combine separate components
🔹 Factory WLAN and WWAN antennas - full wireless connectivity retained, including the WWAN module if fitted to your laptop
🔹 Full compatibility - matches the ThinkPad T480s under FRU 01YT300, drop-in replacement

🔢 PART NUMBERS

FRU (cover): 01YT300
Alternative part numbers: 5CB0W21694, 5M10Z35210
Set part number: AQ16Q000600
Cable number (camera/LED): SM10Q89612
Laptop model: Lenovo ThinkPad T480s

❓ WHEN TO REPLACE THE LCD COVER?

• Problem with a cracked or dented lid cover after the laptop was dropped
• Problem with a camera that won't connect or has stopped working
• Problem with a non-working LED indicator light next to the ThinkPad logo
• Problem with a Wi-Fi or WWAN antenna causing poor network signal

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the bottom cover screws and disconnect the battery from the motherboard
3. Disconnect the camera/LED cable and antenna cables from the WLAN/WWAN card and motherboard
4. Remove the old cover together with your existing panel and its eDP cable
5. Transfer the panel with its eDP cable into the new cover, install the new lid, route and reconnect the camera/LED cable and antennas
6. Refit the bottom cover, reconnect the battery and power supply
7. Turn the laptop on and verify the image displays correctly, the camera and LED indicator work, and Wi-Fi signal is present
Replacement by a technical service or someone experienced in laptop repairs is recommended.

🎯 INTENDED USE

This LCD cover is a replacement in case of damage to the housing, camera/LED cable or antennas on a ThinkPad T480s - cracks, a non-working camera or indicator light, or weak Wi-Fi signal. It does not include the LCD panel or its eDP cable - your own or a matching panel with its cable needs to be transferred from the old cover. As a used part it shows the minor wear described above, which does not affect functionality. "Photos in the listing show the actual item offered."

✅ COMPATIBILITY GUARANTEE

The offered LCD cover has been carefully checked and matched to the Lenovo ThinkPad T480s model. We guarantee full compatibility for FRU number 01YT300 and correct functioning of the wiring. Used parts come with a 6-month warranty. In case of any compatibility issues, we offer a hassle-free return within 14 days.
