🔧 CPU Cooling Assembly (Heatsink with Fan) for Lenovo ThinkPad T480s UMA 🔧

🖥️ ThinkPad T480s | CPU Heatsink with Fan | UMA Version (Integrated Graphics) | FRU 01HW699

Used, fully functional cooling assembly dedicated to the Lenovo ThinkPad T480s in the UMA configuration, meaning integrated graphics (no dedicated GPU). Part sourced from disassembly and tested - the fan spins smoothly and quietly, with no ticking or sticking. FRU number 01HW699 guarantees full compatibility with the T480s UMA model.

⚙️ PRODUCT CHARACTERISTICS

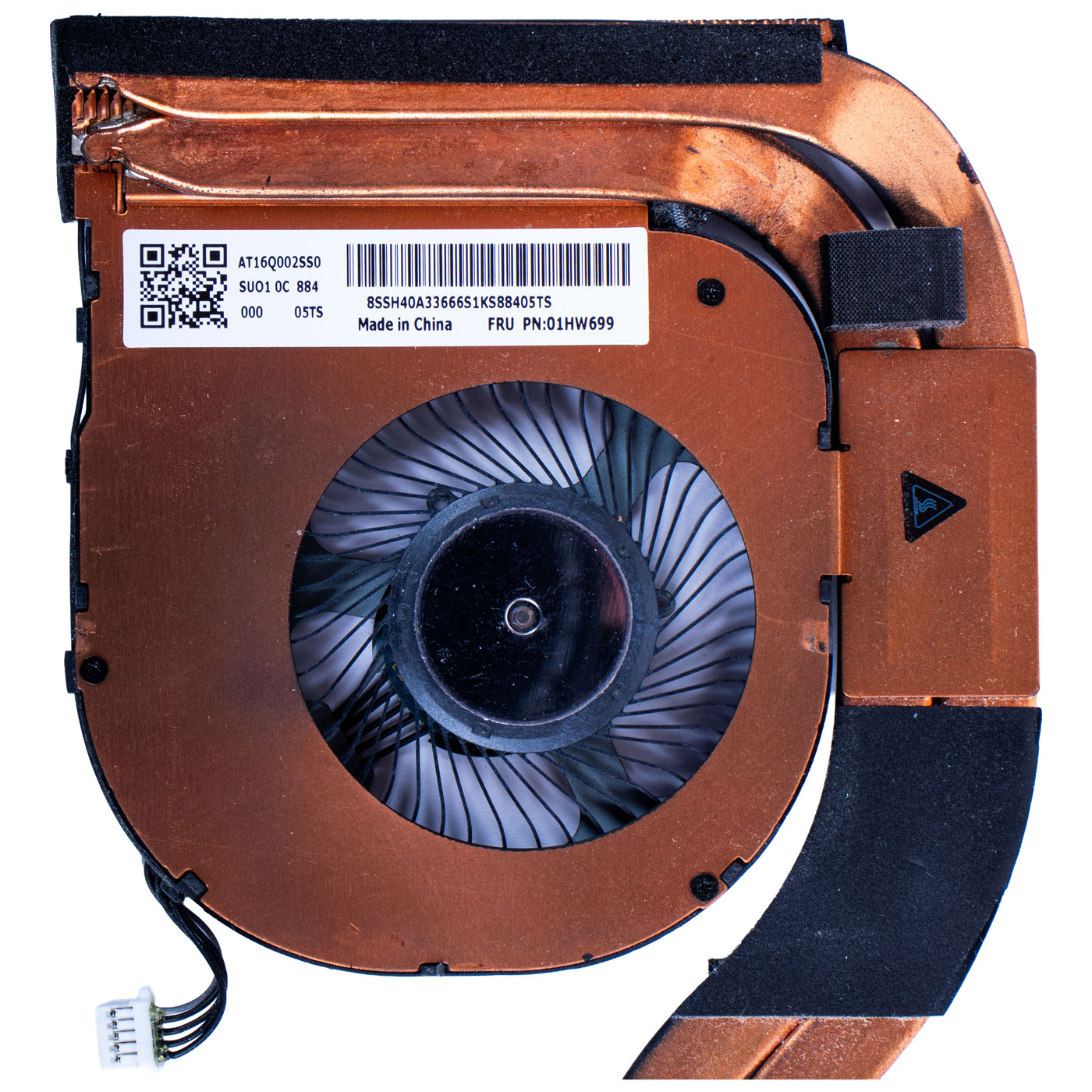

Copper heatsink with heat pipes and an integrated fan, designed exclusively for cooling the CPU in the integrated graphics configuration. The original Lenovo label with FRU number 01HW699 is visible. Fan operation has been tested - it starts up without resistance and runs smoothly across all speeds.

📋 TECHNICAL DATA

Part name: CPU heatsink with fan (cooling assembly)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad T480s (UMA version - integrated graphics)
Condition: Used (removed, tested, working)
FRU: 01HW699
Alternative part numbers: 01LV695, 01HW697 (equivalent variants of the same cooling assembly)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed mechanical fit with the T480s chassis
🔹 Tested fan - smooth, quiet operation with no ticking, ensuring stable cooling right after installation
🔹 Complete assembly - heatsink and fan as a single unified component, no need to combine separate parts
🔹 Full compatibility - matches the T480s UMA under FRU 01HW699

🔢 PART NUMBERS

FRU: 01HW699
Alternative part numbers: 01LV695, 01HW697
Laptop model: Lenovo ThinkPad T480s (UMA - integrated graphics)

❓ WHEN SHOULD YOU REPLACE THE COOLING ASSEMBLY?

• The laptop overheats and the fan runs loudly even after cleaning out dust
• The fan does not spin at all, or spins with noticeable ticking or grinding
• The laptop shuts down unexpectedly under load due to CPU overheating
• The heatsink is damaged or bent following a previous unsuccessful repair

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws holding the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the fan connector from the motherboard
5. Remove the screws holding the heatsink (in reverse order to the tightening sequence, following the numbering on the heatsink)
6. Lift off the old cooling assembly and clean off the old thermal paste residue from the CPU
7. Apply new thermal paste, install the new heatsink and tighten the screws crosswise in ascending order
8. Connect the fan, reassemble the laptop and verify it powers on correctly and the fan operates
Replacement is recommended by a technical service or a person experienced in laptop repairs.

🎯 PURPOSE

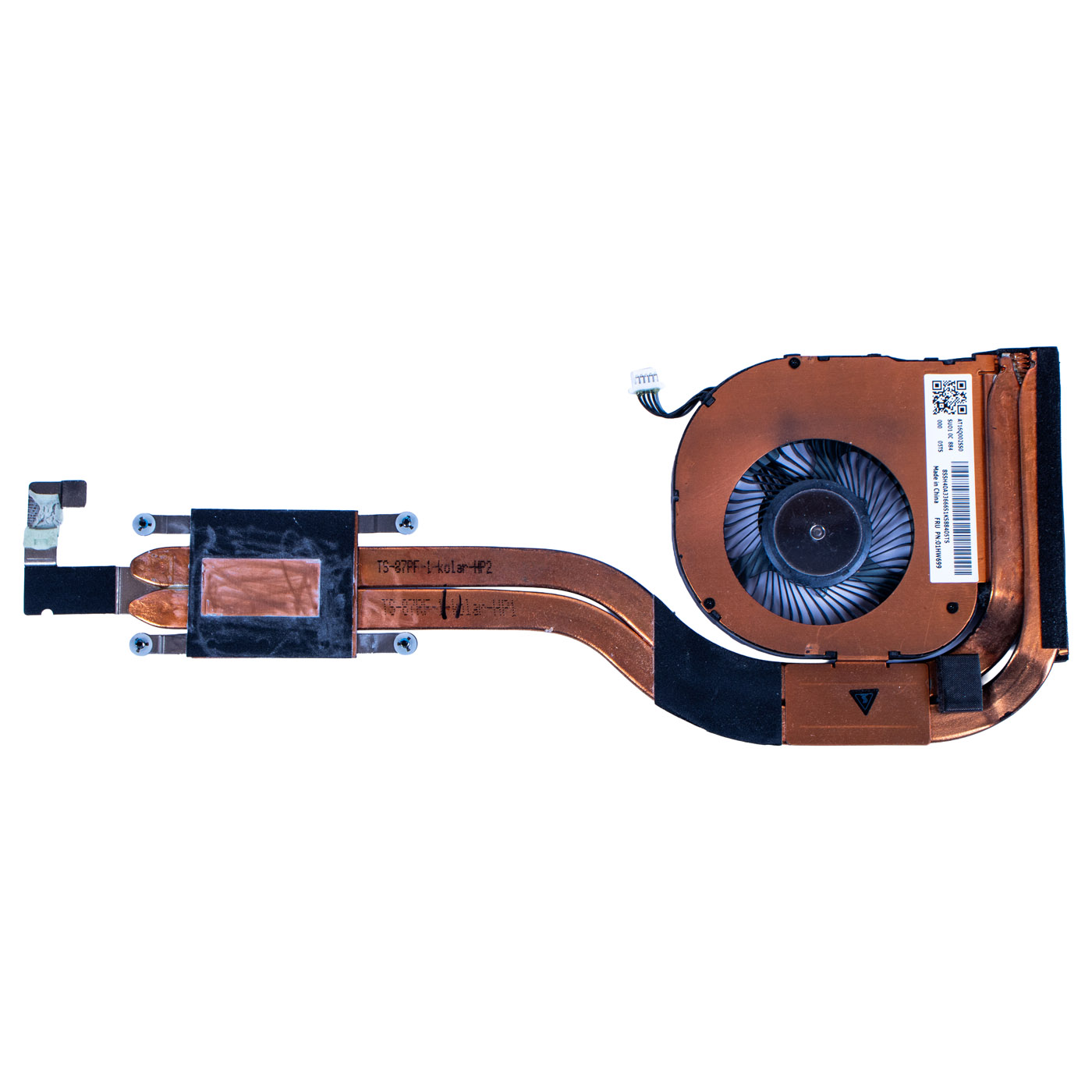

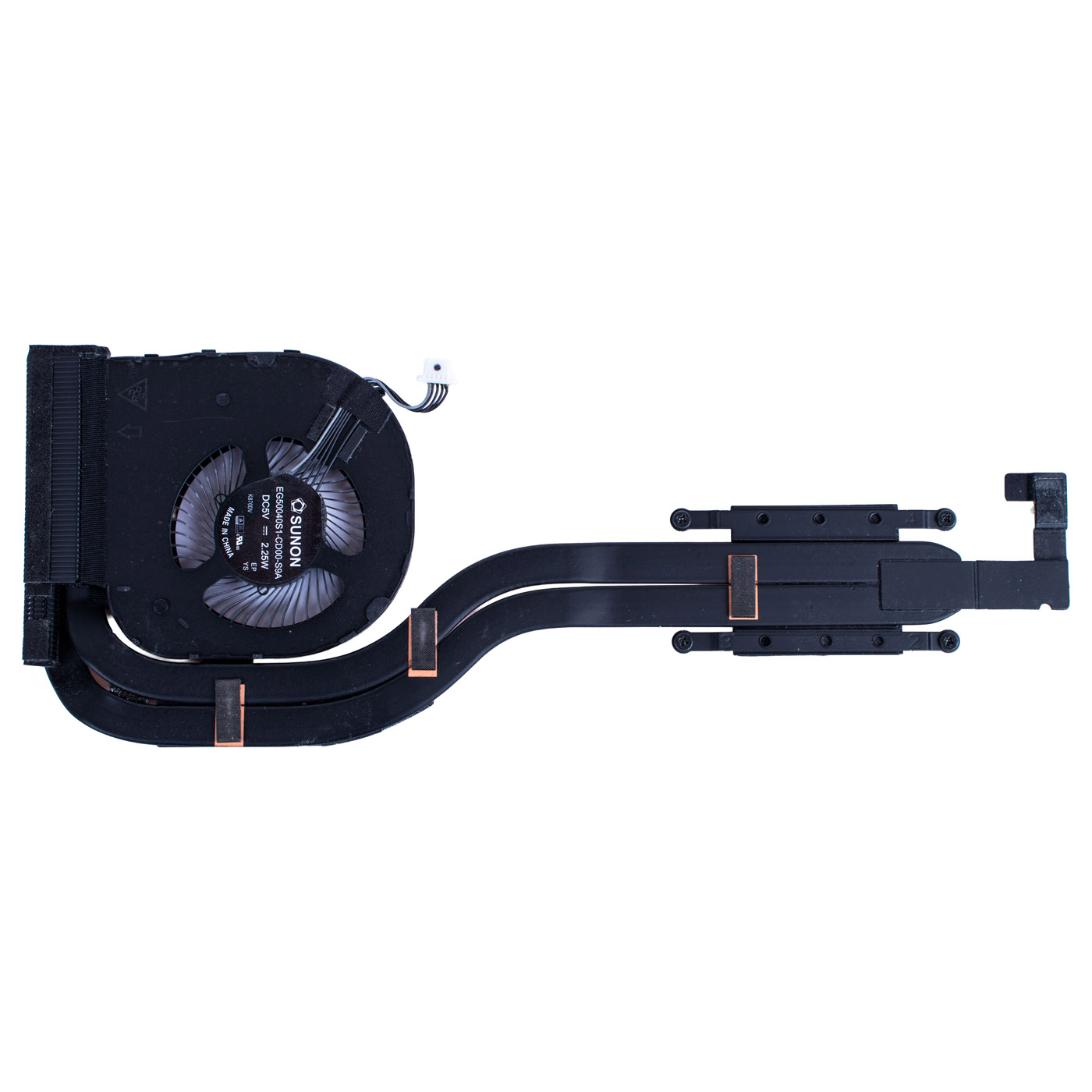

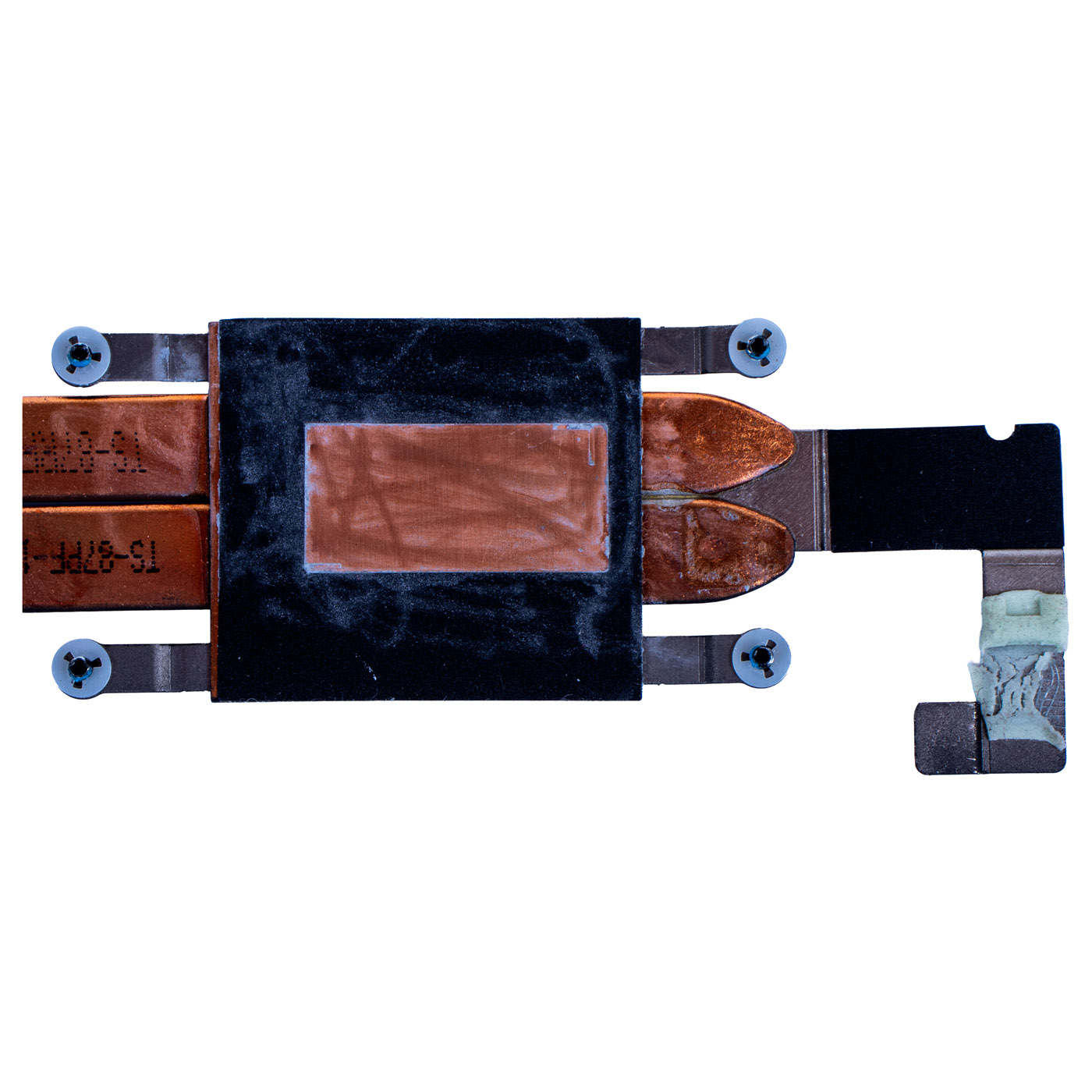

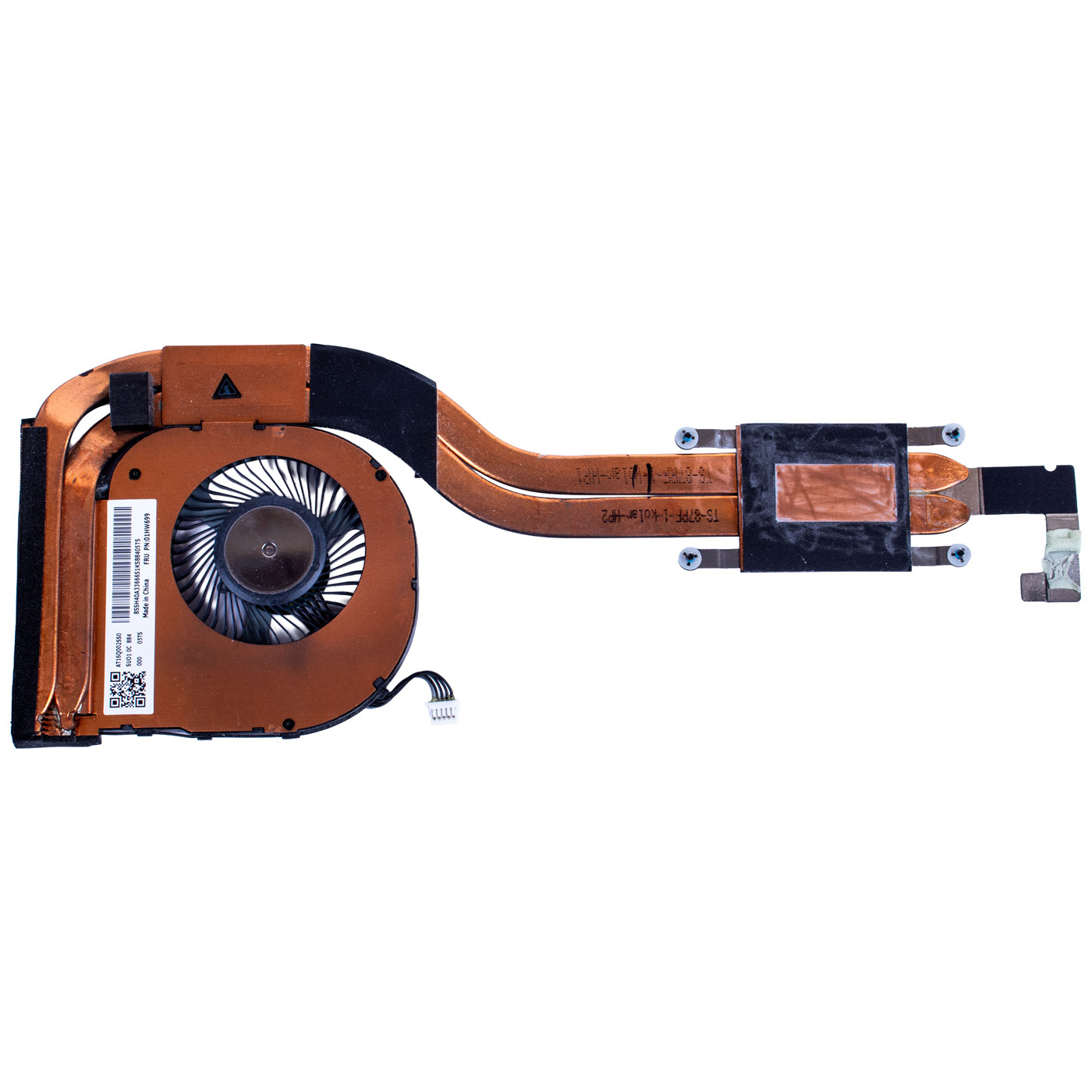

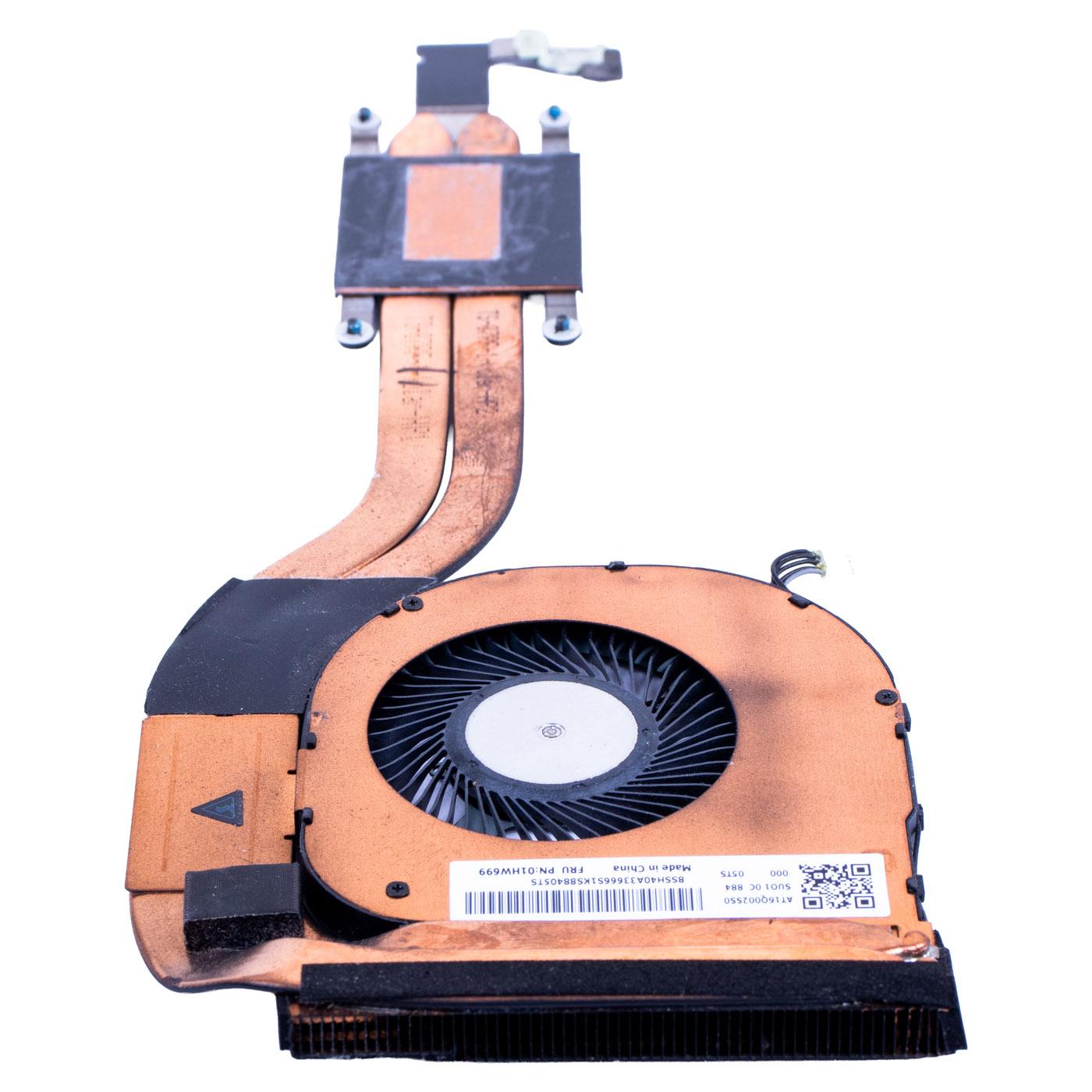

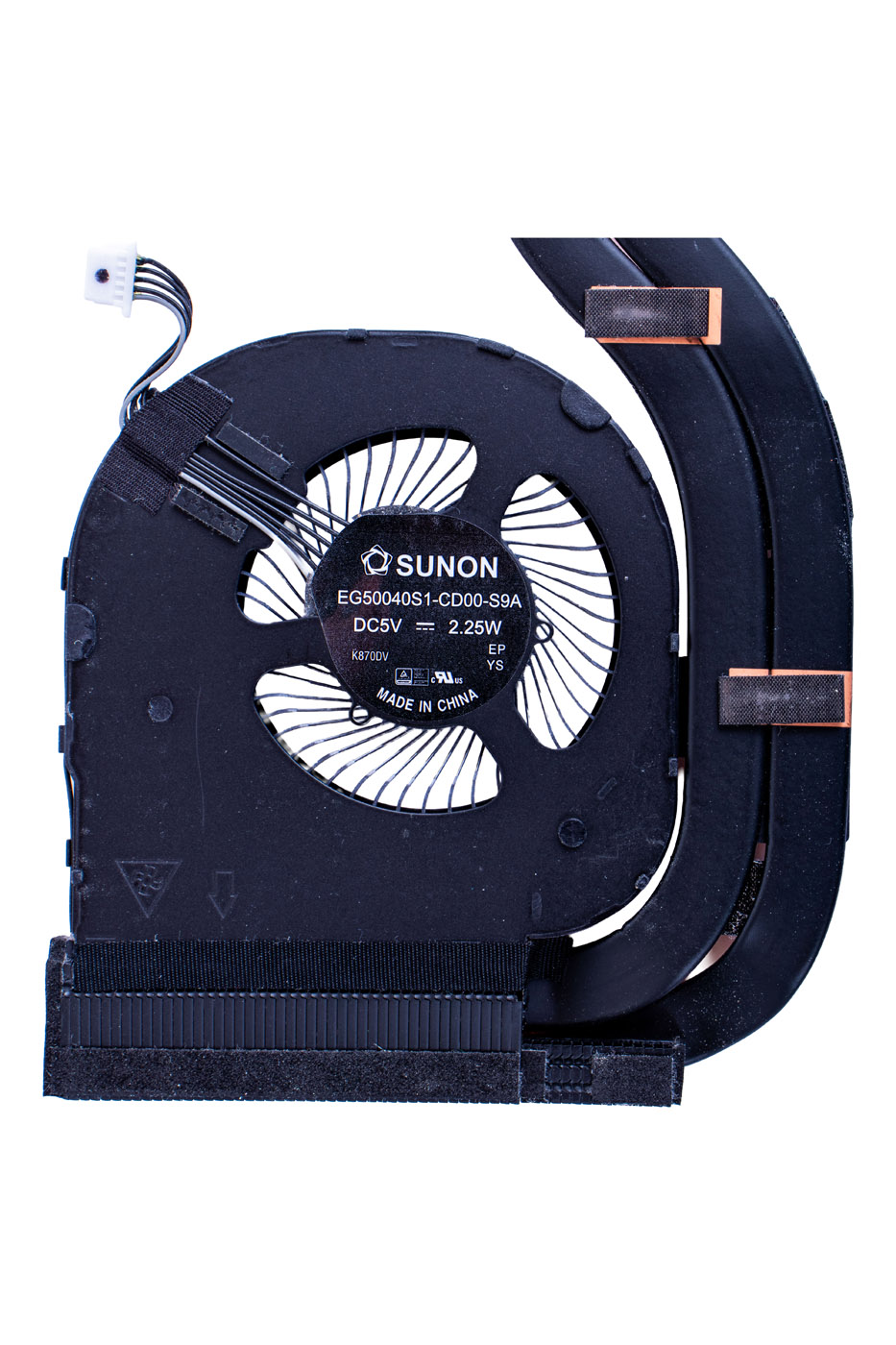

This cooling assembly is intended for ThinkPad T480s (integrated graphics/UMA) users whose original heatsink or fan has failed. A working fan and clear heat pipes restore proper CPU cooling and eliminate overheating. "Photos in the listing show the exact item offered."

✅ COMPATIBILITY GUARANTEE

The offered cooling assembly has been thoroughly tested and matched to the Lenovo ThinkPad T480s UMA model. We guarantee full compatibility under FRU number 01HW699 and 100% fan functionality. As a used, tested part, it comes with a 6-month warranty. In case of any compatibility issues, we provide a hassle-free return within 14 days.
