🔧 Power Button Board (Power Switch Board) for Lenovo ThinkPad X13 Gen 3 / T14s Gen 3 🔧

🖥️ ThinkPad X13 Gen 3 / T14s Gen 3 (Intel) | Power Board | FRU 5C51C94275

Genuine power button board (power switch board) dedicated to Lenovo ThinkPad X13 Gen 3 and T14s Gen 3 laptops, Intel CPU versions. Part sourced from a working device, in excellent visual condition, and tested - we guarantee 100% functionality. FRU number 5C51C94275 guarantees full compatibility with the ThinkPad X13 Gen 3 and T14s Gen 3 models.

⚙️ PRODUCT CHARACTERISTICS

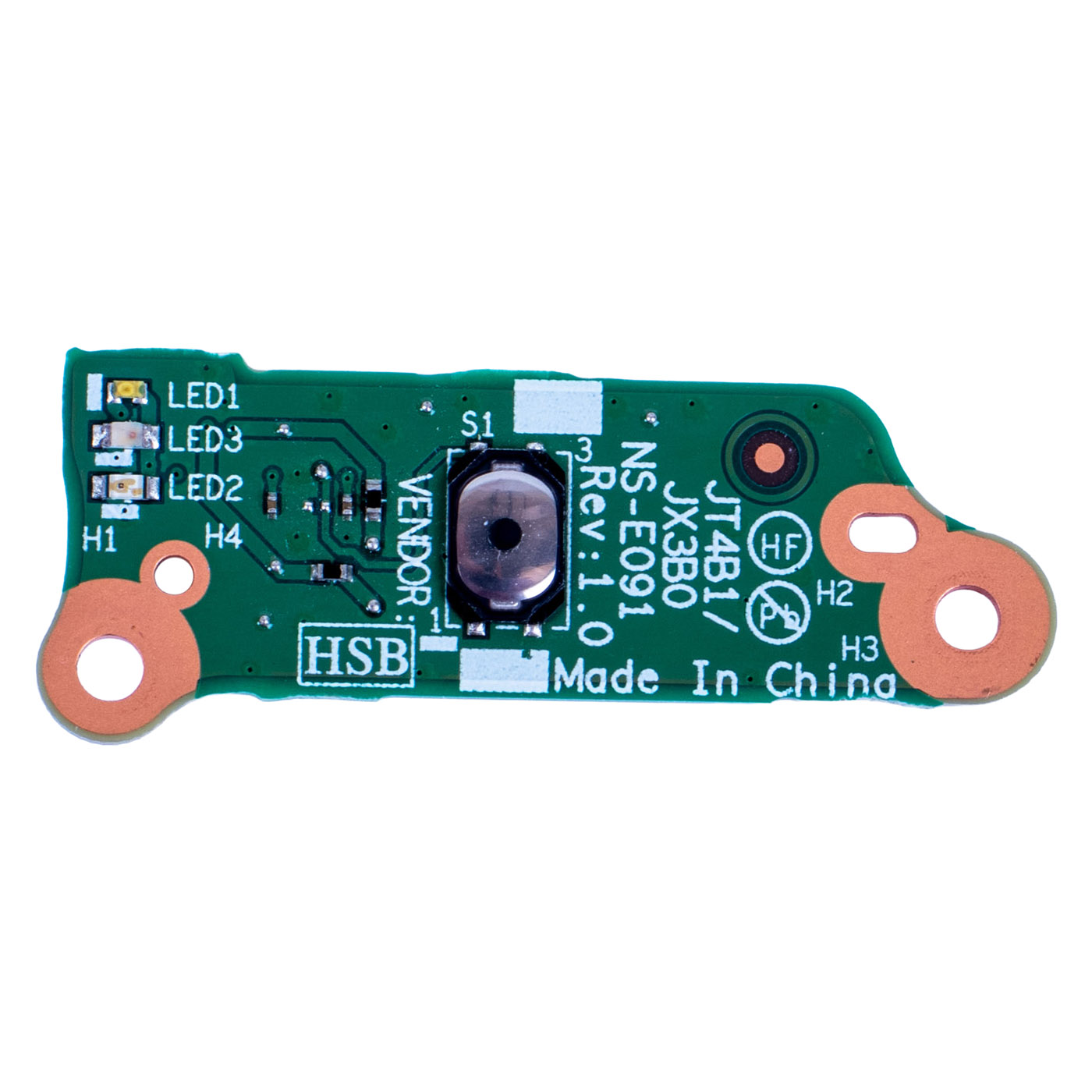

A small subcard with the power on/off button and three status LEDs, connected to the motherboard via the JPWR2 connector. Listed in the Lenovo Parts Lookup catalog as "FRU CARDPOP SERVAL2 POWER BOARD".

📋 TECHNICAL DATA

Part name: Power Button Board (Power Switch Board)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad X13 Gen 3 (Type 21BN, 21BQ), ThinkPad T14s Gen 3 (Type 21BR, 21BS) - Intel versions
Condition: Used (pulled from a working unit, excellent condition)
FRU: 5C51C94275

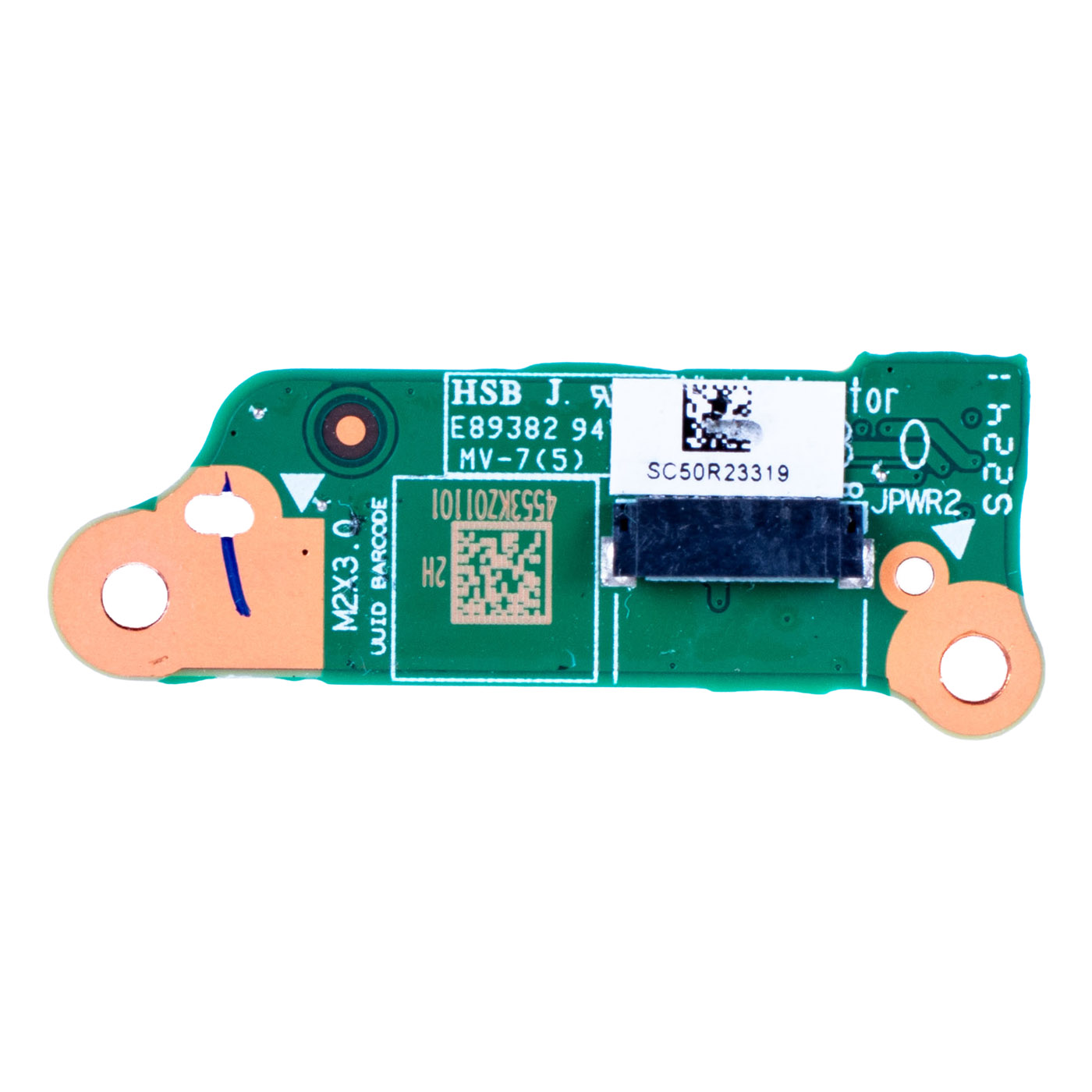

Markings on the part: SC50R23319, MV-7(5), NS-E091, JT4B1/JX3B0, REV:1.0

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed perfect fit for the JPWR2 connector and mounting holes
🔹 Excellent condition despite "used" status - no visible wear, looks and works like new
🔹 Full compatibility - matched to the ThinkPad X13 Gen 3 and T14s Gen 3 (Intel) under FRU number 5C51C94275
🔹 Functional button and LEDs - firm, tactile button press and clear status indication right after installation

🔢 PART NUMBERS

FRU: 5C51C94275
Markings on the part: SC50R23319, MV-7(5), NS-E091, JT4B1/JX3B0, REV:1.0
Laptop model: Lenovo ThinkPad X13 Gen 3 (21BN, 21BQ) / T14s Gen 3 (21BR, 21BS), Intel versions

❓ WHEN SHOULD YOU REPLACE THE POWER BUTTON BOARD?

• The laptop does not turn on despite pressing the power button
• You need to press the button several times or press hard for the laptop to respond
• The power LED does not light up even with the charger connected
• The button feels stuck, loose, or does not return to its resting position
• The laptop randomly shuts down or sleeps due to a faulty contact in the button

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the power board cable/connector from the JPWR2 socket on the motherboard
5. Remove the screws securing the old board and take it out of the chassis
6. Install the new board, tighten the mounting screws and connect it to the JPWR2 socket
7. Reassemble the chassis in reverse order and power on the laptop, checking the button and LED operation
Replacement recommended by a technical service or a person experienced in laptop repairs.

🎯 APPLICATION

The power button board is the component responsible for starting the laptop and indicating operating status through LEDs - mechanical damage or a worn contact is a common cause of power-on issues. Replacing it with a functional, genuine unit restores full button functionality without affecting the motherboard. Please refer to the product photos for the exact appearance and condition of the offered item.

✅ COMPATIBILITY GUARANTEE

The offered power button board has been carefully checked and matched to the Lenovo ThinkPad X13 Gen 3 and T14s Gen 3 (Intel) models. We guarantee full compatibility regarding FRU number 5C51C94275 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
