🔧 CPU/GPU Cooling Assembly for Lenovo Legion Slim 5 16APH8 / 16AHP9 / 16ARP9 🔧

🖥️ Legion Slim 5 16APH8 16AHP9 16ARP9 | Fans + Heatsink | 12V | 5H40S20937

Complete, genuine processor and graphics cooling assembly designed for the Lenovo Legion Slim 5 16APH8 (type 82Y9), Legion Slim 5 16AHP9 (type 83DH) and Legion Slim 5 16ARP9 (type 83EX). Brand new part marked with FRU number 5H40S20937. FRU number 5H40S20937 guarantees full compatibility with all three models.

⚙️ PRODUCT OVERVIEW

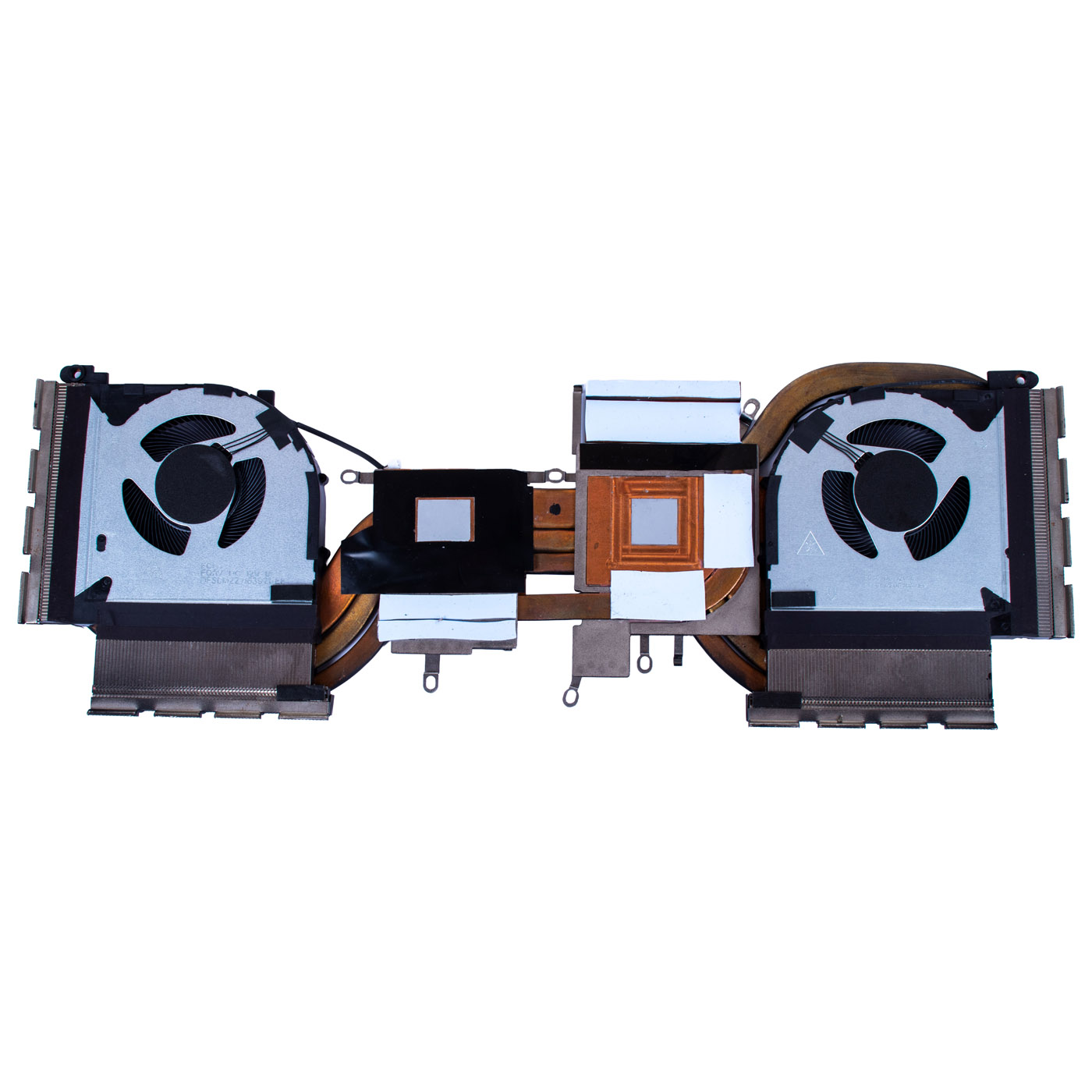

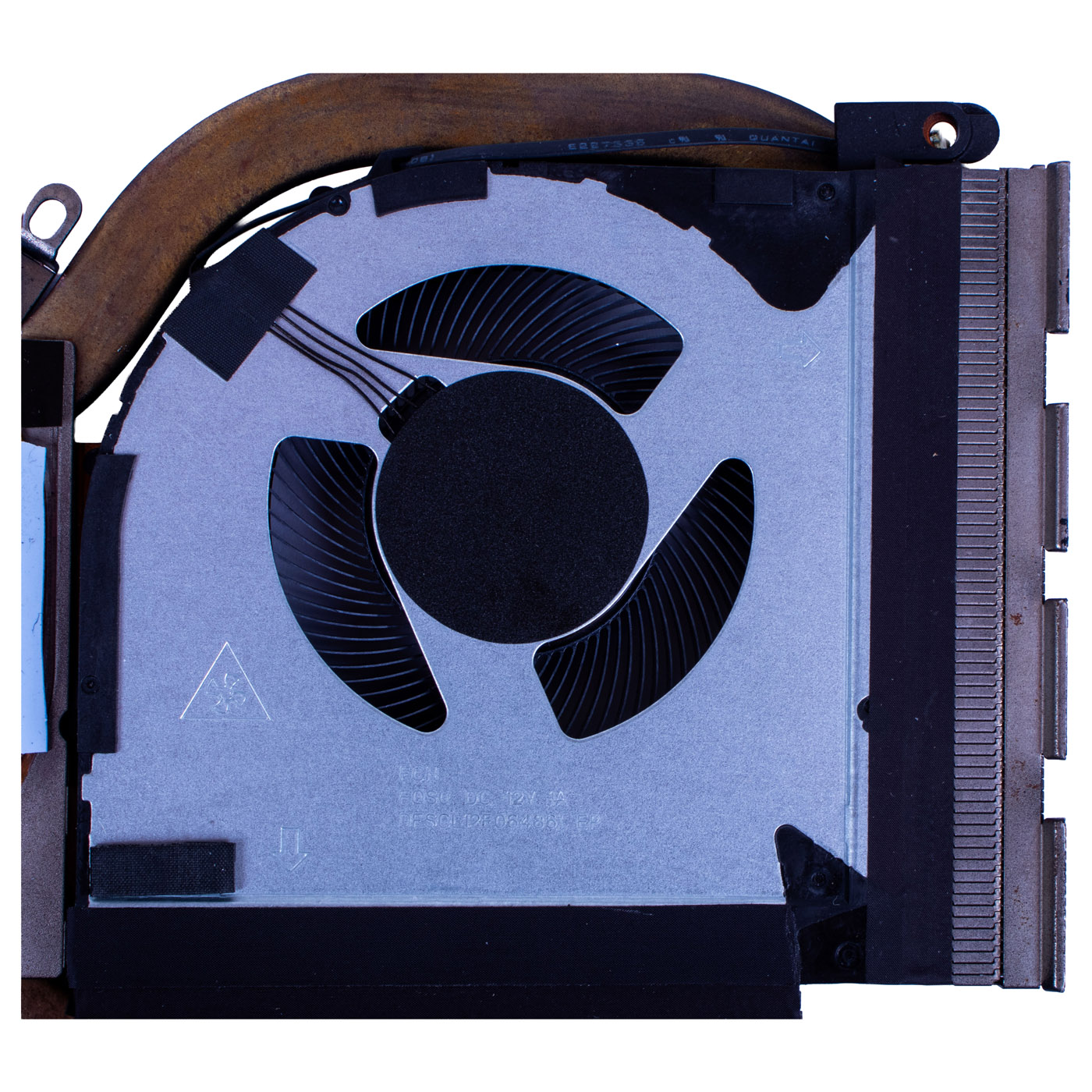

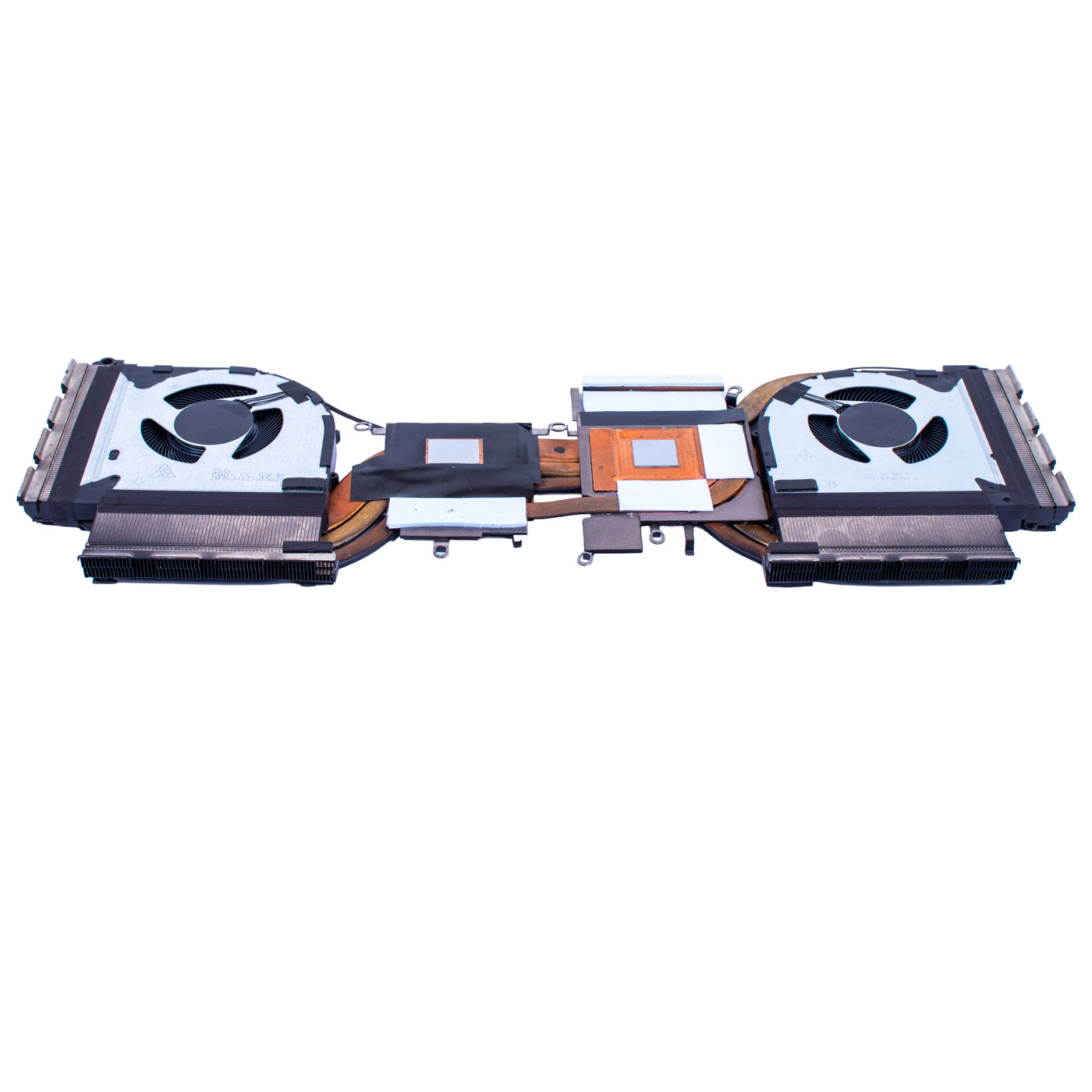

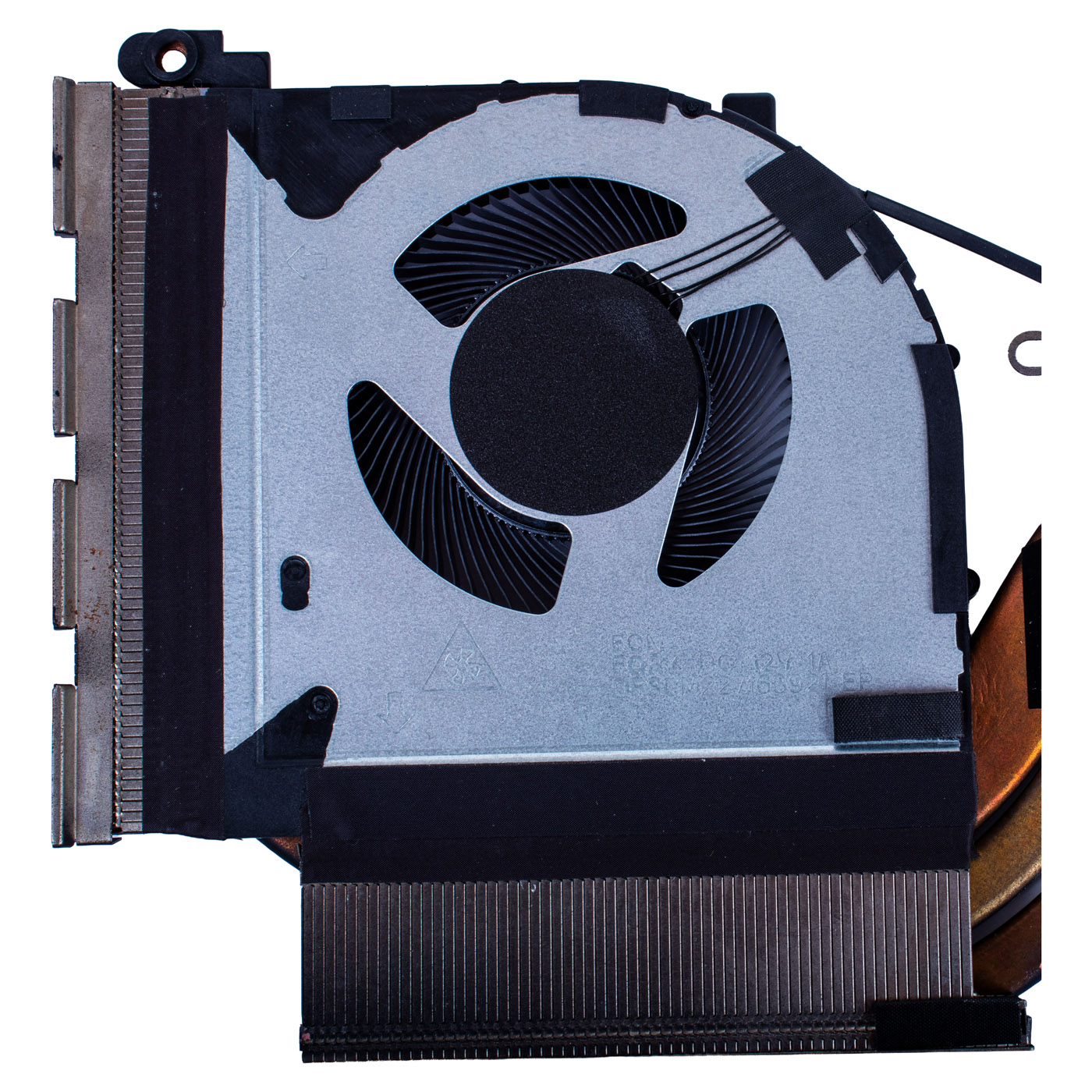

A complete thermal module with two fans connected by a shared heatsink with copper heat pipes. Each fan has its own fin stack, and the CPU and GPU contact plates come with factory-applied thermal pads. The FCN fans are powered at 12V. Lenovo uses the same module in the Legion Slim 5 16APH8 and in the newer 16AHP9 and 16ARP9, so one FRU number covers all three models.

📋 TECHNICAL SPECIFICATIONS

Part name: Cooling assembly (fans + heatsink)
Brand: Lenovo Legion
Compatible models: Legion Slim 5 16APH8 (type 82Y9), Legion Slim 5 16AHP9 (type 83DH), Legion Slim 5 16ARP9 (type 83EX)
Screen size: 16"
Number of fans: 2 (CPU + GPU)
Fan manufacturer: FCN
Fan power: DC 12V, 1A

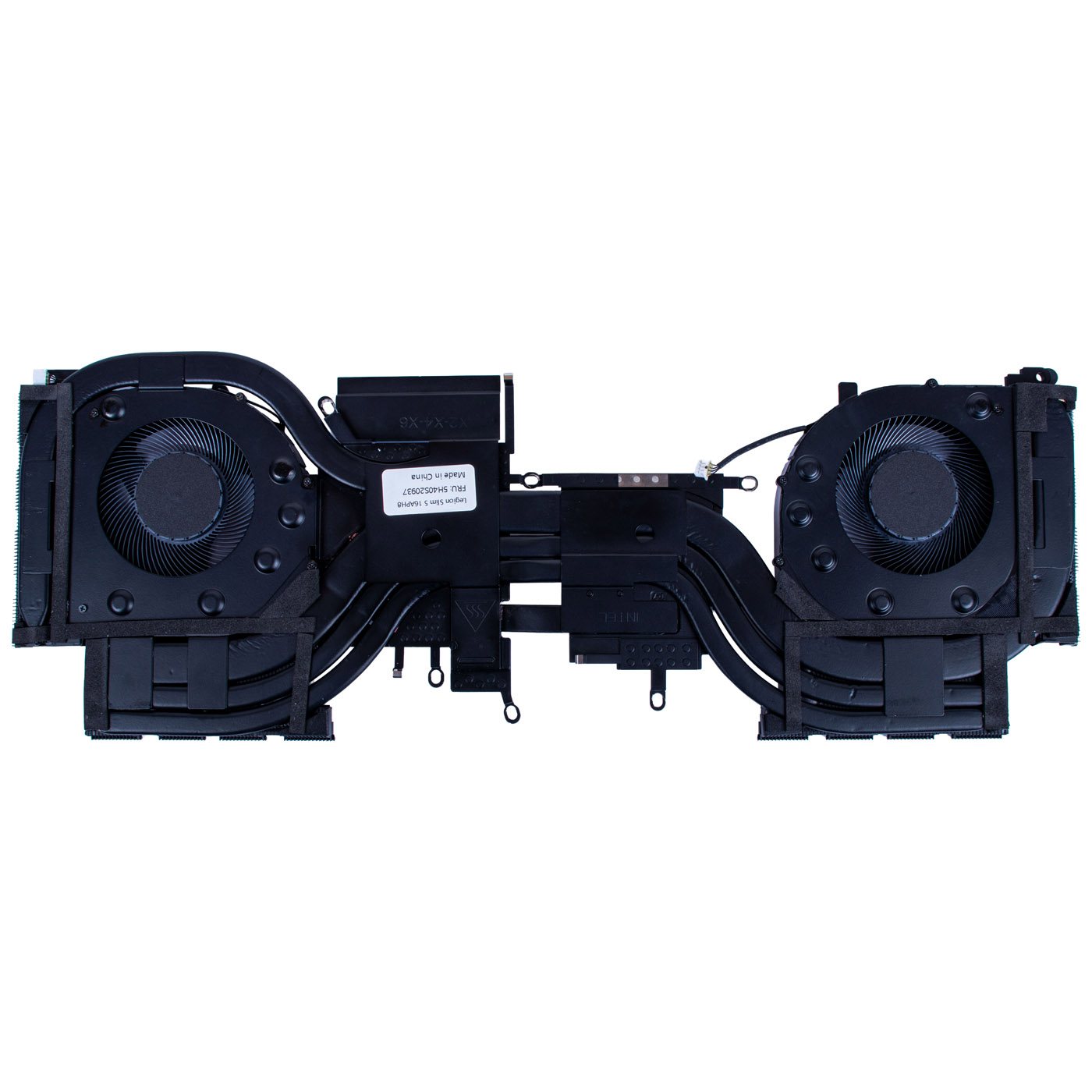

Label markings: Legion Slim 5 16APH8, FRU: SH40S20937
Condition: New
Warranty: 12 months
FRU: 5H40S20937
Substitute numbers: 5H40S20938, 5H40S20939, 5H40S21151, SH40R83488

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - fits the mounting points and fan connectors with no modification
🔹 One module for three models - fits the Legion Slim 5 16APH8, 16AHP9 and 16ARP9, so there is no need to look for a generation-specific version
🔹 Complete set: two fans with heatsink - one replacement solves both CPU and GPU cooling, no need to hunt for separate parts
🔹 Factory-applied thermal pads - ready to install, no need to buy and cut pads for memory and power delivery
🔹 Performance in games and work - effective cooling lets the CPU and RTX graphics hold high clocks for the whole session instead of slowing down after a few minutes

🔢 PART NUMBERS

FRU: 5H40S20937
Substitute numbers: 5H40S20938, 5H40S20939, 5H40S21151, SH40R83488
Laptop models: Lenovo Legion Slim 5 16APH8 (82Y9), Legion Slim 5 16AHP9 (83DH), Legion Slim 5 16ARP9 (83EX)

❓ WHEN SHOULD YOU REPLACE THE COOLING ASSEMBLY?

• Loud fans spinning at high speed even under light load
• Overheating: frame rates drop in games and CPU/GPU temperatures quickly hit the limit
• A faulty fan: rattling, grinding or an impeller that does not spin at all
• A clogged or corroded heatsink causing weak, hot airflow from the vents
• The laptop shuts down under heavy load due to overheating

🔧 INSTALLATION

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws securing the base cover and carefully take it off
3. Disconnect the battery from the system board
4. Unplug both fan connectors from the system board
5. Loosen the thermal module screws in reverse order of the numbers next to them and remove the old module
6. Thoroughly clean the old thermal paste from the CPU and GPU and apply fresh paste
7. Fit the new module and tighten the screws in numbered order, evenly and without excessive force
8. Reconnect the fan connectors and the battery, refit the base cover
9. Power on and check temperatures and fan operation under load
Installation by a service technician or an experienced person is recommended.

🎯 APPLICATION

This cooling assembly is intended for Lenovo Legion Slim 5 16APH8, 16AHP9 and 16ARP9 gaming laptops used for gaming, streaming, video editing and 3D graphics work. Replacing the complete module restores factory cooling performance for the CPU and GPU and quiet operation. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This cooling assembly has been carefully checked and matched to the Lenovo Legion Slim 5 16APH8, 16AHP9 and 16ARP9. We guarantee full compatibility for FRU number 5H40S20937 and 100% functionality. In case of any compatibility issues, we offer a hassle-free return within 14 days.
