🔧 CPU Cooling Fan for Lenovo Legion 5 15ARP8 / 15APH9 🔧

🖥️ Legion 5 15ARP8 15APH9 | CPU Fan | FSAN DFSCL12E06486Q

Genuine processor (CPU) cooling fan designed for the Lenovo Legion 5 15ARP8 (type 83EF) and Legion 5 15APH9 (type 83EG). Brand new FCN part marked FSAN DFSCL12E06486Q, fitted at the factory in Lenovo thermal module FRU 5H40S20981. The code on the fan housing lets you easily confirm it matches the fan installed in your laptop.

⚙️ PRODUCT OVERVIEW

The fan drives airflow through the heatsink fins on the processor side and removes heat generated by the CPU. The Legion 5 15ARP8 and 15APH9 thermal module uses two different fans: FSAN on the processor side and FSAQ on the graphics side. This unit is the FSAN processor fan, rated DC 12V 1A, with a cable terminated with a white connector and a mounting arm. Lenovo does not assign a separate FRU number to the fan alone, so the housing code is the primary identifier and the thermal module FRU numbers are given for reference.

📋 TECHNICAL SPECIFICATIONS

Part name: CPU cooling fan
Brand: Lenovo Legion
Compatible models: Legion 5 15ARP8 (type 83EF), Legion 5 15APH9 (type 83EG), type 83LQ (Legion R7000 AHP9)
Screen size: 15.6"

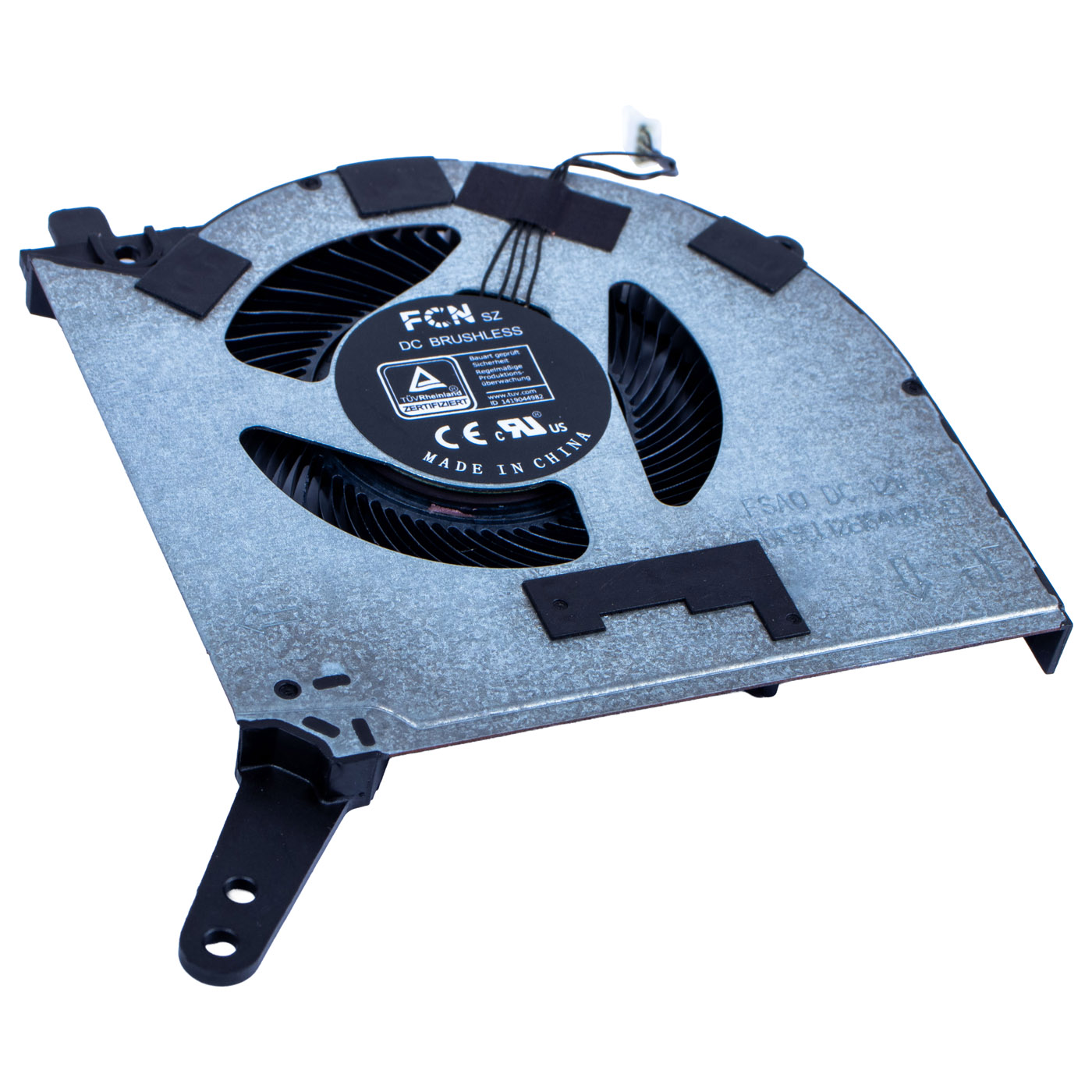

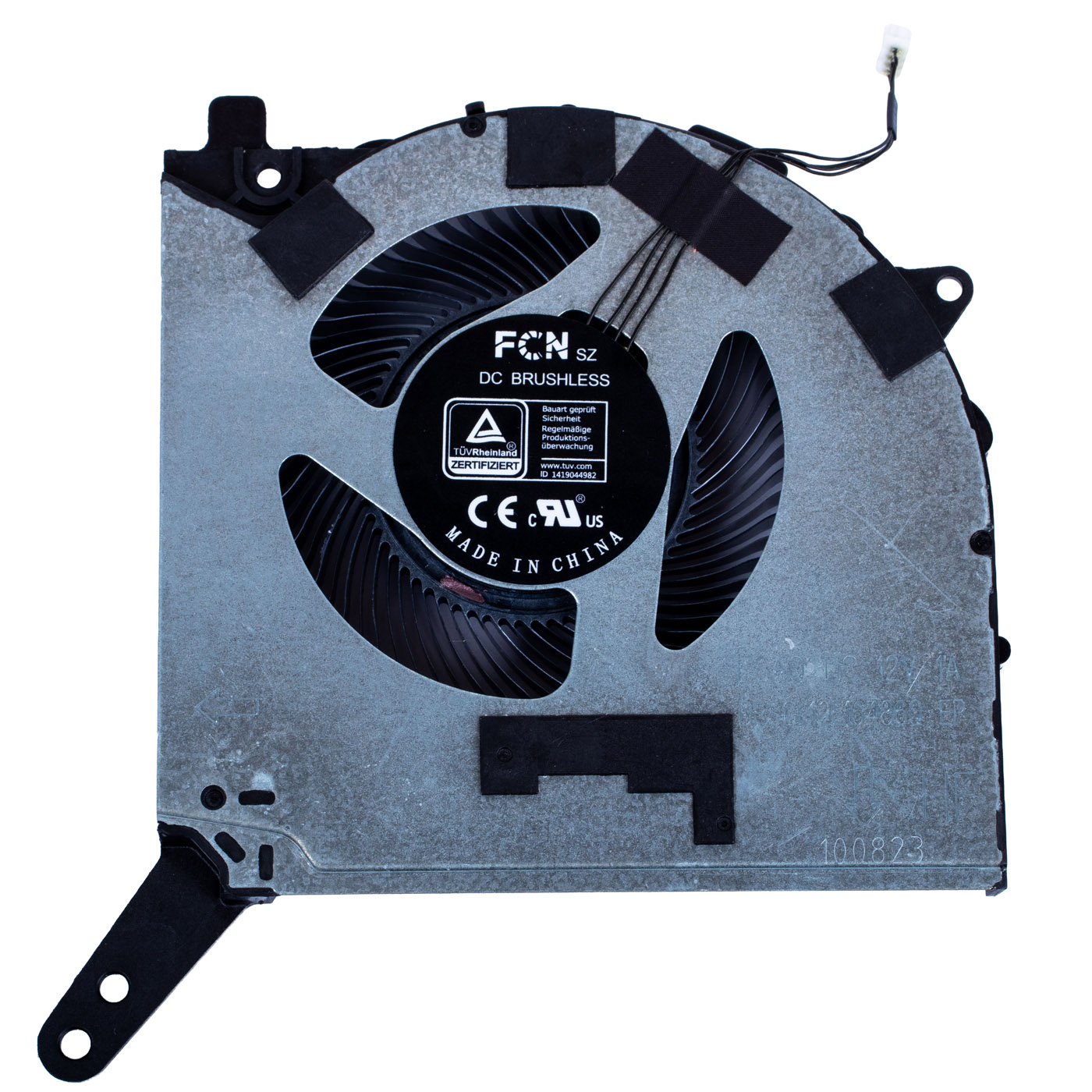

Fan marking: FSAN DFSCL12E06486Q
Fan manufacturer: FCN (DC Brushless)
Power: DC 12V, 1A
Condition: New
Warranty: 12 months
Thermal module FRU (for reference): 5H40S20981, 5H40S20982, SH40R83537, SH40R83538

🌟 KEY BENEFITS

🔹 Genuine fan from the Lenovo module - the same FCN model fitted at the factory in thermal module FRU 5H40S20981, so it fits without any modification
🔹 Processor-side cooling - restores full airflow over the CPU, so the processor holds its clocks in games and rendering instead of slowing down from heat
🔹 Easy identification by housing code - just compare the FSAN marking with the print on the fan in your laptop, no need to look up the whole module FRU
🔹 Replace the fan only - when the fan gets noisy or stops spinning, there is no need to buy the complete module with heatsink
⚠️ CPU-side fan - the Legion 5 15ARP8 and 15APH9 use two different fans (FSAN for the processor, FSAQ for the graphics card). Please compare the marking with the fan in your laptop before ordering

🔢 PART NUMBERS

Fan marking: FSAN DFSCL12E06486Q
Thermal module FRU (for reference): 5H40S20981, 5H40S20982, SH40R83537, SH40R83538
Laptop models: Lenovo Legion 5 15ARP8 (83EF), Legion 5 15APH9 (83EG), type 83LQ

❓ WHEN SHOULD YOU REPLACE THE CPU FAN?

• Loud whining or rattling from the fan, even while browsing the web
• High CPU temperature: frame rates drop in games and the laptop slows down after a few minutes
• The fan does not spin and the area around the keyboard heats up quickly
• Damaged impeller or bearing: grinding noise or uneven fan speed
• The laptop shuts down under heavy load due to overheating

🔧 INSTALLATION

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws securing the base cover and carefully take it off
3. Disconnect the battery from the system board
4. Unplug the fan connector from the system board
5. Remove the screws securing the fan to the thermal module and peel off the sealing tapes
6. Fit the new fan in the same position, screw it in place and restore the tape seal
7. Route the cable the same way as the original and plug it into the system board
8. Reconnect the battery, refit the base cover, power on and check fan operation under load
Installation by a service technician or an experienced person is recommended.

🎯 APPLICATION

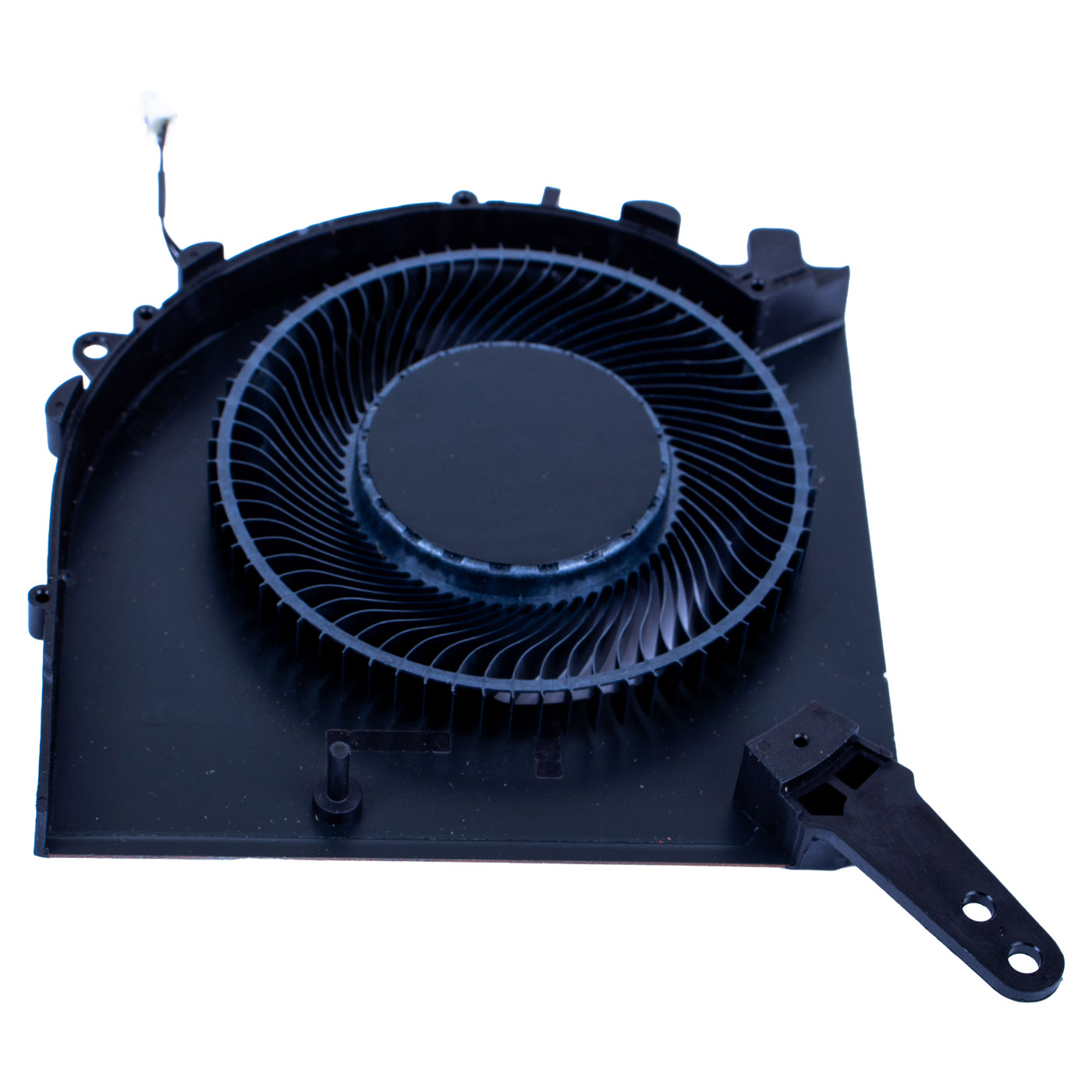

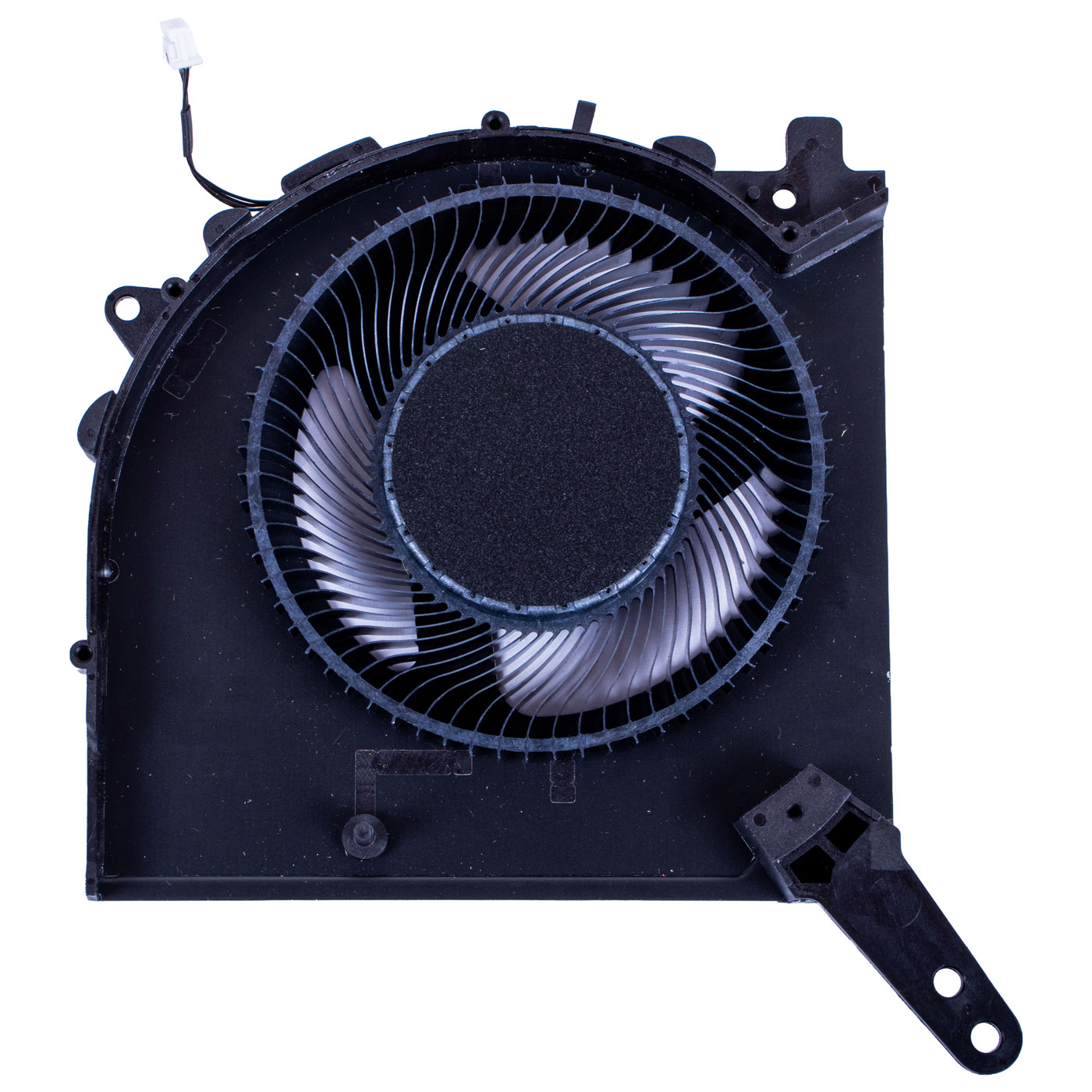

This fan is intended for Lenovo Legion 5 15ARP8 and 15APH9 gaming laptops used for gaming, streaming and video editing. Replacing it brings back quiet operation and stable CPU temperatures without the cost of a complete thermal module. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This fan has been carefully checked and matched to the Lenovo Legion 5 15ARP8 and 15APH9. We guarantee full compatibility for marking FSAN DFSCL12E06486Q and 100% functionality. In case of any compatibility issues, we offer a hassle-free return within 14 days.
