🔧 CPU Cooling Fan for Lenovo Legion 5 16IRX9 🔧

🖥️ Legion 5 16IRX9 | CPU Fan | FSCG DFSCL12E06486C

Genuine processor (CPU) cooling fan designed for the Lenovo Legion 5 16IRX9 (type 83DG). Brand new FCN part marked FSCG DFSCL12E06486C, fitted at the factory in the Lenovo Legion 5 16IRX9 thermal module. The code on the fan housing lets you easily confirm it matches the fan installed in your laptop.

⚙️ PRODUCT OVERVIEW

The fan drives airflow through the heatsink fins on the processor side and removes heat generated by the CPU. The Legion 5 16IRX9 thermal module uses two different fans: FSCG on the processor side and FSCH on the graphics side. This unit is the FSCG processor fan, rated DC 12V 1A, with a cable terminated with a white connector. Lenovo does not assign a separate FRU number to the fan alone, so the housing code is the primary identifier and the thermal module FRU numbers are given for reference.

📋 TECHNICAL SPECIFICATIONS

Part name: CPU cooling fan
Brand: Lenovo Legion
Compatible model: Legion 5 16IRX9 (type 83DG)
Screen size: 16"
Fan marking: FSCG DFSCL12E06486C
Fan manufacturer: FCN (DC Brushless)
Power: DC 12V, 1A
Condition: New
Warranty: 12 months
Thermal module FRUs (for reference): 5H40S21015, 5H40S21016, 5H40S21017, 5H40S21018, 5H40S21200, 5H40S21201, 5H40S21202, 5H40S21203

🌟 KEY BENEFITS

🔹 Genuine fan from the Lenovo module - the same FCN model fitted at the factory in the Legion 5 16IRX9 thermal module, so it fits without any modification
🔹 Processor-side cooling - restores full airflow over the CPU, so the Intel Core processor holds its clocks in games and rendering instead of slowing down from heat
🔹 Easy identification by housing code - just compare the FSCG marking with the print on the fan in your laptop, no need to look up the whole module FRU
🔹 Replace the fan only - when the fan gets noisy or stops spinning, there is no need to buy the complete module with heatsink
⚠️ CPU-side fan - the Legion 5 16IRX9 uses two different fans (FSCG for the processor, FSCH for the graphics card). Please compare the marking with the fan in your laptop before ordering

🔢 PART NUMBERS

Fan marking: FSCG DFSCL12E06486C
Thermal module FRUs (for reference): 5H40S21015, 5H40S21016, 5H40S21017, 5H40S21018, 5H40S21200, 5H40S21201, 5H40S21202, 5H40S21203
Laptop model: Lenovo Legion 5 16IRX9 (83DG)

❓ WHEN SHOULD YOU REPLACE THE CPU FAN?

• Loud whining or rattling from the fan, even while browsing the web
• High CPU temperature: frame rates drop in games and the laptop slows down after a few minutes
• The fan does not spin and the area around the keyboard heats up quickly
• Damaged impeller or bearing: grinding noise or uneven fan speed
• The laptop shuts down under heavy load due to overheating

🔧 INSTALLATION

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws securing the base cover and carefully take it off
3. Disconnect the battery from the system board
4. Unplug the fan connector from the system board
5. Remove the screws securing the fan to the thermal module and peel off the sealing tapes
6. Fit the new fan in the same position, screw it in place and restore the tape seal
7. Route the cable the same way as the original and plug it into the system board
8. Reconnect the battery, refit the base cover, power on and check fan operation under load
Installation by a service technician or an experienced person is recommended.

🎯 APPLICATION

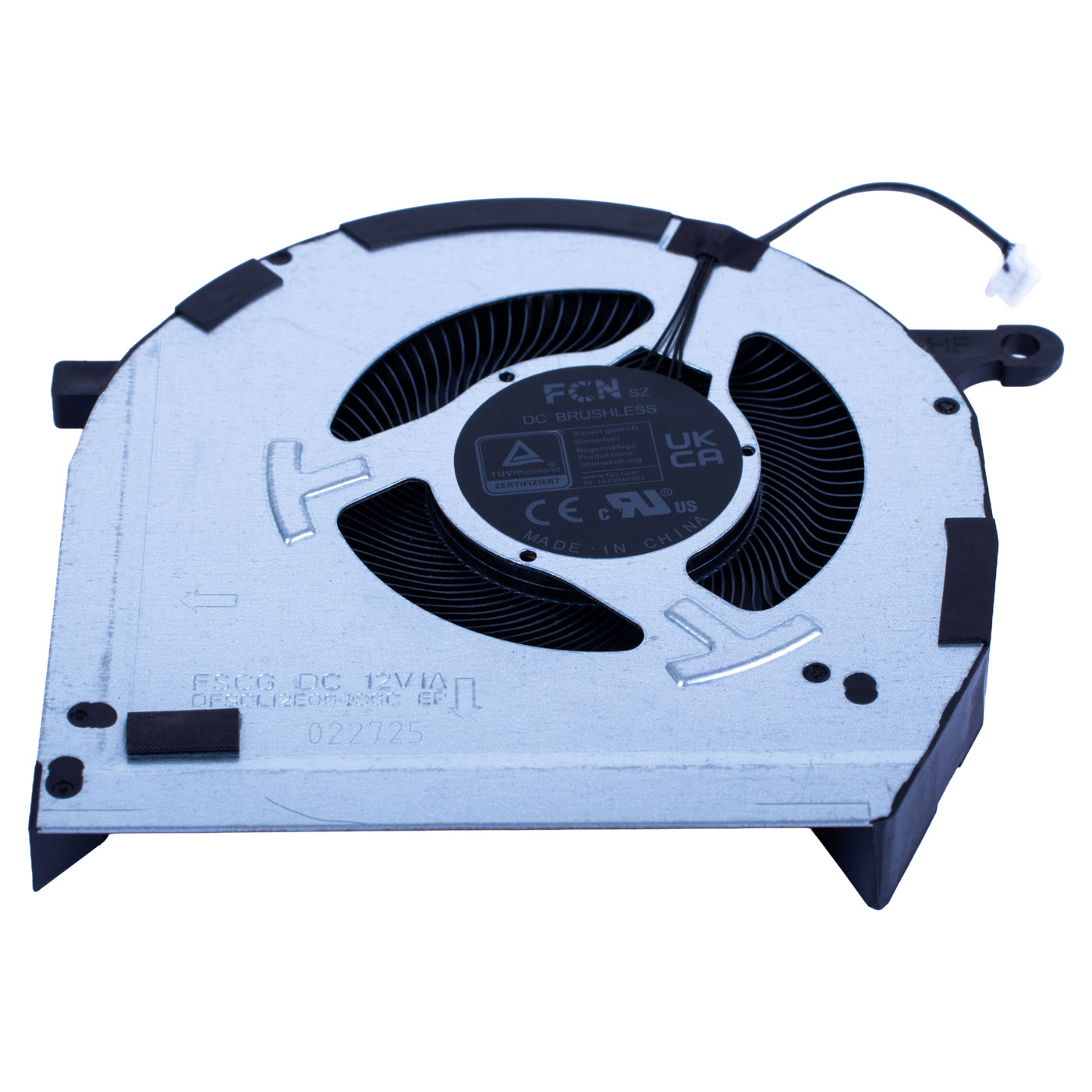

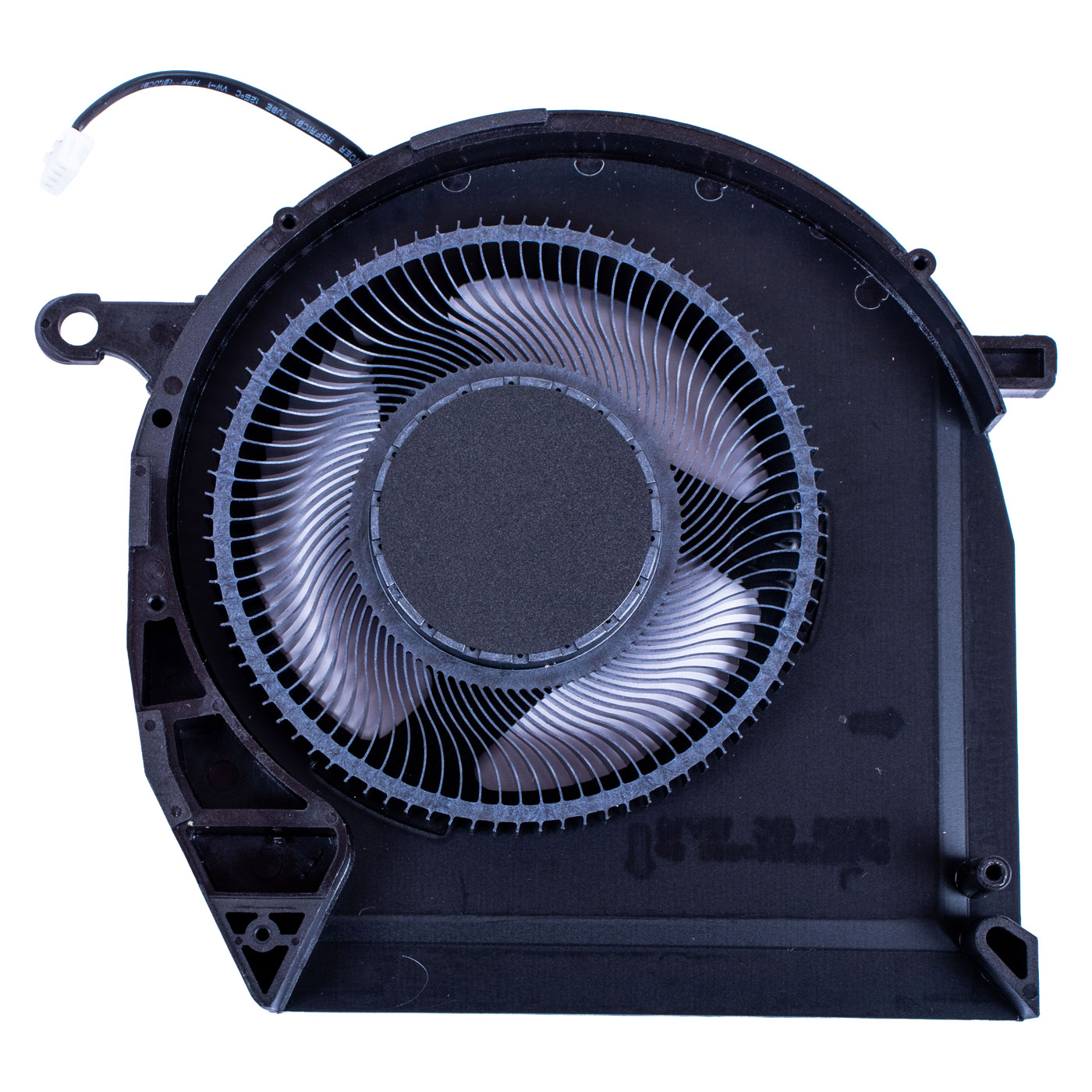

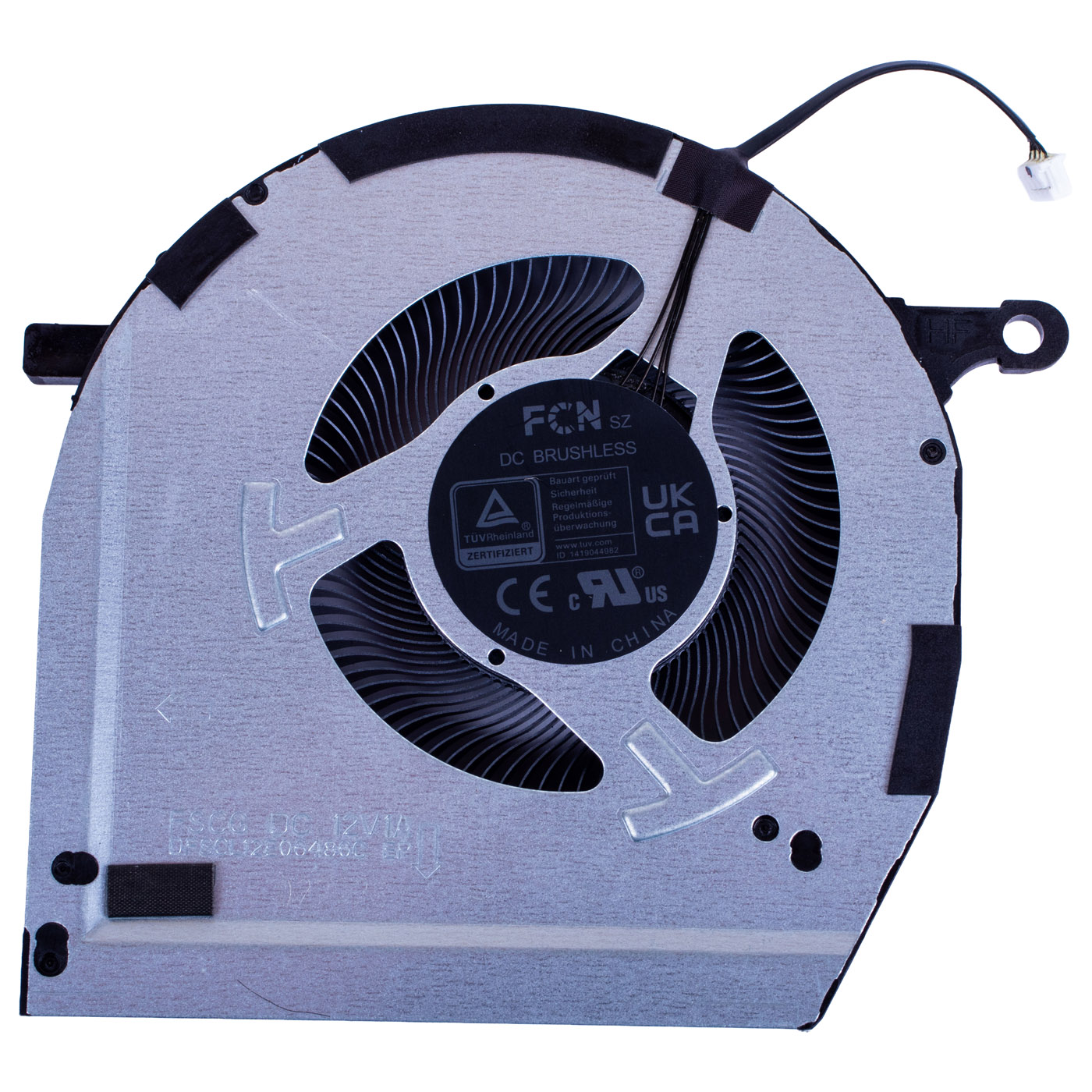

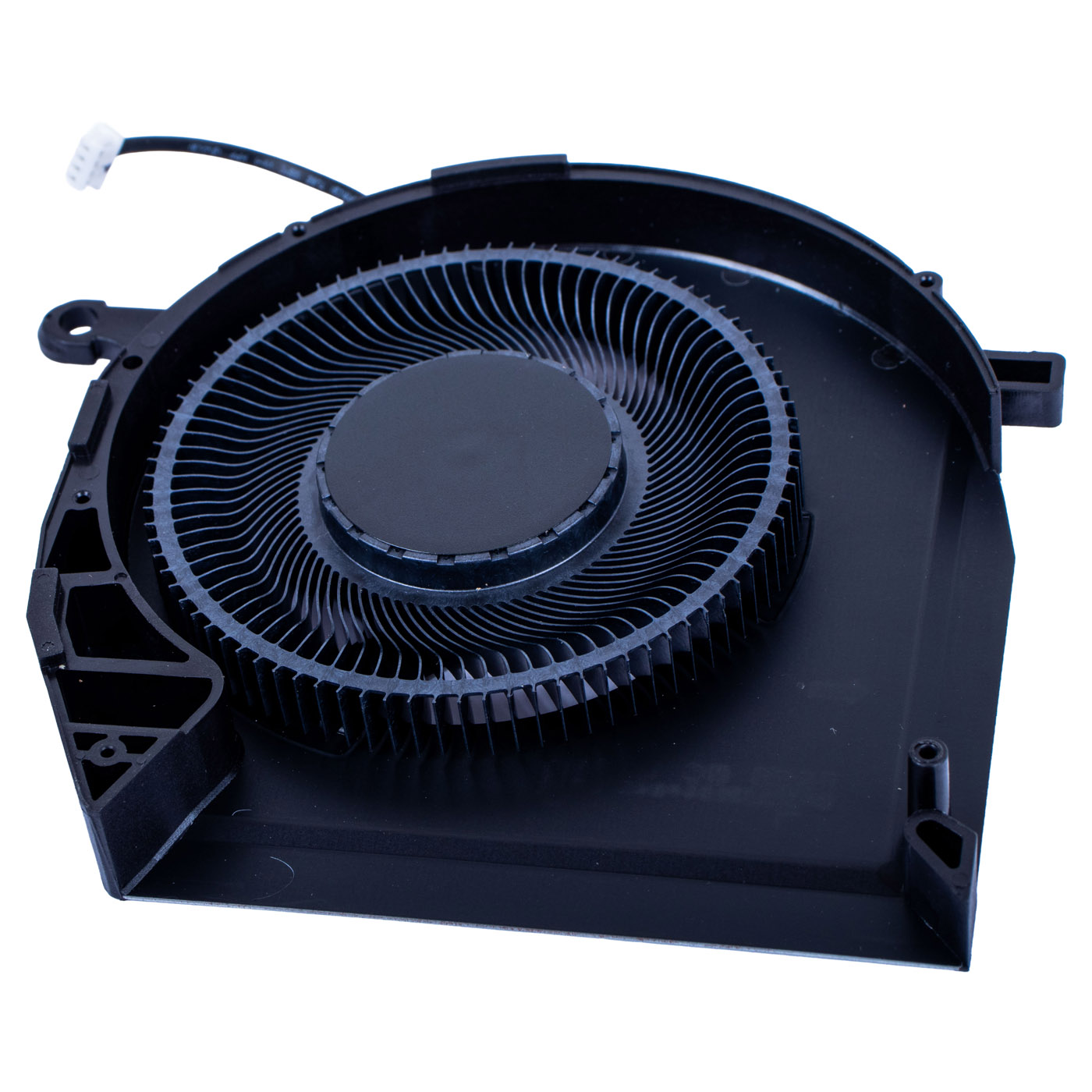

This fan is intended for Lenovo Legion 5 16IRX9 gaming laptops used for gaming, streaming and video editing. Replacing it brings back quiet operation and stable CPU temperatures without the cost of a complete thermal module. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This fan has been carefully checked and matched to the Lenovo Legion 5 16IRX9. We guarantee full compatibility for marking FSCG DFSCL12E06486C and 100% functionality. In case of any compatibility issues, we offer a hassle-free return within 14 days.
