🔧 LCD Back Cover with Hinges for Lenovo Legion 5 15IRX10 / 15IAX10 / 15AHP10 OLED 🔧

🖥️ Legion 5 15IRX10 / 15IAX10 / 15AHP10 | LCD Back Cover (A-cover) with Hinges | OLED, 5MP Camera | Eclipse Black | 5CB1S22988

Genuine Lenovo aluminium LCD back cover (A-cover) in Eclipse Black, with fitted hinges and display adhesive strips, OLED version with 5MP camera, designed for the Lenovo Legion 5 15IRX10, 15IAX10 and 15AHP10. Brand new part marked with FRU number 5CB1S22988. FRU 5CB1S22988 guarantees full compatibility with the Legion 5 15IRX10 (machine type 83LY), 15IAX10 (83F0) and 15AHP10 (83M0) with an OLED display.

⚙️ PRODUCT CHARACTERISTICS

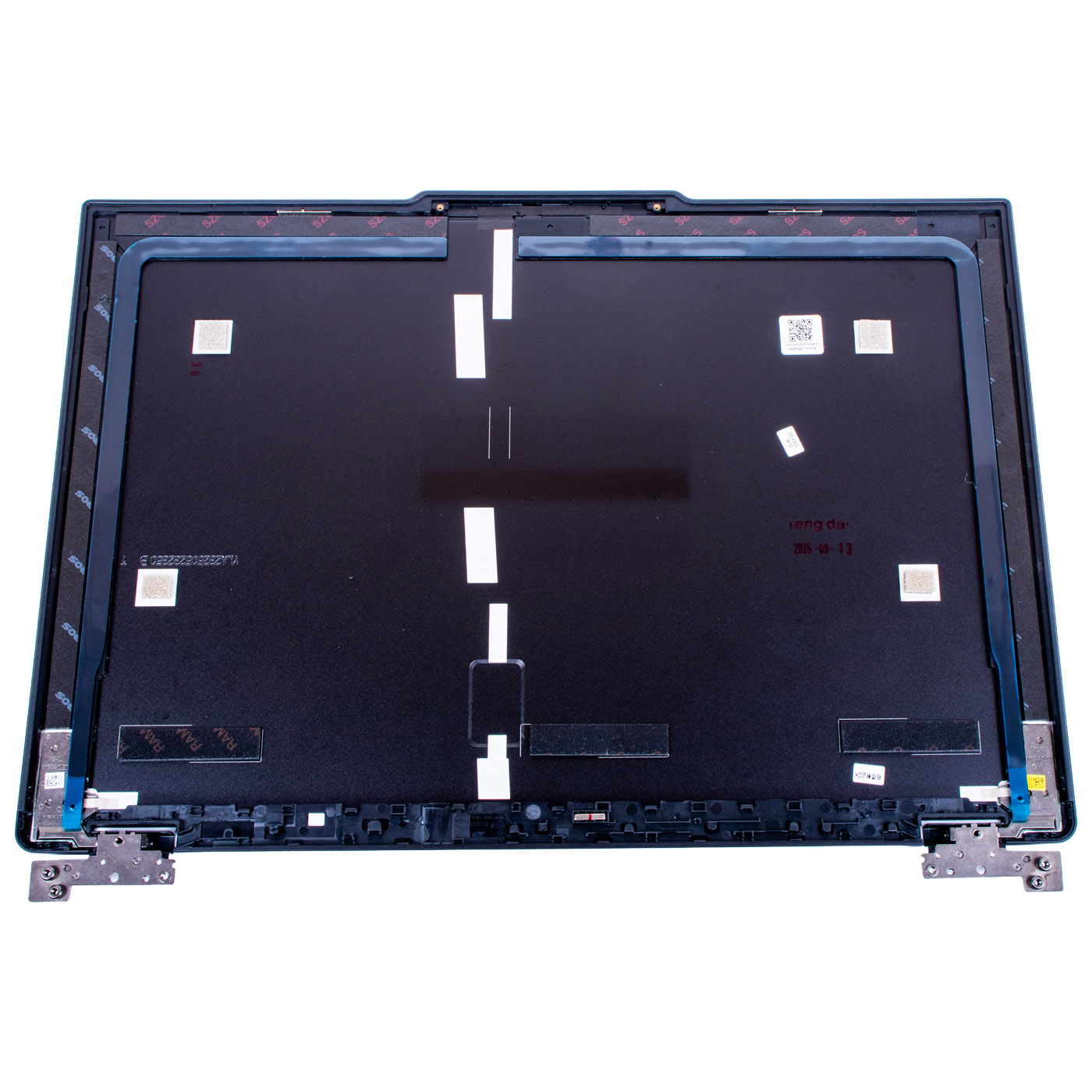

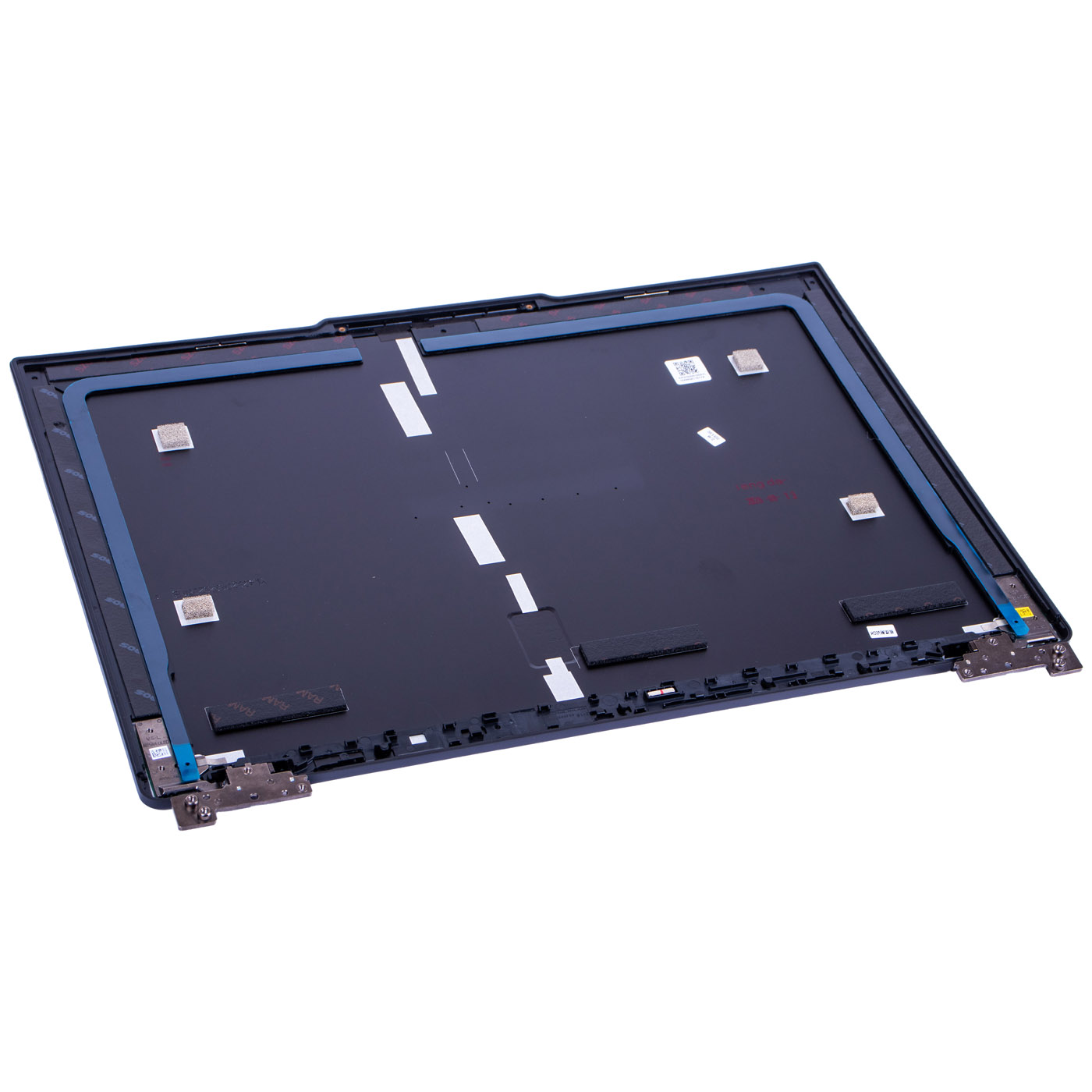

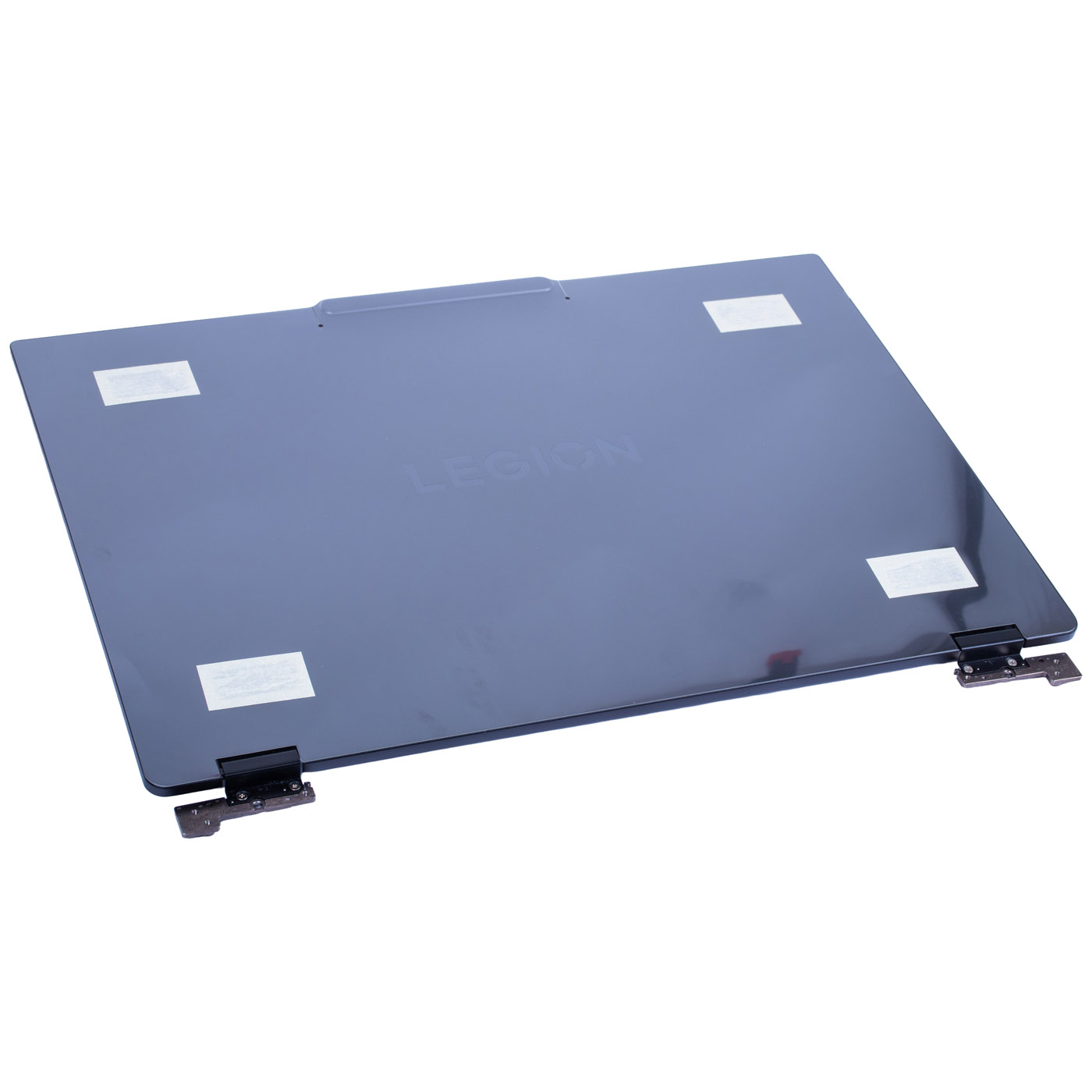

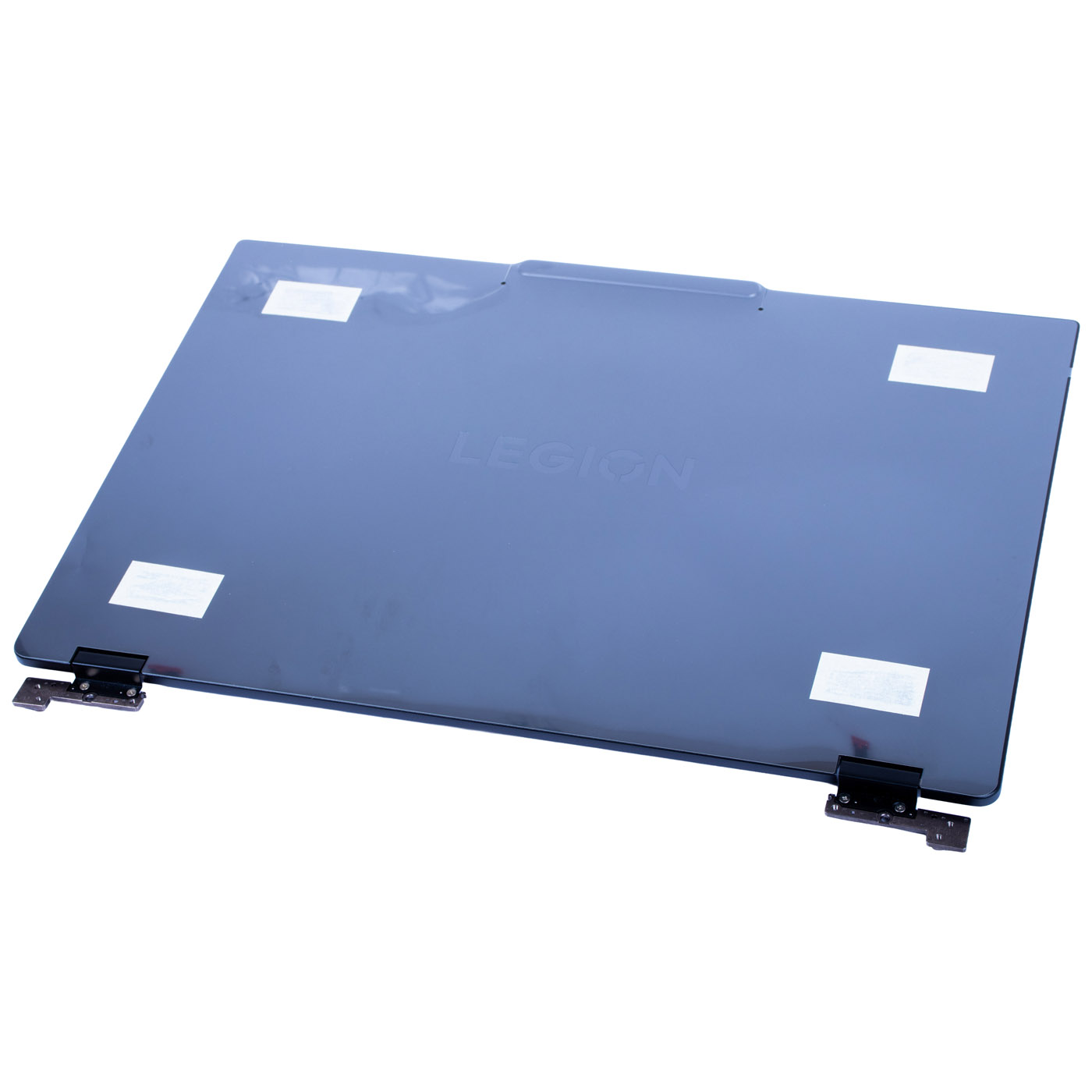

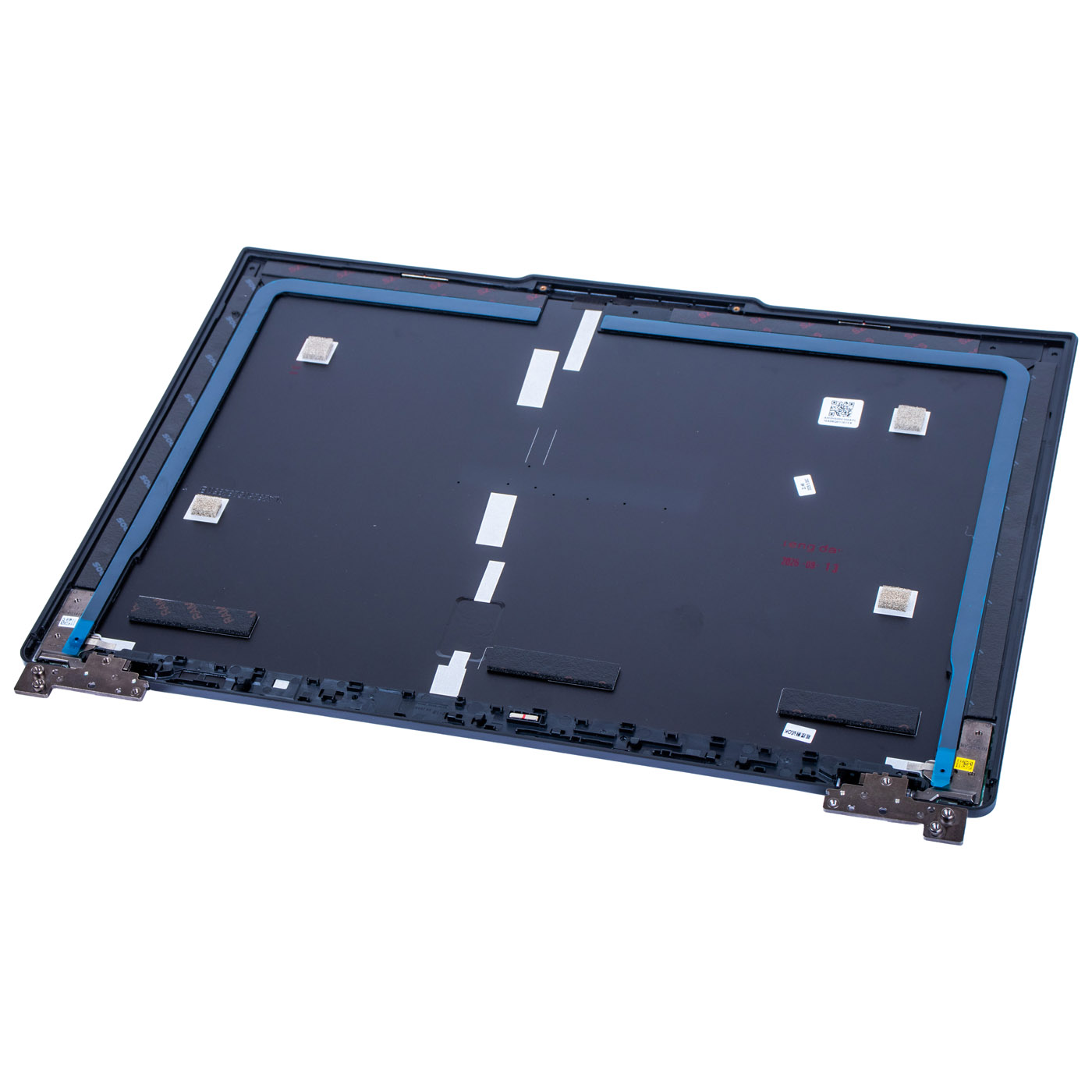

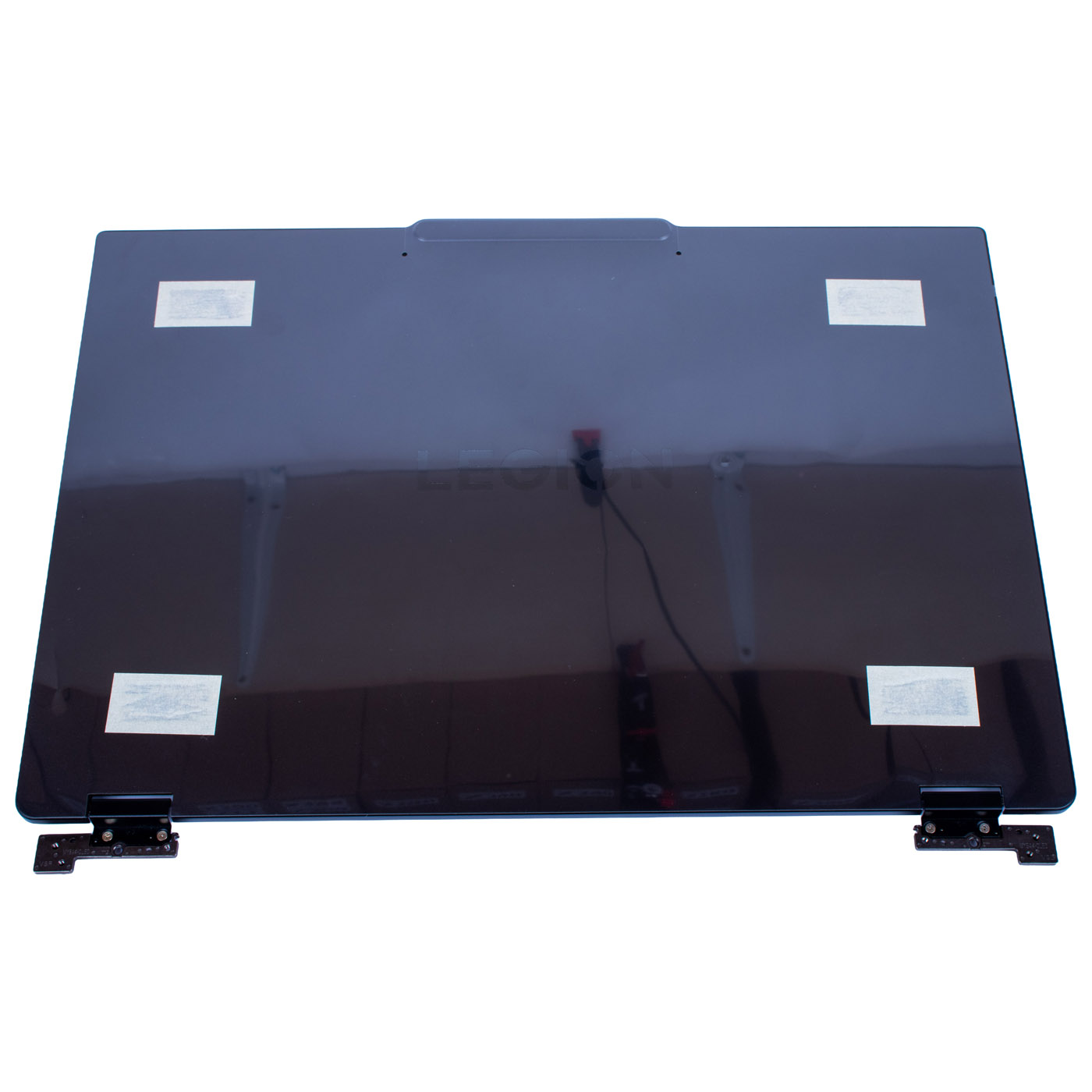

The LCD back cover is the outer lid of the laptop: it protects the display from behind and gives the Legion its distinctive look with the embossed LEGION logo and the raised profile at the top edge. According to Lenovo specifications, the lid on this model is made of aluminium, anodized with sandblasting, in Eclipse Black. Both hinges (left and right, marked MY5A4-OLED) come factory-fitted, and the display adhesive strips are already applied along the edges under a blue protective liner. Inside, the cover has factory pads and shielding elements. The part is intended for the configuration with the 15.1" WQXGA (2560x1600) OLED display and the 5MP camera, as indicated by the Lenovo designation "OLED_5M". Lenovo part number: 5CB1S22988 (A-Cover, 83LY, OLED_5M).

📋 TECHNICAL SPECIFICATIONS

Part name: LCD Back Cover (A-cover, LCD cover assembly) with hinges
Brand: Lenovo Legion
Compatible model: Legion 5 15IRX10 (83LY), Legion 5 15IAX10 (83F0), Legion 5 15AHP10 (83M0)
Display version: OLED 15.1" WQXGA (2560x1600)
Camera version: 5MP (Lenovo designation OLED_5M)
Material: aluminium, anodized with sandblasting
Colour: Eclipse Black
Package contents: LCD back cover, left and right hinge, display adhesive strips

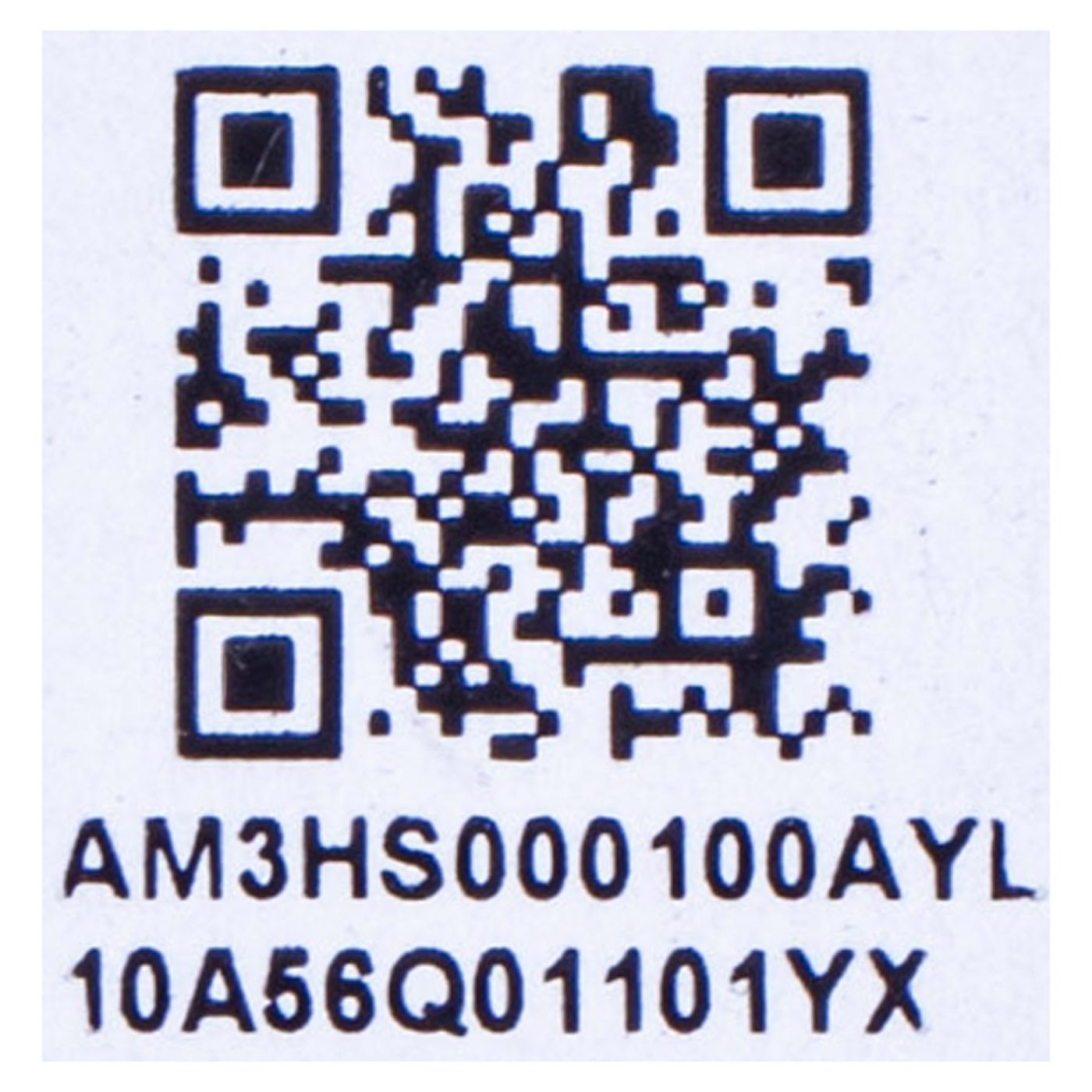

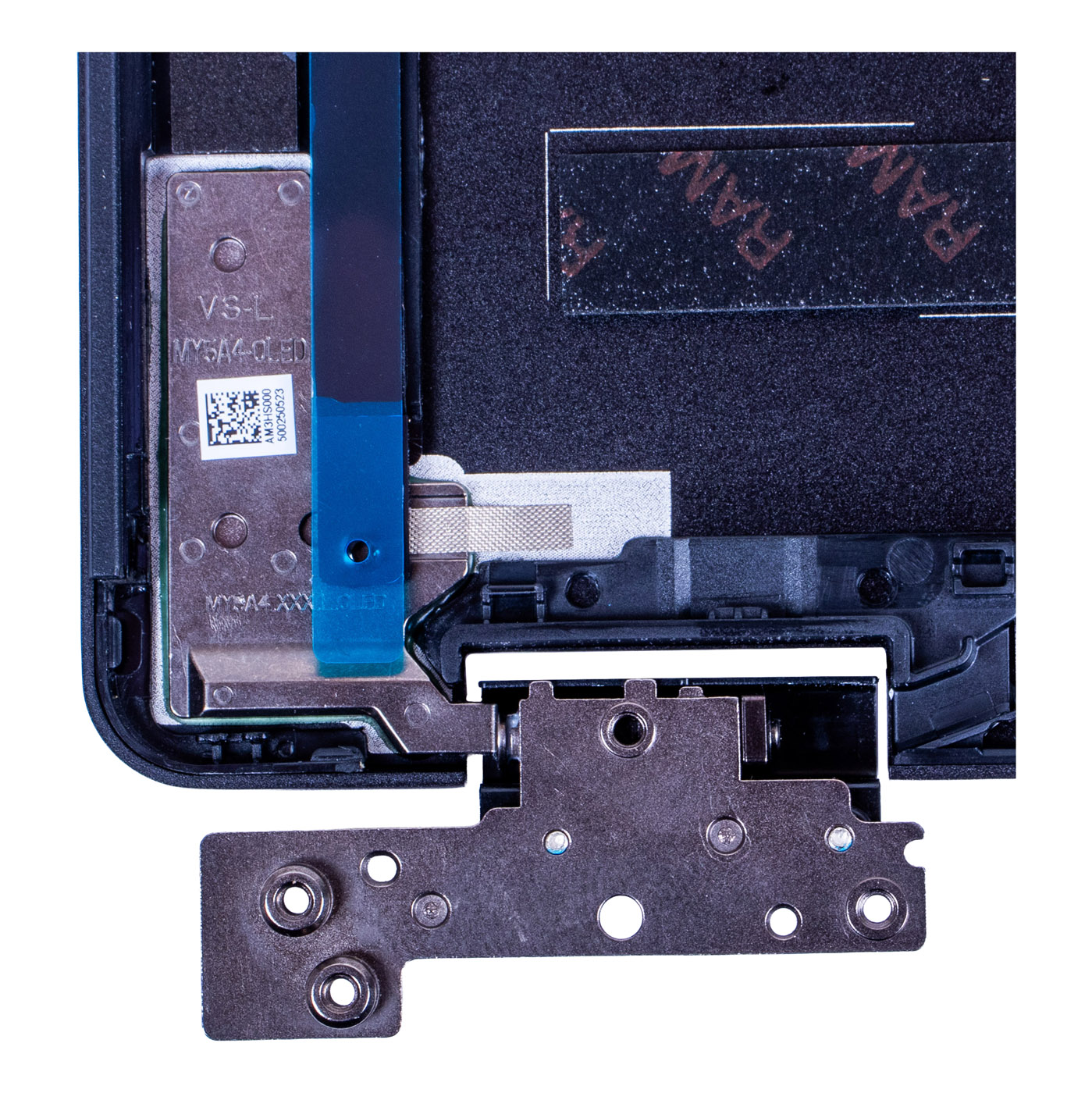

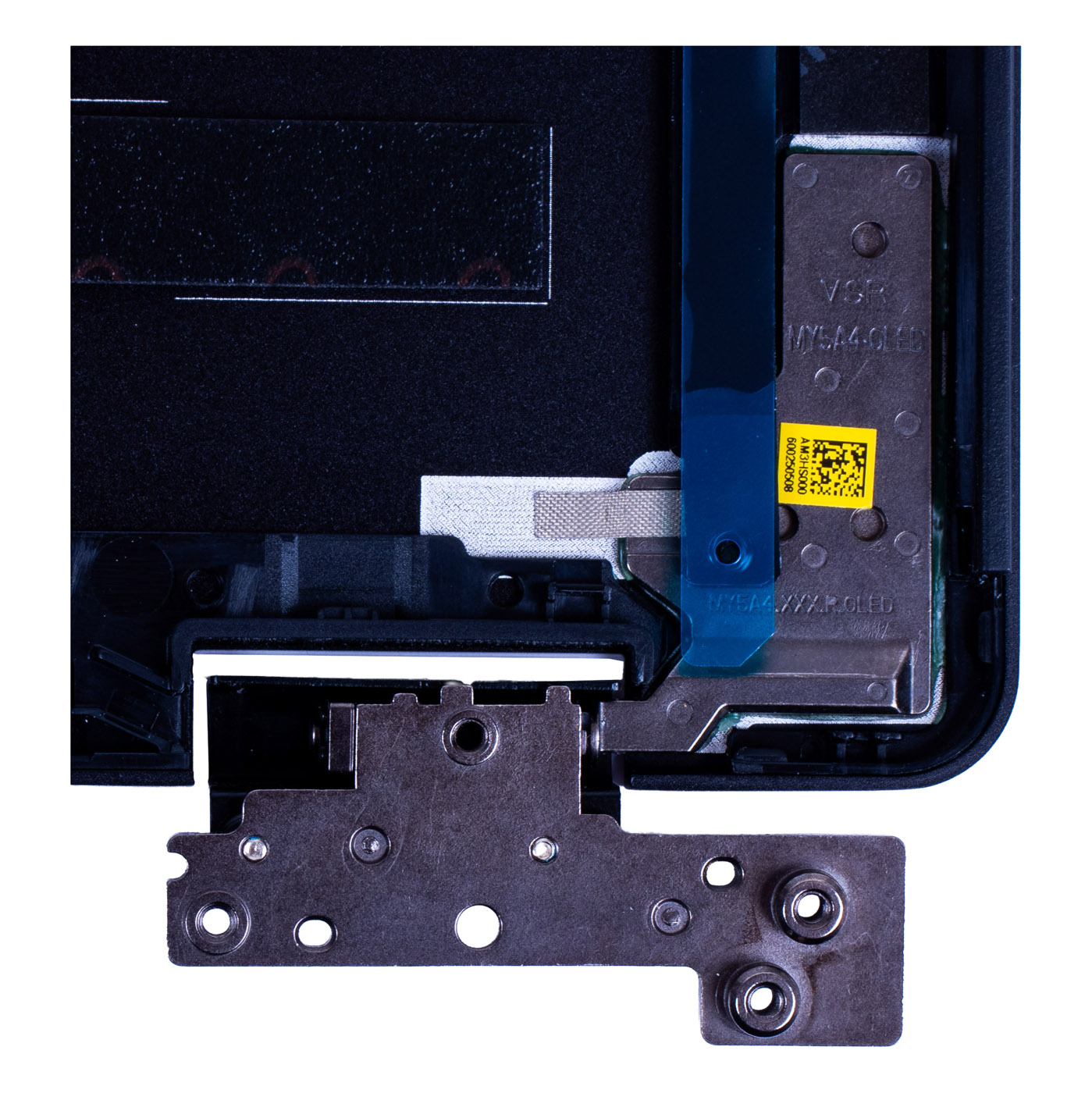

Part markings: AM3HS000100AYL, MY5A4-OLED (hinges)
Condition: New
FRU: 5CB1S22988
Replacement numbers: AM3HS000100AYL

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - holes, clips and contours match the 10th-gen Legion 5 exactly, so the lid closes flush with the rest of the chassis
🔹 Aluminium lid just like the factory one - a rigid, anodized Eclipse Black surface with no difference in look or shade from the rest of the chassis
🔹 Hinges included and fitted - no need to transfer the old hinges, and the lid has factory stiffness from the first opening, with no sagging or play
🔹 Factory-applied display adhesive strips - just peel off the liner and bond the OLED panel, no hunting for or cutting tape
🔹 Matched to the OLED display and 5MP camera - the cover corresponds to your laptop's factory configuration
🔹 Full compatibility - matched to the Legion 5 15IRX10, 15IAX10 and 15AHP10 OLED under FRU 5CB1S22988

🔢 PART NUMBERS

FRU: 5CB1S22988
Replacement numbers: AM3HS000100AYL
Laptop model: Lenovo Legion 5 15IRX10 (83LY), Lenovo Legion 5 15IAX10 (83F0), Lenovo Legion 5 15AHP10 (83M0), OLED version

❓ WHEN SHOULD YOU REPLACE THE LCD BACK COVER?

• Problem with a cracked lid or a broken hinge mount after the laptop was dropped
• Problem with a hinge that creaks, has play, or lets the lid flop down instead of holding its angle
• Problem with a dented or scratched aluminium lid that spoils the look of the laptop
• Problem with a display that is coming loose because the original adhesive in the old cover has lost its grip
• Problem with a lid that does not close flush with the rest of the chassis

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power and all external devices
2. Remove the screws securing the bottom cover and carefully lift it off
3. Disconnect the battery from the motherboard
4. Disconnect the cables running to the lid, remove the hinge screws and lift off the whole display assembly
5. Remove the display bezel and very carefully peel the OLED panel off the old cover without bending it
6. Transfer the remaining lid components, such as the camera and cables, to the new cover, routing them as in the original
7. Peel the blue liner off the strips in the new cover, bond the OLED panel and press it down evenly along the edges
8. Refit the bezel, screw the hinges to the base, reconnect the cables and battery, and refit the bottom cover
9. Power on the laptop and check the image, the camera and smooth hinge movement
Replacement by a technical service or a person experienced in laptop repairs is recommended. The OLED panel is thin and needs particular care when peeling it off.

🎯 PURPOSE

An LCD back cover for users and repair shops who want to give a Legion 5 15IRX10, 15IAX10 or 15AHP10 with an OLED display a solid, good-looking lid again after a drop, a crack or worn hinges. The set with hinges and adhesive strips reduces the repair to transferring the display and components. The exact appearance and condition of the item are shown in the photos in the listing.

✅ COMPATIBILITY GUARANTEE

This LCD back cover has been carefully checked and matched to the Lenovo Legion 5 15IRX10, 15IAX10 and 15AHP10 OLED. We guarantee full compatibility under FRU 5CB1S22988 and 100% functionality of the part. If there is any compatibility problem, we offer a hassle-free return within 14 days.
