🔧 Bottom Cover for Lenovo Legion 5 16IRX9 🔧

🖥️ Legion 5 16IRX9 | Bottom Cover (D-cover) | Luna Grey | 5CB1M72404

Genuine Lenovo bottom cover (D-cover, Lower Case) in Luna Grey designed for the Lenovo Legion 5 16IRX9 laptop. Brand new part marked with FRU number 5CB1M72404. FRU number 5CB1M72404 guarantees full compatibility with the Legion 5 16IRX9 (machine type 83DG).

⚙️ PRODUCT OVERVIEW

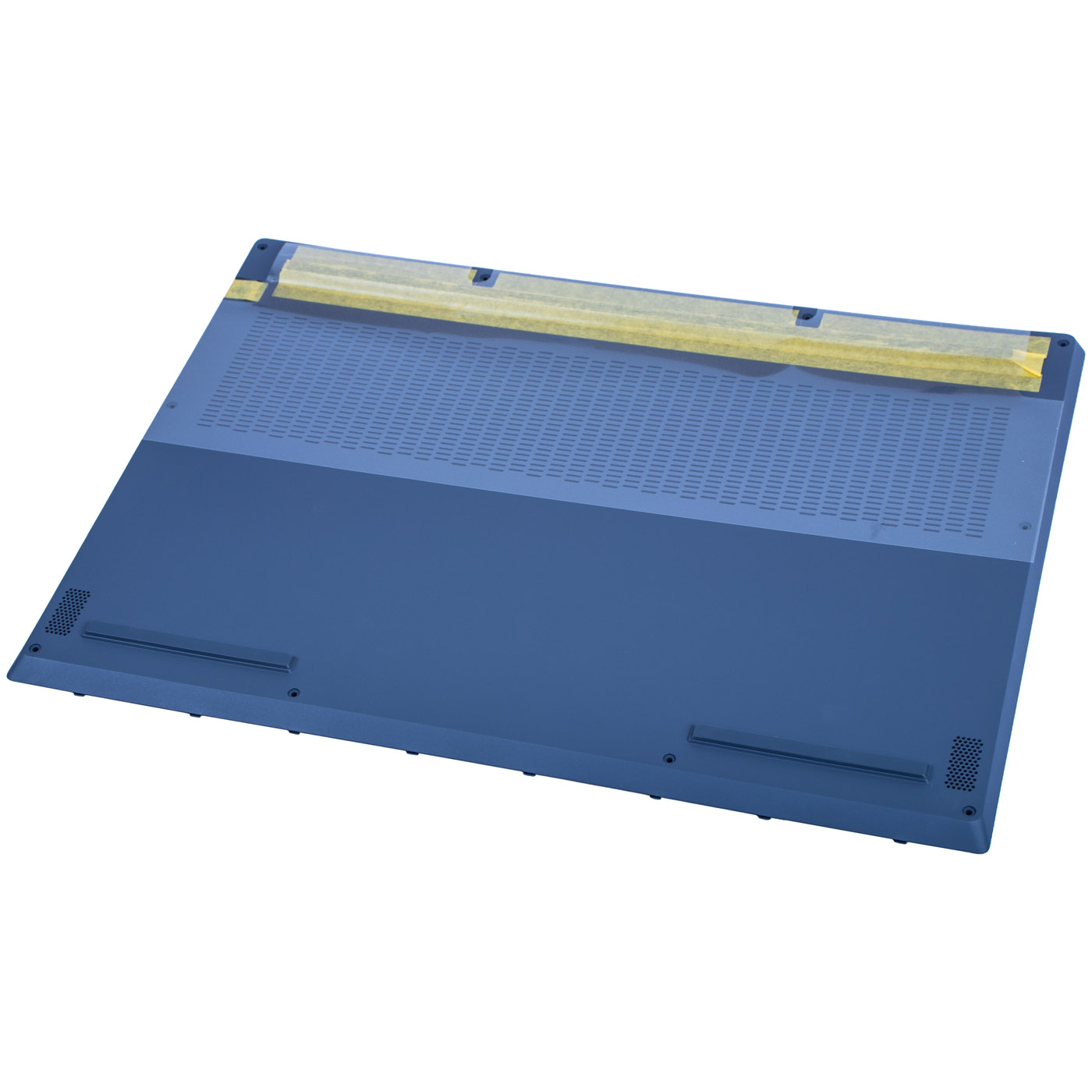

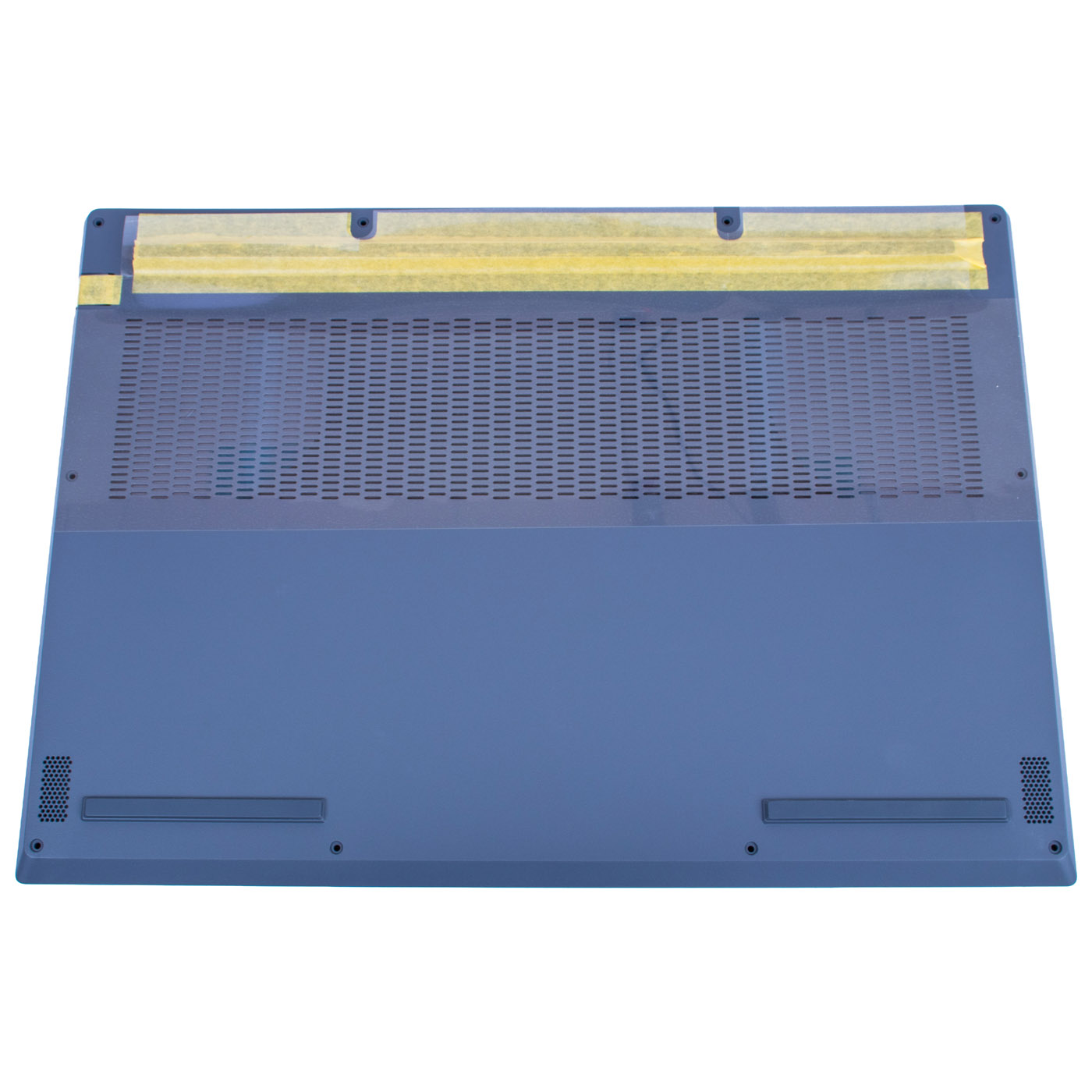

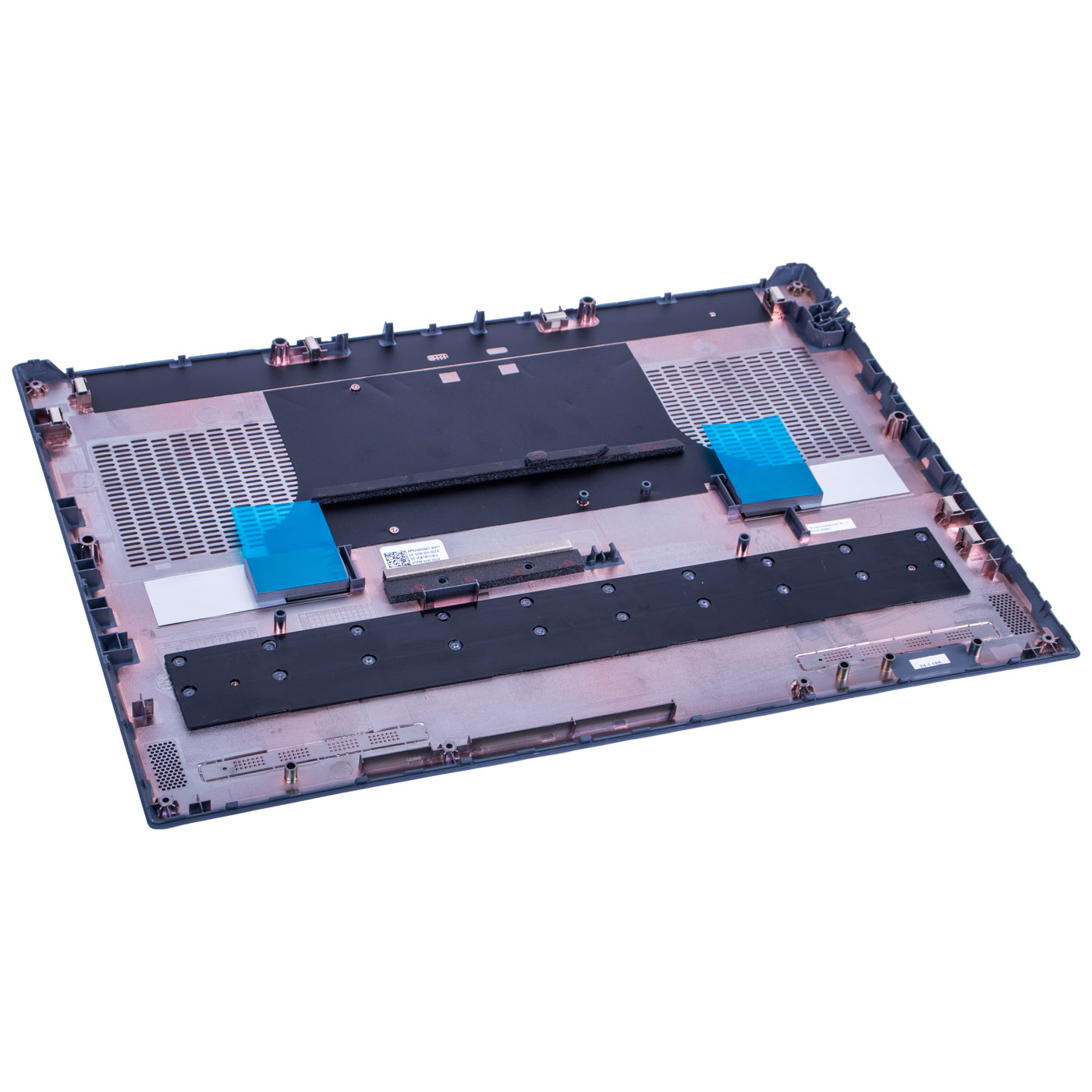

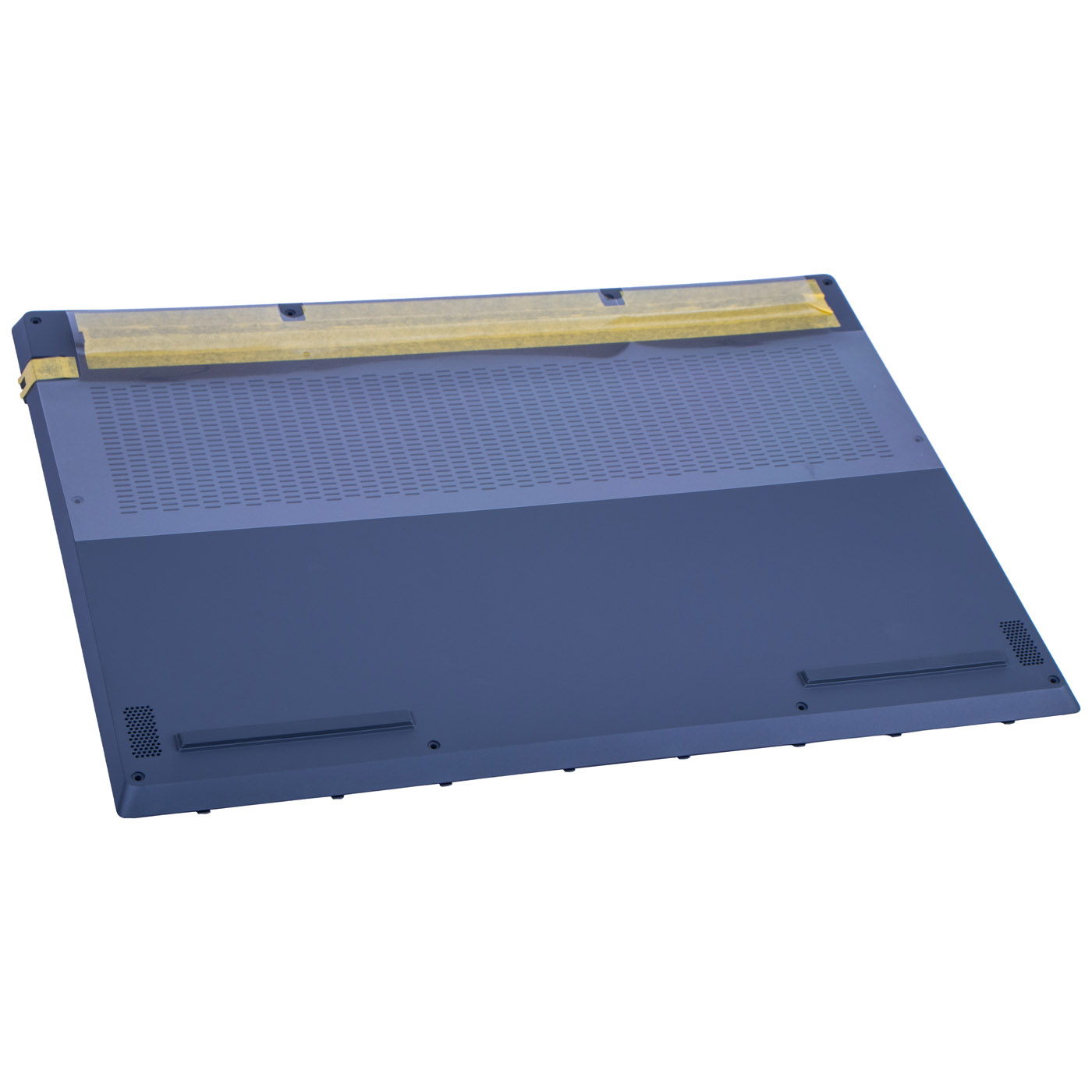

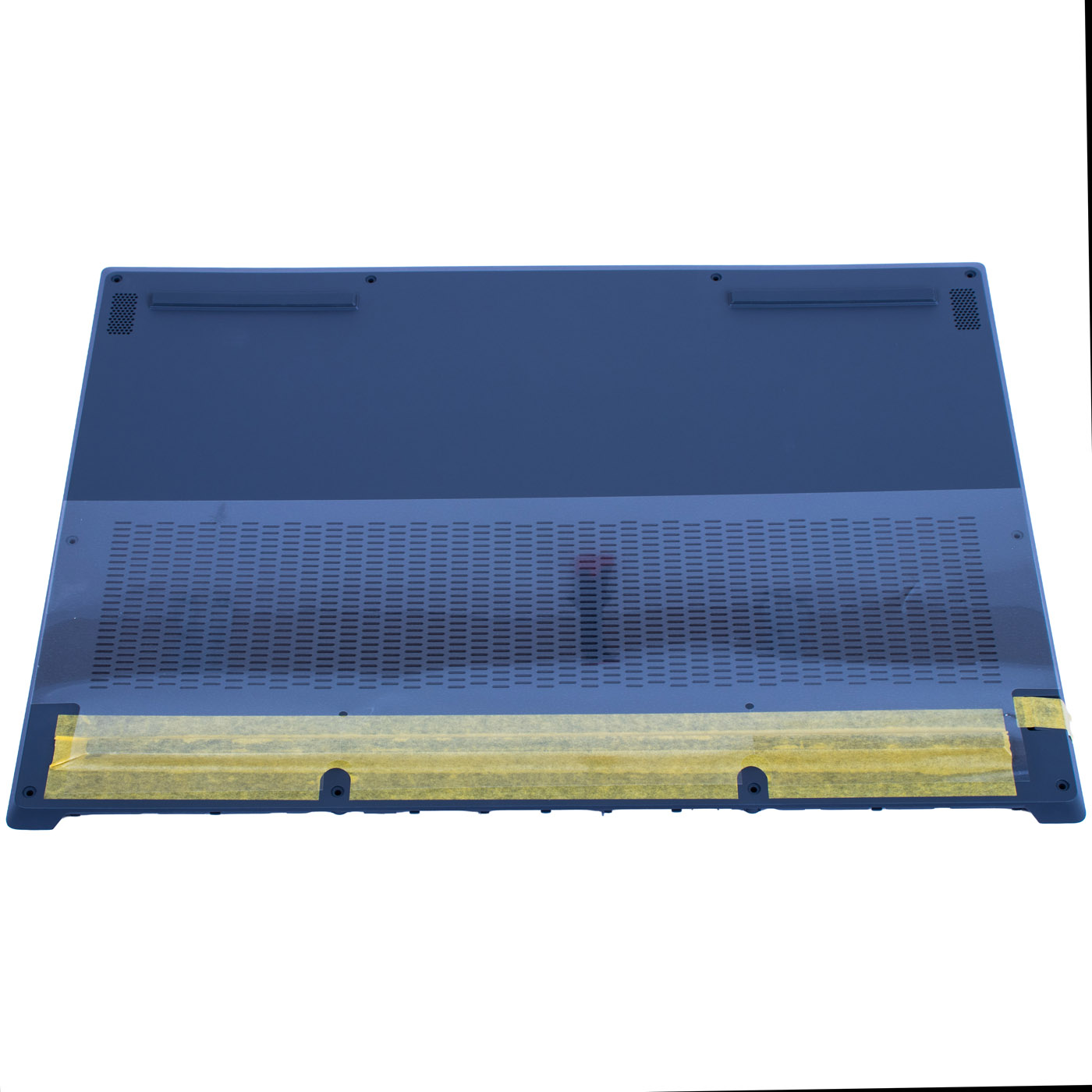

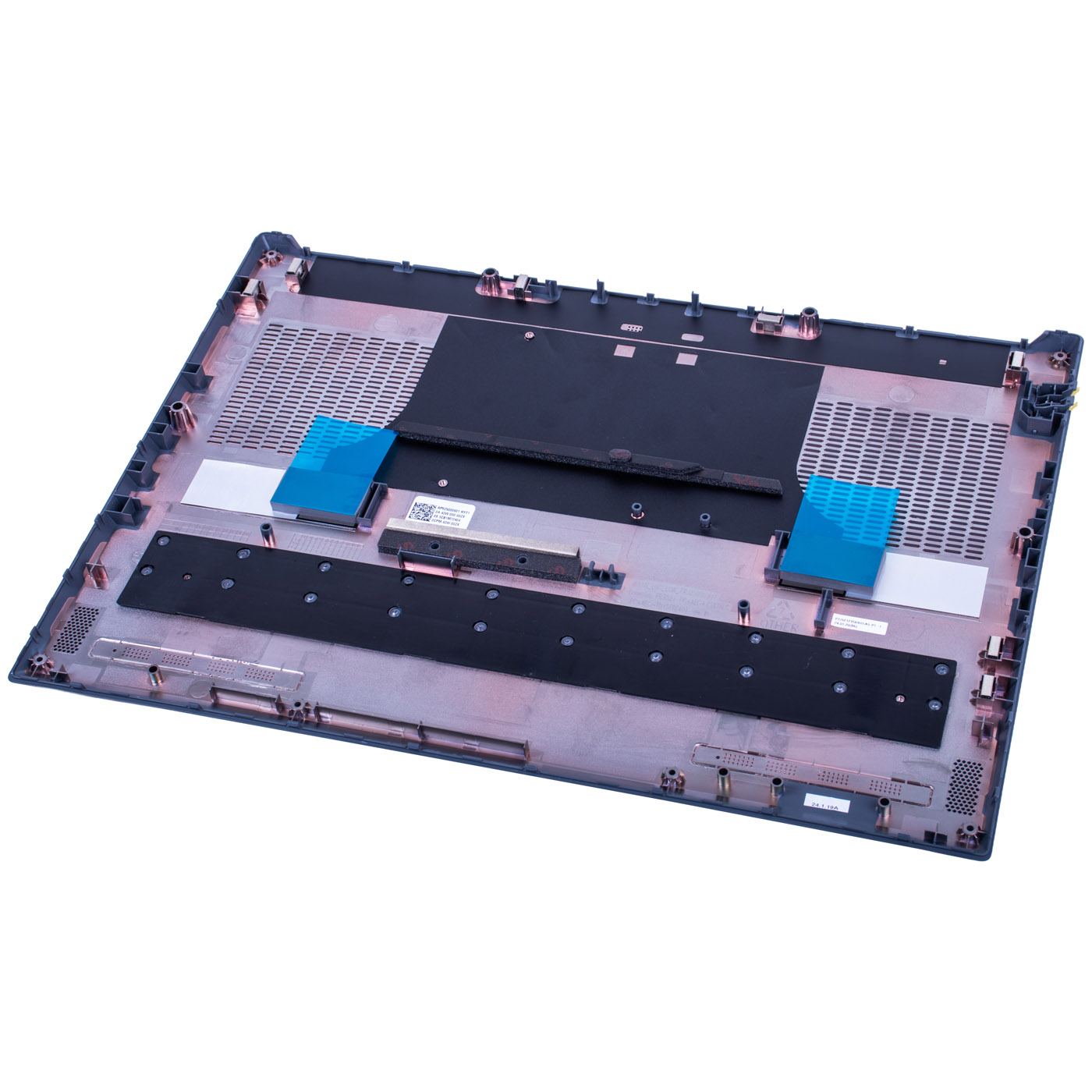

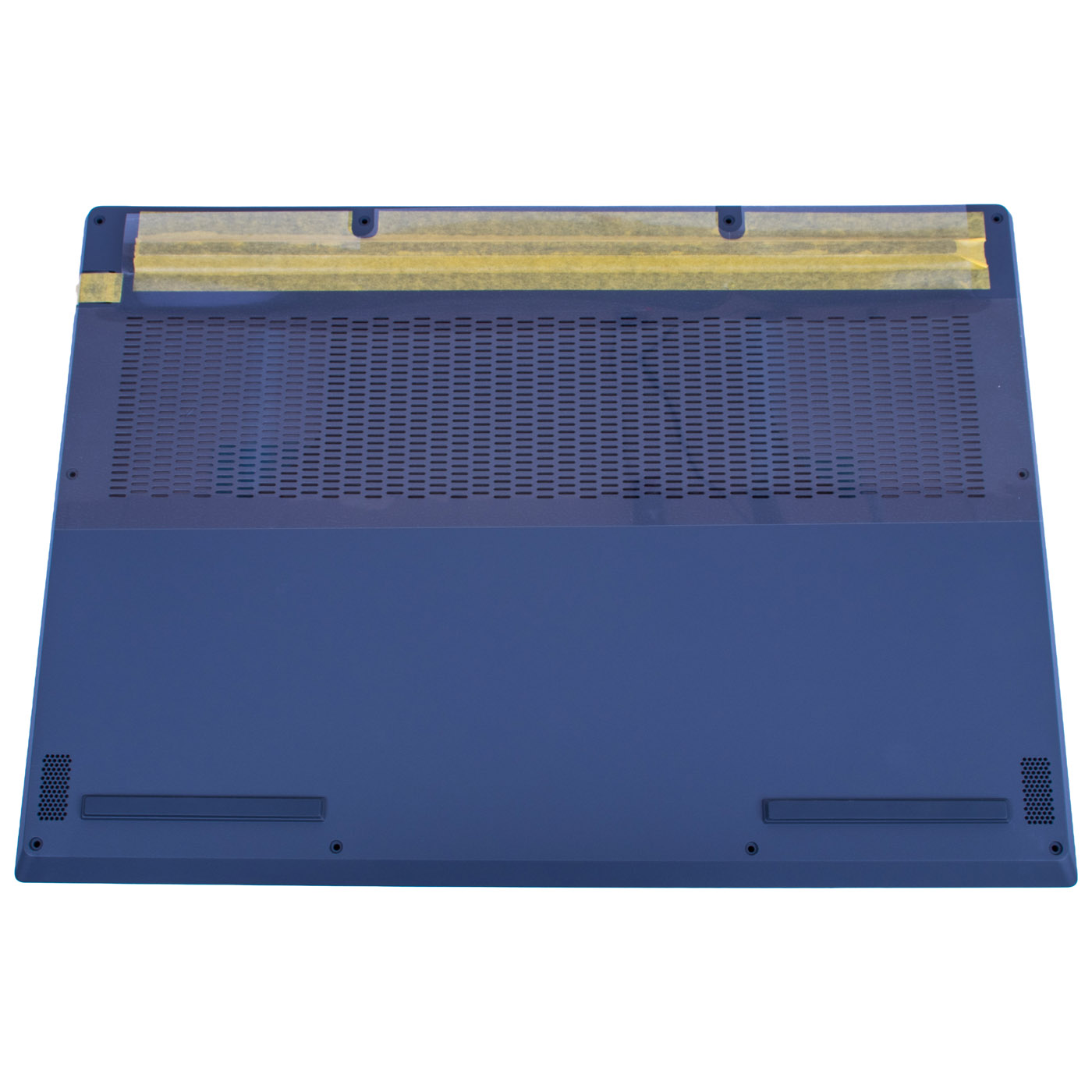

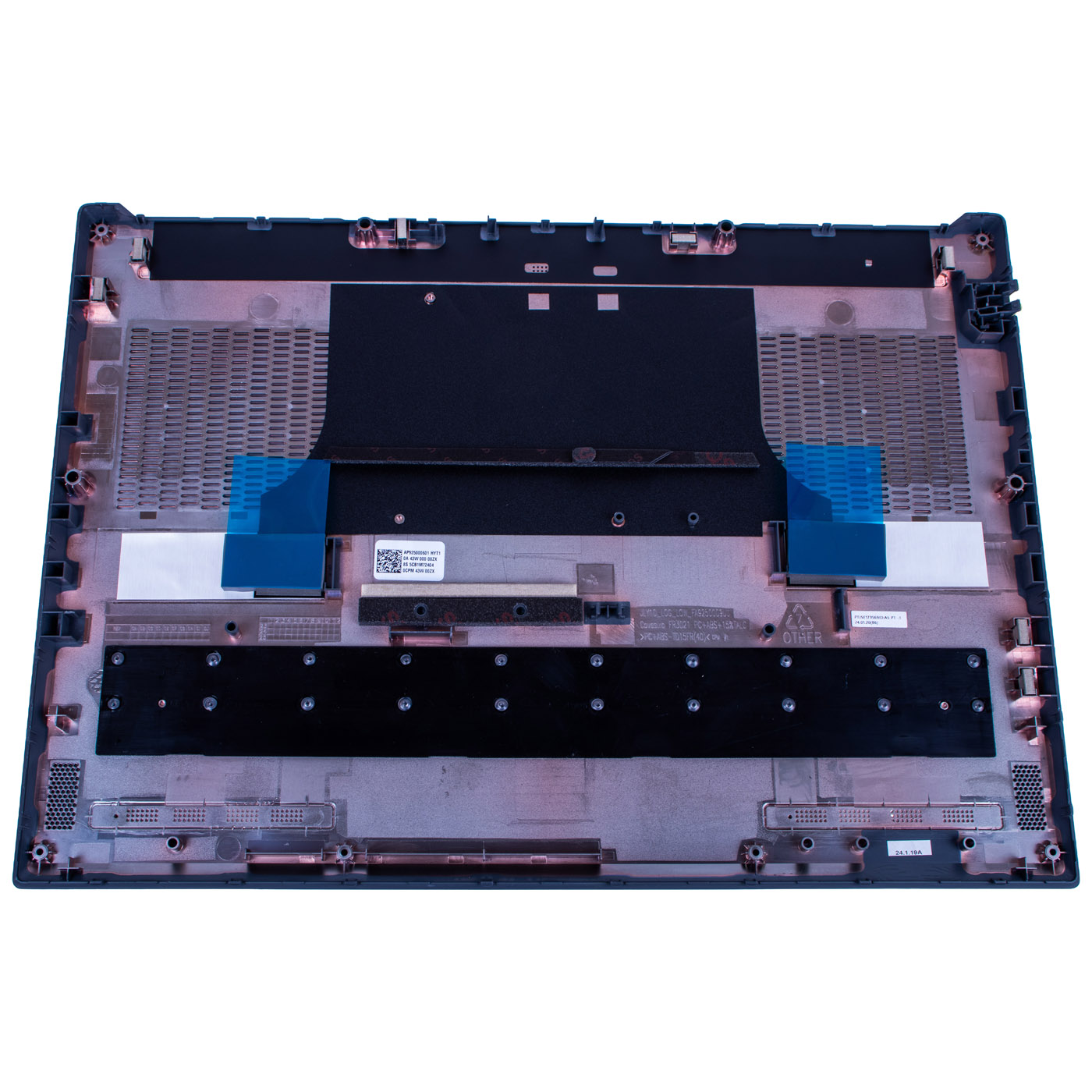

The bottom cover closes the laptop from underneath and protects the motherboard and internal components. Its large ventilation grille with elongated slots feeds air to the cooling system. On the outside it has two elongated rubber feet, speaker grilles in the front corners and factory protective tape along the rear edge. On the inside it has factory-applied black foil sheets and foam elements. Lenovo part number: 5CB1M72404 (Lower Case, 83DG, Luna Grey).

📋 TECHNICAL SPECIFICATIONS

Part name: Bottom cover (D-cover / Lower Case)
Brand: Lenovo Legion
Compatible model: Legion 5 16IRX9 (83DG)
Screen size: 16"
Colour: Luna Grey

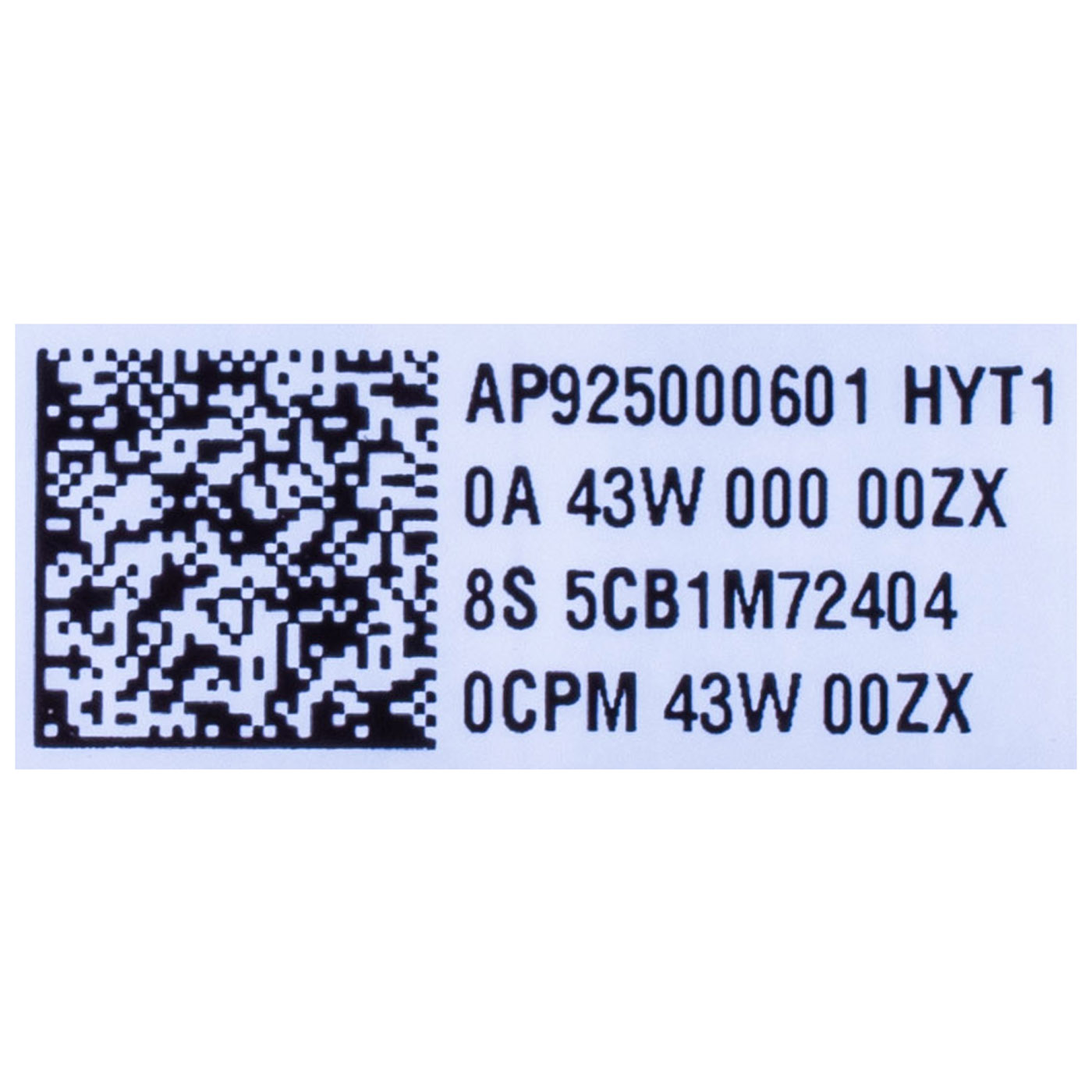

Label markings: AP925000601 HYT1
Condition: New
FRU: 5CB1M72404
Cross reference numbers: AP925000601

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - screw holes, clips and cut-outs line up exactly, so the cover sits flush with no gaps or play
🔹 Large ventilation grille - feeds air to the CPU and GPU cooling, so the laptop stays cool in games and under load exactly as the manufacturer designed it
🔹 Speaker grilles in the front corners - sound from the speakers comes out just as it does through the original cover, without muffling
🔹 Luna Grey colour - the underside matches the rest of the laptop, with no visible difference after replacement
🔹 Full compatibility - matched to the Legion 5 16IRX9 (83DG) under FRU number 5CB1M72404

🔢 PART NUMBERS

FRU: 5CB1M72404
Cross reference numbers: AP925000601
Laptop model: Lenovo Legion 5 16IRX9 (83DG)

❓ WHEN SHOULD YOU REPLACE THE BOTTOM COVER?

• Problem with a cracked cover, e.g. after the laptop was dropped or squeezed in a bag
• Problem with broken clips or screw bosses, so the cover lifts and no longer sits flush
• Problem with detached or lost rubber feet, so the laptop wobbles on the desk
• Problem with a scratched or scuffed underside that spoils the look when reselling

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover
3. Use a plastic pry tool to release the clips around the edge and remove the old cover
4. Disconnect the battery from the motherboard if you are doing any other work inside the laptop
5. Remove the factory protective tape from the rear edge of the new cover
6. Position the new cover, press it around the edge until the clips snap into place, and refit the screws
7. Power on the laptop and check that the cover sits flush and the fans run without rubbing
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

A bottom cover for users and repair shops who want to restore a sound, good-looking underside on the Legion 5 16IRX9 after a crack, broken clips or a worn surface. Replacement restores proper cover mounting and correct airflow to the cooling system. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered bottom cover has been carefully checked and matched to the Lenovo Legion 5 16IRX9 (83DG). We guarantee full compatibility under FRU number 5CB1M72404 and 100% functionality of the part. If any compatibility issues arise, we offer a hassle-free return within 14 days.
