🔧 Bottom Cover for Lenovo IdeaPad S145-15 🔧

🖥️ IdeaPad S145-15IWL / 15IGM / 15AST / 15IKB / 15IIL | Bottom Cover (D-cover) | Black | 5CB0S16940

Genuine Lenovo bottom cover (D-cover, Lower Case) in black designed for the Lenovo IdeaPad S145-15IWL, S145-15IGM, S145-15AST, S145-15IKB and S145-15IIL laptops. Brand new part marked with FRU number 5CB0S16940. FRU number 5CB0S16940 guarantees full compatibility with the S145-15IWL (machine type 81MV), S145-15IGM (81MX), S145-15AST (81N3), S145-15IKB (81VD) and S145-15IIL (81W8).

⚙️ PRODUCT OVERVIEW

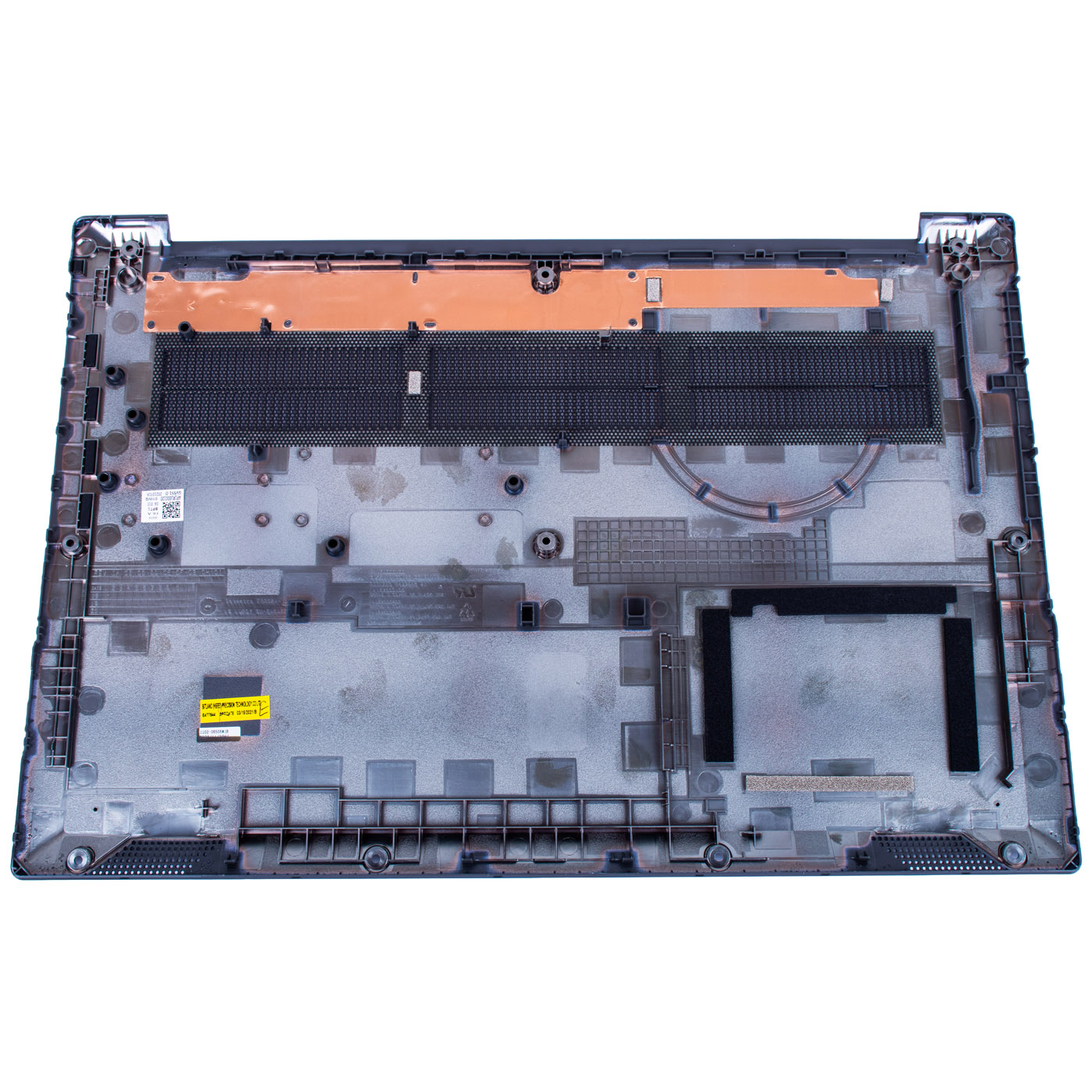

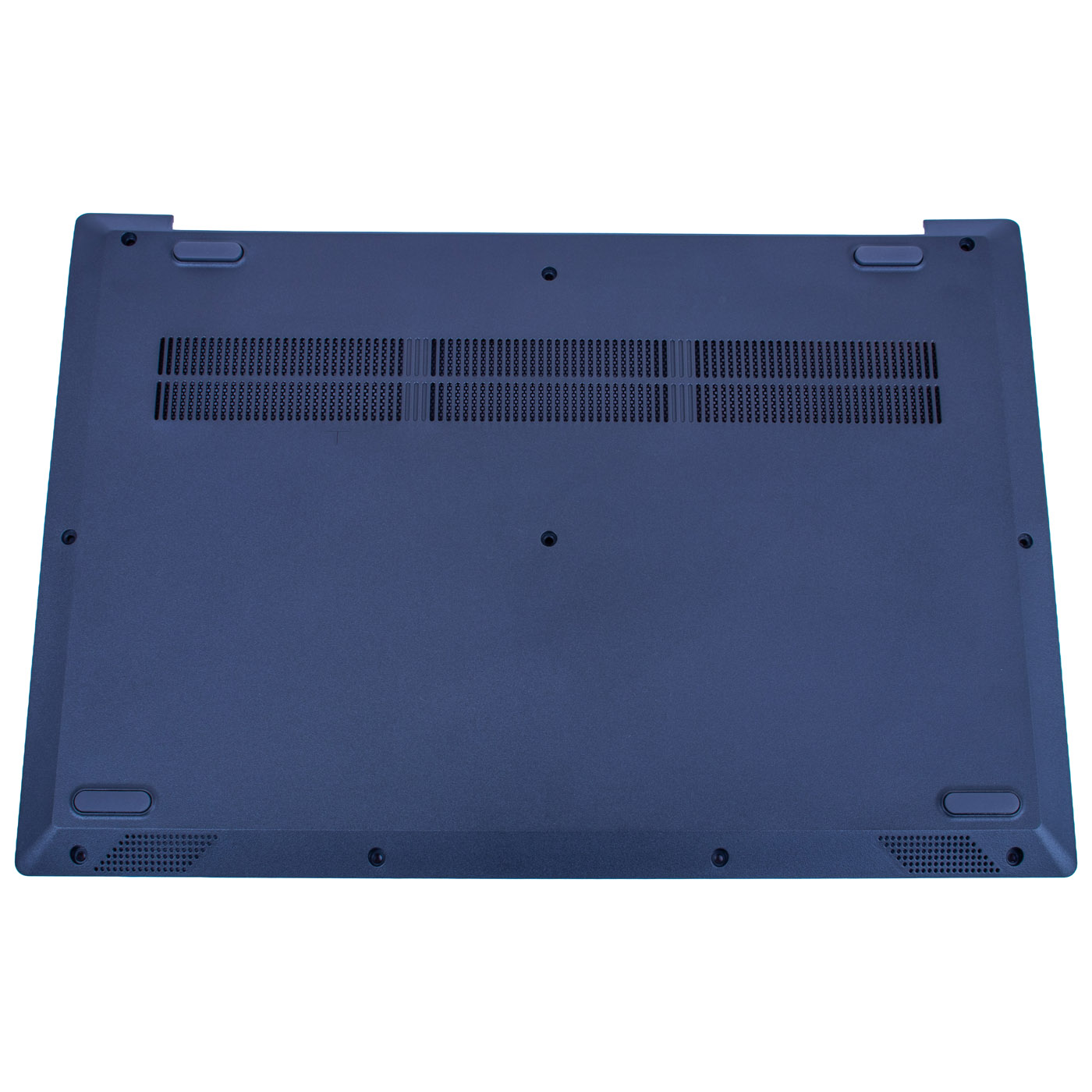

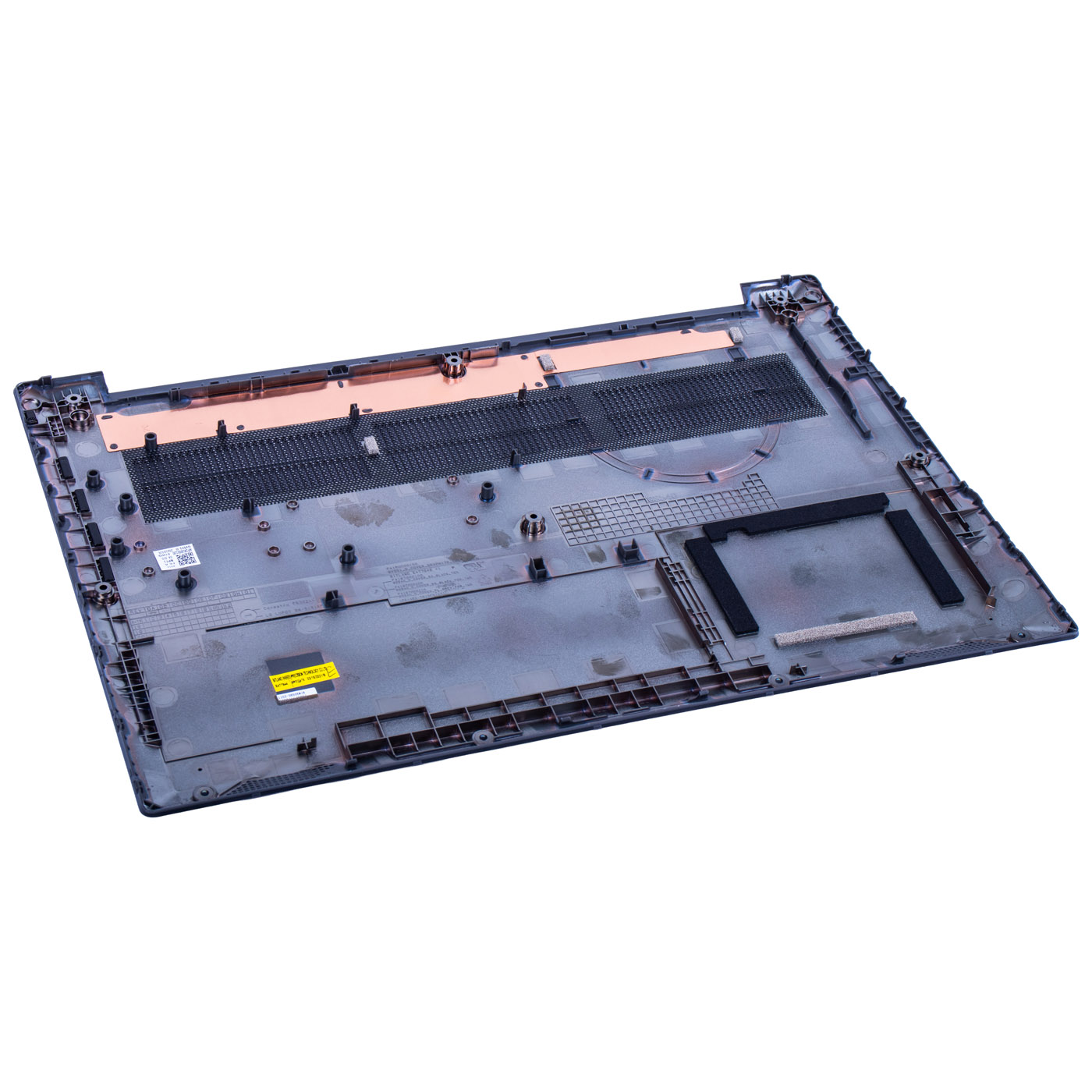

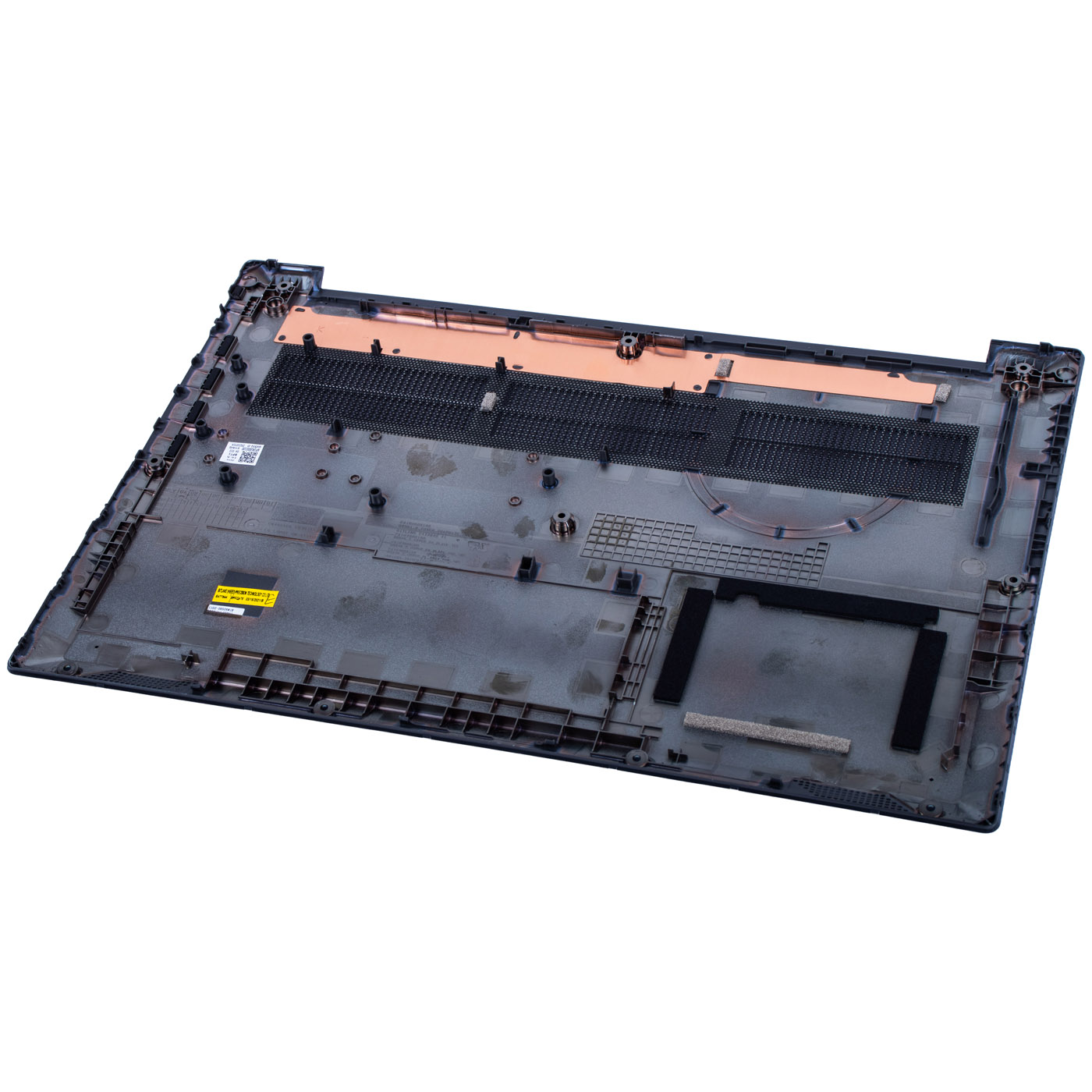

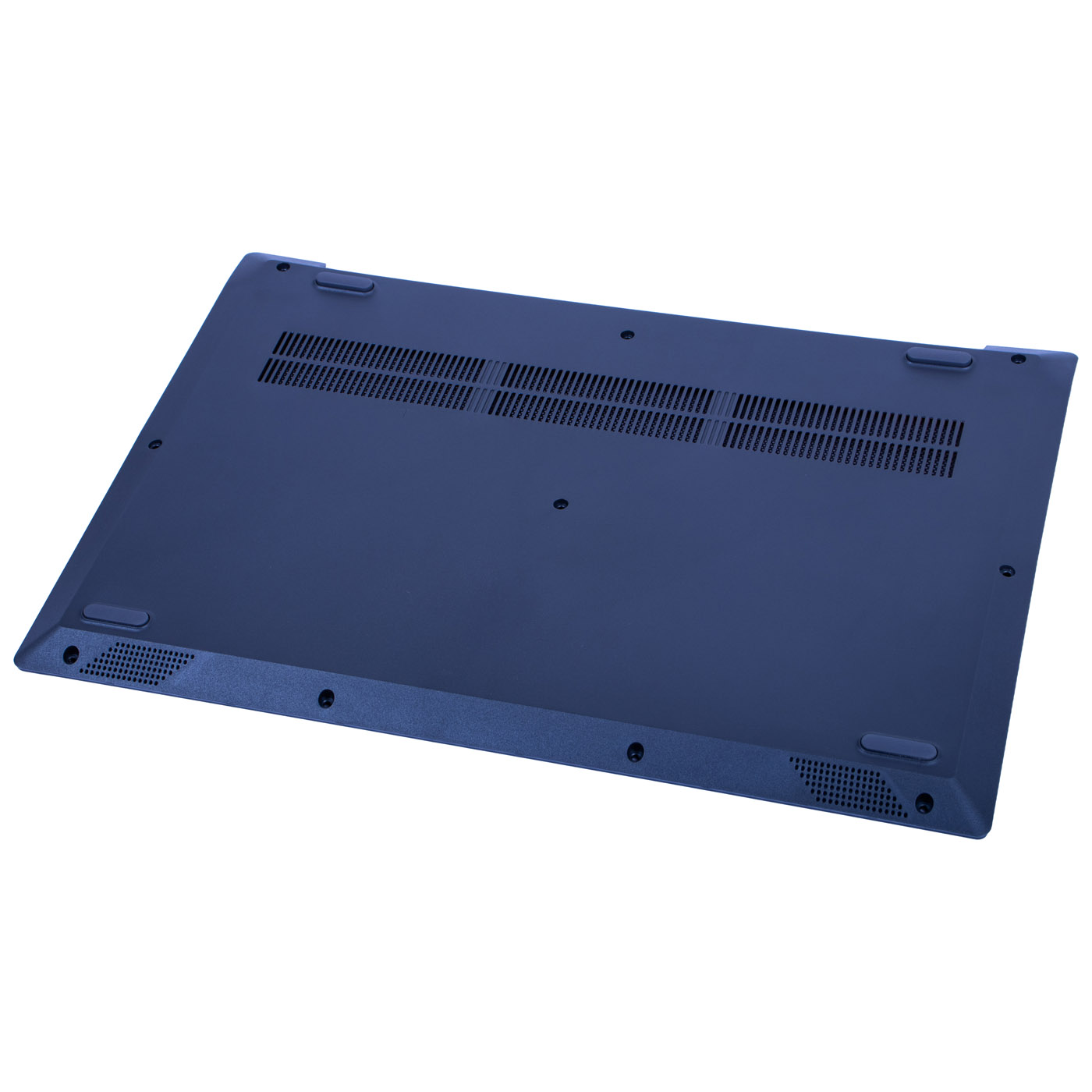

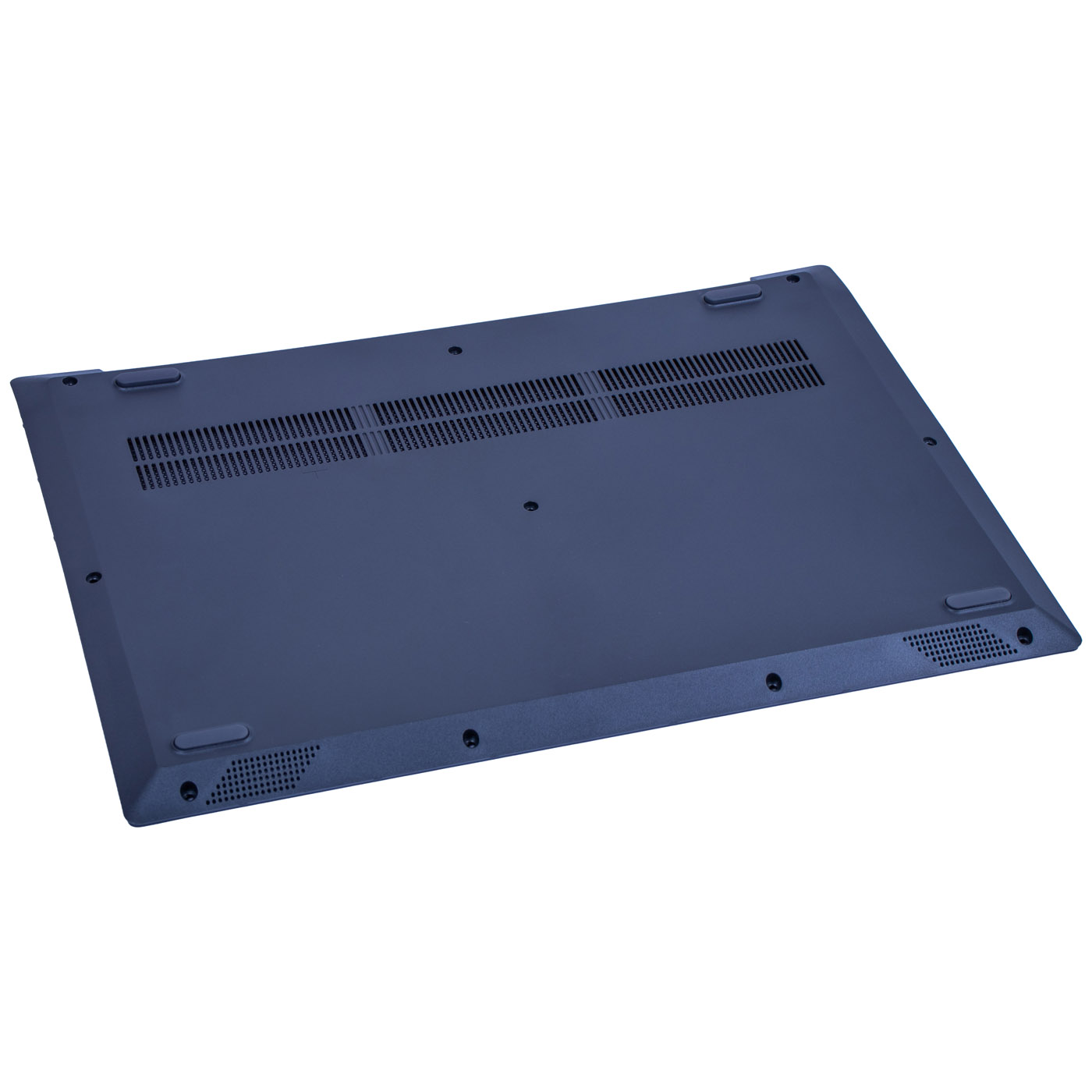

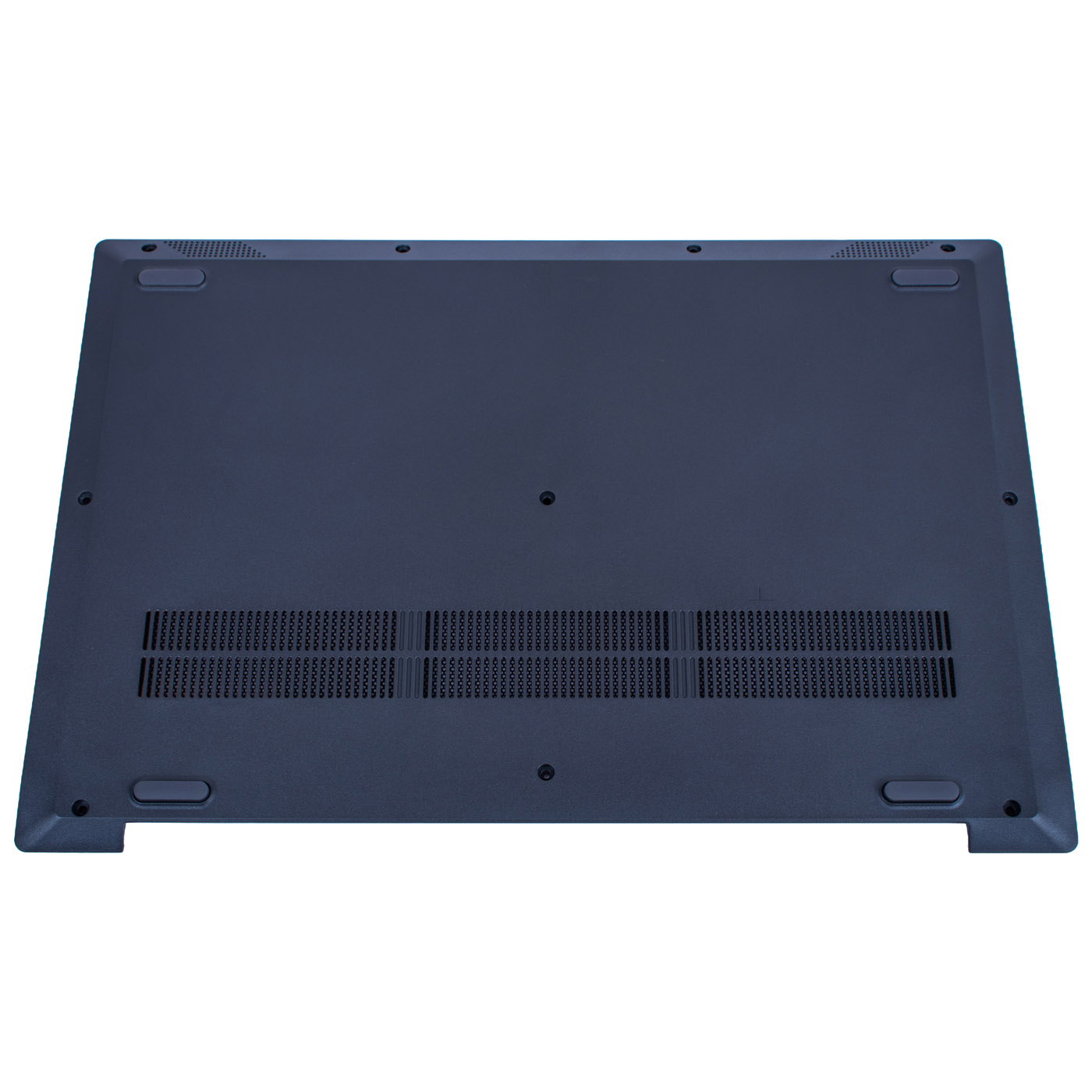

The bottom cover closes the laptop from underneath and protects the motherboard and internal components. Two rows of ventilation slots feed air to the cooling system. On the outside it has four rubber feet and speaker grilles in the front corners. On the inside it has factory-applied copper shielding foil, black mesh over the ventilation slots and foam elements. Lenovo designation: COVER Lower Case L 81MV BK IMR DIS, part number 5CB0S16940.

📋 TECHNICAL SPECIFICATIONS

Part name: Bottom cover (D-cover / Lower Case)
Brand: Lenovo IdeaPad
Compatible model: IdeaPad S145-15IWL (81MV), S145-15IGM (81MX), S145-15AST (81N3), S145-15IKB (81VD), S145-15IIL (81W8)
Screen size: 15.6"
Colour: Black

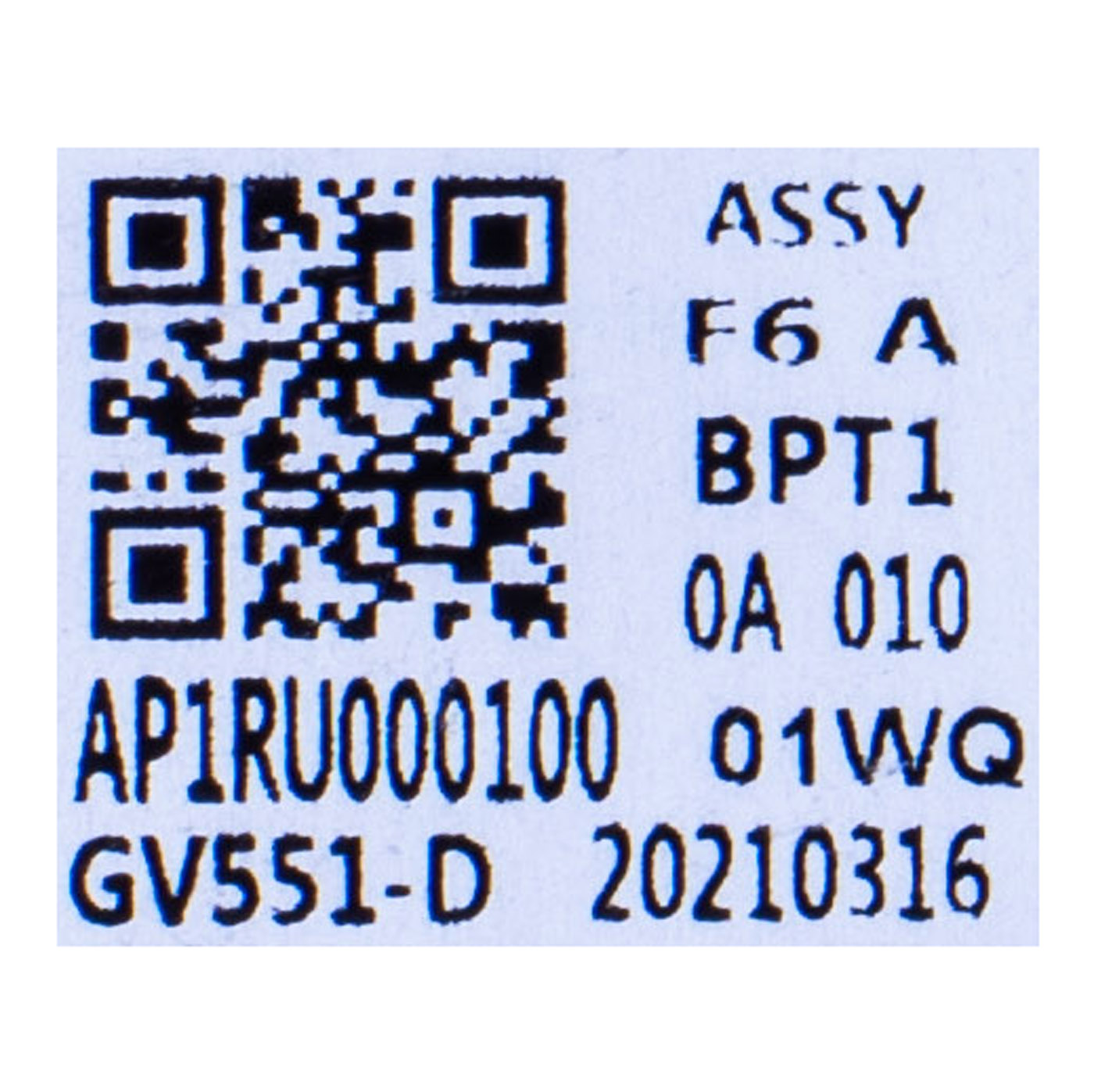

Part markings: AP1RU000100, GV551-D, BK IMR DIS
Condition: New
FRU: 5CB0S16940
Cross reference numbers: AP1RU000100

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - screw holes, clips and cut-outs line up exactly, so the cover sits flush with no gaps or play
🔹 Two rows of ventilation slots with inner mesh - air reaches the fan exactly as the manufacturer designed it, so the laptop runs no hotter than before the replacement
🔹 Four rubber feet in place - the laptop stands steady on the desk and does not slide while you type
🔹 Copper shielding foil on the inside - factory shielding just like in the original laptop, nothing to add during installation
🔹 Full compatibility - matched to five S145-15 versions (81MV, 81MX, 81N3, 81VD, 81W8) under FRU number 5CB0S16940

🔢 PART NUMBERS

FRU: 5CB0S16940
Cross reference numbers: AP1RU000100
Laptop model: Lenovo IdeaPad S145-15IWL (81MV), S145-15IGM (81MX), S145-15AST (81N3), S145-15IKB (81VD), S145-15IIL (81W8)

❓ WHEN SHOULD YOU REPLACE THE BOTTOM COVER?

• Problem with a cracked cover, e.g. after the laptop was dropped or squeezed in a bag
• Problem with broken clips or screw bosses, so the cover lifts and no longer sits flush
• Problem with detached or lost rubber feet, so the laptop wobbles on the desk
• Problem with a scratched or scuffed underside that spoils the look when reselling

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover
3. Use a plastic pry tool to release the clips around the edge and remove the old cover
4. Disconnect the battery from the motherboard if you are doing any other work inside the laptop
5. Position the new cover, press it around the edge until the clips snap into place, and refit the screws
6. Power on the laptop and check that the cover sits flush and the fan runs without rubbing
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

A bottom cover for users and repair shops who want to restore a sound, good-looking underside on the IdeaPad S145-15 after a crack, broken clips or a worn surface. Replacement restores proper cover mounting and correct airflow to the cooling system. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered bottom cover has been carefully checked and matched to the Lenovo IdeaPad S145-15IWL (81MV), S145-15IGM (81MX), S145-15AST (81N3), S145-15IKB (81VD) and S145-15IIL (81W8). We guarantee full compatibility under FRU number 5CB0S16940 and 100% functionality of the part. If any compatibility issues arise, we offer a hassle-free return within 14 days.
