🔧 LCD Back Cover for Lenovo Legion 5 15ARP8 🔧

🖥️ Legion 5 15ARP8 | LCD Back Cover (A-cover) | Storm Grey | 5CB1M64914

Genuine Lenovo aluminium LCD back cover (A-cover) in Storm Grey designed for the Lenovo Legion 5 15ARP8 laptop. Brand new part marked with FRU number 5CB1M64914. FRU number 5CB1M64914 guarantees full compatibility with the Legion 5 15ARP8 (machine type 83EF).

⚙️ PRODUCT OVERVIEW

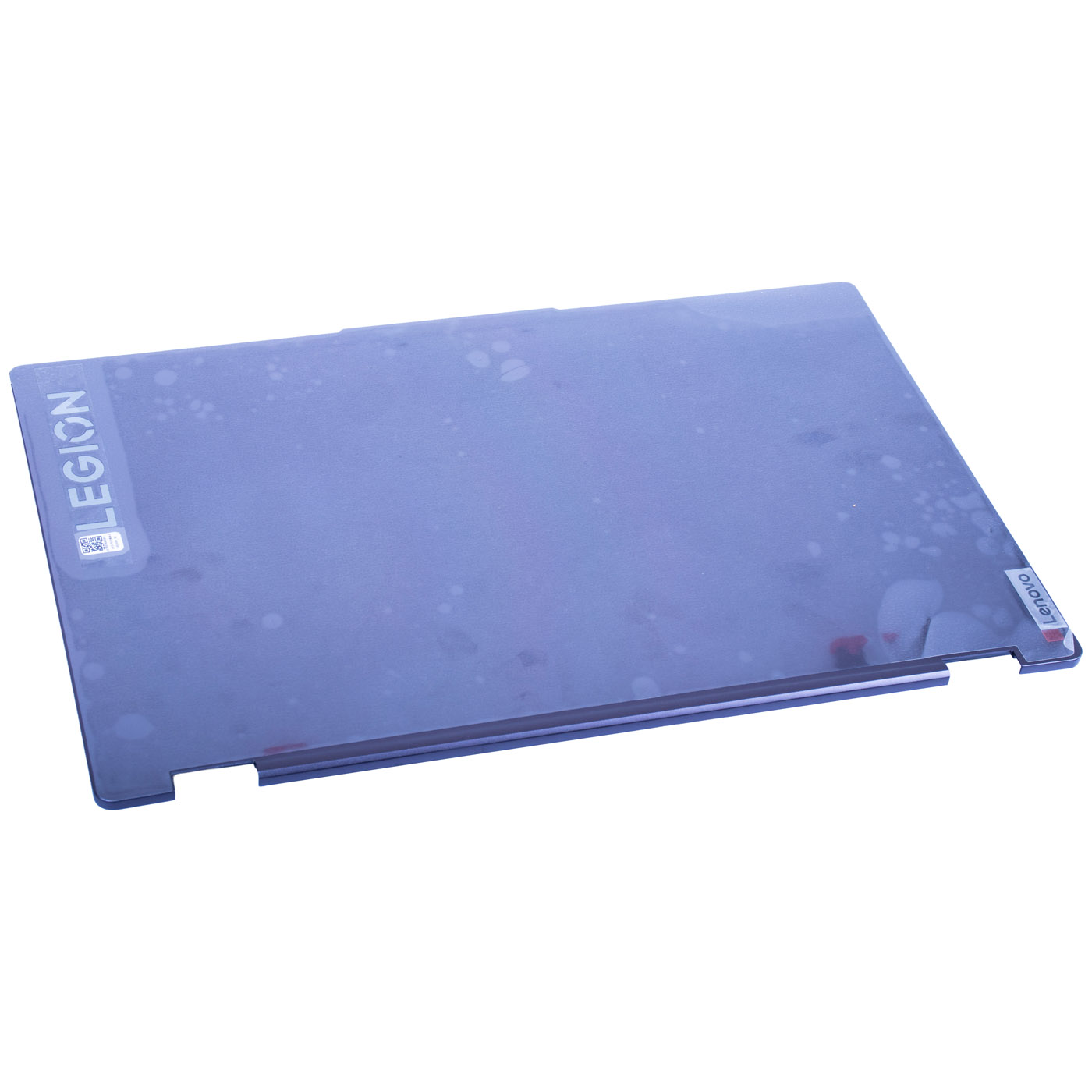

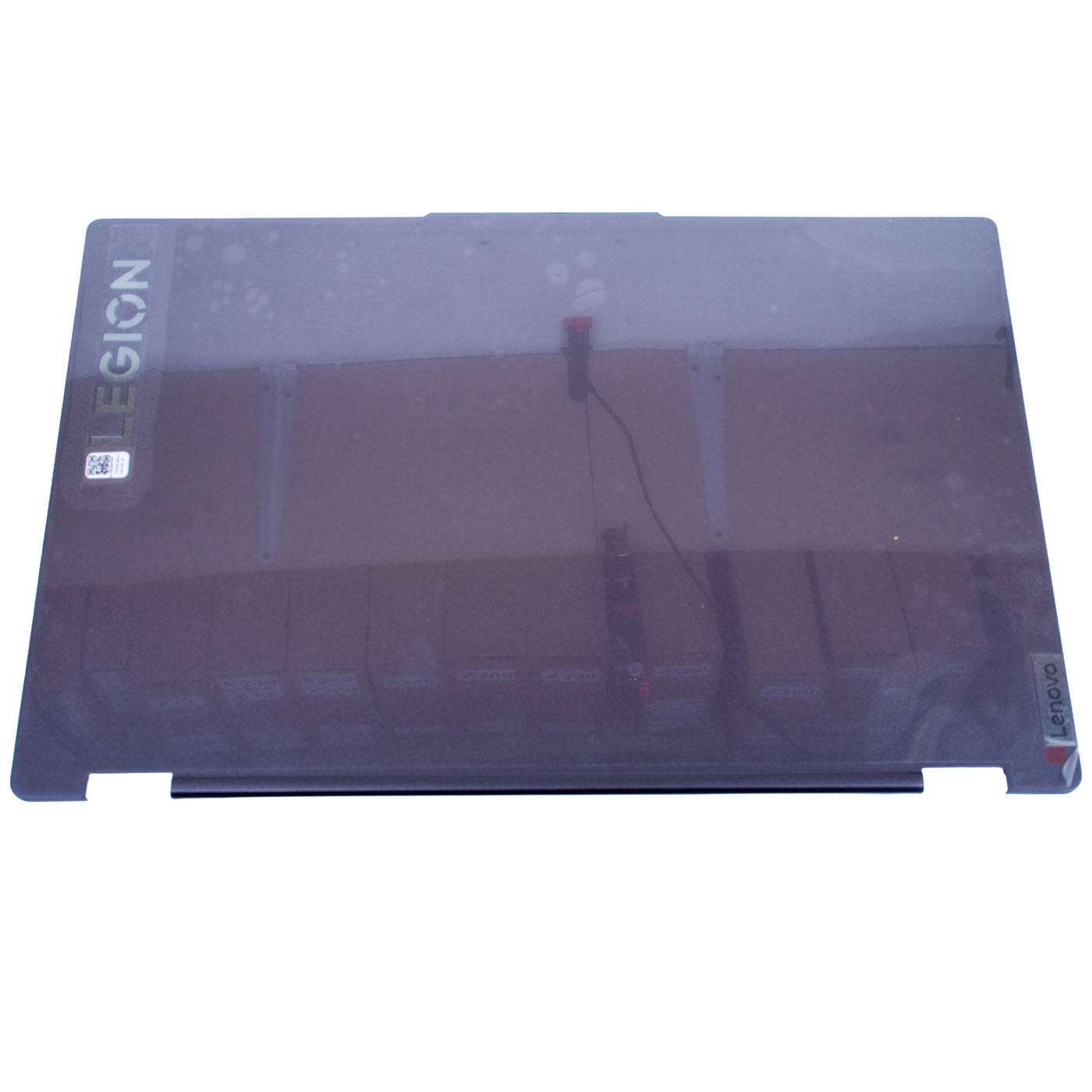

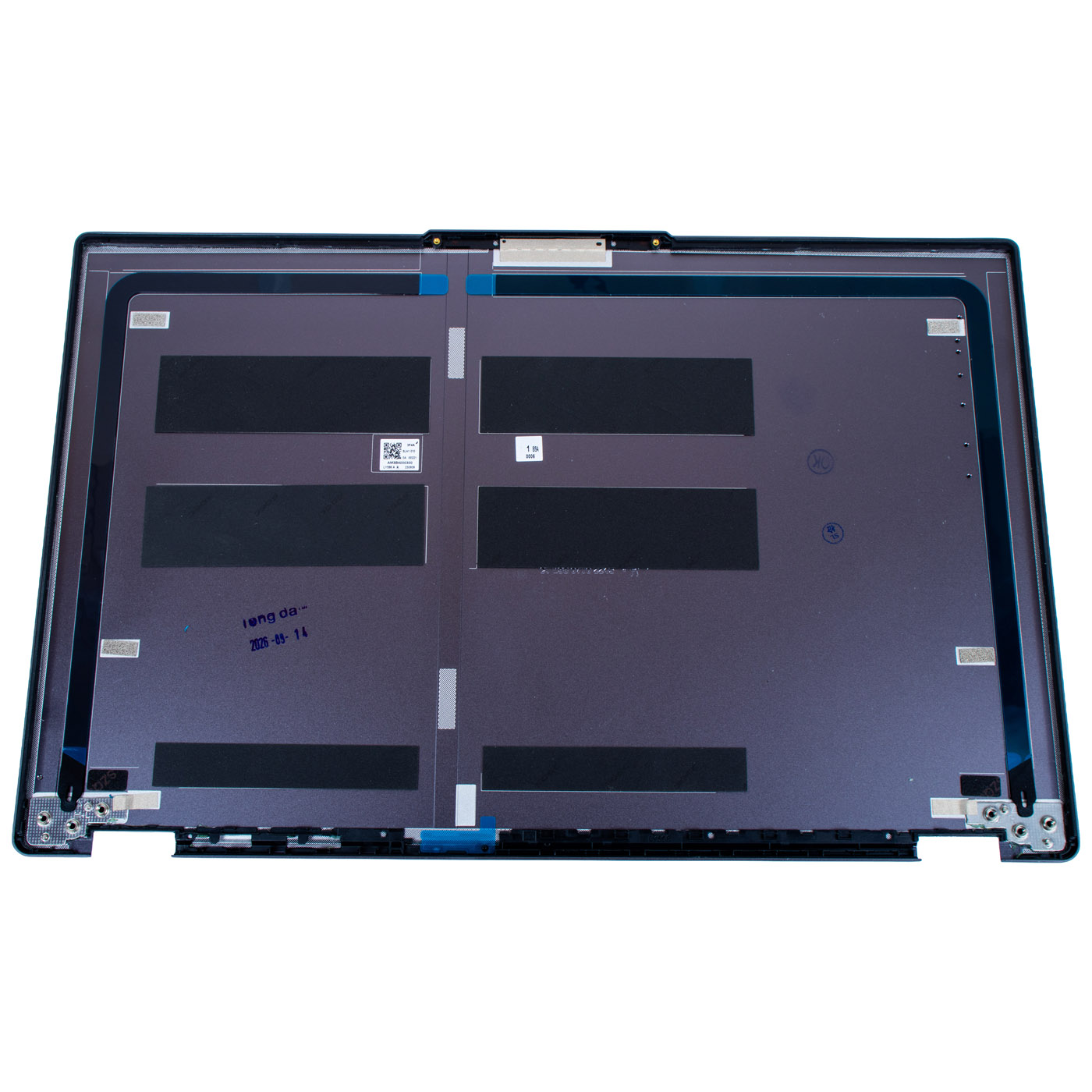

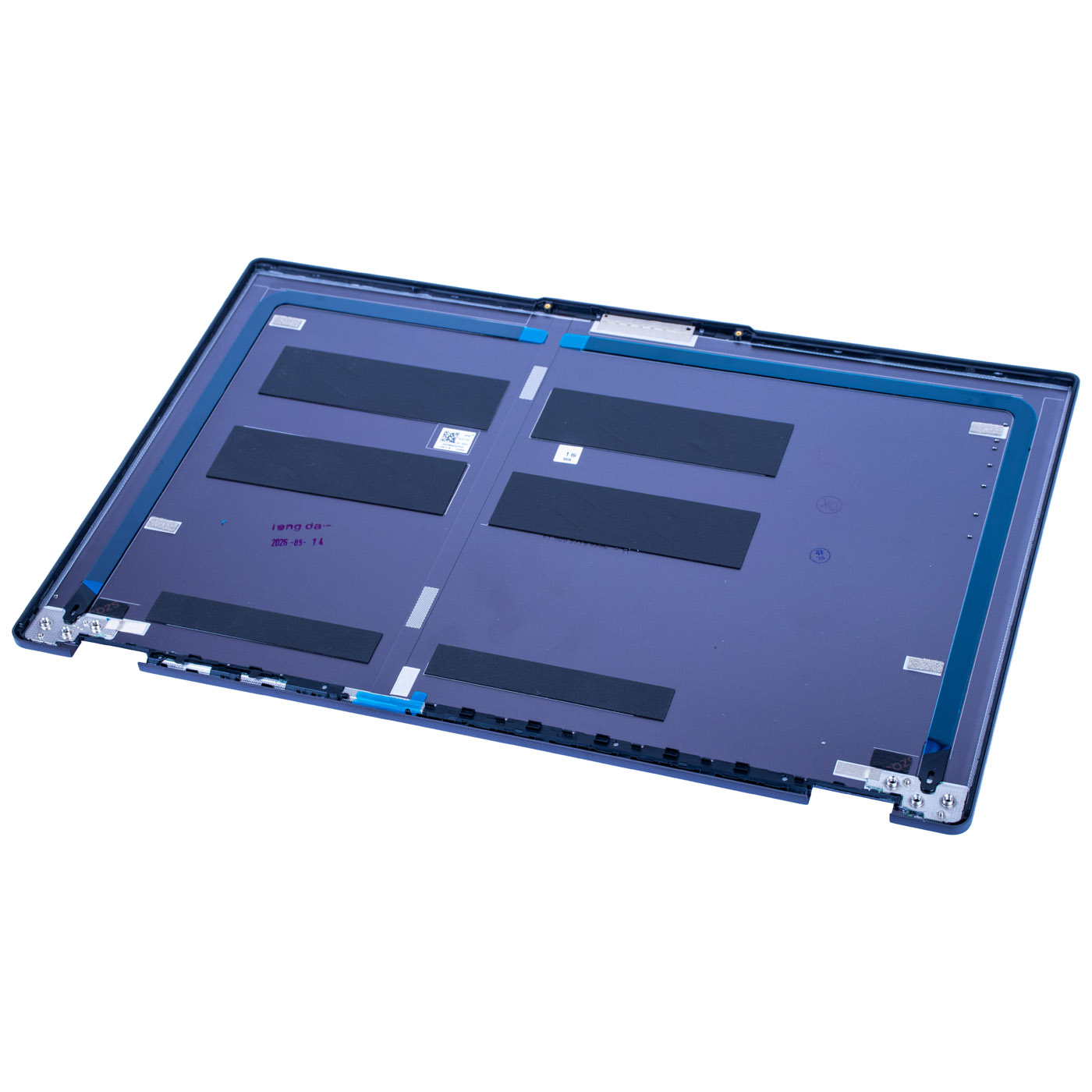

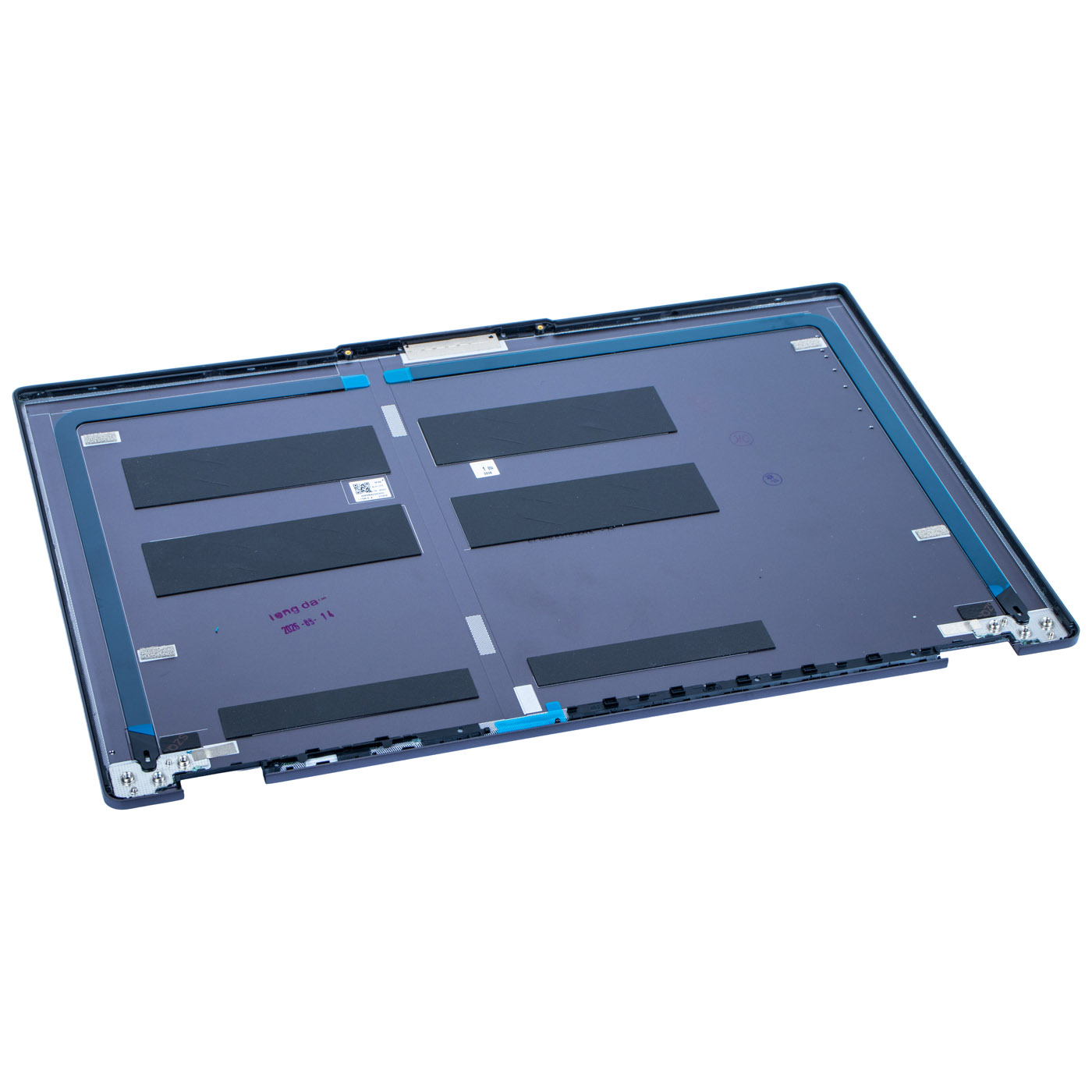

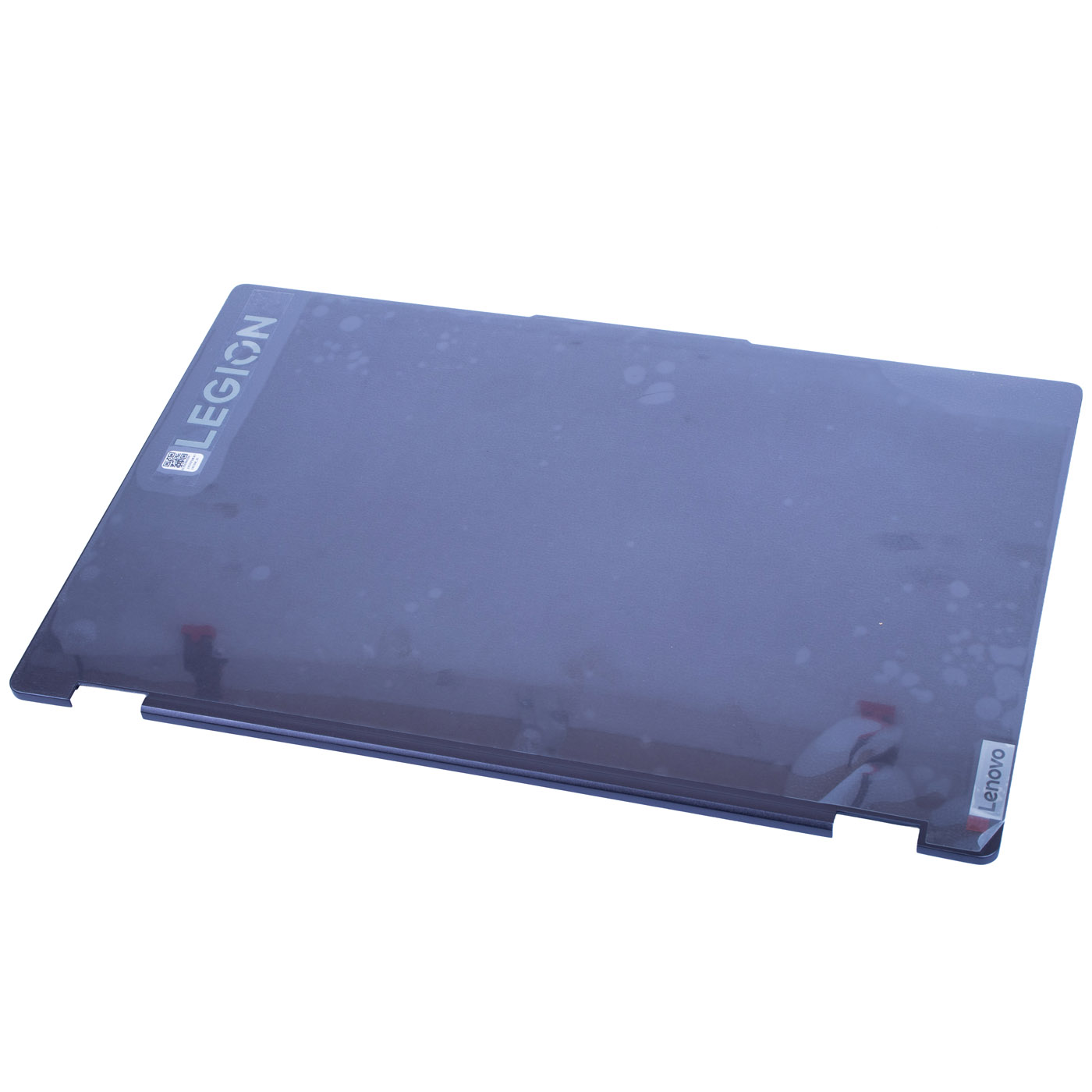

The LCD back cover is the rear lid of the display: it protects the panel and defines the look of the laptop. Made of anodised aluminium, it carries the LEGION and Lenovo logos and a hinge cap along the bottom edge. On the inside it has factory-applied panel adhesive strips around the perimeter and black pads. Lenovo designation: COVER L 83EF A_COVER_SG_HG, part number 5CB1M64914.

📋 TECHNICAL SPECIFICATIONS

Part name: LCD back cover (A-cover / LCD cover)
Brand: Lenovo Legion
Compatible model: Legion 5 15ARP8 (83EF)
Screen size: 15.6"
Material: aluminium, anodised
Colour: Storm Grey
Package contents: LCD back cover, panel adhesive strips

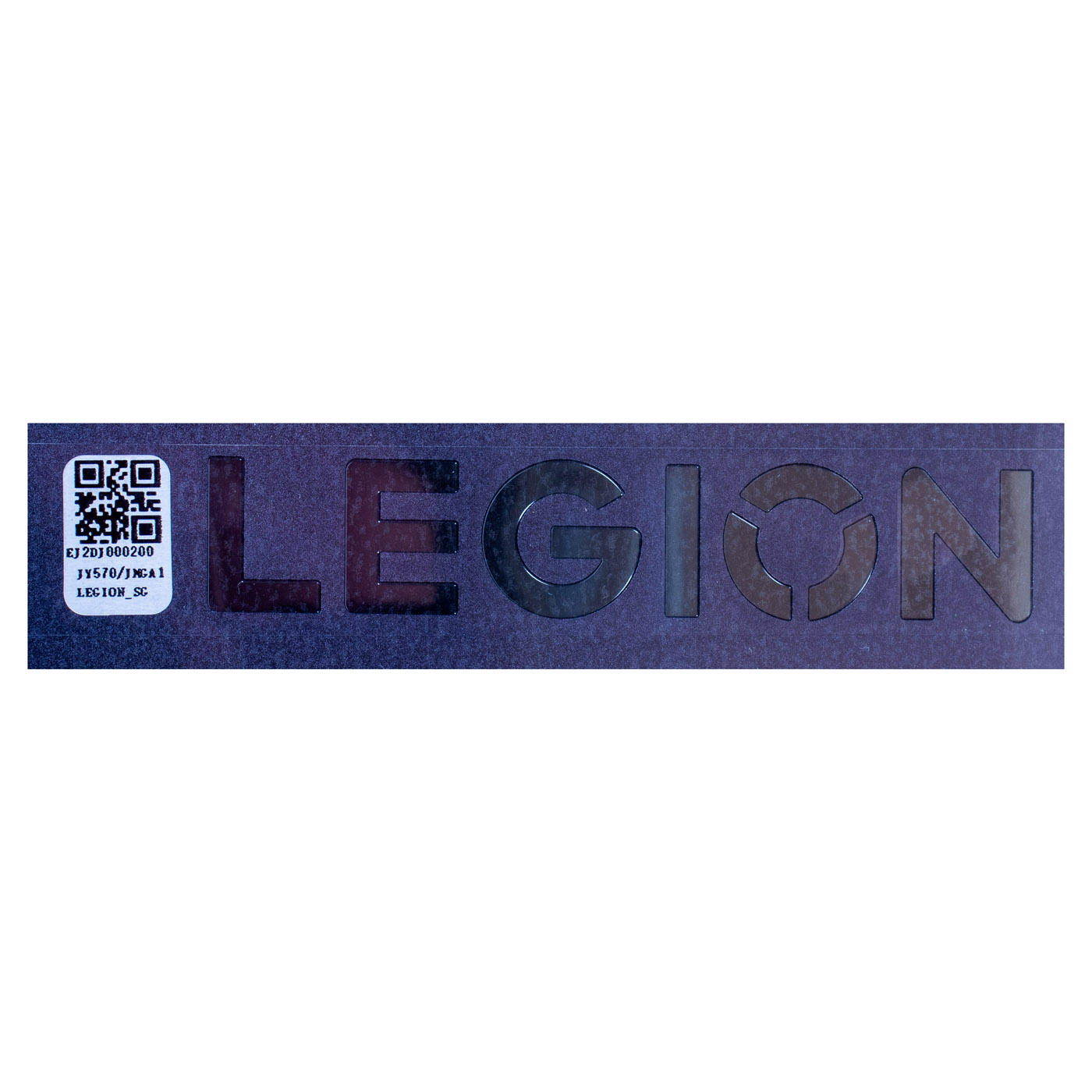

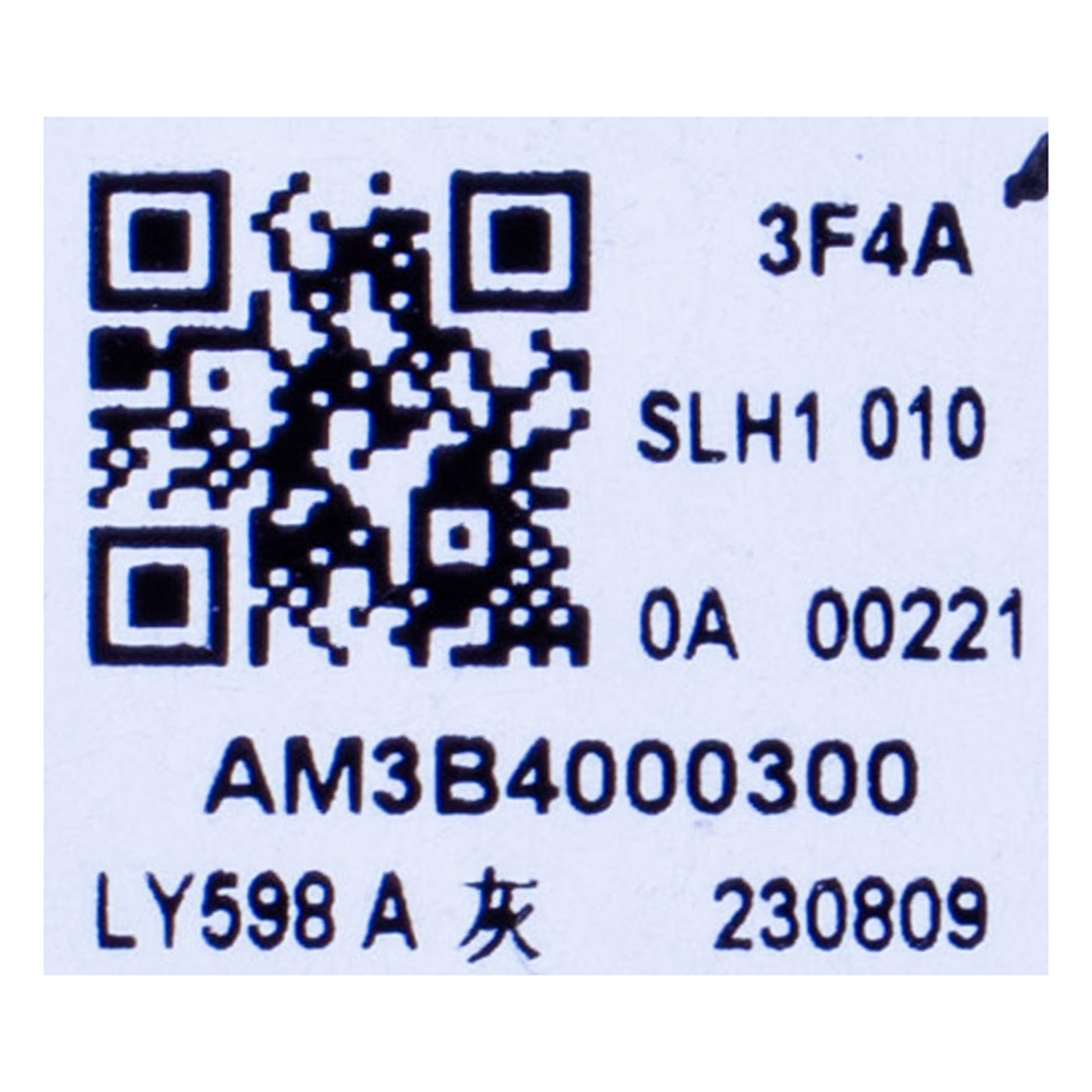

Part markings: AM3B4000300, LY598 A, EJ2DJ000200 LEGION_SG (logo)
Condition: New
FRU: 5CB1M64914
Cross reference numbers: AM3B4000300

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - holes, clips and cut-outs line up exactly, so the lid closes flush with the rest of the chassis
🔹 Anodised aluminium in Storm Grey - a rigid lid that better protects the panel from pressure in a bag, in the same shade as the rest of the laptop
🔹 Factory-applied panel adhesive strips - no need to buy or cut tape: peel off the liner and fit the panel
🔹 LEGION and Lenovo logos in place - after replacement the laptop looks factory fresh
🔹 Full compatibility - matched to the Legion 5 15ARP8 (83EF) under FRU number 5CB1M64914

🔢 PART NUMBERS

FRU: 5CB1M64914
Cross reference numbers: AM3B4000300
Laptop model: Lenovo Legion 5 15ARP8 (83EF)

❓ WHEN SHOULD YOU REPLACE THE LCD BACK COVER?

• Problem with a dented or cracked lid, e.g. after the laptop was dropped or squeezed in a backpack
• Problem with broken hinge mounts, so the lid has play or creaks when opening
• Problem with a display panel coming unstuck and lifting away from the lid
• Problem with a scratched lid that spoils the look when reselling

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the cables routed to the lid, remove the hinge screws and take off the display assembly
5. Remove the bezel and carefully peel the panel away from the old cover
6. Transfer the hinges, camera, antennas and cables to the new cover, routing them as in the original
7. Peel the liner off the adhesive strips, fit the panel and press it along the edges
8. Refit the bezel, screw the hinges back in, reconnect the cables and battery, and refit the bottom cover
9. Power on the laptop and check the picture, camera, Wi-Fi and hinge operation
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

An LCD back cover for users and repair shops who want to restore a solid, good-looking lid on the Legion 5 15ARP8 after a dent, crack or broken hinge mounts. Factory-applied adhesive strips cut the repair down to transferring the panel and components. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered LCD back cover has been carefully checked and matched to the Lenovo Legion 5 15ARP8 (83EF). We guarantee full compatibility under FRU number 5CB1M64914 and 100% functionality of the part. If any compatibility issues arise, we offer a hassle-free return within 14 days.
