🔧 LCD Hinges for Lenovo Legion 5 15ARP8 🔧

🖥️ Legion 5 15ARP8 | LCD Hinges (left + right) | AM2DJ000740 / AM2DJ000940

Genuine Lenovo LCD hinge pair (left and right) designed for the Lenovo Legion 5 15ARP8 laptop. Brand new part marked with part numbers AM2DJ000740 (left) and AM2DJ000940 (right). Part numbers AM2DJ000740 / AM2DJ000940 guarantee full compatibility with the Legion 5 15ARP8 (machine type 83EF).

⚙️ PRODUCT OVERVIEW

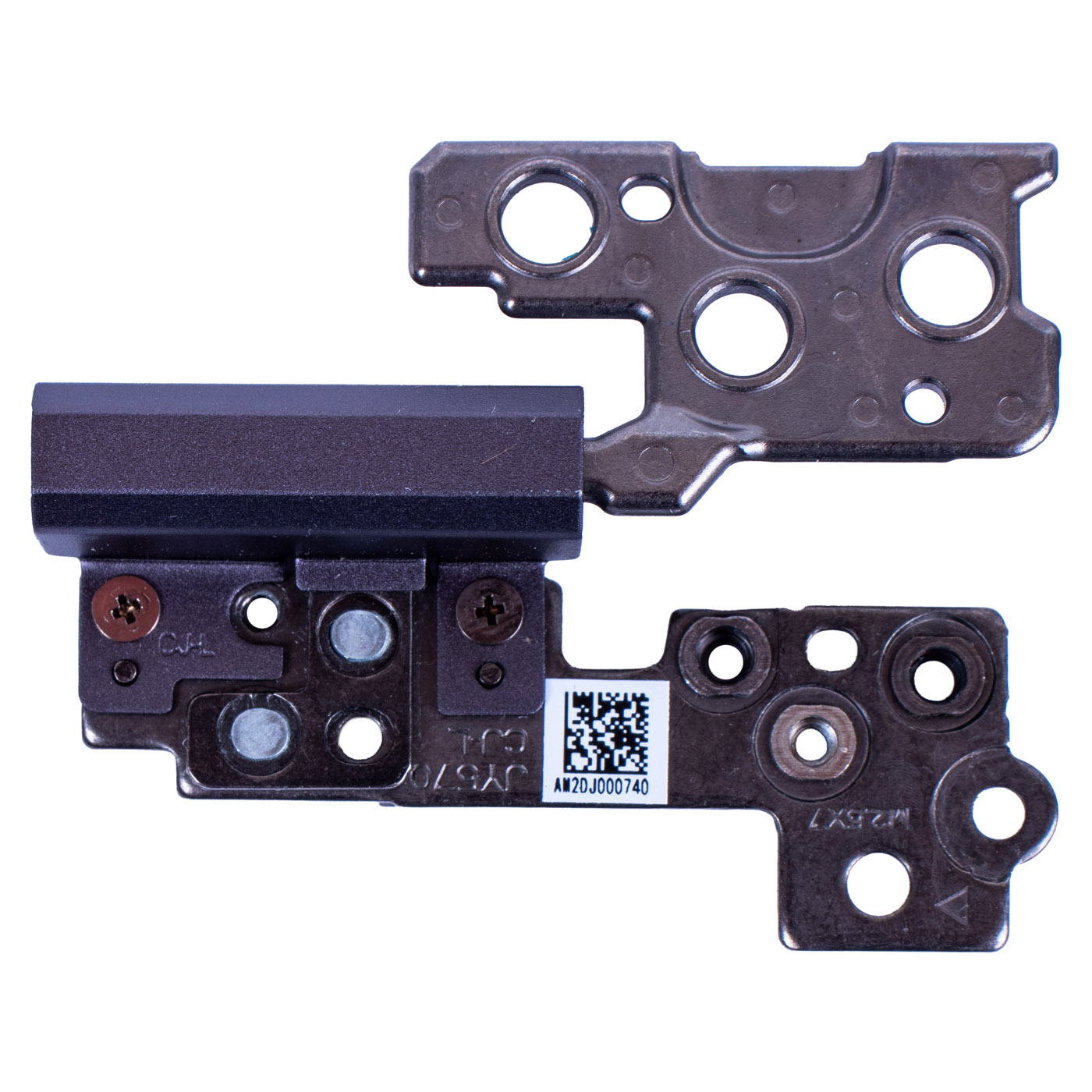

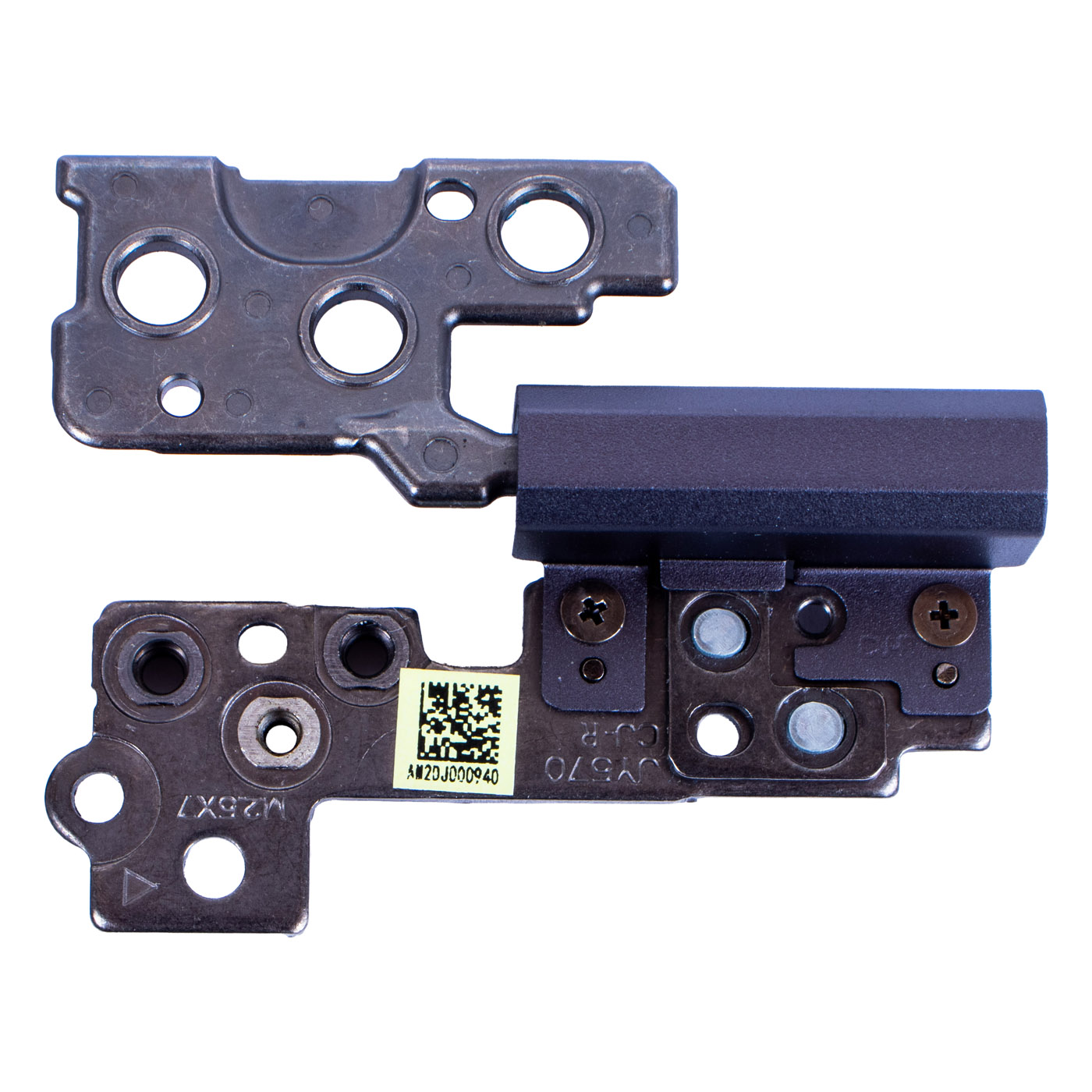

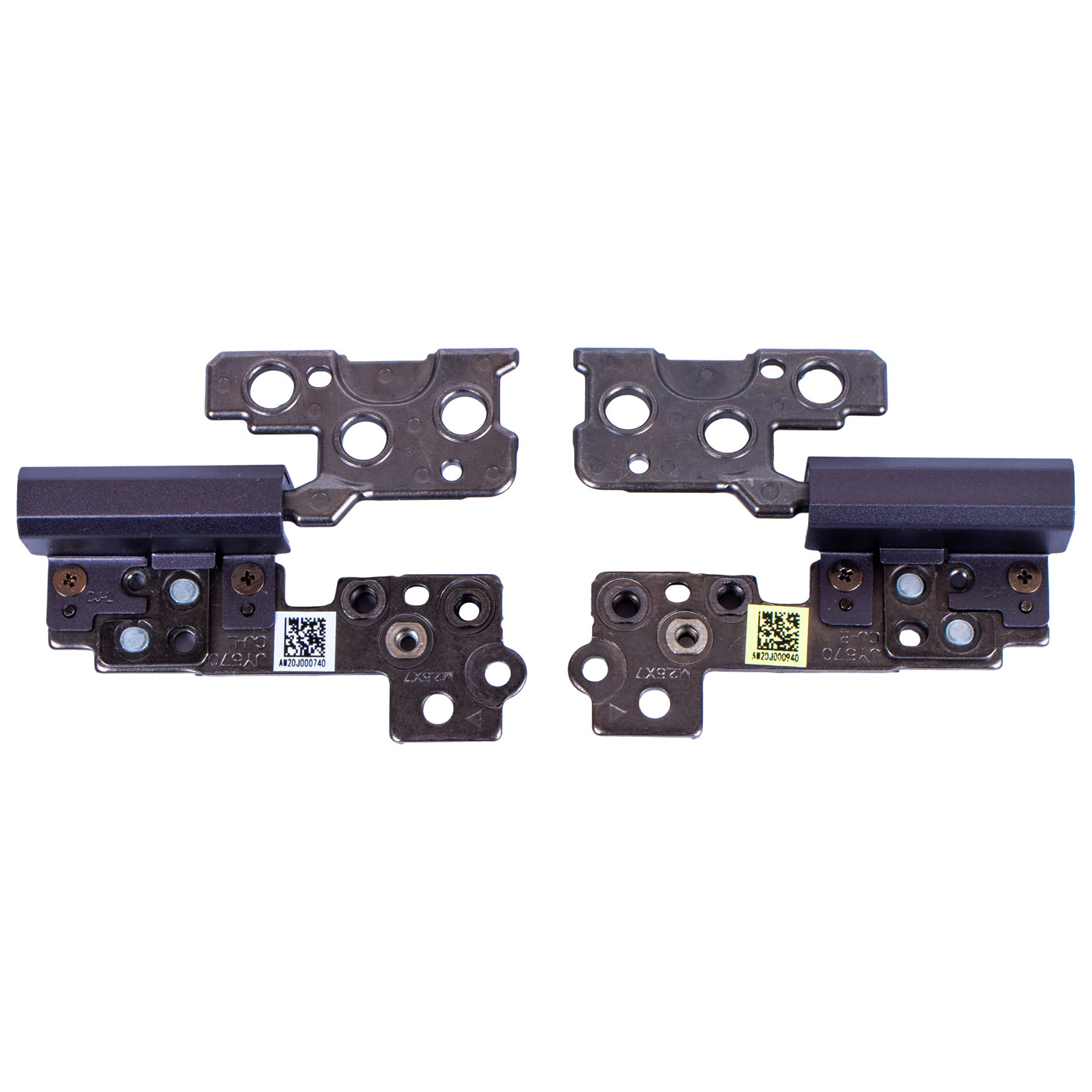

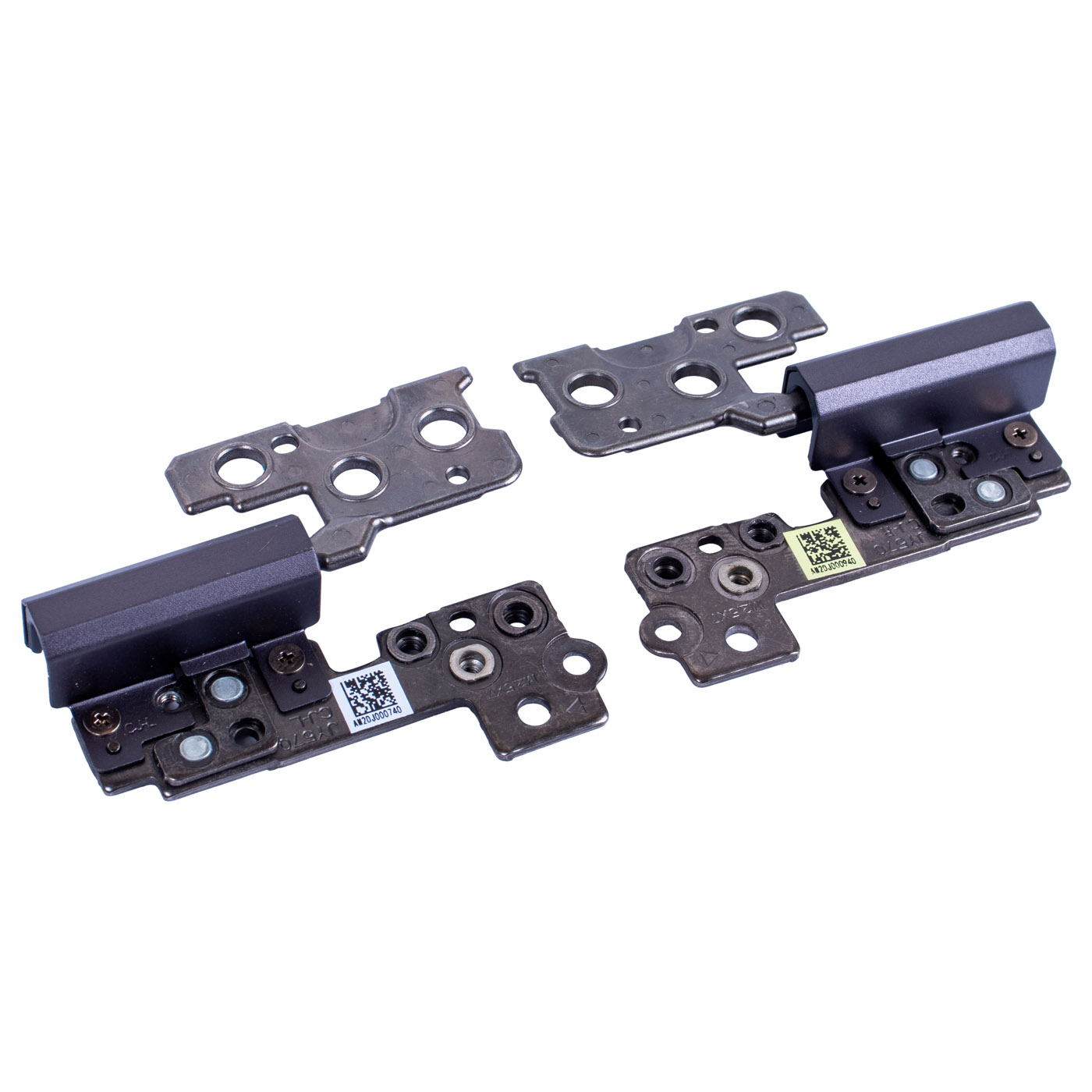

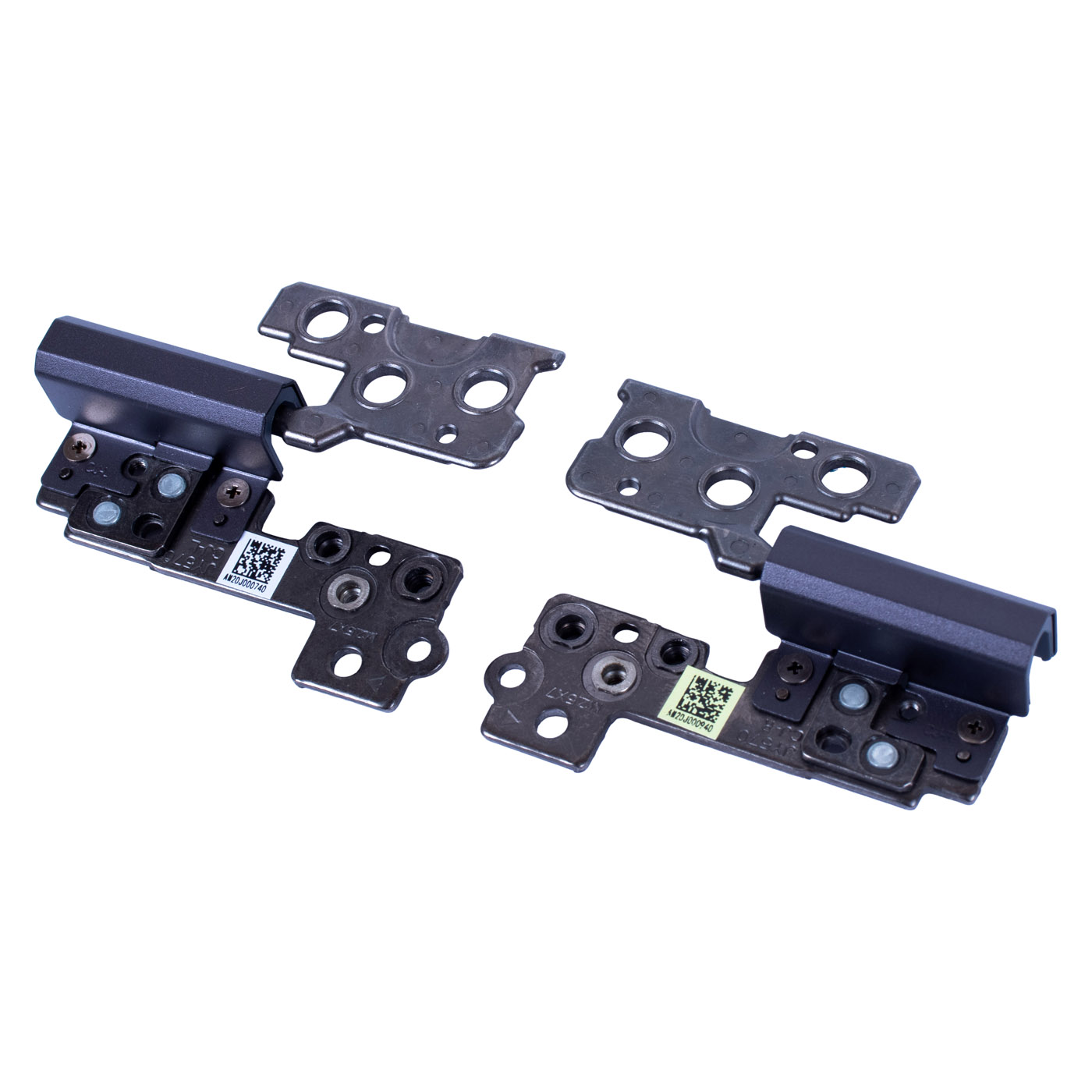

The hinges connect the display lid to the laptop base and determine whether the screen holds its set angle. Each hinge has a metal plate fixed to the LCD cover, a plate fixed to the base and a grey pivot cap. The set includes both hinges, marked CJ-L (left) and CJ-R (right). Part numbers: AM2DJ000740 (left), AM2DJ000940 (right).

📋 TECHNICAL SPECIFICATIONS

Part name: LCD hinges
Brand: Lenovo Legion
Compatible model: Legion 5 15ARP8 (83EF)
Screen size: 15.6"
Package contents: left hinge, right hinge
Part markings: AM2DJ000740, AM2DJ000940, JY570 CJ-L, JY570 CJ-R
Condition: New
Part number: AM2DJ000740 (left), AM2DJ000940 (right)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - mounting holes line up with the lid and base, so nothing needs adjusting
🔹 Factory hinge torque - the screen stays exactly at the angle you set, even on a train or on your lap
🔹 Left and right set - both sides are replaced at once, so the lid moves evenly and does not twist when opening
🔹 Grey pivot cap in place - after installation the hinge looks factory original
🔹 Full compatibility - matched to the Legion 5 15ARP8 (83EF) under part numbers AM2DJ000740 / AM2DJ000940

🔢 PART NUMBERS

Part number: AM2DJ000740 (left), AM2DJ000940 (right)
Markings: JY570 CJ-L, JY570 CJ-R
Laptop model: Lenovo Legion 5 15ARP8 (83EF)

❓ WHEN SHOULD YOU REPLACE THE LCD HINGES?

• Problem with a drooping screen that will not hold its angle and closes by itself
• Problem with a cracked or broken hinge, so the lid lifts away from the base
• Problem with creaking and stiffness when opening, with one side of the lid moving harder than the other
• Problem with a loose lid that wobbles while you type

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the cables routed to the lid, remove the hinge screws in the base and take off the display assembly
5. Remove the display bezel and unscrew the old hinges from the LCD cover
6. Screw in the new hinges, paying attention to the side (CJ-L left, CJ-R right)
7. Refit the bezel, screw the display assembly to the base, reconnect the cables and battery, and refit the bottom cover
8. Power on the laptop and check that the lid opens smoothly and holds its set angle
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

Hinges for users and repair shops who want to restore a stable lid on the Legion 5 15ARP8 after a cracked hinge, developing play or a drooping screen. Replacing the pair at once restores even lid movement on both sides. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered hinges have been carefully checked and matched to the Lenovo Legion 5 15ARP8 (83EF). We guarantee full compatibility under part numbers AM2DJ000740 / AM2DJ000940 and 100% functionality of the part. If any compatibility issues arise, we offer a hassle-free return within 14 days.
