🔧 LCD Back Cover with Hinges for Lenovo Legion 5 15IRX10 / 15IAX10 / 15AHP10 (IPS) 🔧

🖥️ Legion 5 15IRX10 / 15IAX10 / 15AHP10 | LCD Back Cover (A-cover) with Hinges | IPS 15.3" 165Hz | 5CB1S22985

Genuine Lenovo LCD back cover (A-cover) in black, with factory-fitted hinges, designed for the Lenovo Legion 5 15IRX10, 15IAX10 and 15AHP10 laptops with an IPS panel. Brand new part marked with FRU number 5CB1S22985. FRU number 5CB1S22985 guarantees full compatibility with the Legion 5 15IRX10 (machine type 83LY), 15IAX10 (83F0) and 15AHP10 (83M0) in the IPS panel configuration.

⚙️ PRODUCT OVERVIEW

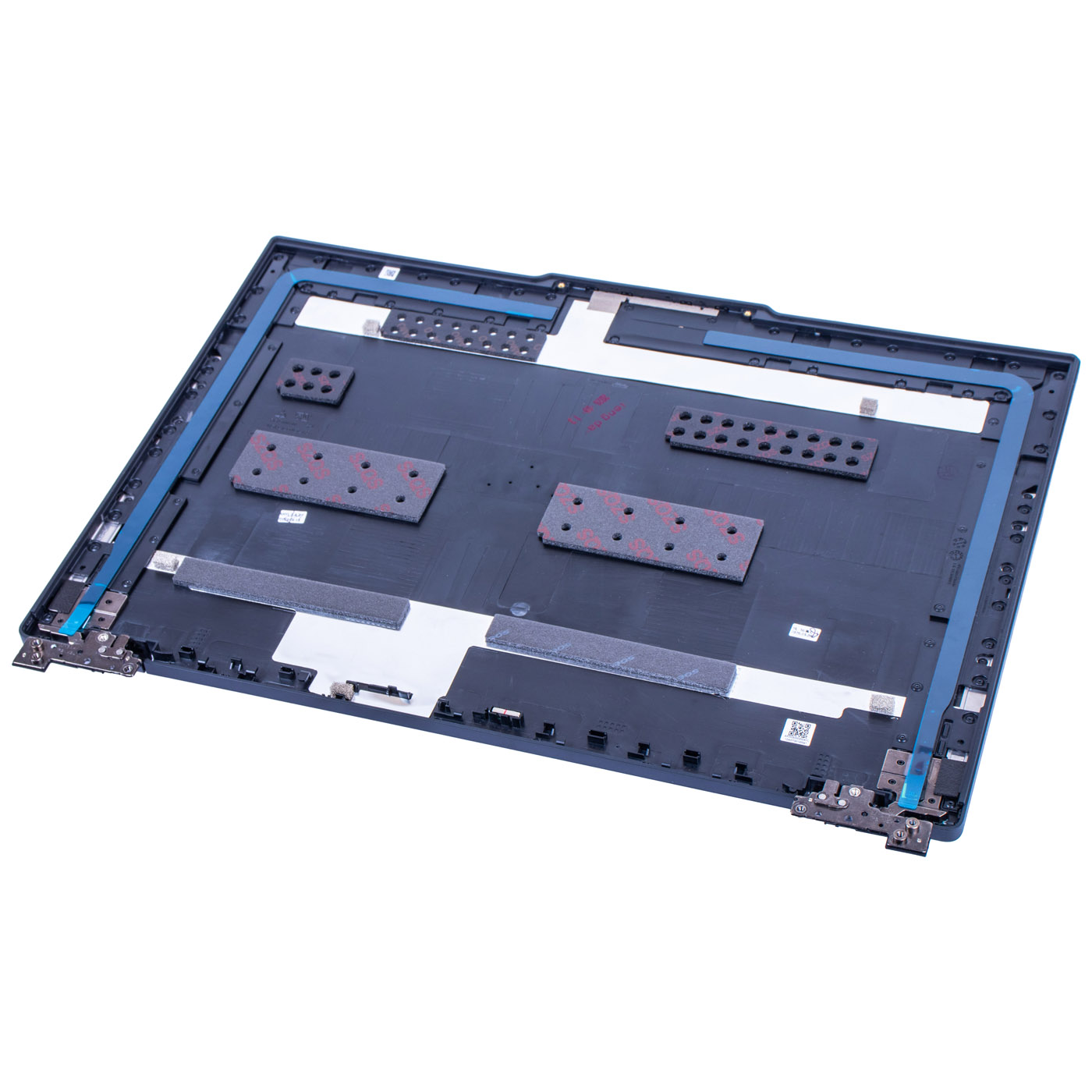

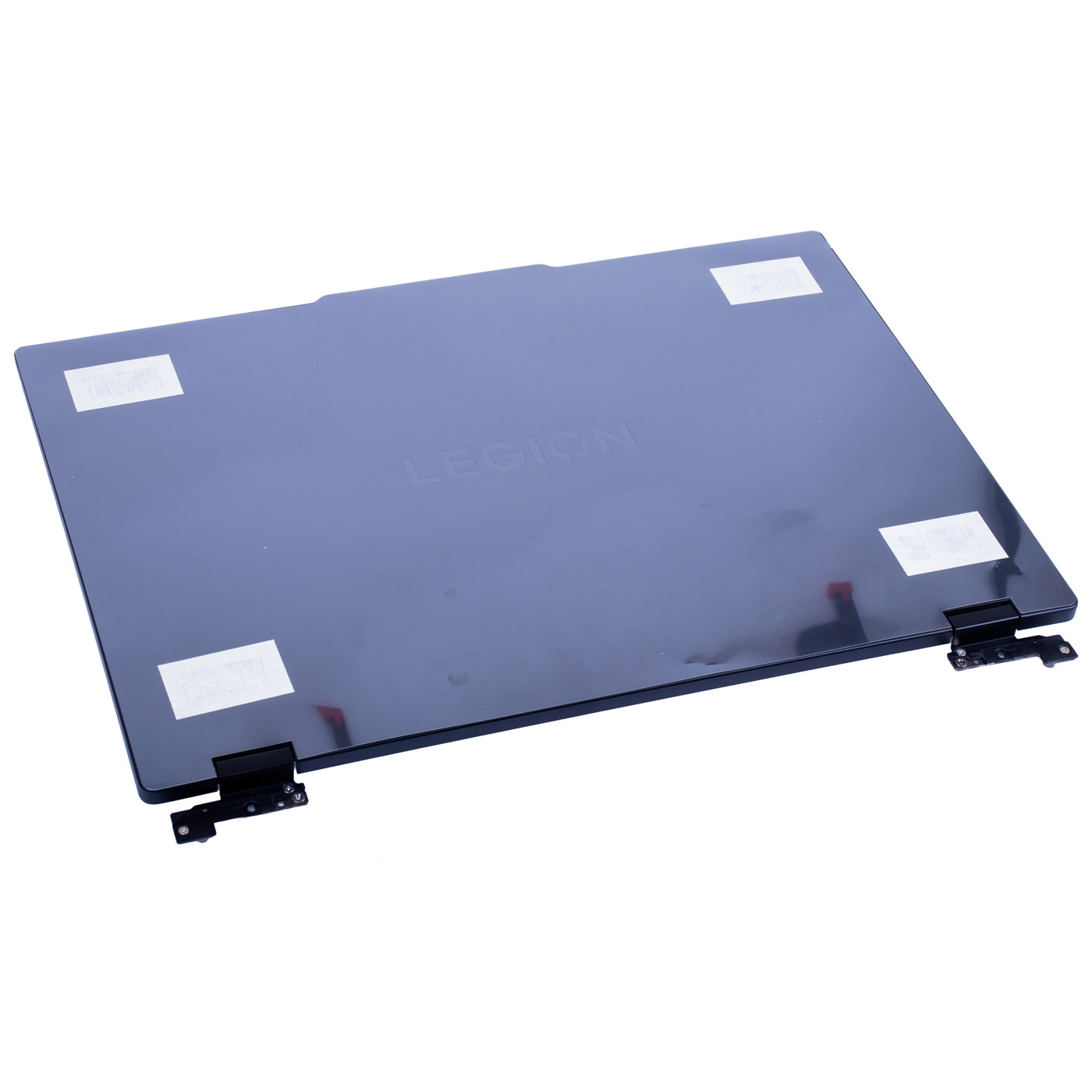

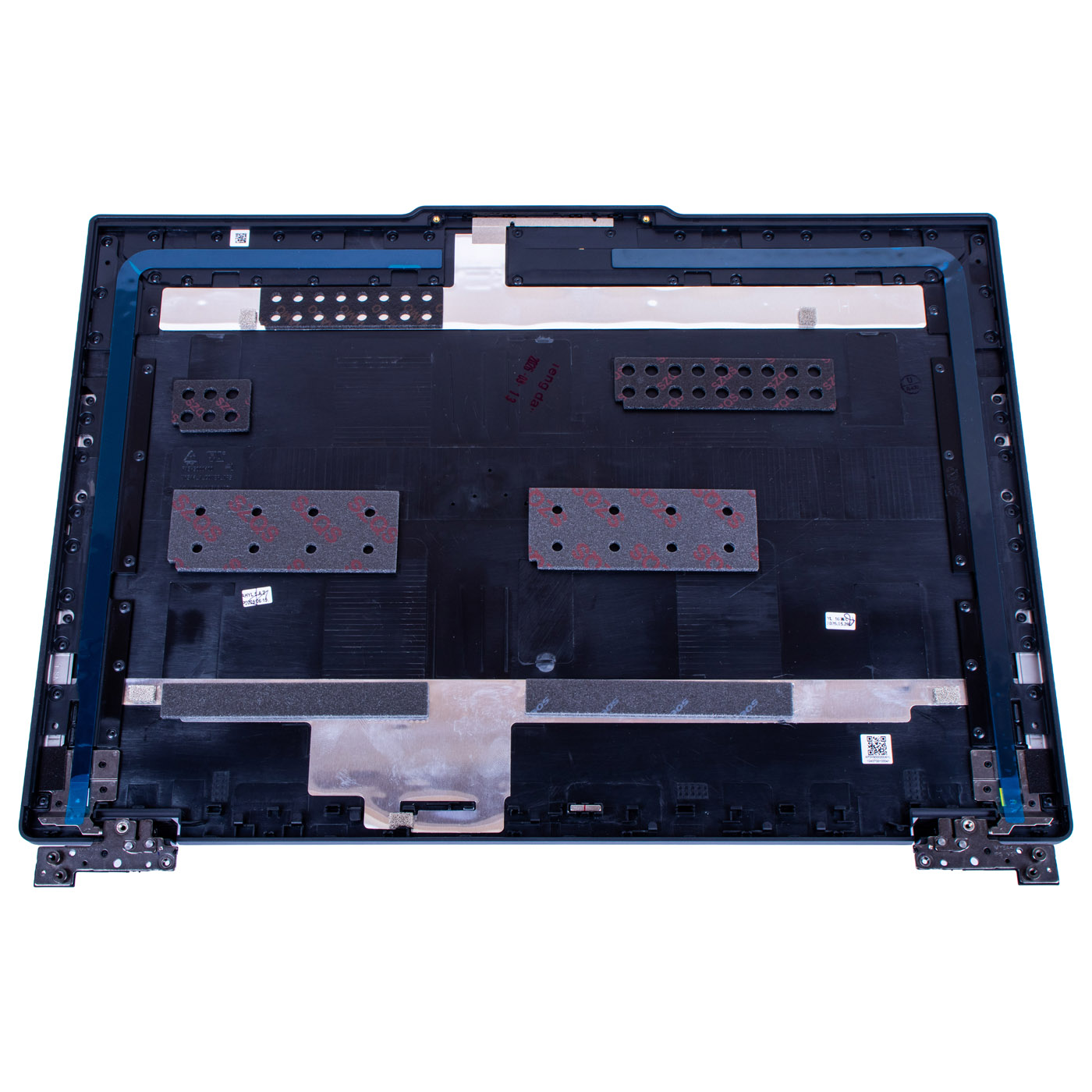

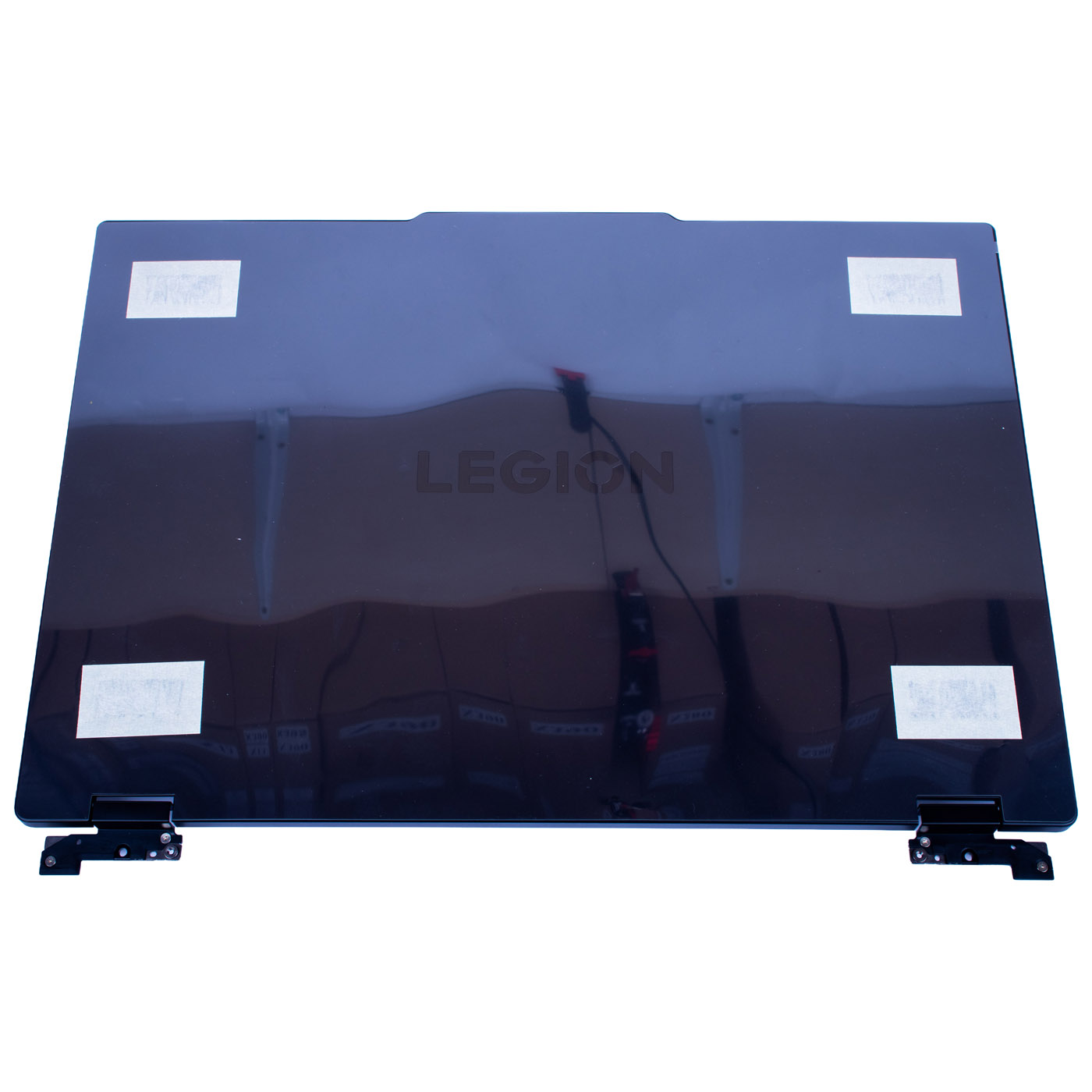

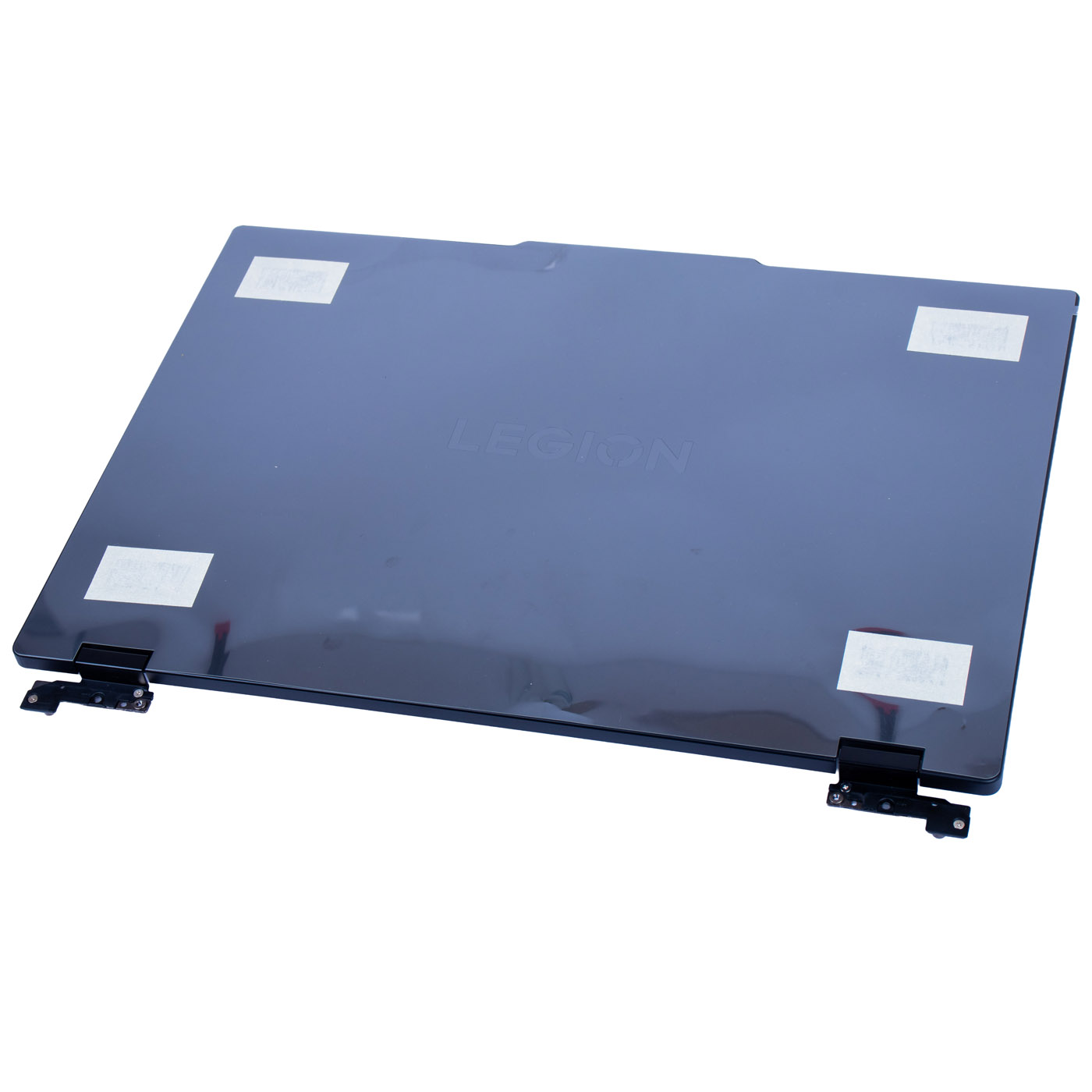

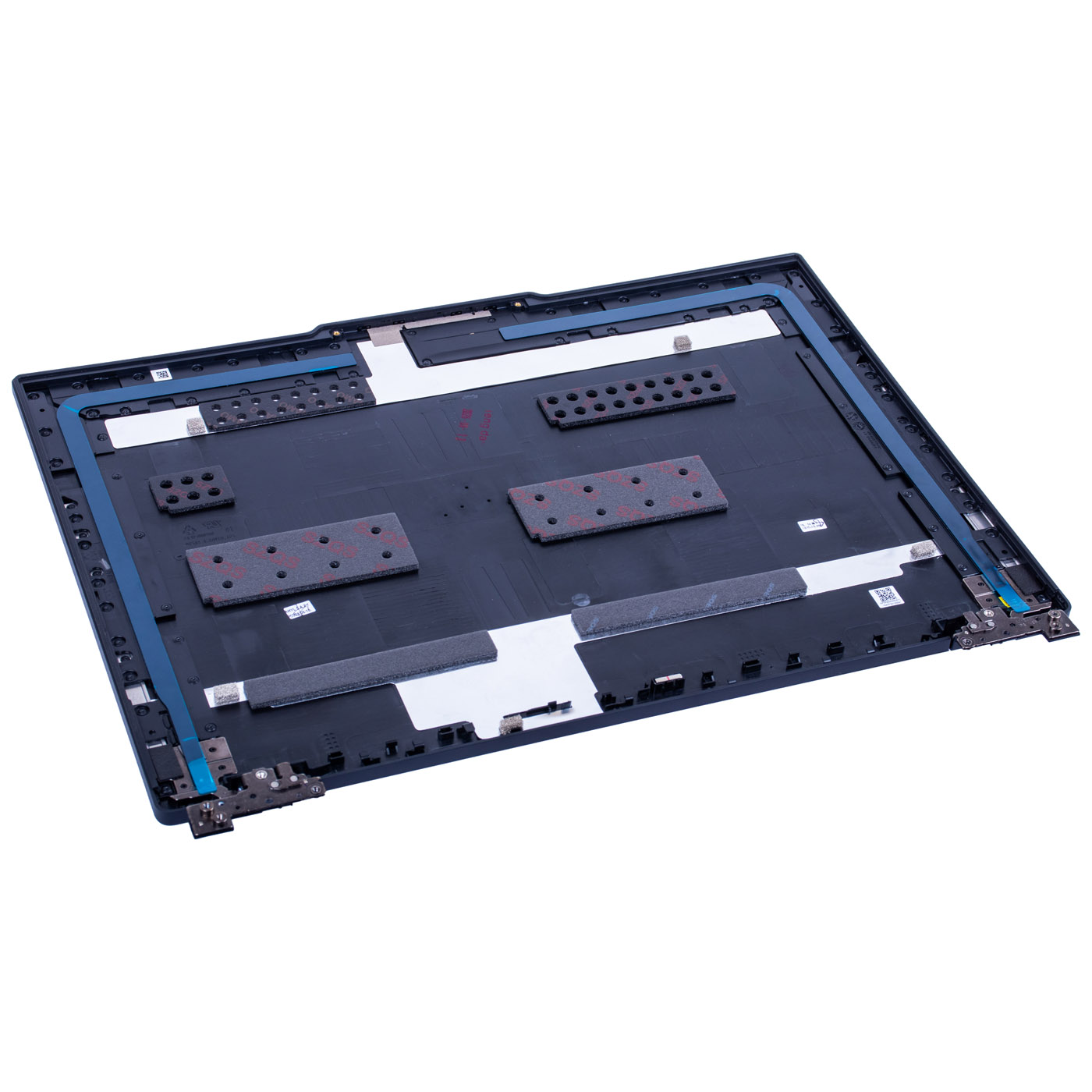

The LCD back cover is the rear lid of the display: it protects the panel and defines the look of the laptop. The outside carries the LEGION logo. The left and right hinges are factory-fitted, and panel adhesive strips under a blue protective liner run around the perimeter. On the inside there are also factory foam pads. This is the version for the 15.3" WUXGA 165Hz IPS panel (Lenovo designation: A-Cover, 83LY, 165HZ_HD), part number 5CB1S22985.

📋 TECHNICAL SPECIFICATIONS

Part name: LCD back cover (A-cover / LCD cover) with hinges
Brand: Lenovo Legion
Compatible model: Legion 5 15IRX10 (83LY), Legion 5 15IAX10 (83F0), Legion 5 15AHP10 (83M0)
Panel version: IPS 15.3" WUXGA (1920x1200) 165Hz
Colour: Black
Package contents: LCD back cover, left and right hinge, panel adhesive strips

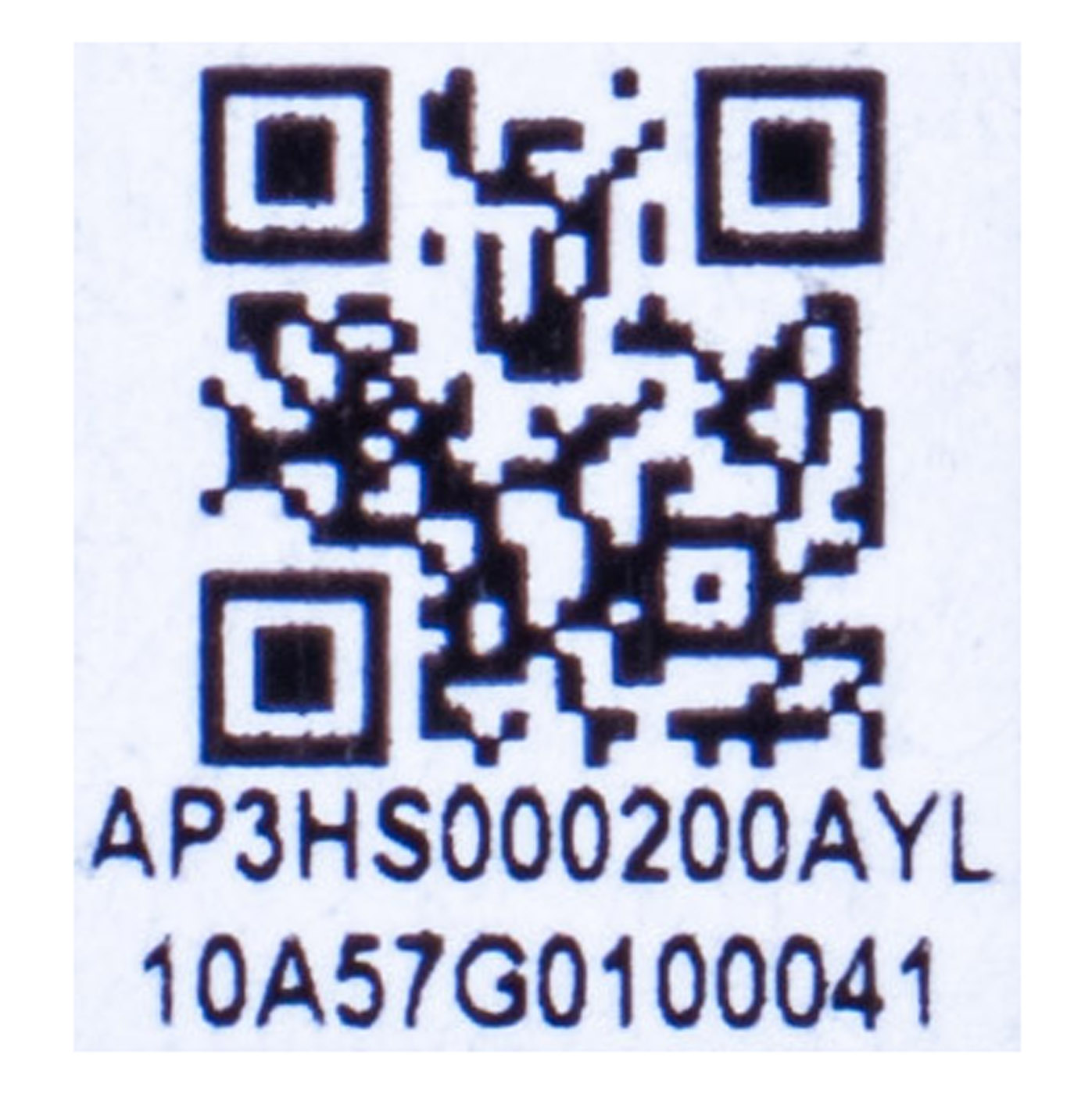

Part markings: AP3HS000200AYL, 165HZ_HD
Condition: New
FRU: 5CB1S22985
Cross reference numbers: AP3HS000200AYL

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - holes, clips and cut-outs line up exactly, so the lid closes flush with the rest of the chassis
🔹 Hinges already fitted - the lid works straight away with factory stiffness and holds its angle, no transferring of old hinges
🔹 Factory-applied panel adhesive strips - no need to buy or cut tape: peel off the liner and fit the panel
🔹 Version for the 15.3" IPS panel - matched to the 165Hz WUXGA configuration, so the panel and bezel sit exactly as from the factory
🔹 Full compatibility - matched to the Legion 5 15IRX10 (83LY), 15IAX10 (83F0) and 15AHP10 (83M0) under FRU number 5CB1S22985

🔢 PART NUMBERS

FRU: 5CB1S22985
Cross reference numbers: AP3HS000200AYL
Laptop model: Lenovo Legion 5 15IRX10 (83LY), Lenovo Legion 5 15IAX10 (83F0), Lenovo Legion 5 15AHP10 (83M0), IPS version

❓ WHEN SHOULD YOU REPLACE THE LCD BACK COVER?

• Problem with a dented or cracked lid, e.g. after the laptop was dropped or squeezed in a backpack
• Problem with a hinge that creaks, has play, or lets the lid drop and lose its angle
• Problem with broken hinge mounts, so the lid lifts away from the base
• Problem with a display panel coming unstuck and lifting away from the lid
• Problem with a scratched lid that spoils the look when reselling

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the cables routed to the lid, remove the hinge screws and take off the display assembly
5. Remove the bezel and carefully peel the panel away from the old cover
6. Transfer the camera, antennas and cables to the new cover, routing them as in the original
7. Peel the blue liner off the adhesive strips, fit the panel and press it along the edges
8. Refit the bezel, screw the hinges to the base, reconnect the cables and battery, and refit the bottom cover
9. Power on the laptop and check the picture, camera, Wi-Fi and hinge operation
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

An LCD back cover for users and repair shops who want to restore a solid, good-looking lid on a Legion 5 15IRX10, 15IAX10 or 15AHP10 with an IPS panel after a dent, crack or hinge problems. The set with hinges and adhesive strips cuts the repair down to transferring the panel and components. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered LCD back cover has been carefully checked and matched to the Lenovo Legion 5 15IRX10 (83LY), 15IAX10 (83F0) and 15AHP10 (83M0) with an IPS panel. We guarantee full compatibility under FRU number 5CB1S22985 and 100% functionality of the part. If any compatibility issues arise, we offer a hassle-free return within 14 days.
