🔧 LCD Back Cover with Hinges and Cables for Lenovo Legion 5 16IRX9 🔧

🖥️ Legion 5 16IRX9 | LCD Back Cover (A-cover) with Hinges, eDP Cable and Camera Cable | Luna Grey | 5CB1M72405

Genuine Lenovo LCD back cover (A-cover) in Luna Grey, with factory-fitted hinges, eDP display cable and camera cable, designed for the Lenovo Legion 5 16IRX9 laptop. Brand new part marked with FRU number 5CB1M72405. FRU number 5CB1M72405 guarantees full compatibility with the Legion 5 16IRX9 (machine type 83DG).

⚙️ PRODUCT OVERVIEW

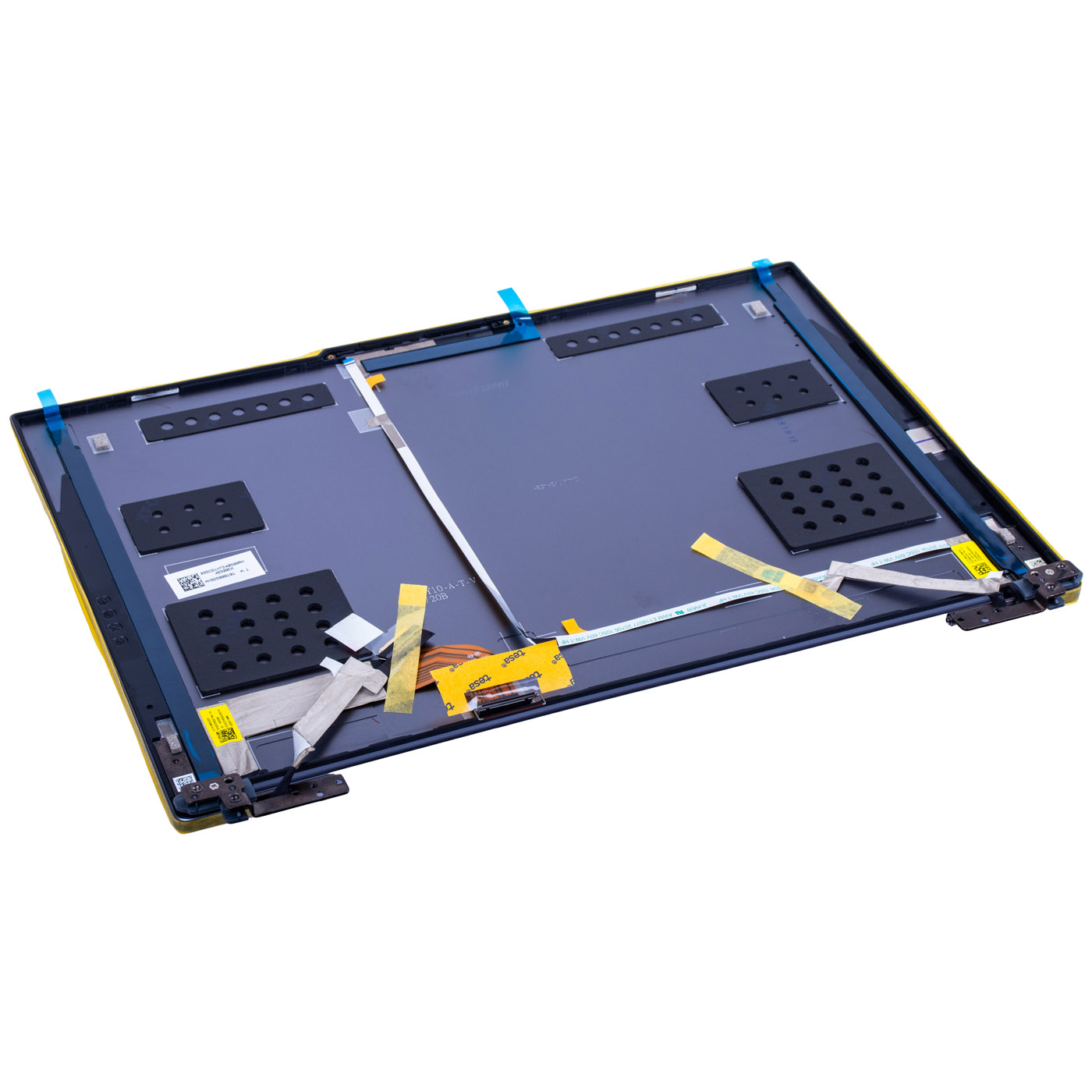

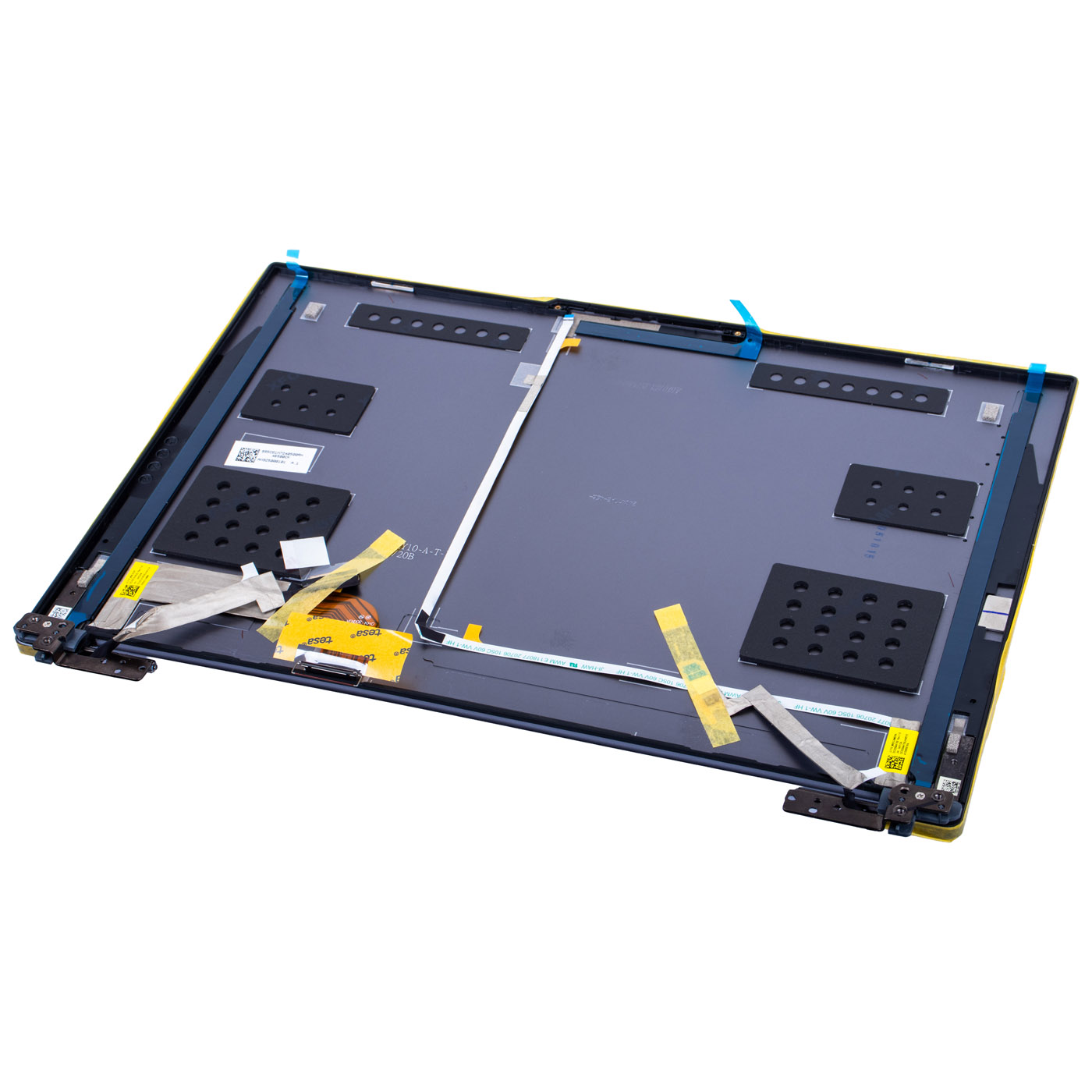

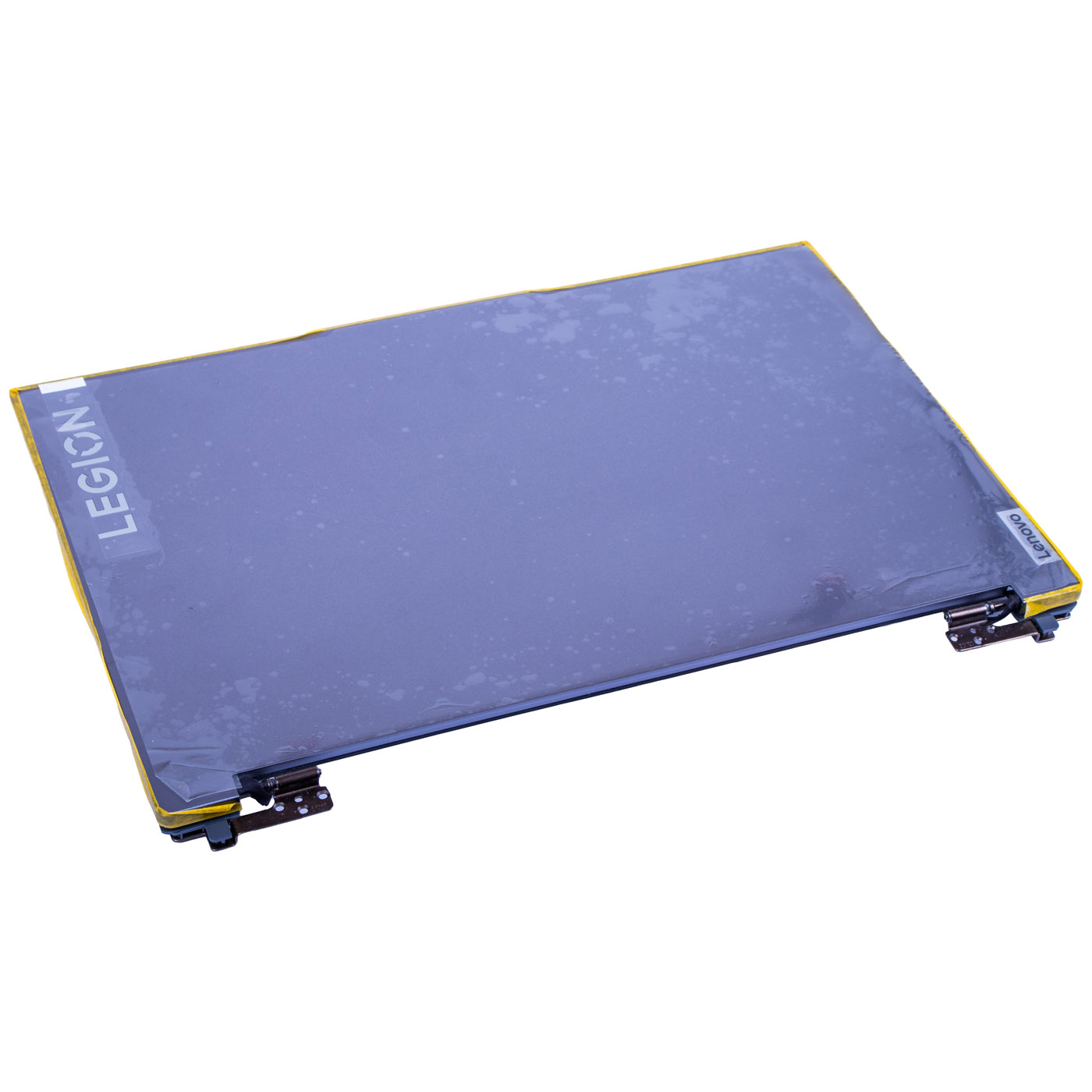

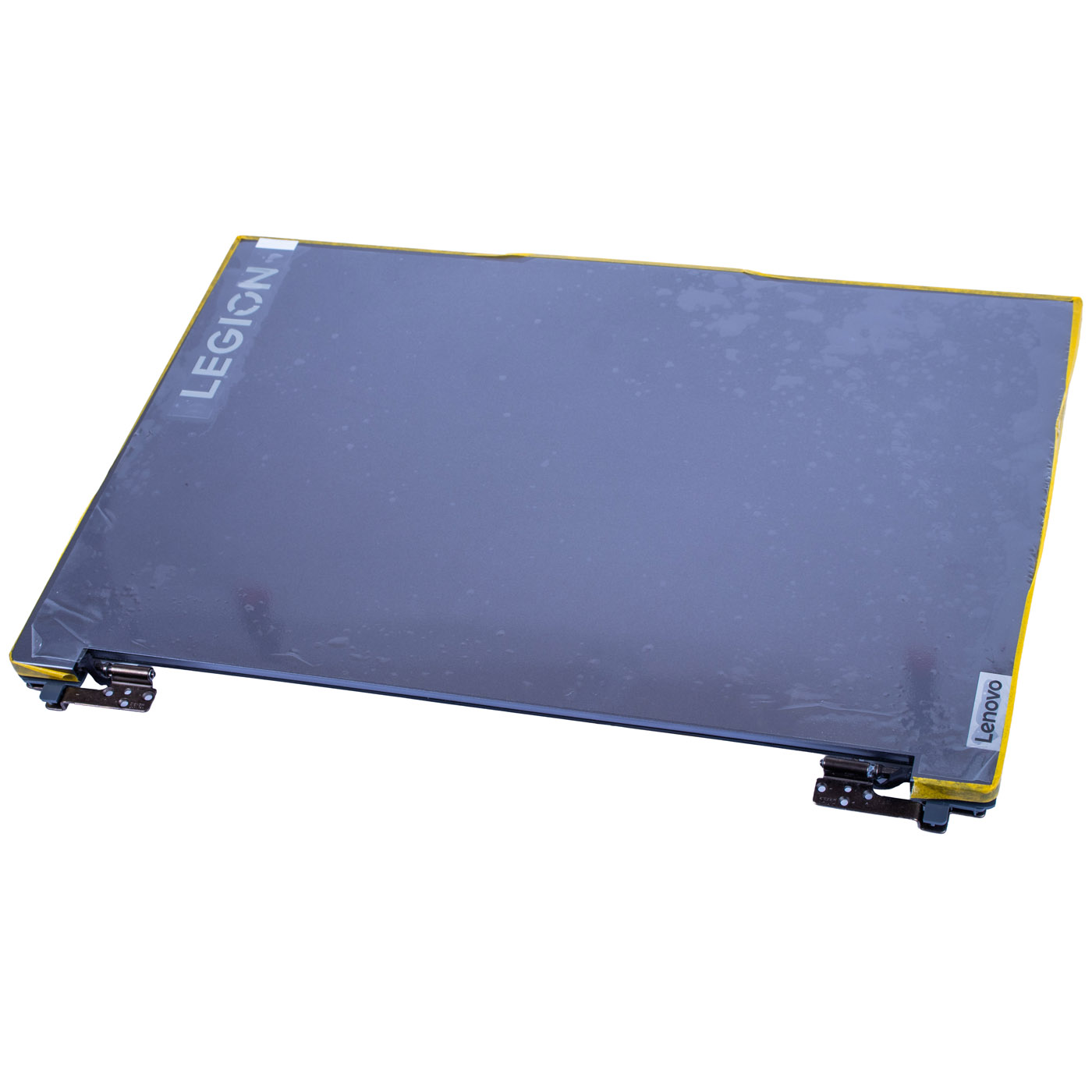

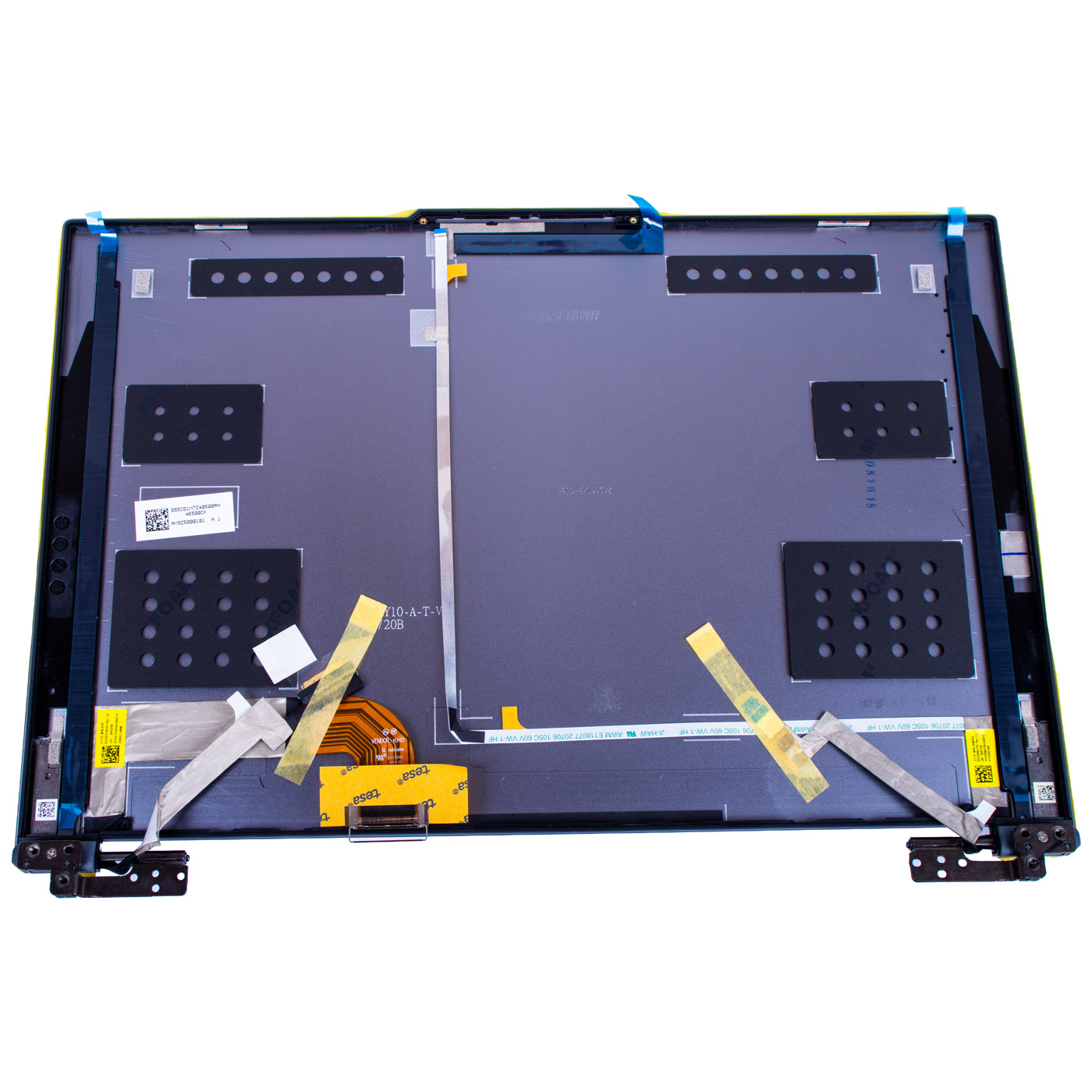

The LCD back cover is the rear lid of the display: it protects the panel and defines the look of the laptop. The outside carries the LEGION and Lenovo logos. The set includes, factory-fitted: left and right hinges, the eDP display cable (DC02C016520) routed through the hinge, and the camera cable (DC02004H700). On the inside there are also factory foam pads. Lenovo designation: LCD Cover, 83DG, Luna Grey, part number 5CB1M72405.

📋 TECHNICAL SPECIFICATIONS

Part name: LCD back cover (A-cover / LCD cover) with hinges and cables
Brand: Lenovo Legion
Compatible model: Legion 5 16IRX9 (83DG)
Screen size: 16"
Colour: Luna Grey
Package contents: LCD back cover, left and right hinge, eDP display cable, camera cable

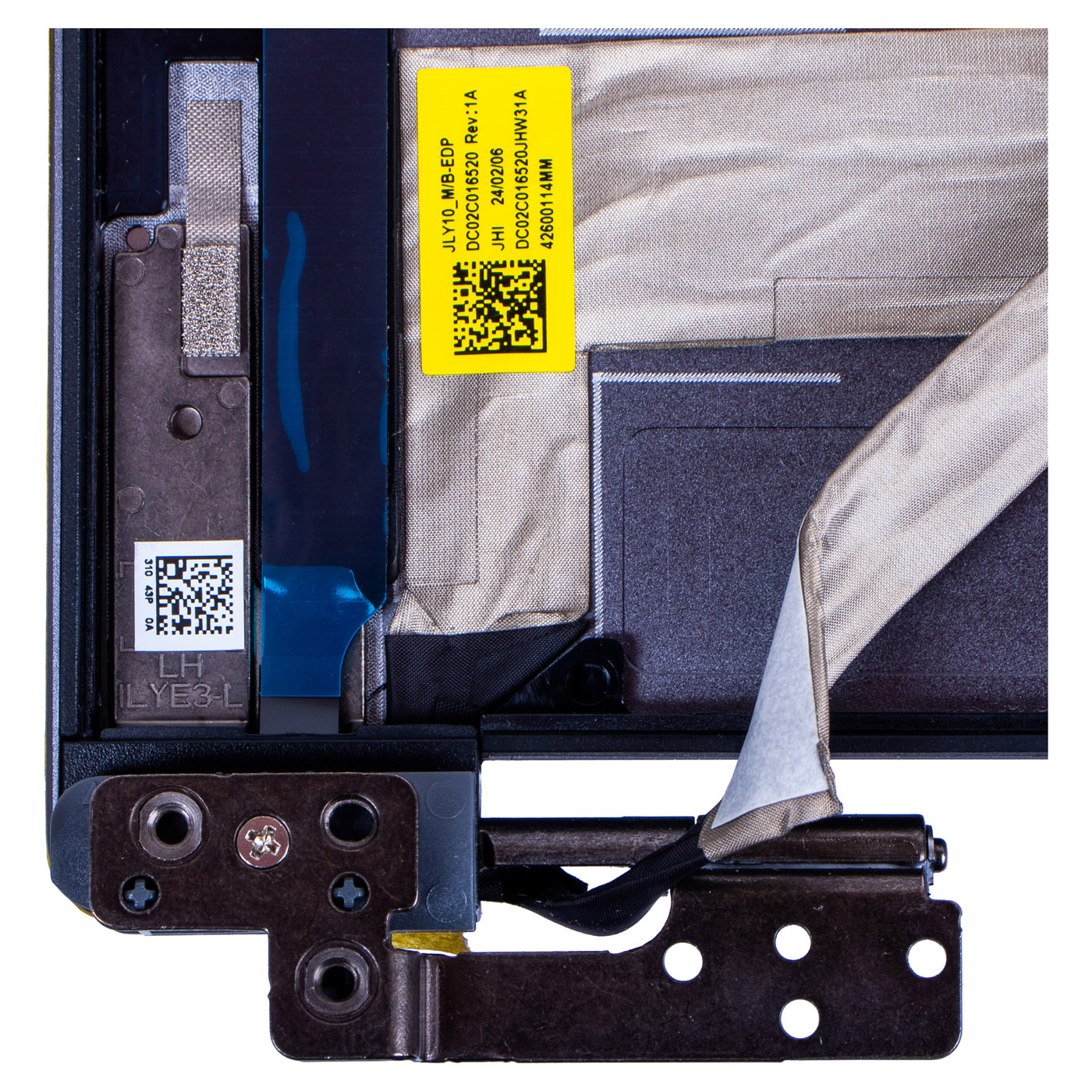

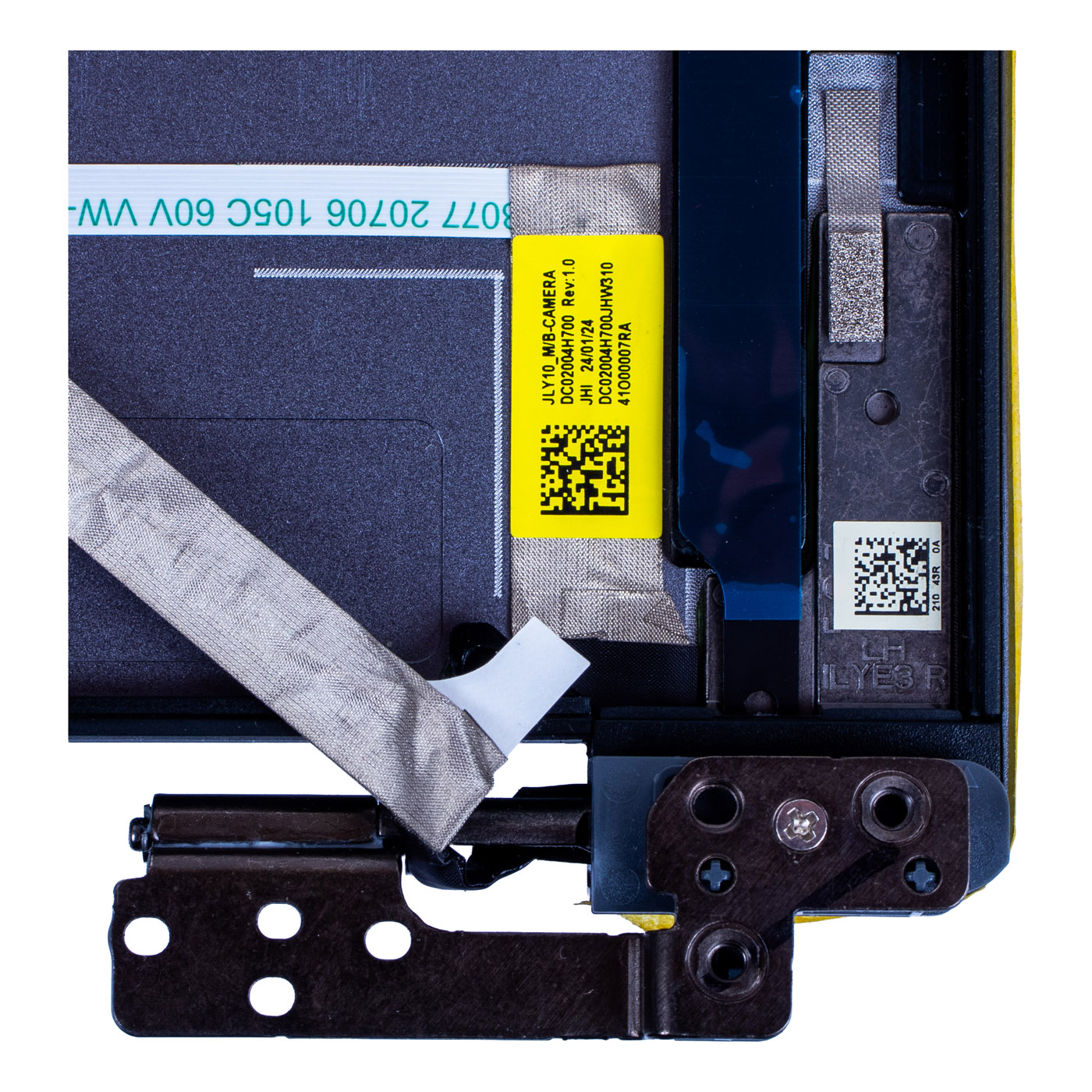

Part markings: AM925000101, ILYE3-L / ILYE3 R (hinges), JLY10_M/B-EDP DC02C016520 (eDP cable), JLY10_M/B-CAMERA DC02004H700 (camera cable)
Condition: New
FRU: 5CB1M72405

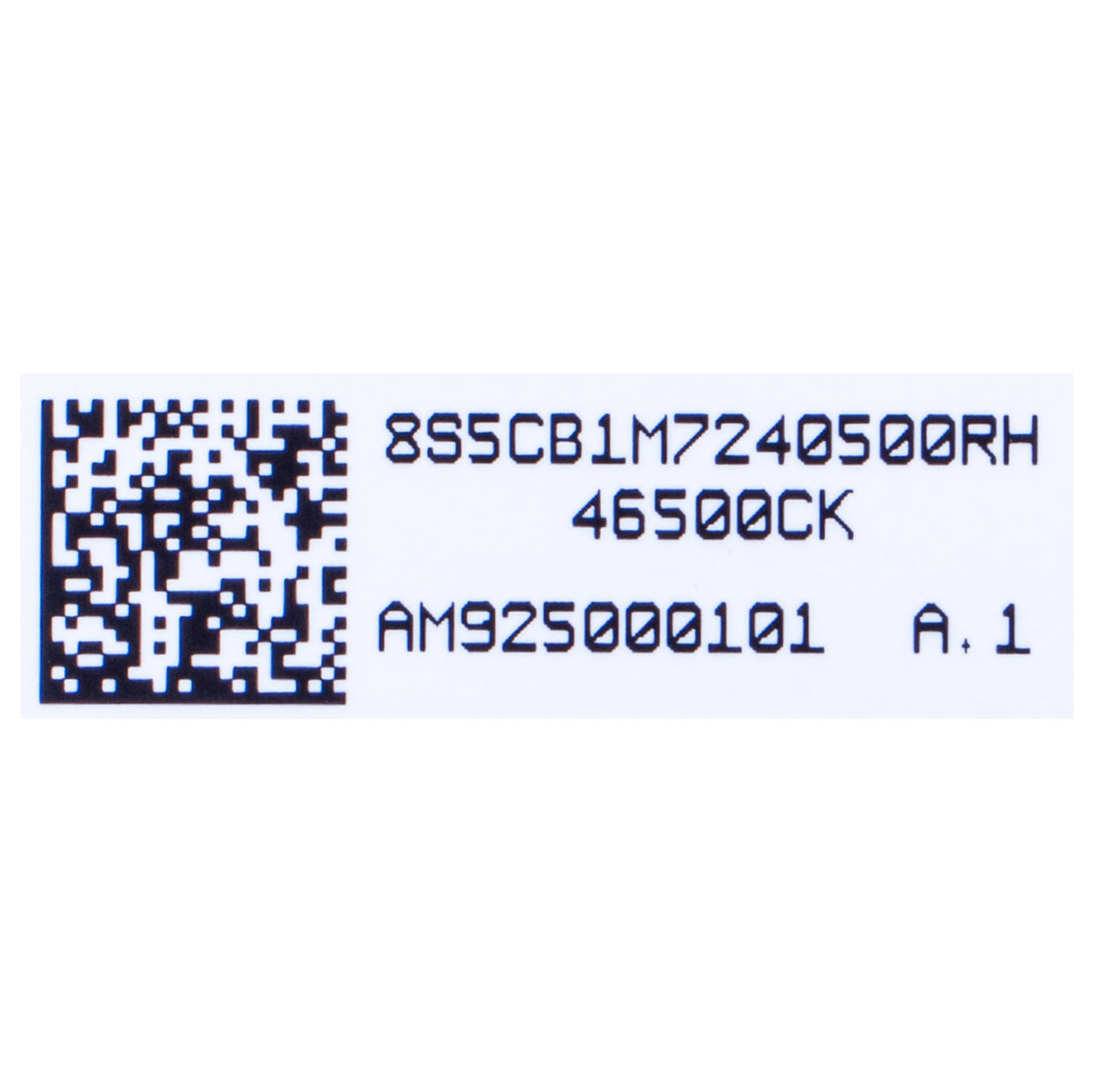

Cross reference numbers: AM925000101

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - holes, clips and cut-outs line up exactly, so the lid closes flush with the rest of the chassis
🔹 Hinges already fitted - the lid works straight away with factory stiffness and holds its angle, no transferring of old hinges
🔹 New eDP and camera cables included - you replace the cables that flex in the hinge and most often cause screen flicker, instead of reusing the old ones

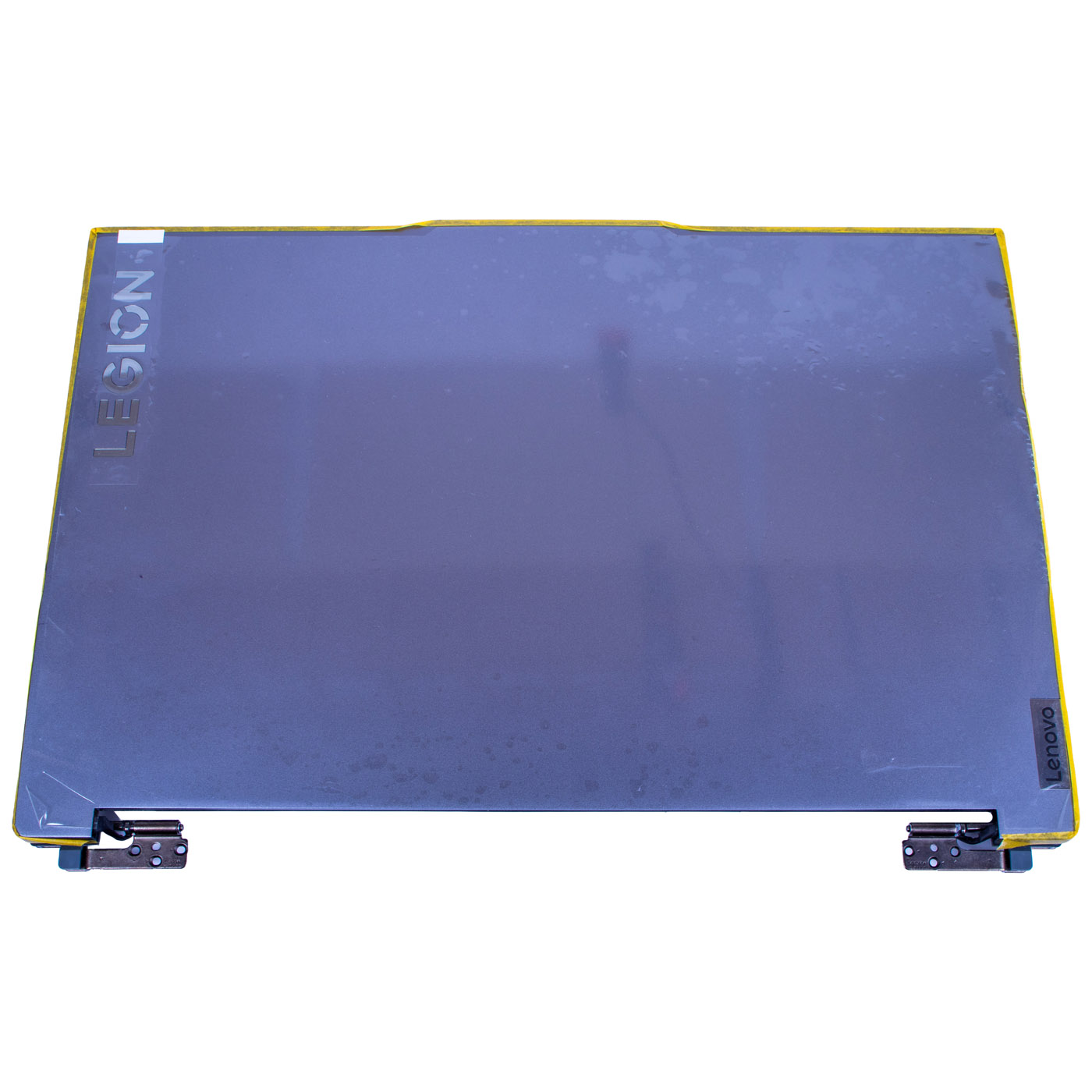

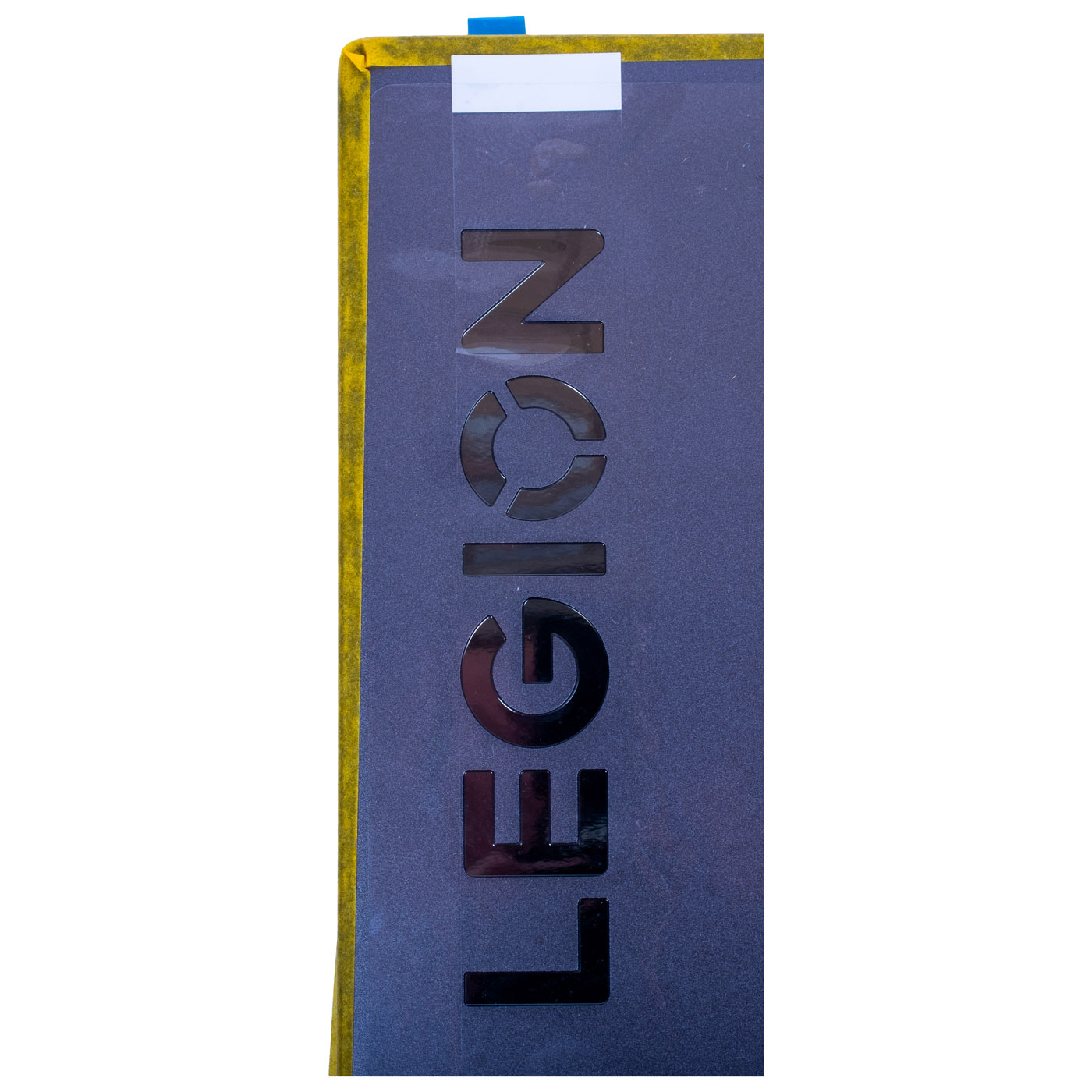

🔹 Luna Grey with LEGION logo - after replacement the lid looks factory original and matches the rest of the laptop
🔹 Full compatibility - matched to the Legion 5 16IRX9 (83DG) under FRU number 5CB1M72405

🔢 PART NUMBERS

FRU: 5CB1M72405
Cross reference numbers: AM925000101
eDP cable: DC02C016520
Camera cable: DC02004H700
Laptop model: Lenovo Legion 5 16IRX9 (83DG)

❓ WHEN SHOULD YOU REPLACE THE LCD BACK COVER?

• Problem with a dented or cracked lid, e.g. after the laptop was dropped or squeezed in a backpack
• Problem with a hinge that creaks, has play, or lets the lid drop and lose its angle
• Problem with broken hinge mounts, so the lid lifts away from the base
• Problem with a picture that flickers or disappears when you change the lid angle, caused by a worn eDP cable
• Problem with a scratched lid that spoils the look when reselling

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the display and camera cables from the motherboard and the antenna leads, remove the hinge screws and take off the display assembly
5. Remove the bezel and carefully peel the panel away from the old cover
6. Transfer the camera and antennas to the new cover, routing the leads as in the original
7. Connect the panel to the new eDP cable, fit it and press it along the edges
8. Refit the bezel, screw the hinges to the base, reconnect the cables and battery, and refit the bottom cover
9. Power on the laptop and check the picture, camera, Wi-Fi and hinge operation
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

An LCD back cover for users and repair shops who want to restore a solid, good-looking lid on the Legion 5 16IRX9 after a dent, crack or hinge problems. The set with hinges, eDP cable and camera cable cuts the repair down to transferring the panel, camera and antennas. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered LCD back cover has been carefully checked and matched to the Lenovo Legion 5 16IRX9 (83DG). We guarantee full compatibility under FRU number 5CB1M72405 and 100% functionality of the part. If any compatibility issues arise, we offer a hassle-free return within 14 days.
