🔧 LCD Cable for Lenovo Legion 5 17IMH05 / 17ARH05H (60 Hz) 🔧

🖥️ Legion 5 17IMH05 / 17IMH05H / 17ARH05H | eDP Cable 17.3" FHD 60 Hz | DC020028600

Genuine eDP display cable designed for the Lenovo Legion 5 17IMH05, Legion 5 17IMH05H and Legion 5 17ARH05H laptops with a 17.3" FHD 60 Hz panel. Brand new part marked with part number DC020028600, which guarantees full compatibility with the 60 Hz version of these models.

⚙️ PRODUCT DESCRIPTION

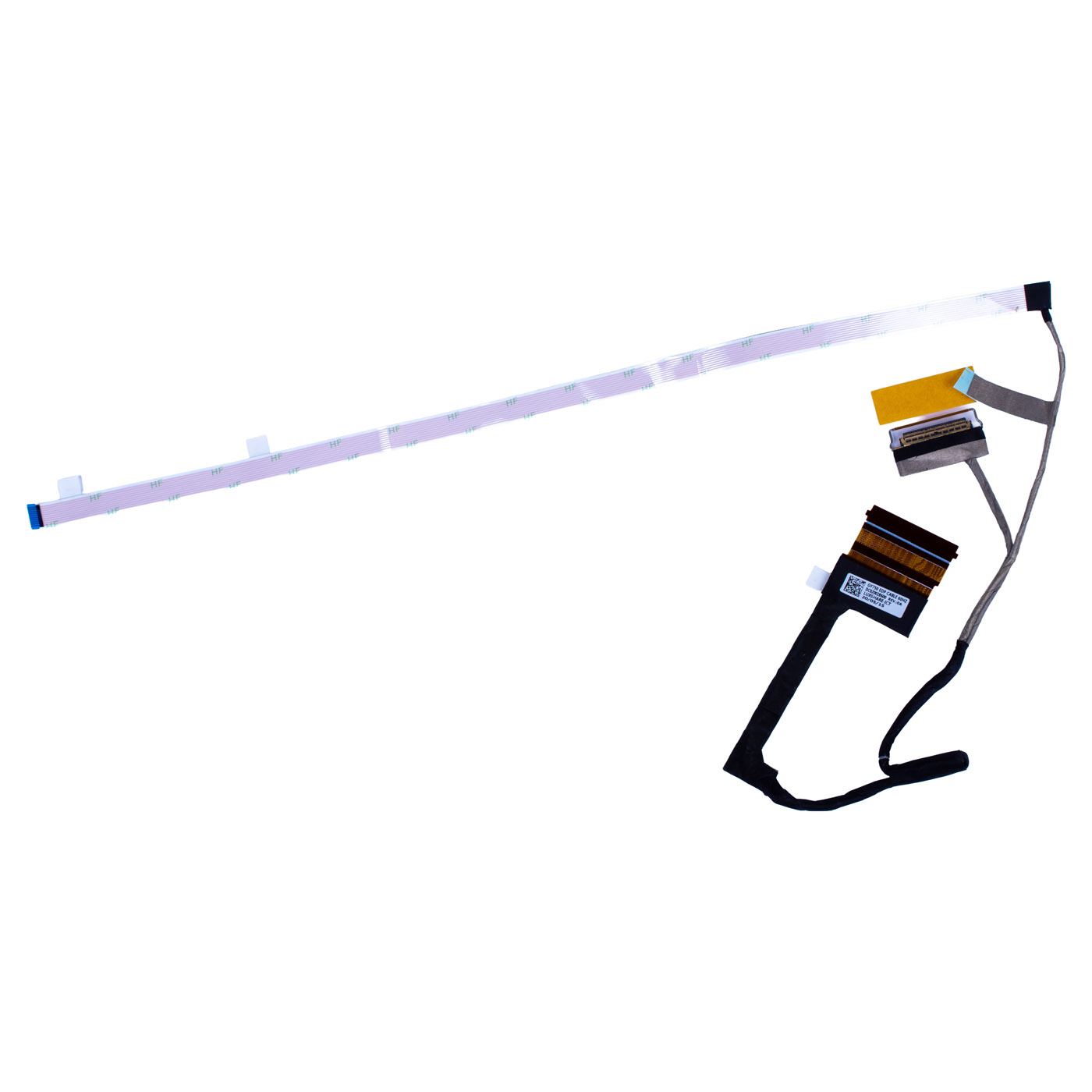

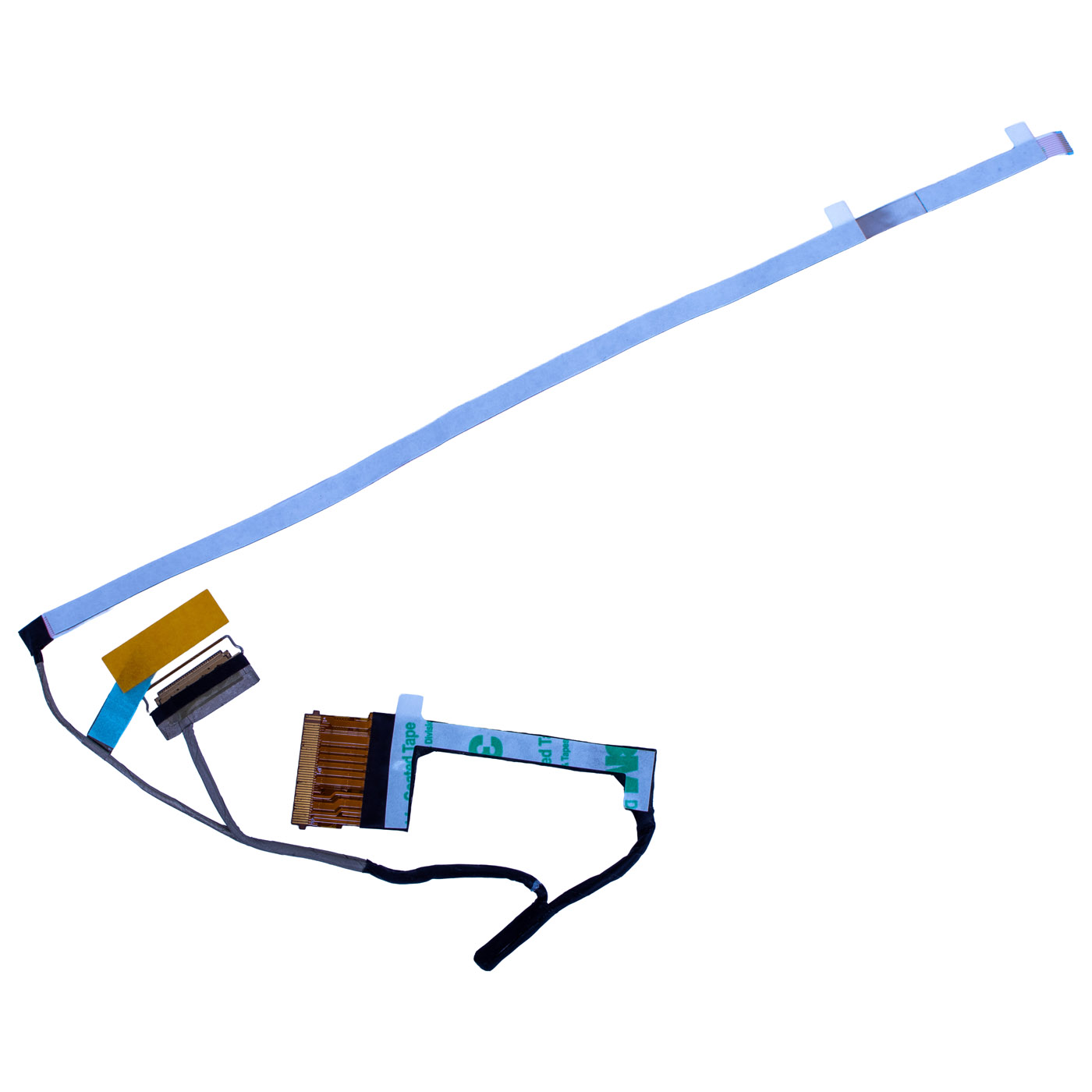

Complete eDP cable connecting the display panel to the motherboard, intended for the 60 Hz screen version (label marking "GY750 EDP CABLE 60HZ", manufactured by Luxshare-ICT, part number DC020028600, revision 0A). One end is a flexible FPC tail, the other a connector with a metal spring latch. The cable comes with a factory-attached long flat FFC branch routed along the display housing. It also has factory mounting tape for precise placement in the housing. The cable is fully interchangeable with variant DC020028610.

⚠️ Important: this cable is intended for the 60 Hz screen version. Versions with a 144 Hz screen use a different cable (DC02C00LS00).

📋 TECHNICAL SPECIFICATIONS

Part name: eDP LCD cable
Brand: Lenovo Legion
Compatible models: Legion 5 17IMH05 (82B3), Legion 5 17IMH05H (81Y8), Legion 5 17ARH05H (82GN)
Panel: 17.3" FHD, 60 Hz
Condition: New
Warranty: 12 months
Part number: DC020028600
Substitute numbers: DC020028610

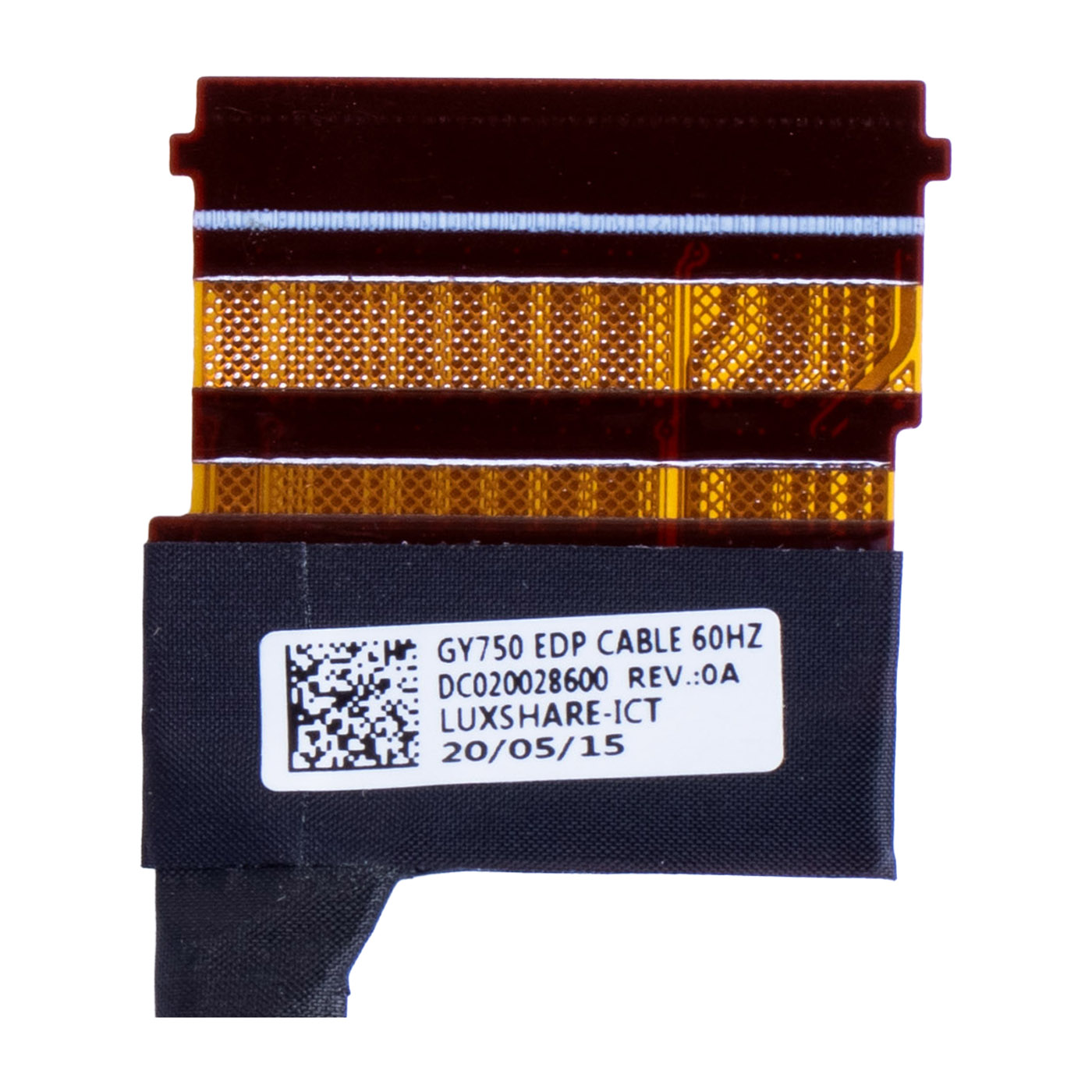

Part markings: GY750 EDP CABLE 60HZ, DC020028600 REV:0A, Luxshare-ICT

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Made for the 60 Hz screen - exactly the variant factory-fitted to your version, so nothing needs to be modified or adapted
🔹 Spring latch on the connector - the plug sits firmly in the socket, with no play and no sudden loss of picture
🔹 Factory mounting tape - the cable lays in the display housing right away, no improvised fixing needed
🔹 Full compatibility - matched to the Legion 5 17IMH05, 17IMH05H and 17ARH05H with a 60 Hz screen

🔢 PART NUMBERS

Part number: DC020028600
Substitute numbers: DC020028610
Part markings: GY750 EDP CABLE 60HZ, DC020028600 REV:0A
Laptop models: Lenovo Legion 5 17IMH05 (82B3), 17IMH05H (81Y8), 17ARH05H (82GN), 60 Hz screen version

❓ WHEN SHOULD YOU REPLACE THE LCD CABLE?

• The screen stays black although the laptop boots and an external monitor shows the picture
• The picture flickers, goes dark or changes colours when you open the lid or adjust the screen angle
• Vertical lines, stripes or "snow" appear on the screen
• The cable is worn or torn where it passes through the hinge
• The cable or connector got damaged during a previous repair

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the eDP cable from the motherboard
5. Remove the display bezel, disconnect the old cable from the LCD panel and peel it off the housing
6. Install the new cable, route it together with the FFC branch along the original path and connect all connectors
7. Reassemble the laptop in reverse order, power it on and check the picture on the screen
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This cable is intended for service repairs of the Lenovo Legion 5 17IMH05, 17IMH05H and 17ARH05H with a 60 Hz screen when the picture is missing, flickering or distorted, and for replacement while installing a new display panel. It restores a stable connection between the panel and the motherboard and full display functionality. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered LCD cable has been carefully checked and matched to the Lenovo Legion 5 17IMH05, 17IMH05H and 17ARH05H with a 60 Hz screen. We guarantee full compatibility under part number DC020028600 and 100% functionality of the part. The product comes with a 12-month warranty. In case of any compatibility issues, we offer a hassle-free return within 14 days.
