🔧 FHD IR Hybrid Camera for Lenovo ThinkPad E14 / E15 Gen 4, ThinkBook G4+, Yoga, IdeaPad 5 Pro 🔧

🖥️ ThinkPad E14 / E15 Gen 4 | ThinkBook 14 / 16 G4+ | Yoga | IdeaPad 5 Pro | FHD 1080p + IR Camera | 2 microphones | FRU 5C21D10437

Genuine FHD 1080p camera module with IR camera (Hybrid) designed for the Lenovo ThinkPad E14 Gen 4 and E15 Gen 4, ThinkBook 14 / 16 G4+ and selected ThinkBook, Yoga and IdeaPad 5 Pro models. Brand new part marked with FRU number 5C21D10437. The FRU number guarantees full compatibility with the models listed in this offer.

⚙️ PRODUCT DESCRIPTION

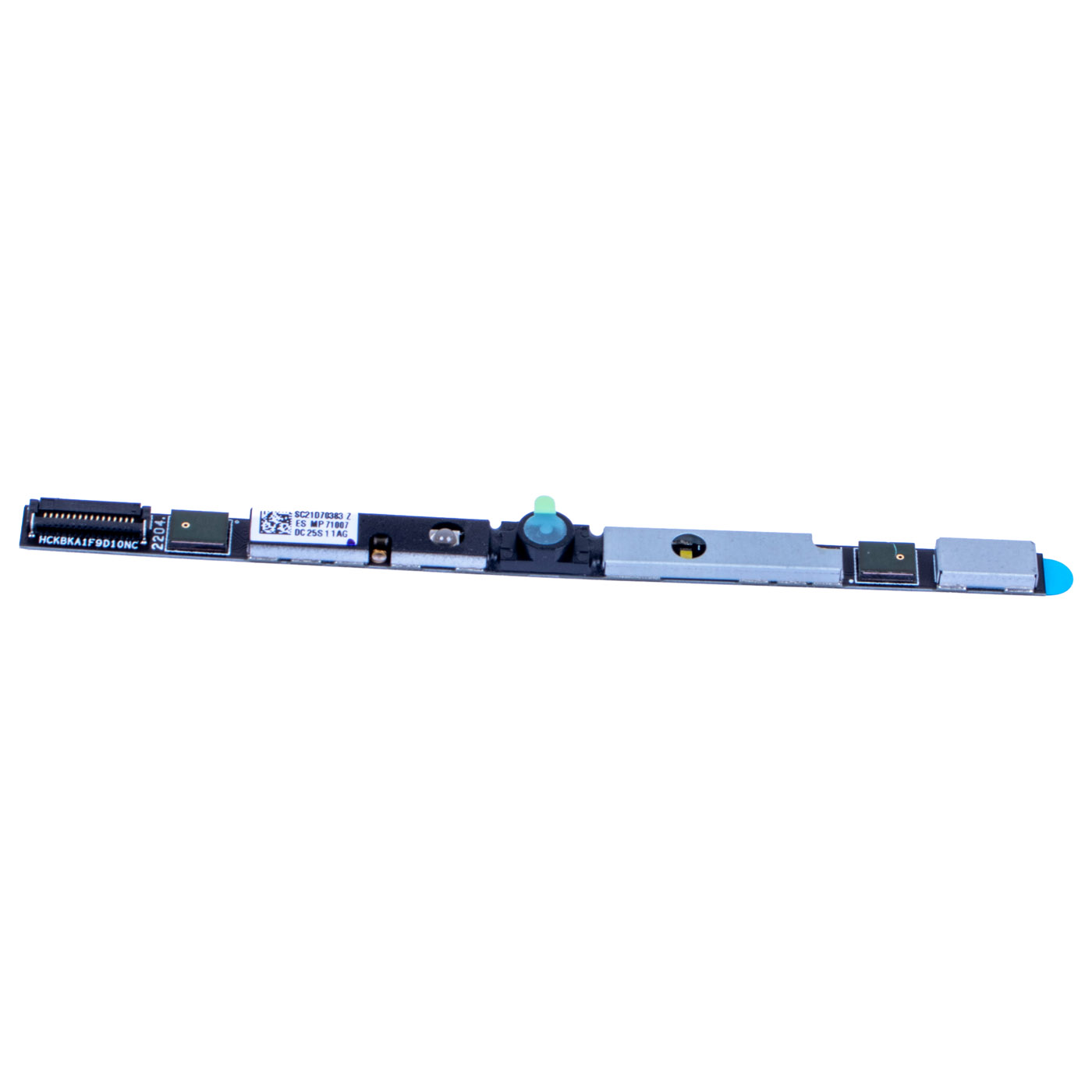

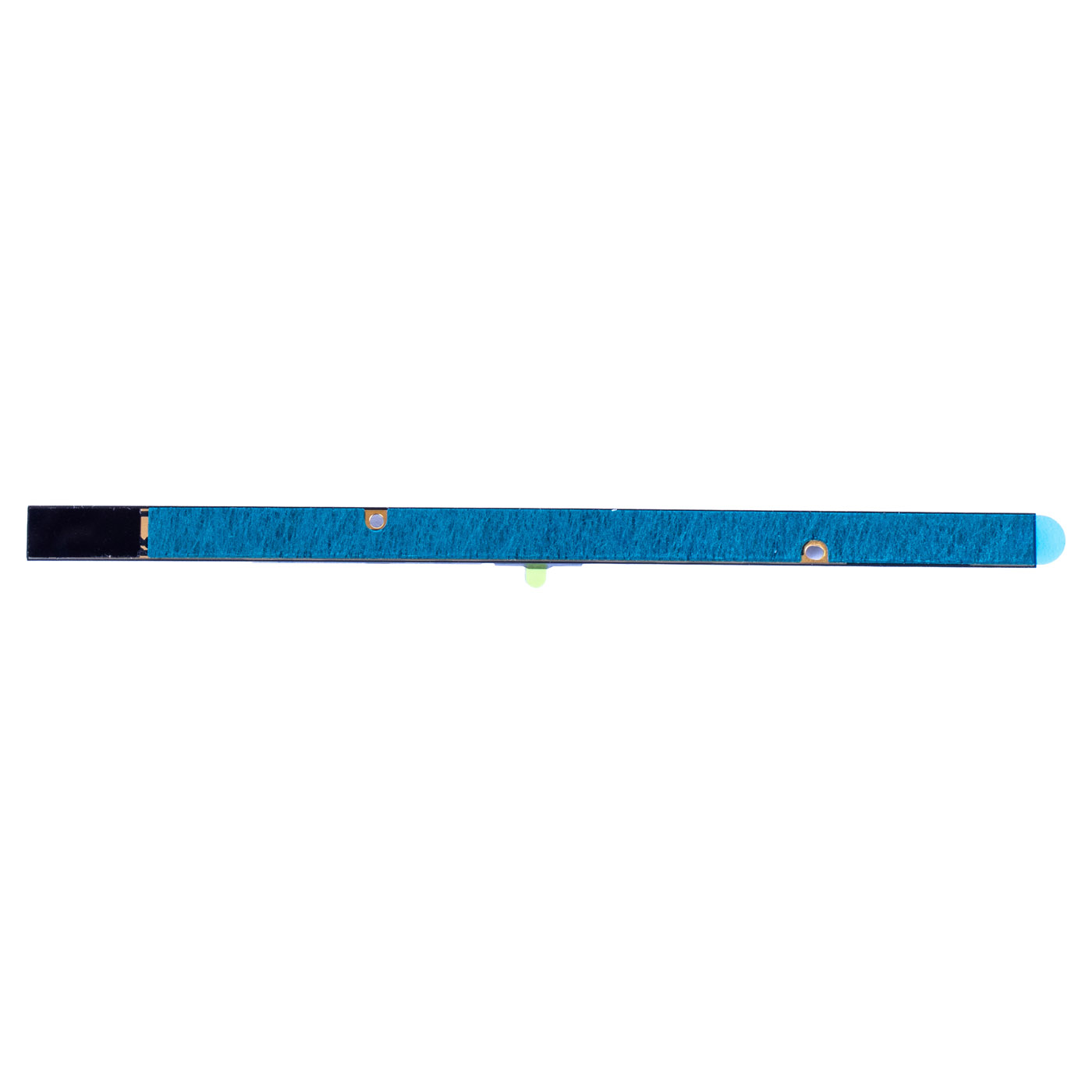

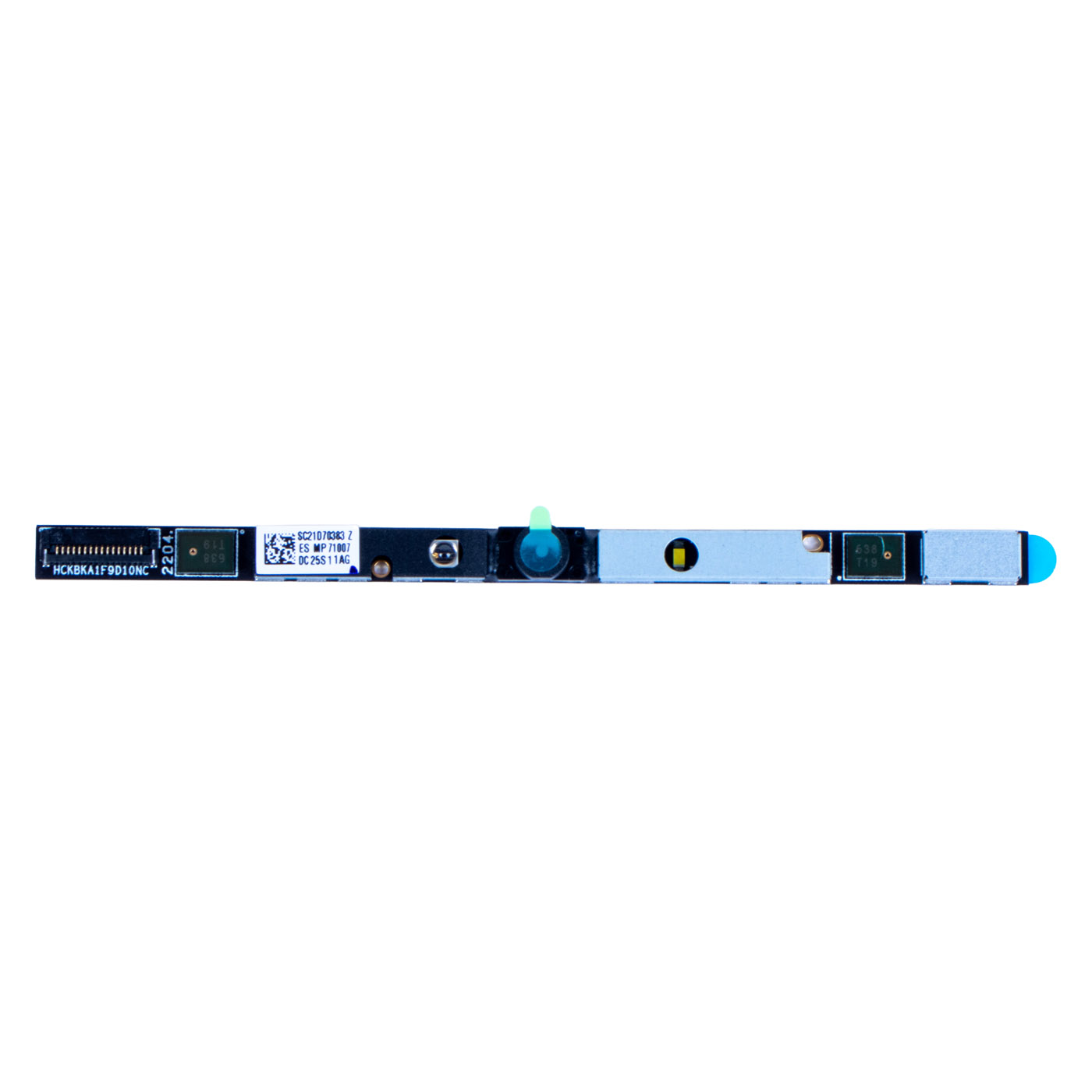

The Lenovo Hybrid camera module combines an FHD 1080p camera with an infrared (IR) camera supporting Windows Hello face sign-in. The module board also carries two microphones that pick up your voice for video calls. The camera connects to the motherboard via the cable connector at the end of the board, and its underside has factory adhesive tape covered with protective film. Lenovo marking on the label: SC21D70383. Lenovo lists FRU 5C21D10434, 5C21D10435 and 5C21D10436 as equivalent substitutes.

📋 TECHNICAL SPECIFICATIONS

Part name: FHD IR Hybrid camera with microphones
Brand: Lenovo ThinkPad / ThinkBook / Yoga / IdeaPad
Compatible models: ThinkPad E14 Gen 4, ThinkPad E15 Gen 4, ThinkBook 14 G4+ IAP, ThinkBook 16 G4+ IAP, ThinkBook 14 G4+ ARA, ThinkBook 16 G4+ ARA, ThinkBook 14p G3 ARH, ThinkBook 16p G3 ARH, ThinkBook Plus G3 IAP, Yoga 9 14IAP7, Yoga 9 14IRP8, Yoga 7 14IAL7, Yoga 7 14ARB7, Yoga 7 16IAP7, Yoga 7 16IAH7, Yoga 6 13ALC7, Yoga 6 13ABR8, Yoga Slim 6 14IAP8, Yoga Slim 6 14IRP8, Yoga Slim 7 ProX 14IAH7, Yoga Slim 7 ProX 14ARH7, Lenovo Slim 7 ProX 14IAH7, Lenovo Slim 7 ProX 14ARH7, IdeaPad 5 Pro 14IAP7, IdeaPad 5 Pro 14ARH7, IdeaPad 5 Pro 16IAH7, IdeaPad 5 Pro 16ARH7
Camera resolution: FHD 1080p
IR camera: yes, Windows Hello face sign-in
Microphones: 2, integrated on the module
Condition: New
Warranty: 12 months
FRU: 5C21D10437
Substitute numbers: 5C21D10434, 5C21D10435, 5C21D10436
Part markings: SC21D70383, HCKBKA1F9D10NC

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 IR camera with Windows Hello - your laptop recognises your face again and unlocks in a second, no password typing
🔹 FHD 1080p image - you look sharp on video calls, without the blurry picture typical of older 720p cameras
🔹 Two microphones on the module - sound comes back too, so others hear you without an external microphone
🔹 Wide compatibility - one module fits the ThinkPad E14/E15 Gen 4, ThinkBook G4+ and G3 and many Yoga and IdeaPad 5 Pro models under FRU 5C21D10437

🔢 PART NUMBERS

FRU: 5C21D10437
Substitute numbers: 5C21D10434, 5C21D10435, 5C21D10436
Part markings: SC21D70383, HCKBKA1F9D10NC
Laptop models:
• ThinkPad E14 Gen 4 (21E3, 21E4, 21EB, 21EC), ThinkPad E15 Gen 4 (21E6, 21E7, 21ED, 21EE)
• ThinkBook 14 G4+ IAP (21CX), ThinkBook 16 G4+ IAP (21CY), ThinkBook 14 G4+ ARA (21D0), ThinkBook 16 G4+ ARA (21D1)
• ThinkBook 14p G3 ARH (21EJ), ThinkBook 16p G3 ARH (21EK), ThinkBook Plus G3 IAP (21EL)
• Yoga 9 14IAP7 (82LU), Yoga 9 14IRP8 (83B1), Yoga 7 14IAL7 (82QE), Yoga 7 14ARB7 (82QF), Yoga 7 16IAP7 (82QG), Yoga 7 16IAH7 (82UF)
• Yoga 6 13ALC7 (82UD), Yoga 6 13ABR8 (83B2), Yoga Slim 6 14IAP8 (82WU), Yoga Slim 6 14IRP8 (82WV)
• Yoga Slim 7 ProX 14IAH7 (82TK), Yoga Slim 7 ProX 14ARH7 (82TL), Lenovo Slim 7 ProX 14IAH7 (82V1), Lenovo Slim 7 ProX 14ARH7 (82V2)
• IdeaPad 5 Pro 14IAP7 (82SH), IdeaPad 5 Pro 14ARH7 (82SJ), IdeaPad 5 Pro 16IAH7 (82SK), IdeaPad 5 Pro 16ARH7 (82SN)

❓ WHEN SHOULD YOU REPLACE THE CAMERA?

• The camera disappeared from Device Manager or apps say "no camera found"
• Windows Hello no longer recognises your face or reports that no compatible camera was found
• The camera image is black, noisy or shows wrong colours
• Others cannot hear you and the built-in microphone is not detected
• The camera module got damaged after a drop or a previous repair

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover, take it off and disconnect the battery
3. Remove the display bezel to access the camera module at the top of the lid
4. Disconnect the cable from the old module and carefully peel the module off the housing
5. Remove the protective film from the adhesive tape of the new module, stick it in the same place and connect the cable
6. Refit the bezel, reconnect the battery and reassemble the laptop
7. Power on the laptop and check the camera image, Windows Hello sign-in and the microphones
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This module is intended for service repairs of Lenovo ThinkPad E14/E15 Gen 4, ThinkBook G4+ and G3 laptops and the listed Yoga and IdeaPad 5 Pro models when the camera, Windows Hello face sign-in or microphones have stopped working. It restores full video call functionality and quick face sign-in. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered camera has been carefully checked and matched to the Lenovo models listed in this offer. We guarantee full compatibility under FRU number 5C21D10437 and 100% functionality of the part. The product comes with a 12-month warranty. In case of any compatibility issues, we offer a hassle-free return within 14 days.
