🔧 IPS LCD Cable for Lenovo Legion 5 15IRX10 15IAX10 15AHP10 🔧

🖥️ Legion 5 15IRX10 / 15IAX10 / 15AHP10 | eDP Cable IPS 15.3" WUXGA / WQXGA | FRU 5C10S31494

Genuine eDP display cable for the IPS version designed for the Lenovo Legion 5 15IRX10, Legion 5 15IAX10 and Legion 5 15AHP10 laptops with a 15.3" IPS panel, WUXGA (1920 x 1200 px) or WQXGA (2560 x 1600 px). Brand new part marked with FRU number 5C10S31494. The FRU number guarantees full compatibility with the Legion 5 15IRX10 (83LY), 15IAX10 (83F0) and 15AHP10 (83M0).

⚙️ PRODUCT DESCRIPTION

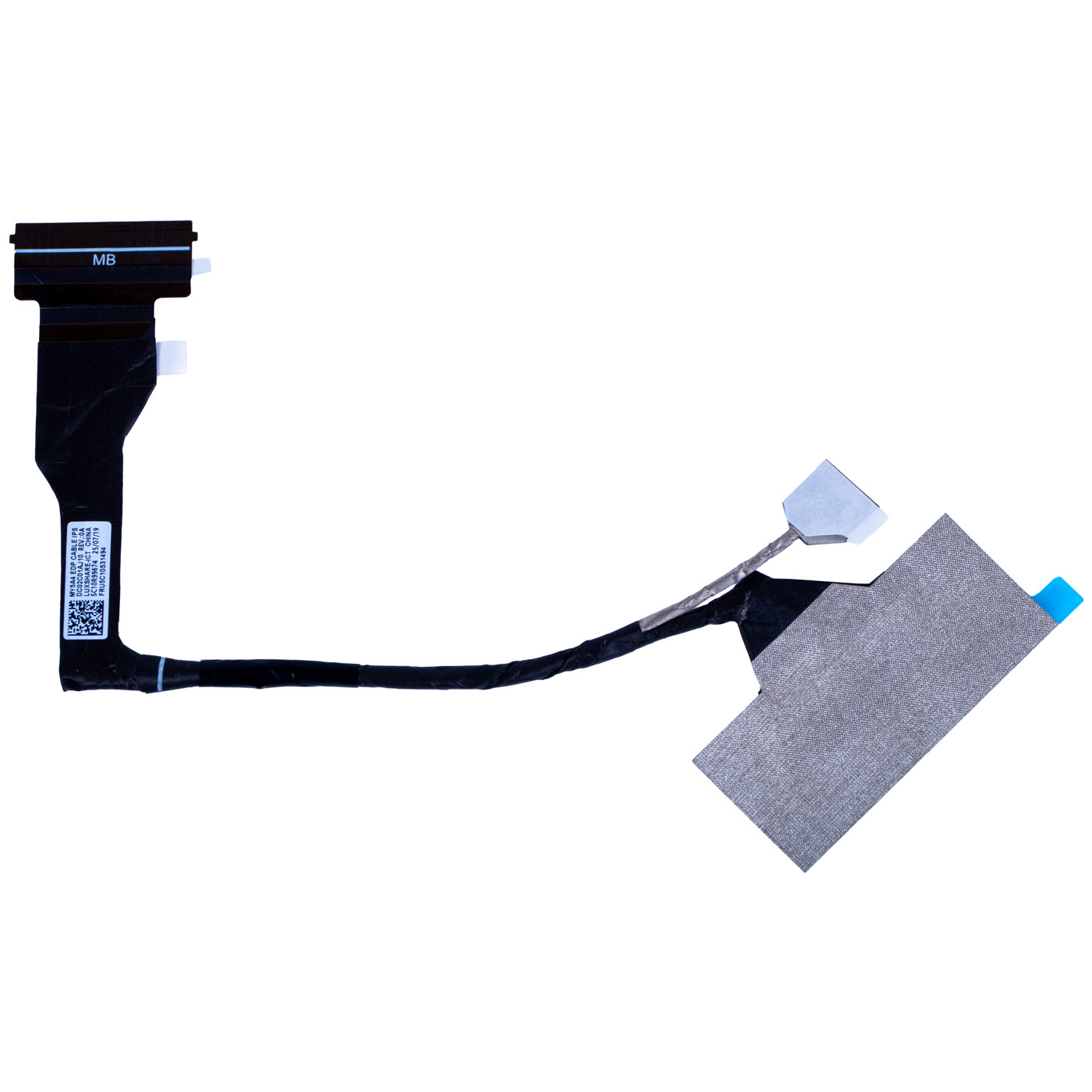

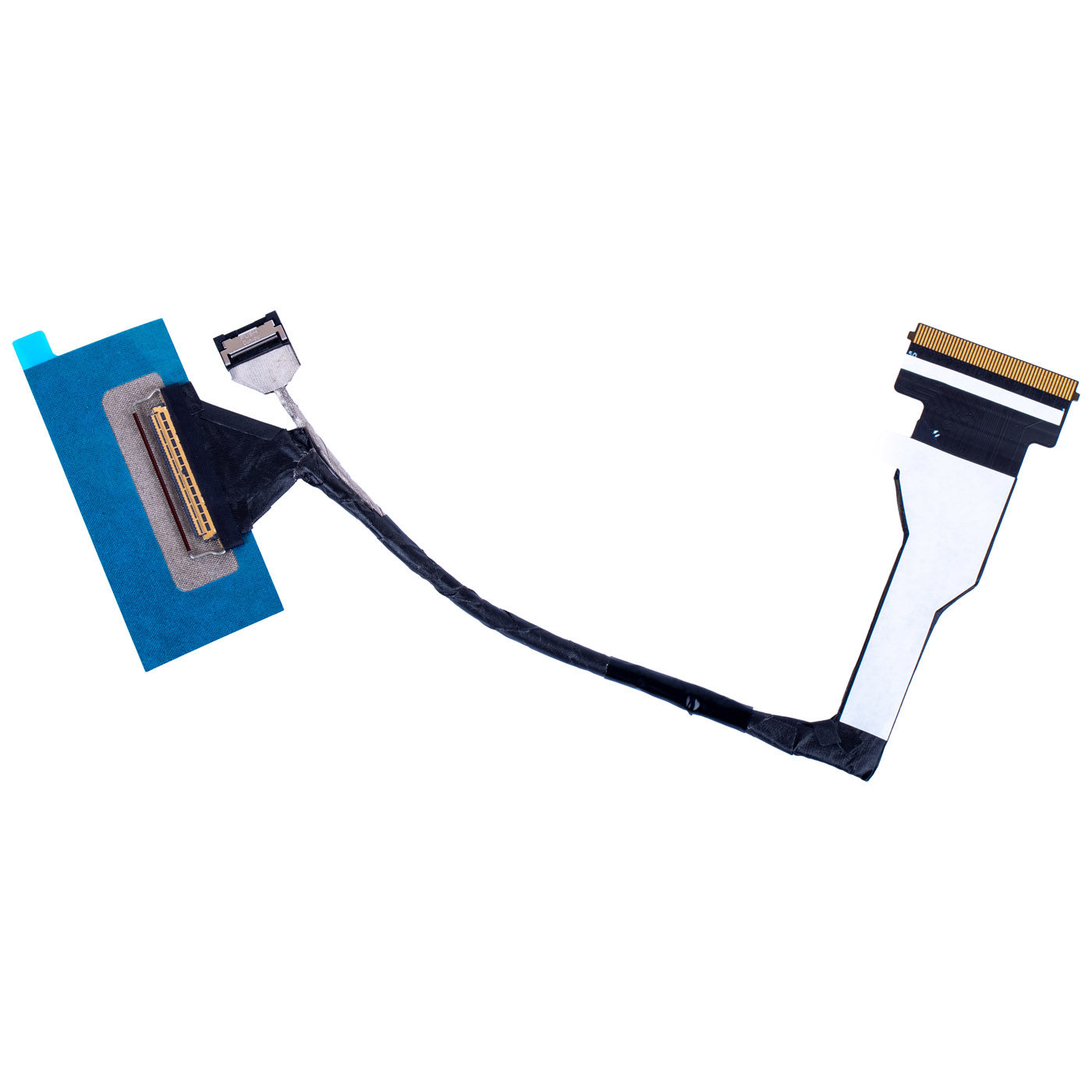

Complete eDP cable connecting the IPS panel to the motherboard (label marking "MY5A4 EDP CABLE IPS", manufactured by Luxshare-ICT, part number DC02C01AJ10, revision 0A). The motherboard end is a flexible FPC tail printed "MB", the panel end is a connector with a metal spring latch. The cable is factory shielded and its mounting surfaces are covered with protective film. Lenovo lists FRU 5C10S31493 (part number DC02C01AJ00) as an equivalent substitute.

⚠️ Important: this cable is intended for the 15.3" IPS panel version. Legion 5 Gen 10 versions with a 15.1" OLED panel use a different cable (5C10S31498 / 5C10S31499).

📋 TECHNICAL SPECIFICATIONS

Part name: eDP IPS display cable
Brand: Lenovo Legion
Compatible models: Legion 5 15IRX10 (83LY), Legion 5 15IAX10 (83F0), Legion 5 15AHP10 (83M0)
Panel: IPS 15.3", WUXGA 1920 x 1200 px or WQXGA 2560 x 1600 px
Condition: New
Warranty: 12 months
FRU: 5C10S31494
Substitute numbers: 5C10S31493, DC02C01AJ10, DC02C01AJ00

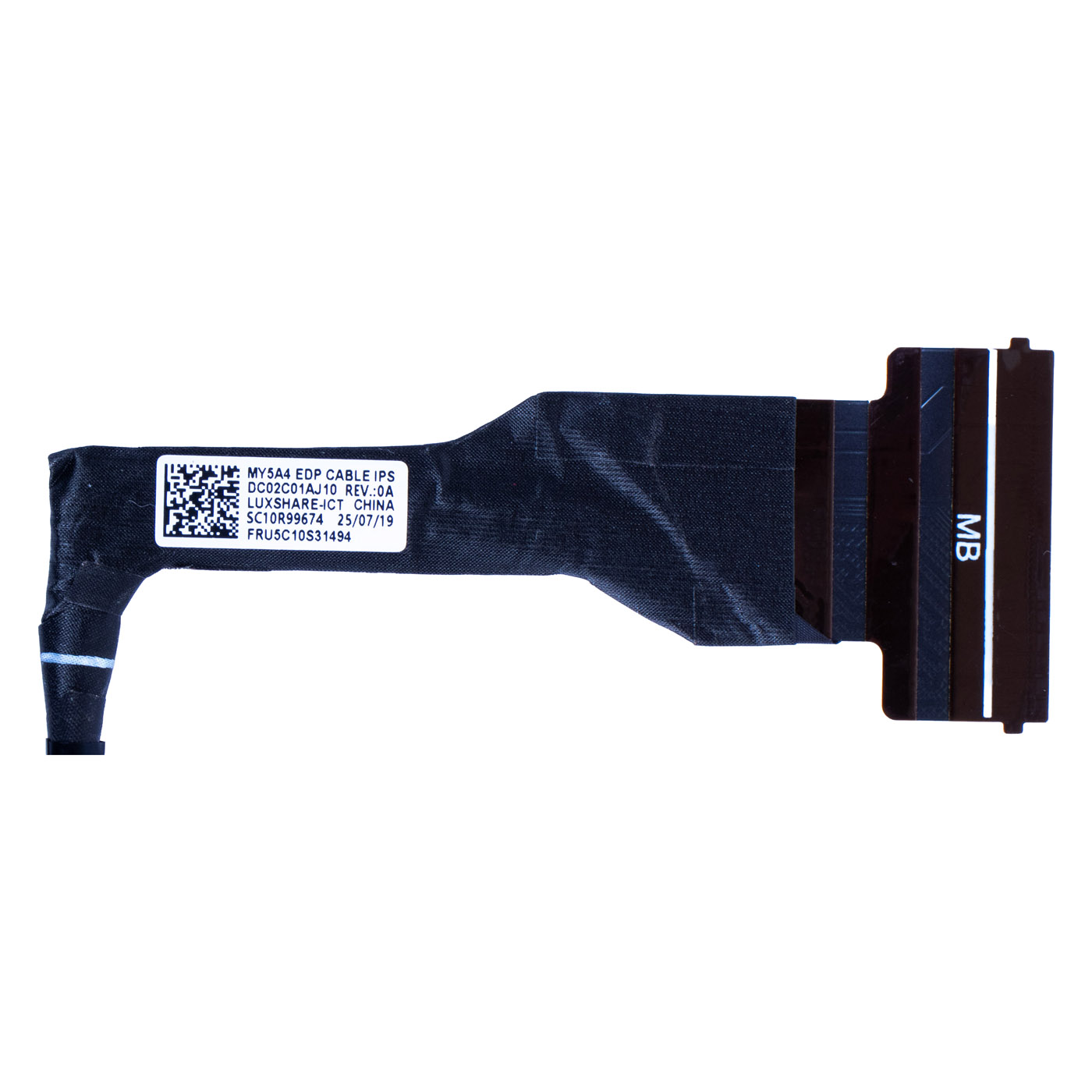

Part markings: MY5A4 EDP CABLE IPS, DC02C01AJ10 REV:0A, SC10R99674, Luxshare-ICT

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Fits both IPS panels - works with both the WUXGA and WQXGA versions, so you do not need to check the resolution before buying
🔹 Factory cable shielding - a stable video signal without lines, flicker or dropouts
🔹 "MB" marked end - you know straight away which side goes to the motherboard, no guesswork during installation
🔹 Full compatibility - matched to the Legion 5 15IRX10, 15IAX10 and 15AHP10 with an IPS panel under FRU 5C10S31494

🔢 PART NUMBERS

FRU: 5C10S31494
Substitute numbers: 5C10S31493, DC02C01AJ10, DC02C01AJ00
Part markings: MY5A4 EDP CABLE IPS, DC02C01AJ10 REV:0A, SC10R99674
Laptop models: Lenovo Legion 5 15IRX10 (83LY), 15IAX10 (83F0), 15AHP10 (83M0), IPS panel version

❓ WHEN SHOULD YOU REPLACE THE LCD CABLE?

• The screen stays black although the laptop boots and an external monitor shows the picture
• The picture flickers, goes dark or changes colours when you open the lid or adjust the screen angle
• Vertical lines, stripes or "snow" appear on the screen
• The picture tears or drops out during gaming
• The cable is worn or torn where it passes through the hinge
• The cable or connector got damaged during a previous repair

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the eDP cable from the motherboard
5. Remove the display bezel and disconnect the old cable from the LCD panel
6. Install the new cable with the "MB" end towards the motherboard, route it along the original path, peel off the protective films from the mounting surfaces and connect both connectors
7. Reassemble the laptop in reverse order, power it on and check the picture on the screen
Replacement by a technical service or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

This cable is intended for service repairs of the Lenovo Legion 5 15IRX10, 15IAX10 and 15AHP10 with an IPS panel when the picture is missing, flickering or distorted, and for replacement while installing a new display panel. It restores a stable connection between the panel and the motherboard and full display functionality. The exact appearance and condition of the offered item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The offered LCD cable has been carefully checked and matched to the Lenovo Legion 5 15IRX10, 15IAX10 and 15AHP10 with an IPS panel. We guarantee full compatibility under FRU number 5C10S31494 and 100% functionality of the part. The product comes with a 12-month warranty. In case of any compatibility issues, we offer a hassle-free return within 14 days.
