🔧 Fan with heatsink for Lenovo ThinkPad T480s SWG 🔧

🖥️ ThinkPad T480s | Cooling module | 14" | SWG (discrete graphics)

⚙️ PRODUCT DESCRIPTION

Original fan with heatsink for the Lenovo ThinkPad T480s in the SWG version (with discrete graphics) is a key component of the cooling system, ensuring optimal operating temperature of the notebook. The module is brand new and fully compatible with 14" T480s laptops equipped with an additional graphics card. High‑quality manufacturing guarantees quiet and efficient operation, effectively dissipating heat from the CPU and the dedicated GPU. The professional thermal module has been designed according to the manufacturer’s specification, which ensures a perfect fit inside the chassis and efficient heat distribution from both sources – processor and discrete graphics.

📋 TECHNICAL SPECIFICATION

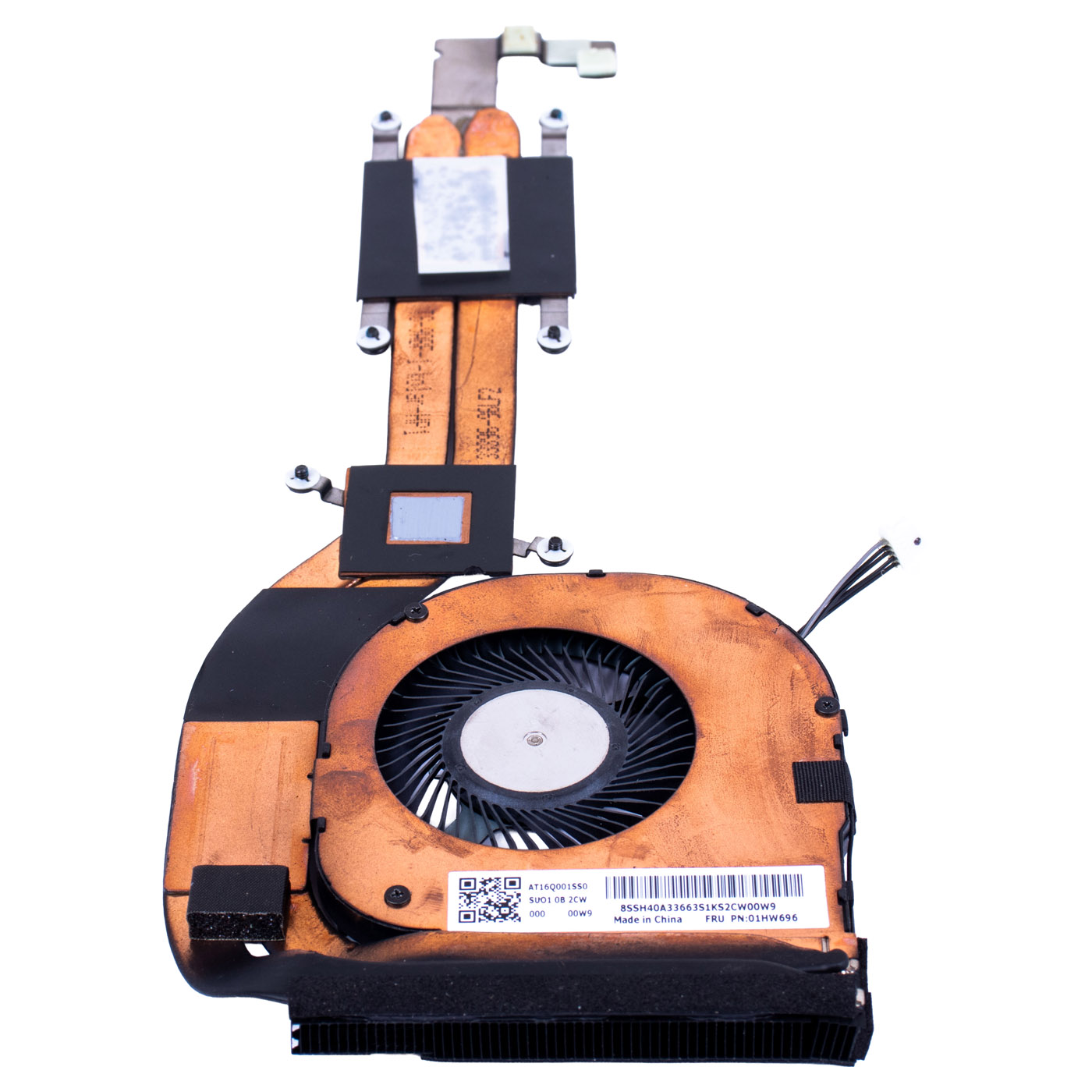

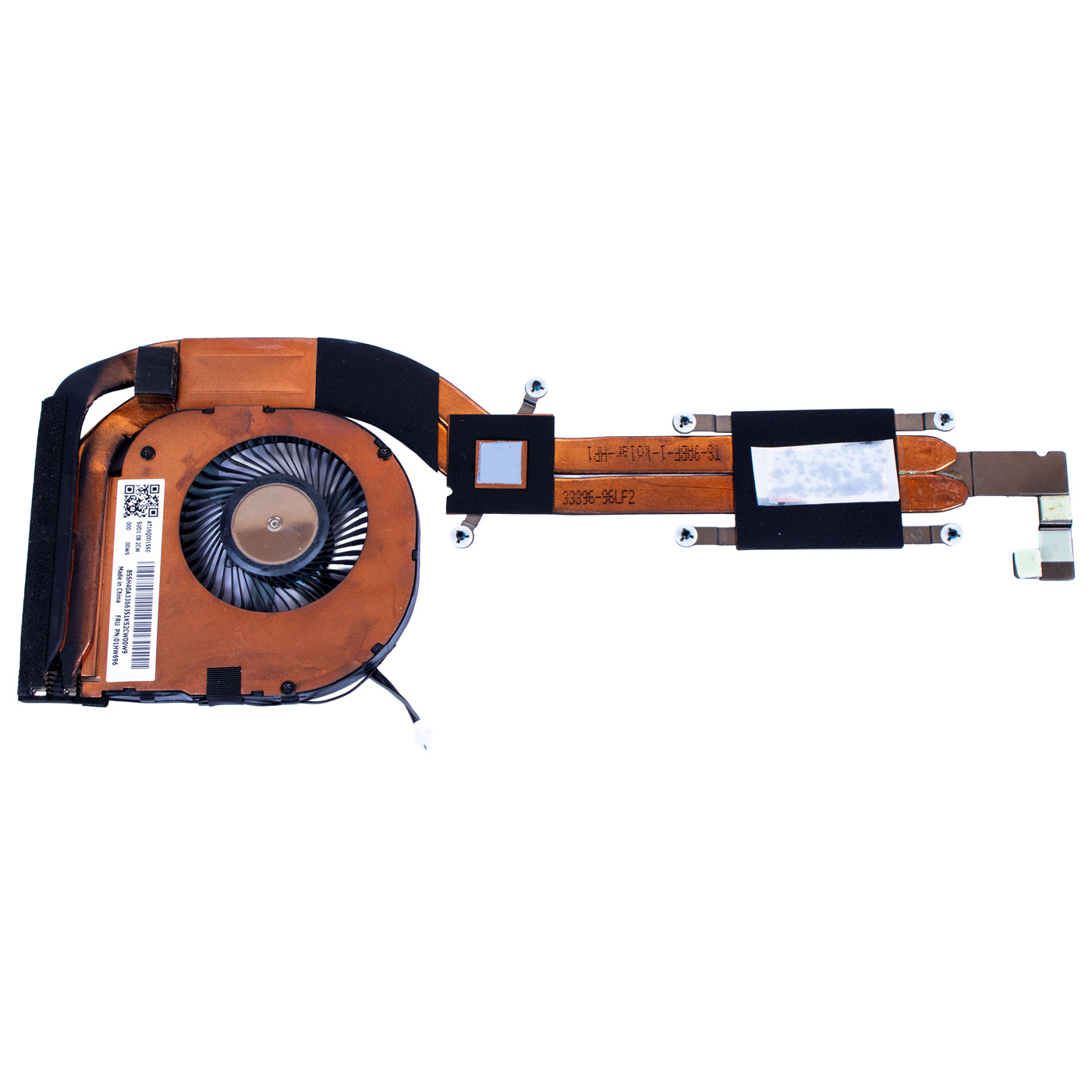

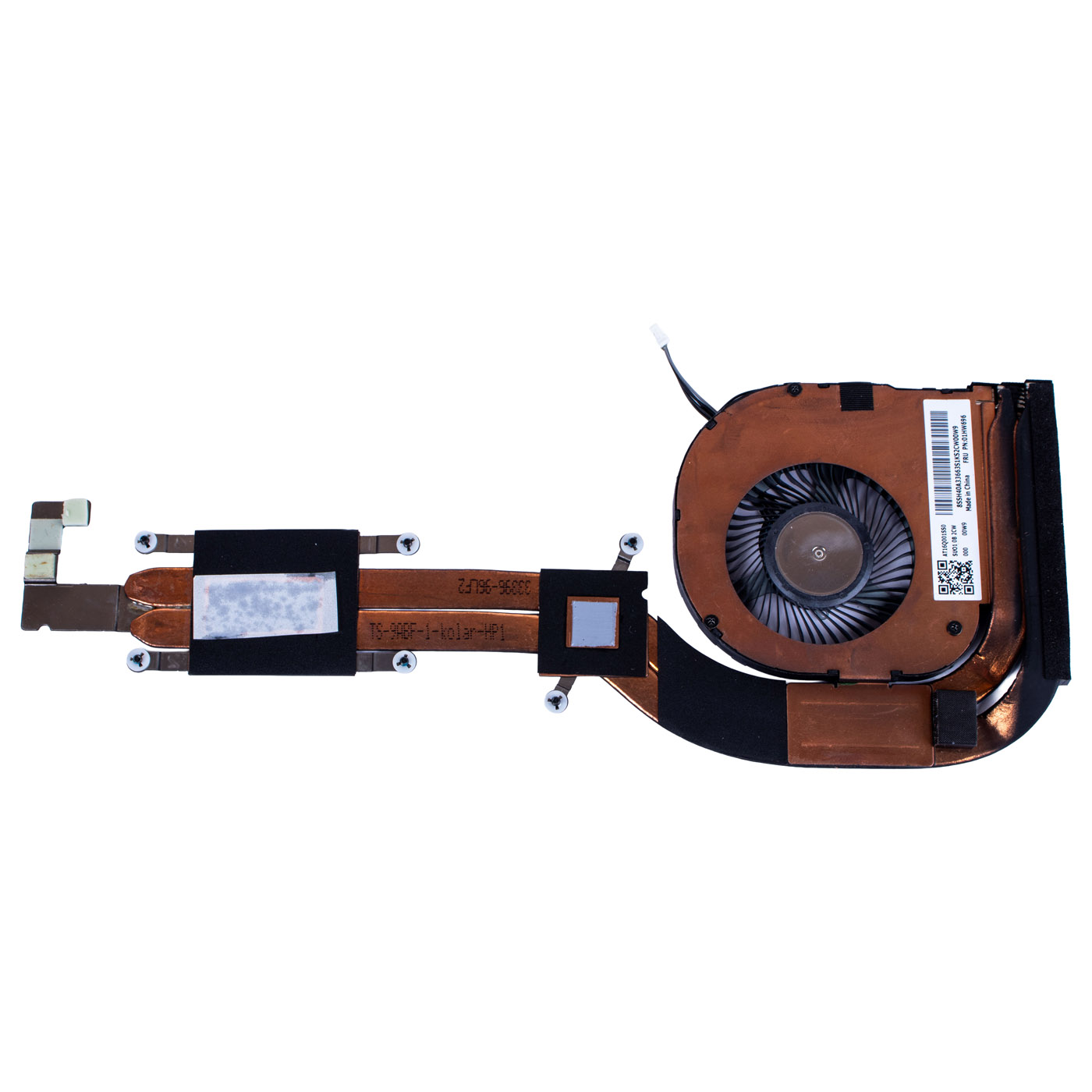

Product name: Fan with heatsink (Thermal Module with FAN)
Brand: Lenovo ThinkPad
Laptop model: T480s SWG
Screen size: 14"
Condition: Brand new
Graphics type: SWG (discrete graphics)

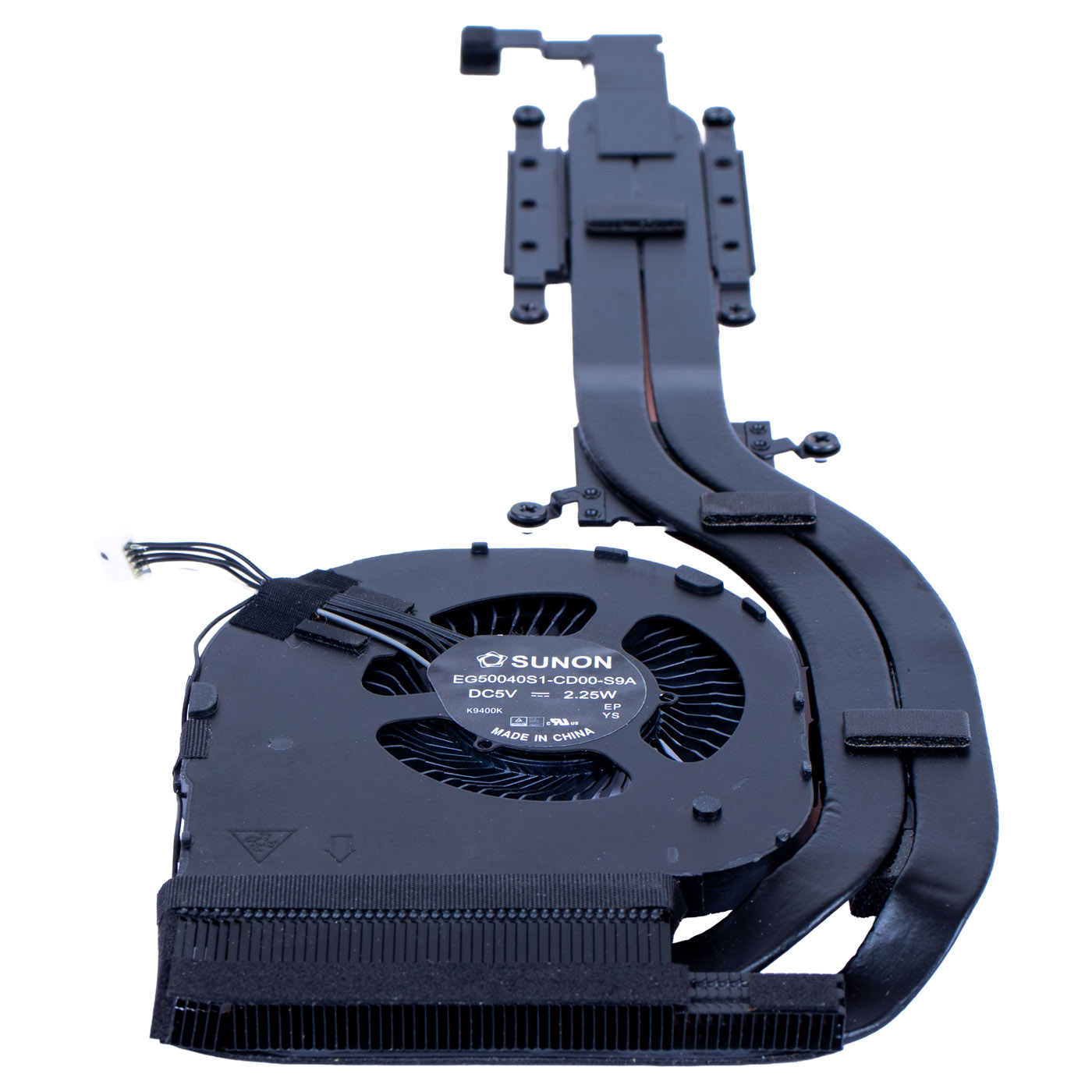

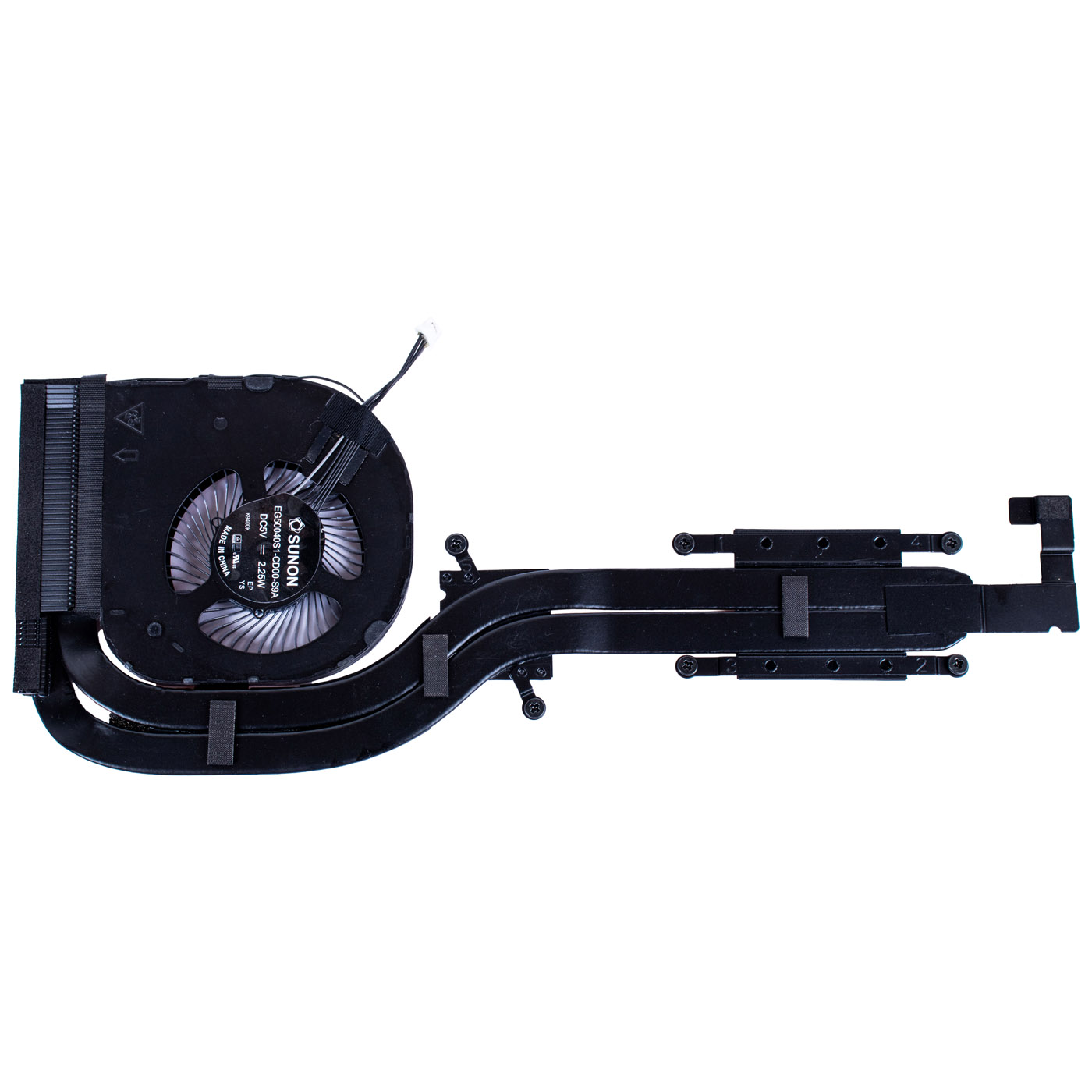

Fan parameters: DC 5V 2.25W (SUNON EG50040S1‑CD00‑S9A)
FRU: 01HW694
Substitute FRUs: 01HW695, 01HW696

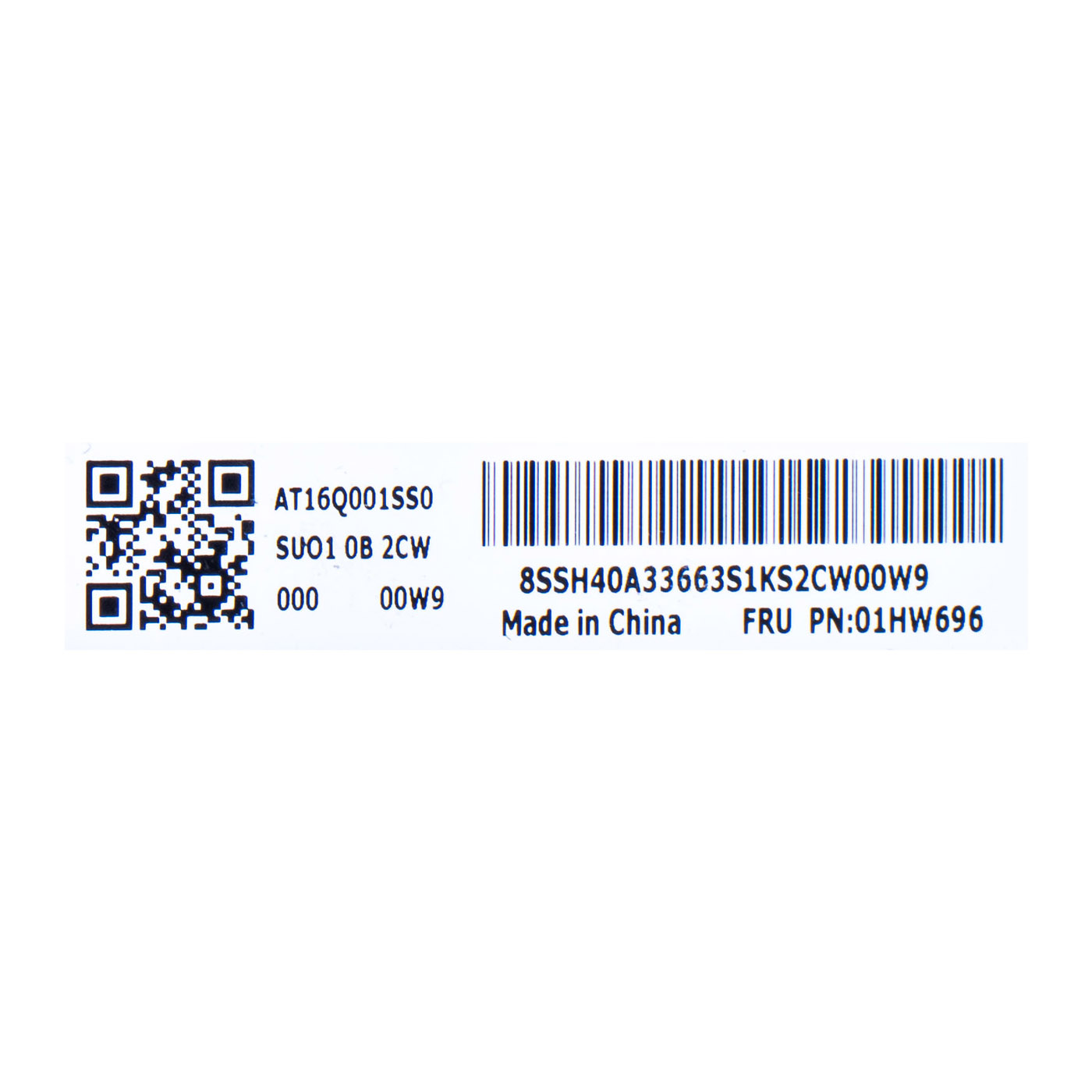

Heatsink markings: AT16Q001SS0, SH40A33663
Warranty: 12 months
Compatibility: Dedicated to ThinkPad T480s models with discrete graphics (SWG)

🌟 KEY FEATURES

🔹 Original Lenovo spare part – guarantees full compatibility and trouble‑free installation
🔹 Wydajny wentylator SUNON – model o mocy 2.25W zapewniający wysoki przepływ powietrza
🔹 Designed for SWG version – optimized to cool both the CPU and the discrete GPU
🔹 Efficient cooling – effective heat dissipation from two major heat sources at the same time
🔹 Quiet operation – optimized SUNON fan construction reduces noise even under heavy load
🔹 Long service life – high‑quality materials ensure reliability and durability
🔹 System stability – helps prevent overheating, throttling and sudden shutdowns during demanding tasks

🔢 PART NUMBERS

FRU: 01HW694
Substitute FRUs (Substitutes): 01HW695, 01HW696
Manufacturer markings: AT16Q001SS0, SH40A33663
Fan model: SUNON EG50040S1‑CD00‑S9A, DC 5V 2.25W
Series: ThinkPad T480s
Graphics version: SWG (discrete graphics)

❓ WHEN SHOULD YOU REPLACE THE FAN WITH HEATSINK?

• The laptop shuts down by itself, especially under graphics load
• The system reports overheating errors for CPU or GPU
• The fan runs louder than usual or makes abnormal noises (grinding, squeaking)
• The chassis becomes very hot, especially around the processor and graphics area
• Noticeable slowdown under load (gaming, rendering, video editing)
• The fan does not start or spins irregularly

🔧 INSTALLATION GUIDE

1. Switch off the laptop, unplug the power adapter and disconnect the battery.
2. Unscrew the screws holding the bottom cover and carefully remove the cover.
3. Locate the cooling module (fan with heatsink) – in the SWG version the heatsink is larger and also covers the GPU.
4. Disconnect the fan power cable from the motherboard.
5. Unscrew the heatsink screws in the reverse order of the numbers printed on the heatsink.
6. Gently remove the old fan with heatsink.
7. Clean the CPU and GPU surfaces from old thermal paste.
8. Apply fresh thermal paste to the CPU and GPU dies.
9. Place the new thermal module 01HW694 in exactly the same position.
10. Tighten the screws in the order indicated on the heatsink.
11. Reconnect the fan cable to the motherboard.
12. Re‑install the bottom cover and tighten all screws.

🎯 PURPOSE

This original fan with heatsink is intended exclusively for Lenovo ThinkPad T480s laptops in the configuration with a discrete graphics card (SWG). Designed specifically for 14" models with an additional GPU, it provides optimal cooling for both the processor and the graphics chip. The part is essential for proper operation of the notebook during intensive workloads. Precisely matched to the T480s SWG specification, it ensures efficient heat dissipation and stable system performance.

✅ COMPATIBILITY GUARANTEE

The offered cooling module is 100% compatible with Lenovo ThinkPad T480s SWG 14" laptops equipped with a discrete graphics card. Part numbers 01HW694, 01HW695, 01HW696 and markings AT16Q001SS0, SH40A33663 confirm full compliance with the original Lenovo specification. Note: this module does NOT fit UMA versions (integrated graphics only). Before purchase, please check the FRU number on your existing heatsink to make sure you have the SWG configuration.
