Lenovo ThinkPad L13 1st UMA radiator fan | SH40R19669

🔧 Fan with Heatsink for Lenovo ThinkPad L13 Gen 1 (UMA) 🔧

🖥️ ThinkPad L13 Gen 1 | UMA (Intel HD Graphics) | AVC BAPA0705R5HY006

⚙️ PRODUCT DESCRIPTION

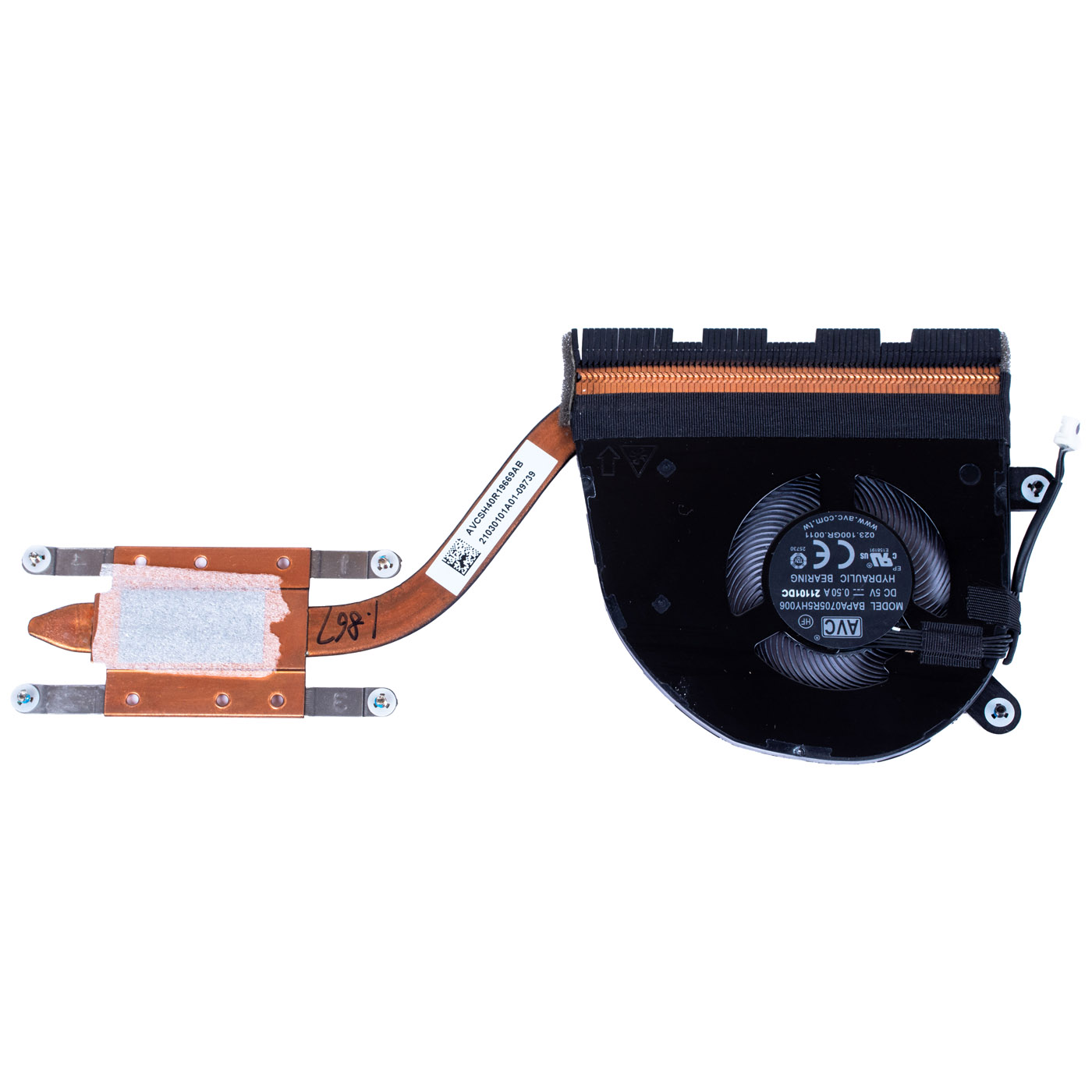

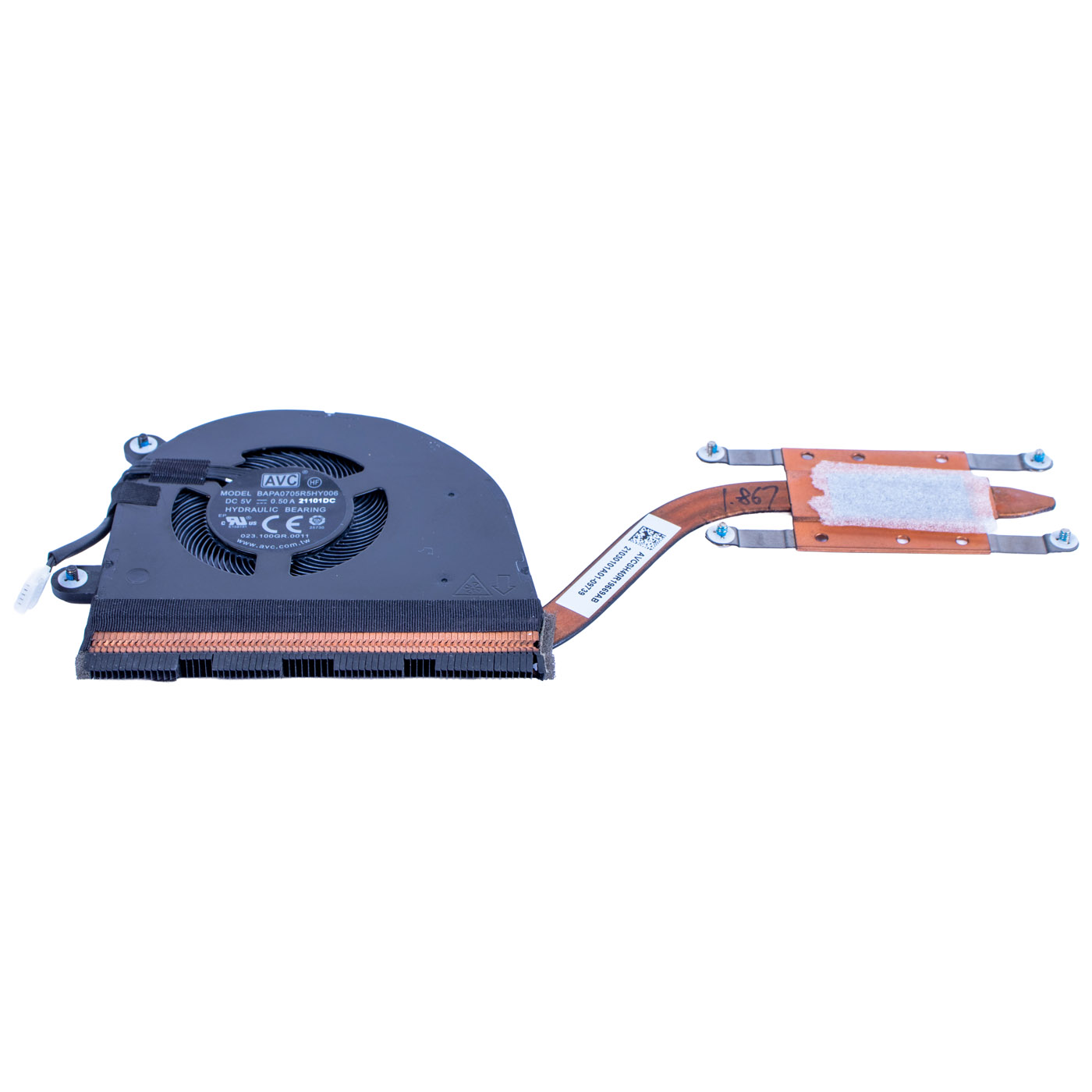

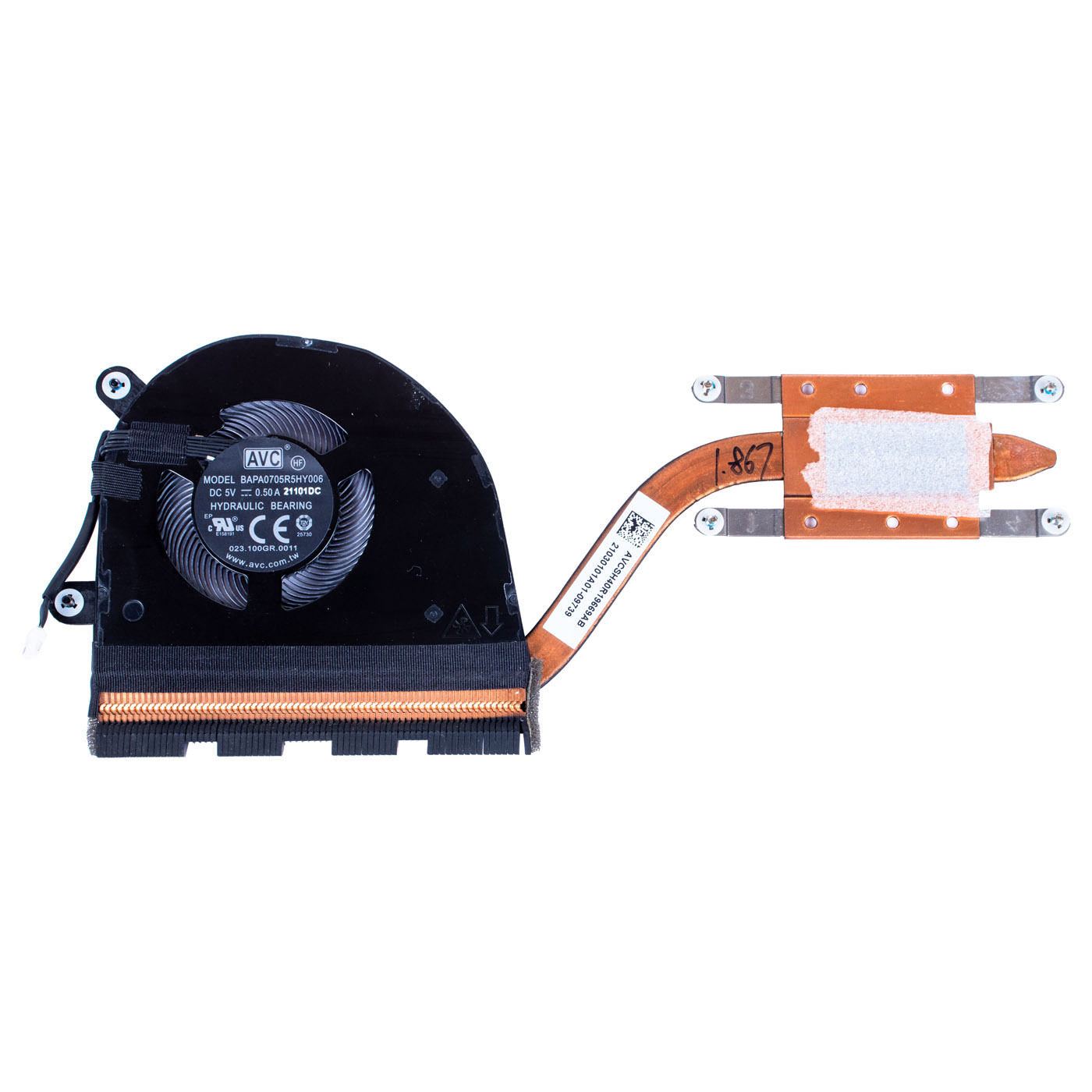

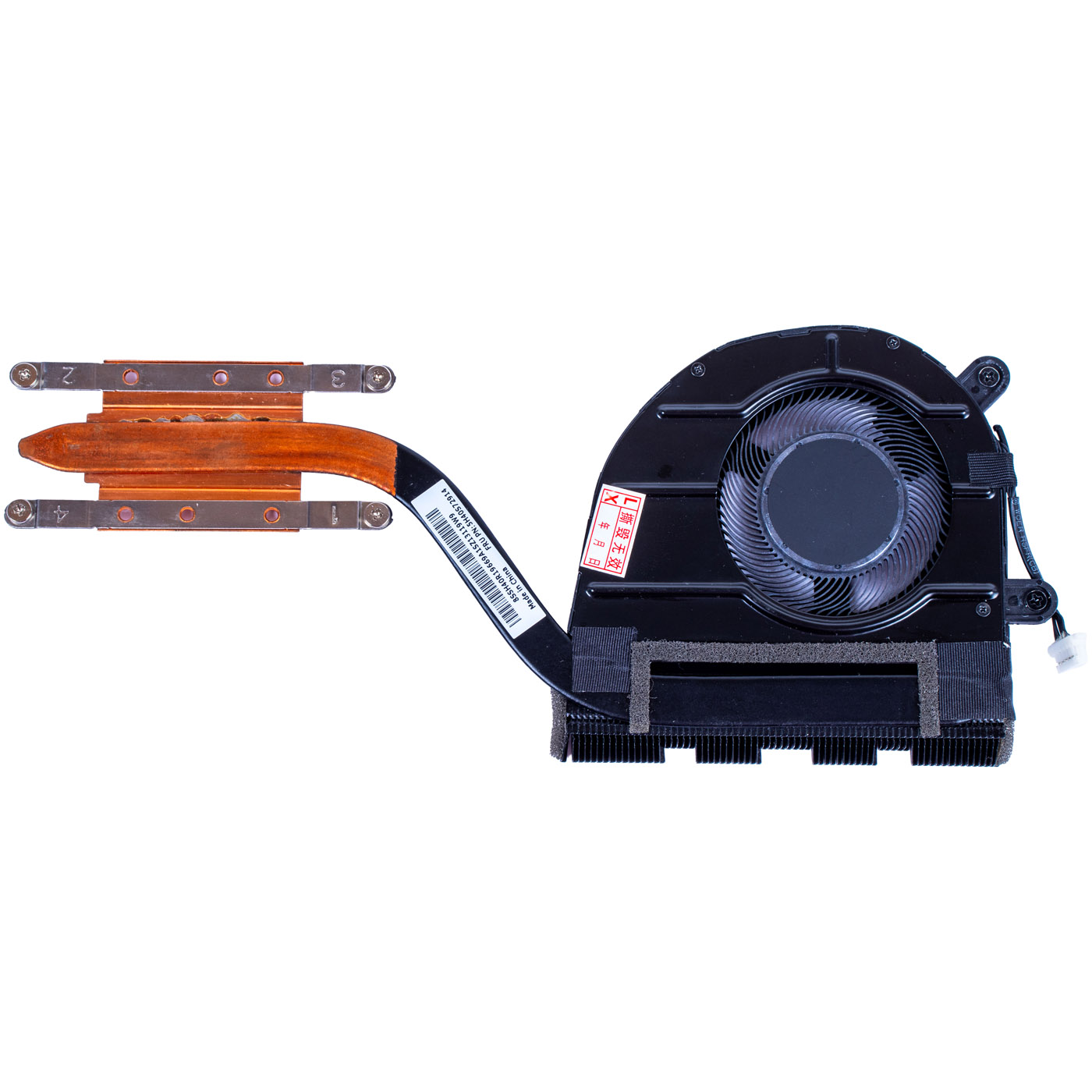

Original, brand new fan with heatsink (CPU cooling assembly) for Lenovo ThinkPad L13 Gen 1 laptop in UMA version (integrated graphics). The assembly consists of an AVC centrifugal blower fan with aluminum heatsink fins and a copper heatpipe efficiently transferring heat from the processor. A flat contact plate with thermal pad and four screw mounting points ensures precise contact with the processor. The part marked with FRU number SH40R19669 guarantees full compatibility with ThinkPad L13 Gen 1.

📋 TECHNICAL SPECIFICATIONS

Type: Fan with heatsink (CPU cooling assembly)
Brand: Lenovo / AVC
Laptop model: ThinkPad L13 Gen 1
Version: UMA (integrated graphics)
Fan model: AVC BAPA0705R5HY006
Voltage: DC 5V
Current: 0.50A
Bearing: Hydraulic Bearing
Connector: 6-pin connector (5-wire, 1-pin unused)
Heatpipe: Copper
Condition: New

🔑 KEY FEATURES

🔹 Original part - guaranteed perfect fit and full compatibility
🔹 AVC fan with hydraulic bearing - quiet and long-lasting operation
🔹 Copper heatpipe - efficient heat transfer from the processor
🔹 Aluminum heatsink fins - effective cooling in a compact form factor
🔹 Thermal pad - ready to install without applying thermal paste
🔹 4 screw mounting points - stable and secure contact with the processor
🔹 Brand new part - guaranteed reliability and long service life

🔢 PART NUMBERS

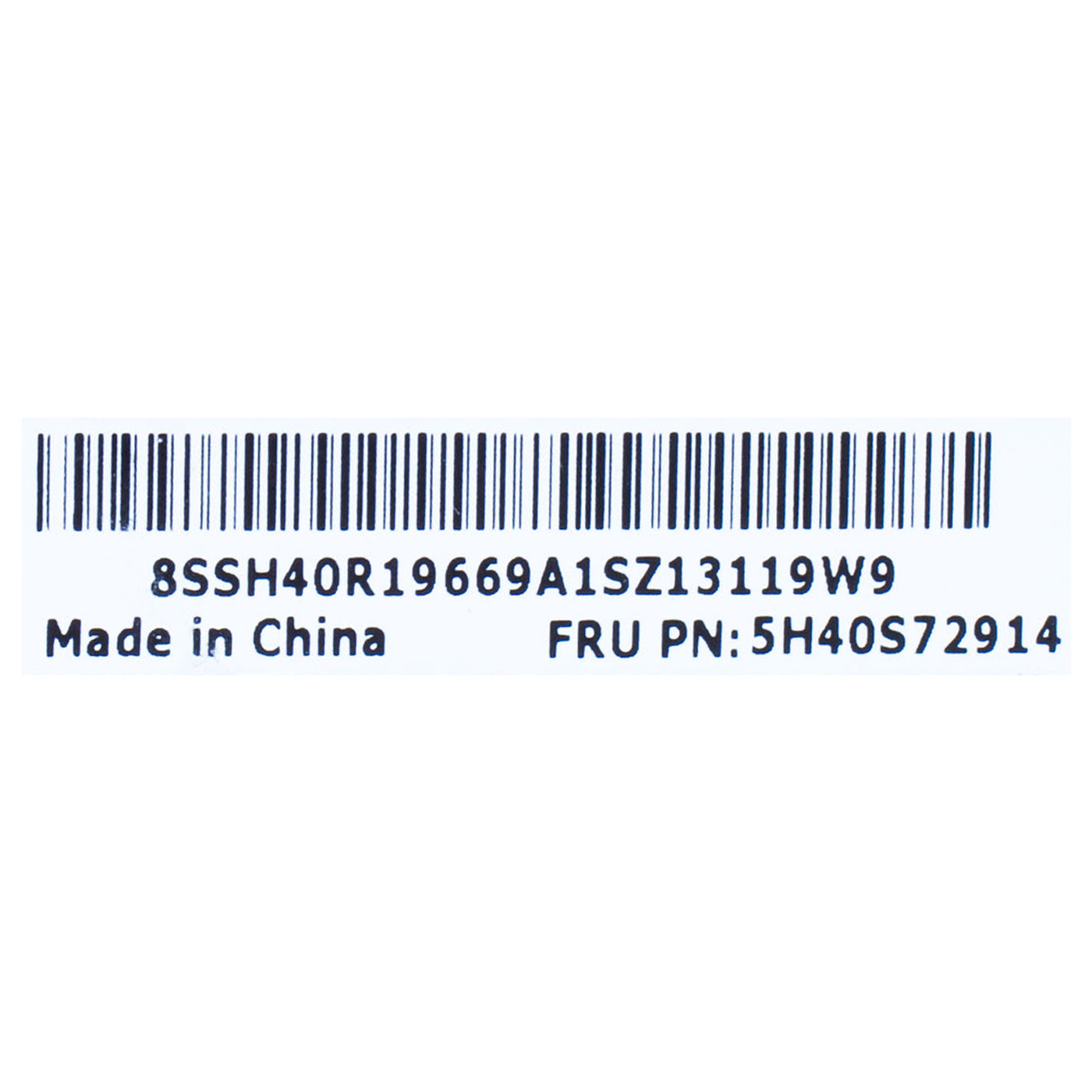

FRU: SH40R19669
Alternatives: 5H40S72912 / 5H40S72914 / AVCSH40R19669AB

❓ WHEN TO REPLACE THE COOLING ASSEMBLY?

• Laptop overheating - processor reaches high temperatures, laptop shuts down unexpectedly
• Loud fan noise - fan produces abnormal sounds (buzzing, grinding)
• Fan not spinning - no rotation despite high CPU temperature
• Thermal throttling - processor reduces clock speed due to insufficient cooling
• Mechanical damage - bent heatpipe, damaged fins or fan housing

🔧 INSTALLATION PROCESS

Replacing the cooling assembly in the Lenovo ThinkPad L13 Gen 1 requires basic service skills. Turn off the laptop and disconnect the power supply. Unscrew the bottom cover screws and carefully remove it. Disconnect the battery, then unplug the fan connector from the motherboard. Unscrew the cooling assembly mounting screws from the processor (following the numbering on the plate), remove the old assembly and install the new one. It is recommended to apply fresh thermal paste on the processor before installing the new cooling assembly. Replacement by a qualified technician or an experienced laptop repair person is advised.

🎯 APPLICATION

The cooling assembly is dedicated to the Lenovo ThinkPad L13 Gen 1 laptop in the UMA version (with integrated Intel graphics). Original part numbers guarantee perfect geometric and thermal fit for this laptop variant. Restores proper processor operating temperature and system stability.

✅ COMPATIBILITY GUARANTEE

The offered part has been carefully verified and matched to the Lenovo ThinkPad L13 Gen 1 (UMA) model. We guarantee full compatibility with Lenovo ThinkPad L13 Gen 1 under FRU number SH40R19669. The exact appearance and condition of the offered item is shown in the photos in the listing. In case of any compatibility issues, we provide a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of the cooling assembly with your Lenovo ThinkPad L13 Gen 1 laptop? Our specialists will be happy to help you choose the right part and provide installation guidance. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

📦 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specializing in supplying original parts for Lenovo laptops for years. Our experience allows us to offer products of the highest quality that meet the expectations of even the most demanding customers. Trust the experts and choose a cooling assembly that will restore optimal performance to your Lenovo ThinkPad L13 Gen 1.

🎯 Choose professionals - invest in high quality!

By choosing an original fan with heatsink for Lenovo ThinkPad L13 Gen 1 from our offer, you are investing in reliability and durability. Take advantage of ABCDEAL specialists' expertise and restore your laptop to full working order.
