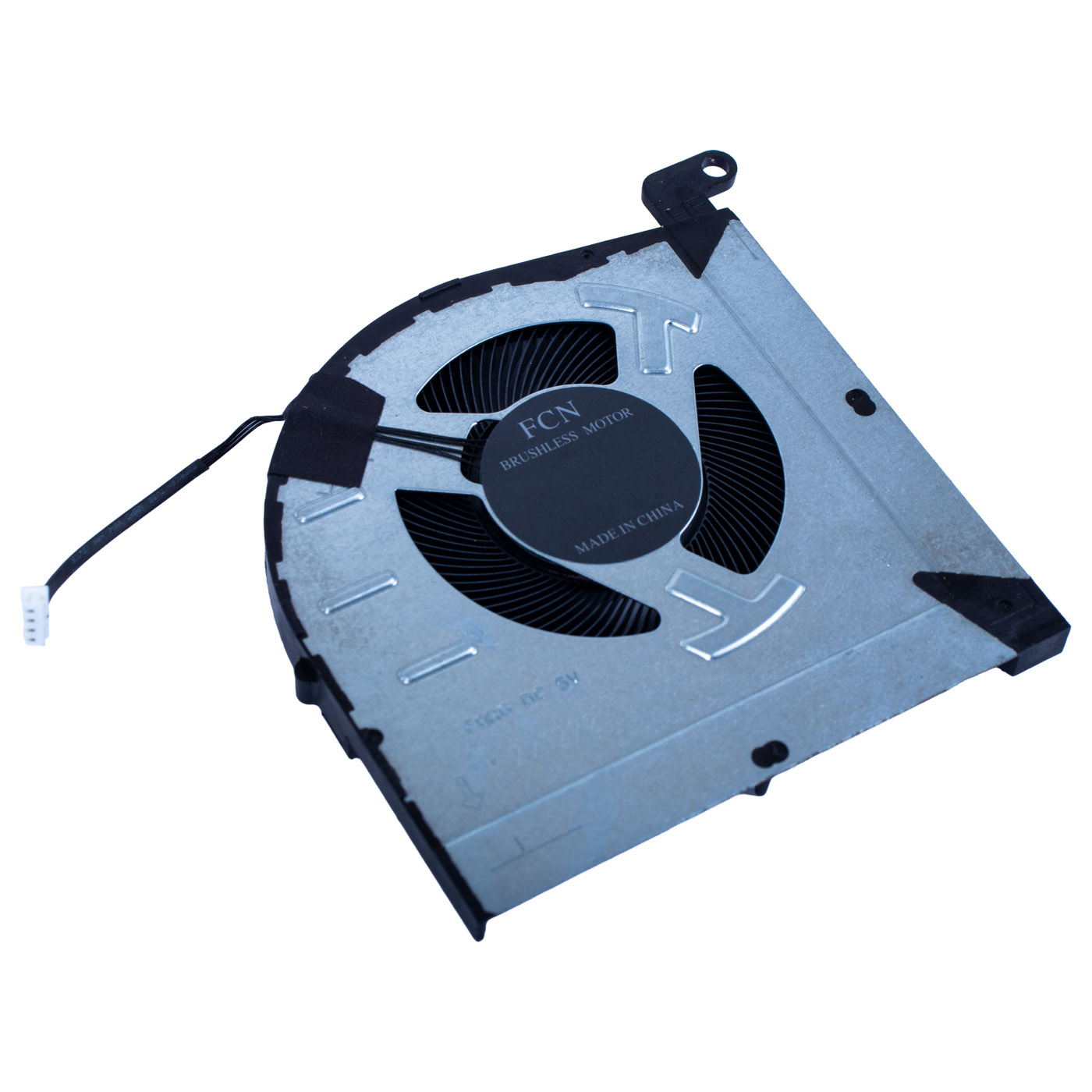

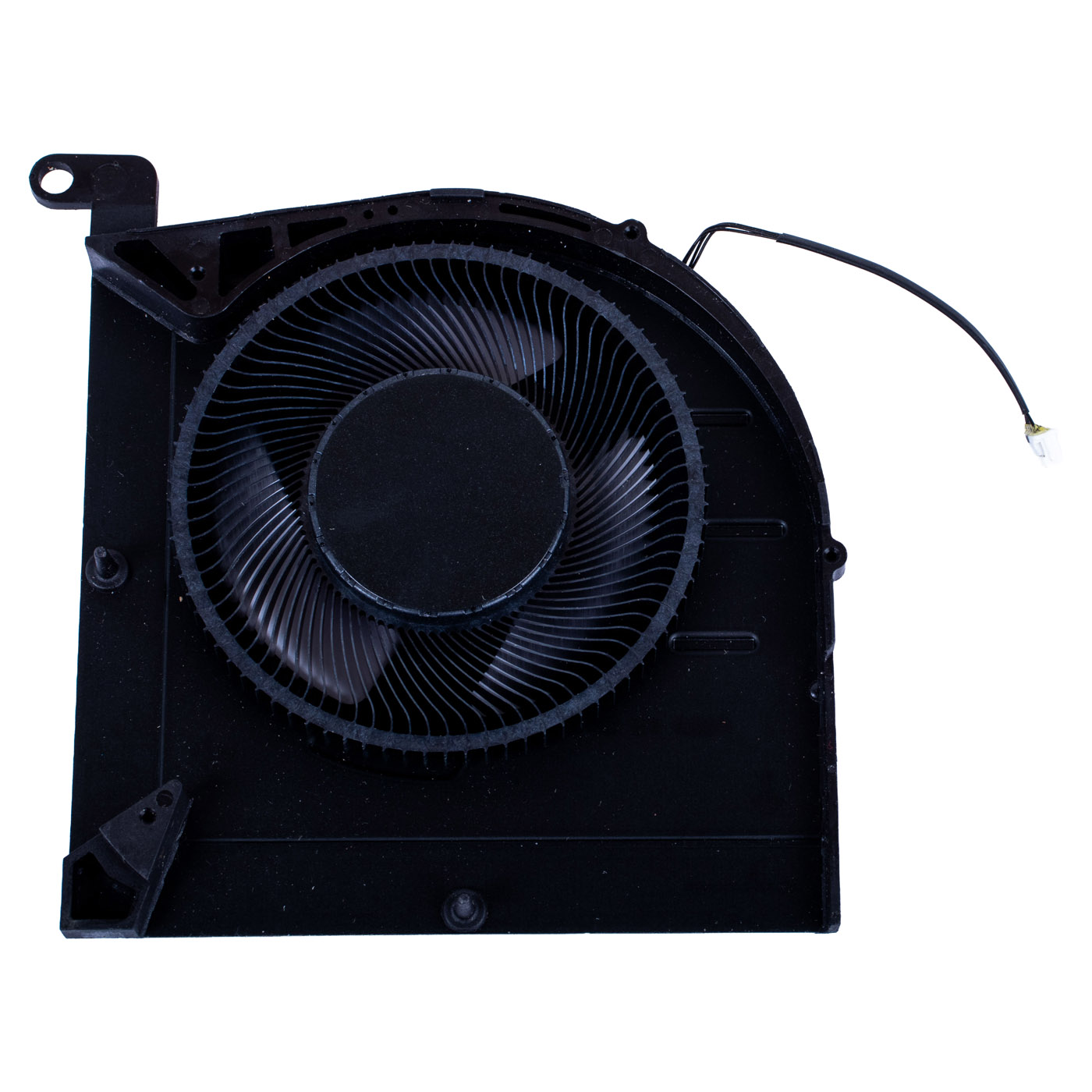

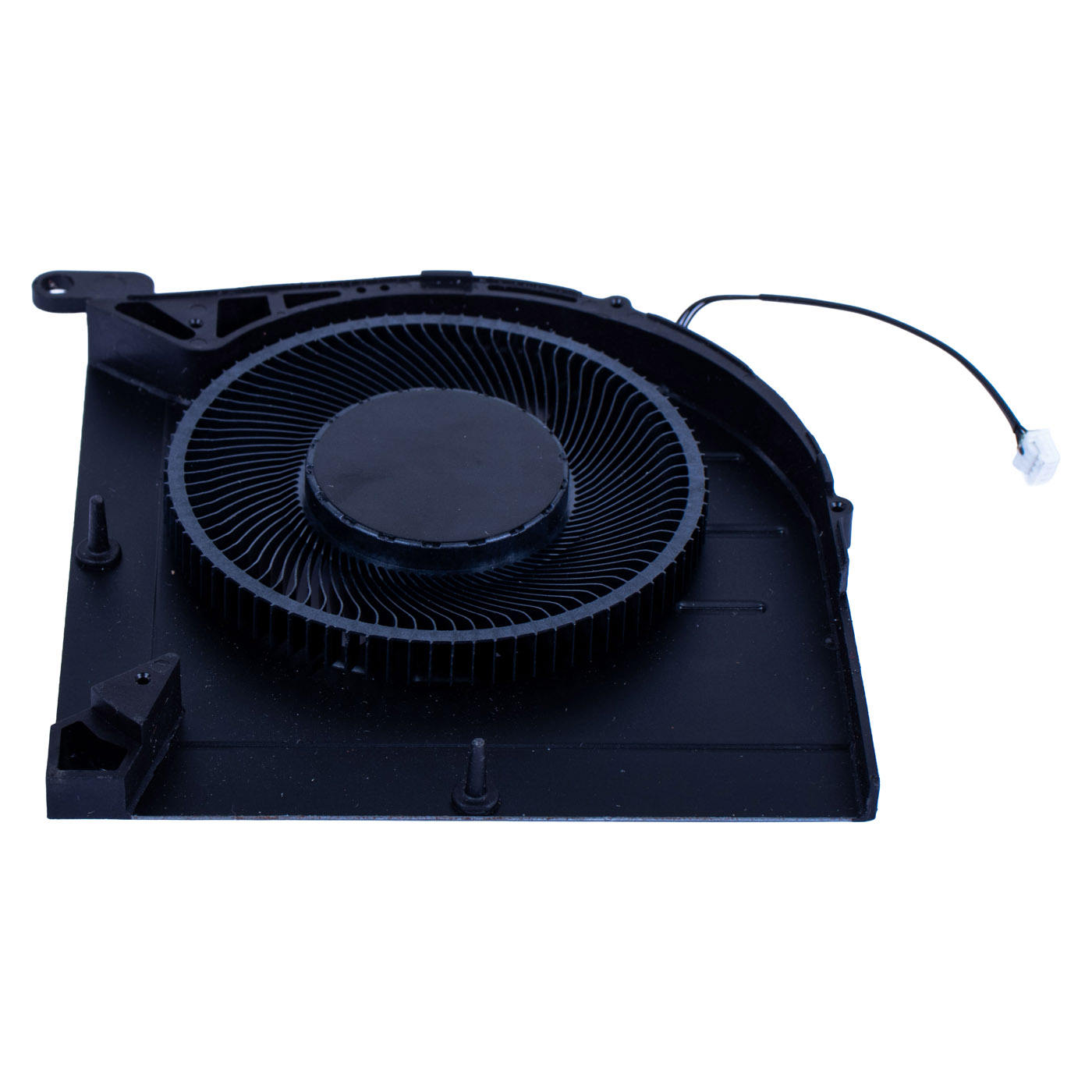

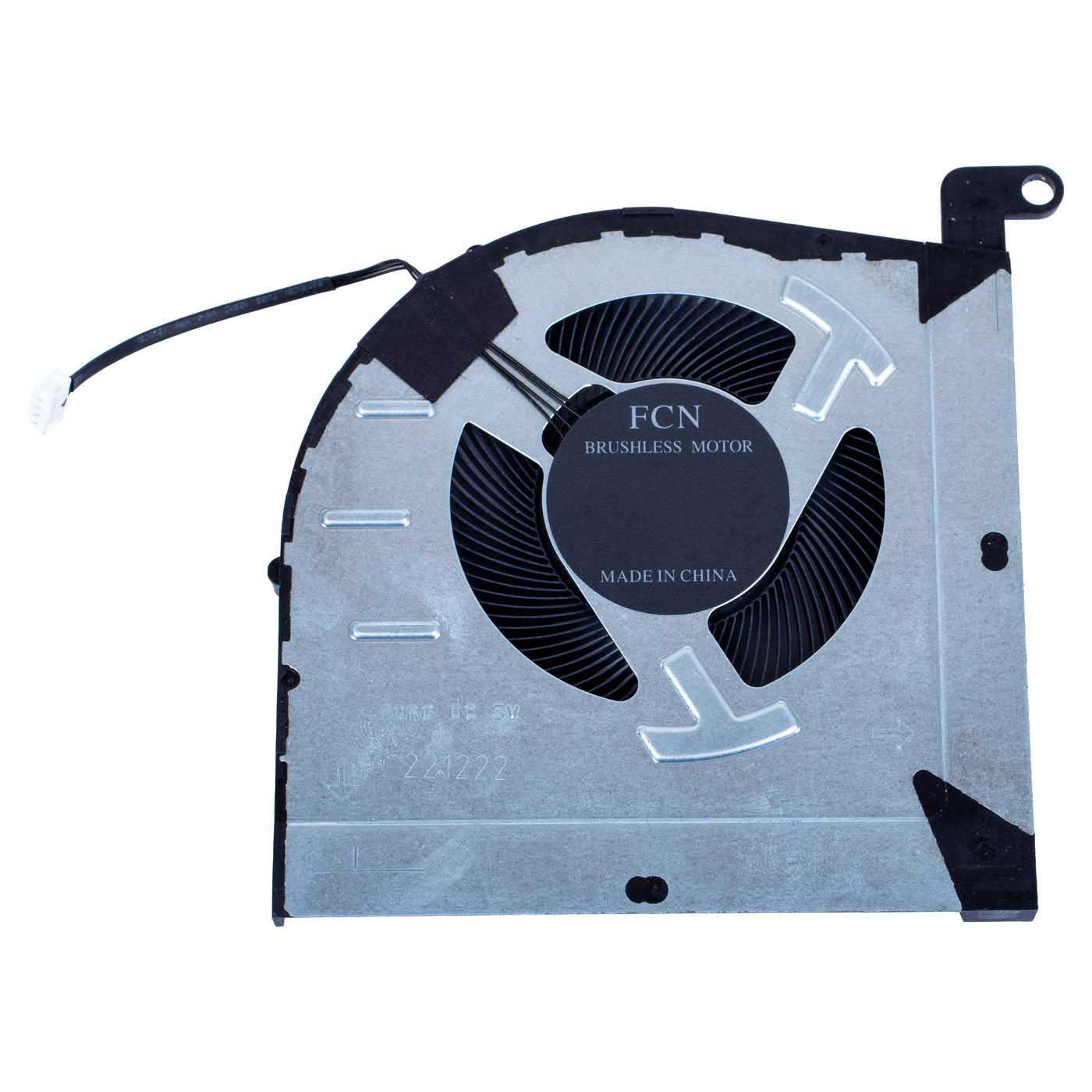

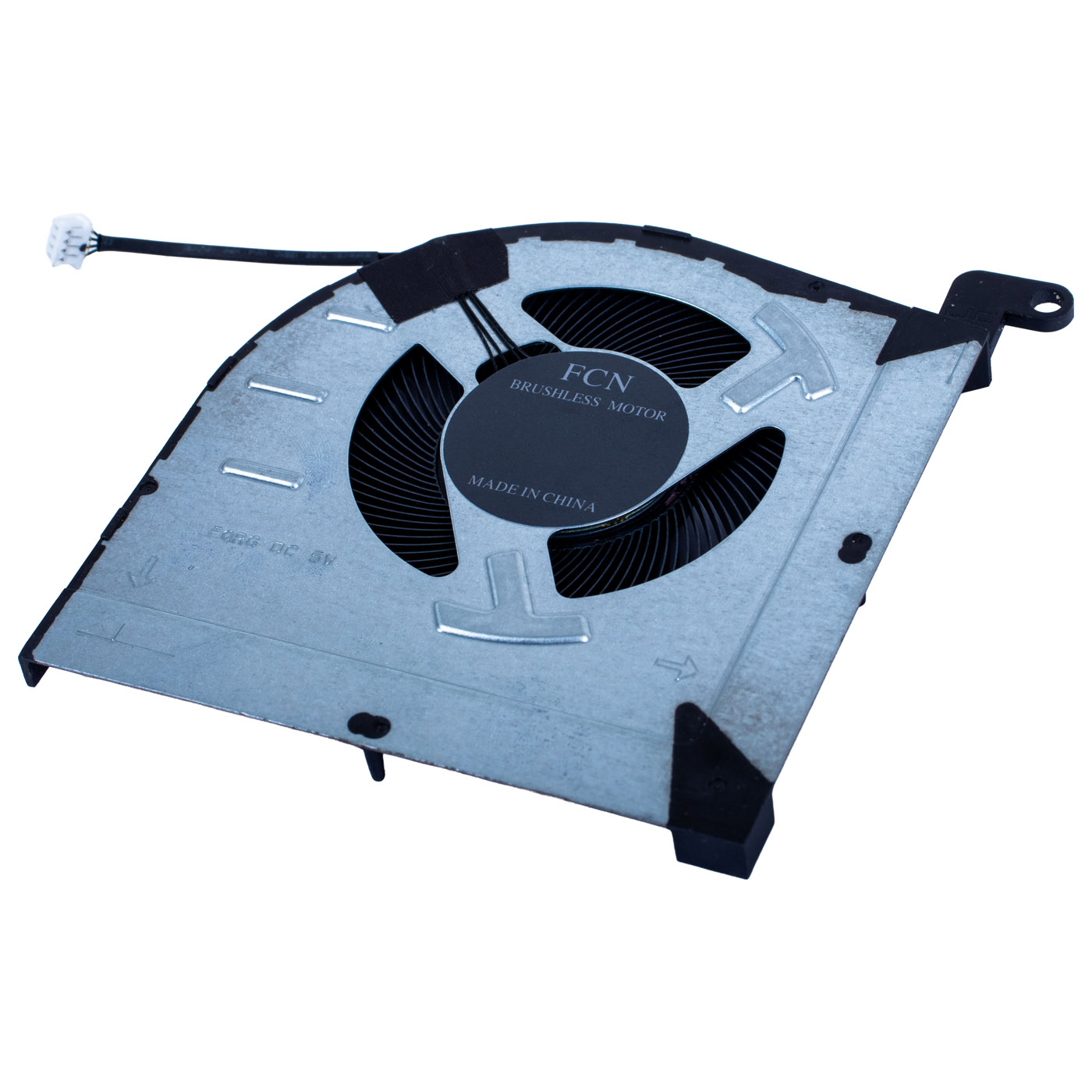

Original GPU Fan Lenovo LOQ 16 IRH8 | DFS5L22H05G86B

🔧 GPU Fan for Lenovo LOQ 16 IRH8 🔧

🖥️ Lenovo LOQ 16 IRH8 / 15 IRH8 | Graphics Card (GPU) Fan | DC 5V 0.9A | FCN

Original, brand new graphics card (GPU) cooling fan dedicated to Lenovo LOQ 16 IRH8 gaming laptops. The FCN (brushless) fan with designation DFS5L22H05G86B, powered by DC 5V 0.9A, comes from the cooling system with module number FRU 5H40S20891. It ensures effective heat dissipation from the graphics chip and quiet operation, restoring proper laptop temperatures during gaming and intensive work.

⚙️ PRODUCT CHARACTERISTICS

The presented fan is an original element of the graphics card cooling system in Lenovo LOQ 16 IRH8 laptops. The cooling system of this model (module FRU 5H40S20891) consists of two fans connected by a heatpipe - separately for the processor (CPU) and the graphics card (GPU). The offered item is the GPU fan (designation DFS5L22H05G86B), made in brushless technology (FCN brushless), operating at DC 5V voltage with a current draw of 0.9A. A working GPU fan is the foundation of stable operation under graphics load - it prevents overheating, throttling and sudden shutdowns.

📋 TECHNICAL DATA

Part name: GPU cooling fan
Brand: Lenovo (FCN fan)
Compatibility: Lenovo LOQ 16 IRH8 and 15 IRH8 - version with RTX 4050 card (5V cooling, types 82XV/82XW); versions with RTX 4060 have 12V fans (different number) and do not fit
Purpose: Graphics card (GPU) fan
Motor type: Brushless
Power supply: DC 5V, 0.9A
Fan designation: DFS5L22H05G86B (FQRG)
Cooling module FRU: 5H40S20891
Module replacements: 5H40S20892, 5H40S20893, 5H40S21139, 5H40S21140
Condition: New, original
Warranty: 12 months

🌟 KEY ADVANTAGES

🔹 Original FCN fan (GPU) - guaranteed fit and reliable graphics card cooling
🔹 Effective heat dissipation - protects the GPU from overheating and throttling
🔹 Brushless motor - quiet operation and long service life
🔹 Brand new part - no signs of use
🔹 Easy installation - simple replacement of a worn or noisy GPU fan

🔢 CATALOG NUMBERS

GPU fan designation: DFS5L22H05G86B (FQRG)
Cooling module FRU: 5H40S20891 (repl. 5H40S20892 / 5H40S20893 / 5H40S21139 / 5H40S21140)
Note: this is a GPU fan. The CPU fan from the same module has a different designation - DFS5L22H15G86B (FQRH) - and is a separate part. Before purchasing, make sure you need the GPU fan.

❓ WHEN SHOULD YOU REPLACE THE GPU FAN?

• Noisy operation - knocking, squealing or humming indicating a worn bearing
• GPU overheating - high graphics card temperatures, throttling and FPS drops
• Sudden shutdowns - the laptop shuts down under graphics load due to overheating
• Fan stoppage - the rotor does not spin or spins with resistance
• Dust and wear - accumulated dust and a worn bearing reducing cooling efficiency
A working GPU fan restores proper graphics card temperatures and protects components from damage.

🔧 INSTALLATION PROCESS

Replacing the fan in a Lenovo LOQ 16 IRH8 laptop requires basic technical skills. The process begins with turning off the laptop, disconnecting the power and removing the bottom cover of the casing. Next, you need to disconnect the fan connector from the motherboard and unscrew the screws securing the fan to the cooling system. We remove the old fan and install the new one in its place, remembering to connect the connector correctly and tighten the screws. After completing the installation, we recommend checking temperatures in a monitoring program and occasionally cleaning dust from the cooling system.

🎯 PURPOSE

The GPU fan is dedicated to Lenovo LOQ 16 IRH8 gaming laptops. It is responsible for dissipating heat from the graphics chip and is an ideal solution for users whose laptop runs loudly, overheats or shuts down under load in games. Replacing a worn GPU fan restores full cooling performance, which is particularly important in gaming laptops operating under high thermal load.

✅ COMPATIBILITY GUARANTEE

The offered GPU fan comes from the original Lenovo cooling system with FRU number 5H40S20891 and is intended for LOQ 16 IRH8 laptops. Every item is verified before shipping. Because the cooling system of this model uses separate CPU (DFS5L22H15G86B) and GPU (DFS5L22H05G86B) fans, make sure you need the GPU fan. In case of doubt, our technical department will help you choose the right piece.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about choosing a fan for Lenovo LOQ 16 IRH8? Our specialists are happy to help - we will help determine whether you need a GPU or CPU fan, and advise on installation. Contact us:📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

ABCDEAL is a company with many years of experience in the laptop spare parts industry. We specialize in components for Lenovo devices, including the LOQ and Legion gaming series. We focus on professionalism, proven quality and an individual approach to every customer.

🎯 Choose professionals - invest in high quality!

By choosing to buy an original GPU fan for Lenovo LOQ 16 IRH8 in our store, you choose certainty and reliable cooling. A working cooling system is a guarantee of stable operation and a long life for your gaming laptop!
