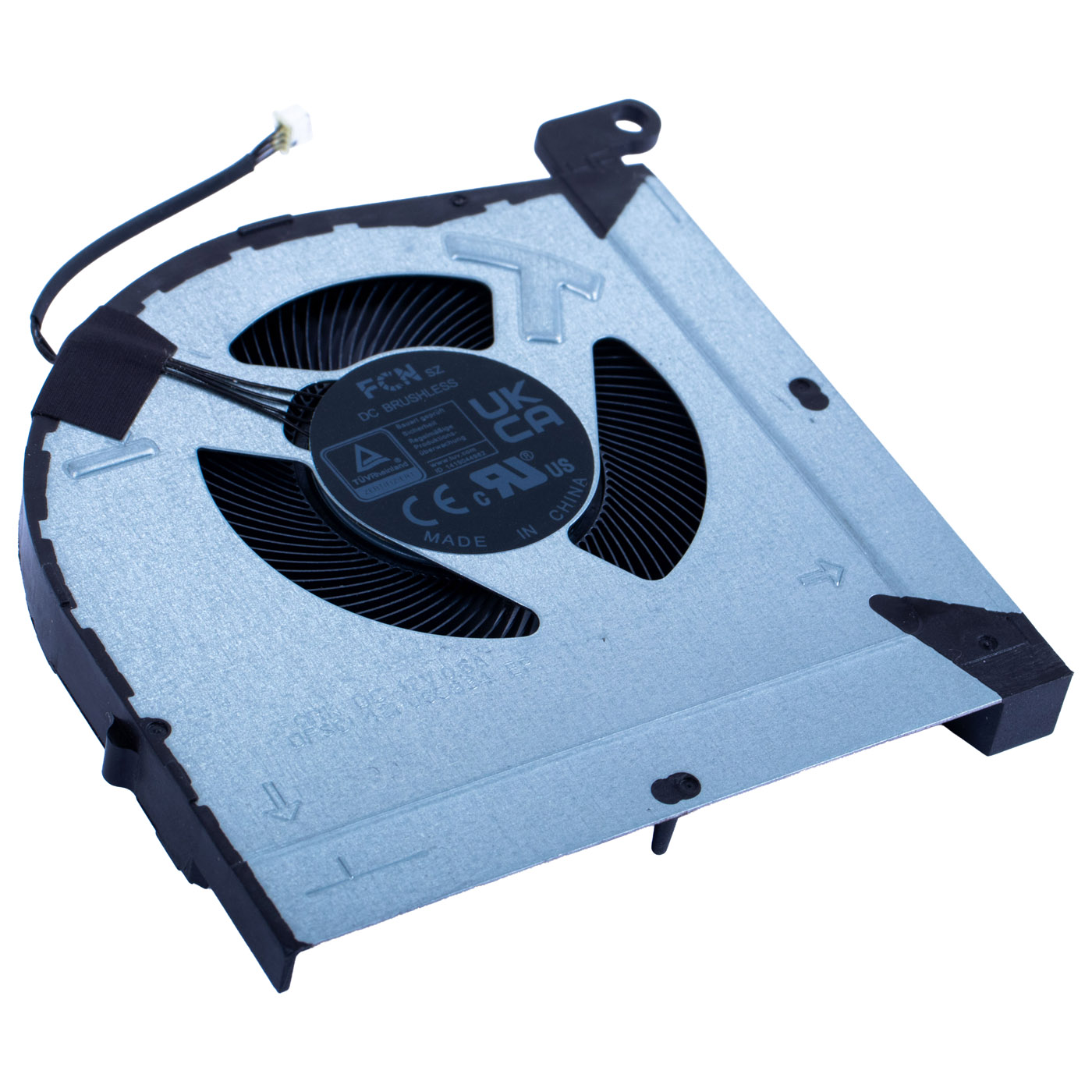

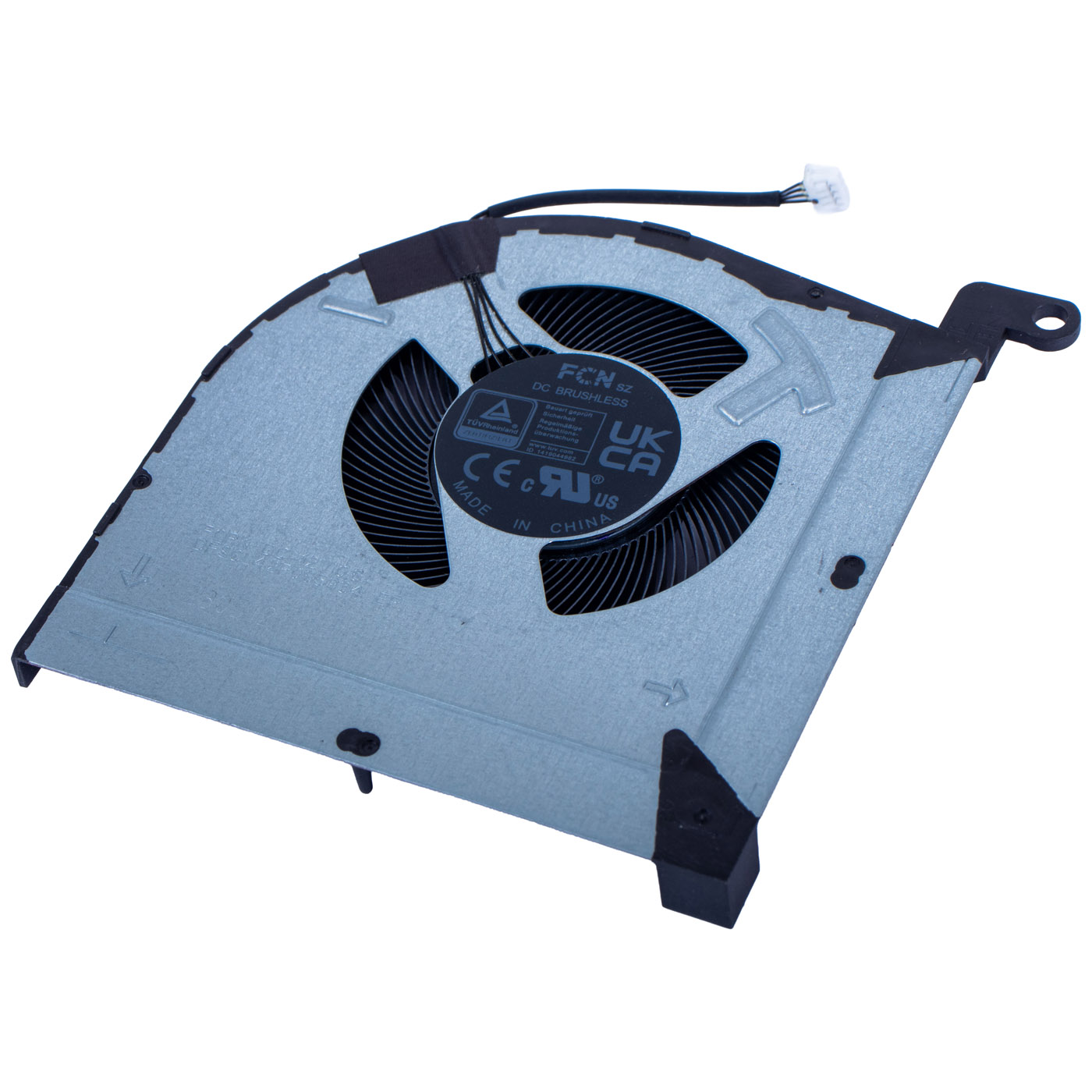

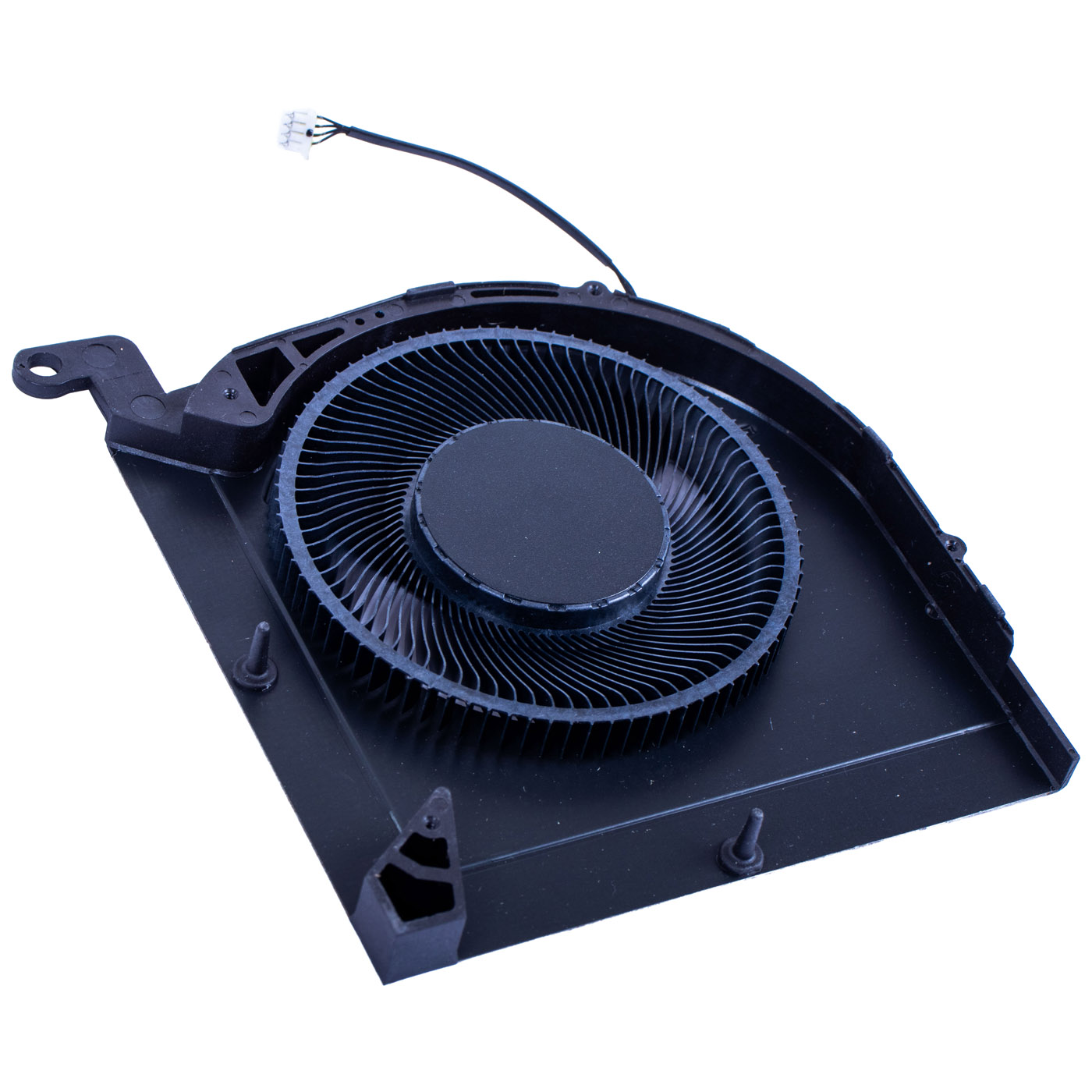

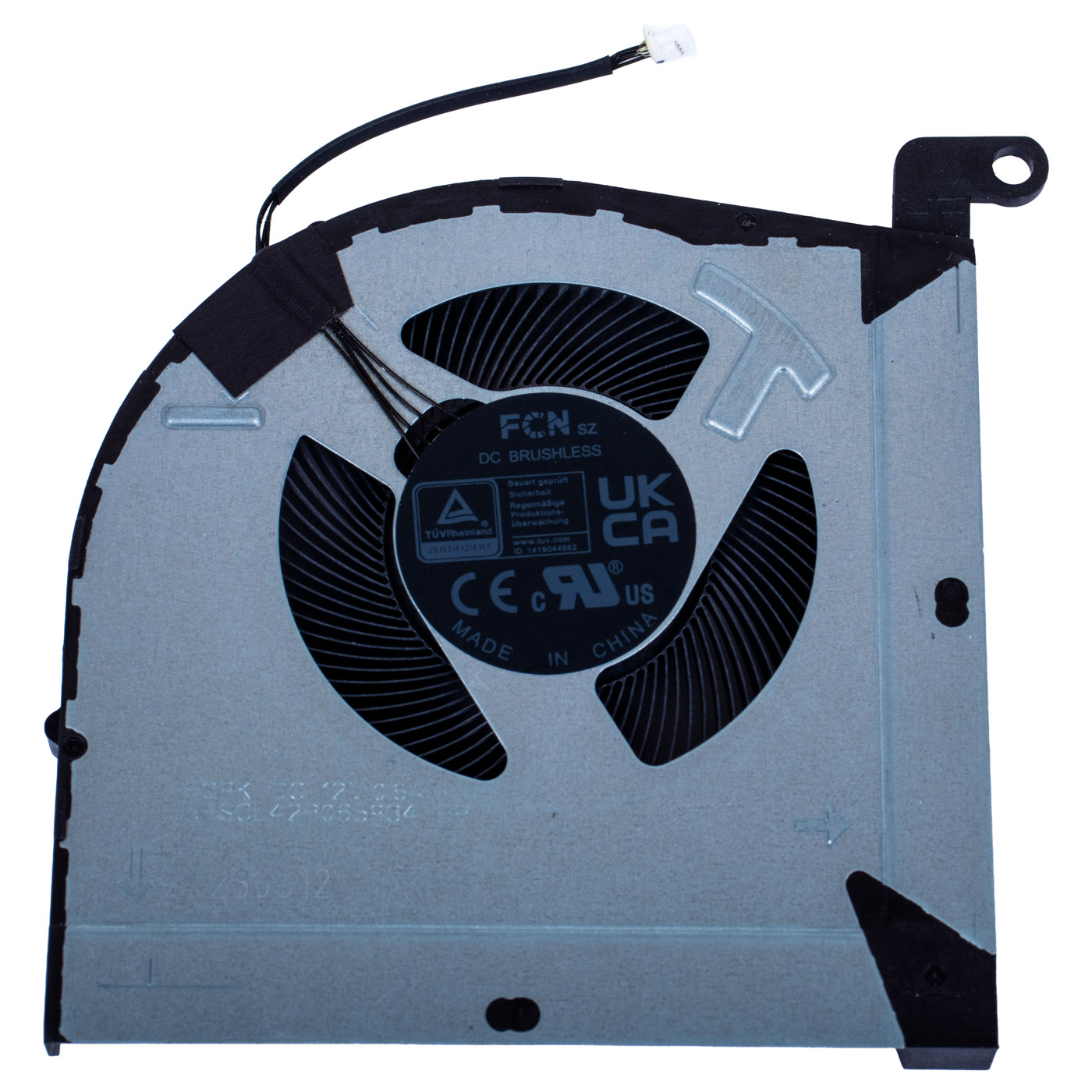

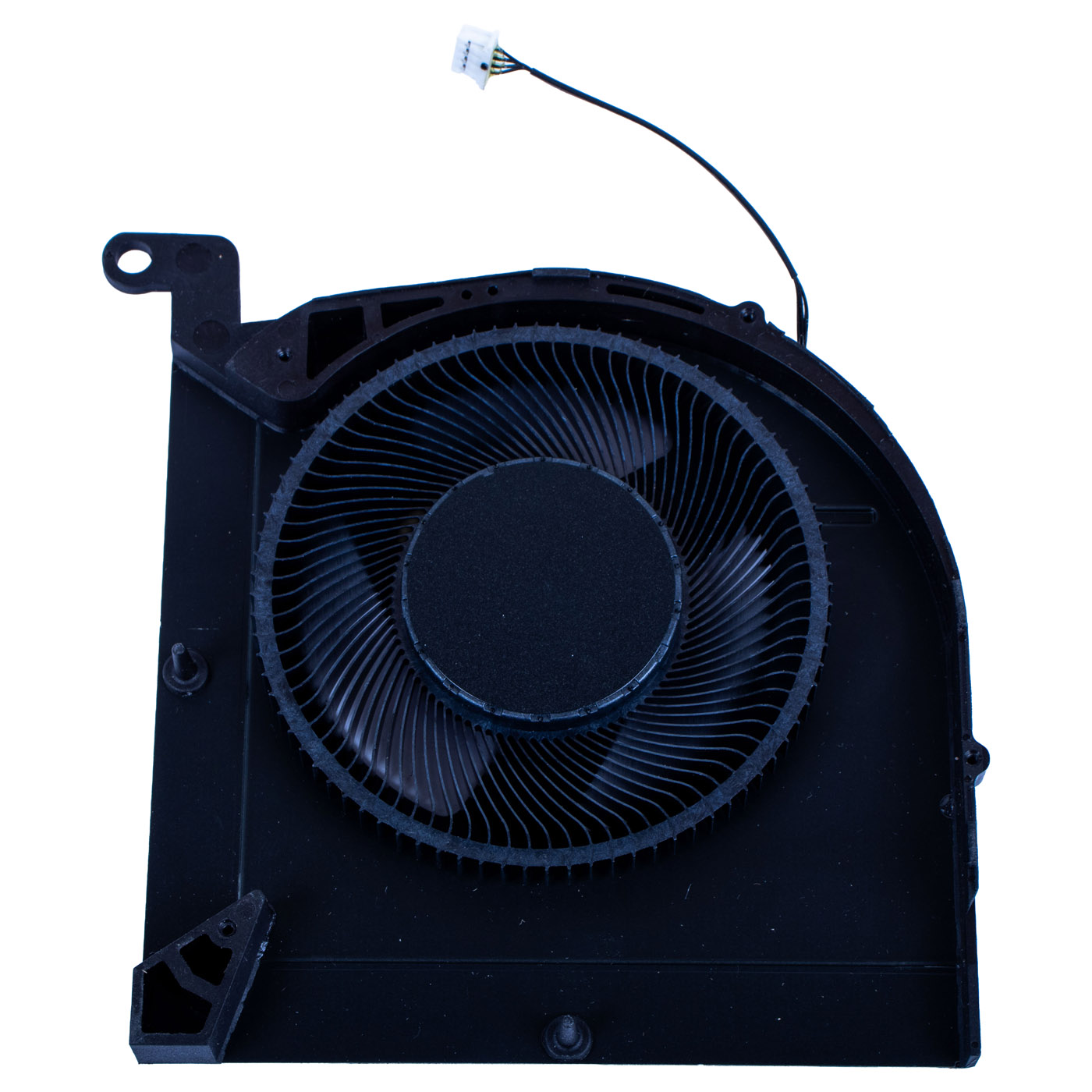

Original GPU Fan Lenovo LOQ 16 IRH8

🔧 GPU Fan for Lenovo LOQ 16 IRH8 (RTX 4060, 12V) 🔧

🖥️ Lenovo LOQ 16 IRH8 / 15 IRH8 | Graphics card (GPU) fan | DC 12V 0.6A | FCN | RTX 4060 version

Original, brand-new GPU (graphics card) cooling fan for Lenovo LOQ 16 IRH8 and 15 IRH8 gaming laptops in the RTX 4060 configuration (12V cooling). The FCN brushless fan, marked DFSCL42P065934 and powered at DC 12V 0.6A, comes from the cooling assembly with module FRU 5H40S20894. It ensures effective heat dissipation from the graphics chip and quiet operation during gaming and demanding work.

⚙️ PRODUCT OVERVIEW

The presented fan is an original component of the graphics-card cooling system in Lenovo LOQ 16 IRH8 / 15 IRH8 laptops (RTX 4060 configuration). This version's cooling assembly (module FRU 5H40S20894, subst. 5H40S20895 / 5H40S20896) consists of two fans connected by a heatpipe — separately for the processor (CPU) and the graphics card (GPU). The offered unit is the GPU fan (DFSCL42P065934), brushless (FCN), running at DC 12V, 0.6A. A working GPU fan prevents overheating, throttling and FPS drops under load.

📋 TECHNICAL SPECIFICATIONS

Part name: GPU cooling fan
Brand: Lenovo (FCN fan)
Compatibility: Lenovo LOQ 16 IRH8 and 15 IRH8 — RTX 4060 version (types 82XV / 82XW)
Purpose: Graphics card (GPU) fan
Motor type: Brushless
Power: DC 12V, 0.6A
Fan marking: DFSCL42P065934 (FQRK)
Cooling module FRU: 5H40S20894
Module substitutes: 5H40S20895, 5H40S20896
Condition: New, original
Warranty: 12 months

🌟 KEY ADVANTAGES

🔹 Original FCN fan (GPU) – guarantees a fit and reliable graphics-card cooling
🔹 Effective heat dissipation – protects the GPU against overheating and throttling
🔹 Brushless motor – quiet operation and long service life
🔹 Brand-new item – no signs of use
🔹 Easy installation – simple replacement of a worn or noisy GPU fan

🔢 PART NUMBERS

GPU fan marking: DFSCL42P065934 (FQRK)
Cooling module FRU: 5H40S20894 (subst. 5H40S20895 / 5H40S20896)
Important — voltage variant: this is the 12V fan for the RTX 4060 version. RTX 4050 versions use 5V fans (DFS5L22H05G86B etc.) — a different part that does not fit. The CPU fan from this module is DFSCL42P165934 (separate part).

❓ WHEN SHOULD YOU REPLACE THE GPU FAN?

• Loud operation – knocking, squealing or buzzing indicating a worn bearing
• GPU overheating – high graphics-card temperatures, throttling and FPS drops
• Sudden shutdowns – the laptop turns off under graphics load due to overheating
• Fan not spinning – the impeller does not spin or spins with resistance
• Dust and wear – accumulated dust and a worn bearing reducing cooling efficiency
A working GPU fan restores correct graphics-card temperatures and protects the components from damage.

🔧 INSTALLATION PROCESS

Replacing the fan in a Lenovo LOQ 16 IRH8 requires basic technical skills. Start by turning off the laptop, disconnecting the power and removing the bottom cover. Then disconnect the fan plug from the motherboard and unscrew the screws securing the fan to the cooling assembly. Remove the old fan and install the new one, remembering to connect the plug correctly and tighten the screws. After installation, we recommend checking the temperatures in a monitoring program and occasionally cleaning the cooling assembly of dust.

🎯 INTENDED USE

The GPU fan is dedicated to Lenovo LOQ 16 IRH8 / 15 IRH8 gaming laptops in the RTX 4060 configuration. It dissipates heat from the graphics chip and is ideal for users whose laptop runs loud, overheats or shuts down under load. Replacing a worn GPU fan restores full cooling performance.

✅ COMPATIBILITY GUARANTEE

The offered GPU fan comes from an original Lenovo cooling assembly (module FRU 5H40S20894) and is intended for LOQ 16 IRH8 / 15 IRH8 laptops in the RTX 4060 (12V) version. Compatibility with types 82XV and 82XW is confirmed in the Lenovo database. Before purchase, make sure your laptop has 12V cooling (RTX 4060), not 5V (RTX 4050).
