🔧 Motherboard with CPU for Lenovo ThinkPad T490s / X390 🔧

🖥️ ThinkPad T490s / X390 | System Board (BDPLANAR) | Intel Core i5-8265U | FRU 01HX904

Tested, fully working motherboard with a soldered Intel Core i5-8265U processor dedicated to Lenovo ThinkPad T490s and X390 laptops. Part sourced from a working device and tested - we guarantee full functionality as described below. FRU number 01HX904 guarantees full compatibility with both models.

⚙️ PRODUCT CHARACTERISTICS

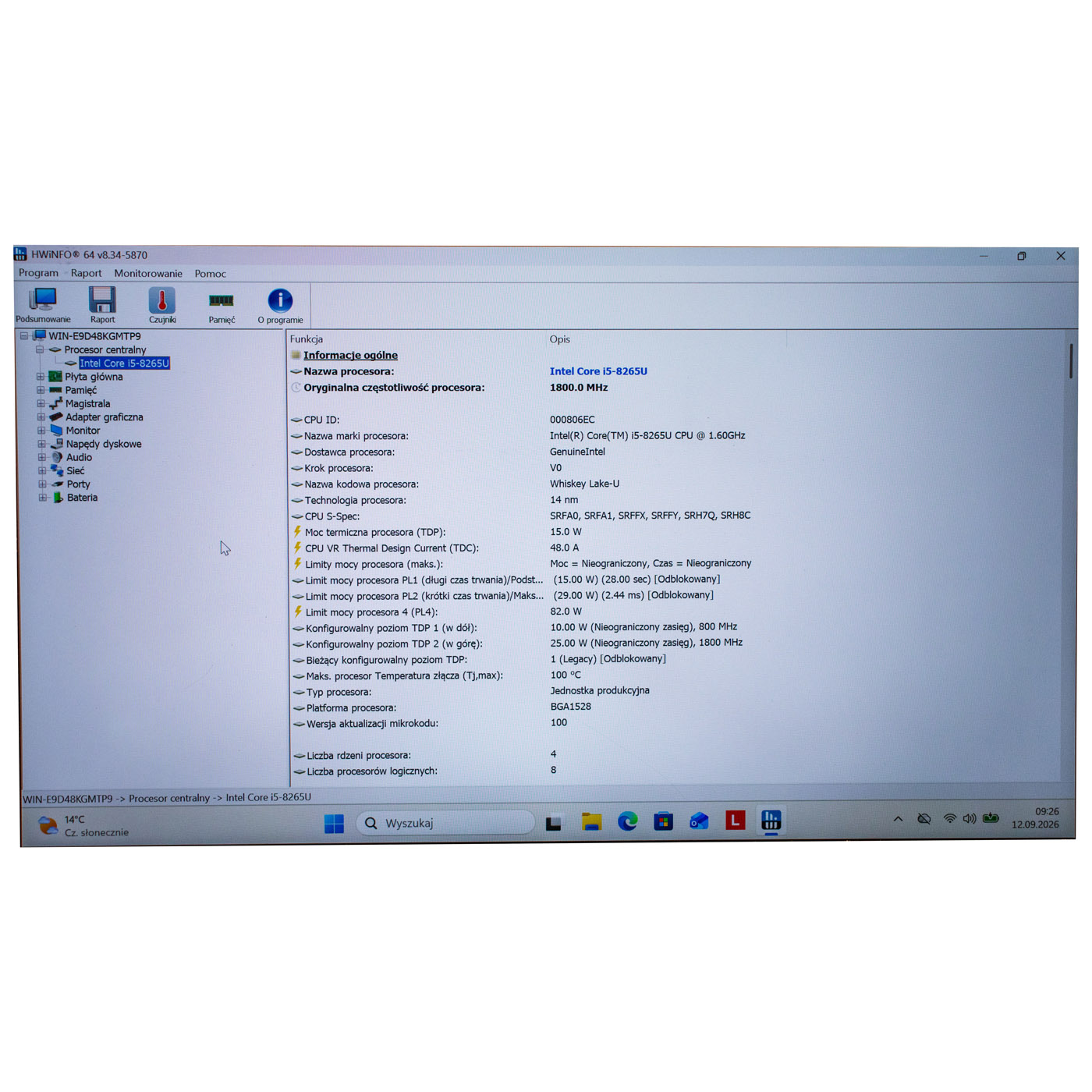

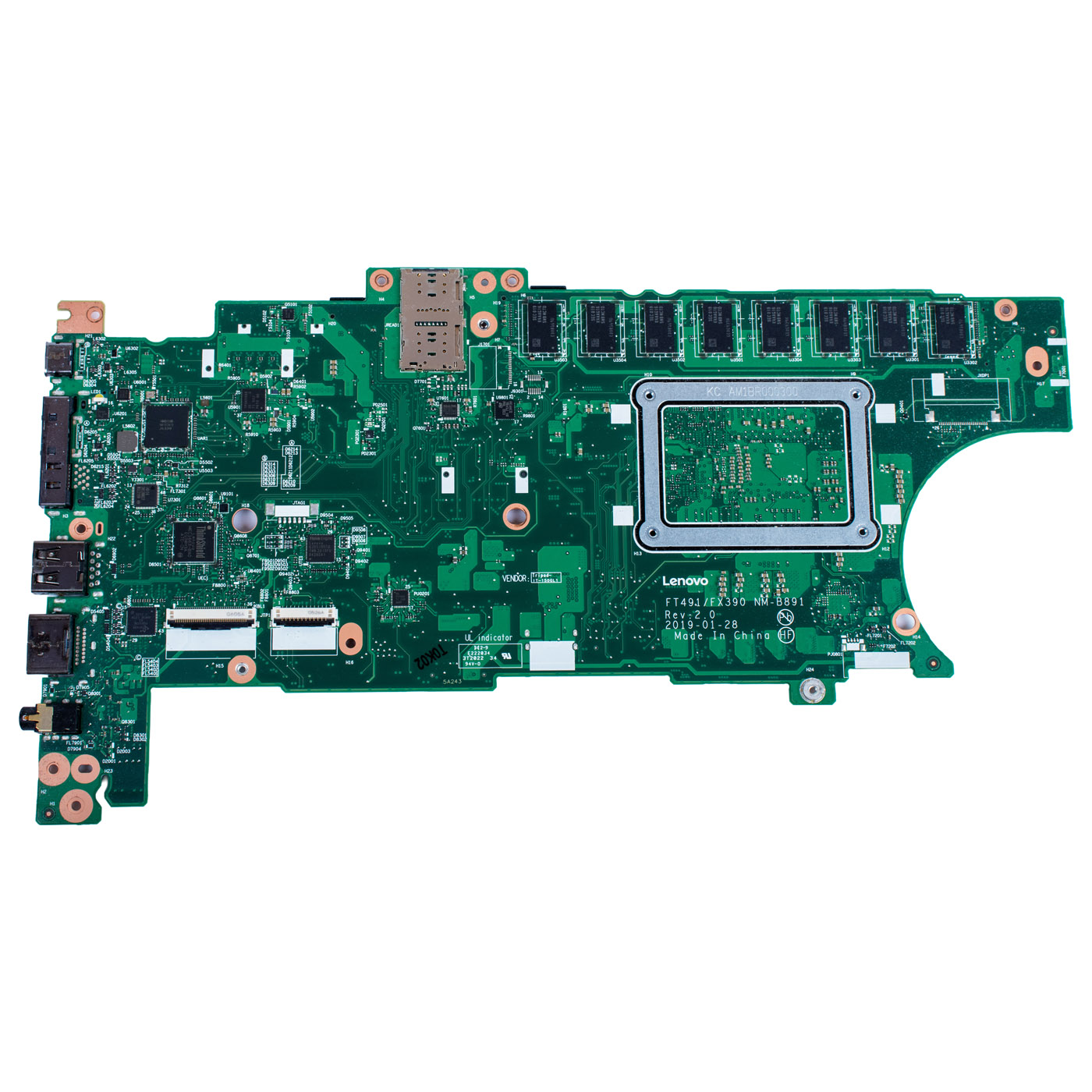

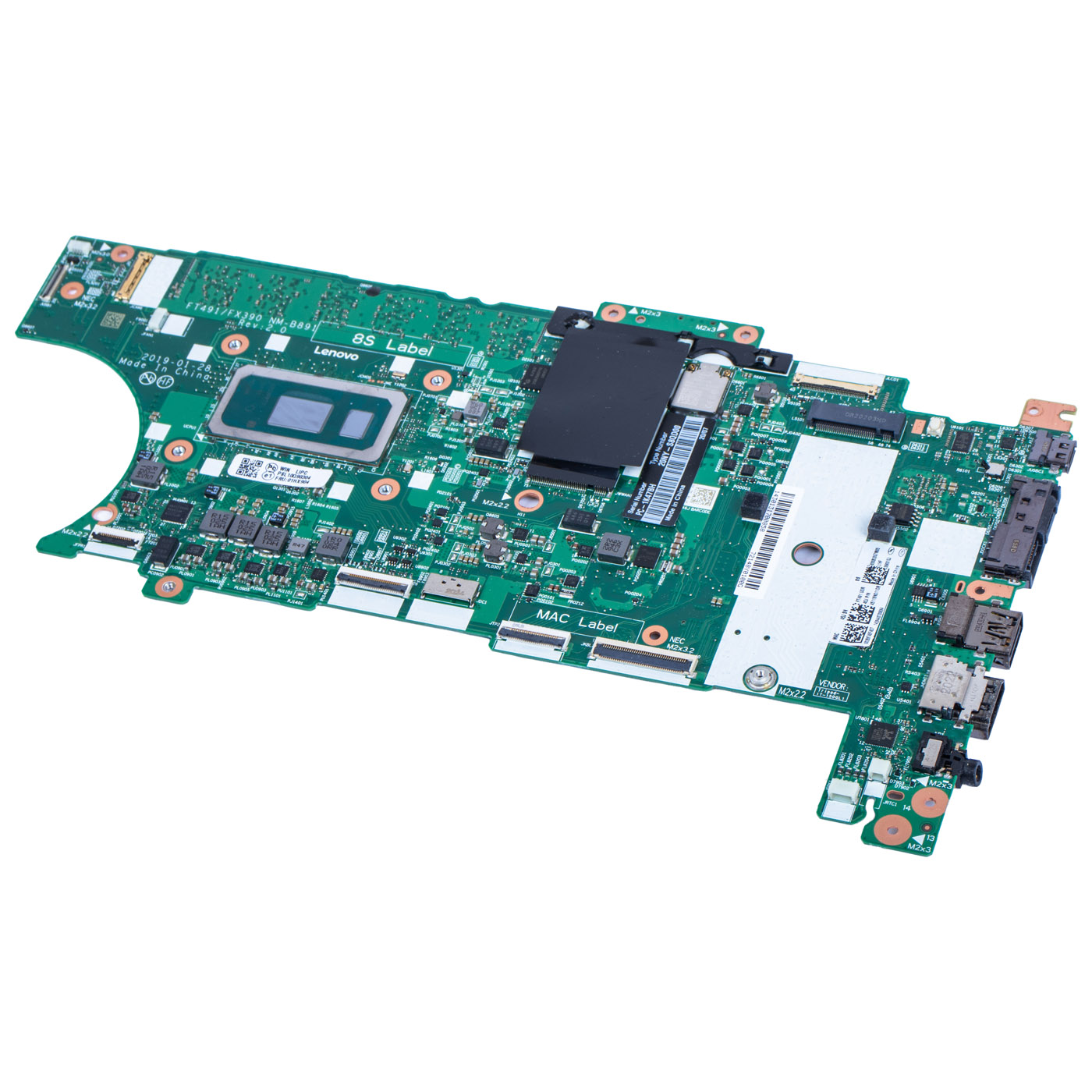

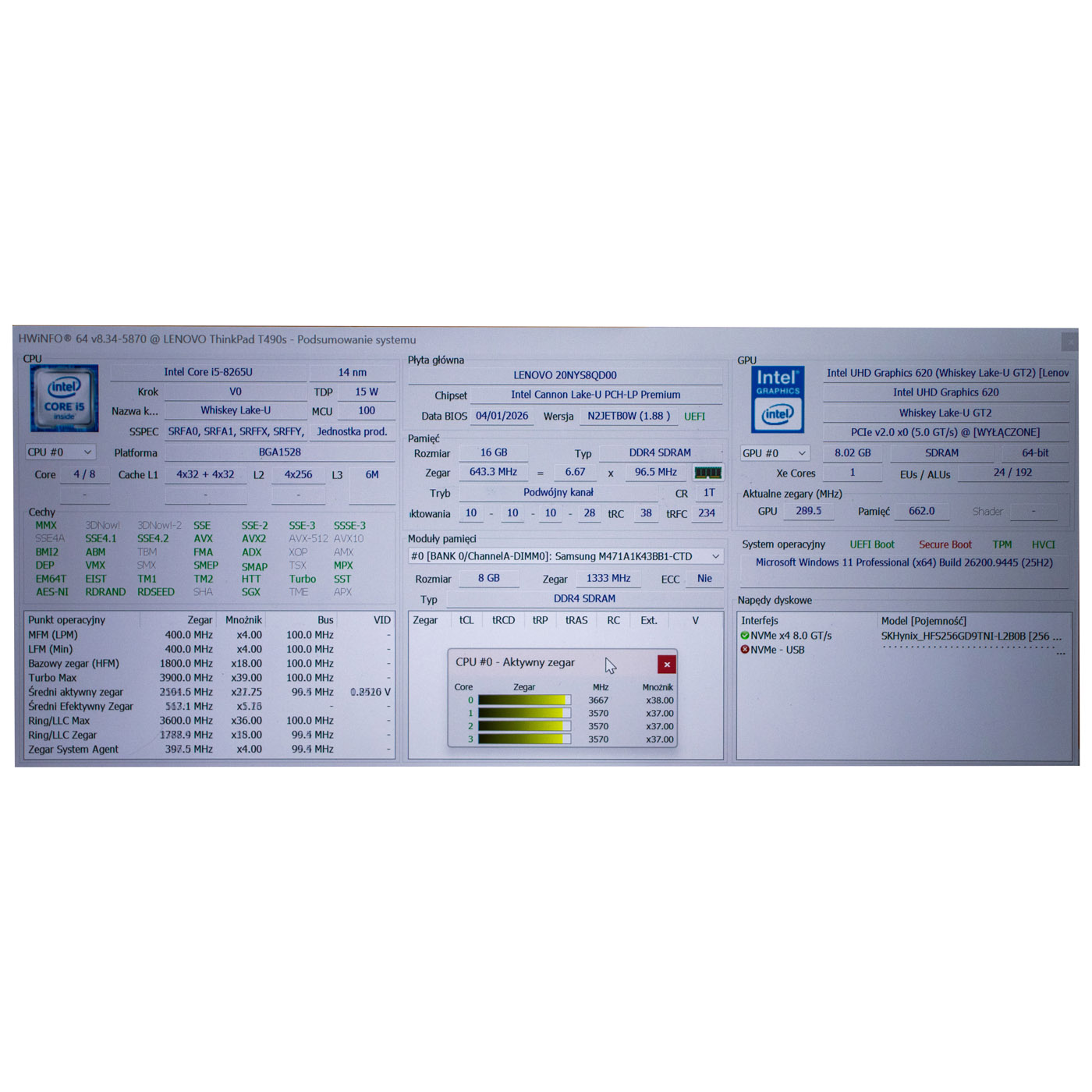

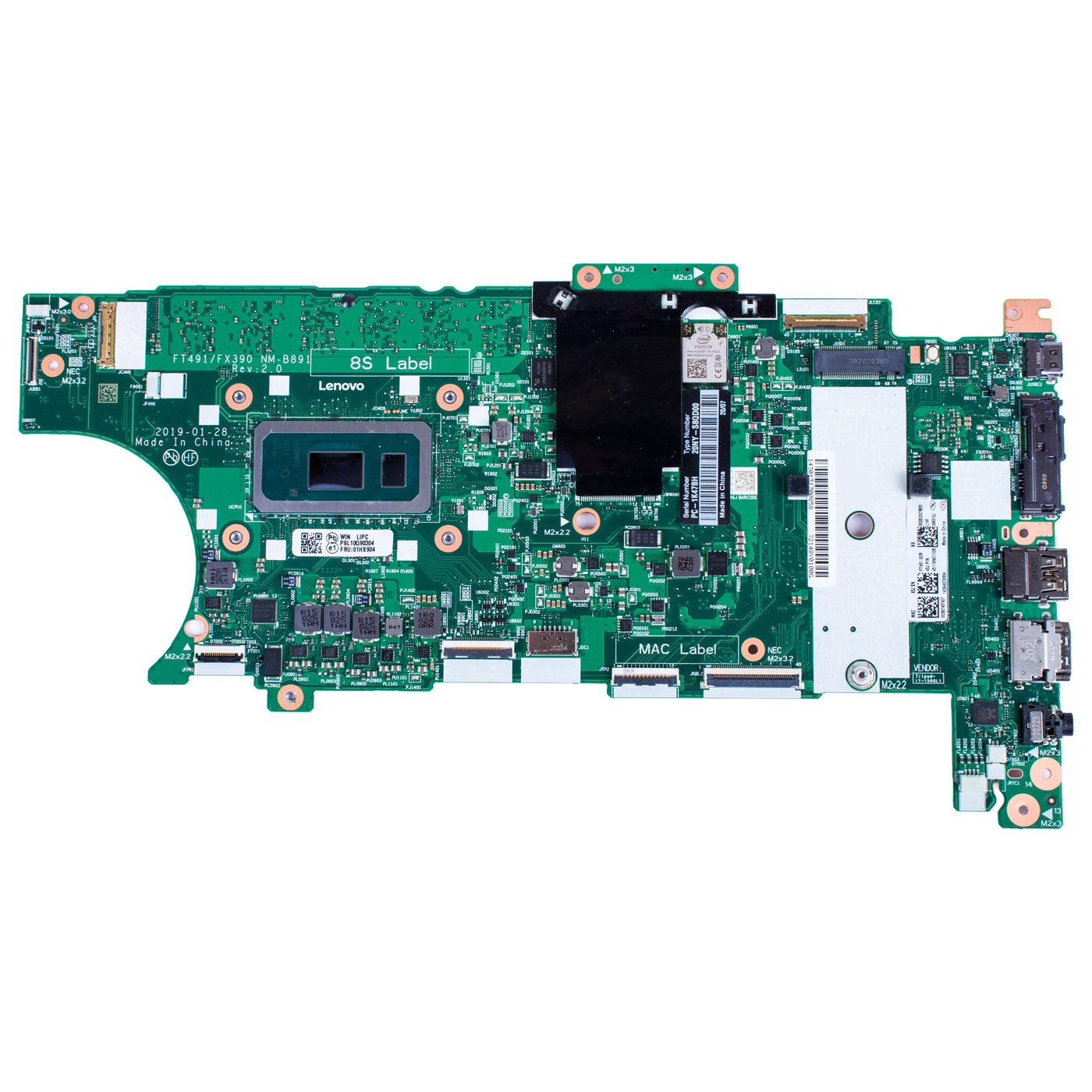

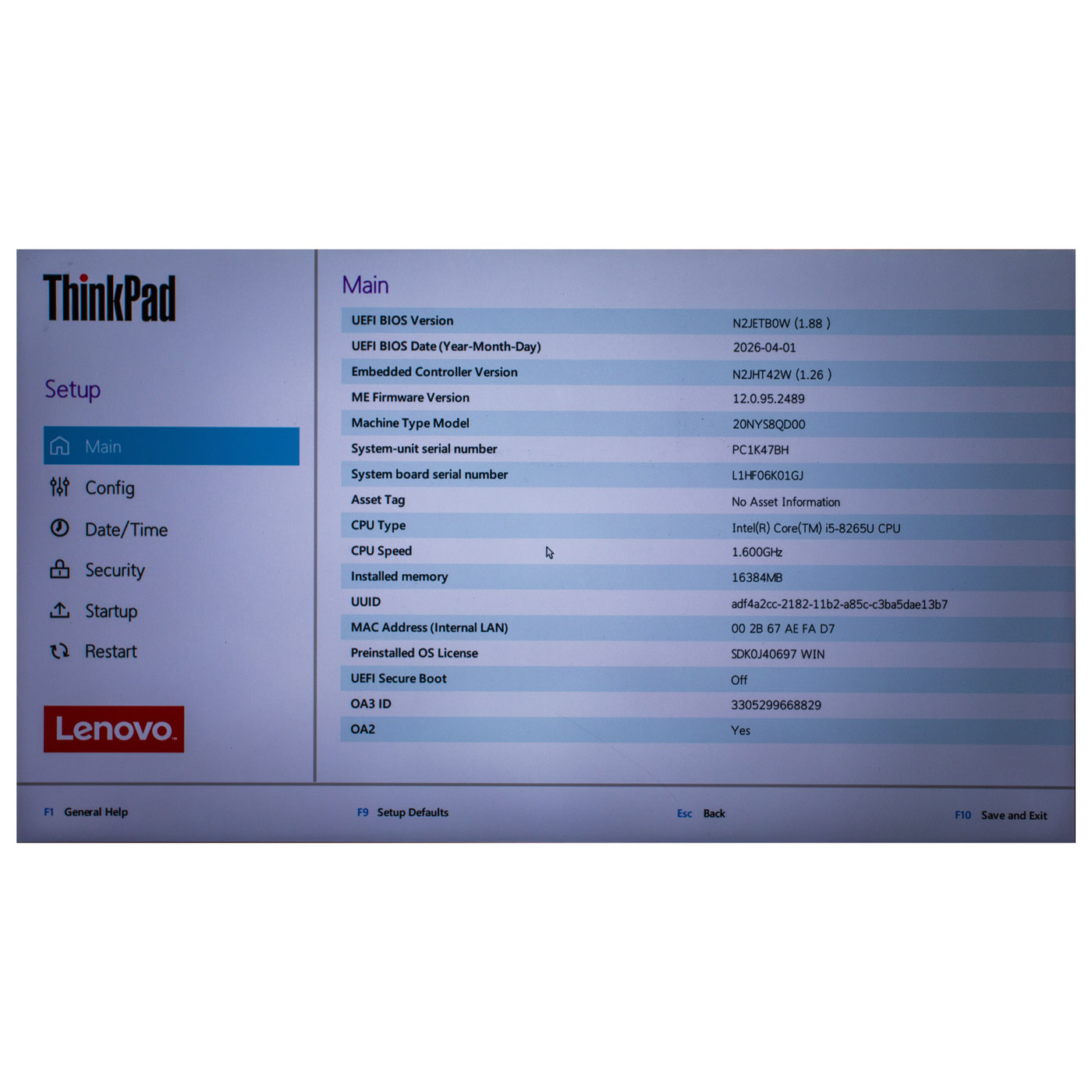

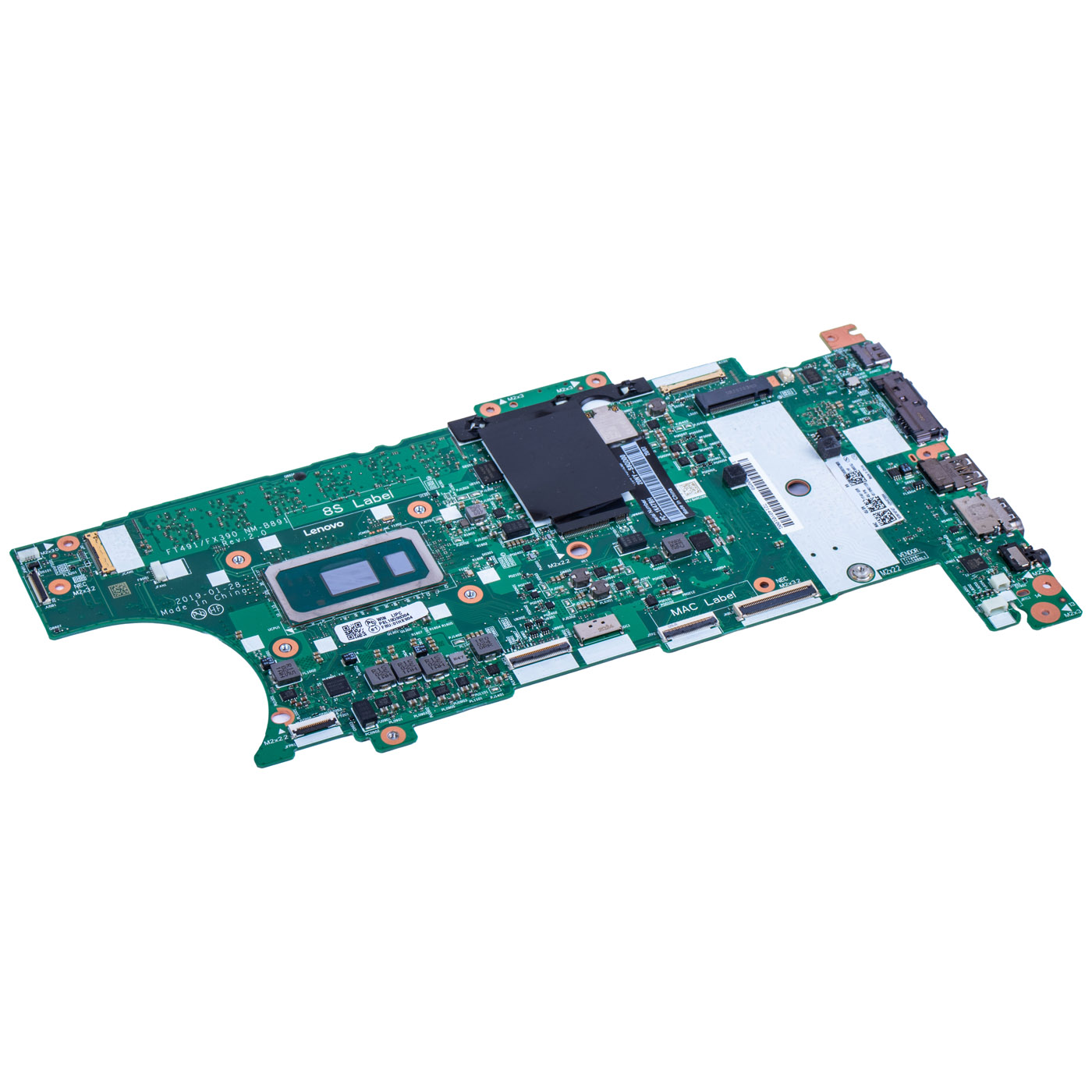

BDPLANAR-type system board (FT491/FX390 NM-B891 Rev:2.0) with a factory-soldered Intel Core i5-8265U processor (Whiskey Lake-U, 14 nm, BGA1528, 4 cores / 8 threads, 6 MB cache, base clock 1.60 GHz, up to 3.90 GHz Turbo, 15W TDP) and integrated Intel UHD Graphics 620 (300 MHz base, up to 1.10 GHz dynamic). The board is equipped with 16GB DDR4 memory (2x8GB, dual channel mode). Technical condition and correct operation confirmed by an HWiNFO report and UEFI BIOS screen - the processor runs stably, and all CPU clocks and features are correctly recognized.

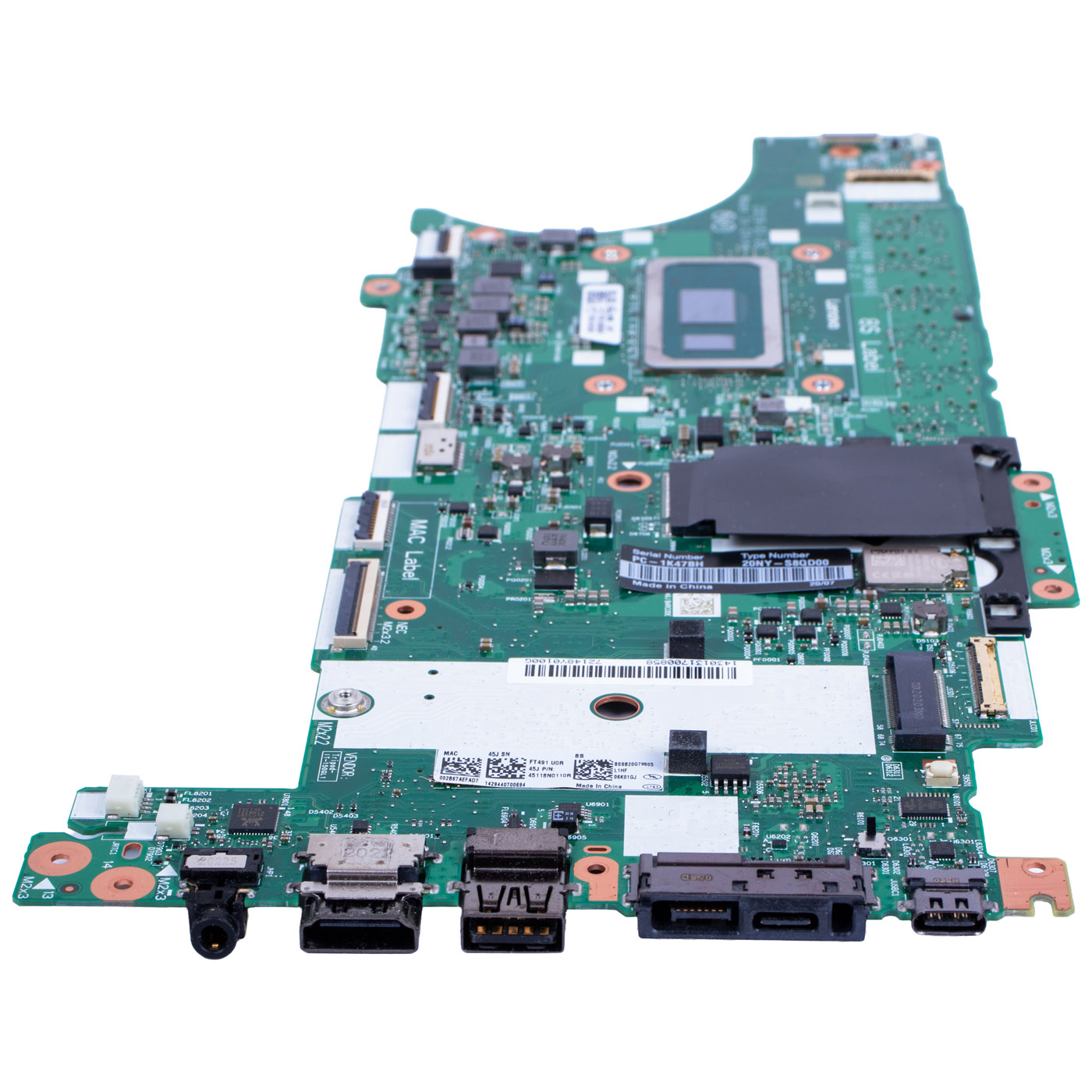

Important condition note: one of the two USB-C ports (not the charging one) does not work - the USB-C charging port is fully functional. On buyer's request we can include a new USB-C port connector, which can be soldered in by the buyer themselves or by a repair service.

📋 TECHNICAL DATA

Part name: System board with CPU (BDPLANAR)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad T490s (20NX, 20NY), ThinkPad X390 (20Q0, 20Q1)
Processor: Intel Core i5-8265U (soldered, BGA1528)
Cores / threads: 4 / 8
Clock speed: 1.60 GHz base, up to 3.90 GHz Turbo
Cache: 6 MB Intel Smart Cache
TDP: 15 W
Lithography: 14 nm
Graphics: Intel UHD Graphics 620 (300 MHz - 1.10 GHz)
RAM: 16GB DDR4, 2x8GB, dual channel
Condition: Used (pulled, tested)
FRU: 01HX904
Substitute numbers: 5B21U36875, 5B21C98757

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed perfect fit and reliability
🔹 Soldered Intel Core i5-8265U processor - a stable CPU-to-board connection, without the socket-contact issues typical of older designs
🔹 4 cores / 8 threads, up to 3.90 GHz - enough power for office work, browsing and multitasking without lag
🔹 16GB RAM in dual channel mode - smooth performance with many browser tabs and apps open at once
🔹 Condition verified with diagnostics - functionality confirmed by HWiNFO and BIOS, not just visually
🔹 Full compatibility - matched to T490s and X390 under FRU 01HX904

🔢 CATALOG NUMBERS

FRU: 01HX904
Substitute numbers: 5B21U36875, 5B21C98757
Laptop model: Lenovo ThinkPad T490s / X390

❓ WHEN SHOULD YOU REPLACE THE MOTHERBOARD?

• Laptop does not power on, power LED lights up but nothing happens
• No image on the internal screen or an external monitor despite power being connected
• Laptop randomly shuts down, restarts or freezes during use
• Board does not detect the battery or won't charge despite a working charger
• Visible liquid damage, burnt components or drop damage

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the display, touchpad, keyboard, speaker and WiFi antenna cables
5. Remove the heatsink/fan assembly and transfer it to the new board
6. Remove the old motherboard and install the new one in its place
7. Reconnect all cables in reverse order, install the battery and bottom cover
8. Power on the laptop and verify operation in BIOS and the operating system
Replacement recommended by a technical service or someone experienced in laptop repairs - the operation requires full laptop disassembly.

🎯 APPLICATION

An ideal board for restoring a ThinkPad T490s or X390 to working order after a logic board failure, while saving significantly compared to buying a new laptop. A good solution for repair shops and DIY laptop repair enthusiasts.

✅ COMPATIBILITY GUARANTEE

The offered motherboard has been thoroughly checked and matched to the Lenovo ThinkPad T490s and X390 models. We guarantee full compatibility under FRU number 01HX904 and functionality as described above (except for the noted USB-C port fault). In case of any compatibility issues, we offer a hassle-free return within 14 days.
