🔧 Motherboard with CPU for Lenovo ThinkPad T480s 🔧

🖥️ ThinkPad T480s | System Board (BDPLANAR) | Intel Core i7-8550U | FRU 01LV606

Fully working, tested motherboard with a soldered Intel Core i7-8550U processor dedicated to Lenovo ThinkPad T480s laptops. Part sourced from a working device and tested - we guarantee full functionality. FRU number 01LV606 guarantees full compatibility with the T480s model.

⚙️ PRODUCT CHARACTERISTICS

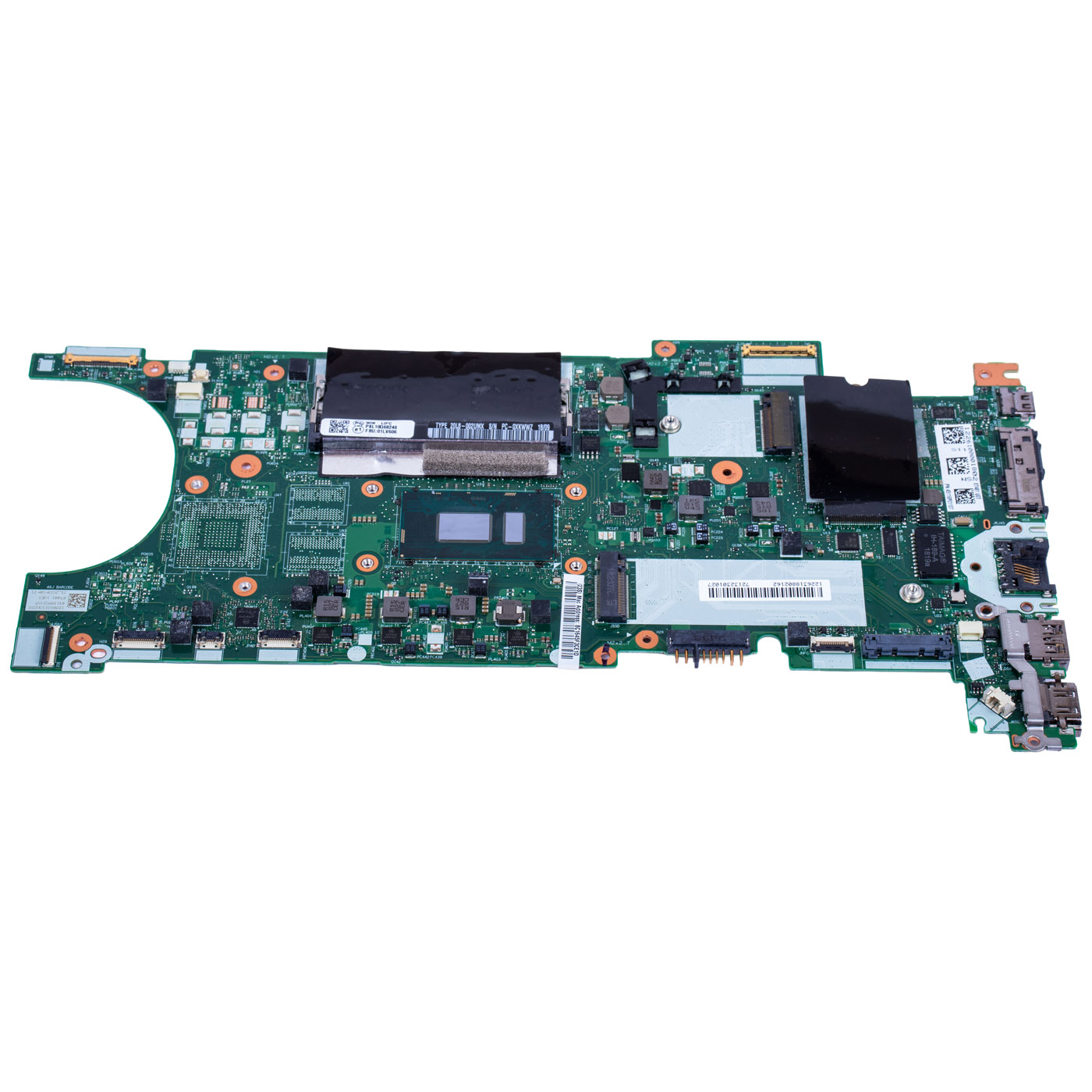

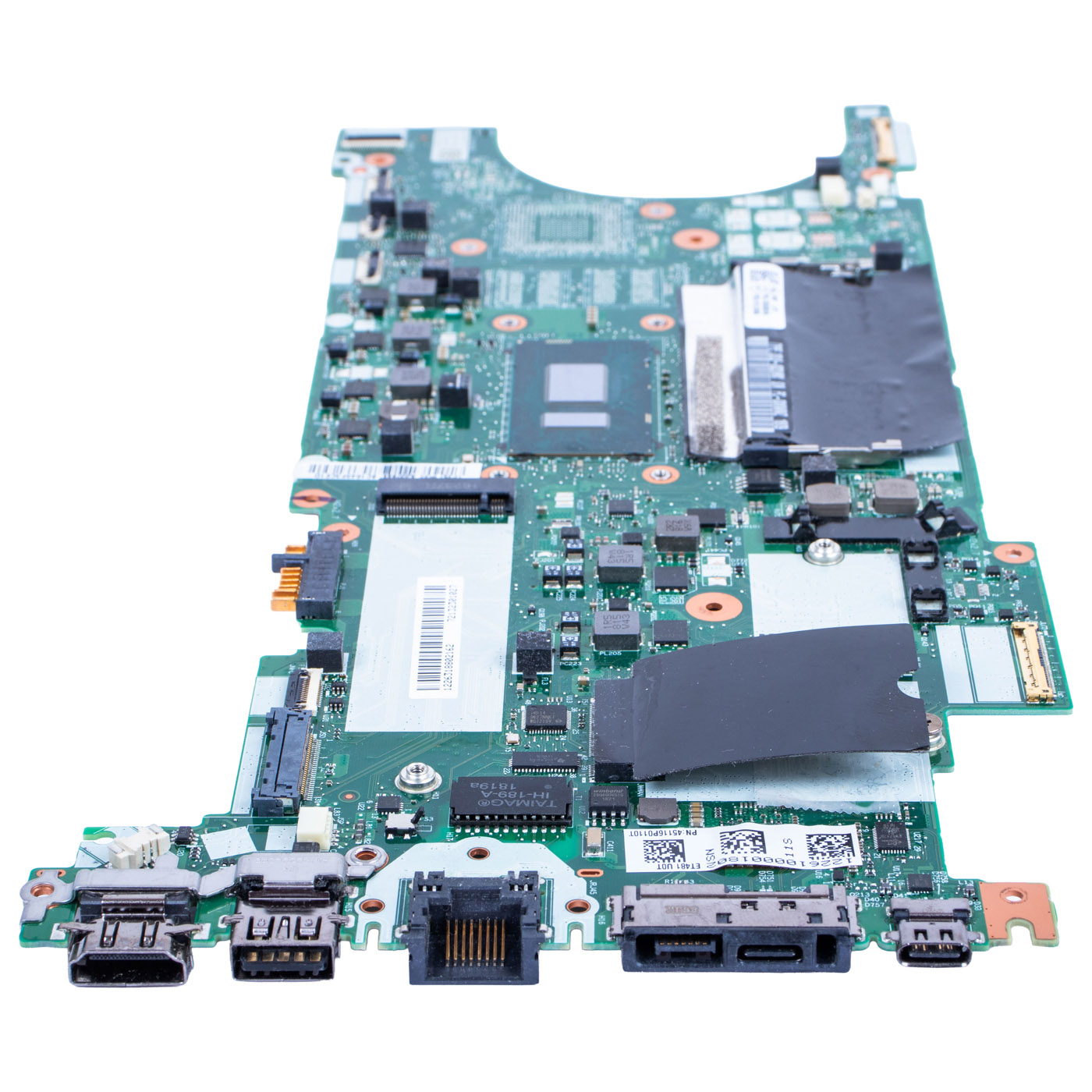

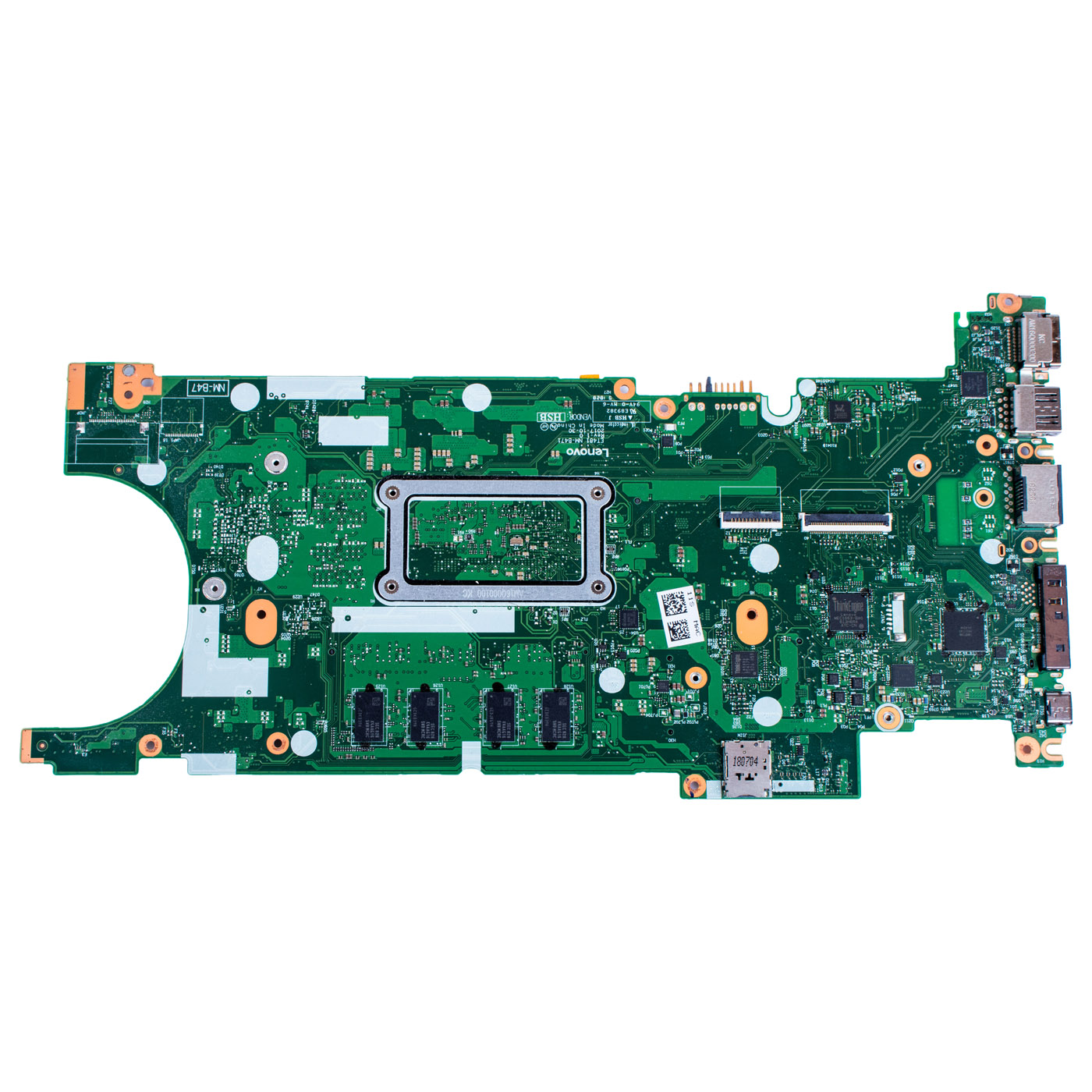

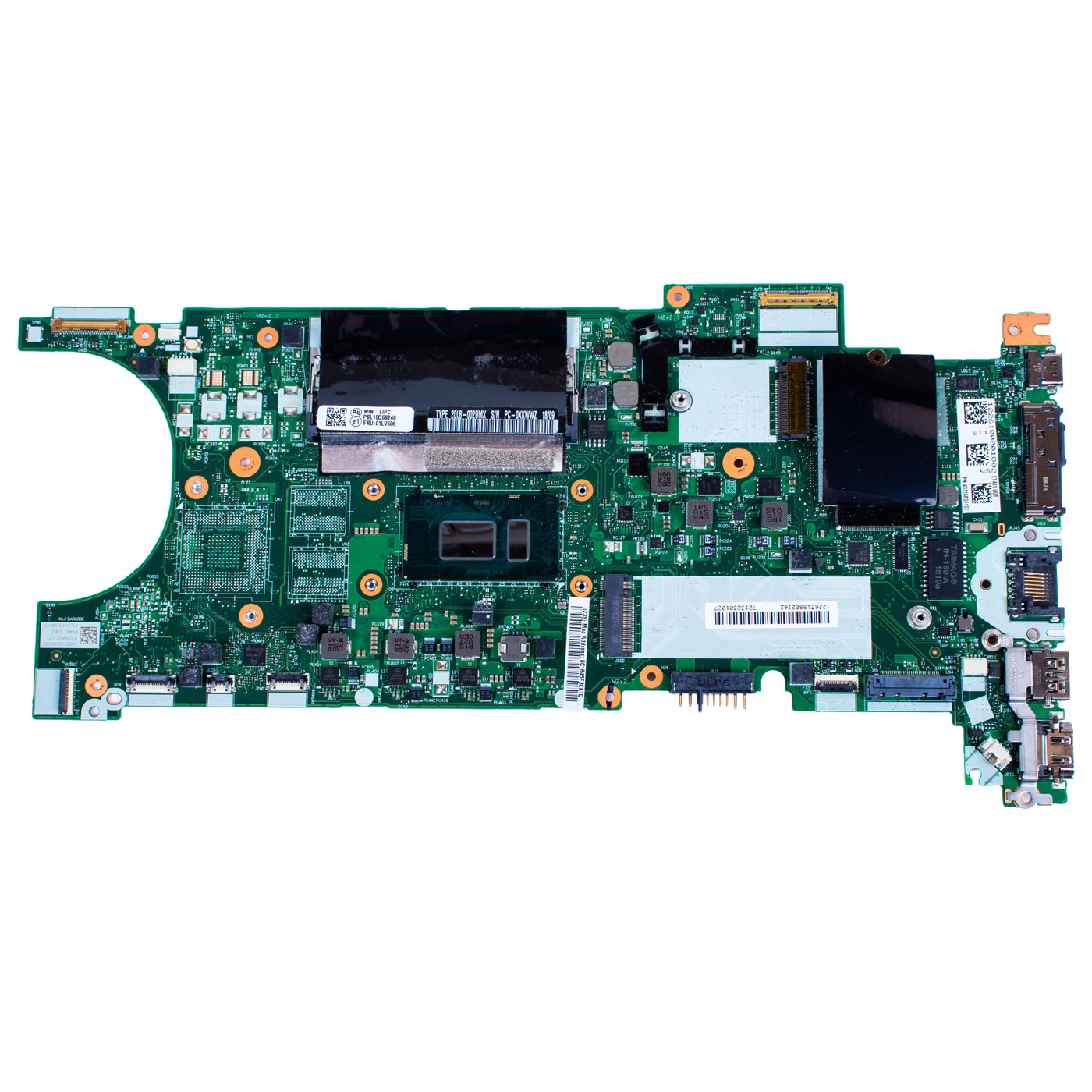

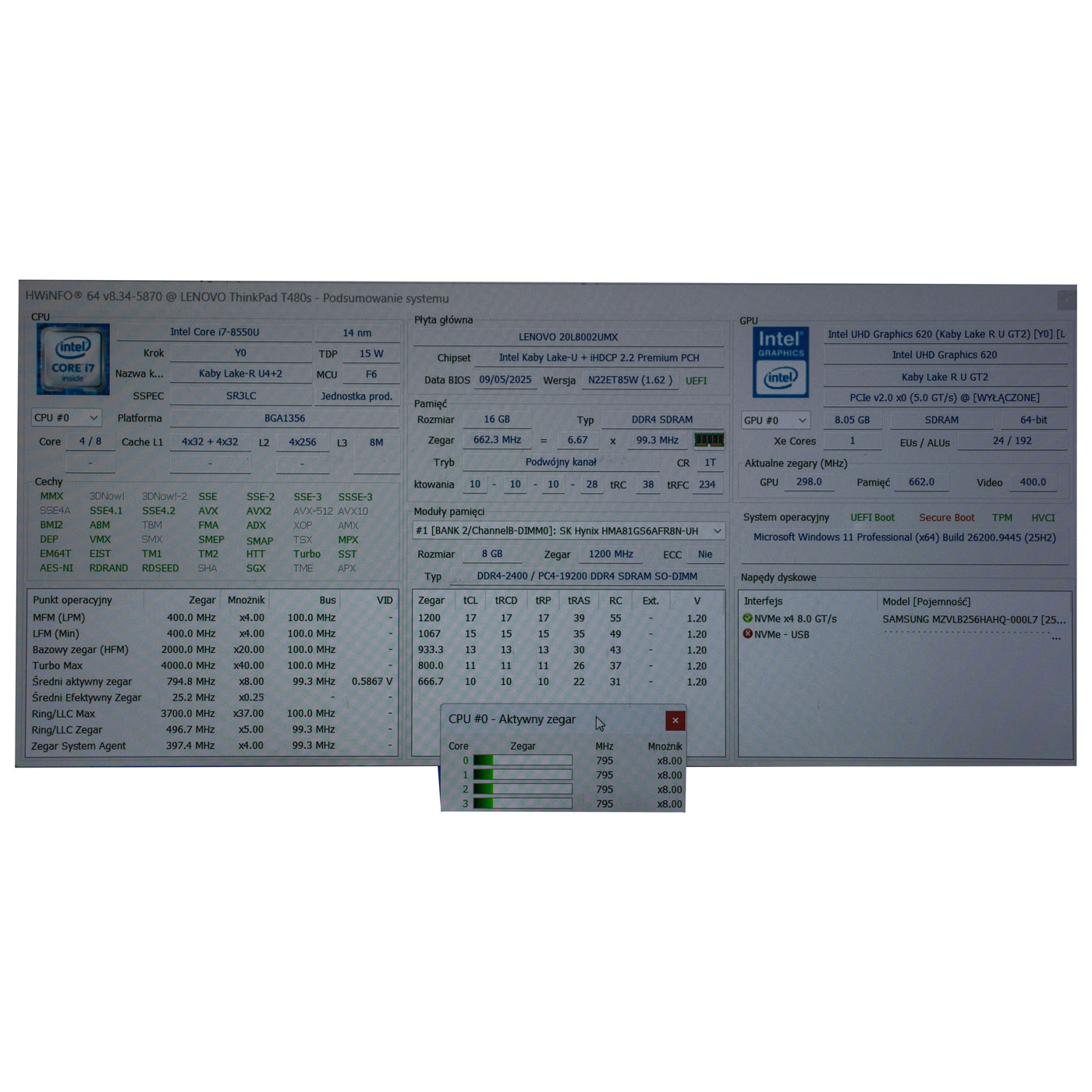

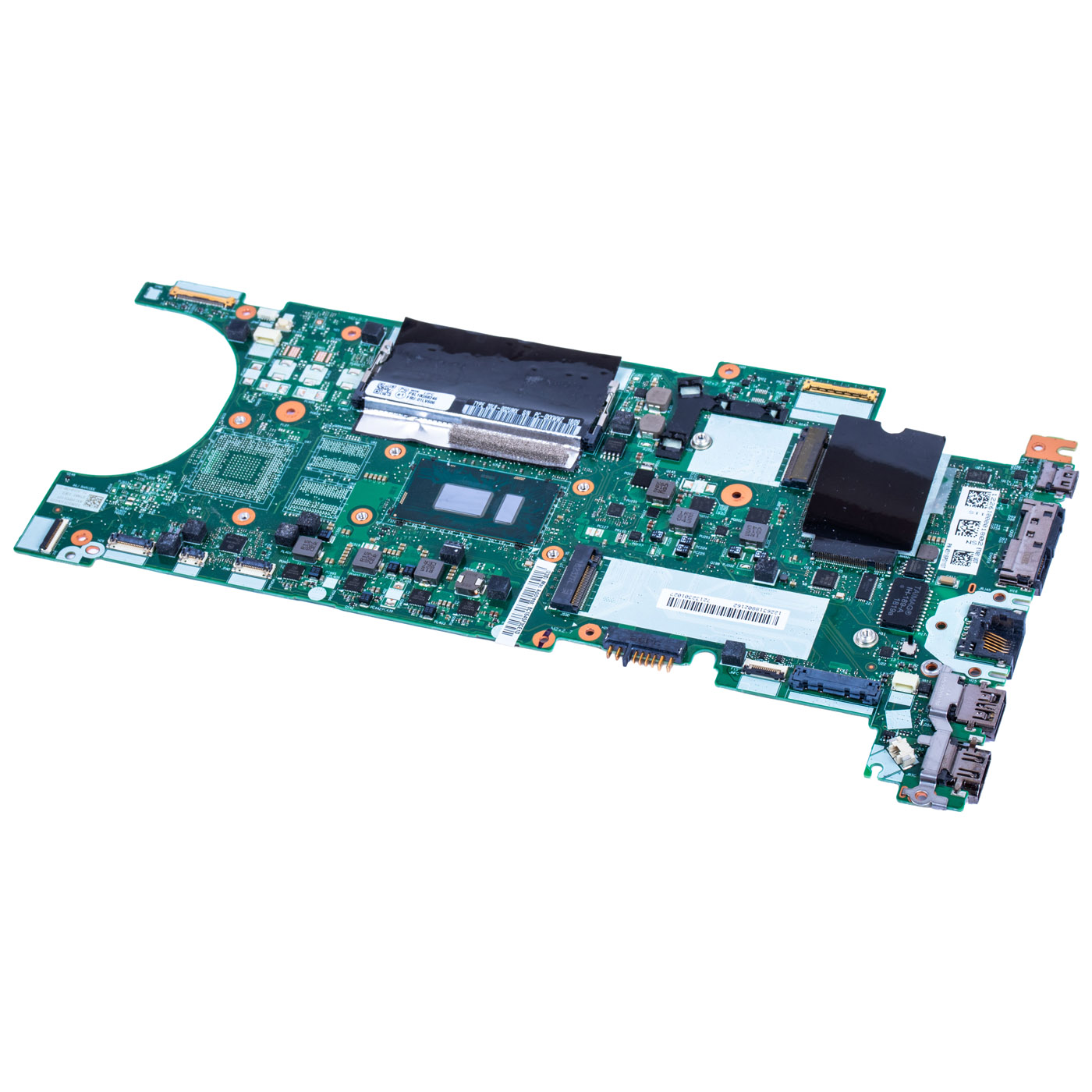

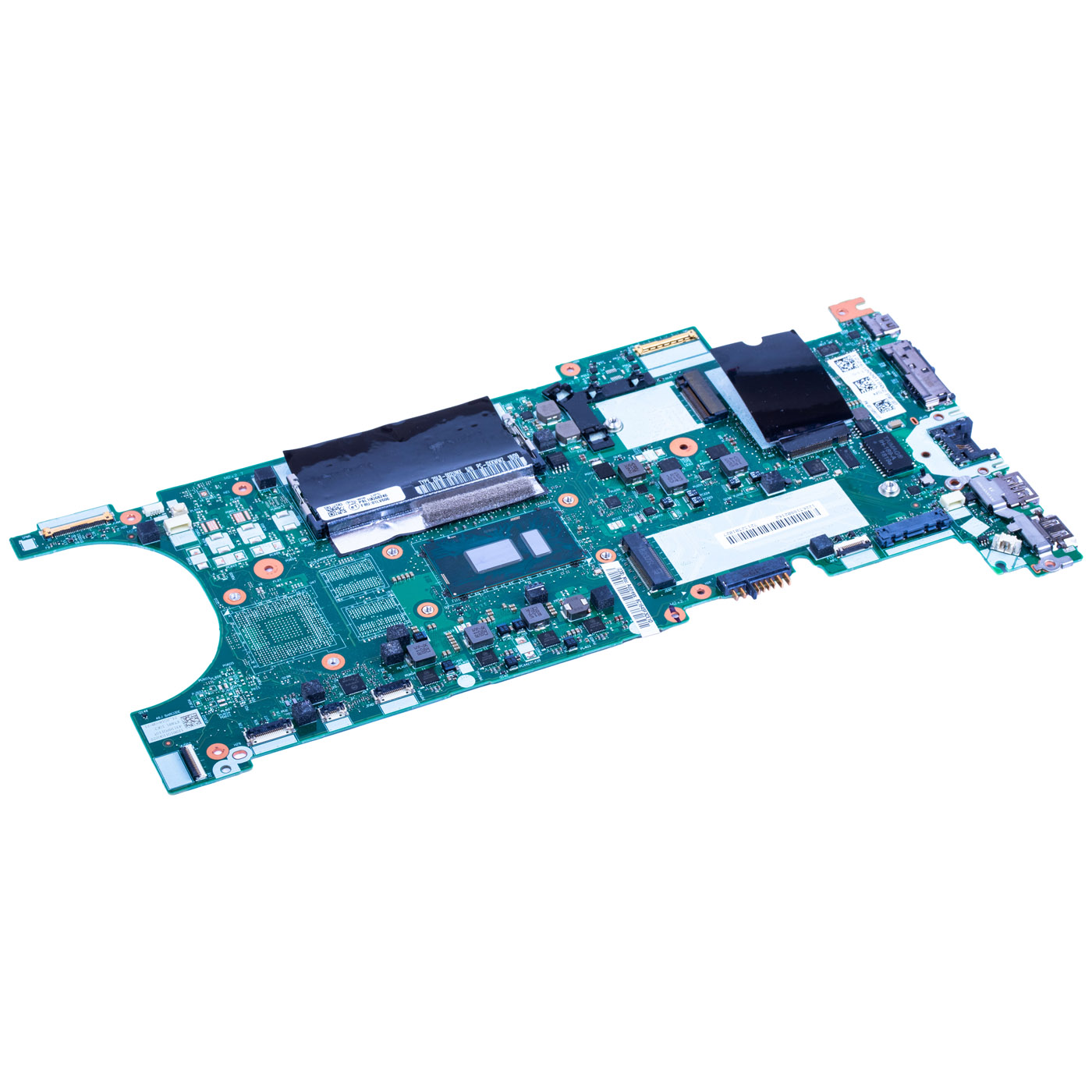

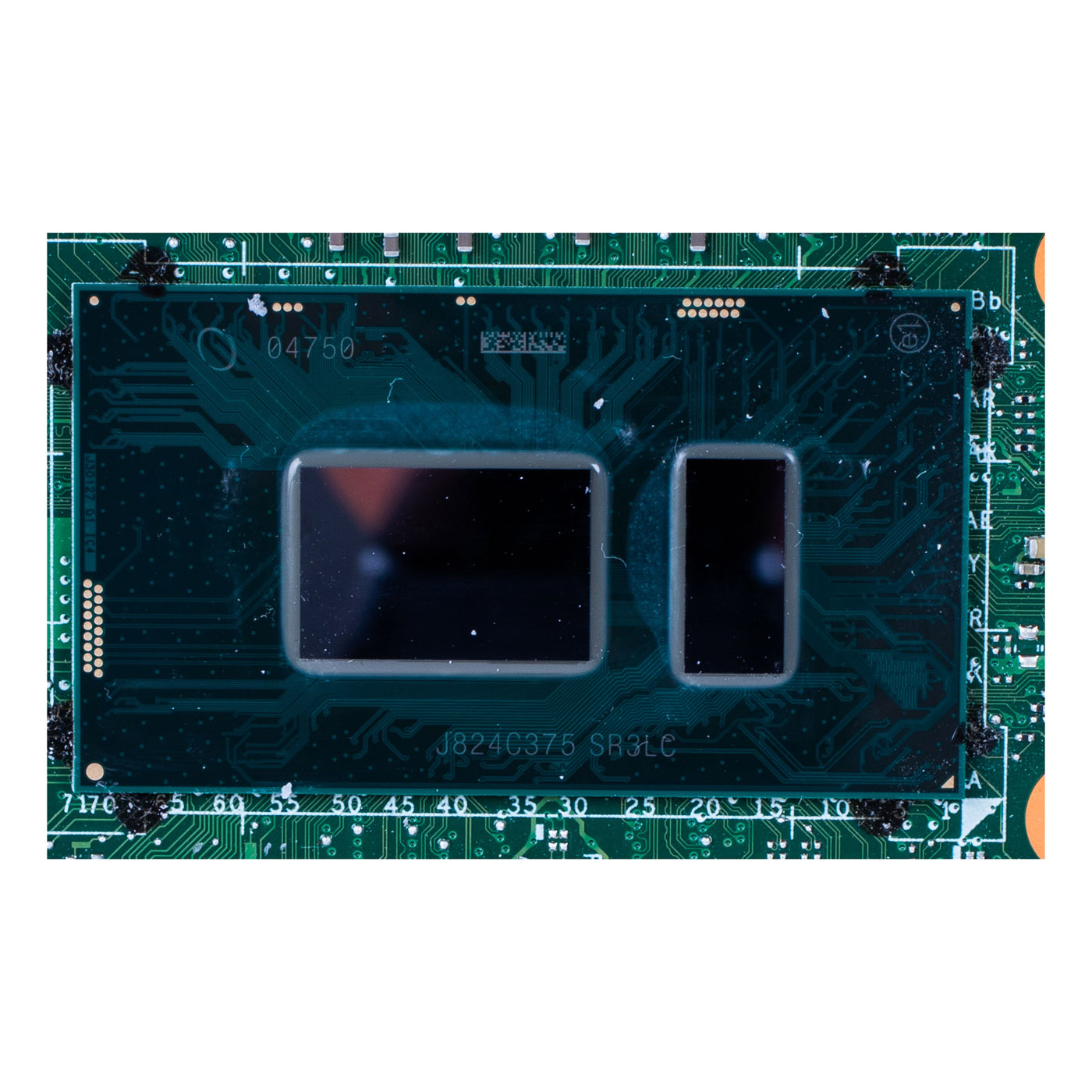

BDPLANAR-type system board (Type 20L8-002UMX) with a factory-soldered Intel Core i7-8550U processor (Kaby Lake-R, 14 nm, BGA1356, 4 cores / 8 threads, 8 MB cache, base clock 1.80 GHz, up to 4.00 GHz Turbo, 15W TDP) and integrated Intel UHD Graphics 620 (300 MHz base, up to 1.15 GHz dynamic). The board has 8GB DDR4 memory permanently soldered plus a free SO-DIMM slot for dual-channel memory expansion. Technical condition and correct operation confirmed by an HWiNFO diagnostic report - the processor runs stably, and all CPU clocks and features are correctly recognized.

📋 TECHNICAL DATA

Part name: System board with CPU (BDPLANAR)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad T480s (20L7, 20L8)
Processor: Intel Core i7-8550U (soldered, BGA1356)
Cores / threads: 4 / 8
Clock speed: 1.80 GHz base, up to 4.00 GHz Turbo
Cache: 8 MB Intel Smart Cache
TDP: 15 W
Lithography: 14 nm
Graphics: Intel UHD Graphics 620 (300 MHz - 1.15 GHz)
RAM: 8GB DDR4 soldered + free SO-DIMM slot (dual channel expansion)
Condition: Used (pulled, tested)

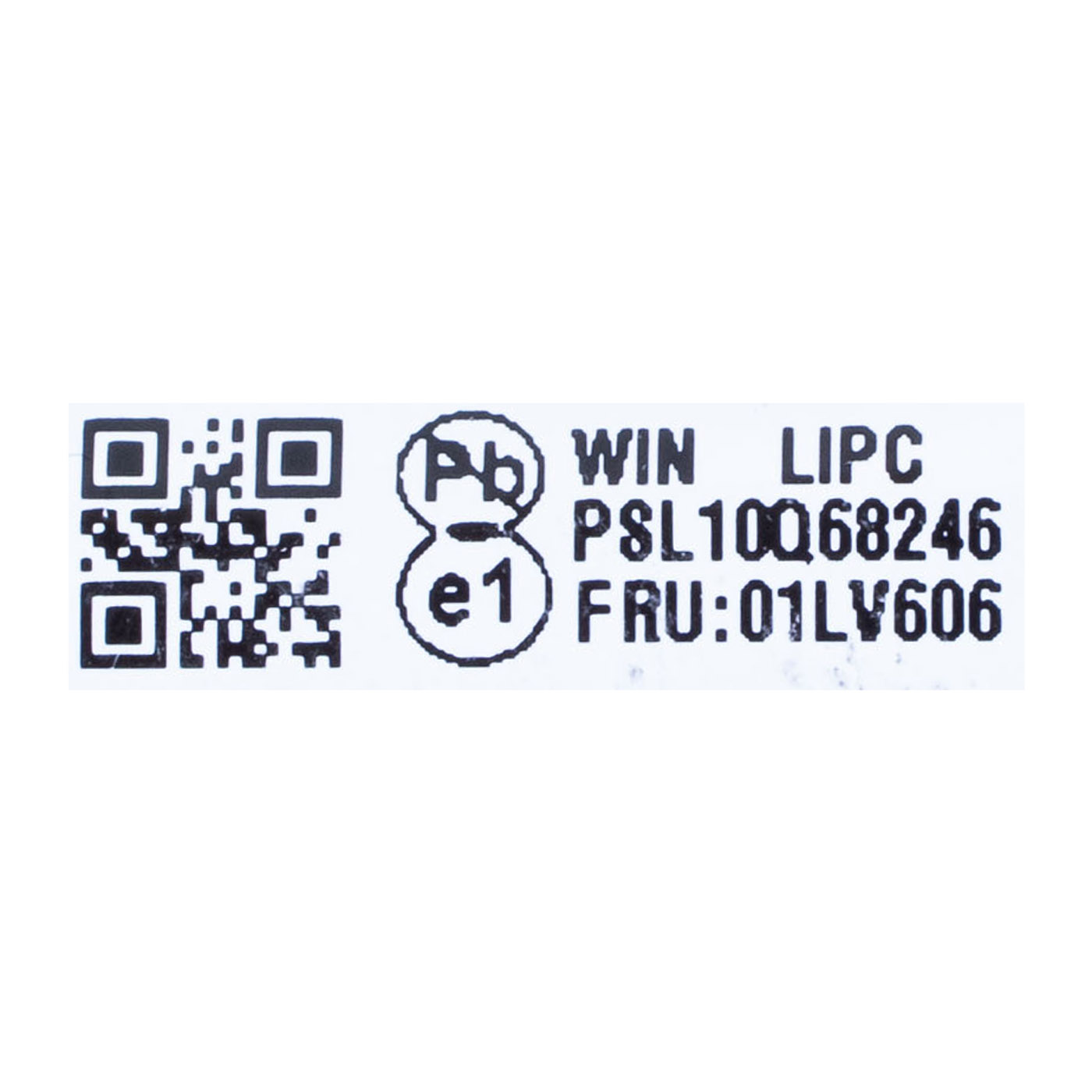

FRU: 01LV606
Substitute numbers: 01YU124, 02HL820

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed perfect fit and reliability
🔹 Soldered Intel Core i7-8550U processor - a stable CPU-to-board connection, without the socket-contact issues typical of older designs
🔹 4 cores / 8 threads, up to 4.00 GHz - enough power for multitasking, office work and demanding applications running at once
🔹 Free SO-DIMM slot - memory can be expanded beyond the 8GB soldered from factory

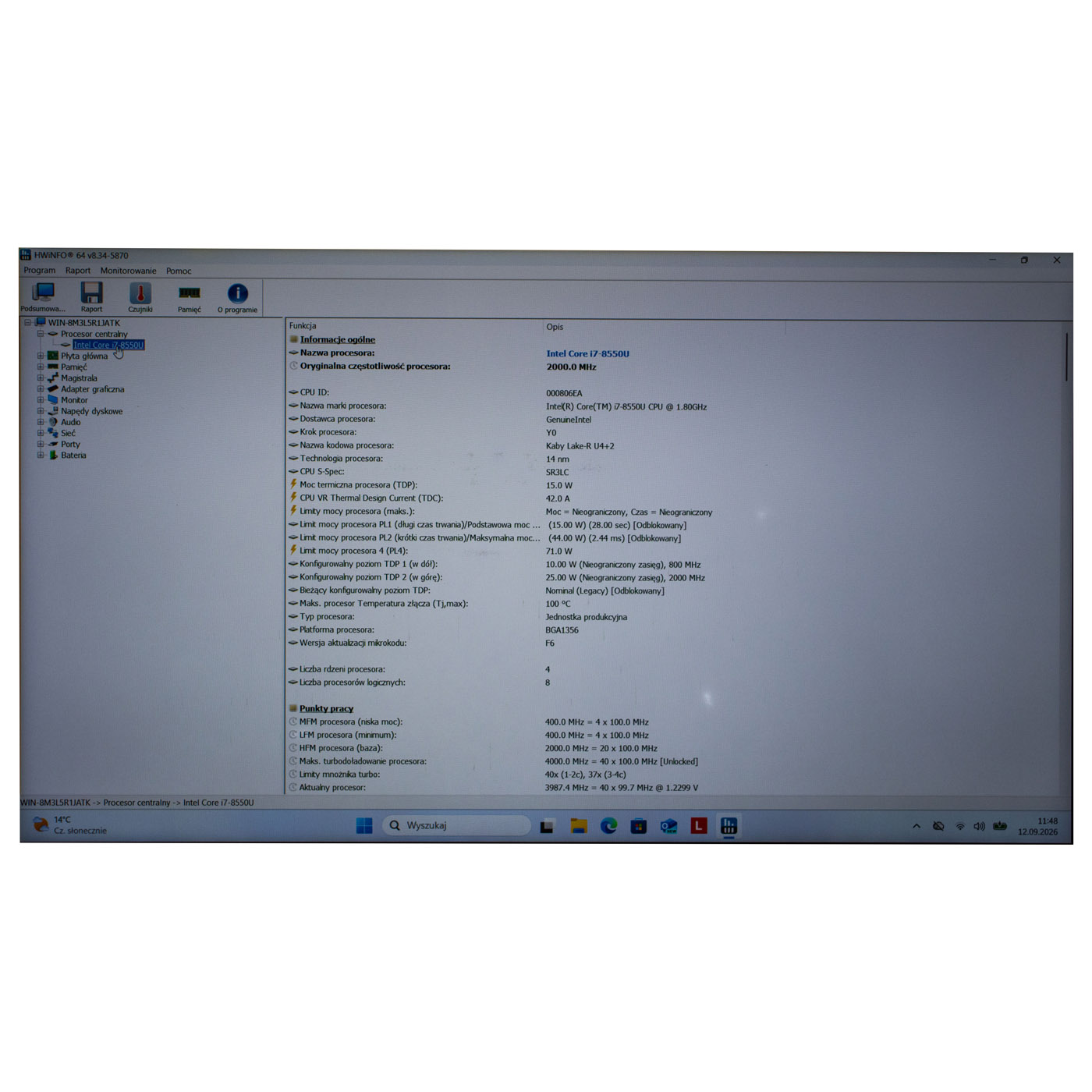

🔹 Condition verified with diagnostics - functionality confirmed by an HWiNFO report, not just visually
🔹 Full compatibility - matched to T480s under FRU 01LV606

🔢 CATALOG NUMBERS

FRU: 01LV606
Substitute numbers: 01YU124, 02HL820
Laptop model: Lenovo ThinkPad T480s

❓ WHEN SHOULD YOU REPLACE THE MOTHERBOARD?

• Laptop does not power on, power LED lights up but nothing happens
• No image on the internal screen or an external monitor despite power being connected
• Laptop randomly shuts down, restarts or freezes during use
• Board does not detect the battery or won't charge despite a working charger
• Visible liquid damage, burnt components or drop damage

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the display, touchpad, keyboard, speaker and WiFi antenna cables
5. Remove the heatsink/fan assembly and transfer it to the new board
6. Remove the old motherboard and install the new one in its place
7. Reconnect all cables in reverse order, install the battery and bottom cover
8. Power on the laptop and verify operation in BIOS and the operating system
Replacement recommended by a technical service or someone experienced in laptop repairs - the operation requires full laptop disassembly.

🎯 APPLICATION

An ideal board for restoring a ThinkPad T480s to working order after a logic board failure, while saving significantly compared to buying a new laptop. A good solution for repair shops and DIY laptop repair enthusiasts.

✅ COMPATIBILITY GUARANTEE

The offered motherboard has been thoroughly checked and matched to the Lenovo ThinkPad T480s model. We guarantee full compatibility under FRU number 01LV606 and full functionality. In case of any compatibility issues, we offer a hassle-free return within 14 days.
