Nordic backlit keyboard Lenovo ThinkPad E480 E490 T480s L480 L380 T490 L390

🔧 Keyboard for Lenovo ThinkPad E480 / E490 / T480s / L480 / L380 / T490 / L390 🔧

🖥️ ThinkPad E480 / E490 / T480s / L480 / L380 / T490 / L390 | Backlit Keyboard | Nordic Layout | FRU 01YP559

Used, fully functional backlit keyboard dedicated to Lenovo ThinkPad E480, E490, T480s, L480, L380, T490, L390 laptops. Part sourced from a working device and tested - we guarantee 100% functionality, including the backlight. FRU number 01YP559 guarantees full compatibility with both the E480, E490, T480s, L480, L380, T490, L390 models.

⚙️ PRODUCT CHARACTERISTICS

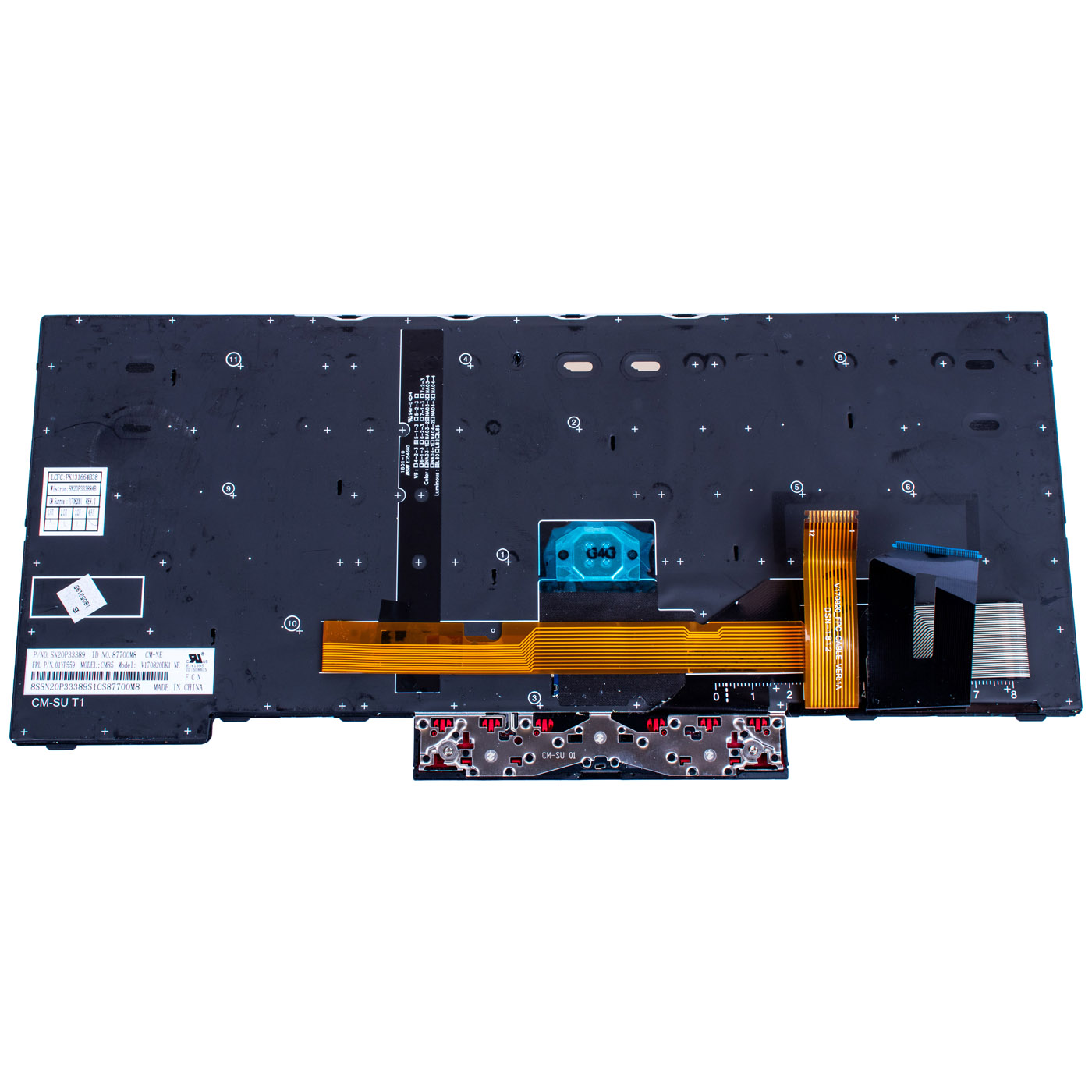

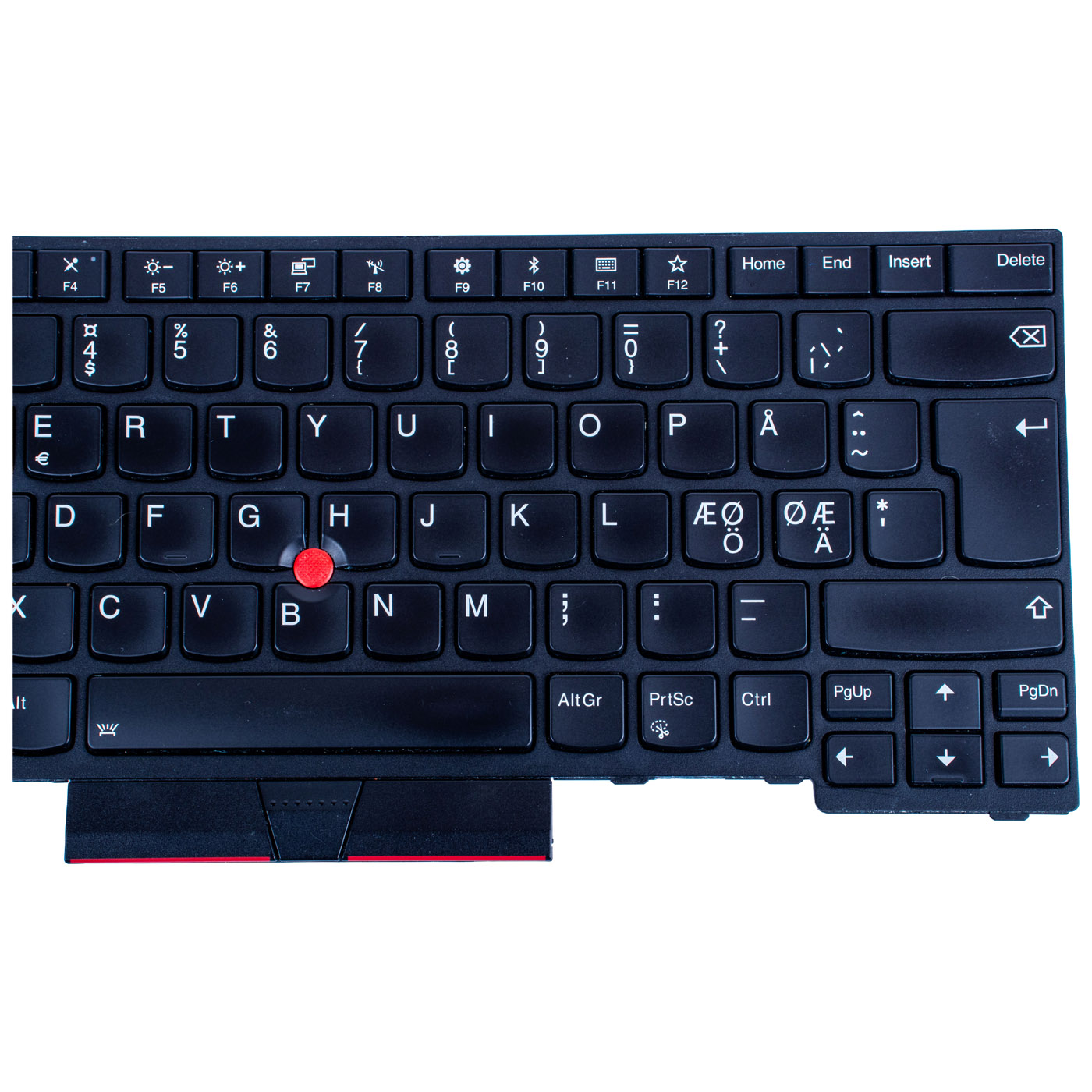

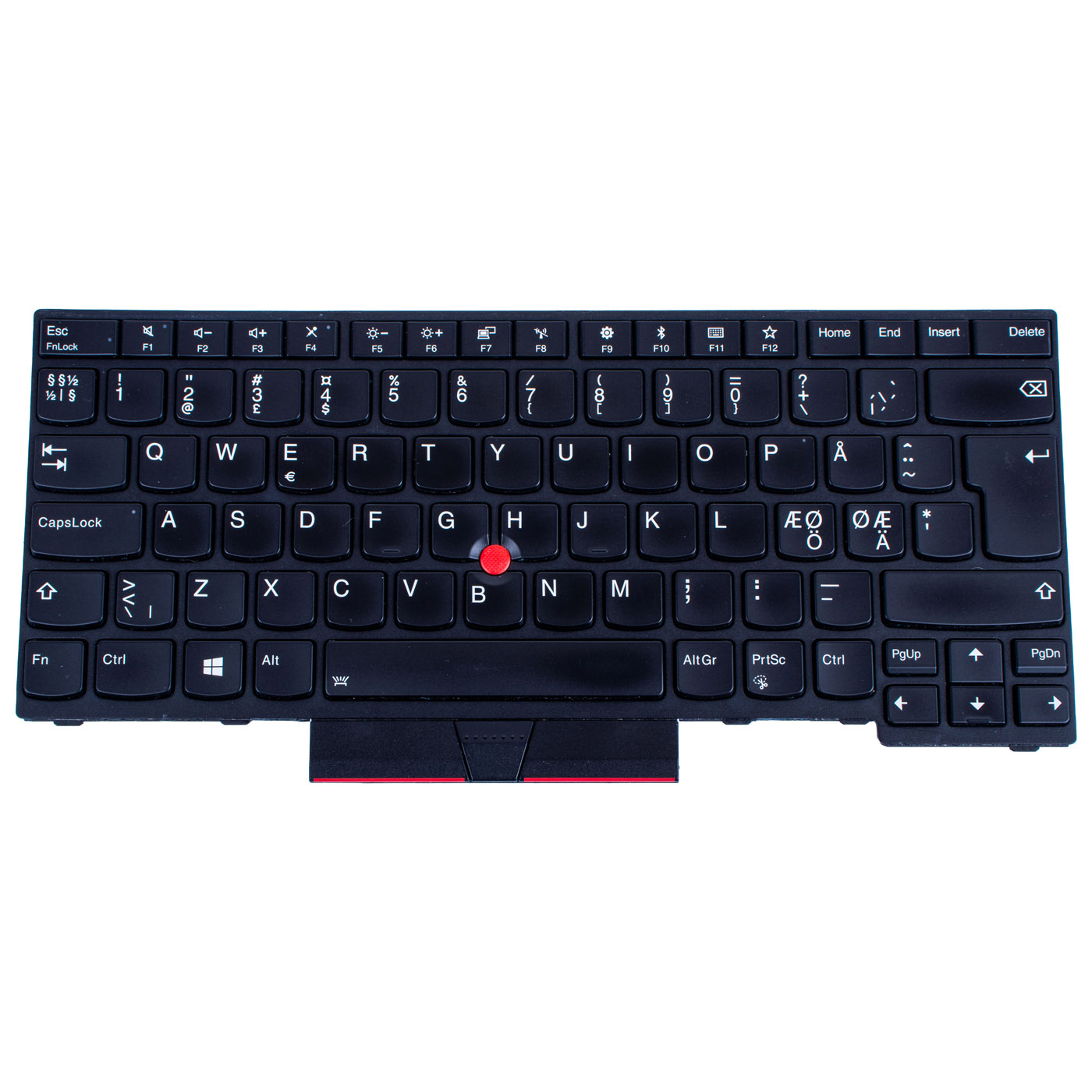

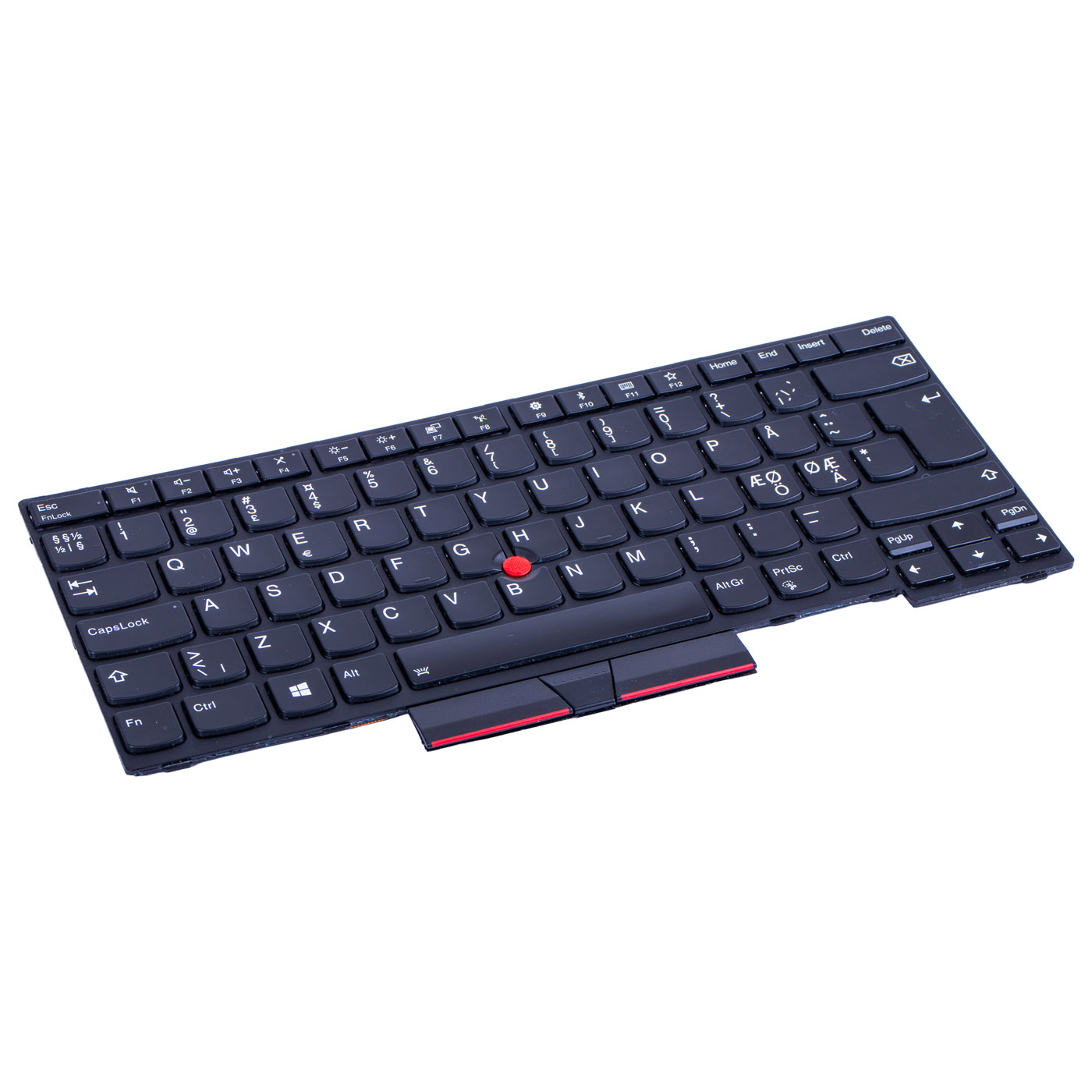

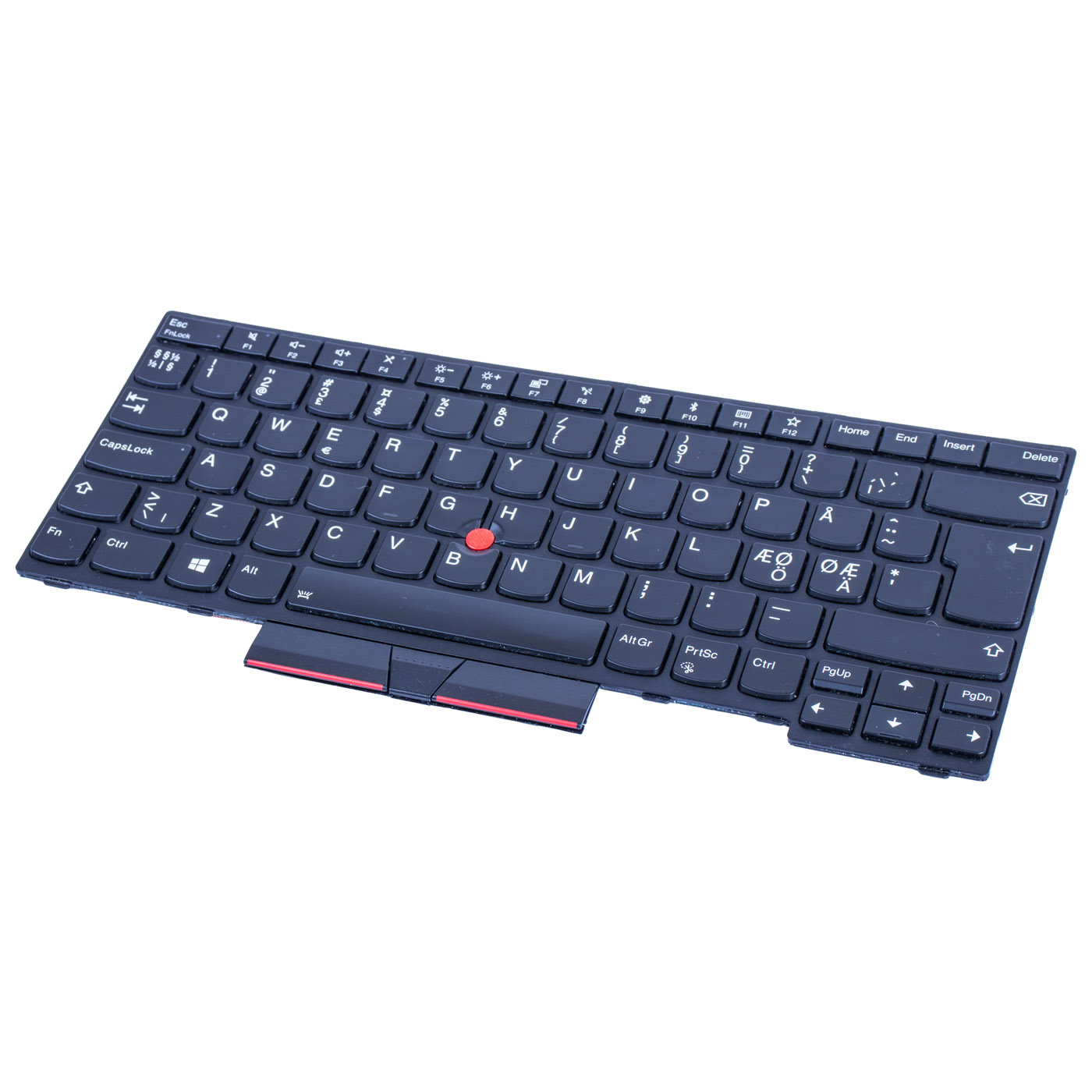

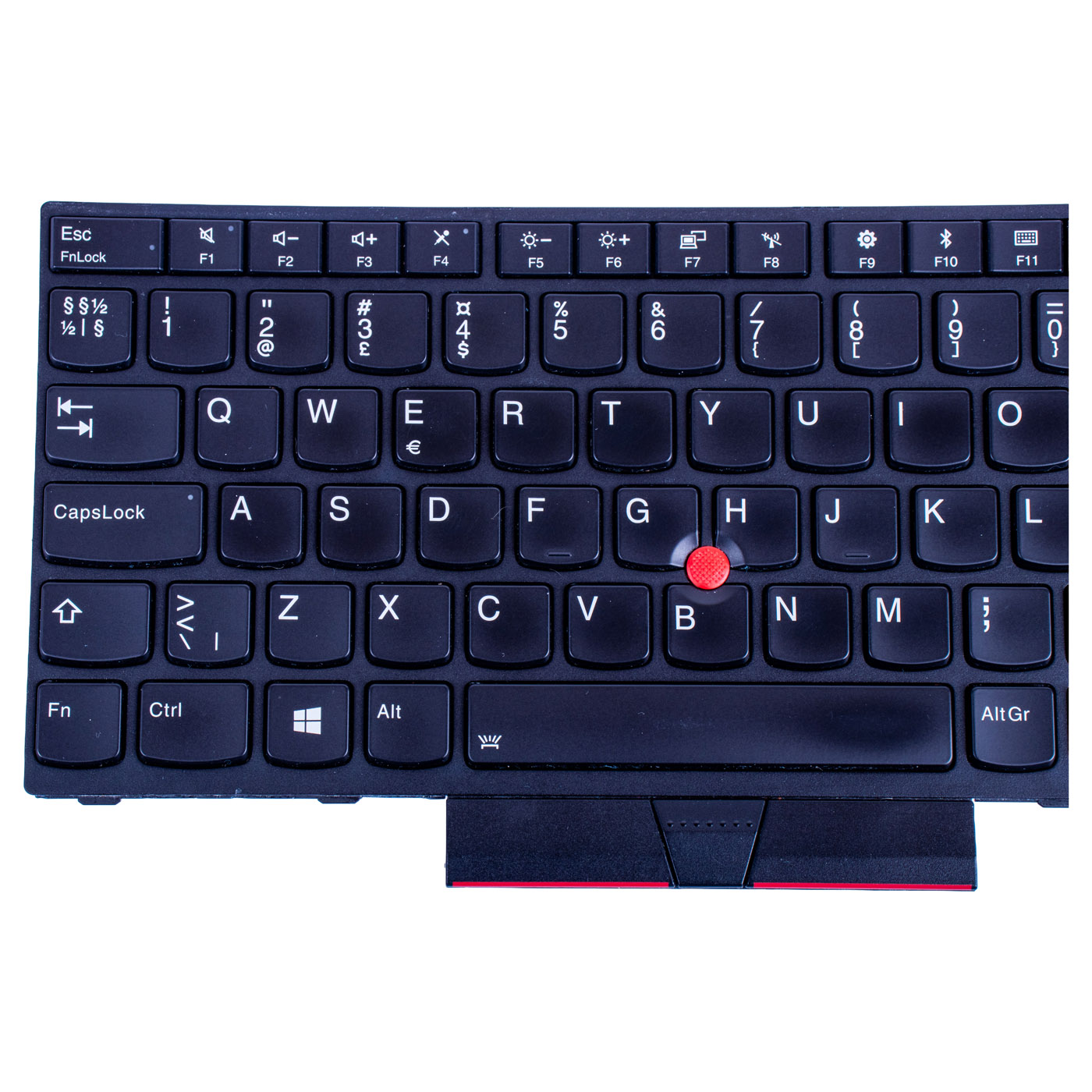

Internal keyboard with a working backlight, removed from a working ThinkPad laptop. All keys respond correctly and the TrackPoint (red pointing stick) works properly. The keyboard layout is Nordic (visible Å, Ø, Æ, Ö, Ä characters) - on request we can add a set of Polish overlay stickers, so the keyboard stays fully readable in the Polish layout as well.

📋 TECHNICAL DATA

Part name: Internal keyboard with backlight
Brand: Lenovo ThinkPad
Compatible model: ThinkPad E480, E490, T480s, L480, L380, T490, L390
Keyboard layout: Nordic (Polish overlay stickers available on request)
Backlight: Yes, working
Condition: Used (removed, tested)

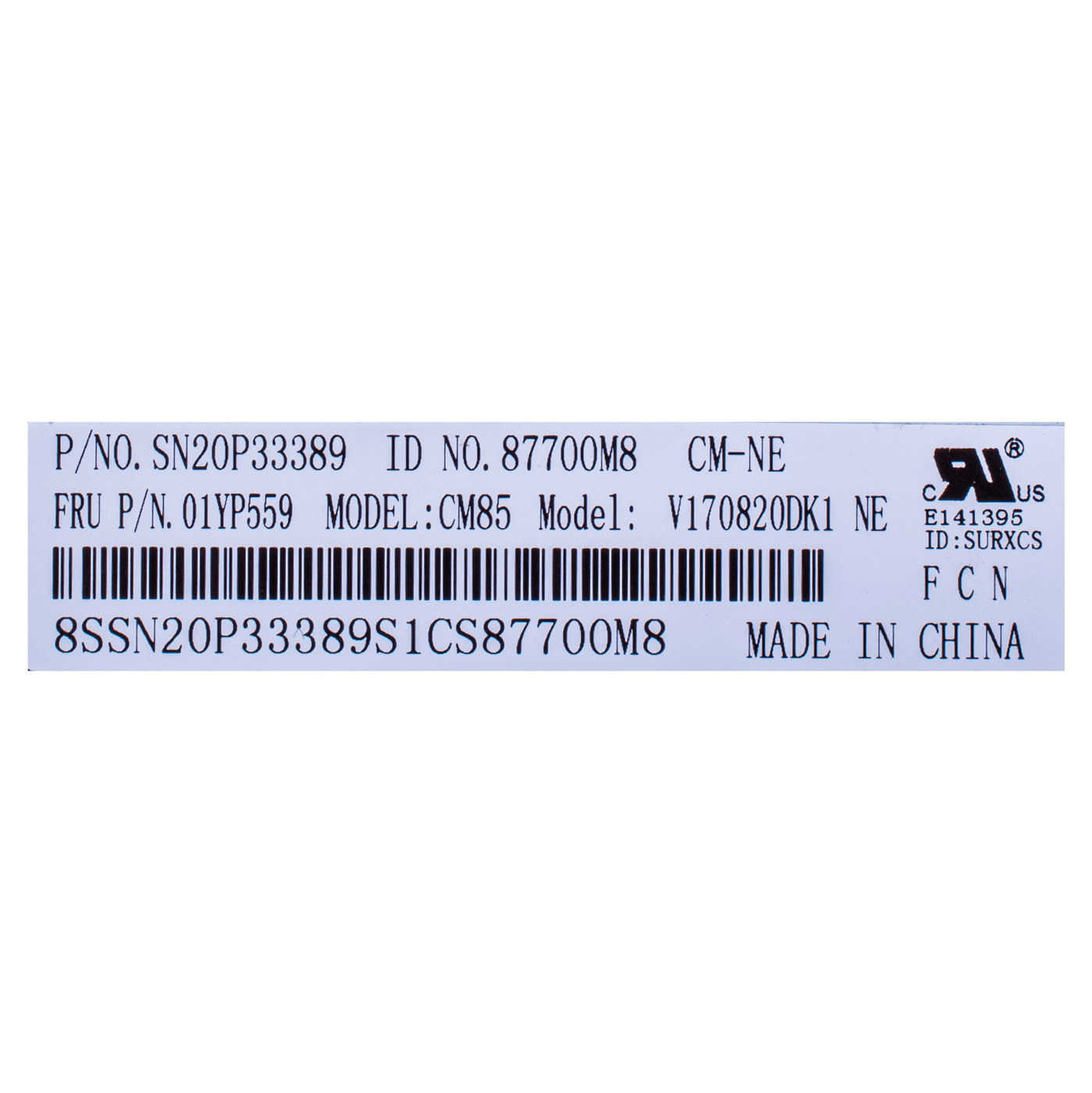

FRU: 01YP559
Alternative part numbers: 01YP319, 01YP399, 01YP479 (equivalent variants from the same keyboard family)

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed mechanical and electrical fit
🔹 Tested backlight - comfortable typing in low-light conditions without needing a separate desk lamp
🔹 Working TrackPoint - precise cursor control without reaching for a mouse
🔹 Polonization option - Polish overlay stickers available on request, without affecting the original Nordic keyboard's functionality
🔹 Full compatibility - matches both E480, E490, T480s, L480, L380, T490, L390 under FRU 01YP559

🔢 PART NUMBERS

FRU: 01YP559
Alternative part numbers: 01YP319, 01YP399, 01YP479
Laptop model: Lenovo ThinkPad E480, E490, T480s, L480, L380, T490, L390

❓ WHEN SHOULD YOU REPLACE THE KEYBOARD?

• Some keys do not respond on first press or do not work at all
• The backlight does not turn on or lights unevenly
• Keys stick, feel loose or fall out of their mounting
• The TrackPoint does not respond or the cursor drifts on its own
• Liquid was spilled on the laptop and the keyboard stopped working correctly

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws holding the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Remove the screws holding the old keyboard from the bottom of the chassis
5. Carefully lift the keyboard and disconnect the FFC cables from the connectors (keyboard, TrackPoint, backlight)
6. Connect the new keyboard's cables in the same order, mount and screw it in place
7. Reassemble the laptop, power it on and verify all keys and the backlight work correctly
Replacement is recommended by a technical service or a person experienced in laptop repairs.

🎯 PURPOSE

This keyboard is intended for ThinkPad E480, E490, T480s, L480, L380, T490, L390 users whose original keyboard has developed a mechanical or electrical fault. A working backlight and TrackPoint restore full, comfortable functionality without compromise. "Photos in the listing show the exact item offered."

✅ COMPATIBILITY GUARANTEE

The offered keyboard has been thoroughly checked and matched to the Lenovo ThinkPad E480, E490, T480s, L480, L380, T490, L390 models. We guarantee full compatibility under FRU number 01YP559 and 100% functionality of the part, including the backlight and TrackPoint. As a used, tested part, it comes with a 6-month warranty. In case of any compatibility issues, we provide a hassle-free return within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of this keyboard with your ThinkPad, or would you like to order Polish overlay stickers? Our specialists will be happy to assist you. Contact us!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

We have been specialising in delivering genuine Lenovo laptop parts for years. Our experience allows us to offer top-quality products that meet the expectations of even the most demanding customers. Trust the experts and restore full functionality to your ThinkPad.

🎯 Choose professionals - invest in high quality!

By choosing a tested keyboard for the Lenovo ThinkPad E480 / E490 / T480s / L480 / L380 / T490 / L390 from our offer, you invest in reliability and full typing comfort, even in low-light conditions. Take advantage of ABCDEAL's expertise and restore full functionality to your laptop.
