LCD display cable eDP (FHD) for Lenovo ThinkPad T480s | 01EN999

🔧 LCD Display Cable (eDP) for Lenovo ThinkPad T480s 🔧

🖥️ ThinkPad T480s | FHD Display Cable (eDP) | FRU 01EN999

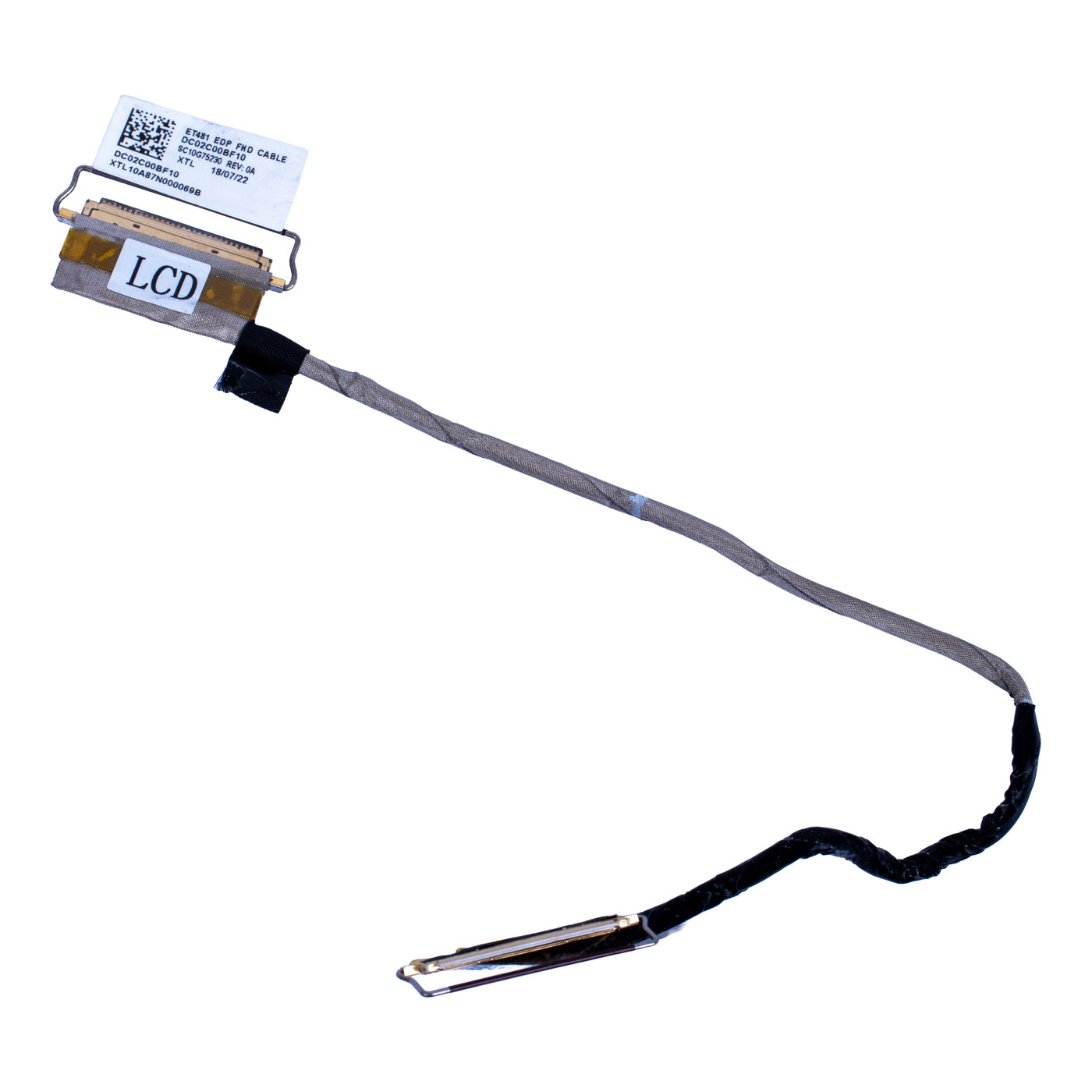

Used, tested and functional display cable dedicated to the Lenovo ThinkPad T480s laptop, for the FHD (Full HD) display version. Part sourced from a working device and tested - the image is transmitted stably, with no flickering, discoloration or artifacts. FRU number 01EN999 guarantees full compatibility with the T480s model.

⚙️ PRODUCT CHARACTERISTICS

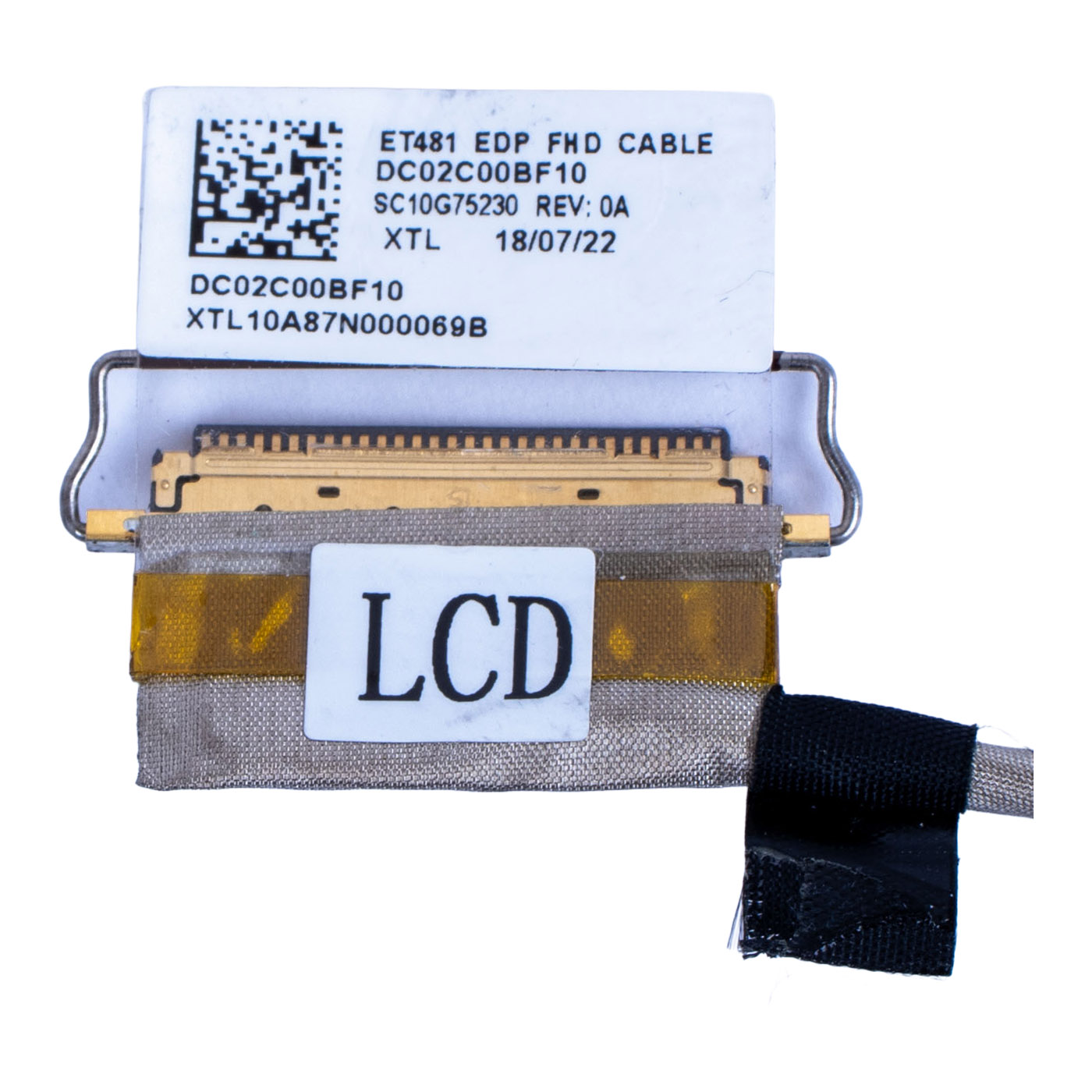

An eDP signal cable connecting the display to the motherboard, in the version designed for FHD resolution. The label shows the manufacturer's internal designation "ET481 EDP FHD CABLE", number DC02C00BF10, SC10G75230 REV:0A and code XTL10A87N000069B ("ET481" is Lenovo's internal chassis code for the T480s model). The cable has been tested for signal transmission - the image displays correctly across the entire panel.

📋 TECHNICAL DATA

Part name: LCD display cable (eDP)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad T480s
Version: FHD (Full HD)
Condition: Used, tested and functional (removed)
FRU: 01EN999
Alternative part numbers: 01YN993 (equivalent variant of the same cable)
Label markings: DC02C00BF10, SC10G75230 REV:0A, XTL10A87N000069B

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guaranteed connector fit for the display and motherboard on the T480s
🔹 Signal-tested - stable image with no flickering or artifacts, ready to install without further testing
🔹 Complete, undamaged cable - connectors and protective shielding in good condition along the full length
🔹 Full compatibility - matches the T480s under FRU 01EN999

🔢 PART NUMBERS

FRU: 01EN999
Alternative part numbers: 01YN993
Laptop model: Lenovo ThinkPad T480s

❓ WHEN SHOULD YOU REPLACE THE DISPLAY CABLE?

• The image flickers or goes dark, especially when moving the display
• There are colored lines, discoloration or distortion in the image
• There is no image despite the backlight working (dim backlight visible with no picture)
• The image disappears when the display is opened to a certain angle

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the front display bezel
3. Disconnect the old cable from the display connector and from the motherboard connector
4. Remove the screws holding the display and take it out of the lid to access the cable routing
5. Install the new cable along the same routing, connect it to the display and to the motherboard
6. Reassemble the laptop, power it on and check image stability, including at different display opening angles
Replacement is recommended by a technical service or a person experienced in laptop repairs.

🎯 PURPOSE

This cable is intended for ThinkPad T480s users with an FHD display whose original cable has failed or become worn. Functional signal transmission restores a stable, correct image to the laptop. "Photos in the listing show the exact item offered."

✅ COMPATIBILITY GUARANTEE

The offered display cable has been thoroughly checked and matched to the Lenovo ThinkPad T480s model. We guarantee full compatibility under FRU number 01EN999 and functional image signal transmission. As a used, tested part, it comes with a 6-month warranty. In case of any compatibility issues, we provide a hassle-free return within 14 days.
