💾 256GB M.2 NVMe SSD for Lenovo ThinkPad T490s and Others 💾

🖥️ ThinkPad T490s / P17 Gen 1 / P15 Gen 1 | 256GB M.2 2280 PCIe NVMe OPAL SSD | 5SS0V26404

256GB M.2 2280 NVMe SSD with OPAL 2.0 encryption support removed from a working Lenovo ThinkPad T490s laptop. The part has been tested and shows very good technical condition. FRU number 5SS0V26404 is officially confirmed by Lenovo for the P17 Gen 1 and P15 Gen 1 models - as a standard M.2 NVMe drive, it fits any ThinkPad laptop equipped with an M.2 PCIe x4 slot (including the T14s Gen 3 it was removed from).

⚙️ PRODUCT CHARACTERISTICS

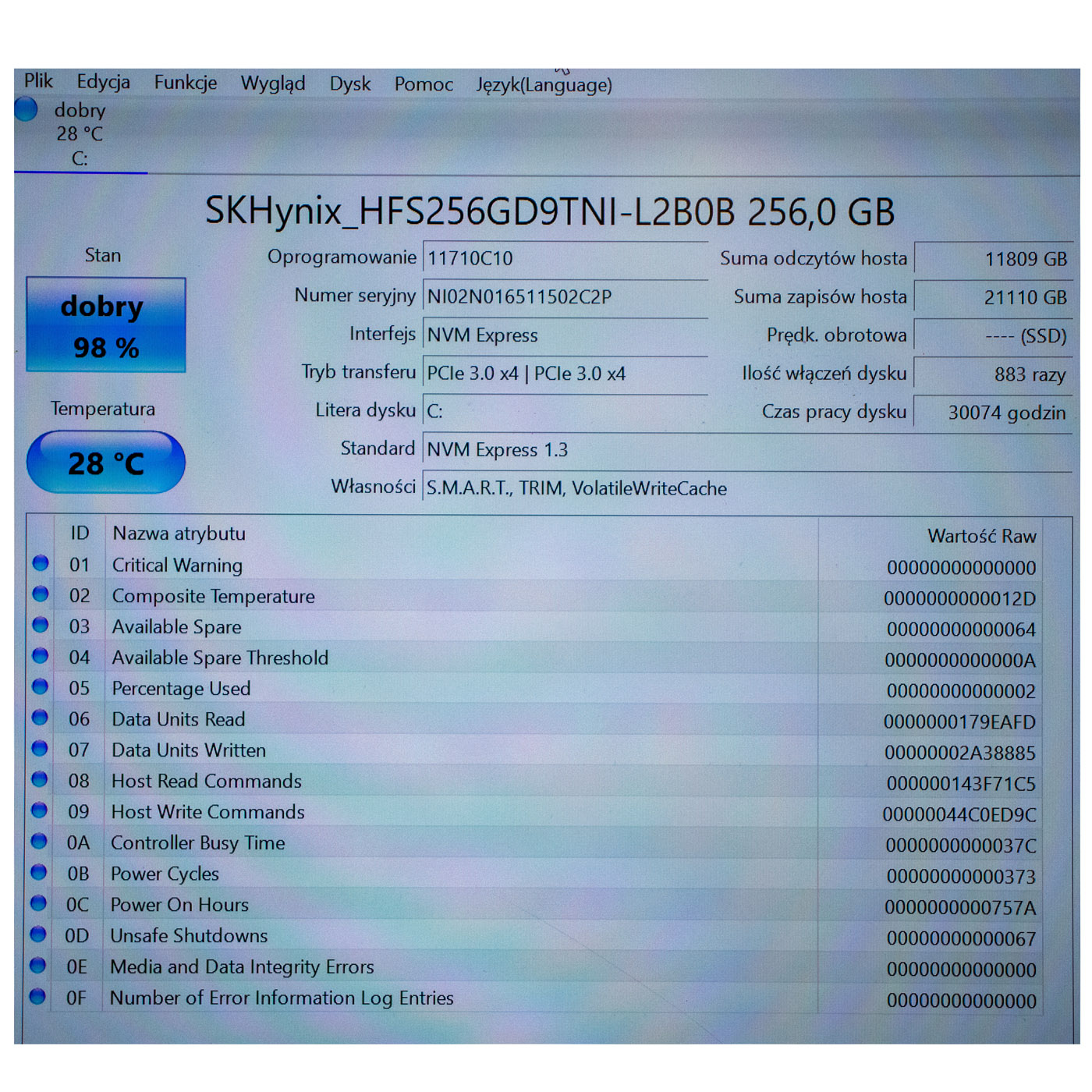

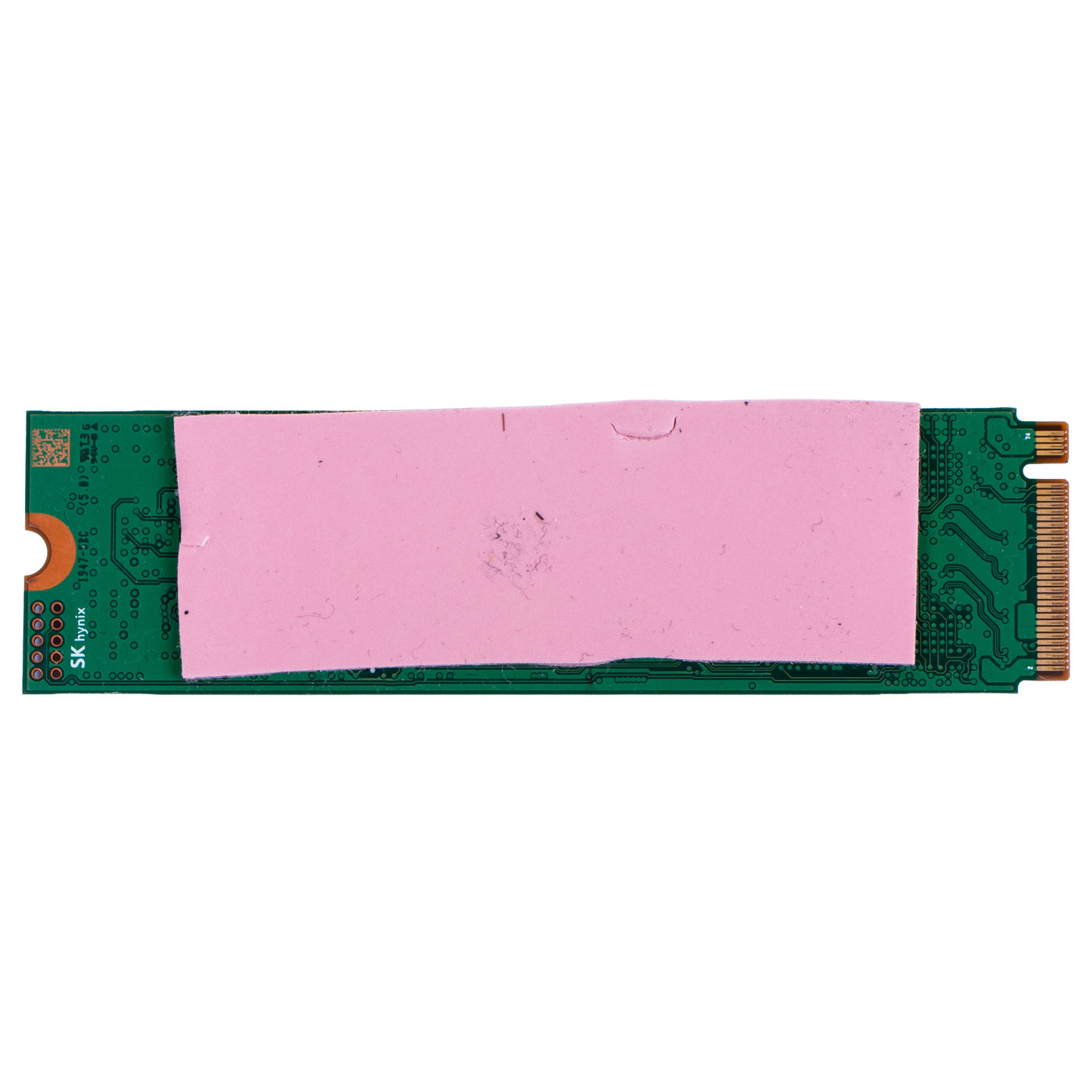

SK Hynix SSD, PC611 series, M.2 2280 form factor, PCIe Gen3 x4 interface (NVMe 1.3), with hardware OPAL 2.0 encryption support. Drive tested with diagnostic software - "Good" health status (98%), only 2% wear per SMART indicator, 883 power cycles, 30,074 power-on hours. Factory thermal pad on the underside.

📋 TECHNICAL SPECIFICATIONS

Part name: M.2 NVMe SSD 256GB
Brand: Lenovo / SK Hynix
Compatible model: ThinkPad T490s (source of this drive); officially per Lenovo: P17 Gen 1, P15 Gen 1
Capacity: 256GB
Form factor: M.2 2280
Interface: PCIe Gen3 x4, NVMe 1.3
Encryption: OPAL 2.0
Condition: Used, tested - "Good" health 98%, 2% wear per SMART, 883 cycles, 30,074 power-on hours
FRU: 5SS0V26404
Equivalent part numbers: Lenovo lists numerous equivalent 256GB PCIe3x4 OPAL M.2 SSDs from other manufacturers (Samsung, WD, Toshiba, Intel, Micron, LiteOn, UMIS) - full FRU list available on request

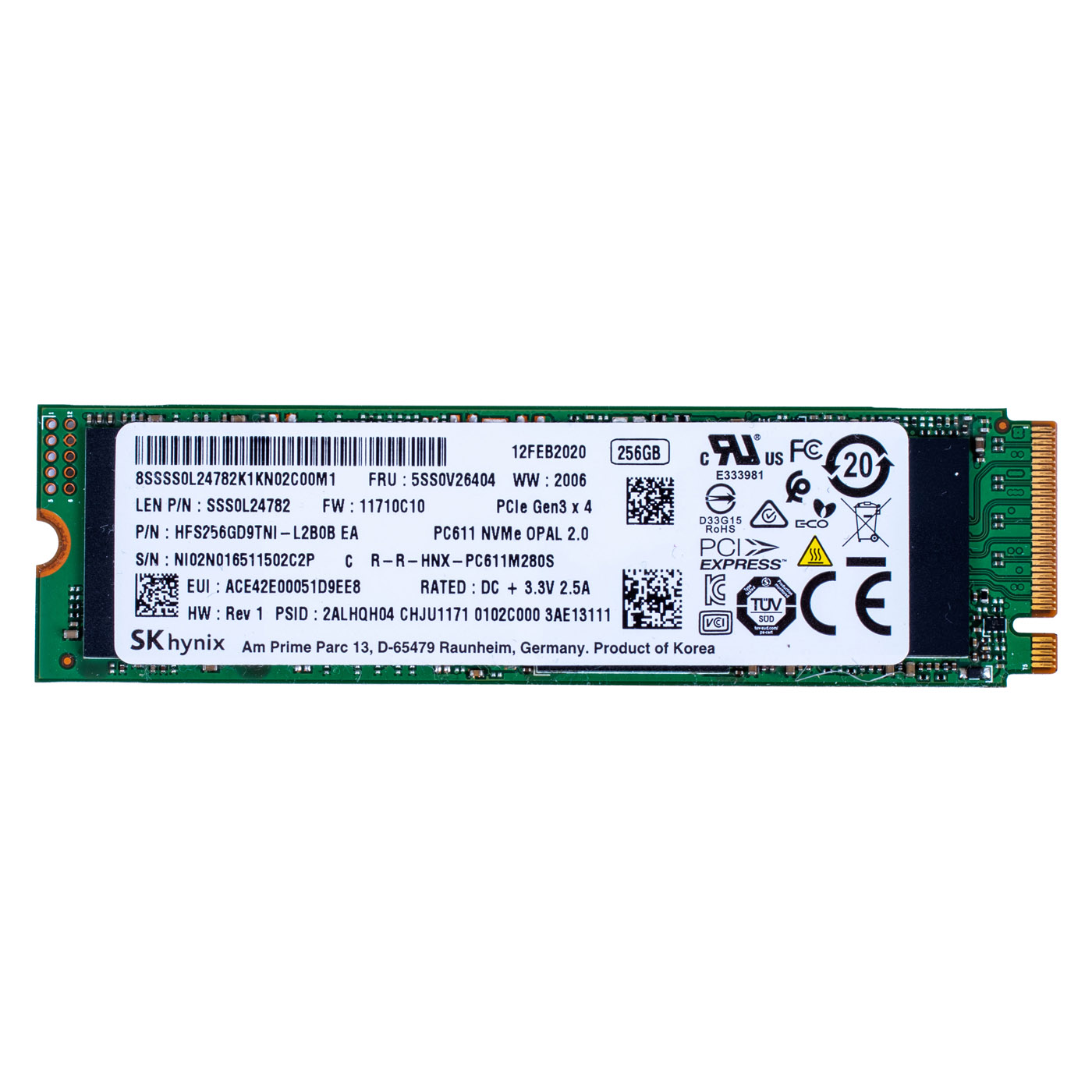

Markings on part: LEN P/N SSS0L24782, P/N HFS256GD9TNI-L2B0B EA, PC611 NVMe OPAL 2.0

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo-fitted drive - guaranteed full hardware compatibility
🔹 Very good condition - only 2% wear per SMART indicator, low run-hours for a used drive
🔹 Fast PCIe Gen3 x4 interface - significantly higher performance than SATA drives
🔹 OPAL 2.0 data security - hardware-level data encryption at the controller

🔢 PART NUMBERS

FRU: 5SS0V26404
Laptop model: Lenovo ThinkPad T490s (source), P17 Gen 1, P15 Gen 1 (official Lenovo list)

❓ WHEN IS THIS DRIVE A GOOD CHOICE?

• You want to expand your laptop's storage without buying a new premium drive
• Your current M.2 drive has failed and you need a fast, affordable replacement
• You are looking for a second drive for a laptop with two M.2 slots
• You need a drive with OPAL 2.0 support for business use requiring hardware encryption

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power
2. Remove the screws securing the bottom cover and carefully take it off
3. Unscrew the retaining screw holding the M.2 drive in its slot
4. Slide the old drive out at an angle from the connector, then insert the new drive
5. Tighten the retaining screw and reinstall the bottom cover
6. Power on the laptop and verify the drive is detected in BIOS/system
Installation recommended by a technical service or a person experienced in laptop repairs.

🎯 PURPOSE

This drive is intended for those wanting to affordably expand or replace storage in a ThinkPad laptop while keeping the high performance of the NVMe interface.

✅ COMPATIBILITY GUARANTEE

The offered drive has been thoroughly checked for functionality and compatibility. We guarantee full compatibility under FRU 5SS0V26404 with the P17 Gen 1, P15 Gen 1, and T490s models. In case of any compatibility issues, we provide a hassle-free 14-day return.
