🔧 CPU/GPU Cooling Assembly for Lenovo Legion 5 15IRX10 🔧

🖥️ Legion 5 15IRX10 | Fans + Heatsink | 5F10S14297

Complete, genuine processor and graphics cooling assembly designed for the Lenovo Legion 5 15IRX10 (type 83LY). Brand new part marked with FRU number 5F10S14297. FRU number 5F10S14297 guarantees full compatibility with the Legion 5 15IRX10.

⚙️ PRODUCT OVERVIEW

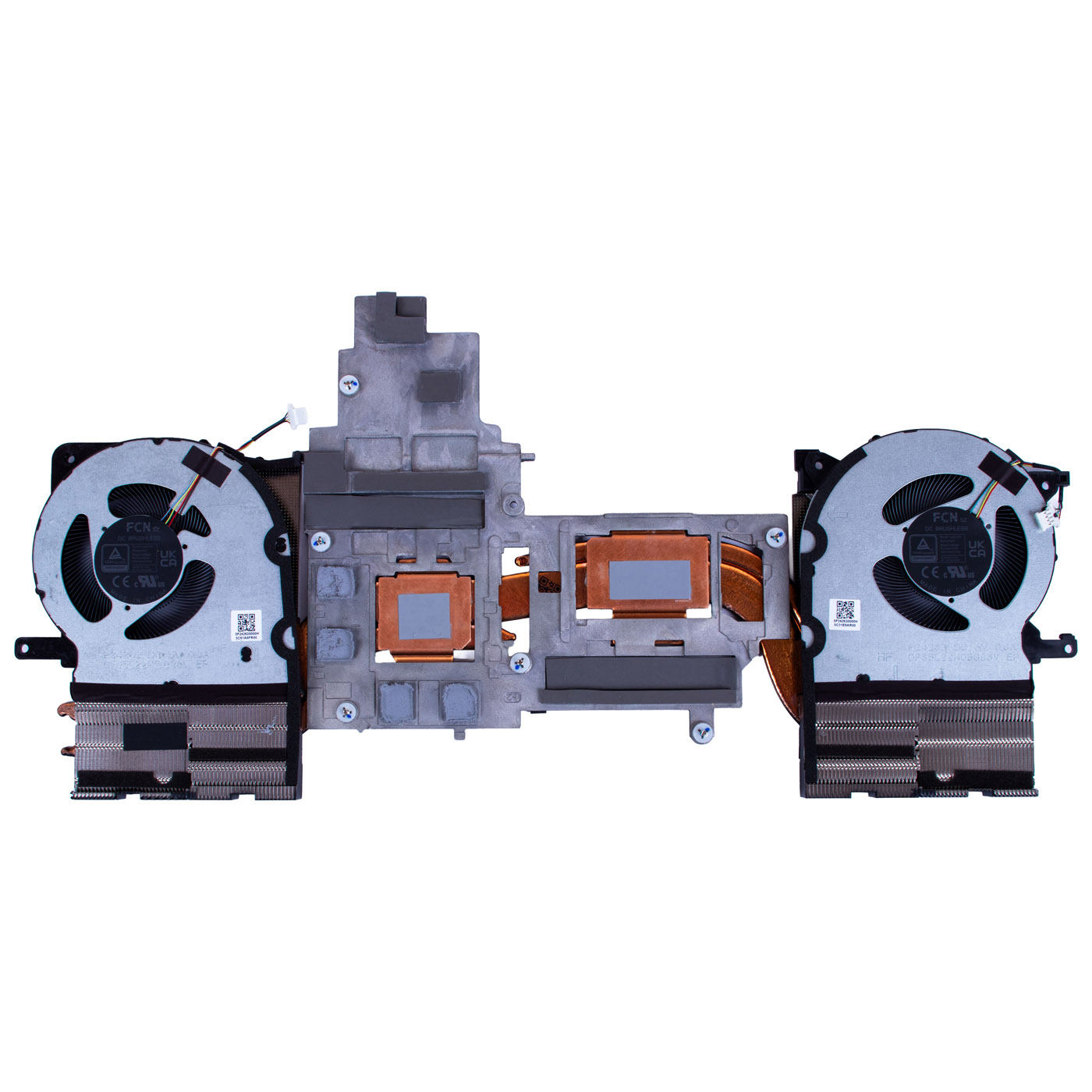

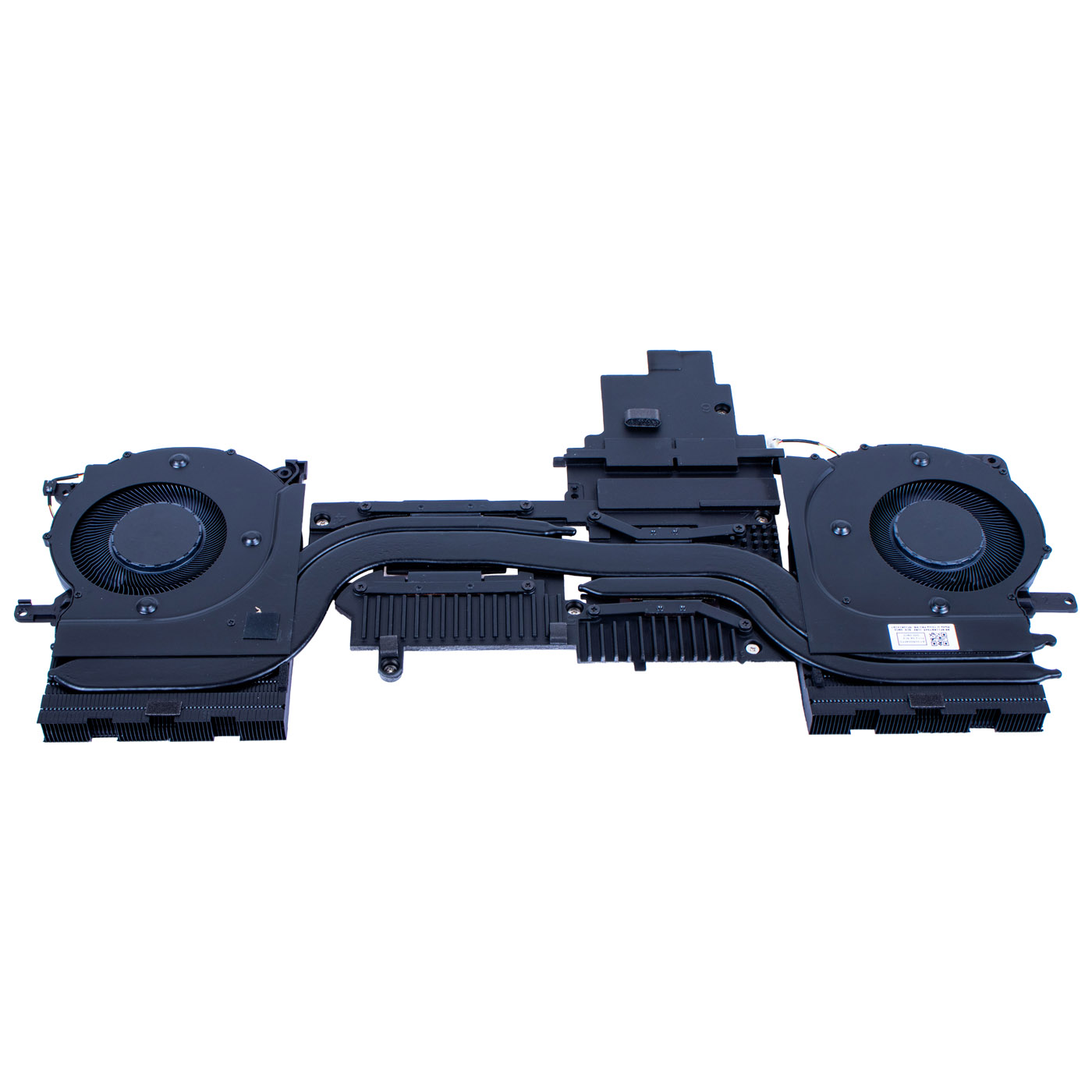

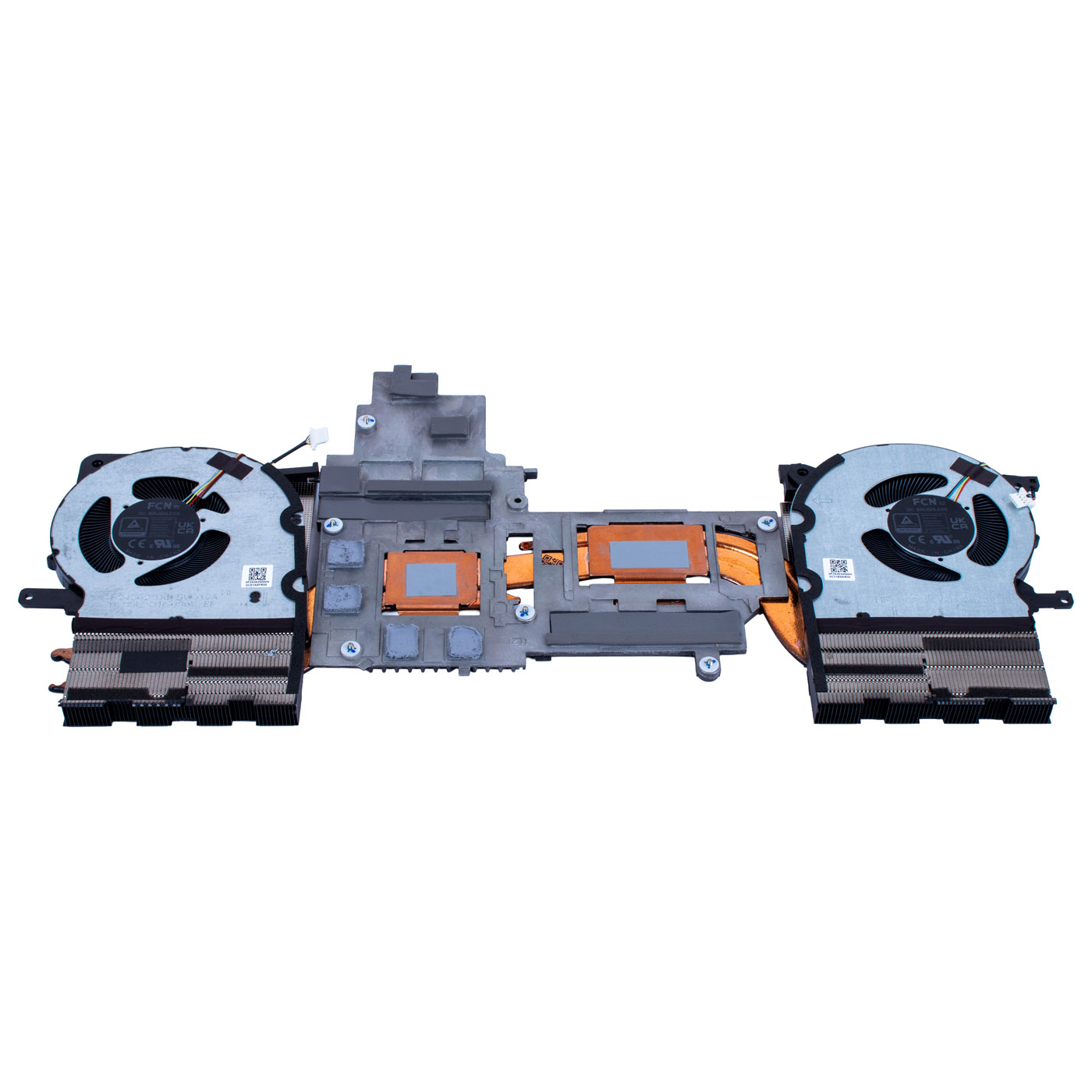

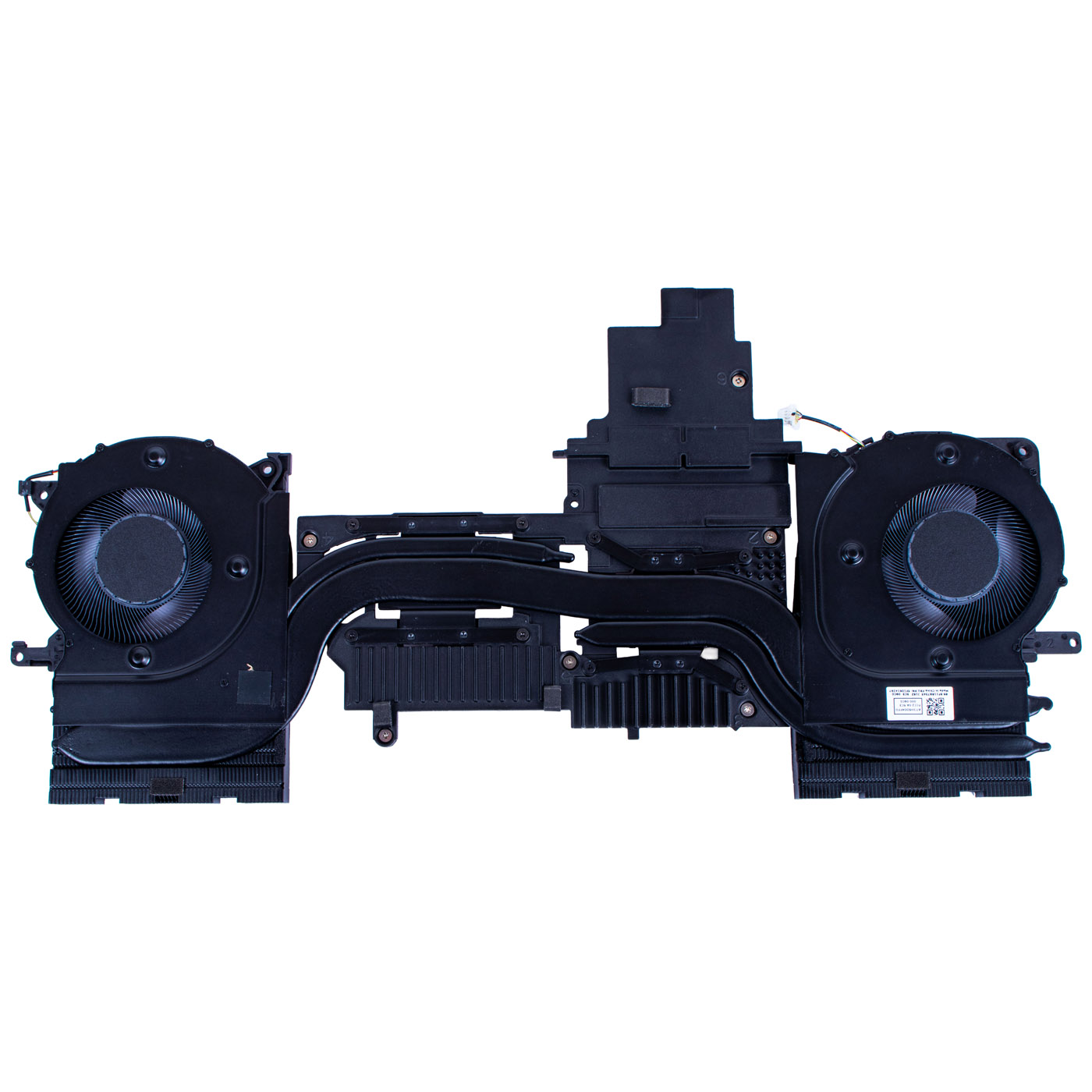

A complete thermal module with two FCN fans (DC Brushless) connected by a shared heatsink with copper heat pipes. Each fan has its own fin stack, and the copper CPU and GPU contact plates, as well as the VRAM and power delivery contact points, come with factory-applied thermal pads. The module label carries FRU number 5F10S14297 and part number AT3HS004FF0.

📋 TECHNICAL SPECIFICATIONS

Part name: Cooling assembly (fans + heatsink)
Brand: Lenovo Legion
Compatible model: Legion 5 15IRX10 (type 83LY)
Screen size: 15.1"
Number of fans: 2 (CPU + GPU)
Fan manufacturer: FCN (DC Brushless)

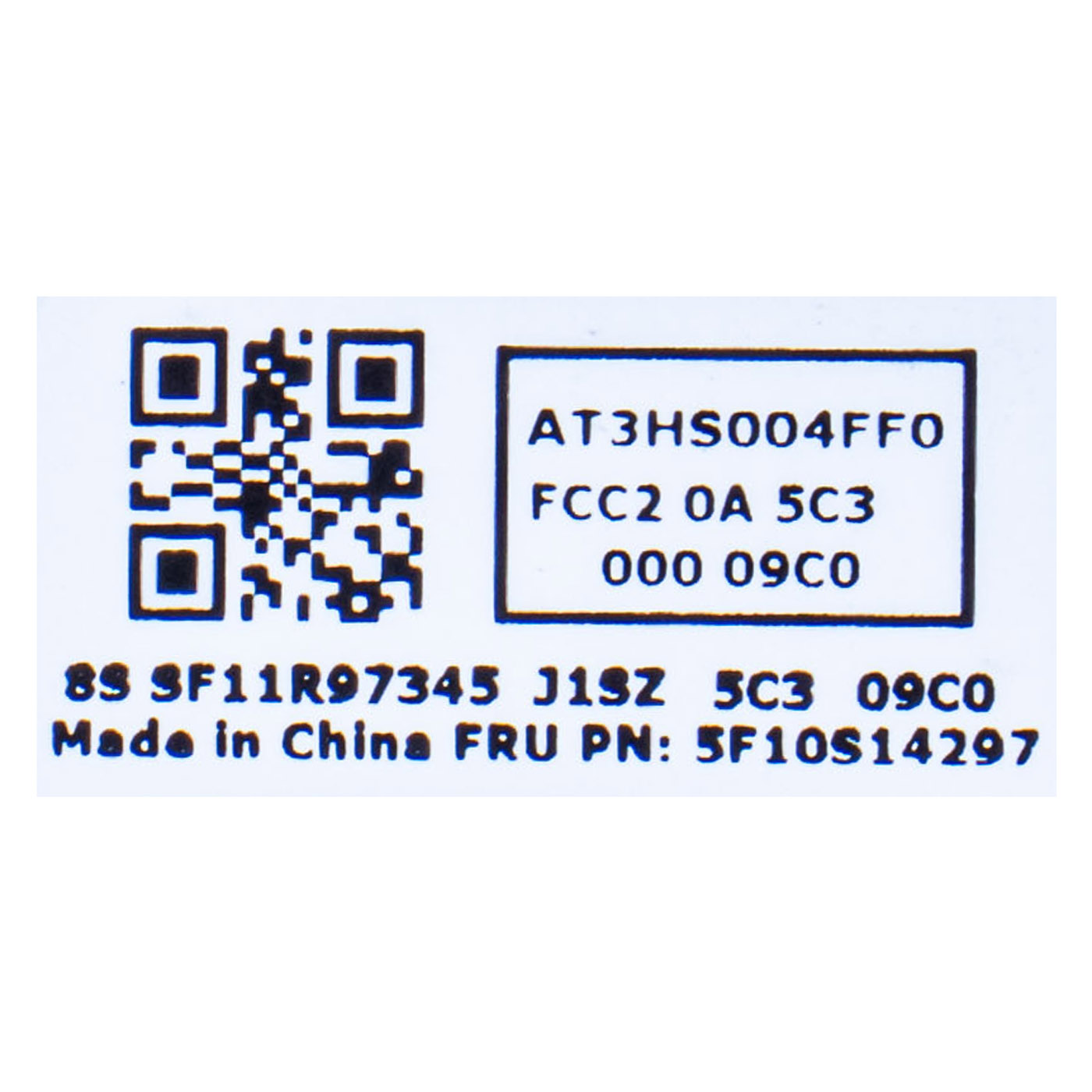

Module label markings: AT3HS004FF0, 8S SF11R97345, FRU PN: 5F10S14297

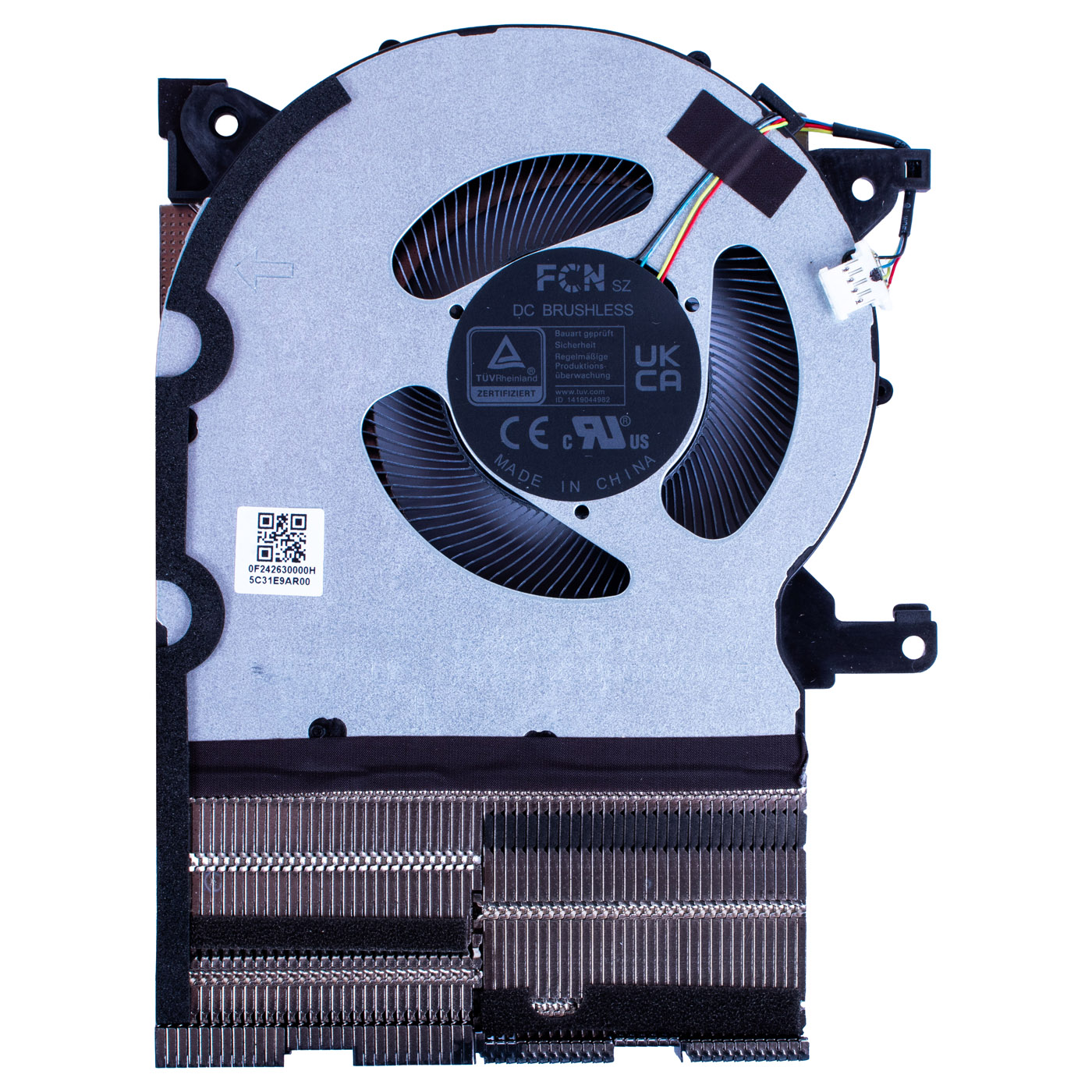

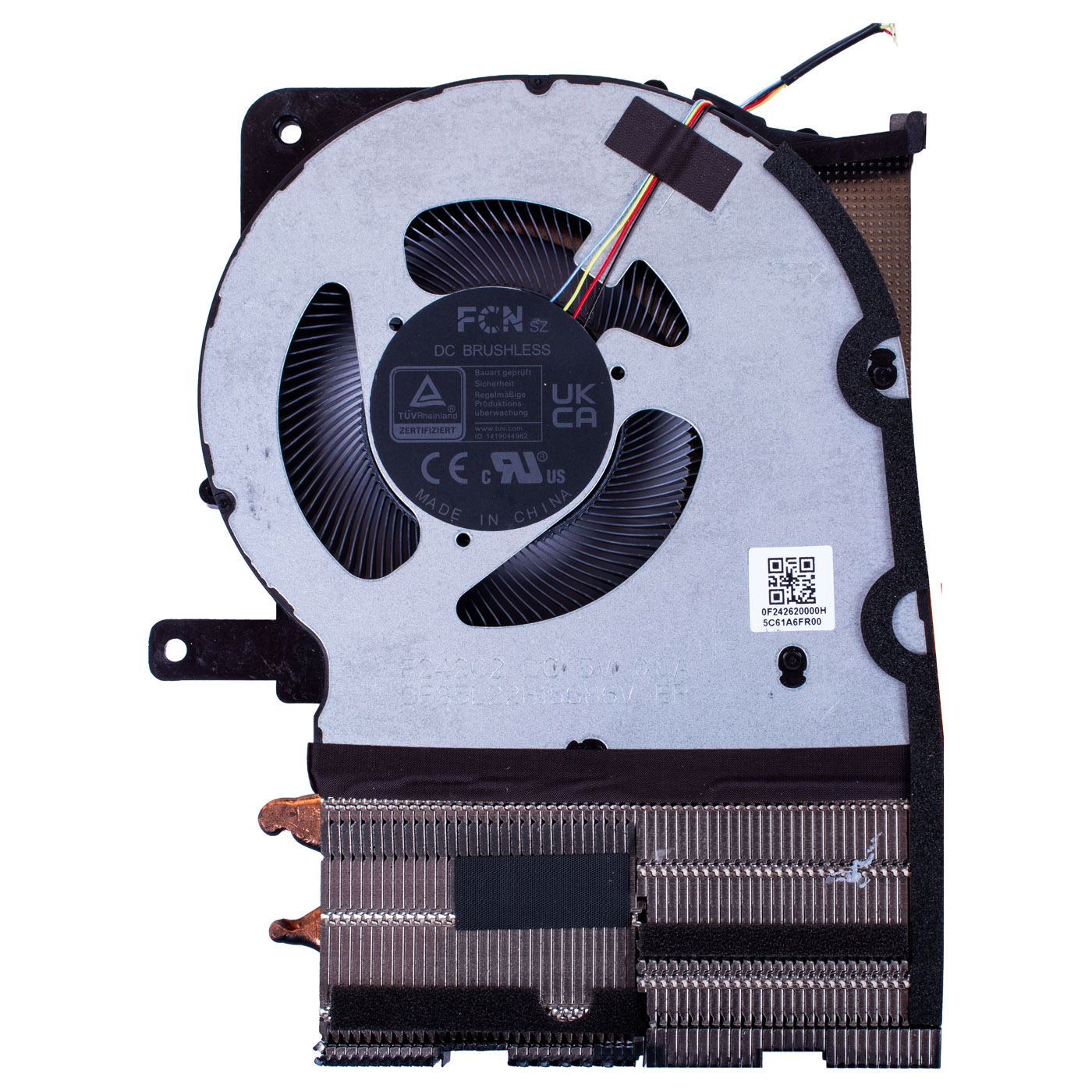

Fan label markings: 0F242630000H / 5C31E9AR00, 0F242620000H / 5C61A6FR00
Condition: New
Warranty: 12 months
FRU: 5F10S14297
Substitute numbers: 5F10S14295, SF11R97345, SF11R97343, AT3HS004FF0

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - fits the mounting points and fan connectors with no modification
🔹 Complete set: two fans with heatsink - one replacement solves both CPU and GPU cooling, no need to hunt for separate parts
🔹 Factory-applied thermal pads - ready to install, no need to buy and cut pads for VRAM and power delivery
🔹 Gaming performance - effective cooling lets the Intel Core HX processor and GeForce RTX graphics hold high clocks for the whole session instead of slowing down after a few minutes
🔹 Full compatibility - matched to the Legion 5 15IRX10 under FRU 5F10S14297

🔢 PART NUMBERS

FRU: 5F10S14297
Substitute numbers: 5F10S14295, SF11R97345, SF11R97343, AT3HS004FF0
Laptop model: Lenovo Legion 5 15IRX10 (83LY)

❓ WHEN SHOULD YOU REPLACE THE COOLING ASSEMBLY?

• Loud fans spinning at high speed even under light load
• Overheating: frame rates drop in games and CPU/GPU temperatures quickly hit the limit
• A faulty fan: rattling, grinding or an impeller that does not spin at all
• A clogged or corroded heatsink causing weak, hot airflow from the vents
• The laptop shuts down under heavy load due to overheating

🔧 INSTALLATION

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws securing the base cover and carefully take it off
3. Disconnect the battery from the system board
4. Unplug both fan connectors from the system board
5. Loosen the thermal module screws in reverse order of the numbers next to them and remove the old module
6. Thoroughly clean the old thermal paste from the CPU and GPU and apply fresh paste
7. Fit the new module and tighten the screws in numbered order, evenly and without excessive force
8. Reconnect the fan connectors and the battery, refit the base cover
9. Power on and check temperatures and fan operation under load
Installation by a service technician or an experienced person is recommended.

🎯 APPLICATION

This cooling assembly is intended for Lenovo Legion 5 15IRX10 gaming laptops used for gaming, streaming, video editing and 3D graphics work. Replacing the complete module restores factory cooling performance for the CPU and GPU and quiet operation. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This cooling assembly has been carefully checked and matched to the Lenovo Legion 5 15IRX10. We guarantee full compatibility for FRU number 5F10S14297 and 100% functionality. In case of any compatibility issues, we offer a hassle-free return within 14 days.
