🔧 CPU/GPU Cooling Assembly for Lenovo ThinkPad P1 Gen 7 🔧

🖥️ ThinkPad P1 Gen 7 | Fans + Heatsink | discrete graphics version | 5H41N50922

Complete, genuine processor and graphics cooling assembly designed for the Lenovo ThinkPad P1 Gen 7 (types 21KV, 21KW) with discrete graphics. Brand new part marked with FRU number 5H41N50922. FRU number 5H41N50922 guarantees full compatibility with the ThinkPad P1 Gen 7.

⚙️ PRODUCT OVERVIEW

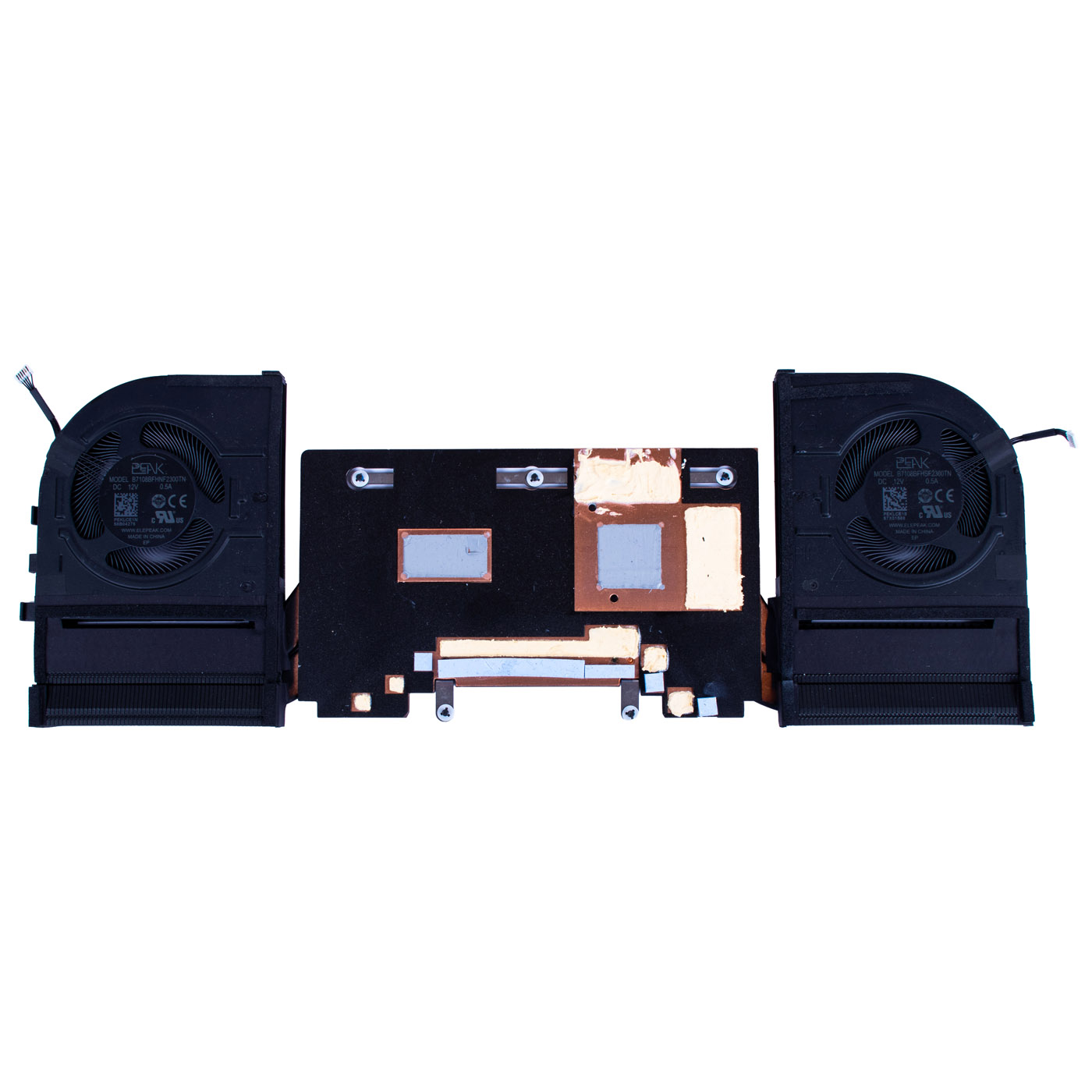

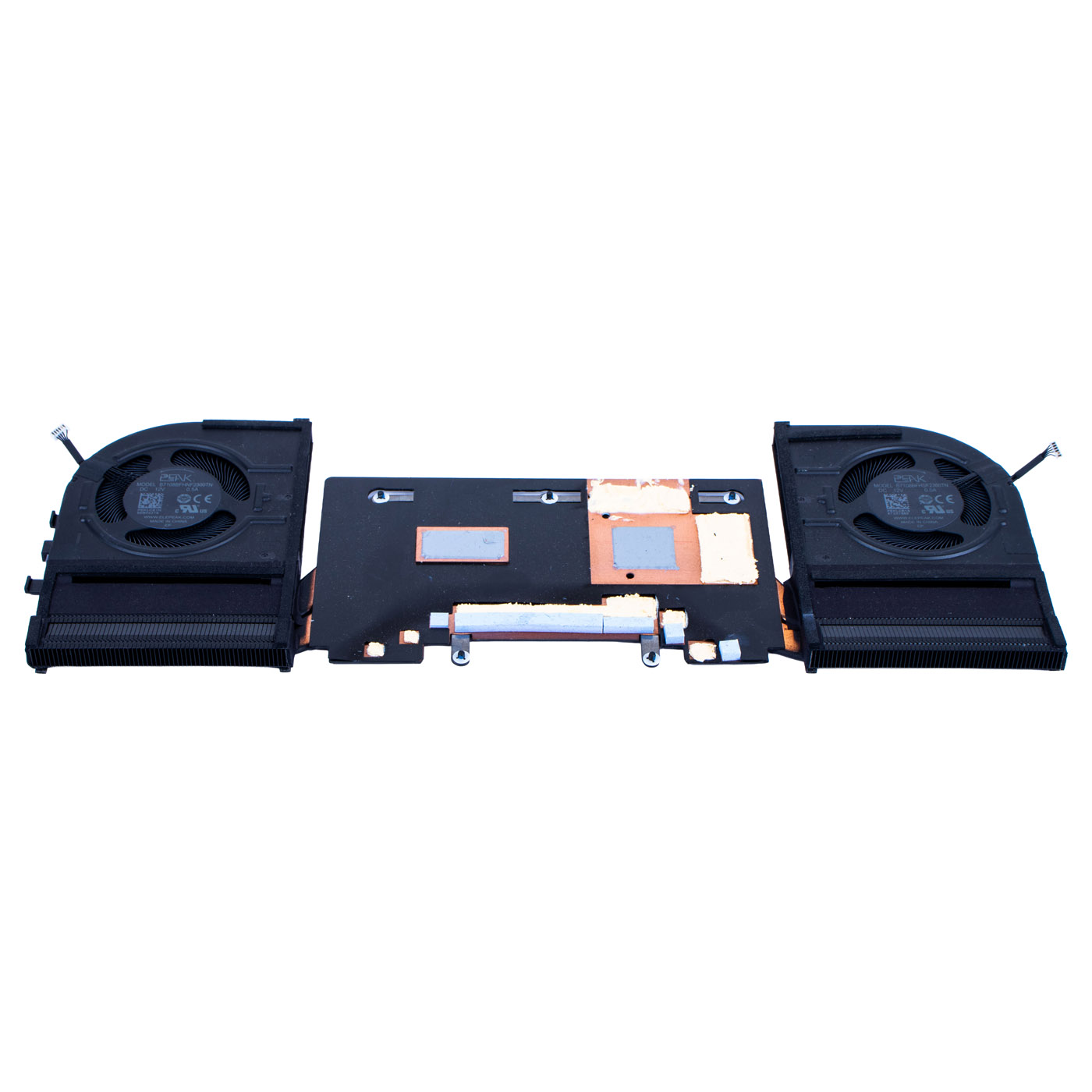

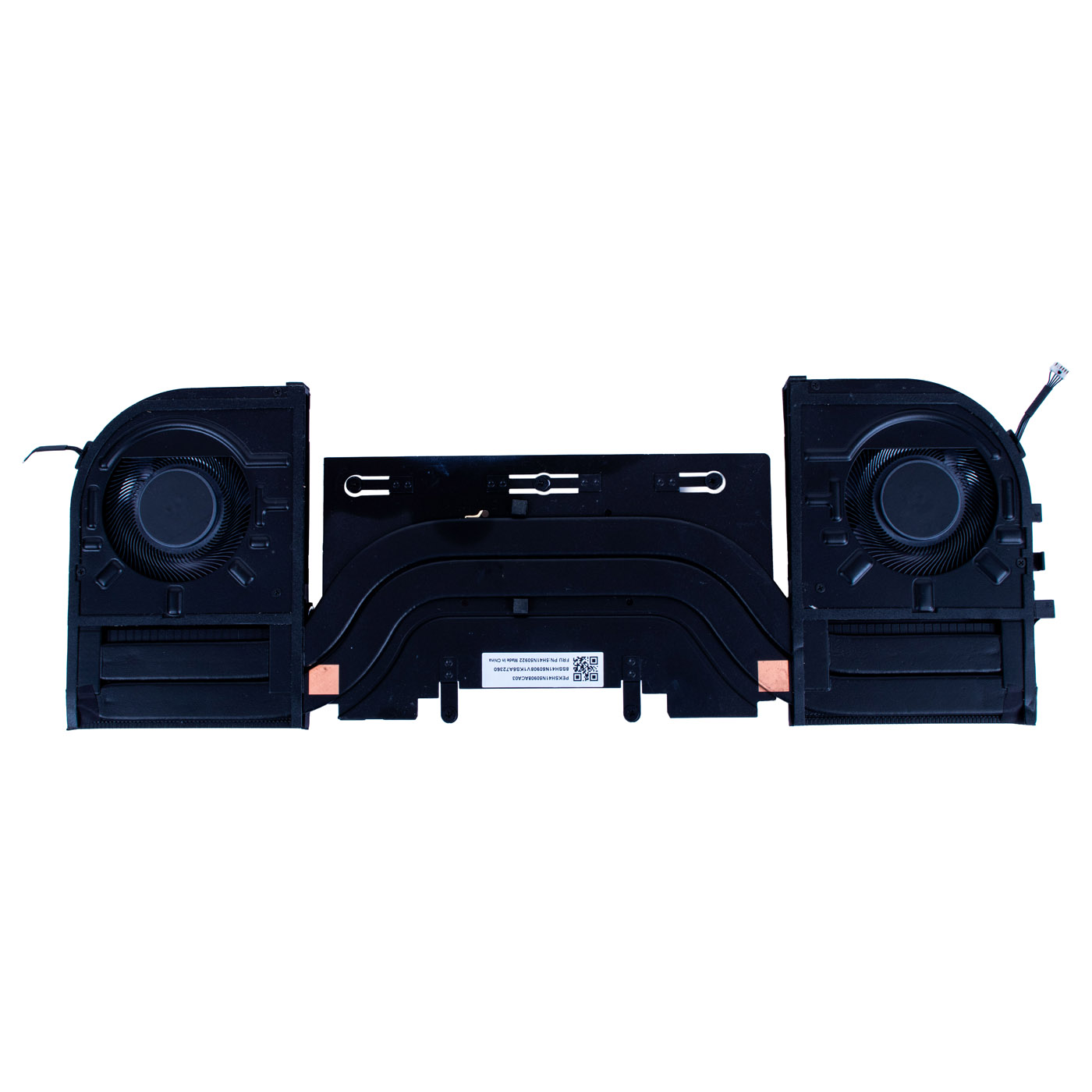

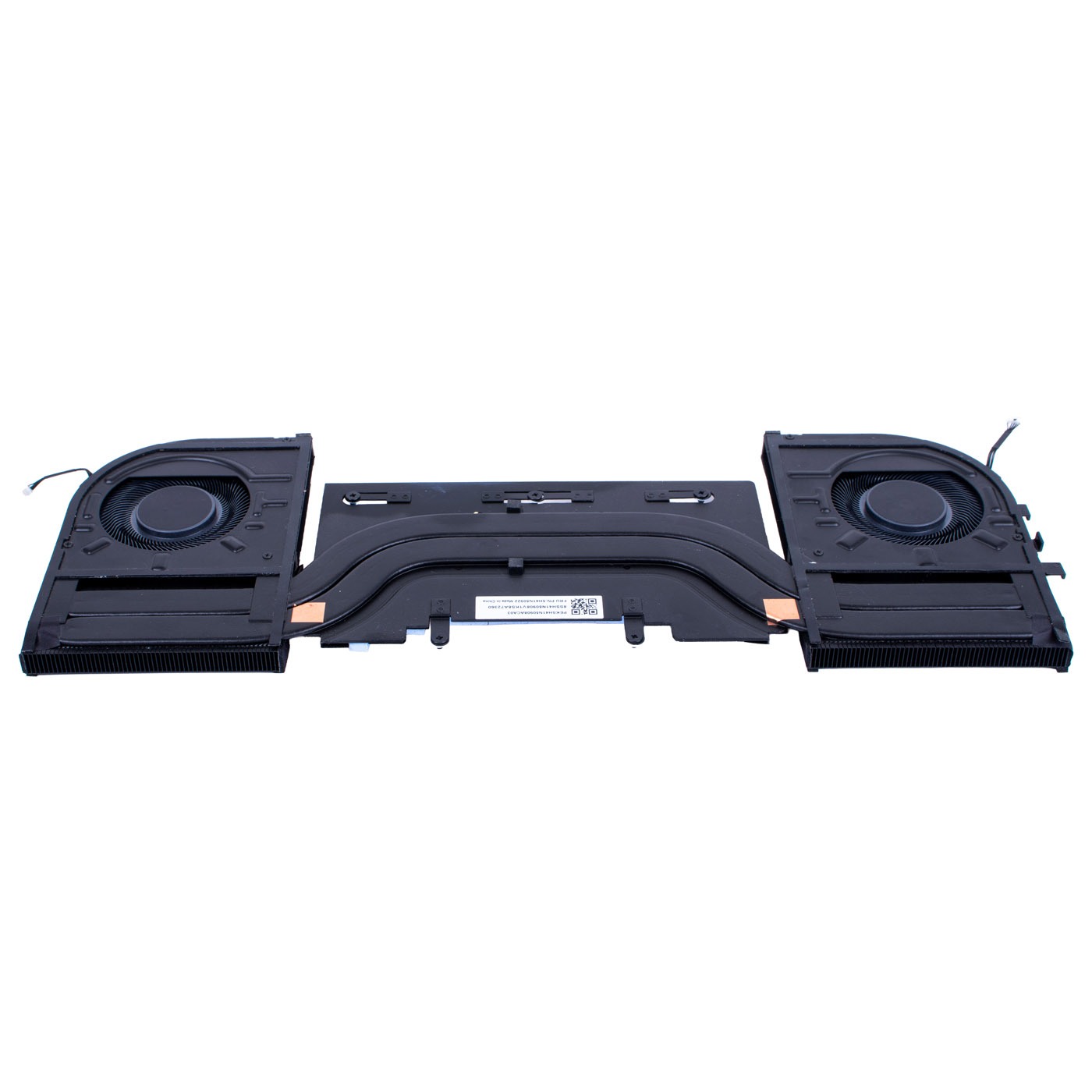

A complete thermal module with two ELEPEAK (PEAK) fans connected by a shared heatsink with copper heat pipes. Fan B7108BFHNF2300TN cools the processor side and B7108BFHSF2300TN cools the graphics side. The copper GPU contact plate and the VRAM and power delivery contact points are fitted with thermal pads. The fans are rated DC 12V 0.5A.

📋 TECHNICAL SPECIFICATIONS

Part name: Cooling assembly (fans + heatsink)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P1 Gen 7 (types 21KV, 21KW), discrete graphics version
Screen size: 16"
Number of fans: 2 (CPU + GPU)
Fan manufacturer: ELEPEAK (PEAK)

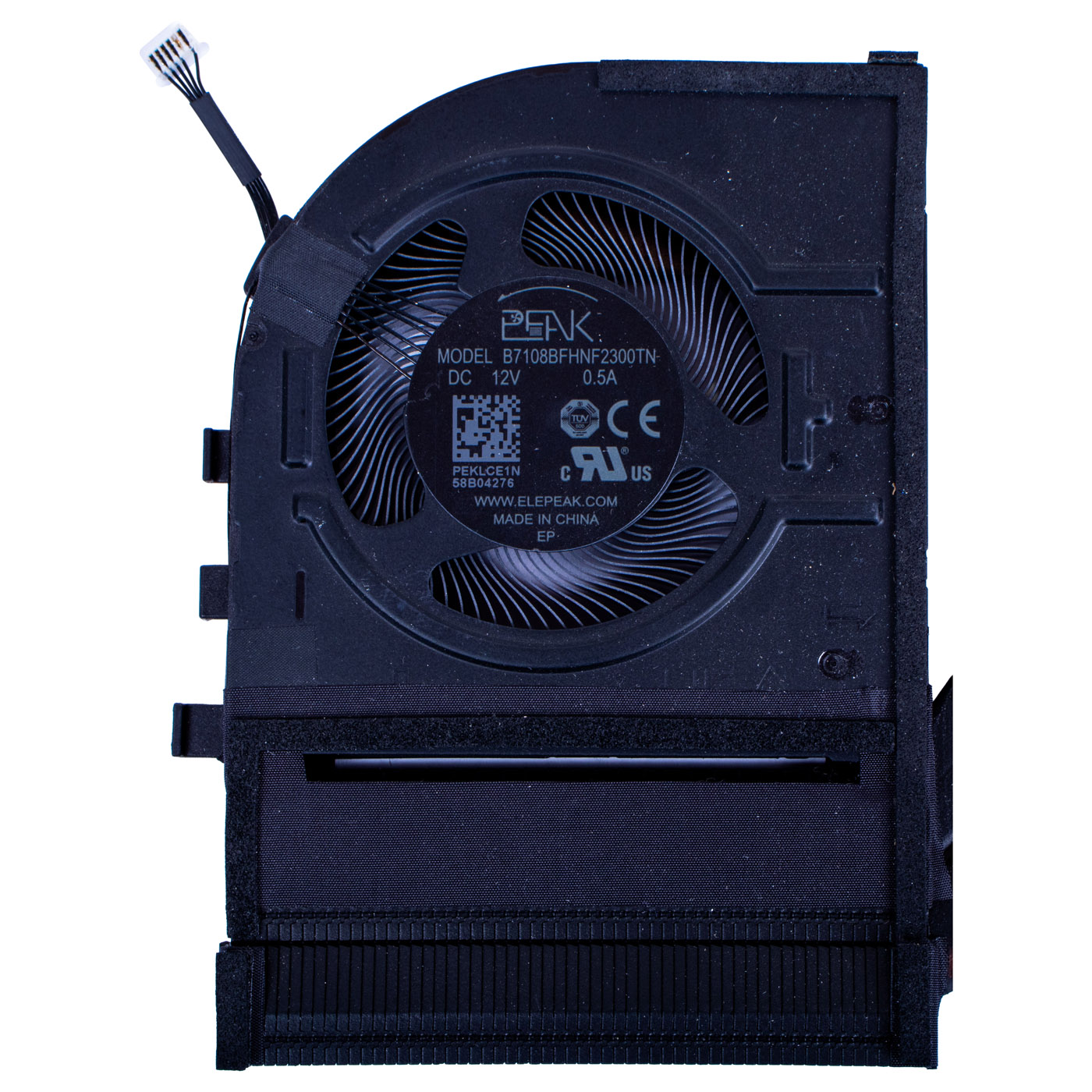

CPU fan: B7108BFHNF2300TN (PEKLCE1N)

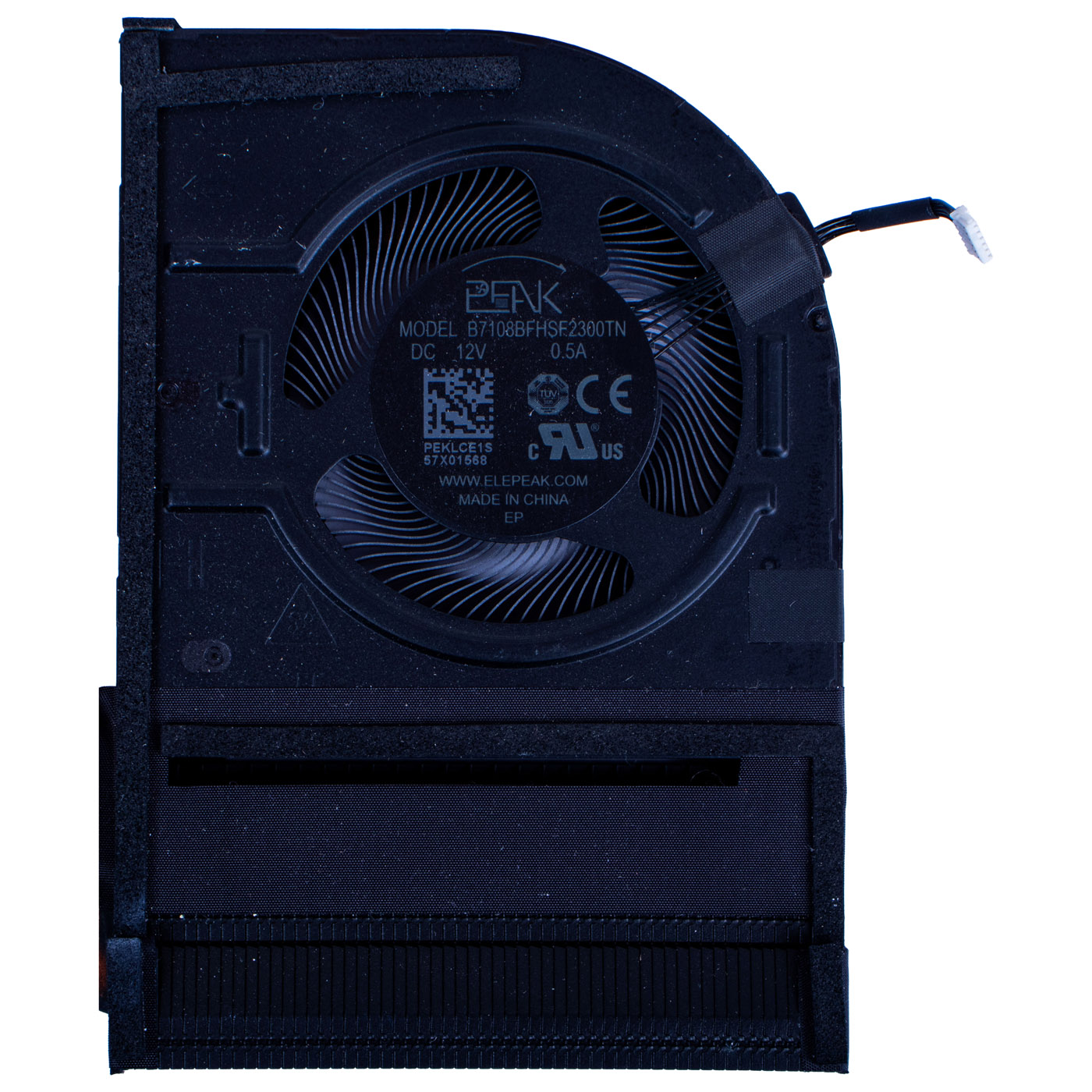

GPU fan: B7108BFHSF2300TN (PEKLCE1S)
Fan power: DC 12V, 0.5A

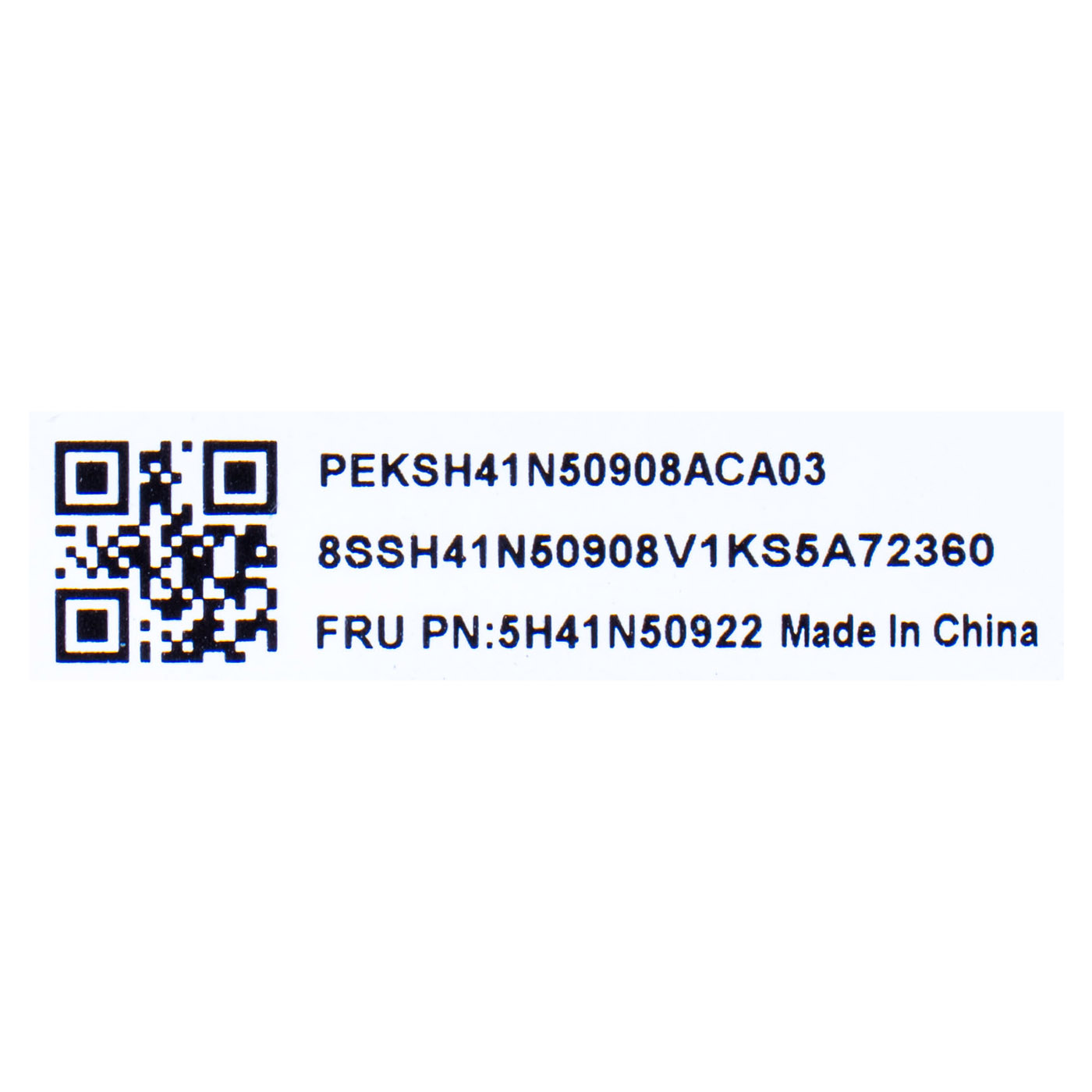

Module label markings: PEKSH41N50908ACA03, FRU PN: 5H41N50922
Condition: New
Warranty: 12 months
FRU: 5H41N50922
Substitute numbers: 5H41N50921, 5H41N50923

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - fits the mounting points and fan connectors with no modification
🔹 Complete set: two fans with heatsink - one replacement solves both CPU and GPU cooling, no need to hunt for separate parts
🔹 Thermal pads in place - VRAM and power delivery are covered straight away, no need to cut your own pads
🔹 Workstation performance - effective cooling lets the CPU and GPU hold their clocks during rendering and CAD instead of slowing down after a few minutes
🔹 Full compatibility - matched to the ThinkPad P1 Gen 7 under FRU 5H41N50922

🔢 PART NUMBERS

FRU: 5H41N50922
Substitute numbers: 5H41N50921, 5H41N50923
Fans: B7108BFHNF2300TN (CPU), B7108BFHSF2300TN (GPU)
Laptop model: Lenovo ThinkPad P1 Gen 7 (21KV, 21KW)

❓ WHEN SHOULD YOU REPLACE THE COOLING ASSEMBLY?

• Loud fans spinning at high speed even under light load
• Overheating: the laptop slows down during rendering and CPU/GPU temperatures quickly hit the limit
• A faulty fan: rattling, grinding or an impeller that does not spin at all
• A Fan error message at startup
• The laptop shuts down under heavy load due to overheating

🔧 INSTALLATION

1. Turn off the laptop and disconnect the power adapter and all external devices
2. Remove the screws securing the base cover and carefully take it off
3. Disconnect the battery from the system board
4. Unplug both fan connectors from the system board
5. Loosen the thermal module screws and carefully remove the old module
6. Thoroughly clean the old thermal interface material from the CPU and GPU and apply new material according to Lenovo guidelines
7. Fit the new module and tighten the screws evenly, without excessive force
8. Reconnect the fan connectors and the battery, refit the base cover
9. Power on and check temperatures and fan operation under load
Installation by a service technician or an experienced person is recommended.

🎯 APPLICATION

This cooling assembly is intended for Lenovo ThinkPad P1 Gen 7 mobile workstations with discrete graphics, used for CAD, rendering, video editing and GPU computing. Replacing the complete module restores factory cooling performance and quiet operation. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This cooling assembly has been carefully checked and matched to the Lenovo ThinkPad P1 Gen 7. We guarantee full compatibility for FRU number 5H41N50922 and 100% functionality. In case of any compatibility issues, we offer a hassle-free return within 14 days.
