🔧 LCD Assembly WUXGA Touch with IR Camera for Lenovo ThinkPad X1 Carbon Gen 9 🔧

🖥️ X1 Carbon Gen 9 | 14" WUXGA Touch IPS Anti-Glare 400 nit | HD + IR Camera | 5M11C53215

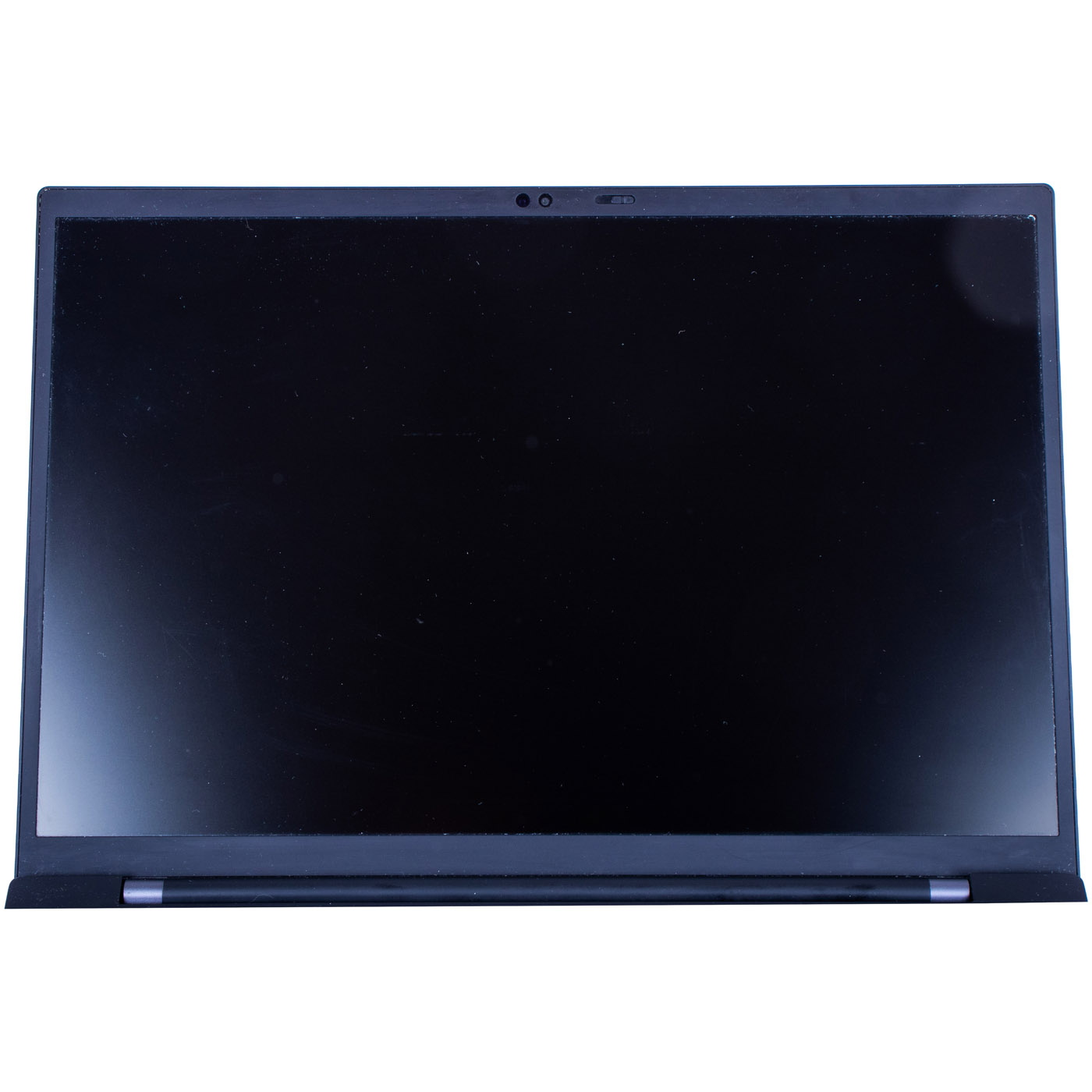

Complete Lenovo LCD assembly dedicated to the Lenovo ThinkPad X1 Carbon Gen 9 (20XW/20XX). The set includes the WUXGA touch panel, LCD back cover with LCD bezel sheet and inner frame, HD camera with IR module, hinges, cables and antennas. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5M11C53215 guarantees full compatibility with the X1 Carbon Gen 9.

⚙️ PRODUCT CHARACTERISTICS

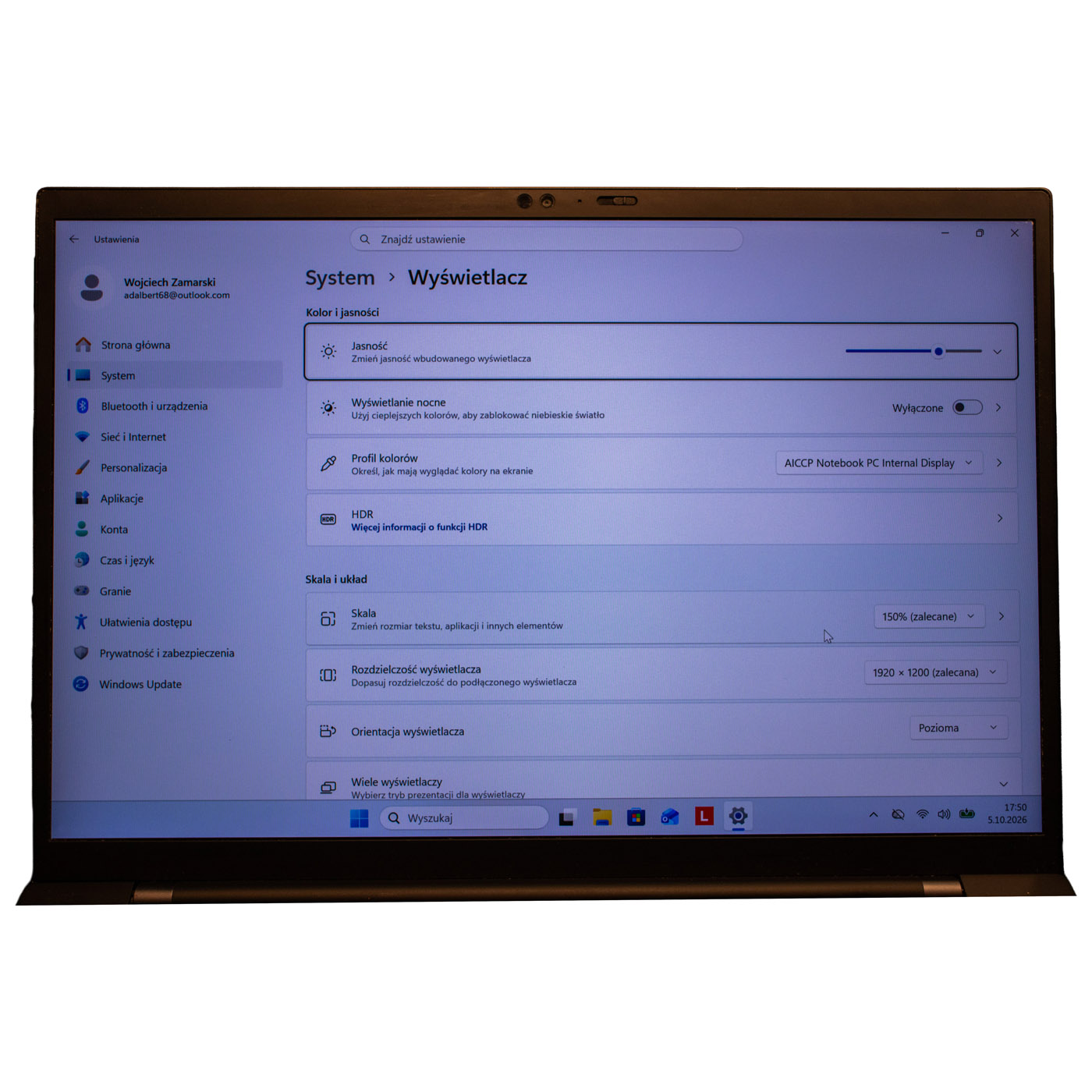

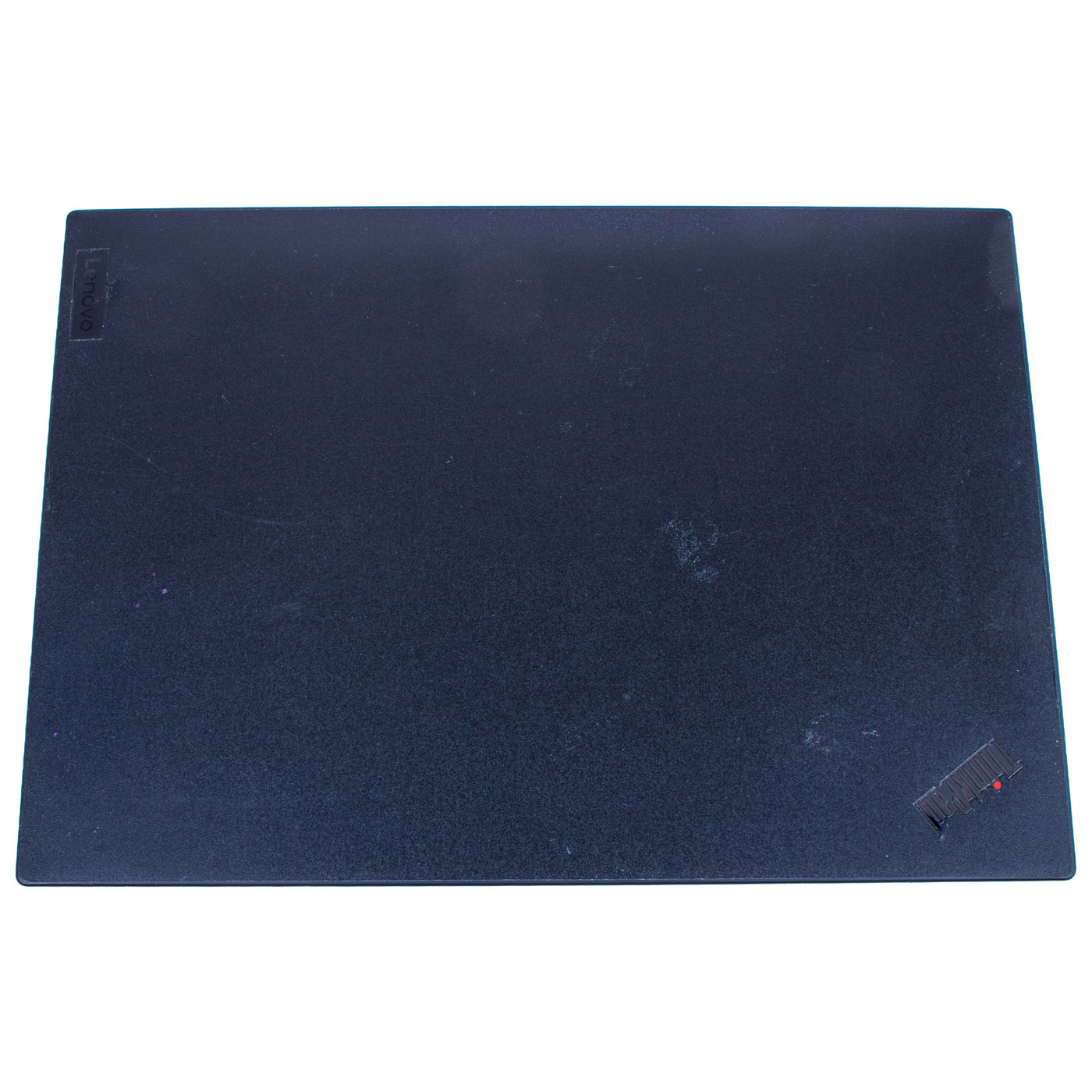

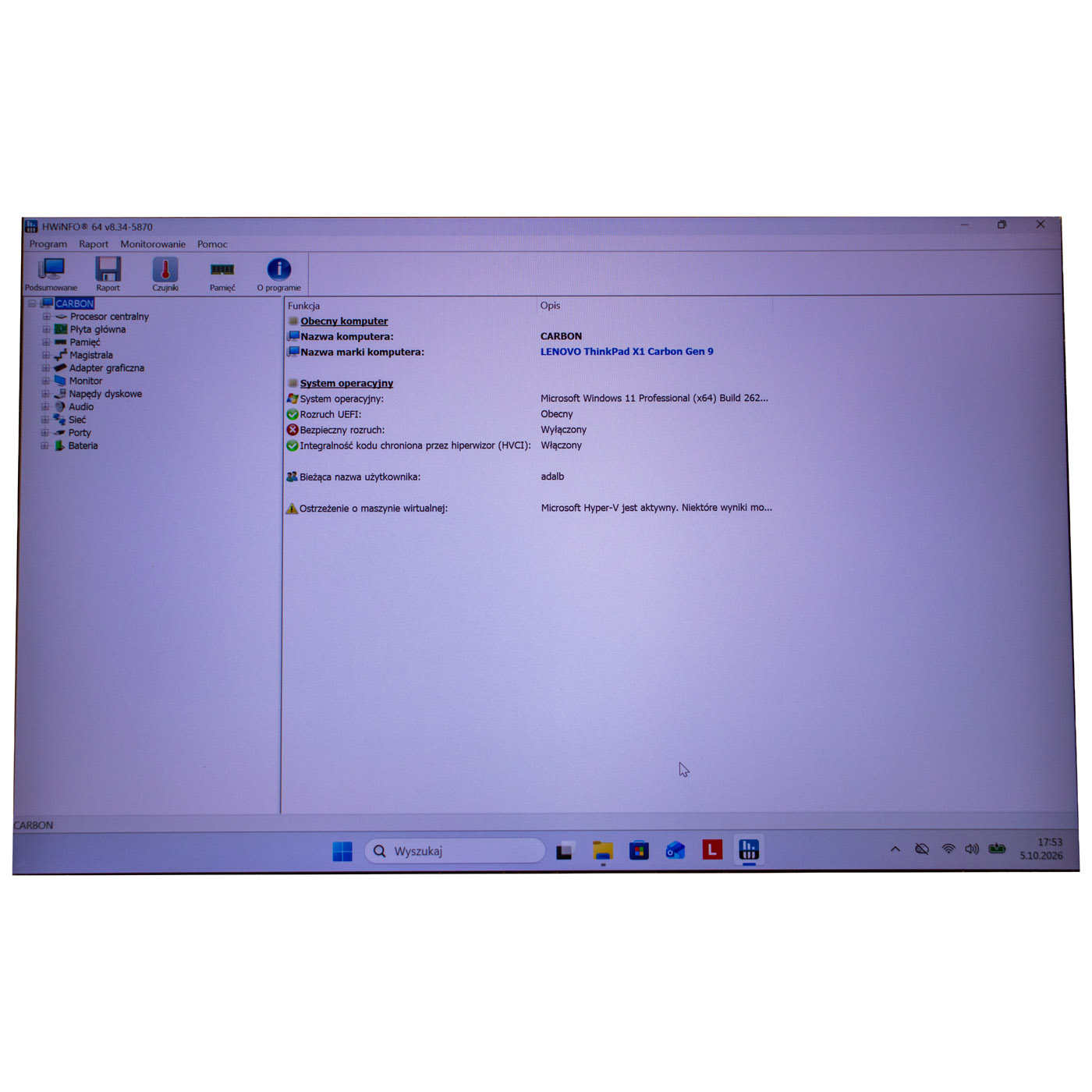

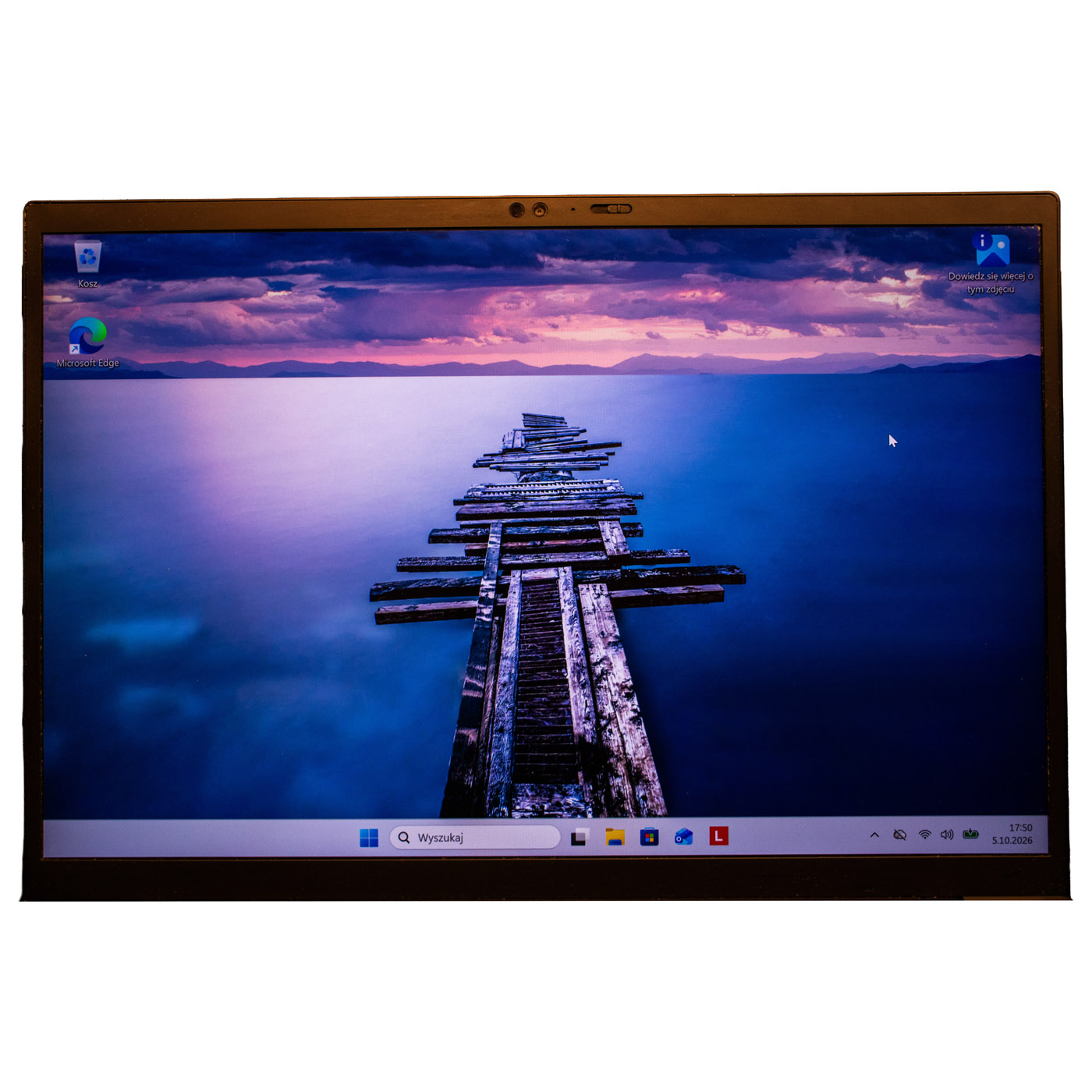

The assembly features a 14-inch IPS WUXGA (1920x1200) touch panel with a matte Anti-Glare finish and 400 nit brightness (panel R140NW4D R0). The HD camera with an additional IR module supports Windows Hello face login, and the ThinkShutter mechanical privacy cover lets you block the lens with one slide. The panel is in very good condition, as shown in the photos taken during testing on a working laptop. The lid shows signs of use, visible in the photos.

📋 TECHNICAL DATA

Part name: Complete LCD assembly (LCD Module)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad X1 Carbon Gen 9 (20XW, 20XX)
Screen size: 14"
Resolution: WUXGA (1920x1200), IPS, Anti-Glare, 400 nit
Touch: Yes

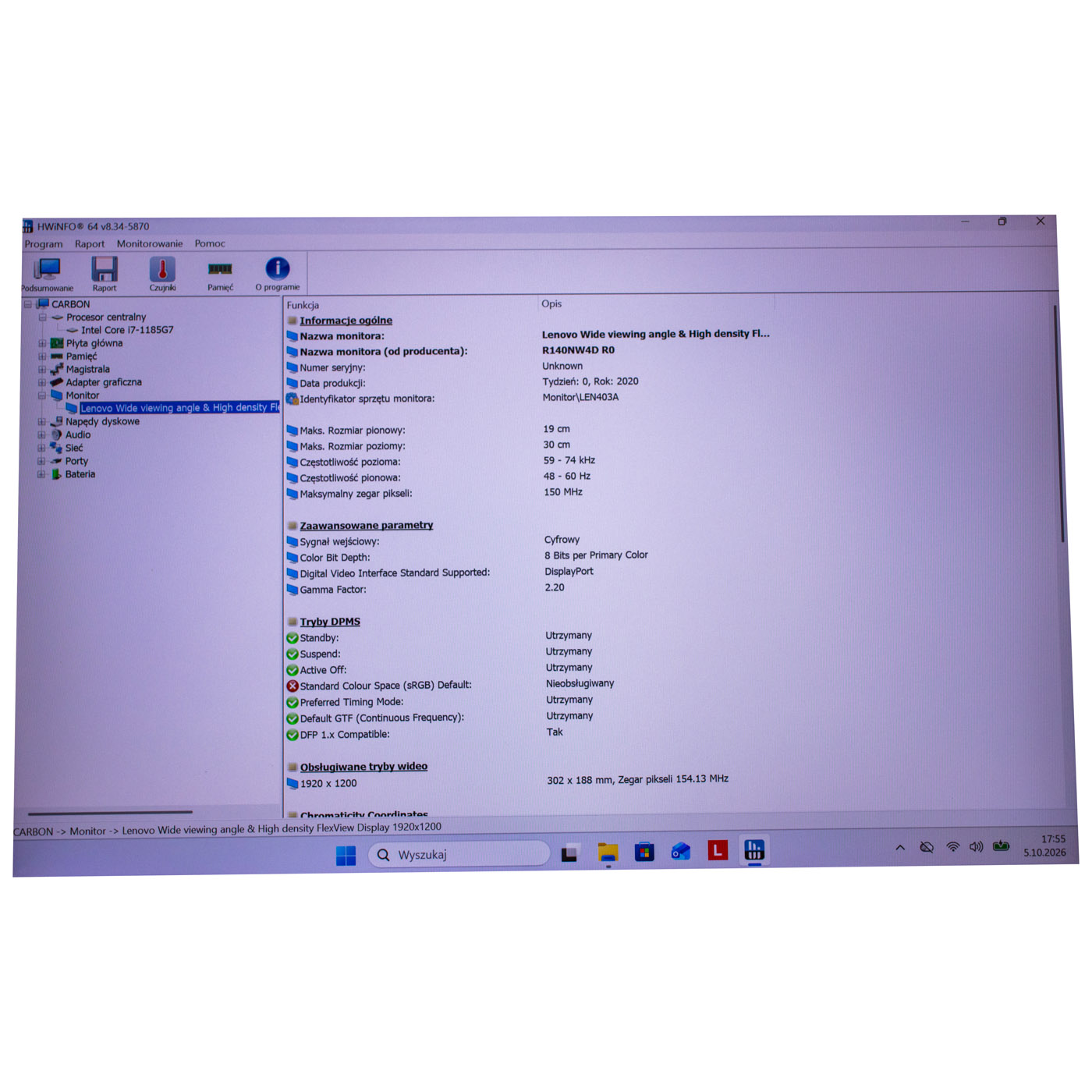

Panel: R140NW4D R0

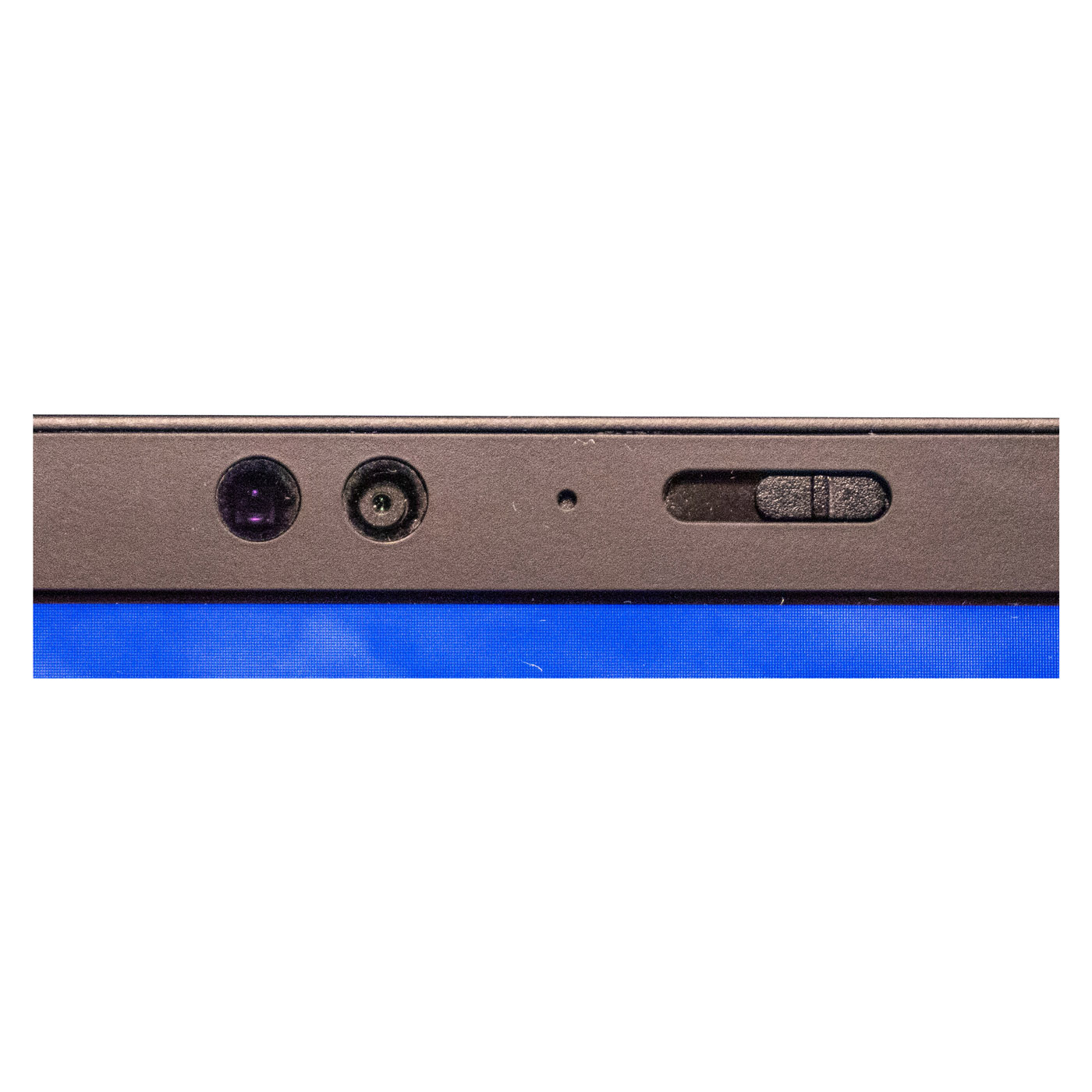

Camera: HD + IR (Windows Hello), ThinkShutter privacy cover
Colour: Black
Included in the set: touch panel, LCD back cover, LCD bezel sheet and inner frame, IR camera, hinges, cables, antennas
Condition: Used (tested)
Warranty: 6 months
FRU: 5M11C53215
Substitute FRU: 5M11C53216, 5M11F52313, 5M11U14069, 5M11U14212, SBB0Z70631, SM10Y98216

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - guarantees a perfect fit and reliability
🔹 Complete assembly - panel, cover, bezel, camera, hinges, cables and antennas in one, so you swap the whole lid without taking the display apart
🔹 WUXGA touch screen - the 16:10 format gives more vertical space for documents and spreadsheets, and touch makes scrolling and selecting easier
🔹 IR camera with Windows Hello - sign in with your face instead of typing a password every time
🔹 ThinkShutter privacy cover - block the lens with one slide when you do not need the camera
🔹 Full compatibility - matched to the X1 Carbon Gen 9 under FRU 5M11C53215

🔢 PART NUMBERS

FRU: 5M11C53215
Substitute FRU: 5M11C53216, 5M11F52313, 5M11U14069, 5M11U14212, SBB0Z70631, SM10Y98216
Laptop model: Lenovo ThinkPad X1 Carbon Gen 9 (20XW, 20XX)

❓ WHEN SHOULD YOU REPLACE THE LCD ASSEMBLY?

• Problem with a cracked screen - spider-web cracks, blotches or lines on the image after a drop or pinch
• Problem with an unresponsive touch screen - it ignores your finger or registers random "ghost" taps
• Problem with a damaged lid or hinges - the screen wobbles, drops or creaks when opening
• Problem with the camera or face login - Windows Hello does not recognise your face or the camera is not detected
• Problem with several faults at once - when replacing the whole lid is cheaper and faster than buying the panel, cover and hinges separately

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Disconnect the display cable, camera cable and antenna cables from the motherboard
5. Remove the hinge screws and take off the old LCD assembly
6. Fit the new assembly, tighten the hinges and reconnect the cables and antennas
7. Reconnect the battery, refit the bottom cover, power on and check the image, touch, camera and Windows Hello
Replacement by a service technician or an experienced person is recommended.

🎯 INTENDED USE

This LCD assembly is intended for owners and repair shops servicing the Lenovo ThinkPad X1 Carbon Gen 9 with a touch screen. It restores a working display, Windows Hello camera and hinges in one step, without sourcing parts separately. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The LCD assembly we offer has been carefully checked and matched to the Lenovo ThinkPad X1 Carbon Gen 9. We guarantee full compliance with FRU number 5M11C53215 and 100% functionality. This product comes with a 6-month warranty. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
