🔧 CPU Cooling Fan for Lenovo ThinkPad P1 Gen 6 🔧

🖥️ ThinkPad P1 Gen 6 | CPU Fan | BN7508S2H-000P

Genuine processor (CPU) cooling fan designed for the Lenovo ThinkPad P1 Gen 6 (types 21FV, 21FW). Brand new part marked on the label with model code BN7508S2H-000P, fitting Lenovo thermal modules with FRU numbers 5H41K97263, 5H41K97264 and 5H41K97265. The label code lets you easily confirm it matches the fan installed in your laptop.

⚙️ PRODUCT OVERVIEW

The fan drives airflow through the heatsink fins on the processor side and removes heat generated by the CPU. The ThinkPad P1 Gen 6 thermal module uses two fans with different housings, and this unit is the processor-side fan. Power rating DC 12V 0.60A, cable terminated with a connector. Lenovo does not assign a separate FRU number to the fan alone, so the label model code is the primary identifier and the thermal module FRU numbers are given for reference. The fan fits only thermal modules 5H41K97263, 5H41K97264 and 5H41K97265, not other thermal modules.

📋 TECHNICAL SPECIFICATIONS

Part name: CPU cooling fan
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P1 Gen 6 (types 21FV, 21FW)
Screen size: 16"

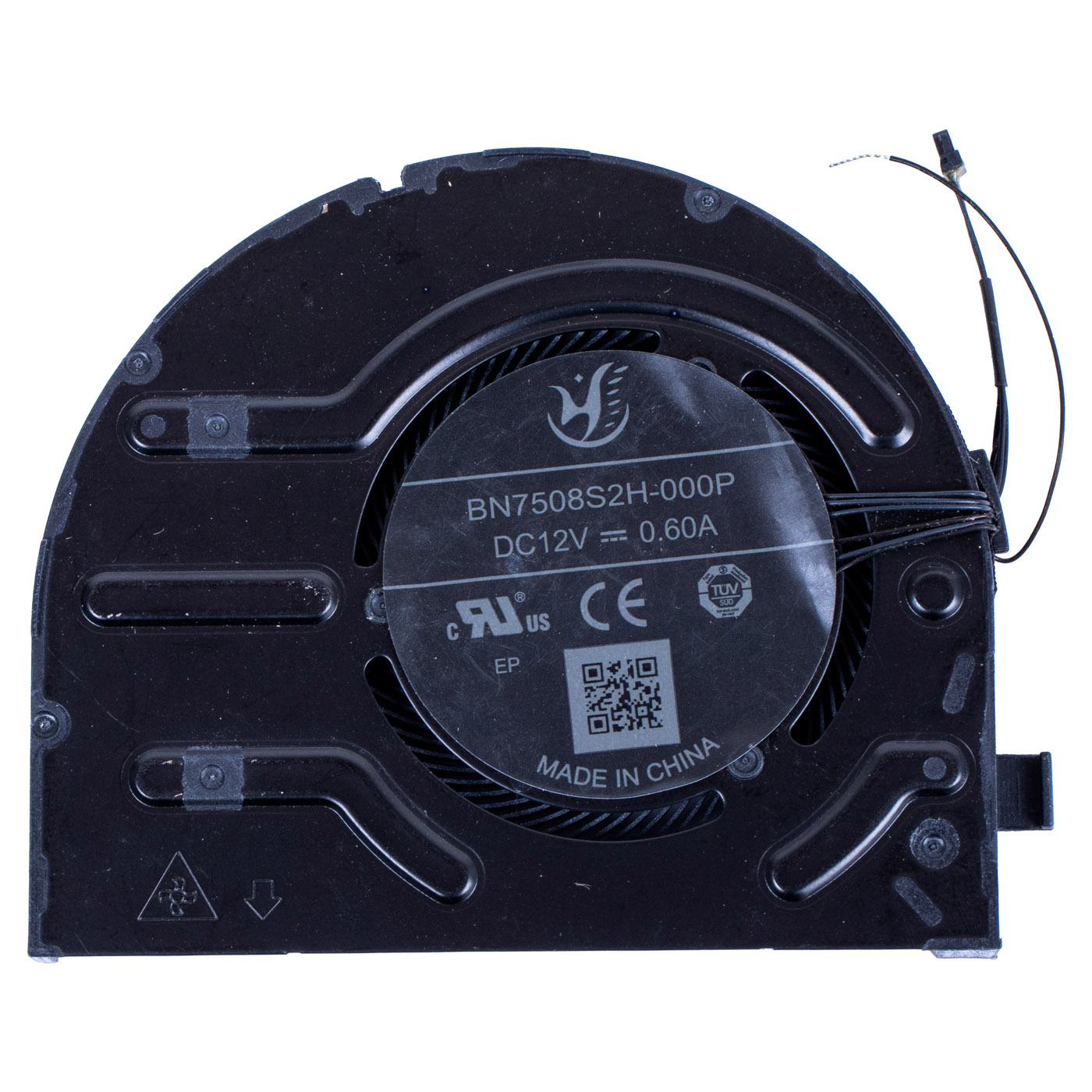

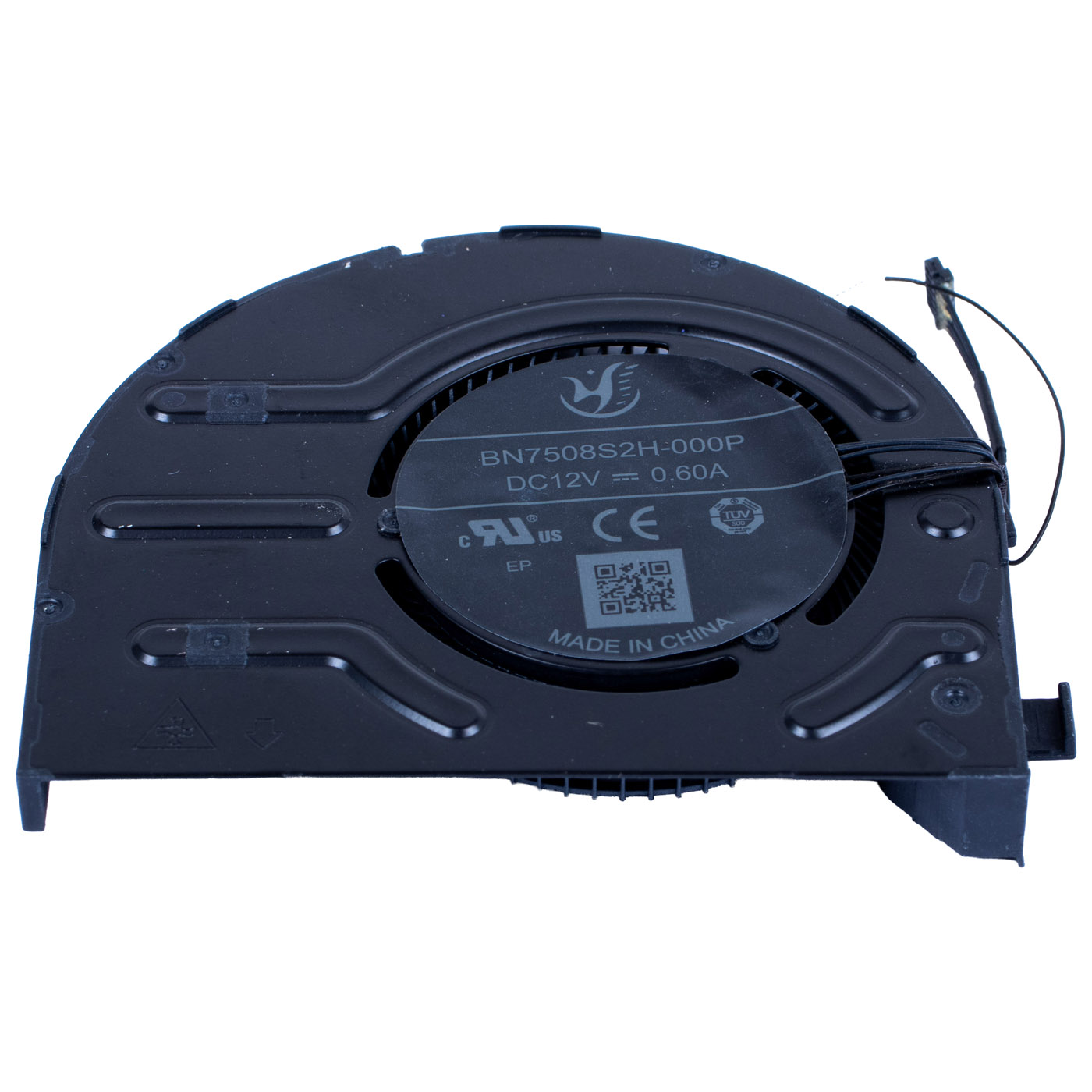

Label marking: BN7508S2H-000P
Power: DC 12V, 0.60A
Condition: New
Warranty: 12 months
Thermal module FRUs (for reference): 5H41K97263, 5H41K97264, 5H41K97265

🌟 KEY BENEFITS

🔹 Genuine fan from the Lenovo module - the model fitted at the factory in the ThinkPad P1 Gen 6 thermal module, so it fits without any modification
🔹 Processor-side cooling - restores full airflow over the CPU, so the processor holds its clocks during compiling, rendering or computing instead of slowing down from heat
🔹 Easy identification by label code - just compare BN7508S2H-000P with the label on the fan in your laptop, no need to look up the whole module FRU
🔹 Replace the fan only - when the fan gets noisy or stops spinning, there is no need to buy the complete thermal module with heatsink
⚠️ CPU-side fan - the ThinkPad P1 Gen 6 uses two different fans (different housings for CPU and GPU). Before ordering, compare the shape and label code with the fan in your laptop

🔢 PART NUMBERS

Label marking: BN7508S2H-000P
Thermal module FRUs (for reference): 5H41K97263, 5H41K97264, 5H41K97265
Laptop model: Lenovo ThinkPad P1 Gen 6 (21FV, 21FW)

❓ WHEN SHOULD YOU REPLACE THE CPU FAN?

• Problem with a loud whine or rattle from the fan even during normal office work
• Problem with high CPU temperature: the laptop slows down and the area above the keyboard gets very hot
• Problem with a dead fan: the rotor does not spin and a Fan error message appears at startup
• Problem with a damaged rotor or bearing: you hear rubbing or the fan spins unevenly
• Problem with the laptop shutting down under heavy load due to overheating

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect power and all external devices
2. Remove the screws securing the bottom cover and carefully take it off
3. Disconnect the battery from the motherboard
4. Unplug the fan connector from the motherboard
5. Remove the old fan from the thermal module: undo the mounting screws and peel off the sealing tape
6. Fit the new fan in the same position, screw it in and restore the tape seal
7. Route the cable the same way as the original and plug it into the motherboard
8. Reconnect the battery, refit the bottom cover, power on and check the fan under load
Replacement by a service technician or an experienced person is recommended.

🎯 INTENDED USE

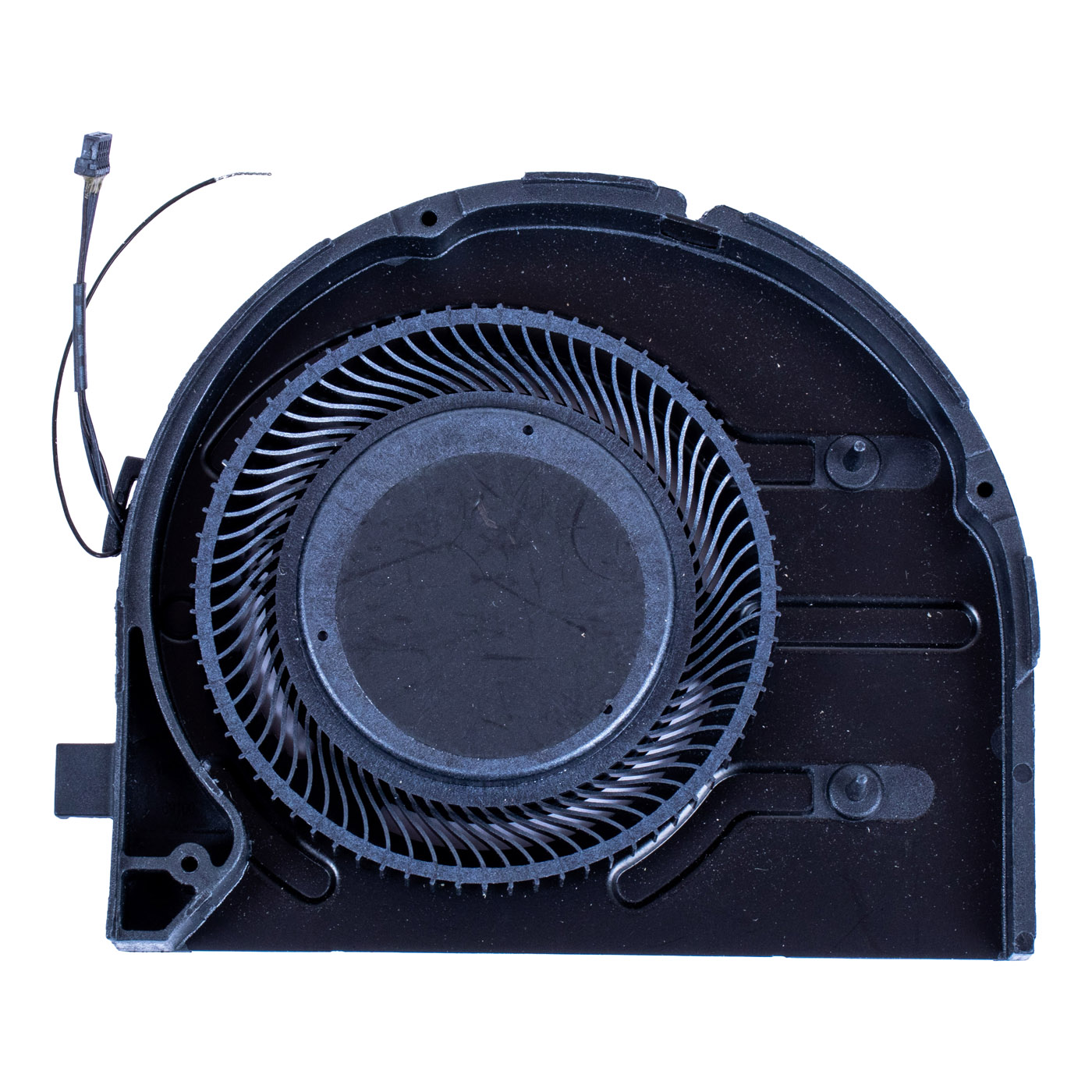

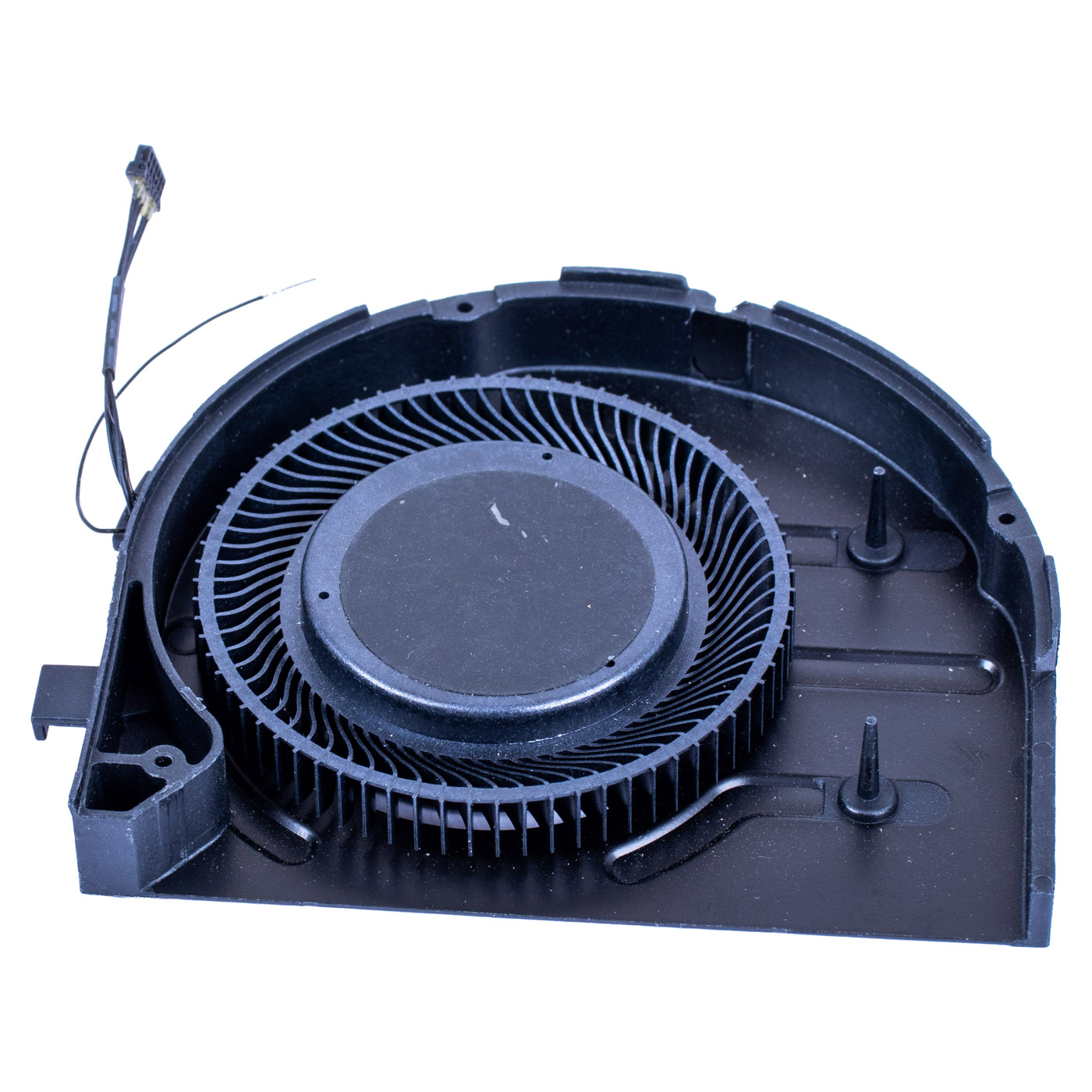

This fan is intended for Lenovo ThinkPad P1 Gen 6 mobile workstations used for CAD, rendering, video editing and engineering computing. Replacing it restores quiet operation and stable CPU temperatures without the cost of a complete thermal module. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The fan we offer has been carefully checked and matched to the Lenovo ThinkPad P1 Gen 6. We guarantee full compliance with the BN7508S2H-000P marking and 100% functionality. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
