🔧 HD 720p + IR Camera Module with Microphones for Lenovo ThinkPad P15 Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 / P17 Gen 1 / T15p / P15v / L14 / L15 | HD 720p + IR Camera 2MIC | 5C20W42992

Genuine HD 720p camera module with IR camera and dual microphones designed for the Lenovo ThinkPad P15 Gen 1. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5C20W42992 ensures full compatibility with the ThinkPad P15 Gen 1 and the other models listed by Lenovo.

⚙️ PRODUCT OVERVIEW

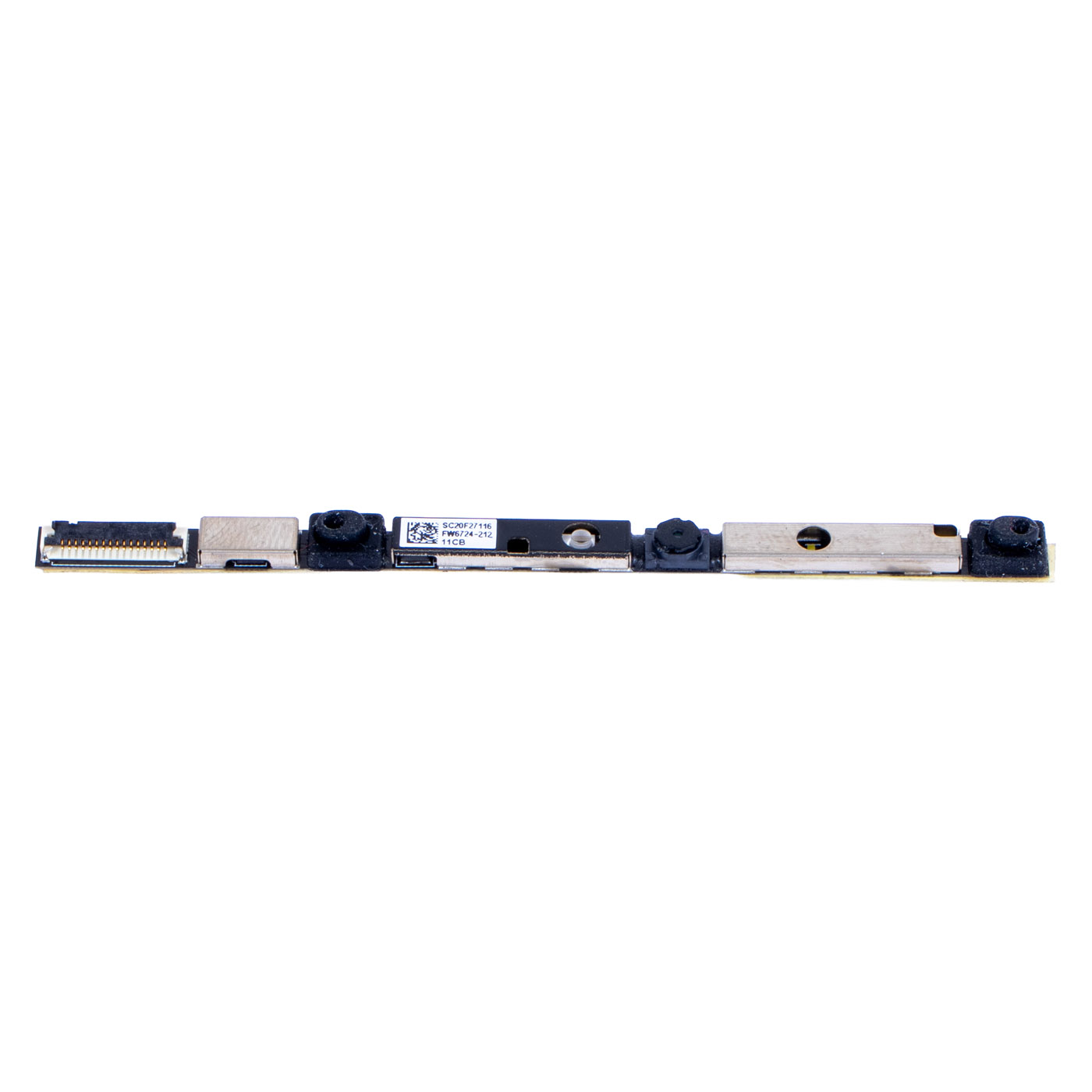

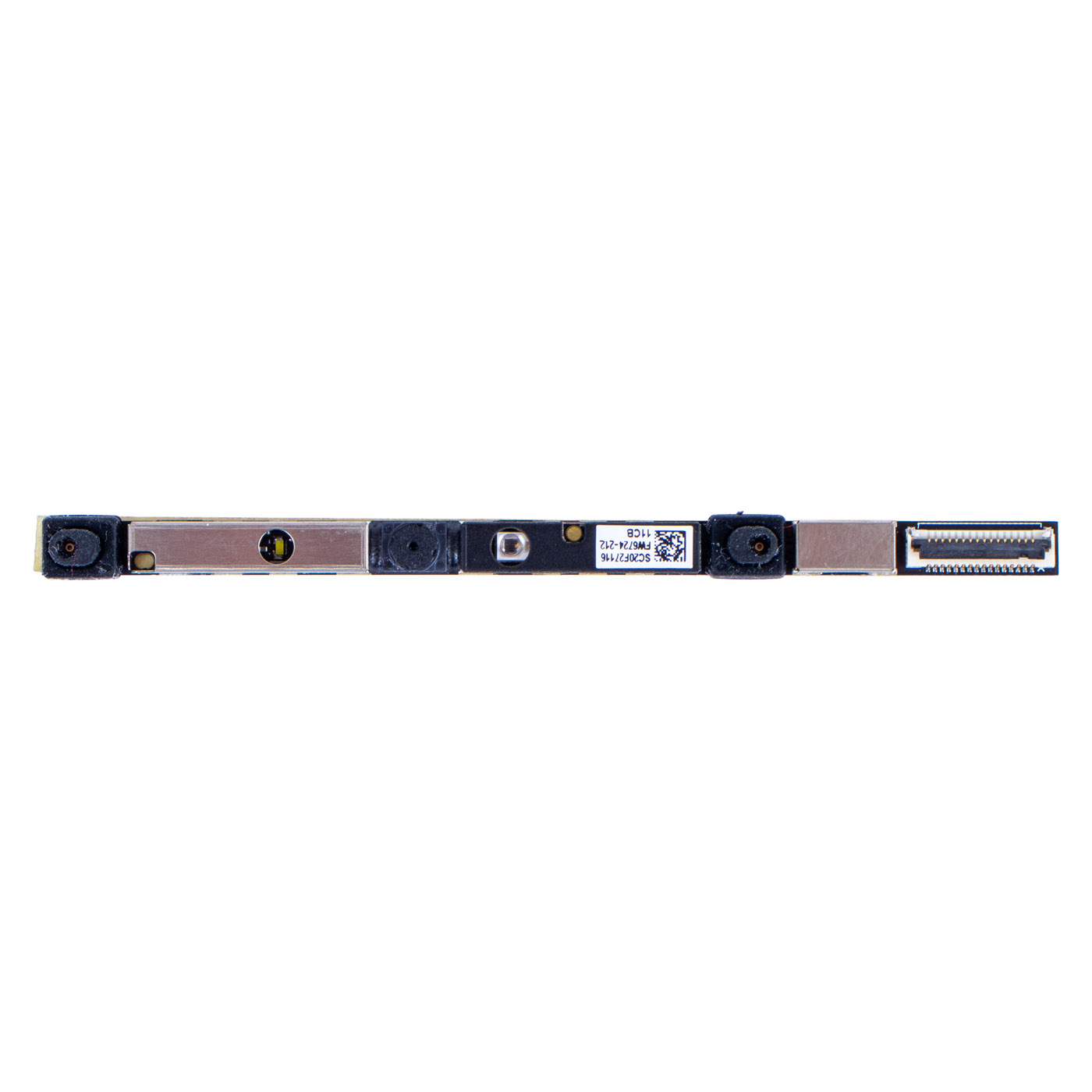

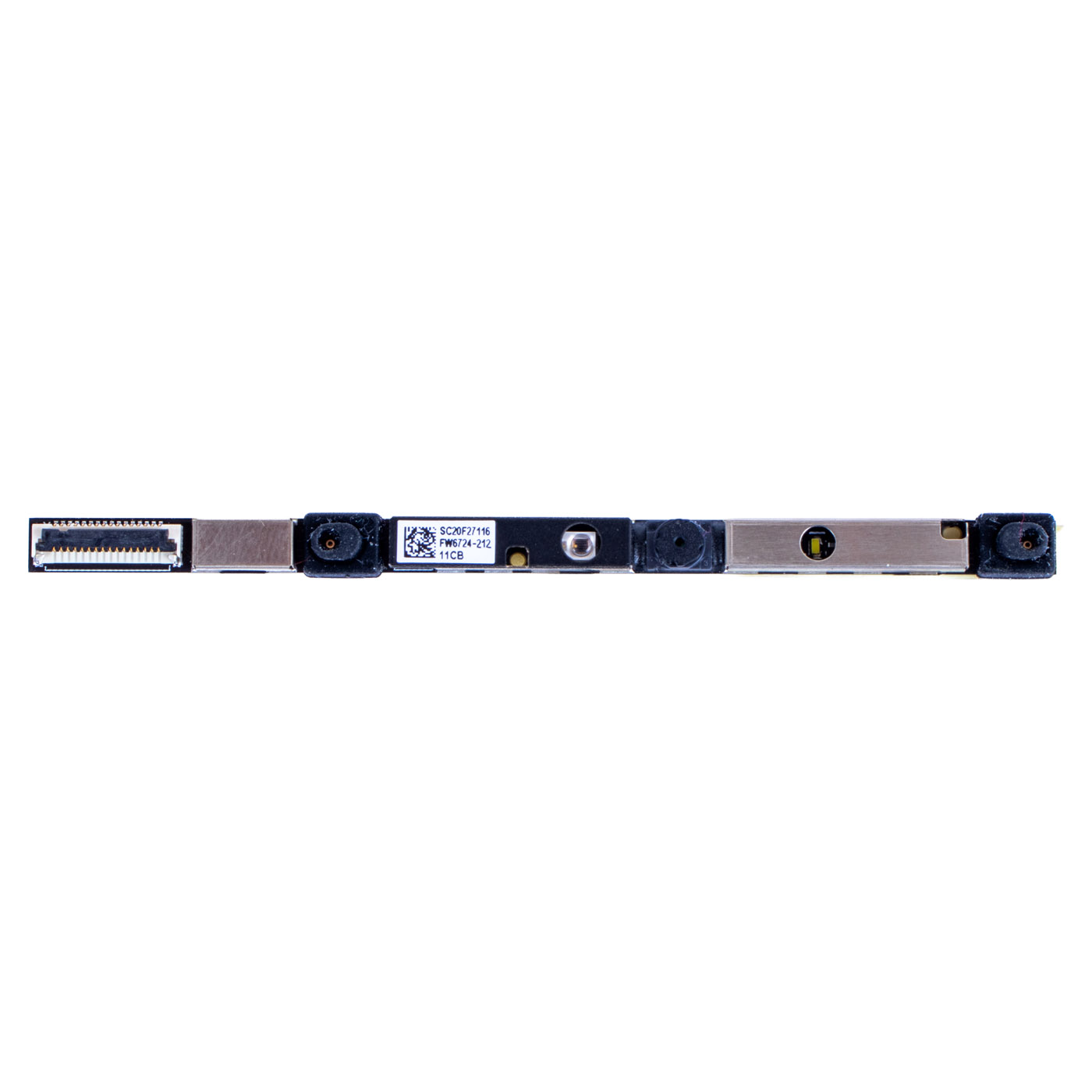

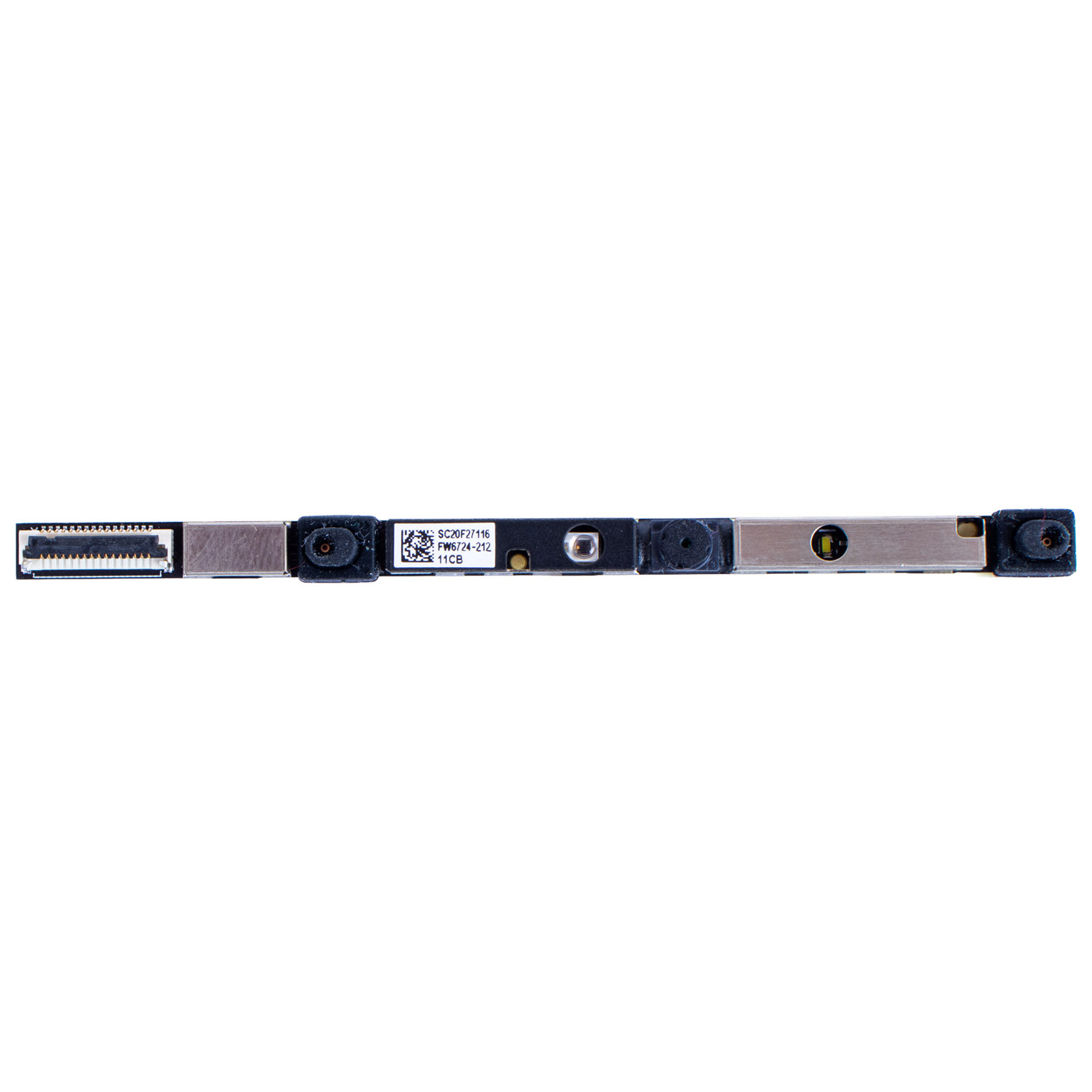

The module sits at the top of the display frame. A single board combines the HD 720p camera, an infrared (IR) camera and two microphones. The IR camera supports Windows Hello face recognition, so the laptop unlocks without typing a password. The module connects through a ZIF connector and is held in place by an adhesive layer on its back. According to Lenovo, 5C20W42992 fits 14 machine types across the ThinkPad P, T and L families.

📋 TECHNICAL SPECIFICATIONS

Part name: HD 720p + IR camera module with microphones (Camera, HD-IR, Front, 2MIC, ZIF)
Brand: Lenovo ThinkPad
Compatible models: ThinkPad P15 Gen 1 (20ST, 20SU), P15 Gen 2 (20YQ, 20YR), P15v Gen 3 (21D8, 21D9, 21EM, 21EN), P17 Gen 1 (20SN, 20SQ), P17 Gen 2 (20YU, 20YV), T15p Gen 1 (20TM, 20TN), T15p Gen 2 (21A7, 21A8), T15p Gen 3 (21DA, 21DB), L14 Gen 1 (20U1, 20U2), L14 Gen 2 (20X1, 20X2, 20X5, 20X6), L15 Gen 1 (20U3, 20U4), L15 Gen 2 (20X3, 20X4)
Camera type: HD 720p + IR (Windows Hello)
Microphones: 2, built into the module
Connector: ZIF

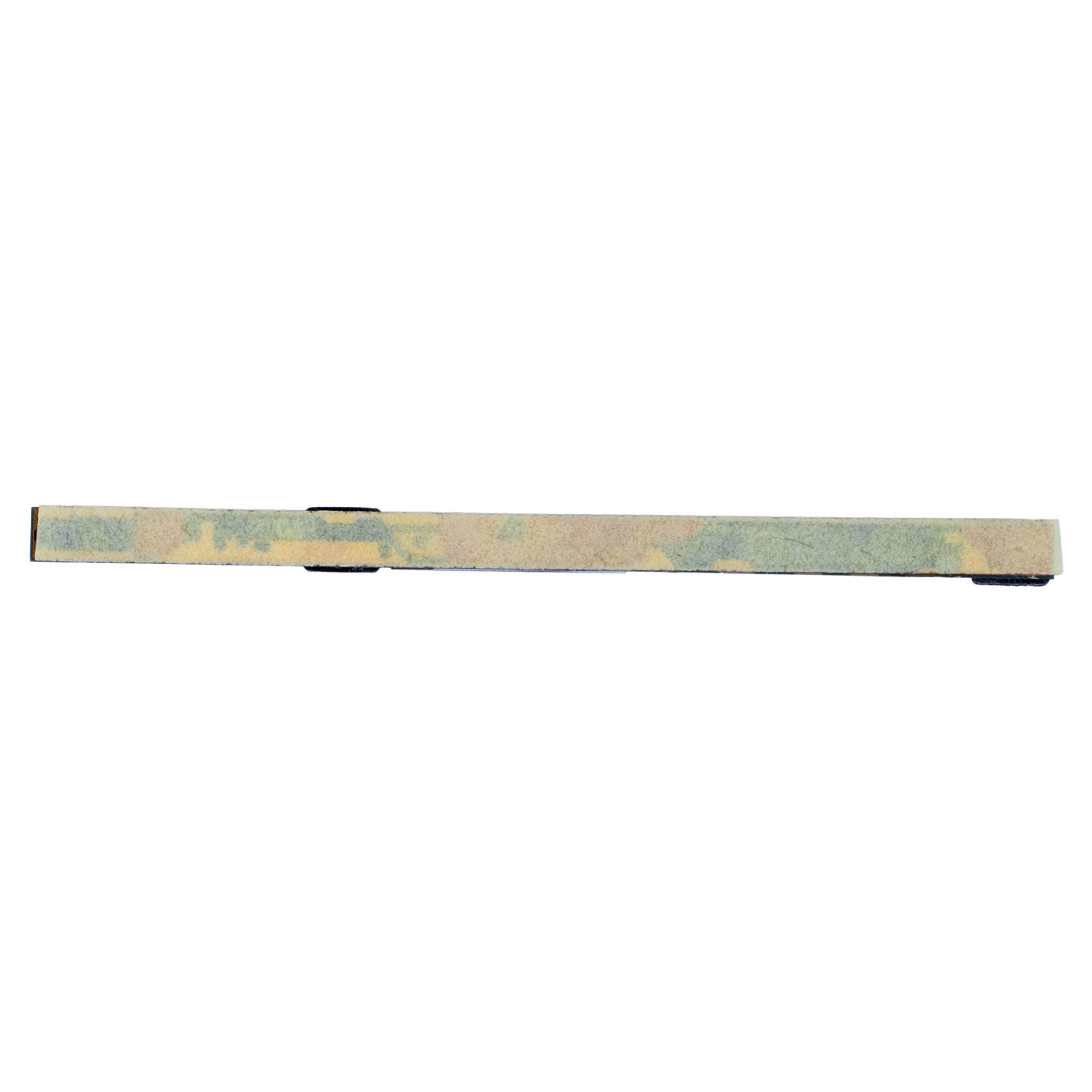

Mounting: adhesive layer on the back of the module
Condition: Used (pulled from a working unit, tested)
Source: removed from a ThinkPad P15 Gen 1
FRU: 5C20W42992
Substitute numbers: 5C20W42993, 5C20W42994
Label markings: SC20F27116, FW6724-212

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - exact fit to the display frame and connector
🔹 IR camera with Windows Hello support - sit down in front of the laptop and it unlocks on its own, no password typing
🔹 Dual microphones in the module - people on Teams or Zoom hear you clearly again, no external mic needed
🔹 100% tested - HD 720p camera, IR camera and microphones checked before listing
🔹 Full compatibility - matched to the ThinkPad P15 Gen 1 and 13 other machine types under FRU 5C20W42992

🔢 PART NUMBERS

FRU: 5C20W42992
Substitute numbers: 5C20W42993, 5C20W42994
Label markings: SC20F27116, FW6724-212
Laptop model: Lenovo ThinkPad P15 Gen 1, P15 Gen 2, P15v Gen 3, P17 Gen 1, P17 Gen 2, T15p Gen 1, T15p Gen 2, T15p Gen 3, L14 Gen 1, L14 Gen 2, L15 Gen 1, L15 Gen 2

❓ WHEN SHOULD YOU REPLACE THE CAMERA?

• The camera is missing from Device Manager and apps say "no camera found"
• Windows Hello face login stopped working or disappeared from settings
• The picture is black or distorted during video calls
• People can't hear you, or the built-in mic sounds very quiet and crackly
• The camera module was damaged after a drop or a failed screen repair

🔧 INSTALLATION PROCESS

Sequence for the ThinkPad P15 Gen 1 (non-touch version) according to the Lenovo Hardware Maintenance Manual (HMM). Other models may differ.
1. Turn off the laptop and disconnect power and all external devices
2. Disable the built-in battery in BIOS (Disable built-in battery option)
3. Remove in order: bottom door, keyboard, keyboard bezel, bottom cover and hinge caps
4. Remove the LCD unit (4 black M2.5 × 8 mm screws, torque 0.294 Nm)
5. Remove the LCD bezel by releasing the latches
6. Release the LCD panel (two elastic adhesive tapes, pull slowly with tweezers) and disconnect the LCD cable from it
7. Disconnect the camera cable from the ZIF connector and peel off the old camera module
8. Stick the new module in the same place and connect the cable to the ZIF connector, making sure it is fully seated
9. Reassemble in reverse order, using new adhesive tapes for the LCD panel
10. Power on and check the camera image, Windows Hello login and microphone recording
Replacement by a technical service or a person experienced in laptop repair is recommended.

🎯 PURPOSE

This module is intended for repairing ThinkPad laptops whose camera, face login or built-in microphones have stopped working. It suits repair shops and remote workers who need a reliable camera for video meetings. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This camera module has been carefully tested and matched to the Lenovo ThinkPad P15 Gen 1. We guarantee full compatibility within FRU 5C20W42992 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
