🔧 FHD LCD Assembly with IR Camera Version (Cables, Antennas) for Lenovo ThinkPad P15 Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 | LCD Cover Assembly with 15.6" FHD Panel | 5CB0Z69119

Complete LCD cover assembly with Full HD panel, eDP cable, IR camera cable and WLAN antennas designed for the Lenovo ThinkPad P15 Gen 1. Part sourced from a working device and tested - we guarantee 100% functionality. It is in good condition, with no damage. FRU number 5CB0Z69119 ensures full compatibility with the ThinkPad P15 Gen 1.

⚙️ PRODUCT OVERVIEW

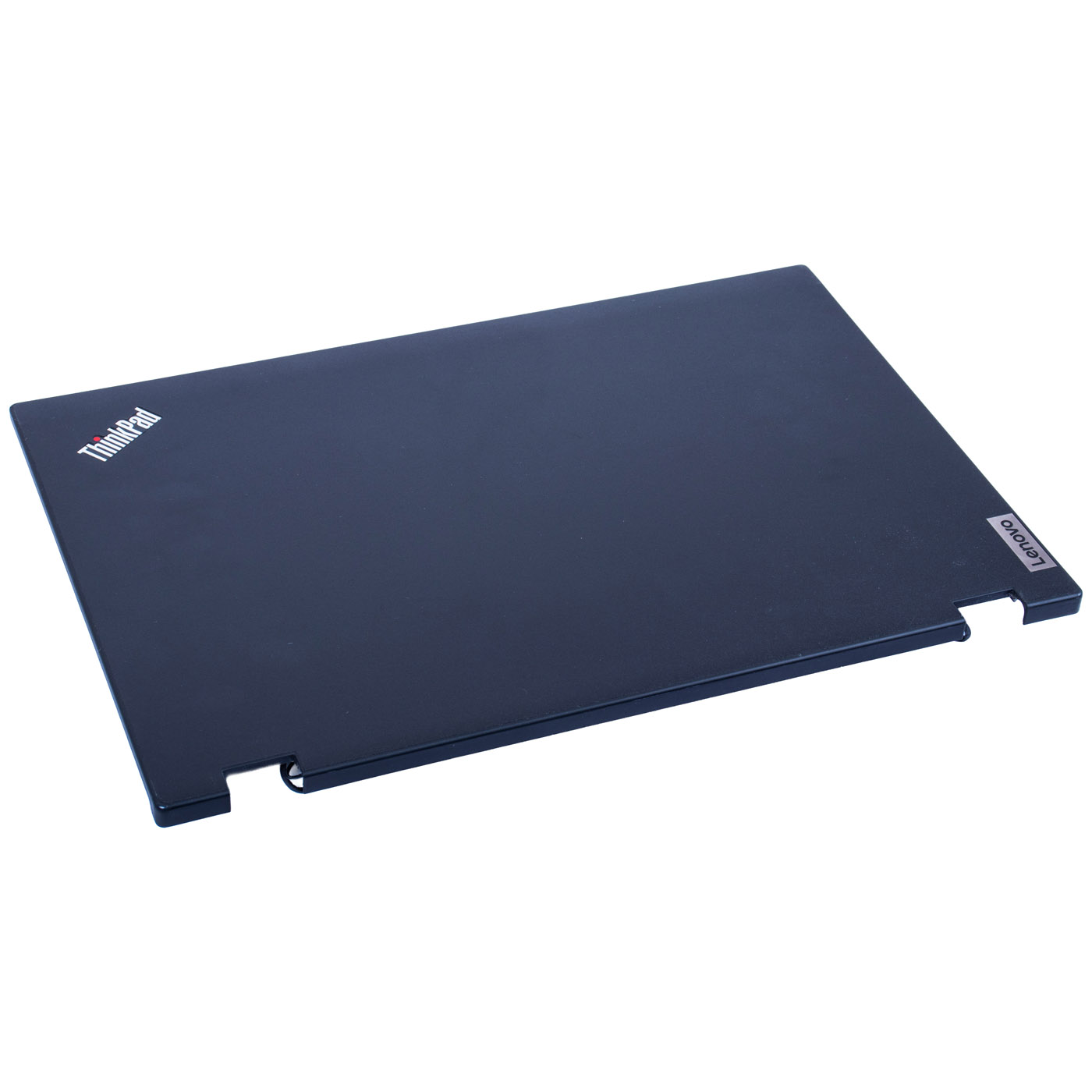

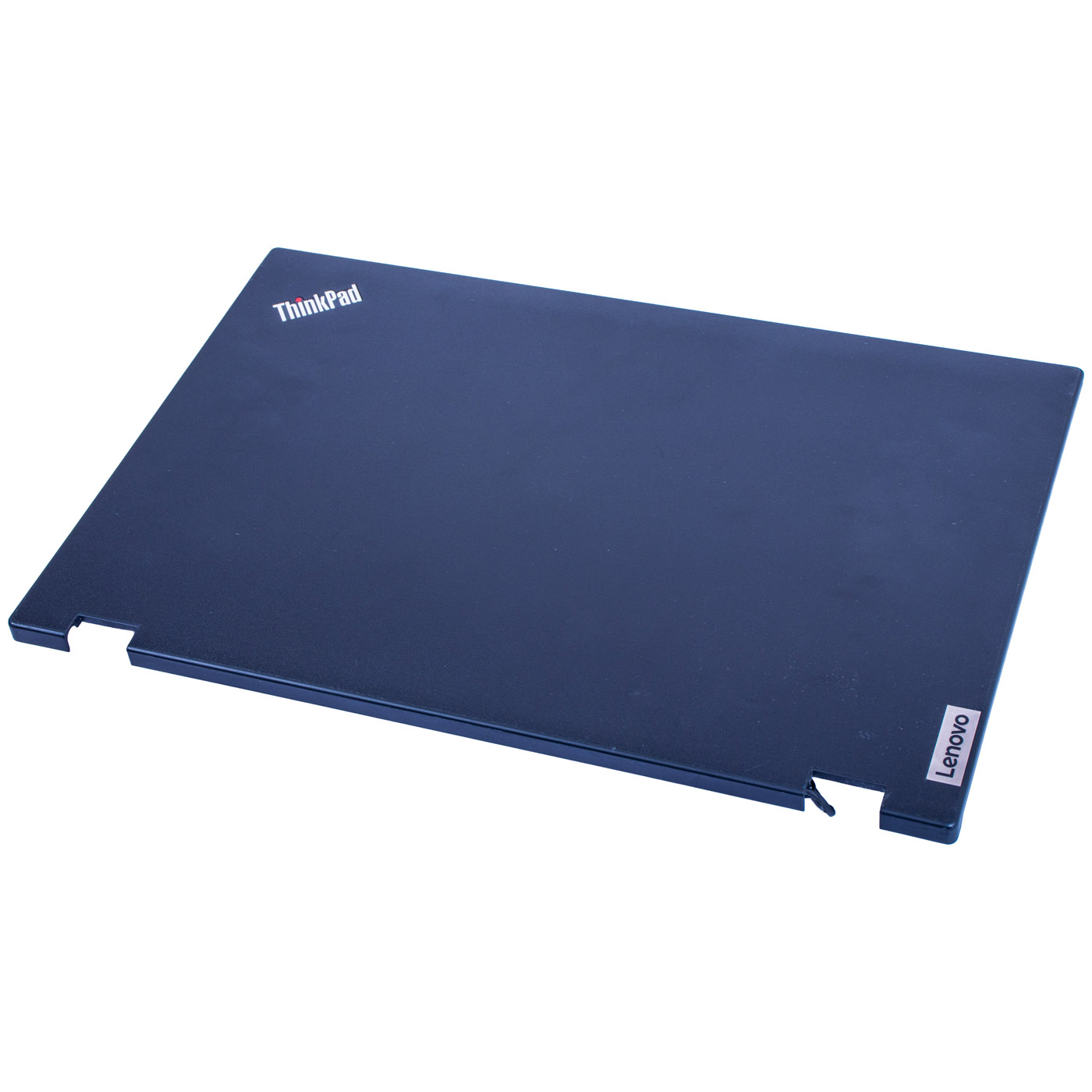

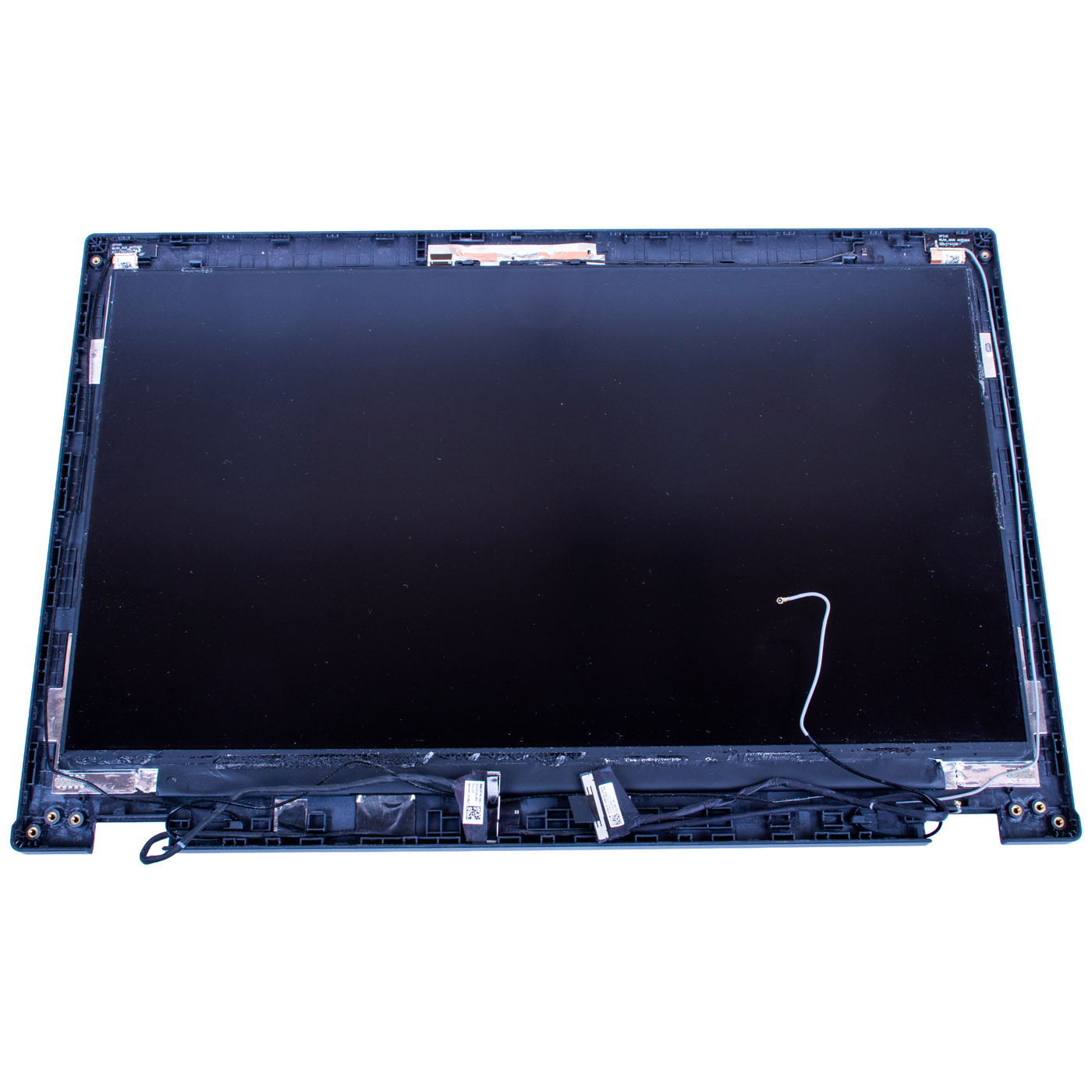

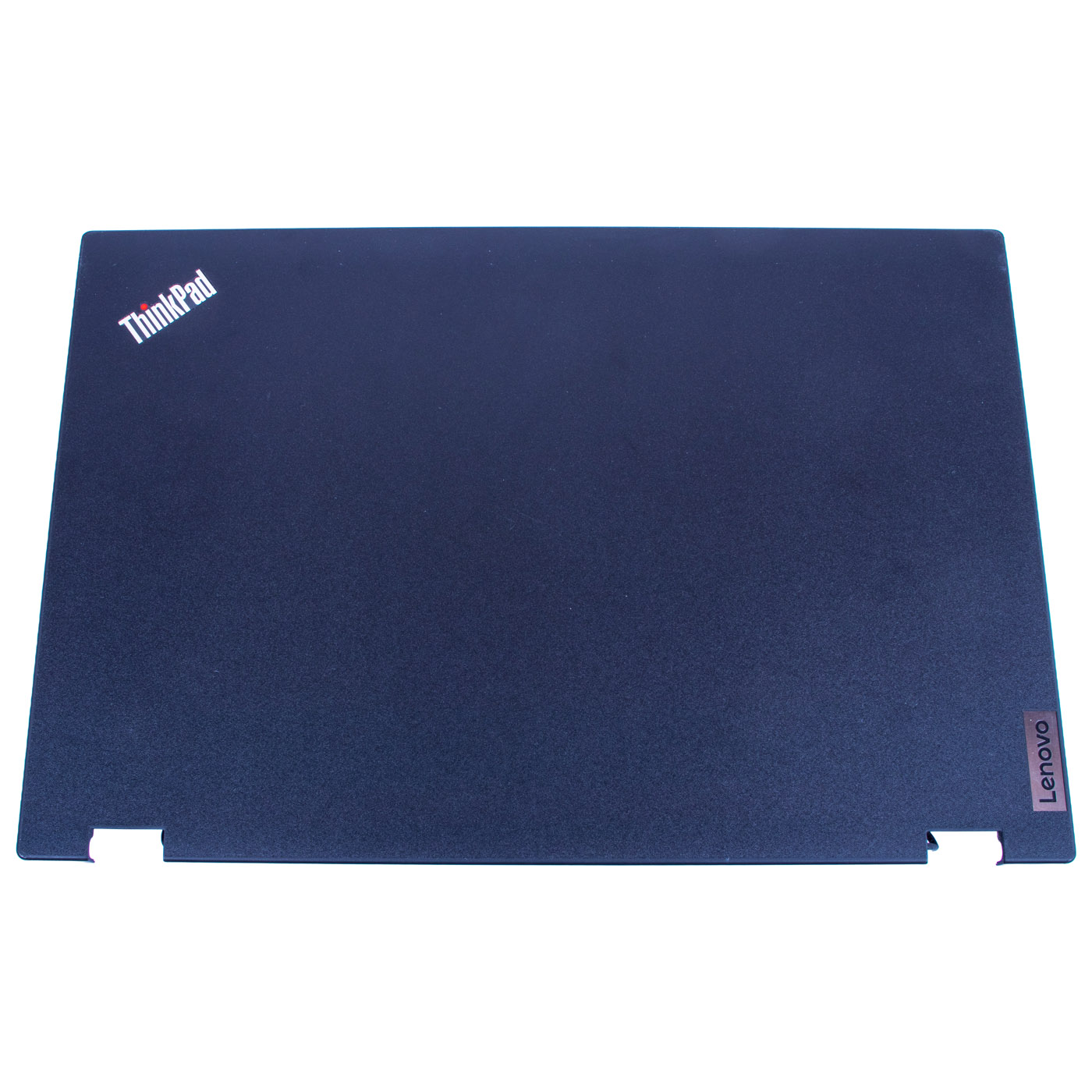

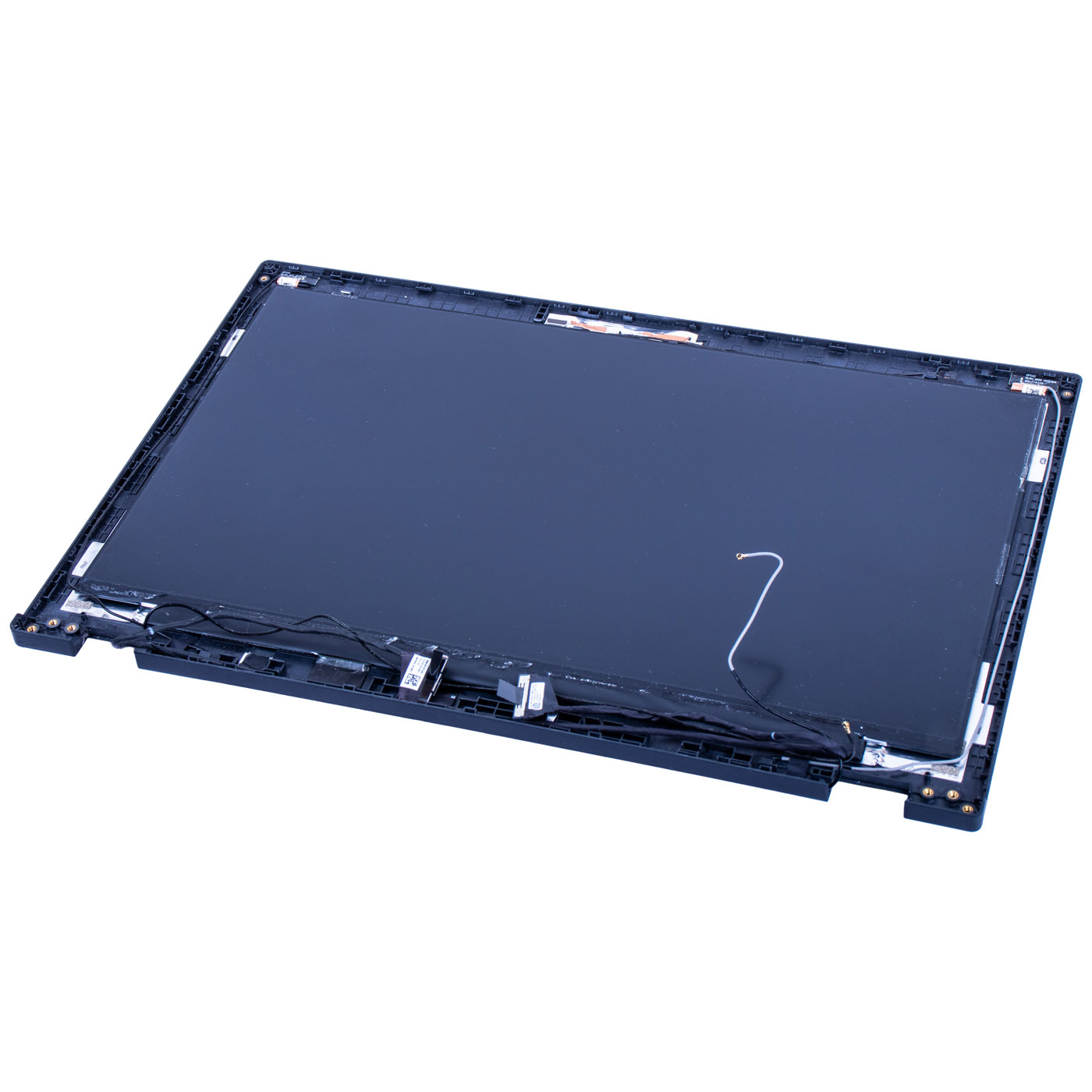

The set is an LCD rear cover (A-cover) in the IR camera version (COVER P15_A_COVER_IR_SUB_ASSY) with its components installed. Inside is a 15.6" AUO Full HD 1920 × 1080 panel, an FHD eDP cable, an IR camera cable, and WLAN Main and Aux antennas. Everything is already routed and attached as from the factory, so there is no need to source and lay out the cables and wires separately. We tested the panel on a laptop: it displays the full 1920 × 1080 resolution, as shown in the test photos.

📋 TECHNICAL SPECIFICATIONS

Part name: LCD cover assembly (A-cover) with panel, cables and antennas
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU)
Screen size: 15.6"
Resolution: 1920 × 1080 (Full HD)
Panel: AUO B156HAN02.H (HWiNFO reading), eDP connector
Cover colour: black
Package contents: LCD cover 5CB0Z69119, 15.6" FHD panel, FHD eDP LCD cable 5C10Z23869, IR camera cable 5C10Z23870, WLAN Main and Aux antennas
Condition: Used (pulled from a working unit, tested), good condition, no damage
FRU: 5CB0Z69119
Substitute numbers: 5C10Z23869 (eDP cable), DC02C00L800 (eDP cable), 5C10Z23870 (IR camera cable), DC020027C20 (IR camera cable)

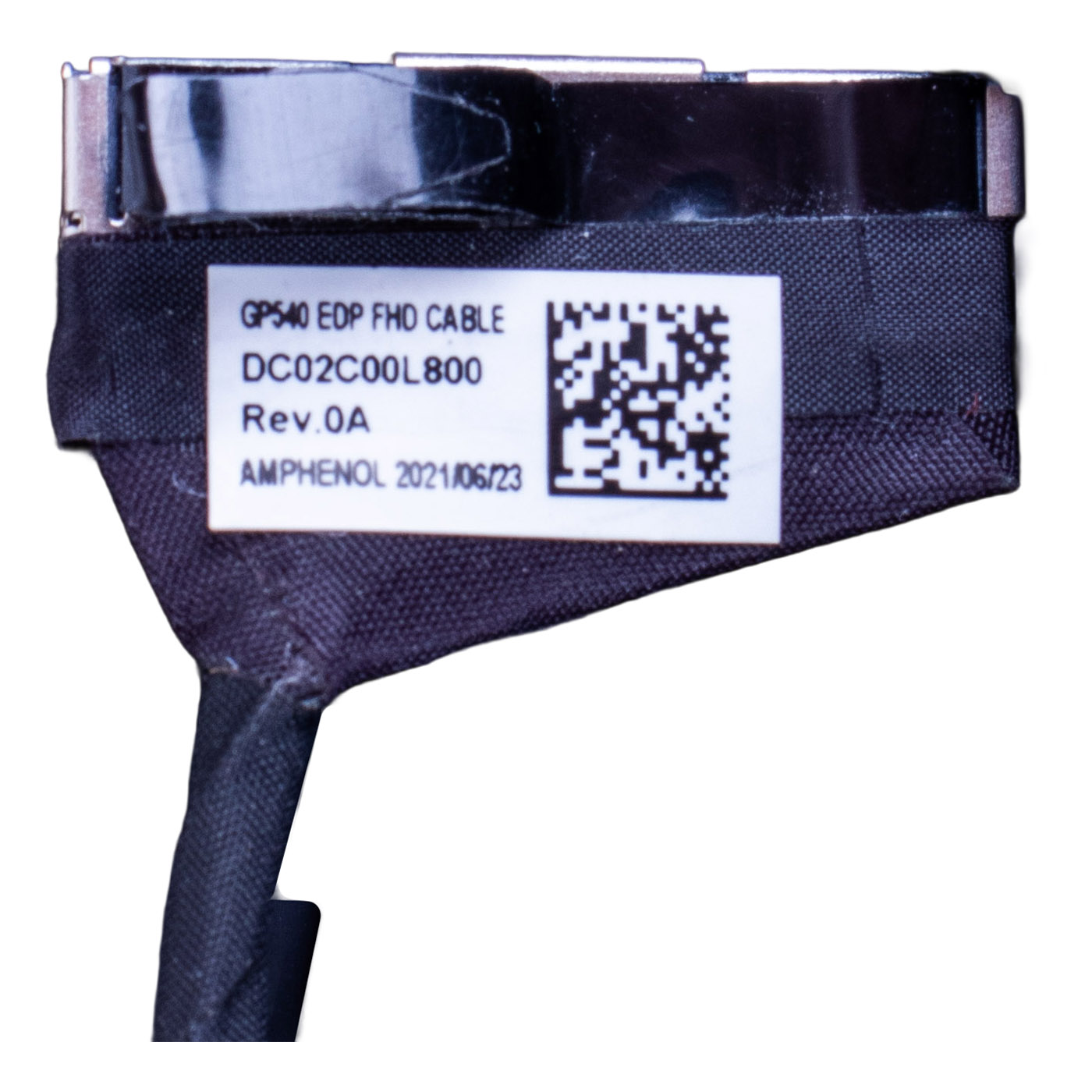

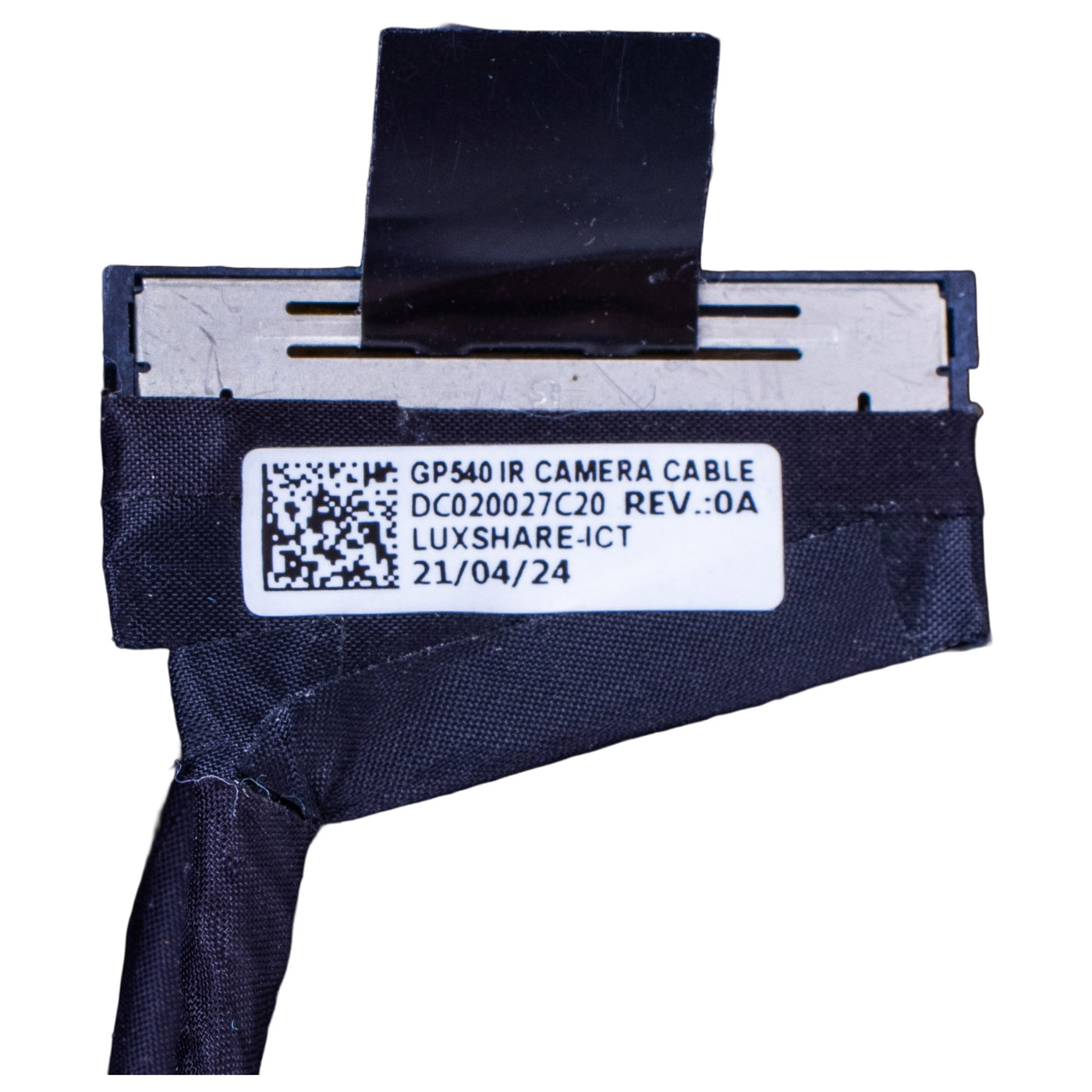

Label markings: GP540 EDP FHD CABLE Rev.0A (Amphenol), GP540 IR CAMERA CABLE REV.:0A (Luxshare-ICT), GP540 WLAN_MAIN ANTENNA, GP540 WLAN_AUX ANTENNA

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Complete assembly in one - panel, cables and antennas are already in place, so the repair is faster and you don't have to hunt for several separate parts
🔹 Full HD panel tested on a laptop - you get a sharp 1920 × 1080 picture straight after installation
🔹 IR camera version - once the IR camera module is transferred, Windows Hello face login works
🔹 WLAN Main and Aux antennas included - Wi-Fi reception just like in the factory laptop
🔹 Full compatibility - matched to the ThinkPad P15 Gen 1 under FRU 5CB0Z69119

🔢 PART NUMBERS

FRU: 5CB0Z69119
Substitute numbers: 5C10Z23869, DC02C00L800, 5C10Z23870, DC020027C20
Label markings: GP540 EDP FHD CABLE Rev.0A, GP540 IR CAMERA CABLE REV.:0A, GP540 WLAN_MAIN ANTENNA, GP540 WLAN_AUX ANTENNA, AUO B156HAN02.H
Laptop model: Lenovo ThinkPad P15 Gen 1 (20ST, 20SU)

❓ WHEN SHOULD YOU REPLACE THE LCD ASSEMBLY?

• The display cover is cracked or the hinge mounts are broken, so the lid wobbles
• The screen is damaged after a drop: cracks, spots, lines or a black screen
• The picture flickers or disappears when you open and close the lid, a sign of a worn LCD cable
• The IR camera and Windows Hello stopped working or Wi-Fi got weak after an earlier screen repair
• Several faults at once in the top half of the laptop, when replacing the whole assembly is cheaper and faster

🔧 INSTALLATION PROCESS

Sequence according to the Lenovo Hardware Maintenance Manual (HMM) for the ThinkPad P15 Gen 1.
1. Turn off the laptop and disconnect power and all external devices
2. Disable the built-in battery in BIOS (Disable built-in battery option)
3. Remove in order: bottom door, keyboard, keyboard bezel, bottom cover and hinge caps
4. Disconnect the LCD cable, camera cable and antenna cables from the system board, noting how they were routed
5. Remove the 4 black M2.5 × 8 mm screws securing the LCD unit and lift off the old assembly
6. Fit the new assembly and tighten the screws to 0.294 Nm
7. Route the cables and antenna wires through the guides without tension and connect them to the system board
8. Reassemble in reverse order
9. Power on and check the picture, camera, Windows Hello and Wi-Fi connection
Replacement by a technical service or a person experienced in laptop repair is recommended.

🎯 PURPOSE

This assembly is intended for repairing a ThinkPad P15 Gen 1 after a broken screen, a cracked cover or a cable fault in the top half of the laptop. It is a good choice for repair shops and users who want to replace everything in one go instead of sourcing several separate parts. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This LCD assembly has been carefully tested and matched to the Lenovo ThinkPad P15 Gen 1. We guarantee full compatibility within FRU 5CB0Z69119 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
