🔧 USB Board with SD Card Reader for Lenovo ThinkPad P15 Gen 1 🔧

🖥️ ThinkPad P15 Gen 1 | I/O Board (USB 3.2 Gen 1 + SD Reader) | 5C50Z44696

Genuine I/O board with USB-A 3.2 Gen 1 port and SD card reader designed for the Lenovo ThinkPad P15 Gen 1. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5C50Z44696 ensures full compatibility with the ThinkPad P15 Gen 1.

⚙️ PRODUCT OVERVIEW

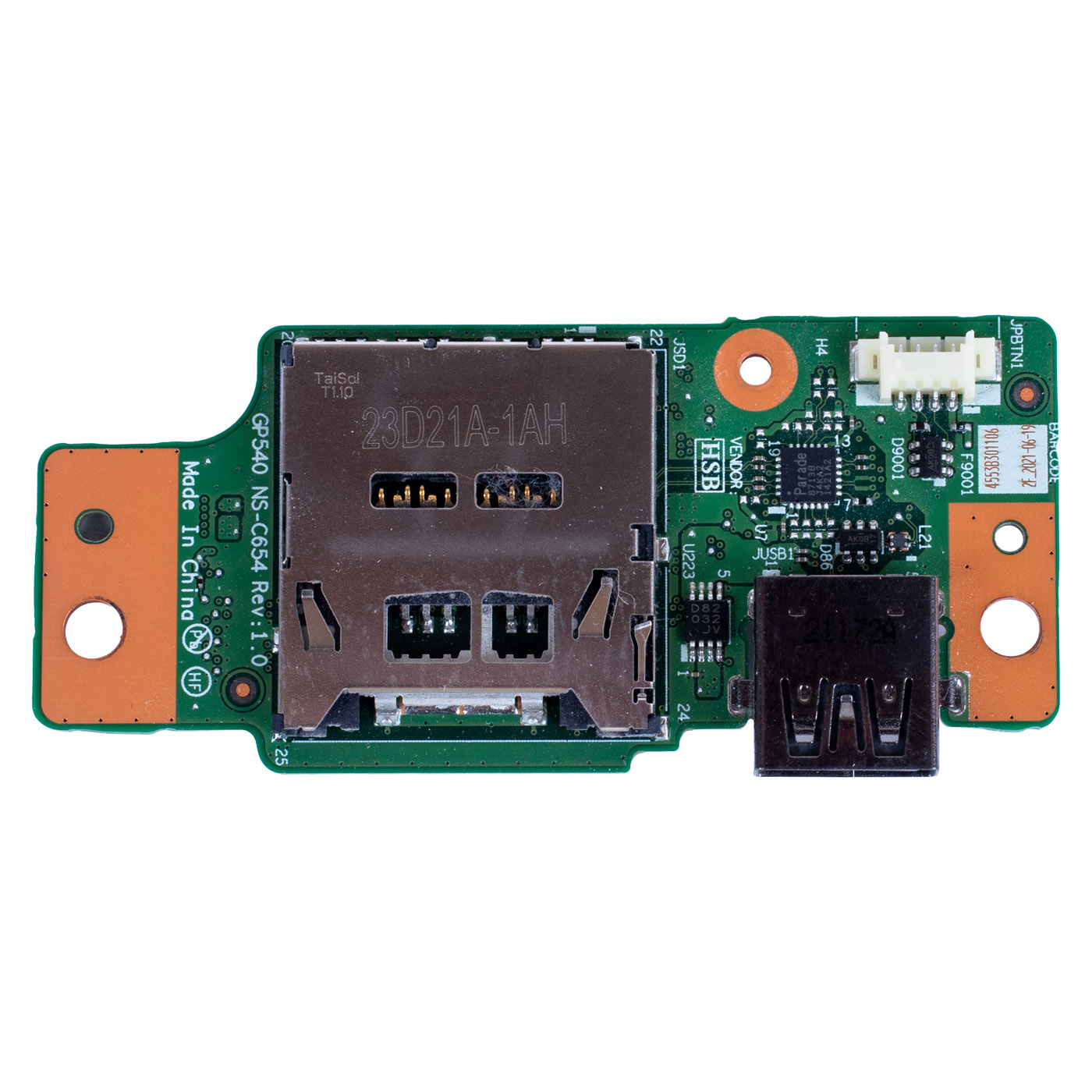

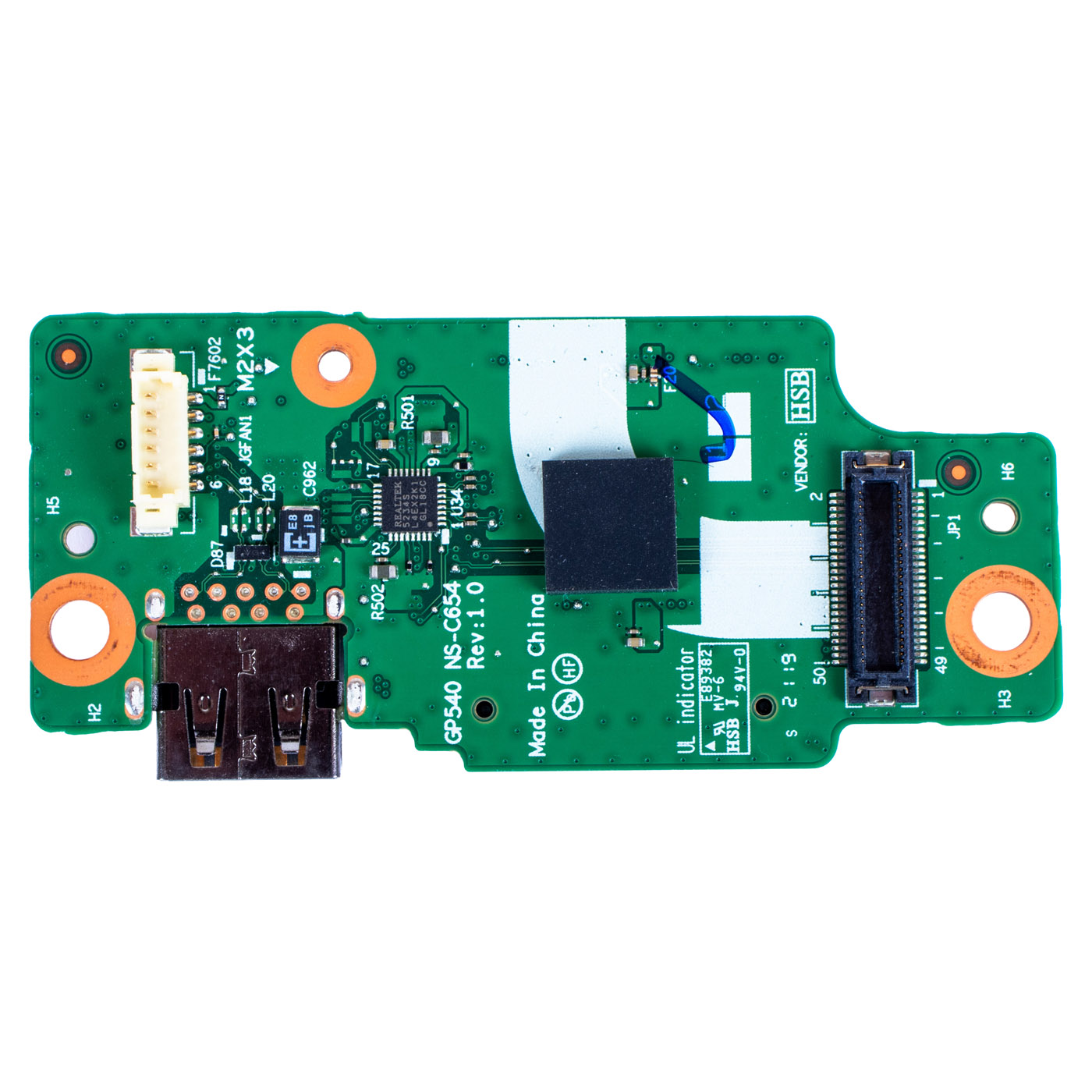

This board sits on the right side of the laptop and provides the USB 3.2 Gen 1 (USB-A) port and the SD card slot on the right-hand side of the chassis. It connects to the system board through the JP1 connector on its underside, and on top it has two cable connectors marked JPBTN1 and JGFAN1. The PCB is marked GP540 NS-C654 Rev:1.0.

📋 TECHNICAL SPECIFICATIONS

Part name: I/O board with USB port and SD card reader (CARDPOP P15 IO/B)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 (20ST, 20SU)
Ports on the board: USB 3.2 Gen 1 (USB-A), SD card slot
Condition: Used (pulled from a working unit, tested)
FRU: 5C50Z44696
Substitute numbers: NS-C654
Label markings: GP540 NS-C654 Rev:1.0

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo part - perfect fit and reliability
🔹 Two ports on one board - after replacement both the USB port and the card reader on the right side work again
🔹 USB 3.2 Gen 1 - flash drives and external disks copy files at full speed, not in USB 2.0 mode
🔹 SD card reader - copy photos from your camera or drone without an adapter or external reader
🔹 Full compatibility - matched to the ThinkPad P15 Gen 1 under FRU 5C50Z44696

🔢 PART NUMBERS

FRU: 5C50Z44696
Substitute numbers: NS-C654
Label markings: GP540 NS-C654 Rev:1.0
Laptop model: Lenovo ThinkPad P15 Gen 1 (20ST, 20SU)

❓ WHEN SHOULD YOU REPLACE THE USB BOARD?

• The right-hand USB port doesn't detect a flash drive or mouse
• The USB socket is damaged or loose, so the plug wobbles or the device disconnects
• The card reader doesn't see the SD card or interrupts copying
• The socket broke after a protruding flash drive was knocked

🔧 INSTALLATION PROCESS

Sequence according to the Lenovo Hardware Maintenance Manual (HMM) for the ThinkPad P15 Gen 1.
1. Turn off the laptop and disconnect power and all external devices
2. Disable the built-in battery in BIOS (Disable built-in battery option)
3. Remove the bottom door, then the bottom cover
4. Disconnect the cables from the board connectors and unplug the board from the system board
5. Remove the screw securing the board (M2 × 3 mm, black) and lift out the board
6. Fit the new board, tighten the screw to 0.181 Nm and reconnect the connectors
7. Refit the bottom cover and bottom door
8. Power on and check the USB port and the SD card reader
Replacement by a technical service or a person experienced in laptop repair is recommended.

🎯 PURPOSE

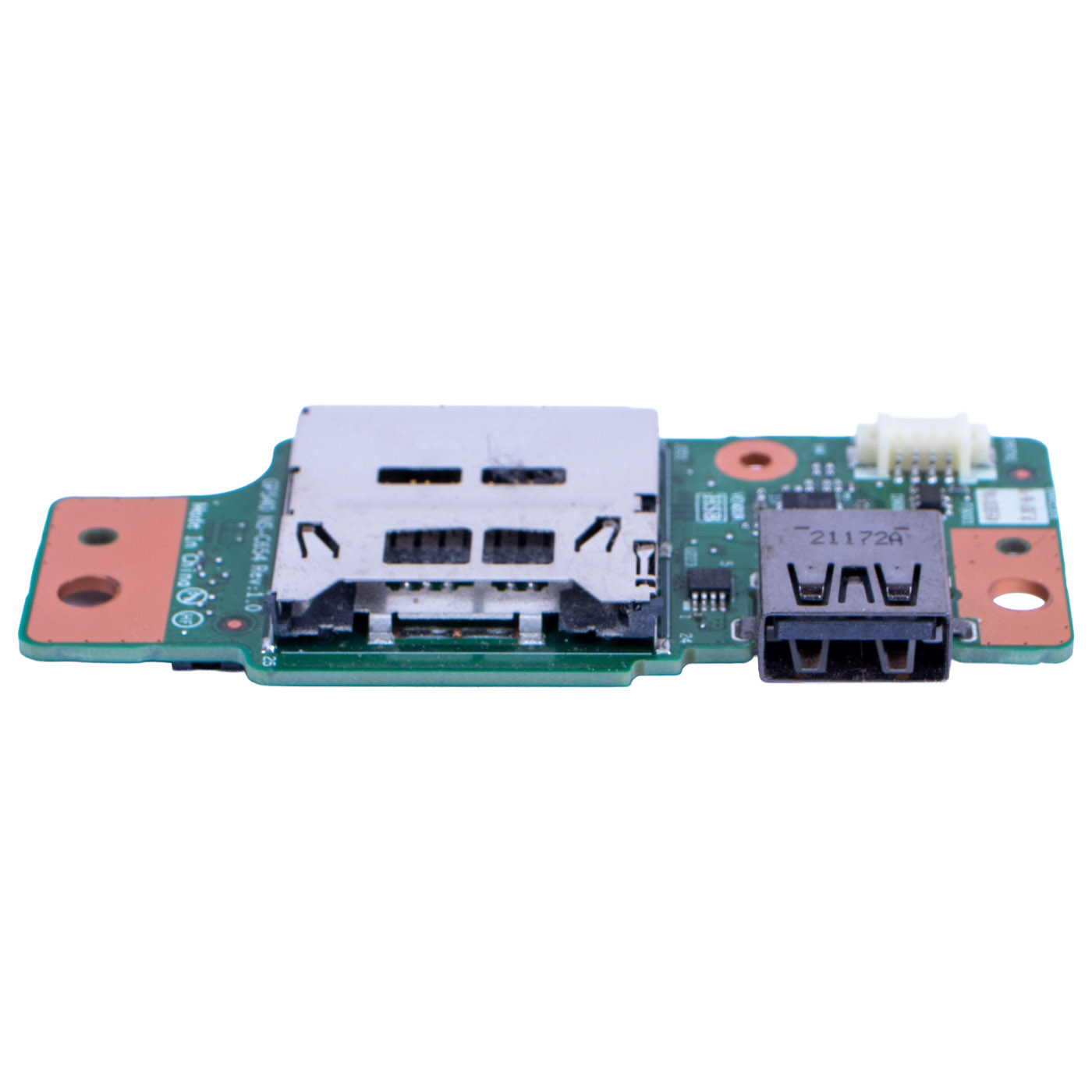

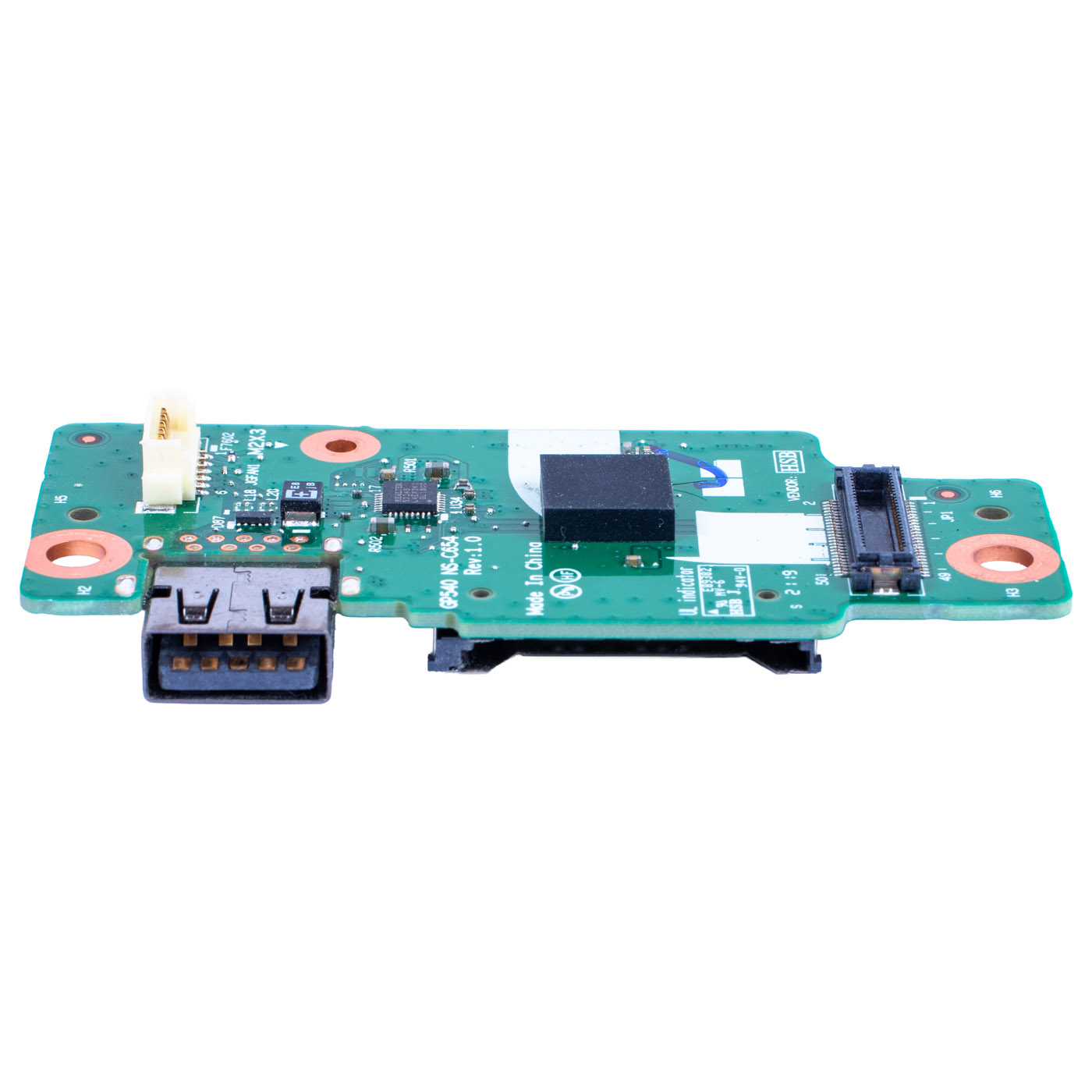

This board is intended for repairing a ThinkPad P15 Gen 1 whose right-hand USB port or SD card reader has stopped working. It restores full functionality on the right side of the laptop without replacing the system board. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

This board has been carefully tested and matched to the Lenovo ThinkPad P15 Gen 1. We guarantee full compatibility within FRU 5C50Z44696 and 100% functionality of the part. If you experience any compatibility issues, we offer a hassle-free return within 14 days.
