🔧 512 GB M.2 NVMe SSD SK Hynix for Lenovo ThinkPad Laptops 🔧

💾 SK Hynix PC611 | M.2 2280 PCIe 3.0 x4 NVMe | 512 GB | OPAL | FRU 5SS0V26405

SK Hynix 512 GB SSD in M.2 2280 form factor with PCIe 3.0 x4 NVMe interface and OPAL hardware encryption - a genuine Lenovo drive, factory-fitted in laptops such as the ThinkPad P15 Gen 1 and P17 Gen 1. Part sourced from a working device and tested - we guarantee 100% functionality. FRU number 5SS0V26405 confirms it is a genuine Lenovo service part.

⚙️ PRODUCT OVERVIEW

The SK Hynix PC611 (HFS512GD9TNI) is an NVMe SSD running on four PCIe 3.0 lanes, delivering sequential reads of up to 3500 MB/s, several times faster than SATA drives. It supports TCG Opal hardware encryption (self-encrypting drive), used by BitLocker and corporate security policies. Thanks to the standard M.2 2280 form factor, it fits not only the ThinkPad P15 and P17 Gen 1, but also many other laptops and PCs with an NVMe-capable M.2 2280 slot.

📋 TECHNICAL SPECIFICATIONS

Part name: M.2 NVMe SSD
Brand: Lenovo (drive manufacturer: SK Hynix)
Model: SK Hynix PC611 (HFS512GD9TNI)
Capacity: 512 GB
Interface: PCIe 3.0 x4, NVMe
Form factor: M.2 2280
Sequential read: up to 3500 MB/s
Encryption: TCG Opal (hardware encryption)
Example compatible models: ThinkPad P15 Gen 1 (20ST, 20SU), ThinkPad P17 Gen 1 (20SN, 20SQ)

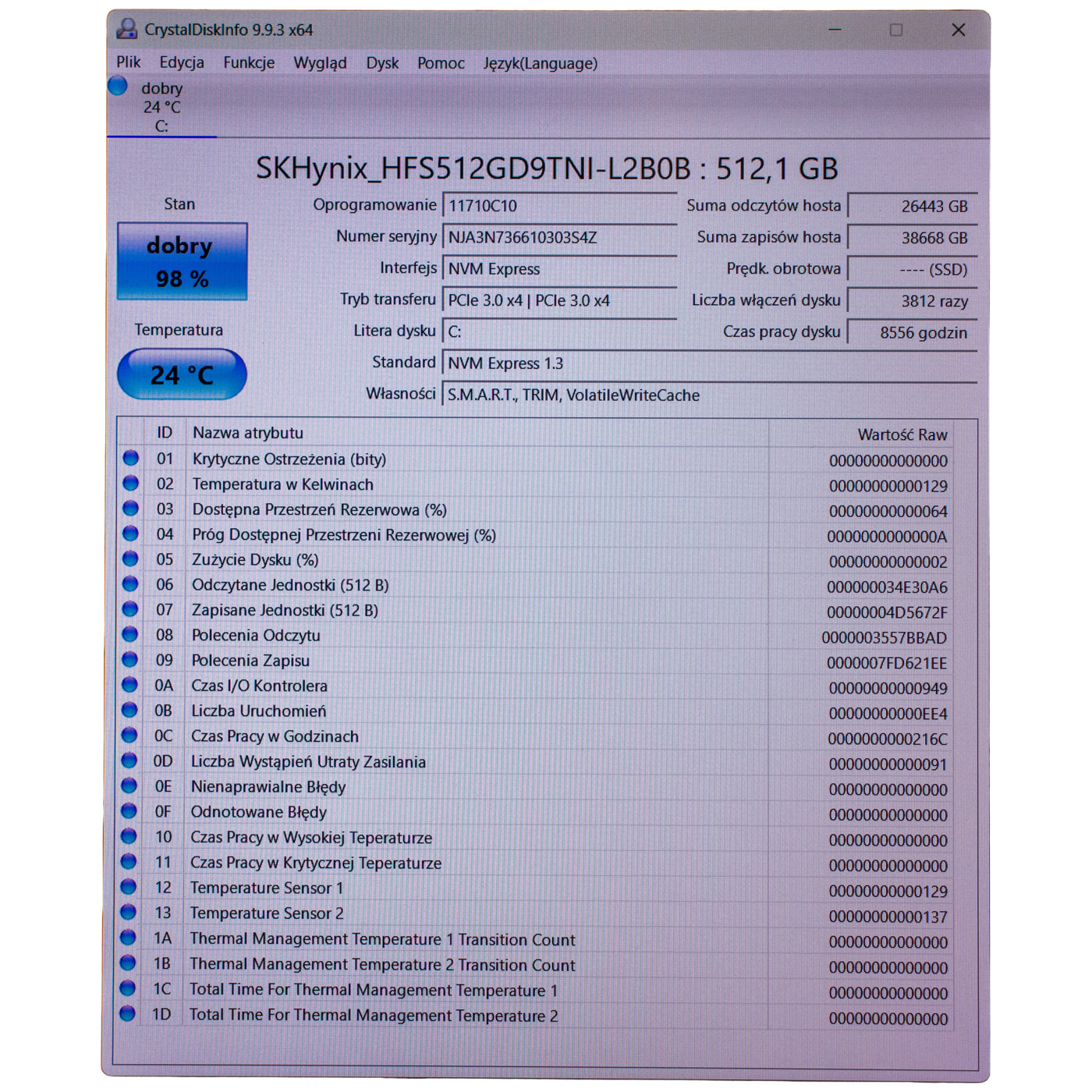

Condition: Used, working, tested
FRU: 5SS0V26405
Replacement part numbers: 5SD1V60577, 5SD1U51512, 5SS0V26442, 01LX205

🌟 KEY BENEFITS

🔹 Genuine Lenovo part - factory FRU-numbered drive, the same one Lenovo installs in its mobile workstations
🔹 PCIe 3.0 x4 NVMe interface - reads up to 3500 MB/s, so the system boots in seconds and large projects or virtual machines open without waiting
🔹 TCG Opal hardware encryption - data protected without loading the CPU; if the laptop is stolen, nobody can read the drive
🔹 512 GB capacity - room for the OS, applications and projects without constantly moving files to an external drive
🔹 Universal M.2 2280 form factor - fits ThinkPad P15/P17 Gen 1 and many other laptops with an M.2 NVMe slot

🔢 PART NUMBERS

FRU: 5SS0V26405
Replacement part numbers: 5SD1V60577, 5SD1U51512, 5SS0V26442, 01LX205
Drive model: SK Hynix PC611 (HFS512GD9TNI)
Example laptop models: Lenovo ThinkPad P15 Gen 1, ThinkPad P17 Gen 1

❓ WHEN SHOULD YOU REPLACE THE SSD?

• Problem with a slow laptop - the system takes ages to boot and applications open with a delay
• Problem with running out of space - low disk space warnings and updates that refuse to install
• Problem with a failed drive - "No bootable device" message, system freezes or errors when copying files
• Problem with a slow SATA drive - moving to NVMe makes the whole laptop noticeably faster
• Problem with missing hardware encryption - company data protection requirements on a business laptop

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Remove the screws securing the bottom cover and carefully lift it off
3. Disconnect the battery from the motherboard
4. Remove the screw securing the existing M.2 drive and slide it out of the slot
5. Insert the new drive into the M.2 slot at a slight angle, press it down and secure it with the screw
6. Reconnect the battery, refit the bottom cover and tighten the screws
7. Power on the laptop, check that the drive is detected in BIOS and install the OS or restore your backup
We recommend having the replacement performed by a technical service or someone experienced in laptop repairs.

🎯 INTENDED USE

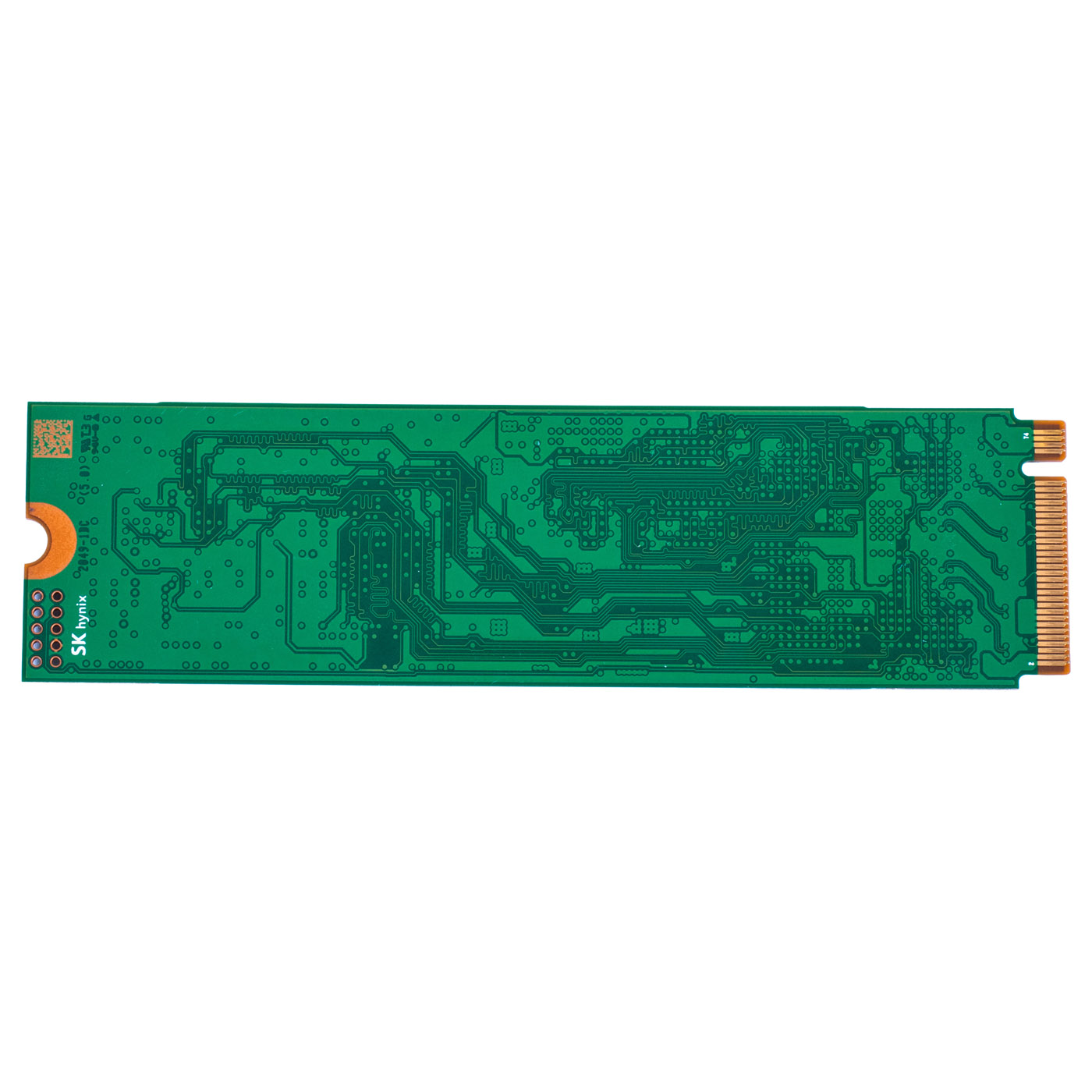

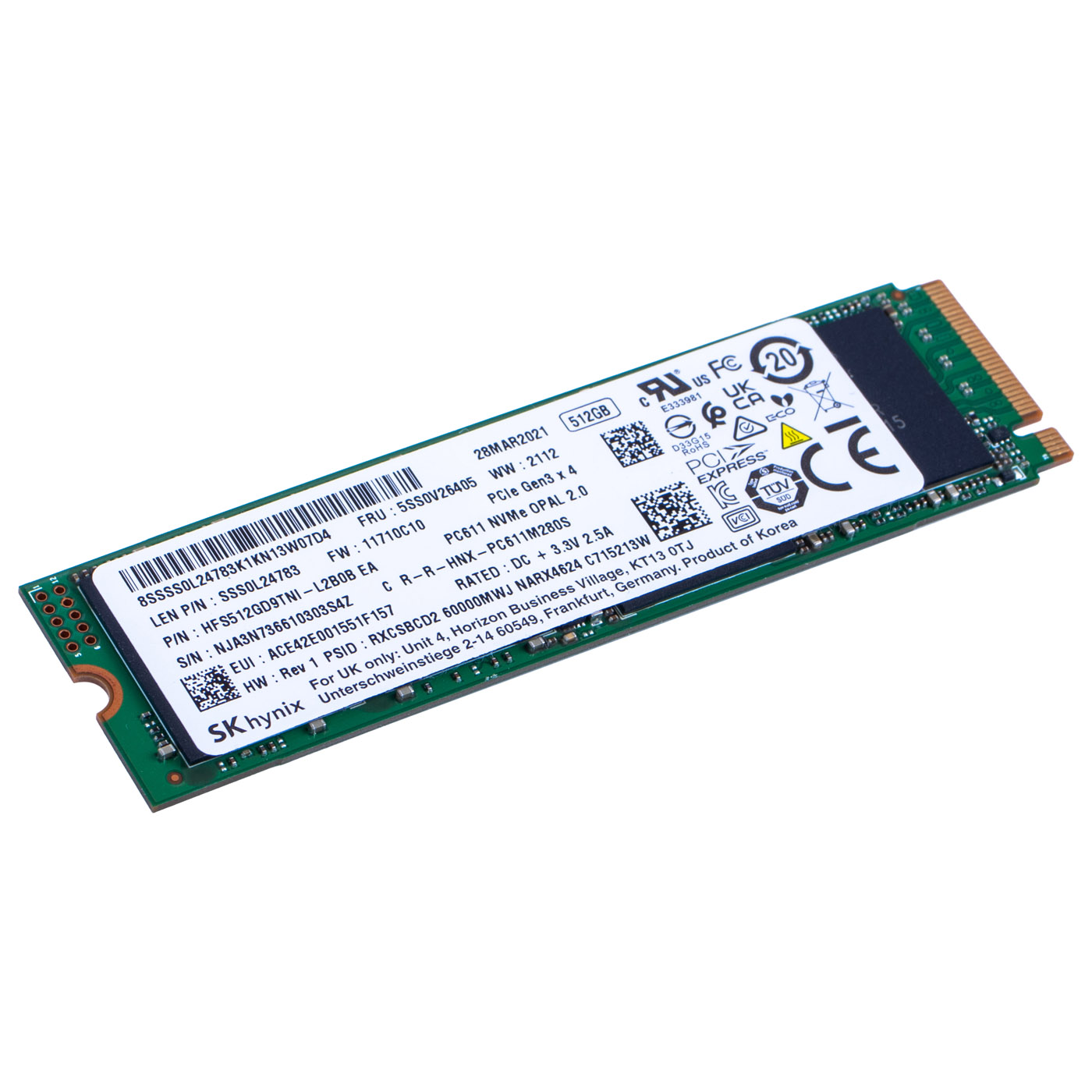

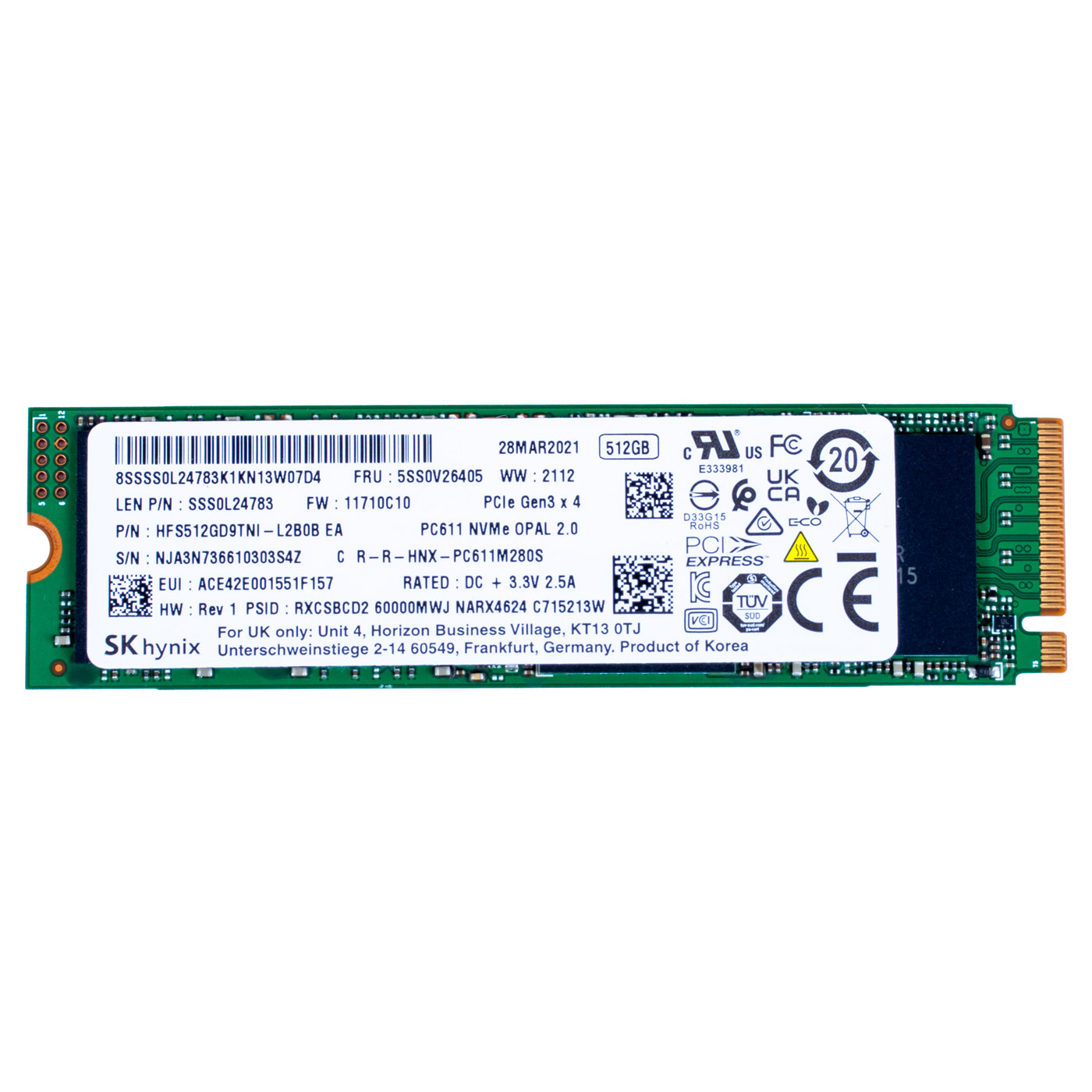

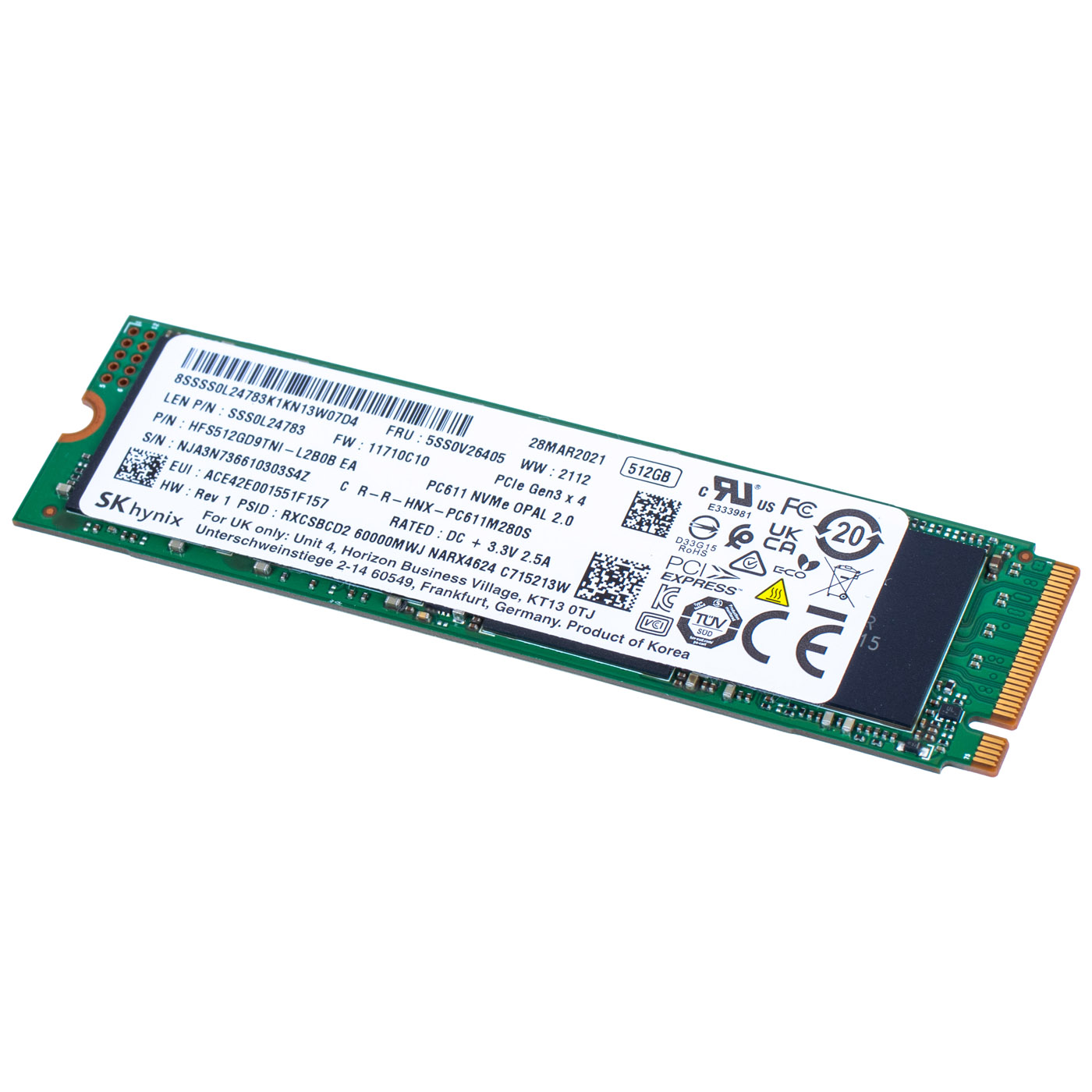

This drive is intended for owners of Lenovo ThinkPad P15 Gen 1 and P17 Gen 1 laptops, as well as other laptops with an M.2 2280 NVMe slot, who need fast and secure storage. It is ideal for replacing a failed drive, increasing capacity and for business laptops where hardware encryption is required. The exact appearance and condition of the item are shown in the photos.

✅ COMPATIBILITY GUARANTEE

The SSD on offer has been carefully checked and matched to Lenovo ThinkPad laptops. We guarantee full compatibility within FRU number 5SS0V26405 and 100% functionality of the part. In case of any compatibility issues, we offer a hassle-free return within 14 days.
